About this item
About this item
- Airflow & Efficiency: 4,876 CFM high (264.71 CFM/W, 18.42W) / 1,421 CFM low — Energy Star, Title 20 — ideal for covered patios and large outdoor living areas up to 300 sq ft.
- DC Motor: 123×30mm, 6 speeds, Summer & Winter modes — three-blade taper-and-twist design in Dark Bronze / Ashwood for year-round wet-rated comfort.
- Wet Rated: ETL Listed for wet locations — exposed outdoor areas, covered patios, coastal great rooms, and large open-plan spaces.
- Smart Controls: RC1000 remote included (6-speed, full-range dimmer), WC1000 sold separately — Bond BD-1000 compatible, Bond Home app (iOS/Android), Alexa, Google Home, Ecobee.
- Integrated LED: 20W, 1,295.87 lm, 3000K, CRI 90, 30,000 hrs, dimmable — polycarbonate etched lens.
Description
Description

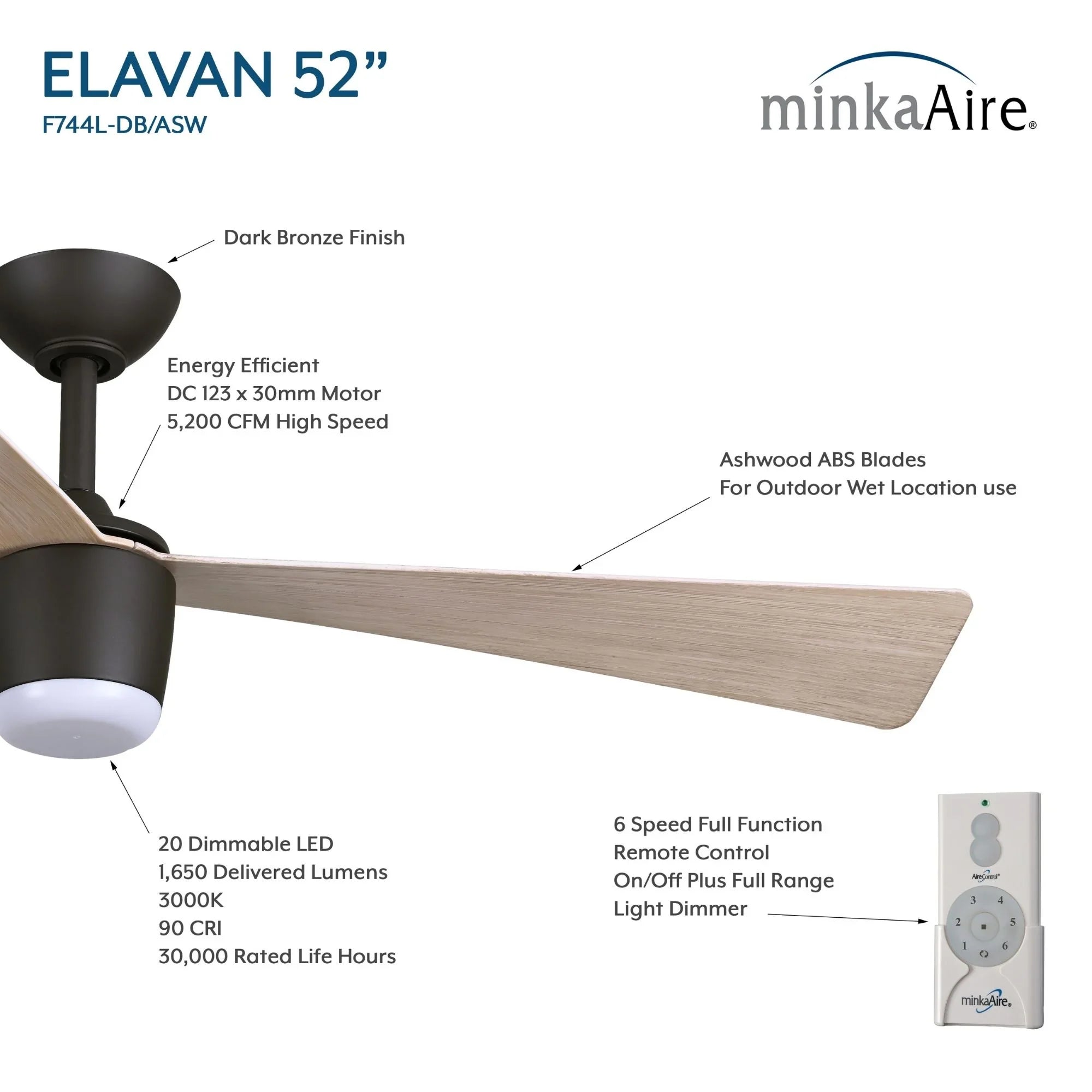

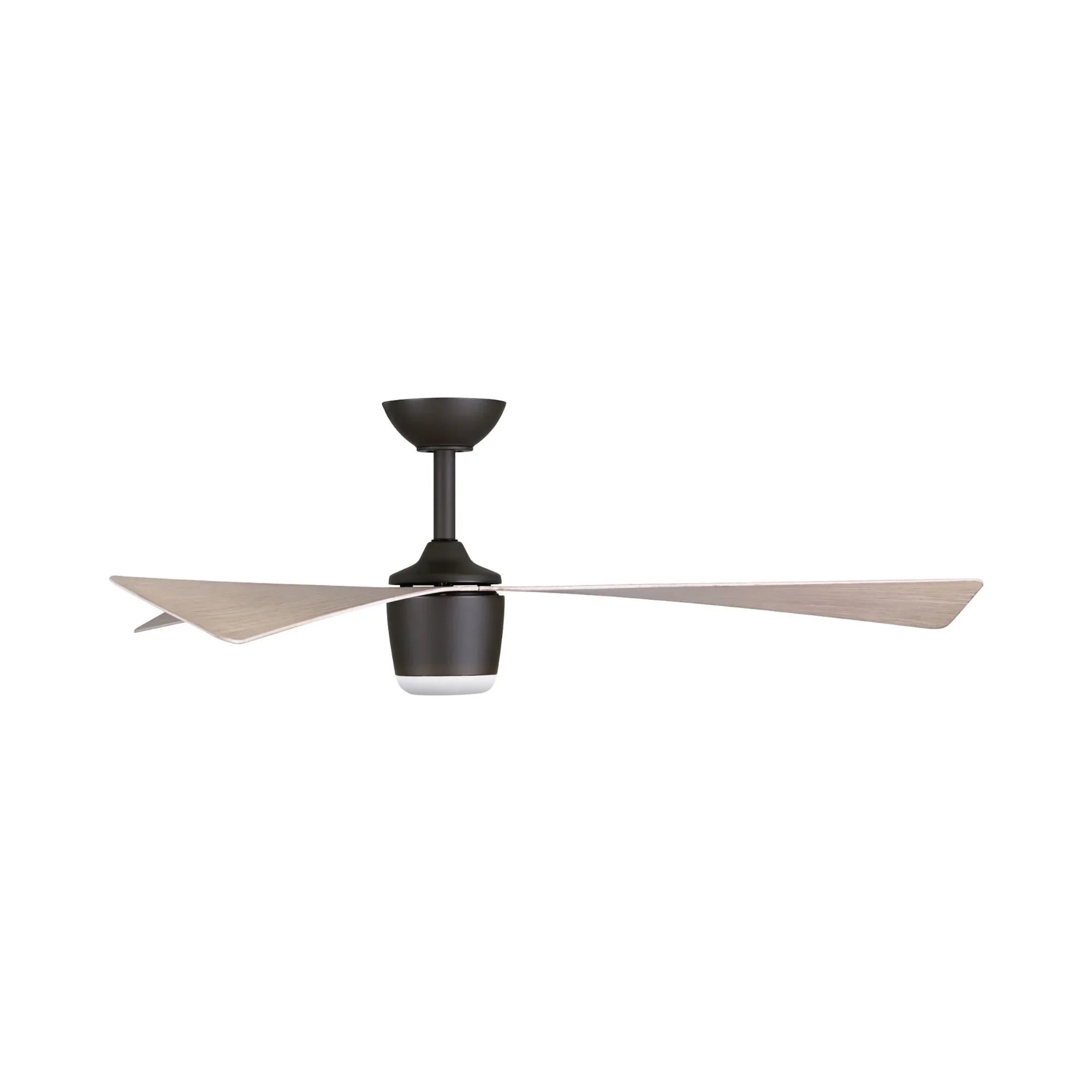

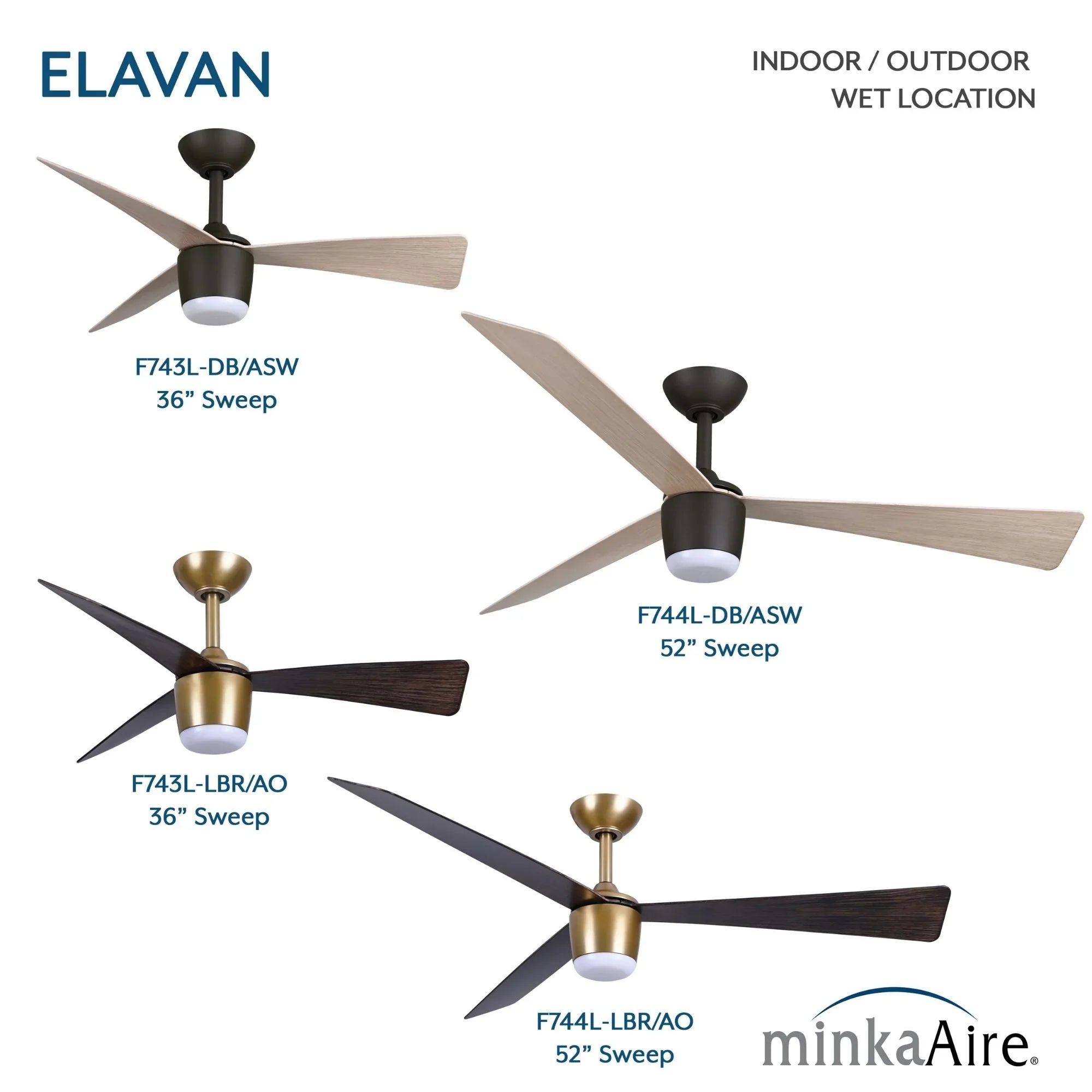

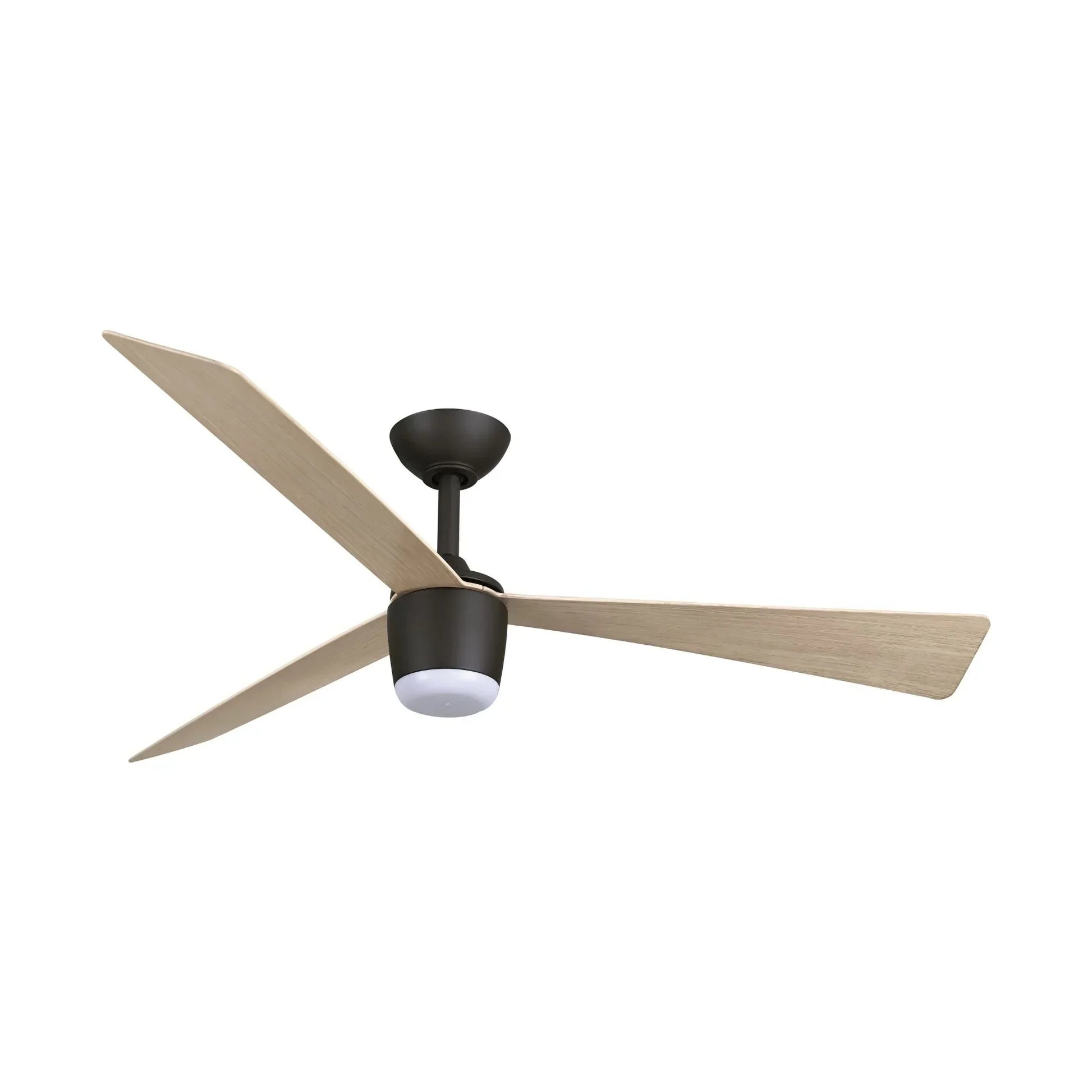

The Minka Aire Elavan F744L-DB/ASW is a three-blade 52 in downrod LED ceiling fan in Dark Bronze with Ashwood ABS blades. Powered by an efficient DC 123×30mm motor, it delivers 4,876 CFM at high speed at just 18.42W — an outstanding 264.71 CFM/W efficiency rating. Energy Star rated, Bond BD-1000 compatible, ETL Listed for wet locations.
Key Features- Blade Span: 52 in, 3 ABS blades, 24° pitch, Ashwood
- Motor: DC 123×30mm, 6 speeds, reversible rotation — Summer & Winter modes
- Airflow: 4,876 CFM high / 1,421 CFM low — 264.71 CFM/W high / 789.44 CFM/W low
- Wattage: 18.42W high / 1.8W low
- Light Kit: Integrated 20W LED — 1,295.87 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, polycarbonate etched lens
- Location Rating: ETL Listed for Wet Locations — Indoor/Outdoor use. Energy Star rated. Title 20 compliant.
- Smart Control: Bond BD-1000 compatible (sold separately) — Bond Home app + voice control
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible

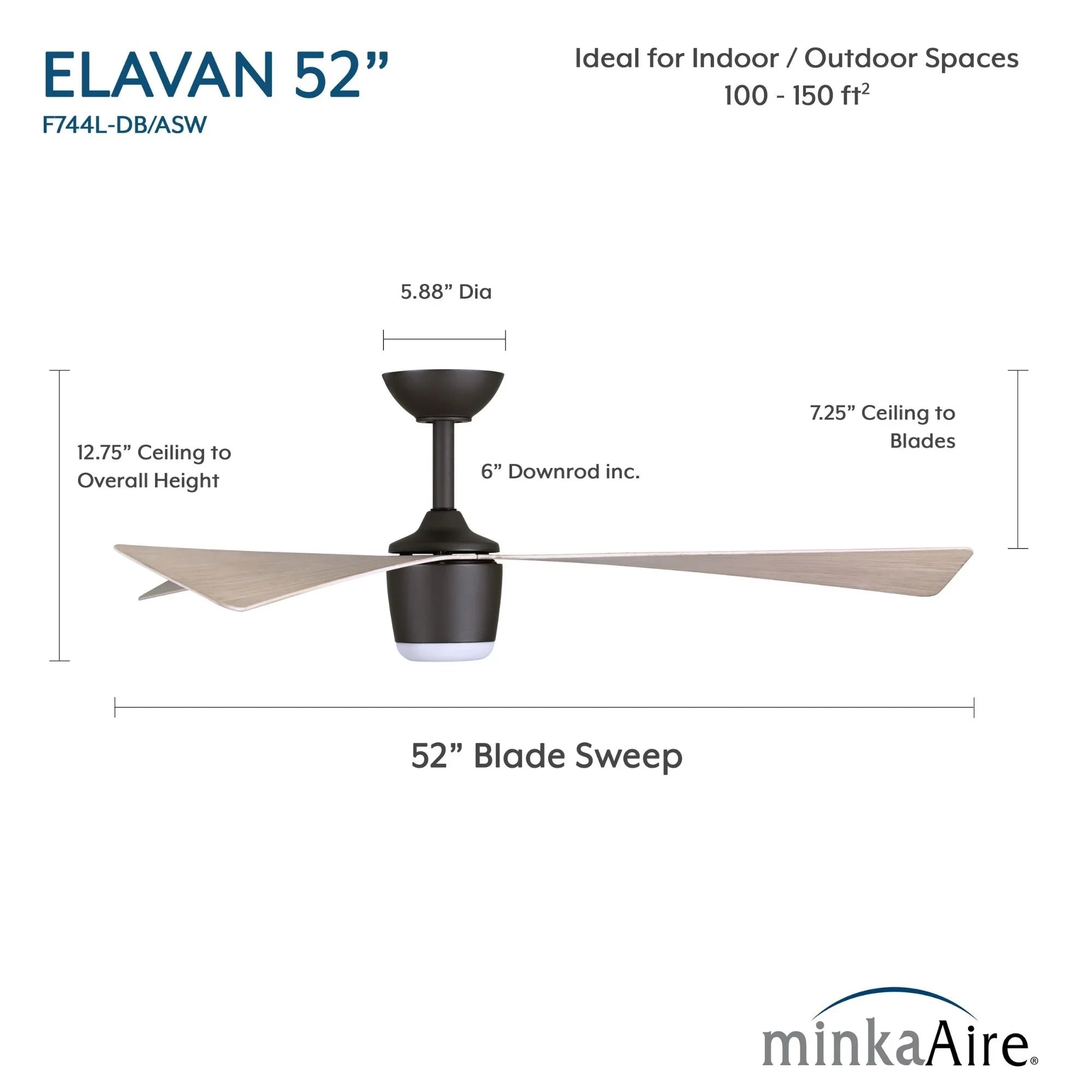

- Ceiling to Blade: 7.25 in / Lowest point: 12.75 in / Weight: 12.98 lbs

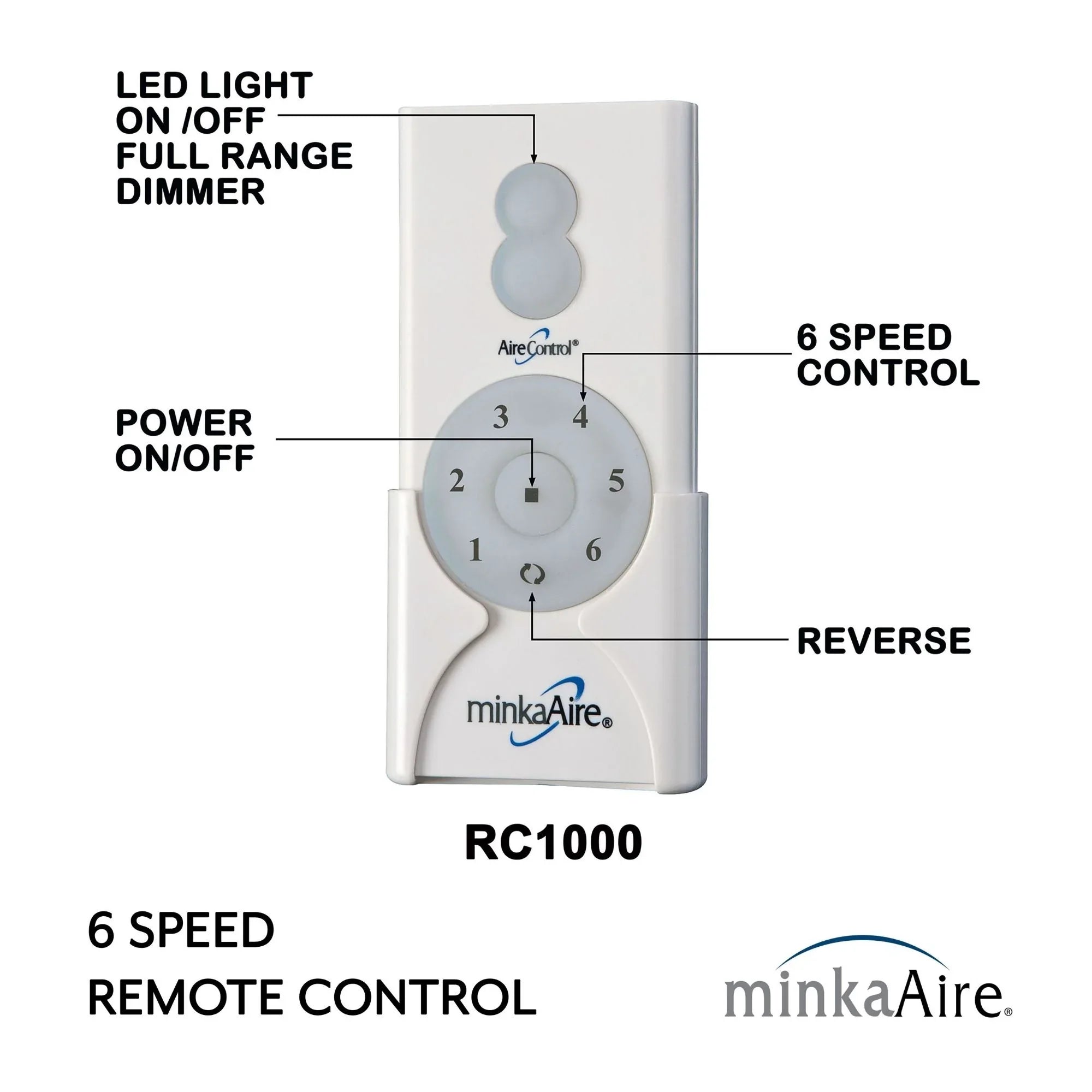

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Elavan is compatible with the Bond BD-1000 smart hub, enabling operation via the Bond Home app (iOS & Android) and voice integrations with Amazon Alexa, Google Home, and Ecobee when used with the BD-1000 hub.

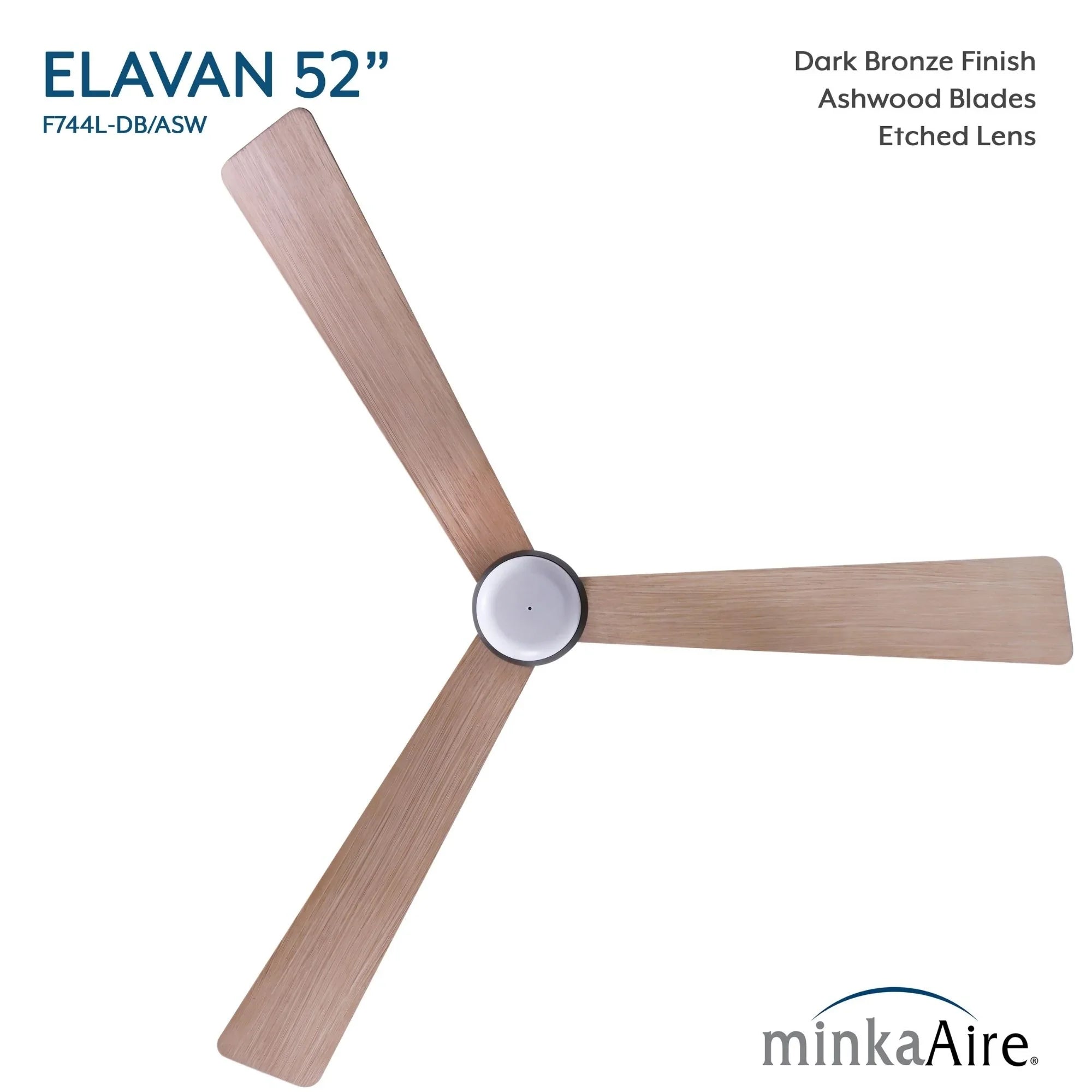

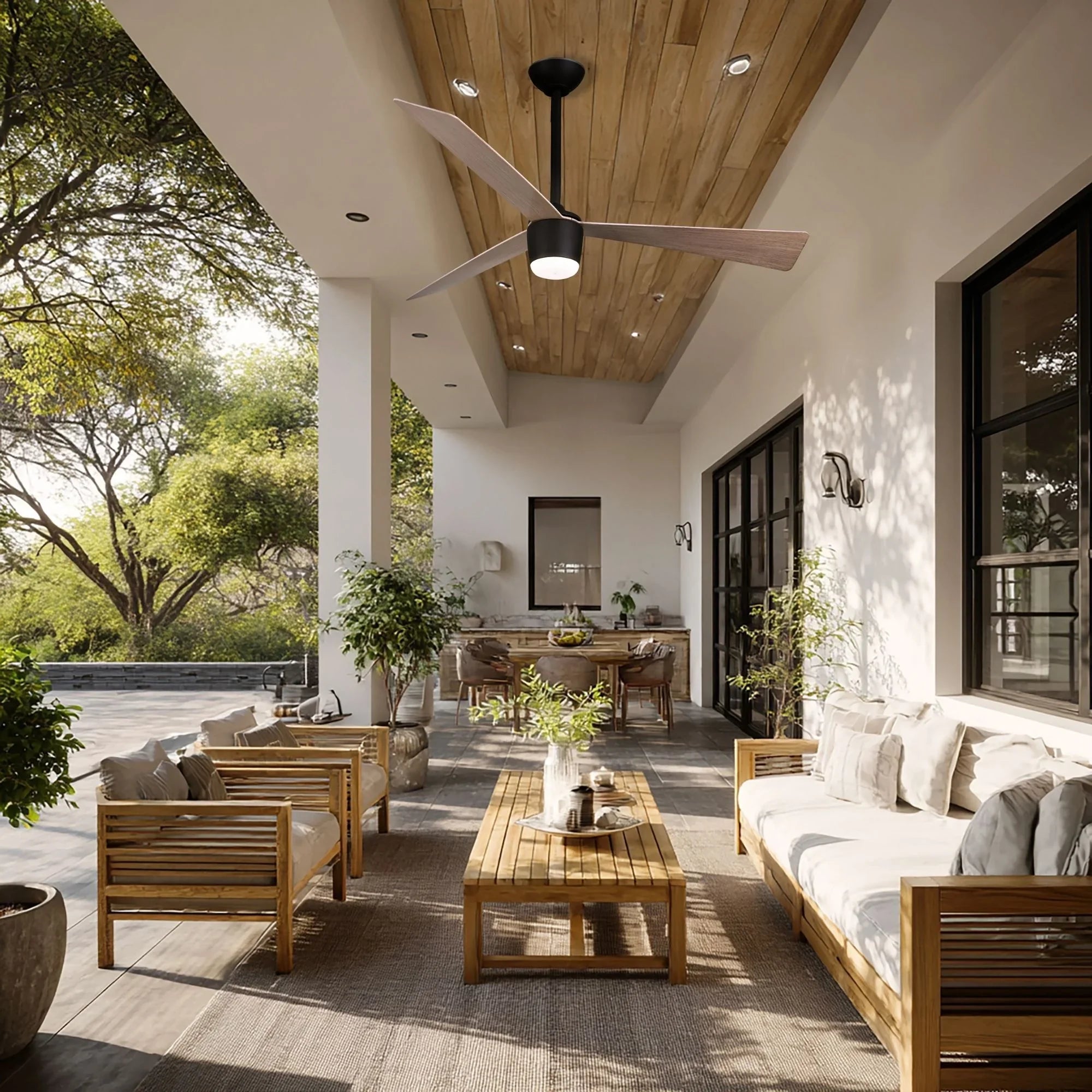

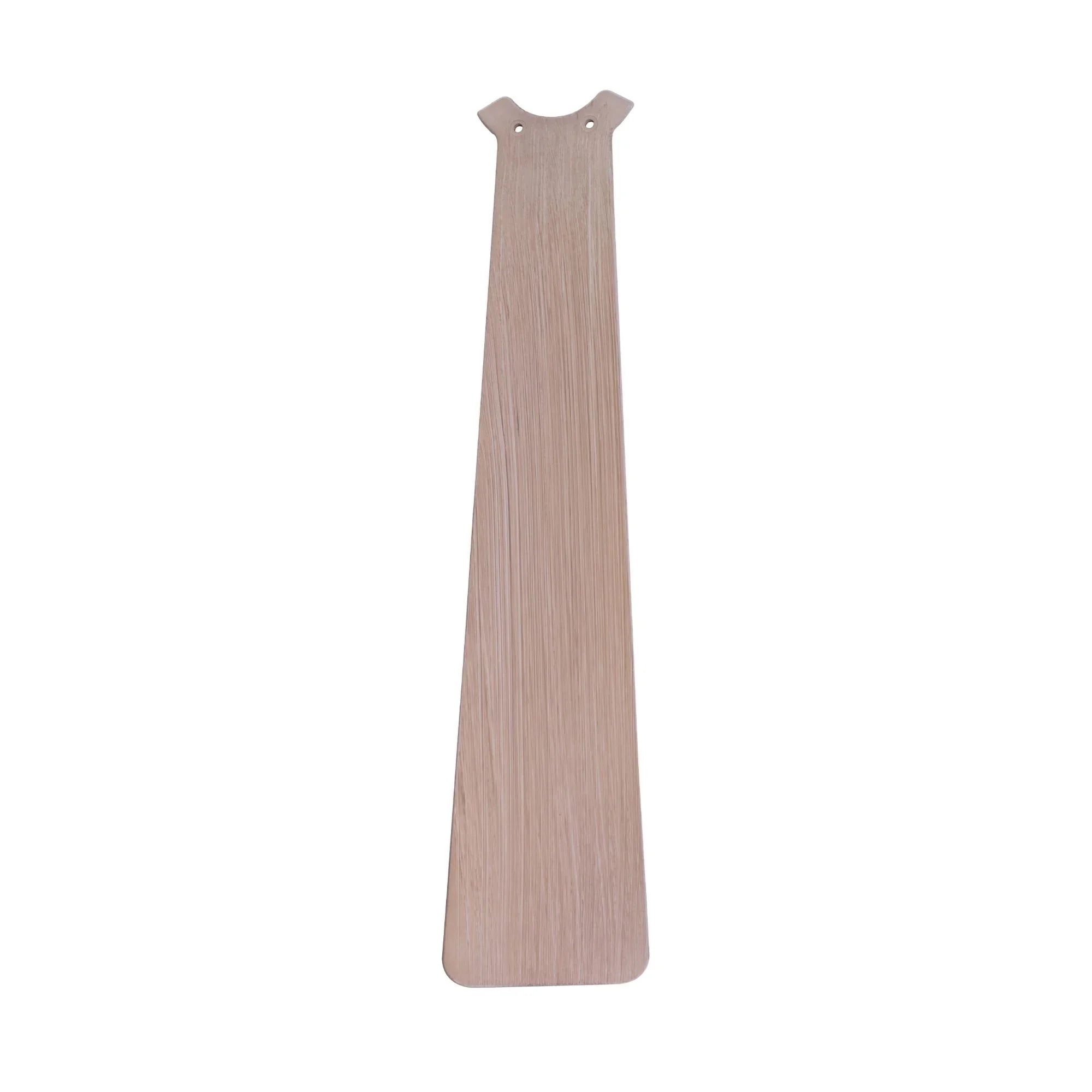

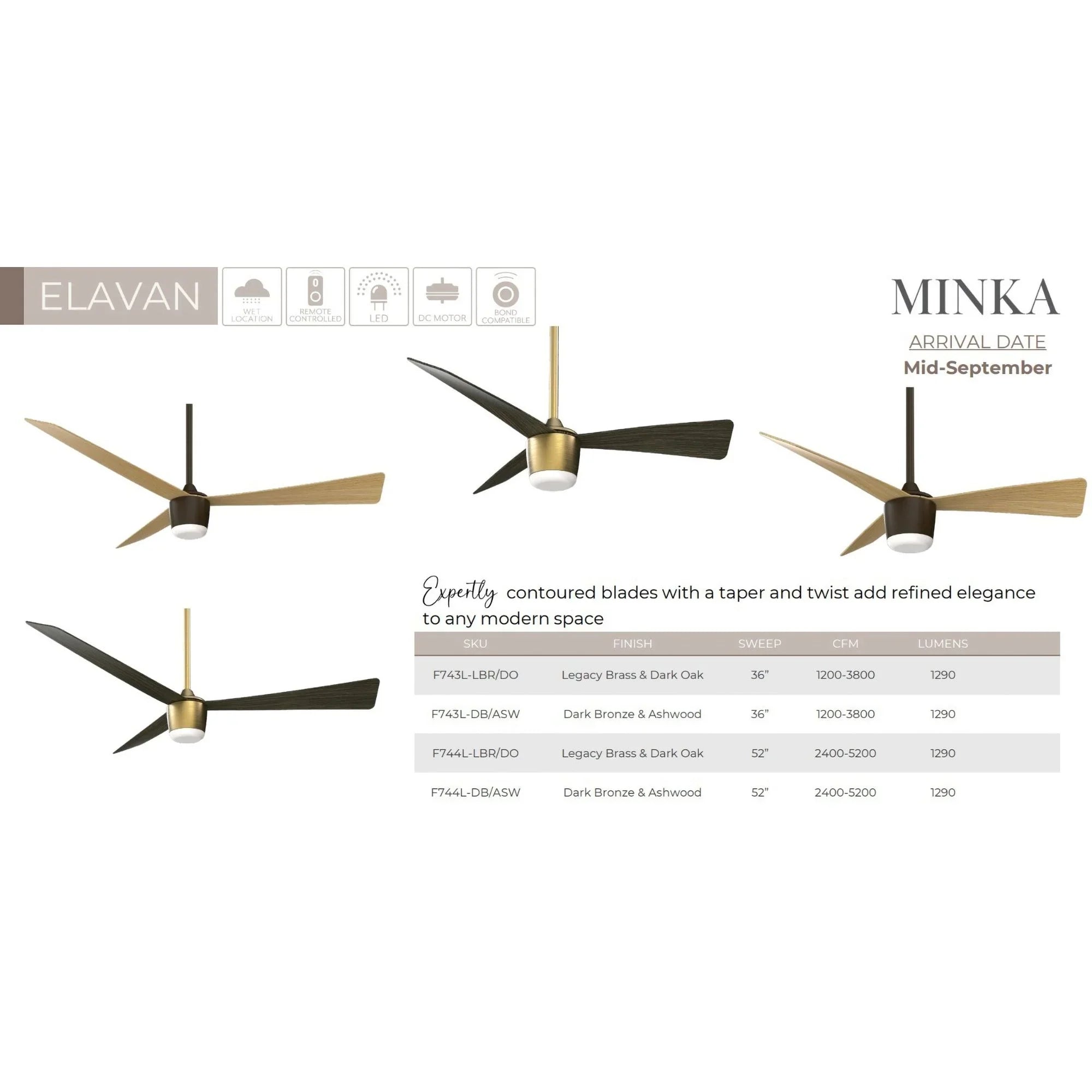

Construction & DesignDark Bronze motor housing with three expertly contoured Ashwood ABS blades at 24° pitch — a taper and twist silhouette that adds refined elegance to any modern space. Net weight: 12.98 lbs. At 52 in, the Elavan delivers serious airflow for larger covered patios, outdoor living areas, coastal great rooms, and open-plan interiors.
Light Output & PerformanceThe F744L-DB/ASW includes an integrated 20W LED delivering 1,295.87 delivered lumens (1,835 initial lumens) at 3000K warm white with a CRI of 90. Rated life: 30,000 hours. Light is fully dimmable via the included RC1000 remote. Polycarbonate etched lens for soft, diffused illumination.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight and wet location use. 1-year limited manufacturer’s warranty.

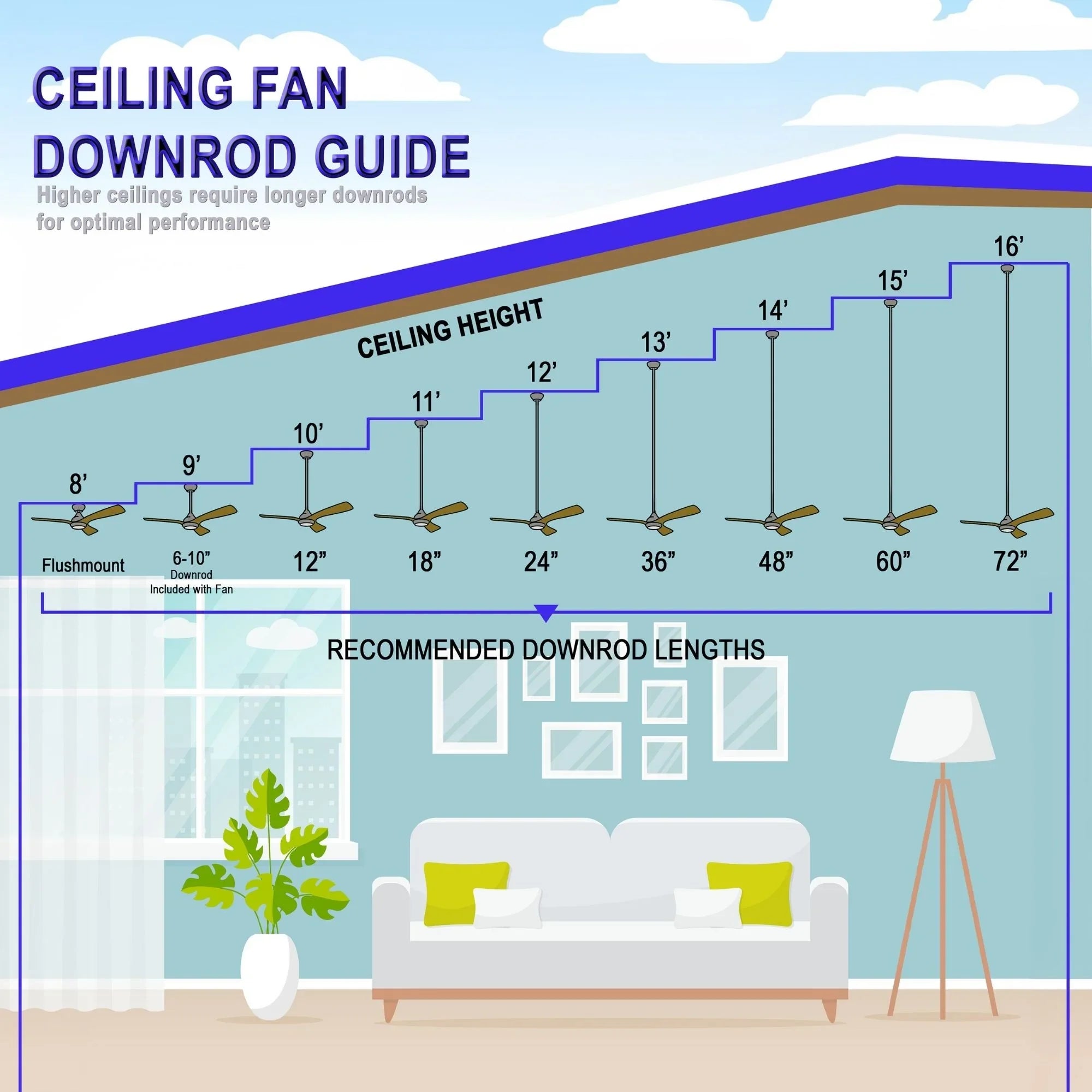

Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F744L-DB/ASW ceiling fan (Dark Bronze body + 3 Ashwood ABS blades)
- Integrated 20W LED light kit with polycarbonate etched lens
- RC1000 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
