Minka Aire Elavan 36 in Outdoor LED Ceiling Fan DC Legacy Brass Dark Oak
Available in stock (154)
About this item
About this item
- Airflow & Efficiency: 3,029 CFM high (87.32 CFM/W, 34.69W) / 608 CFM low — Energy Star, Title 20 — ideal for covered balconies and compact outdoor spaces up to 150 sq ft.
- DC Motor: 123×15mm, 6 speeds, Summer & Winter modes — three-blade taper-and-twist design in Legacy Brass / Dark Oak for year-round wet-rated comfort.
- Wet Rated: ETL Listed for wet locations — exposed outdoor areas, covered patios, and coastal spaces.
- Smart Controls: RC1000 remote included (6-speed, full-range dimmer), WC1000 sold separately — Bond BD-1000 compatible, Bond Home app (iOS/Android), Alexa, Google Home, Ecobee.
- Integrated LED: 20W, 1,295.87 lm, 3000K, CRI 90, 30,000 hrs, dimmable — polycarbonate etched lens.
We process payments securely and do not store credit card information.
Description
Description

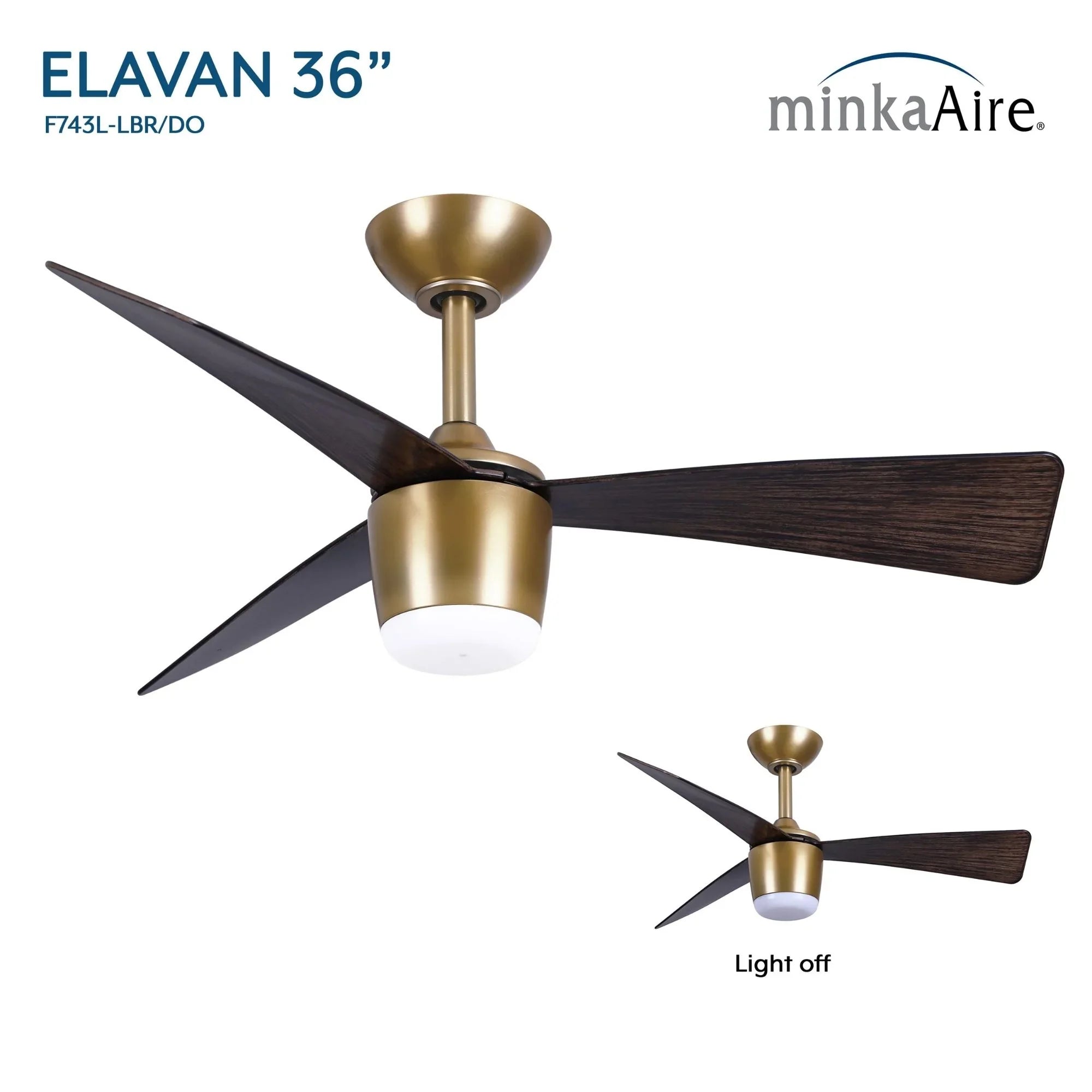

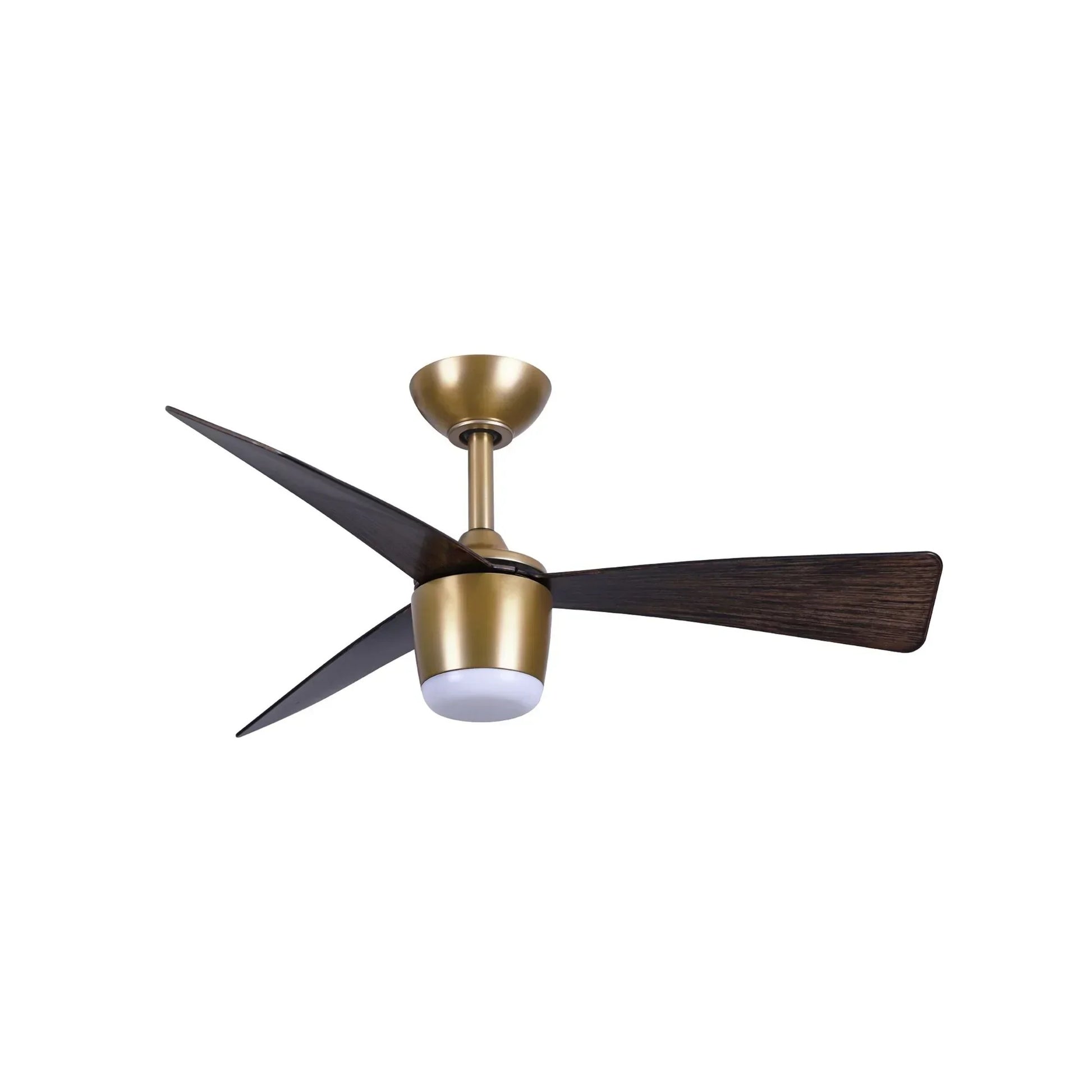

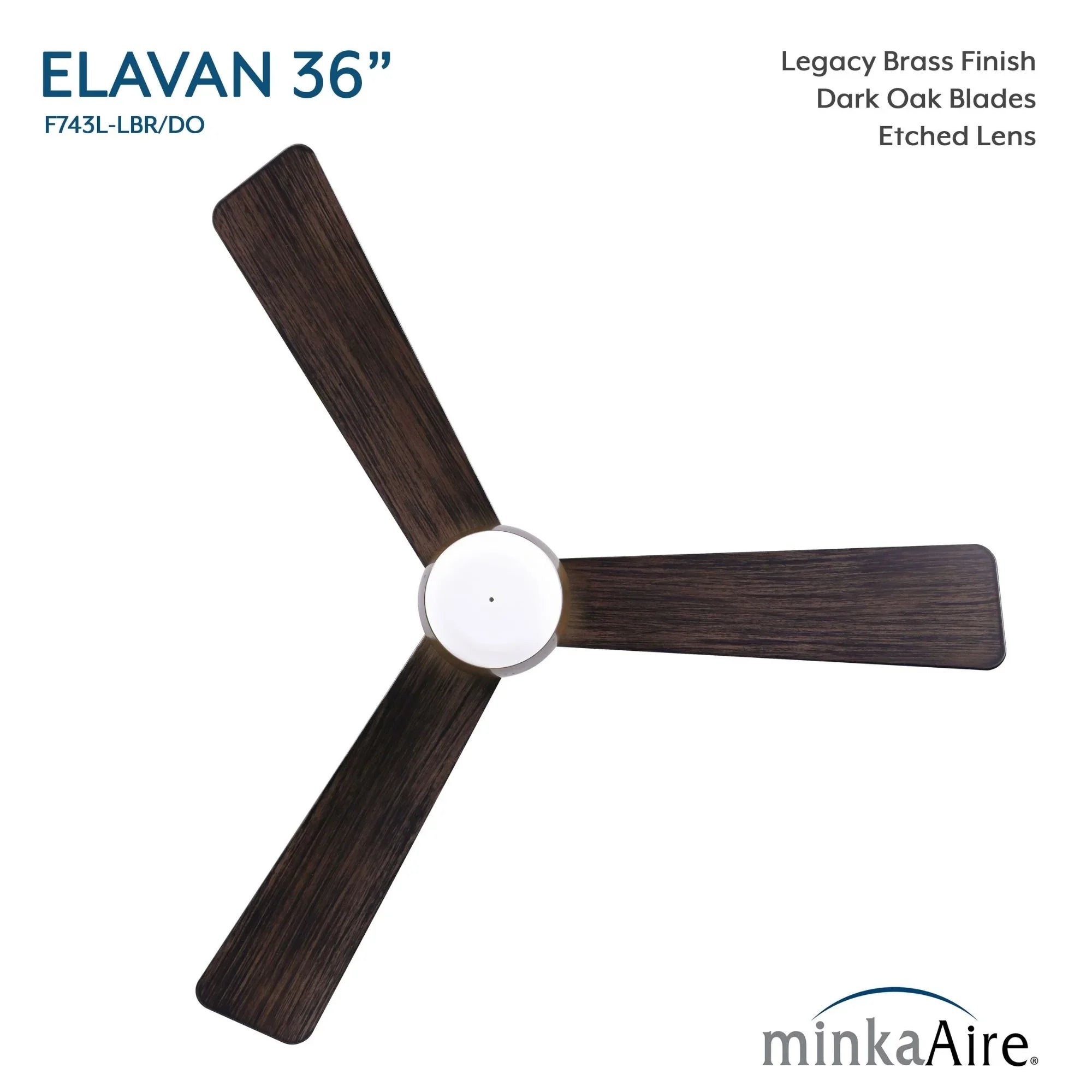

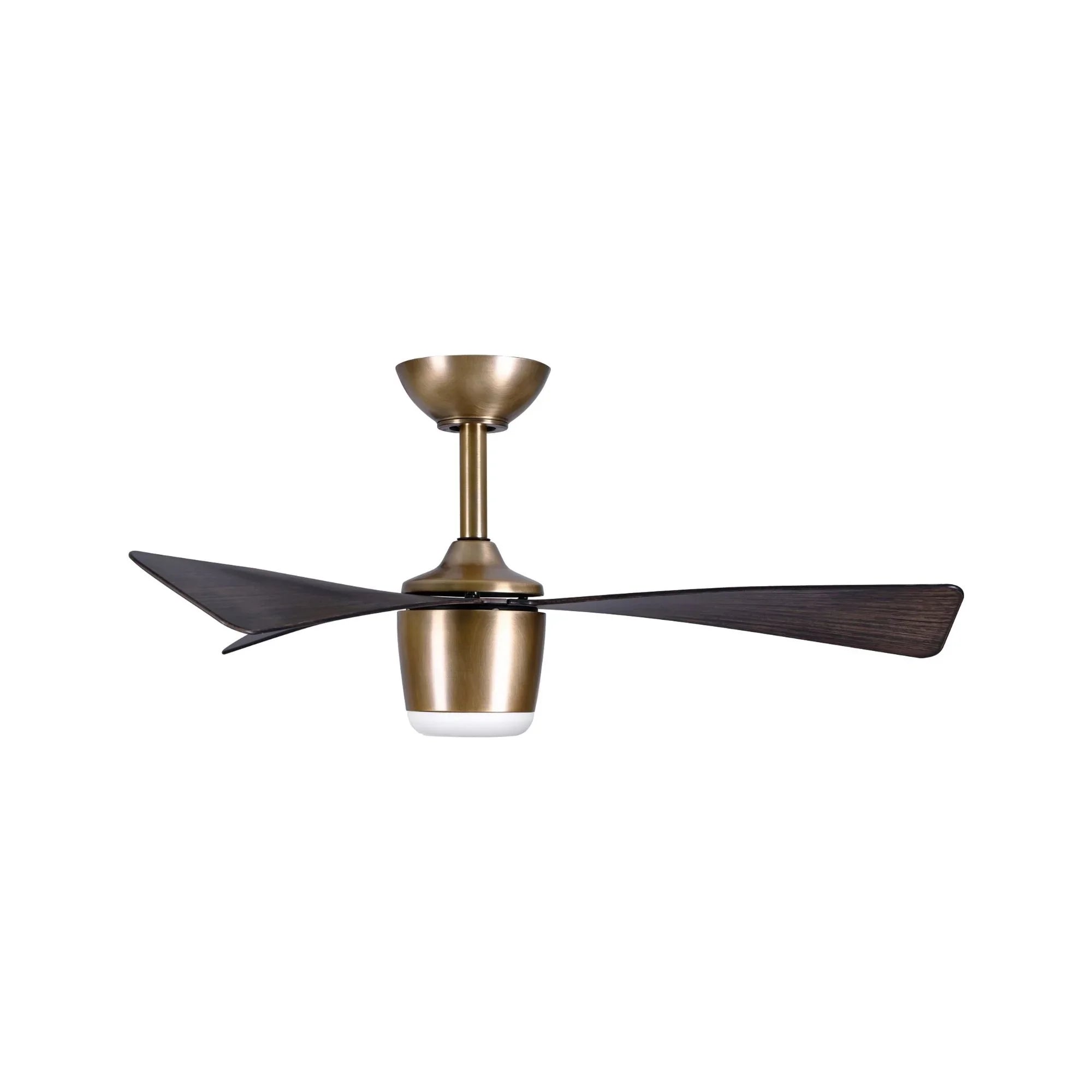

The Minka Aire Elavan F743L-LBR/DO is a three-blade 36 in downrod LED ceiling fan in Legacy Brass with Dark Oak ABS blades. Powered by an efficient DC 123×15mm motor, it delivers 3,029 CFM at high speed at just 34.69W — an 87.32 CFM/W efficiency rating. Energy Star rated, Bond BD-1000 compatible, ETL Listed for wet locations.

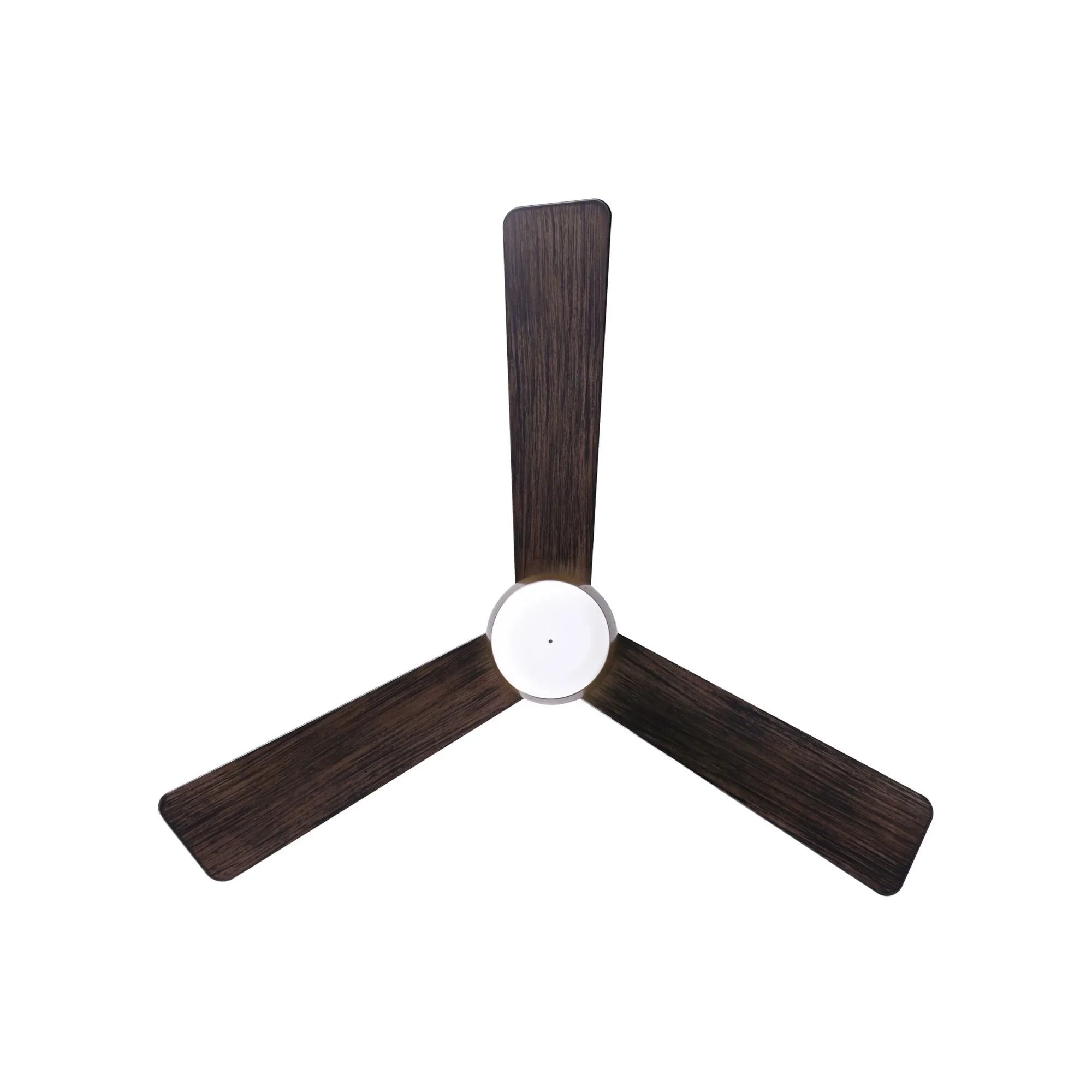

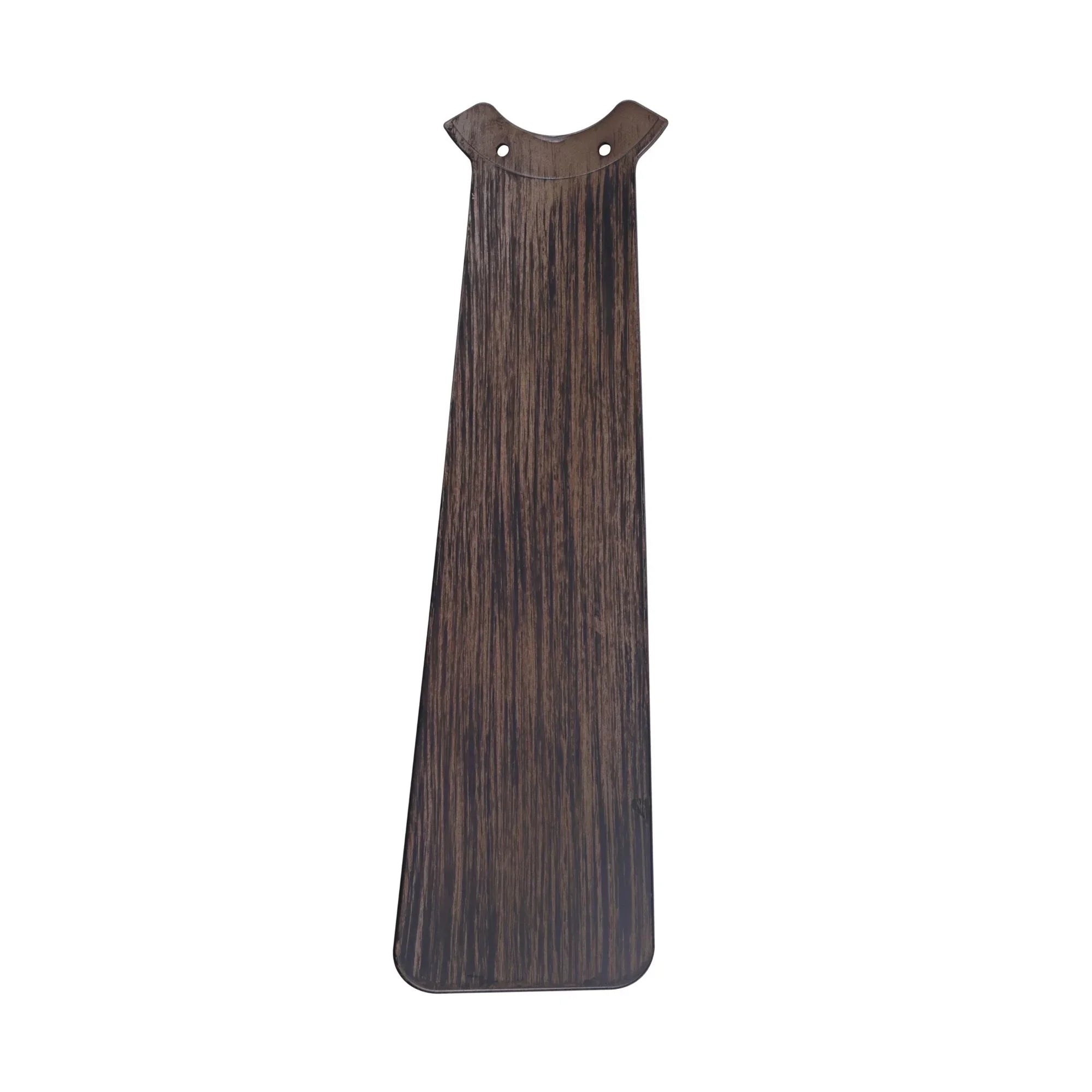

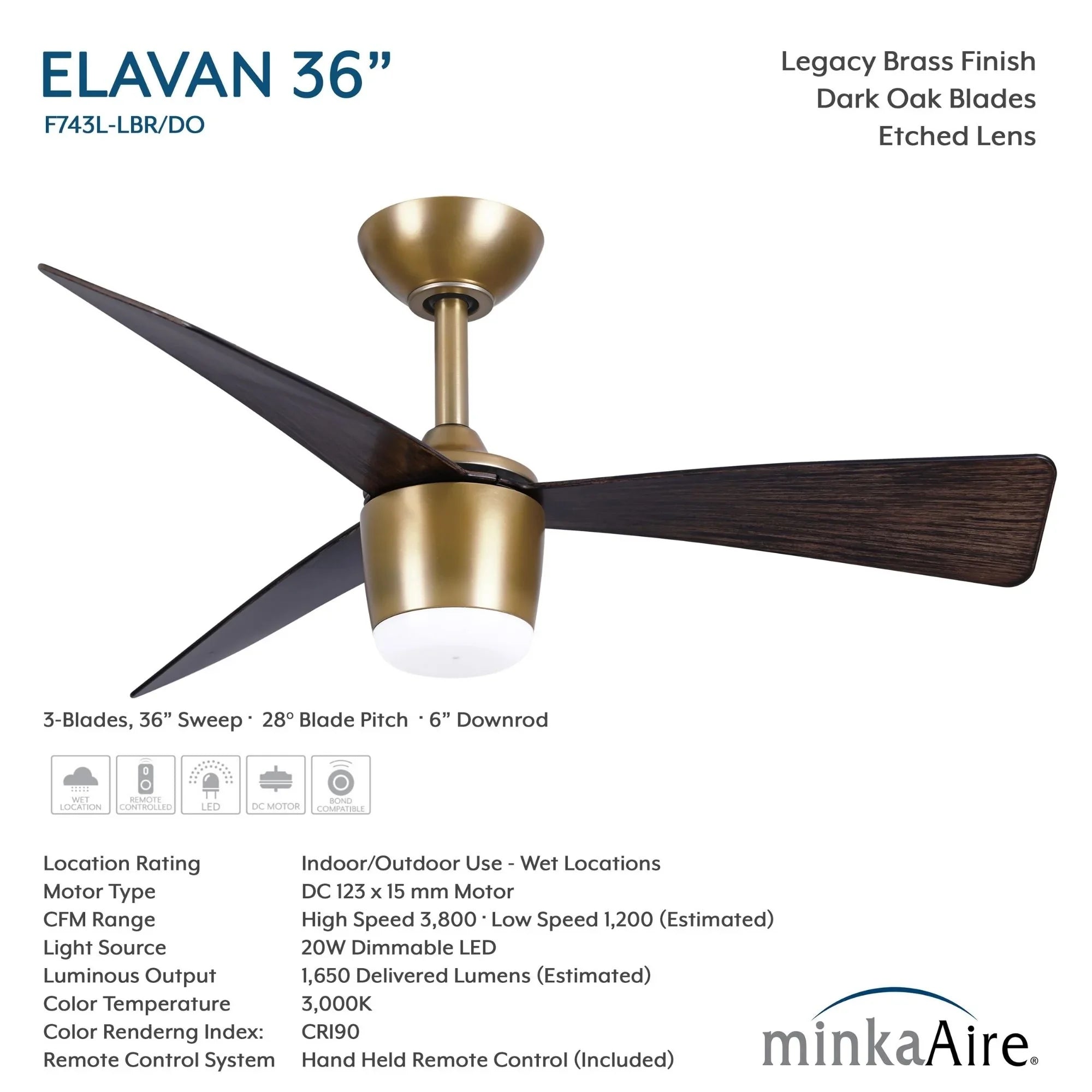

Key Features- Blade Span: 36 in, 3 ABS blades, 28° pitch, Dark Oak
- Motor: DC 123×15mm, 6 speeds, reversible rotation — Summer & Winter modes
- Airflow: 3,029 CFM high / 608 CFM low — 87.32 CFM/W high / 375.31 CFM/W low
- Wattage: 34.69W high / 1.62W low
- Light Kit: Integrated 20W LED — 1,295.87 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, polycarbonate etched lens
- Location Rating: ETL Listed for Wet Locations — Indoor/Outdoor use. Energy Star rated. Title 20 compliant.
- Smart Control: Bond BD-1000 compatible (sold separately) — Bond Home app + voice control
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible

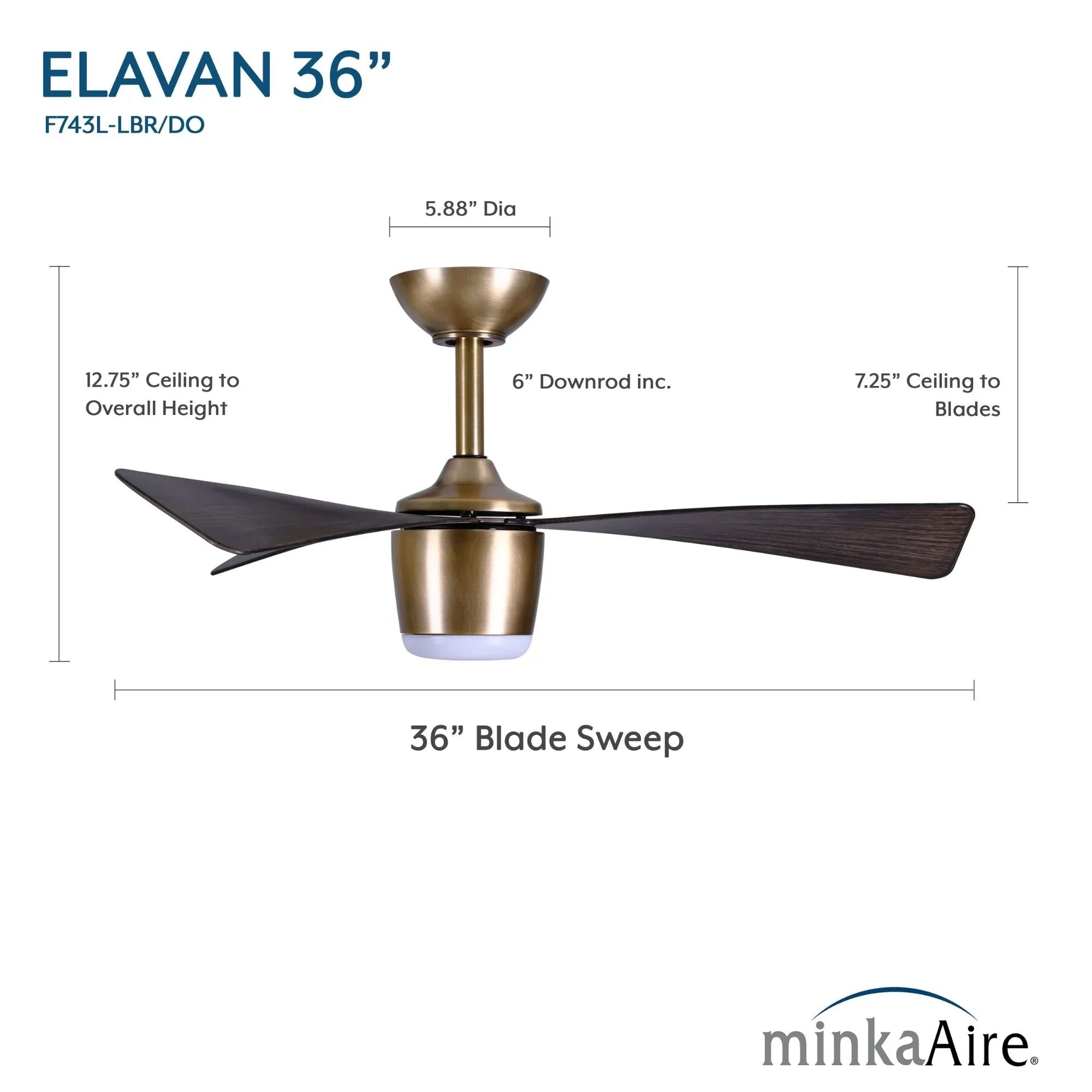

- Ceiling to Blade: 7.25 in / Lowest point: 12.75 in / Weight: 10.54 lbs

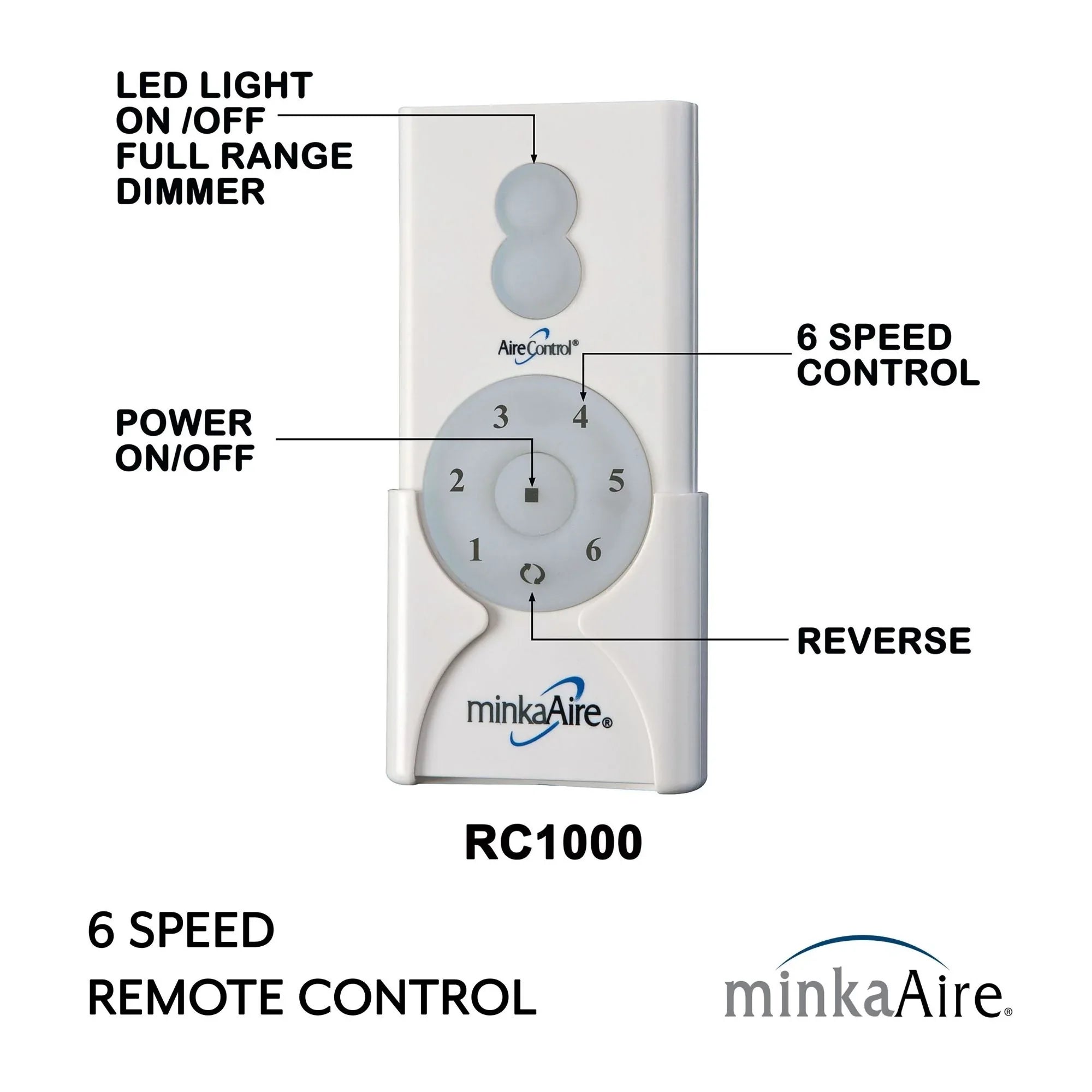

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Elavan is compatible with the Bond BD-1000 smart hub, enabling operation via the Bond Home app (iOS & Android) and voice integrations with Amazon Alexa, Google Home, and Ecobee when used with the BD-1000 hub.

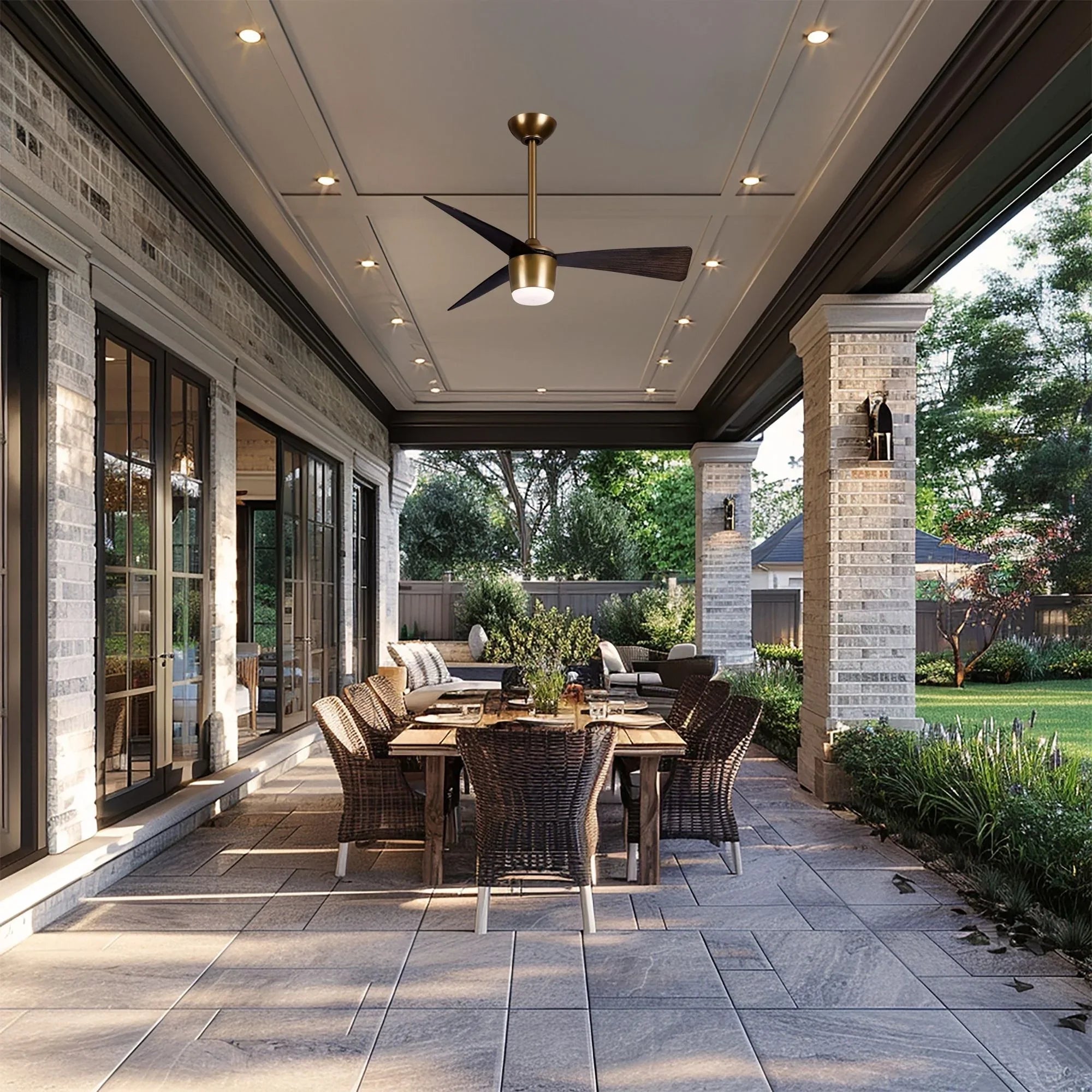

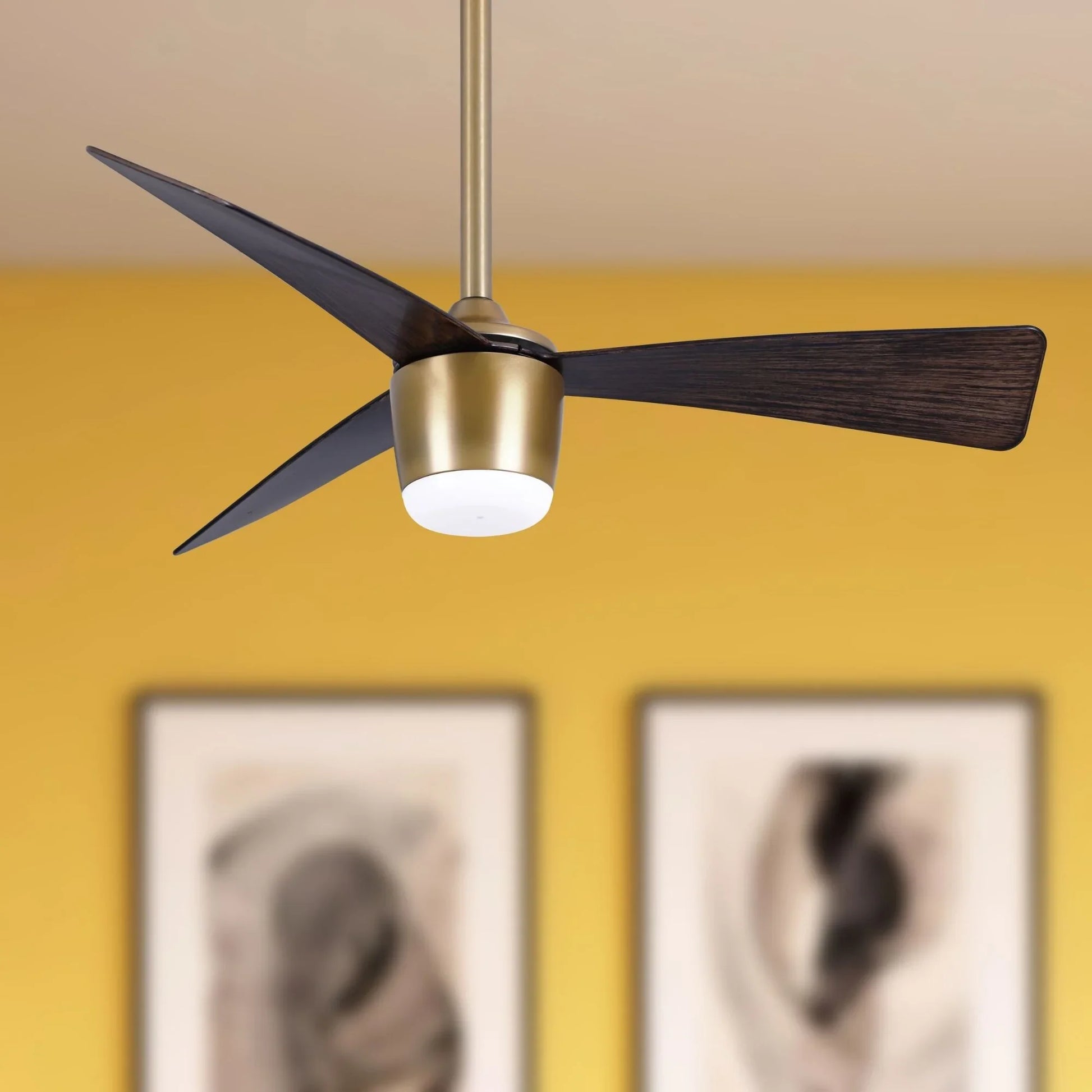

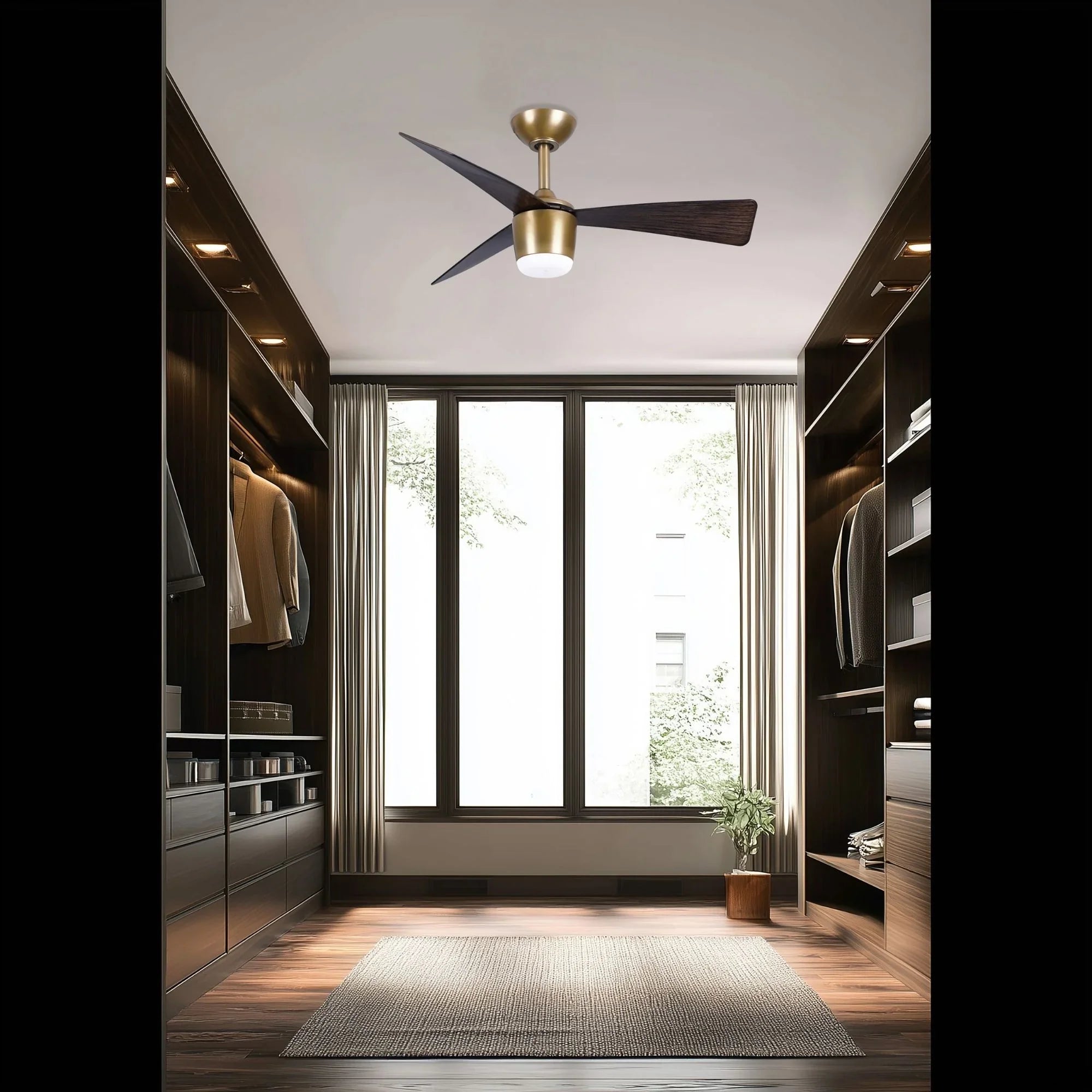

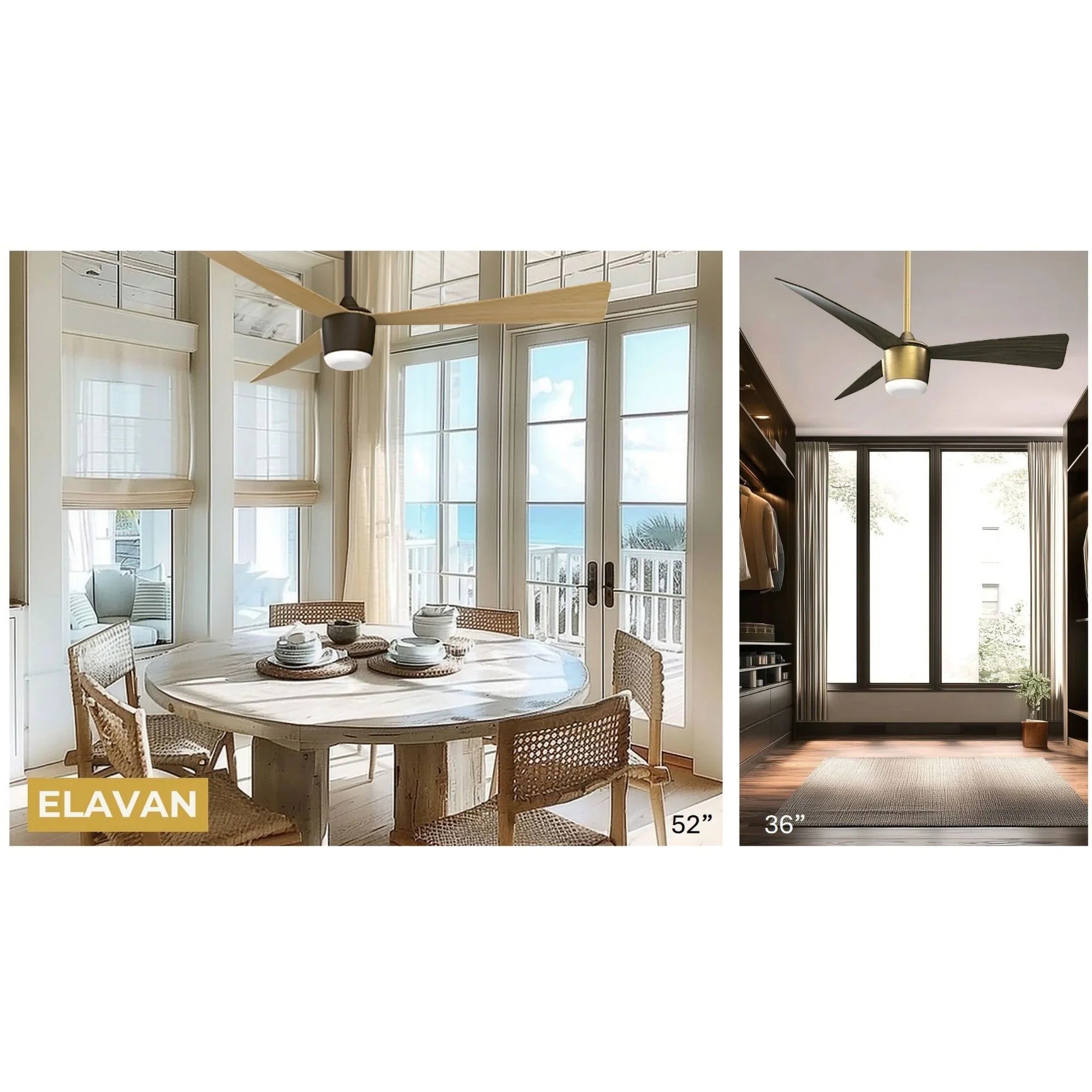

Construction & DesignLegacy Brass motor housing with three expertly contoured Dark Oak ABS blades at 28° pitch — a taper and twist silhouette that pairs warm brass hardware with rich dark wood tones for refined modern-transitional elegance. Net weight: 10.54 lbs. At 36 in, the Elavan is perfectly scaled for covered balconies, coastal bedrooms, and intimate outdoor patios.
Light Output & PerformanceThe F743L-LBR/DO includes an integrated 20W LED delivering 1,295.87 delivered lumens (1,886 initial lumens) at 3000K warm white with a CRI of 90. Rated life: 30,000 hours. Light is fully dimmable via the included RC1000 remote. Polycarbonate etched lens for soft, diffused illumination.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight and wet location use. 1-year limited manufacturer’s warranty.

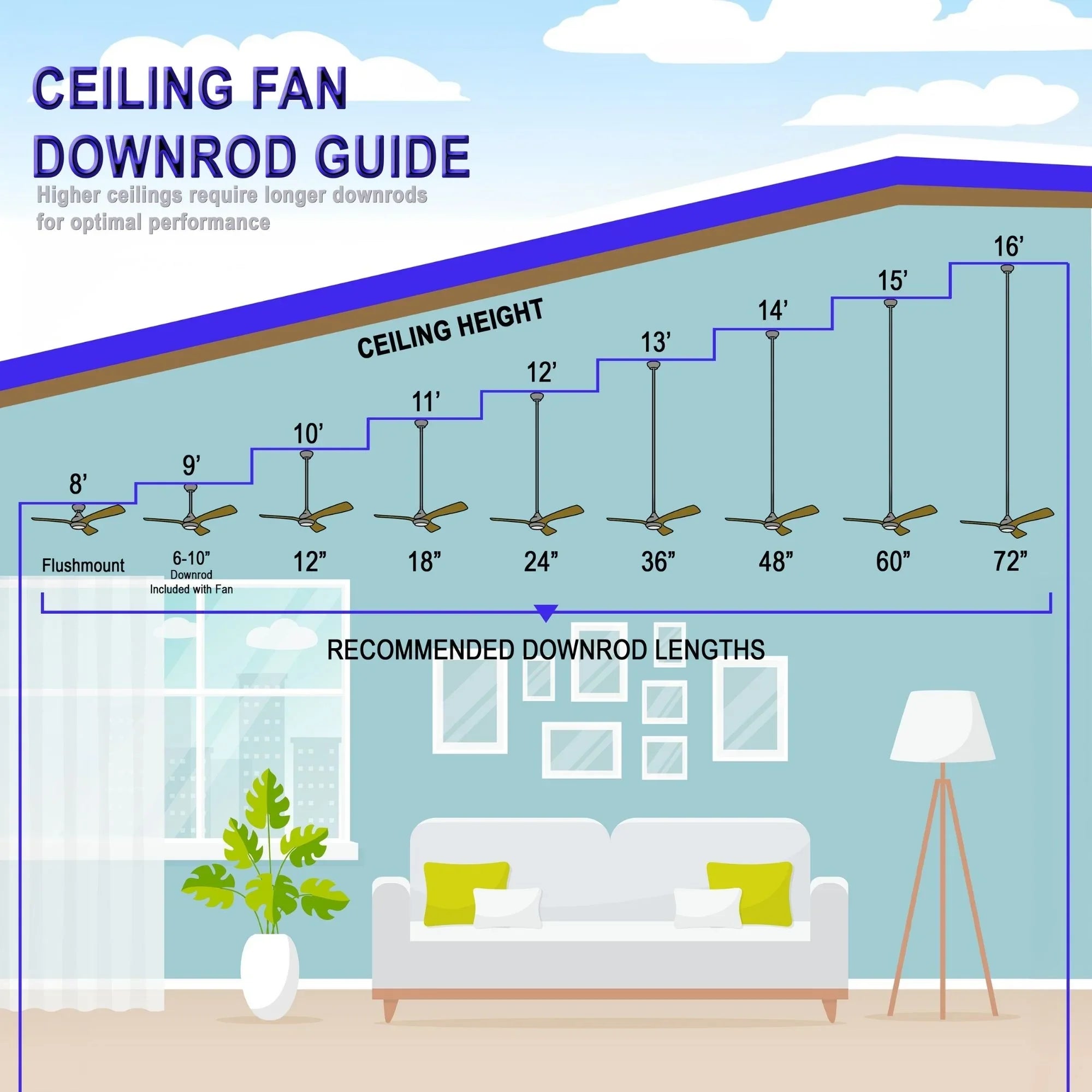

Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F743L-LBR/DO ceiling fan (Legacy Brass body + 3 Dark Oak ABS blades)
- Integrated 20W LED light kit with polycarbonate etched lens
- RC1000 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
