Minka Aire Mortyn 60 in Outdoor LED Ceiling Fan DC Dark Bronze Ashwood
Available in stock (111)
About this item
About this item
- Airflow & Efficiency: 6,386 CFM high (117.73 CFM/W, 35.93W) / 2,174 CFM low — ETL Listed for Wet Locations, Energy Star, Title 20 compliant — ideal for large indoor and covered outdoor spaces over 160 sq ft.
- DC Motor: 168×15mm, 6 speeds, reversible rotation — four-blade Dark Bronze / Ashwood ABS design with dramatic sculptural curves for whisper-quiet year-round indoor and outdoor comfort at 60 in span.

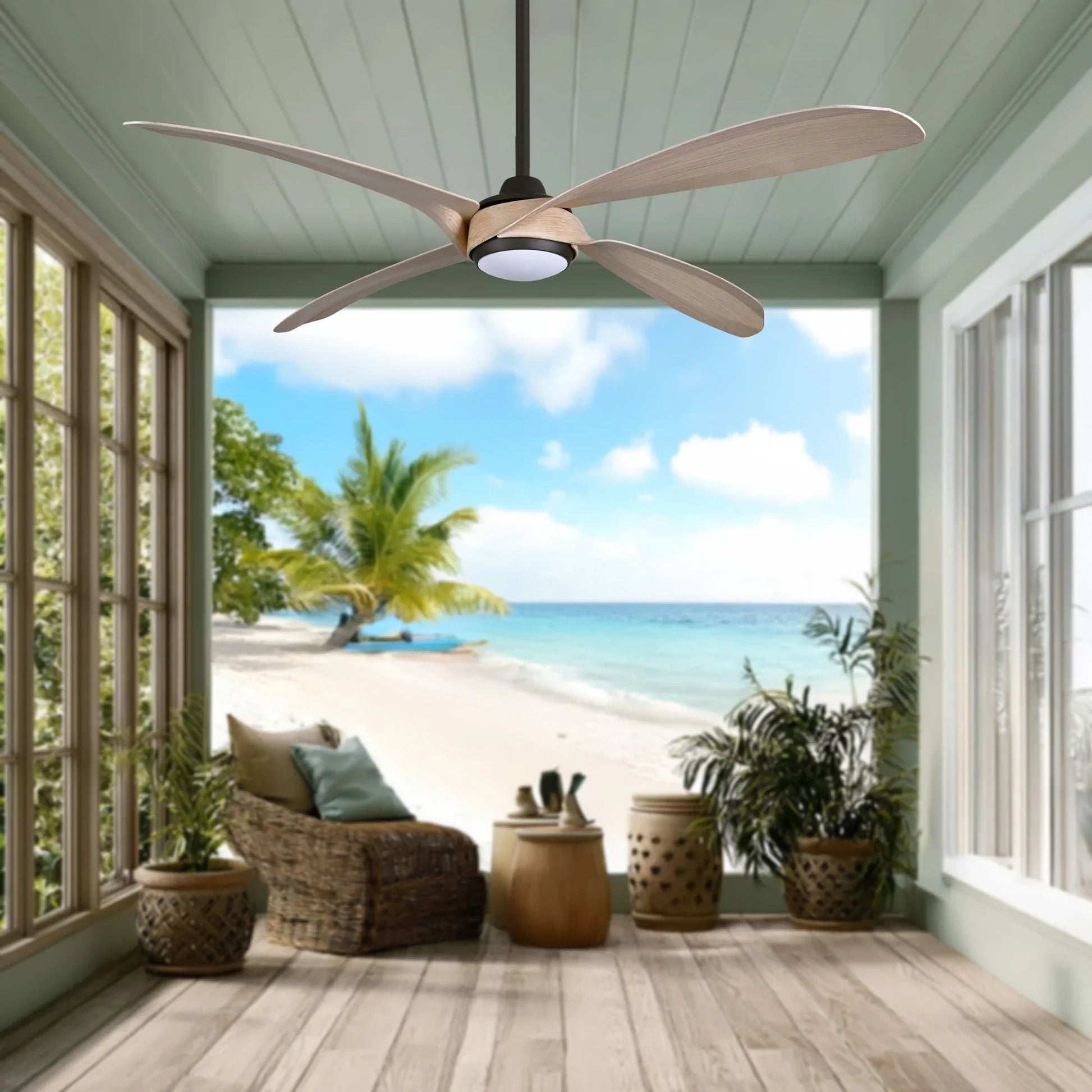

- Wet Rated: ETL Listed for Wet Locations — covered patios, pergolas, pool enclosures, and large indoor living spaces. Energy Star. Title 20 compliant.
- Smart Controls: RC1000 remote included (6-speed, full-range dimmer), WC1000 sold separately — Bond BD-1000 compatible, Bond Home app (iOS/Android), Alexa, Google Home, Ecobee.
- LED Light Kit: 20W integrated LED, 1,462.92 lm delivered, 3000K, CRI 90, 30,000 hrs, dimmable — frosted white polycarbonate lens.
We process payments securely and do not store credit card information.
Description
Description

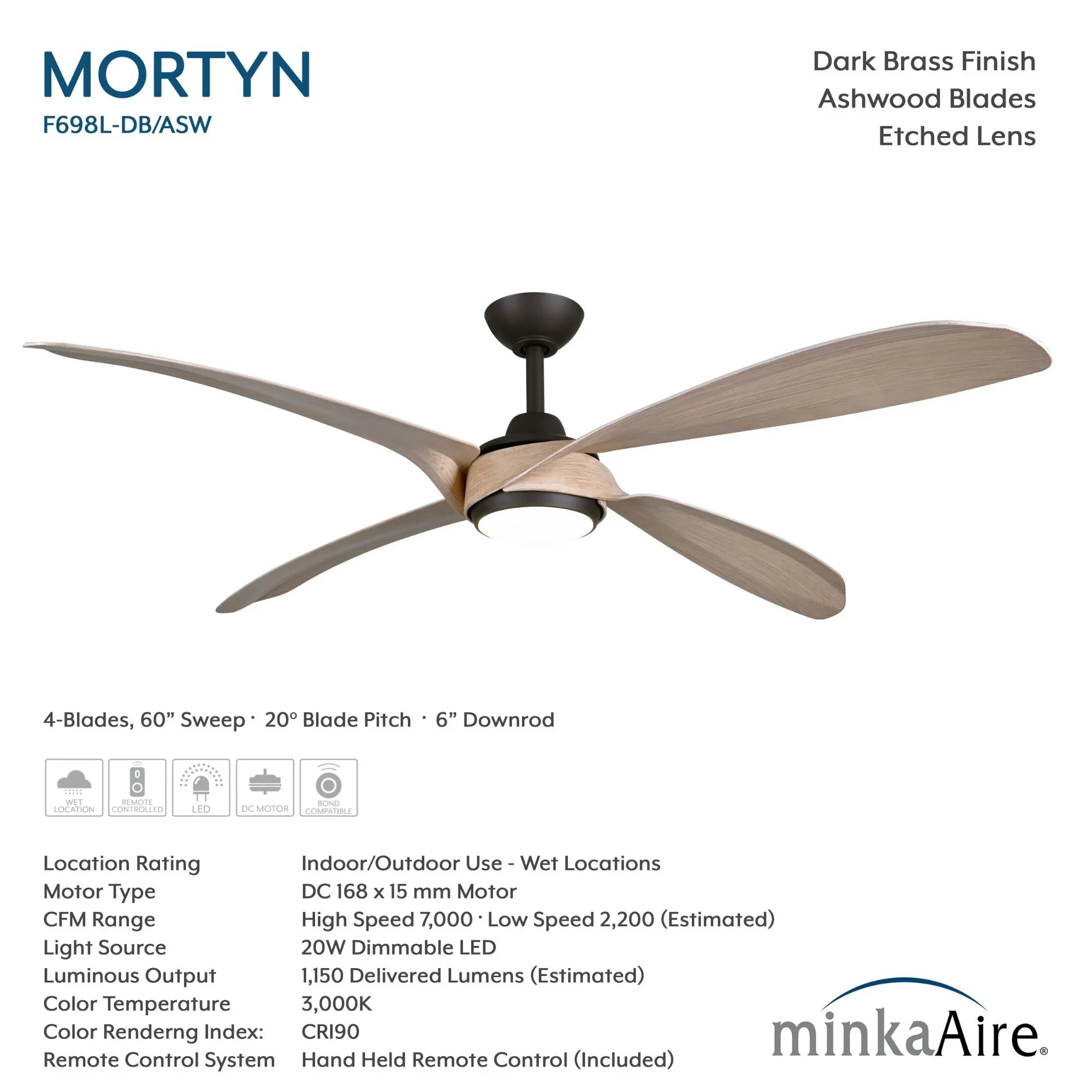

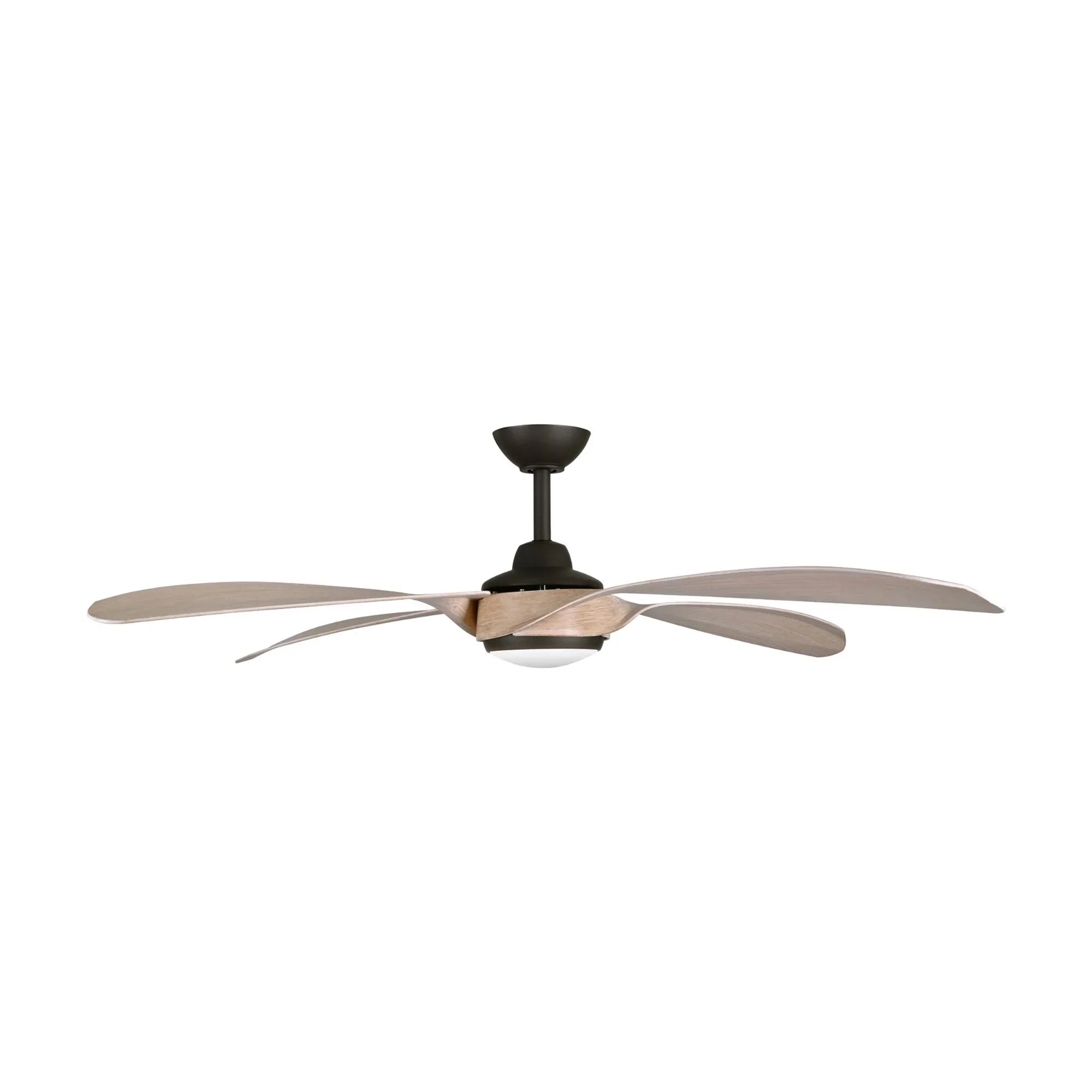

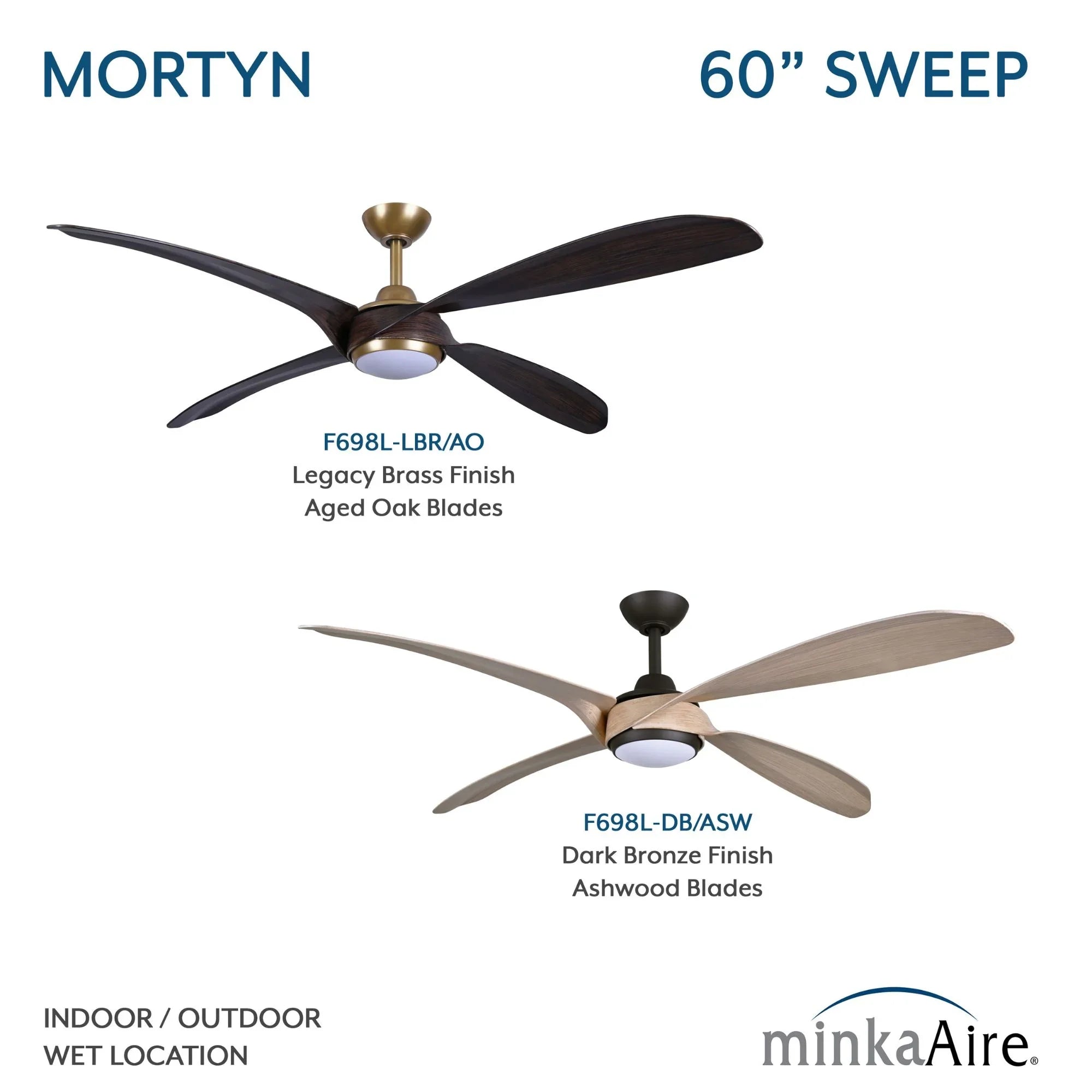

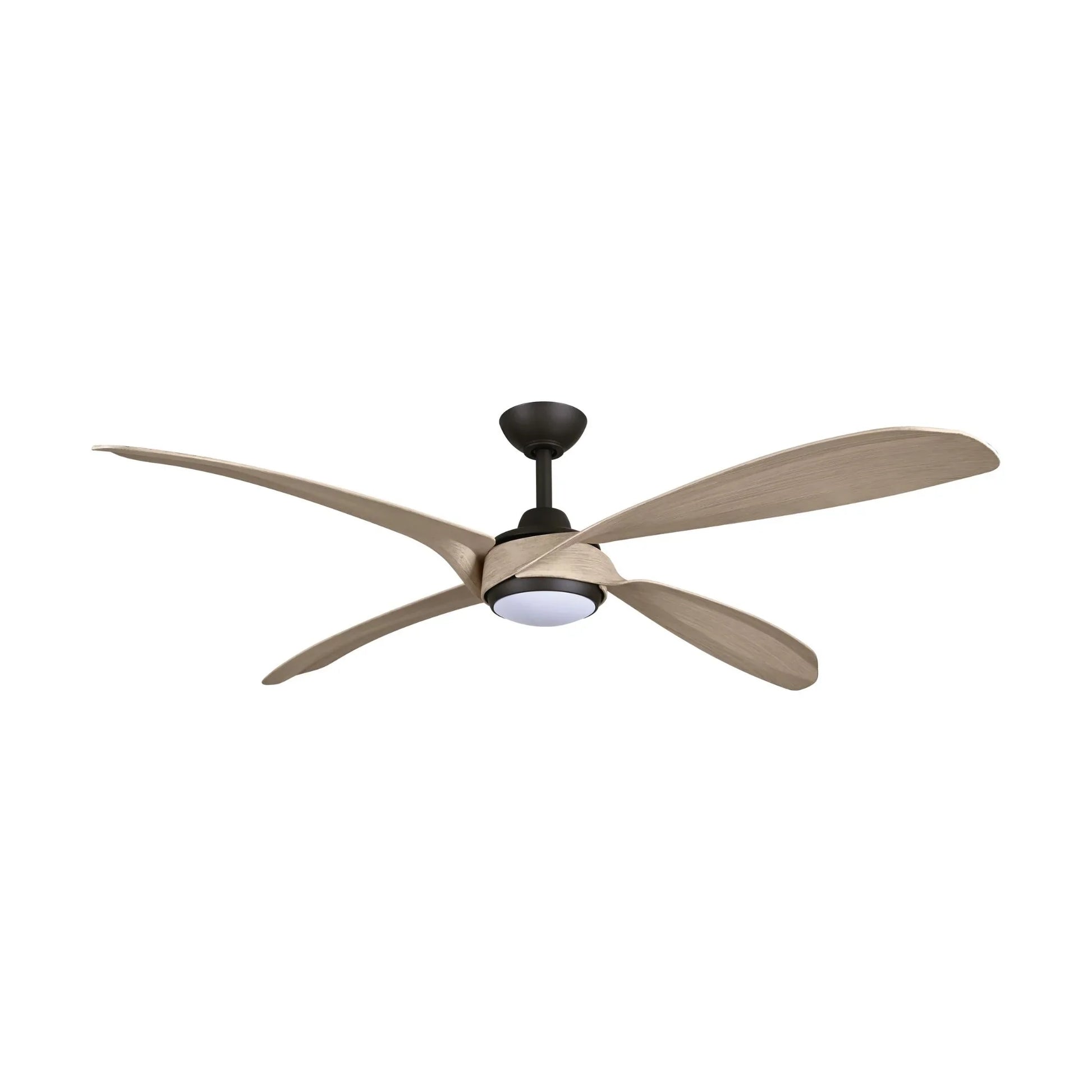

The Minka Aire Mortyn F698L-DB/ASW is a four-blade 60 in downrod LED ceiling fan in Dark Bronze finish with sculptural Ashwood ABS blades and an integrated 20W LED with frosted white polycarbonate lens. Powered by a whisper-quiet DC 168×15mm motor, it delivers 6,386 CFM at high speed — 117.73 CFM/W efficiency. RC1000 remote included, Bond BD-1000 compatible, ETL Listed for Wet Locations, Energy Star rated, Title 20 compliant. 1-year limited warranty.
Key Features- Blade Span: 60 in, 4 ABS blades, 21° pitch, Ashwood
- Motor: DC 168×15mm, 6 speeds, reversible rotation
- Airflow: 6,386 CFM high / 2,174 CFM low — 117.73 CFM/W high / 664.83 CFM/W low
- Wattage: 35.93W high / 3.27W low
- Light Kit: Integrated 20W LED — 1,462.92 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, frosted white polycarbonate lens
- Location Rating: ETL Listed for Wet Locations — Indoor & Outdoor use. Energy Star. Title 20 compliant. 1-year limited warranty.
- Smart Control: Bond BD-1000 compatible (sold separately) — Bond Home app + voice control
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible

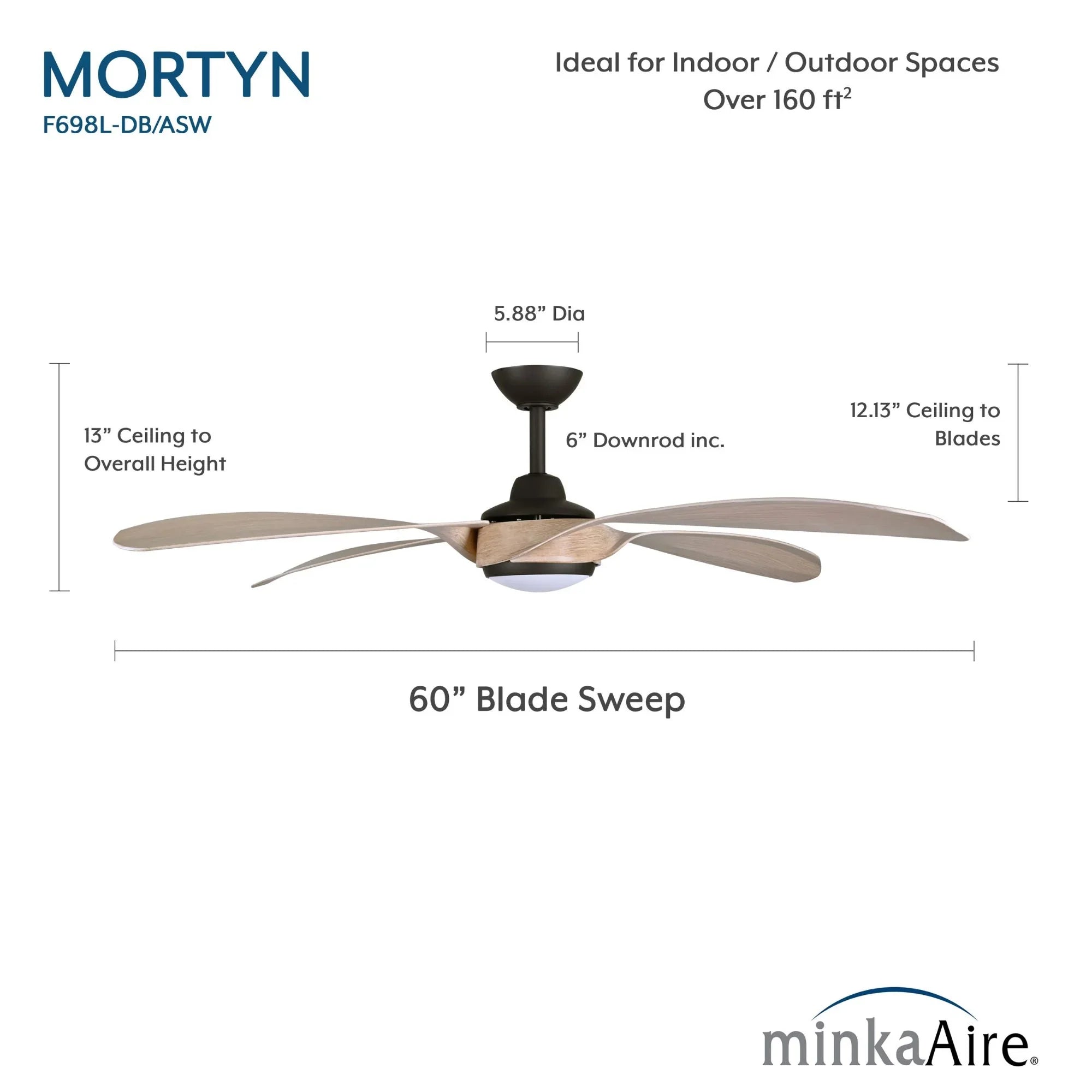

- Ceiling to Blade: 12.13 in / Lowest point: 13 in / Weight: 14.56 lbs

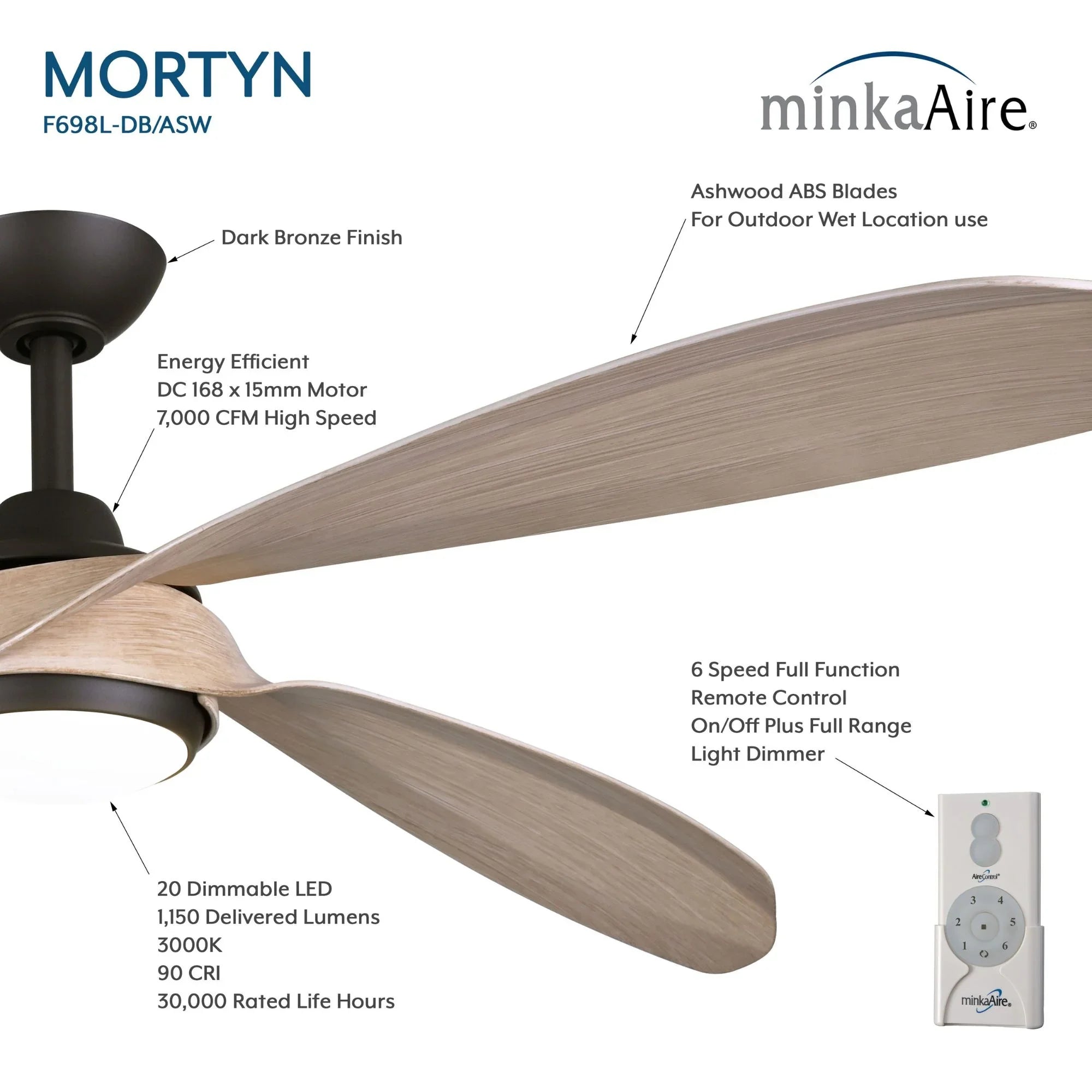

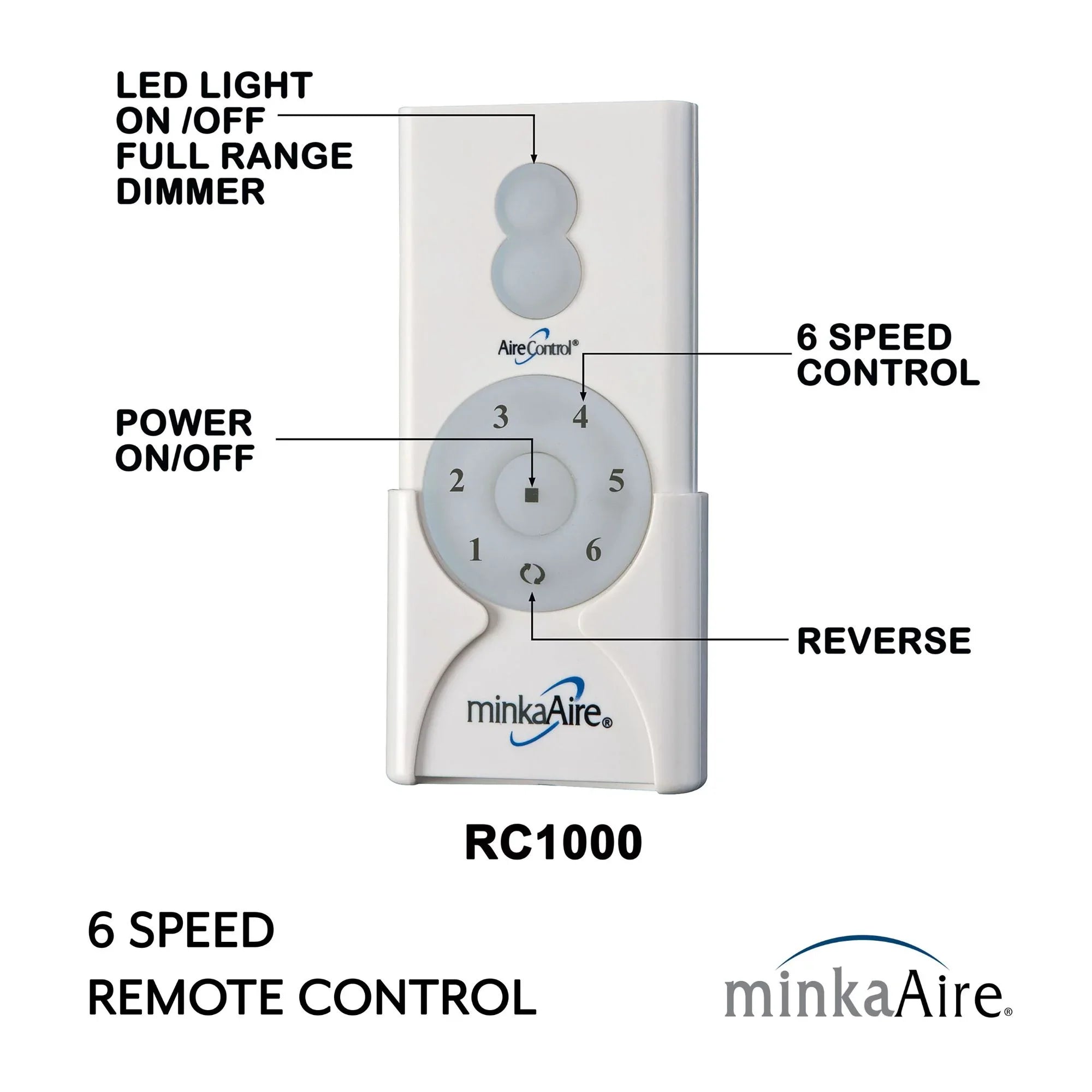

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Mortyn is compatible with the Bond BD-1000 smart hub, enabling operation via the Bond Home app (iOS & Android) and voice integrations with Amazon Alexa, Google Home, and Ecobee when used with the BD-1000 hub.

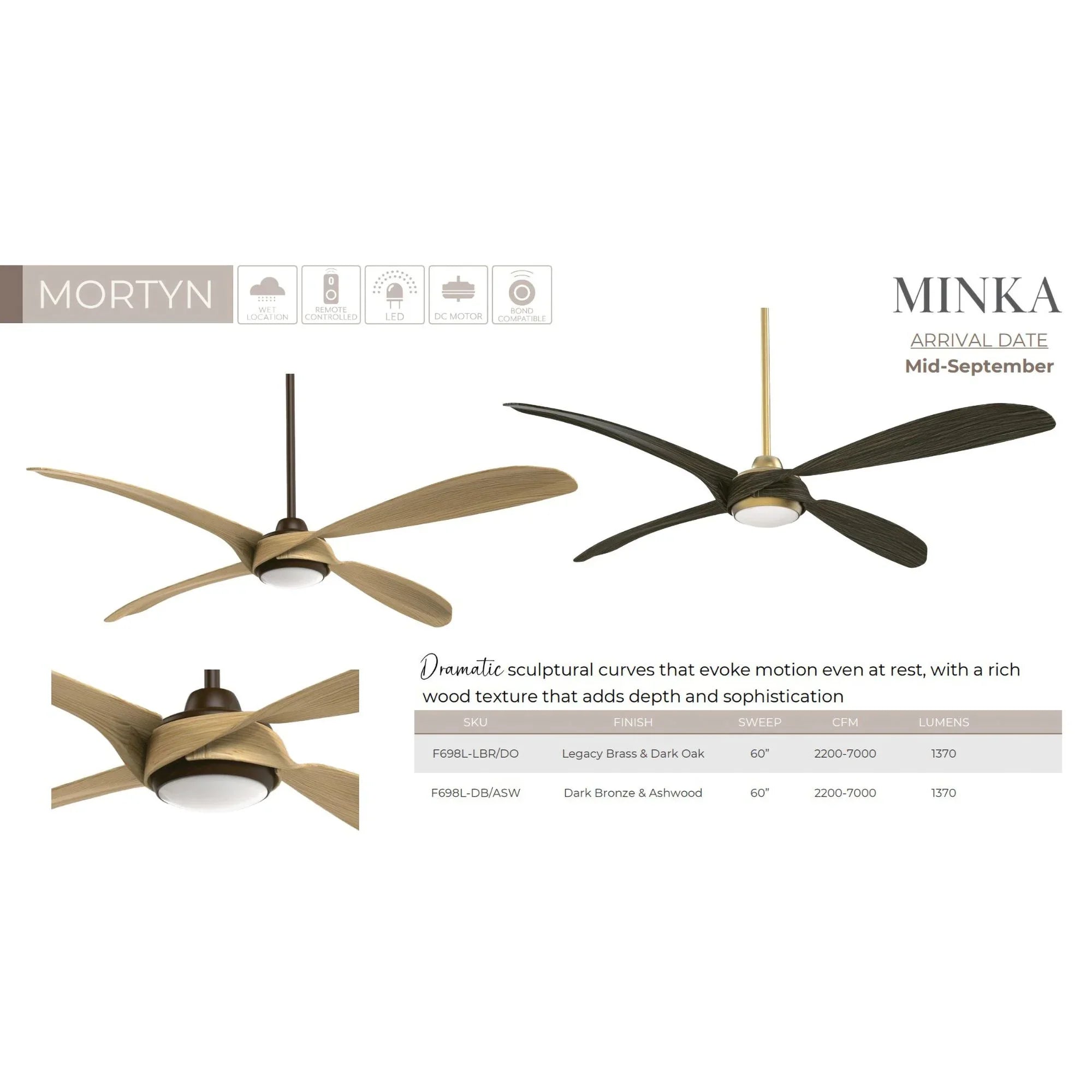

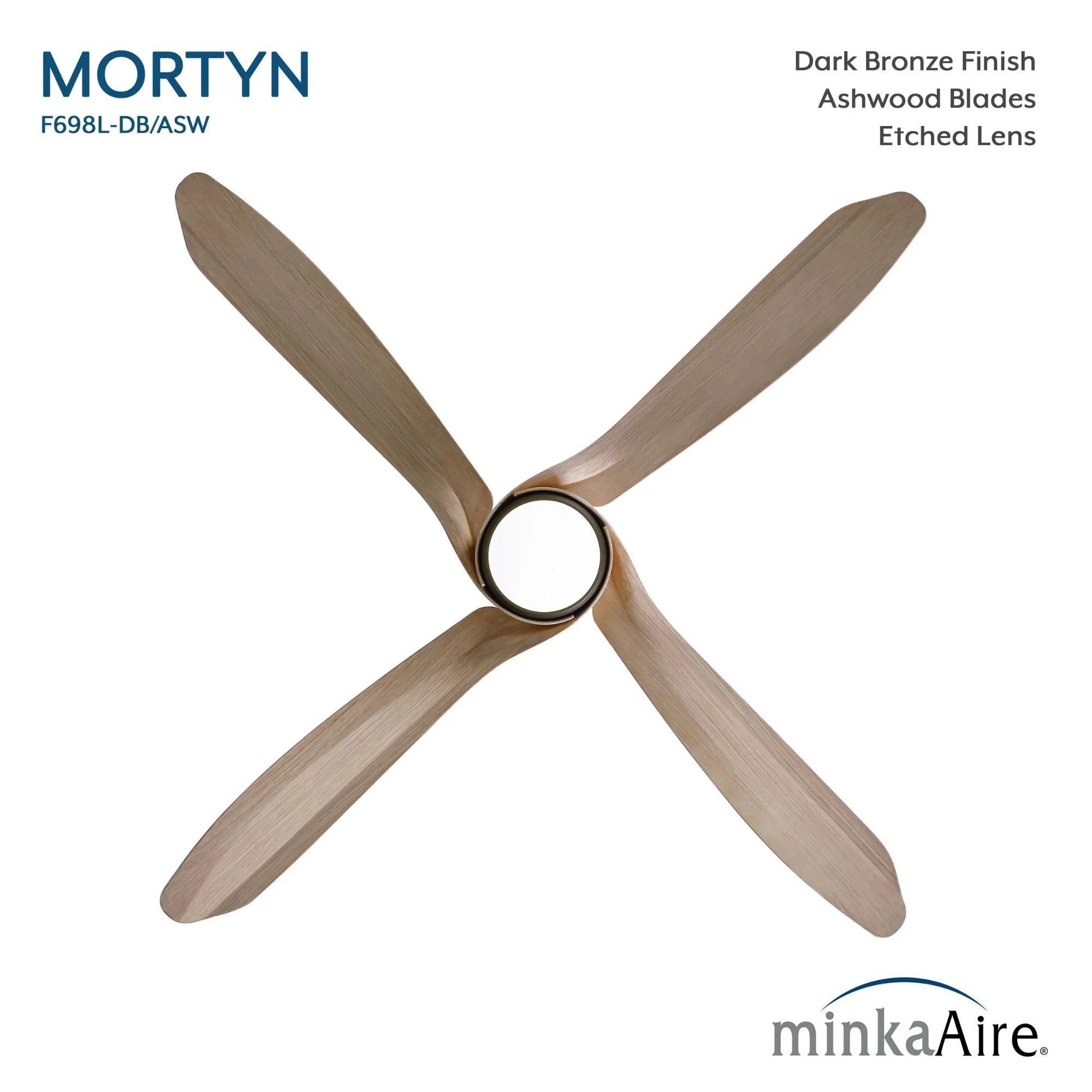

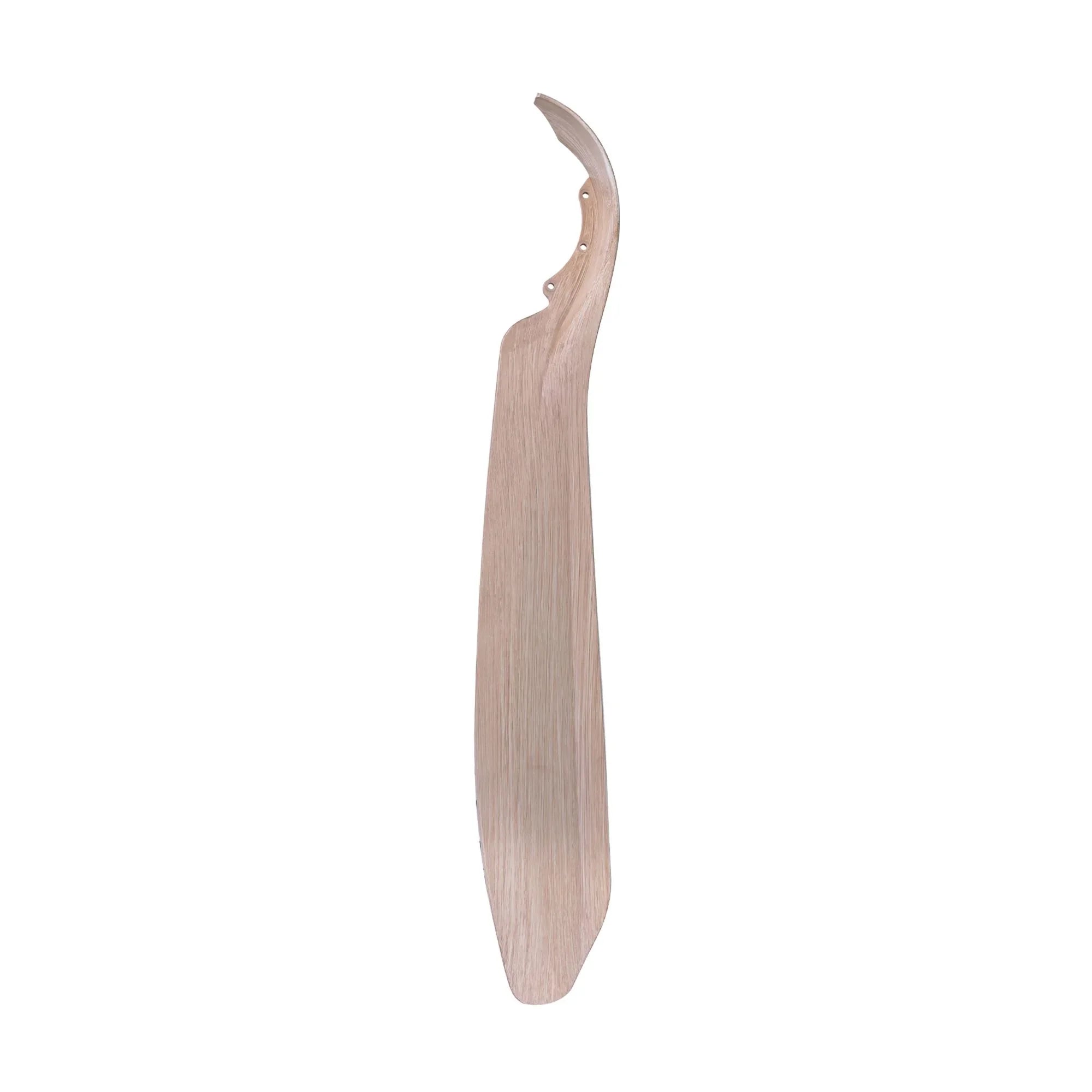

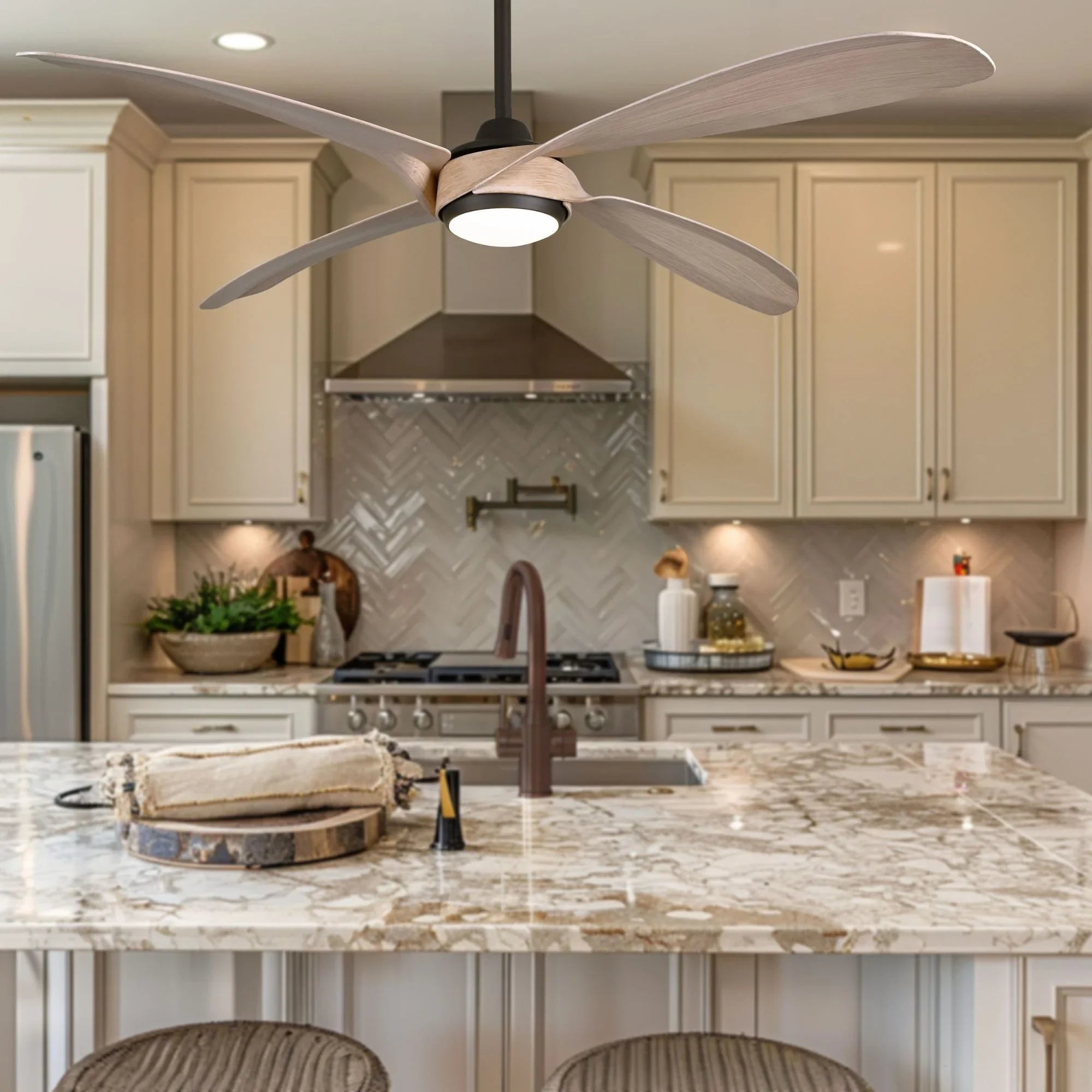

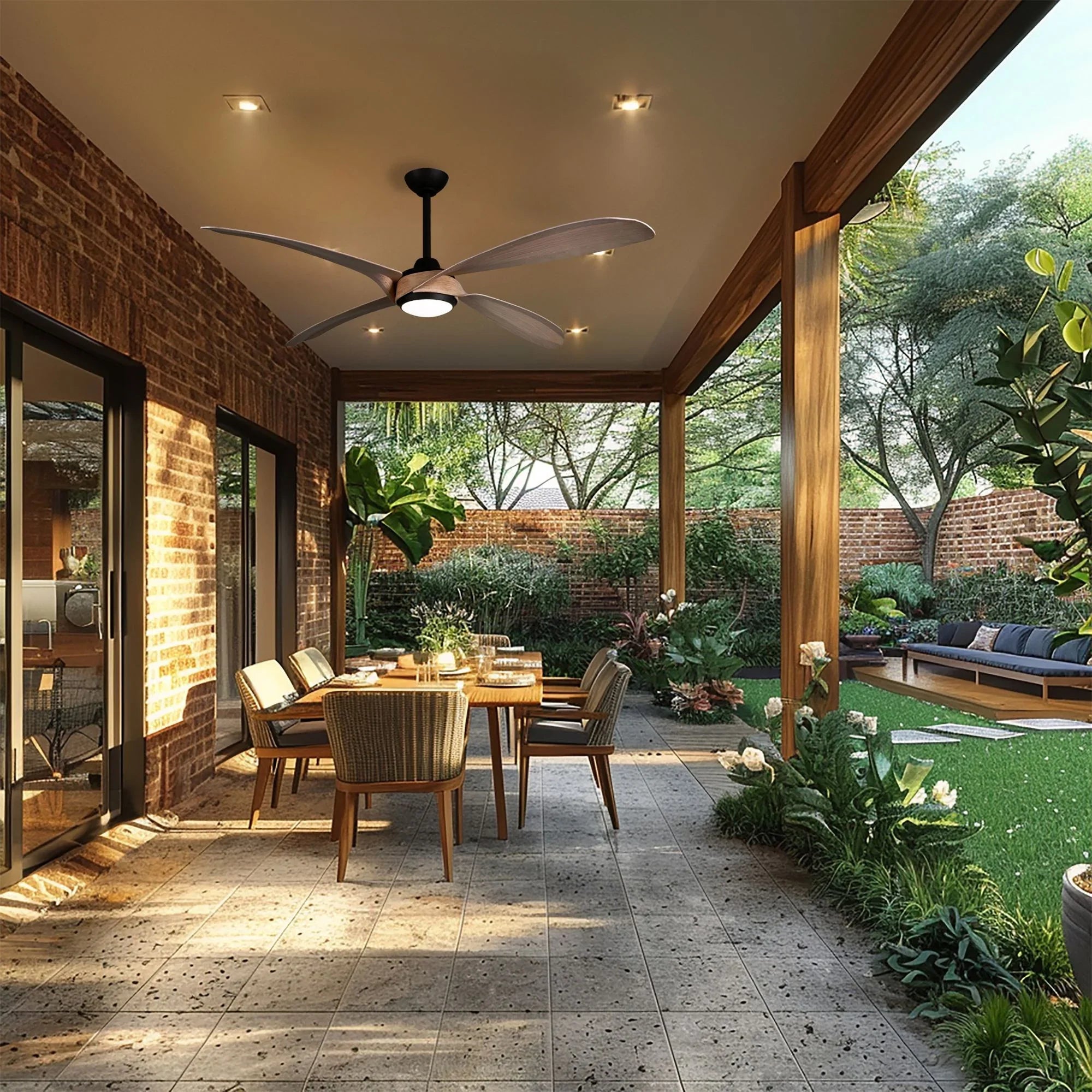

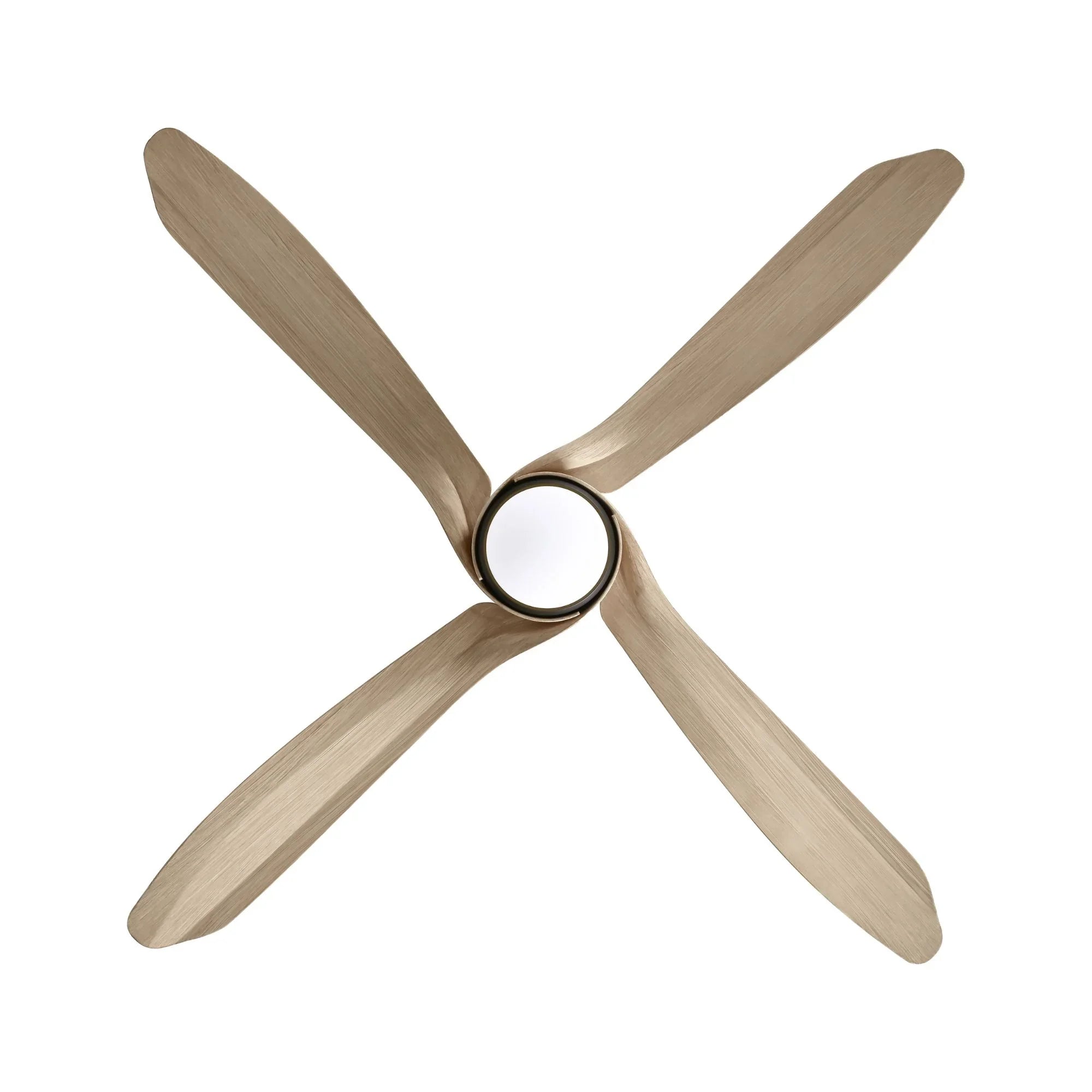

Construction & DesignDark Bronze motor housing with four sculptural Ashwood ABS blades at 21° pitch — dramatic curved silhouettes that evoke motion even at rest. Net weight: 14.56 lbs. The Mortyn’s four-blade 60 in sweep and rich wood-texture Ashwood blades bring organic sophistication to covered patios, pergolas, and large indoor living spaces.
Light Output & PerformanceThe F698L-DB/ASW delivers 6,386 CFM at high speed (117.73 CFM/W, 35.93W) and 2,174 CFM at low speed (664.83 CFM/W, 3.27W). The integrated 20W LED provides 1,462.92 delivered lumens (1,853 initial lumens) at 3000K warm white, CRI 90, rated 30,000 hours, fully dimmable, through a frosted white polycarbonate lens. Its 60 in span is ideal for large indoor and covered outdoor spaces over 160 sq ft.
Electrical & Installation120V DC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Wet Locations. Energy Star rated. Title 20 compliant. 1-year limited manufacturer’s warranty.

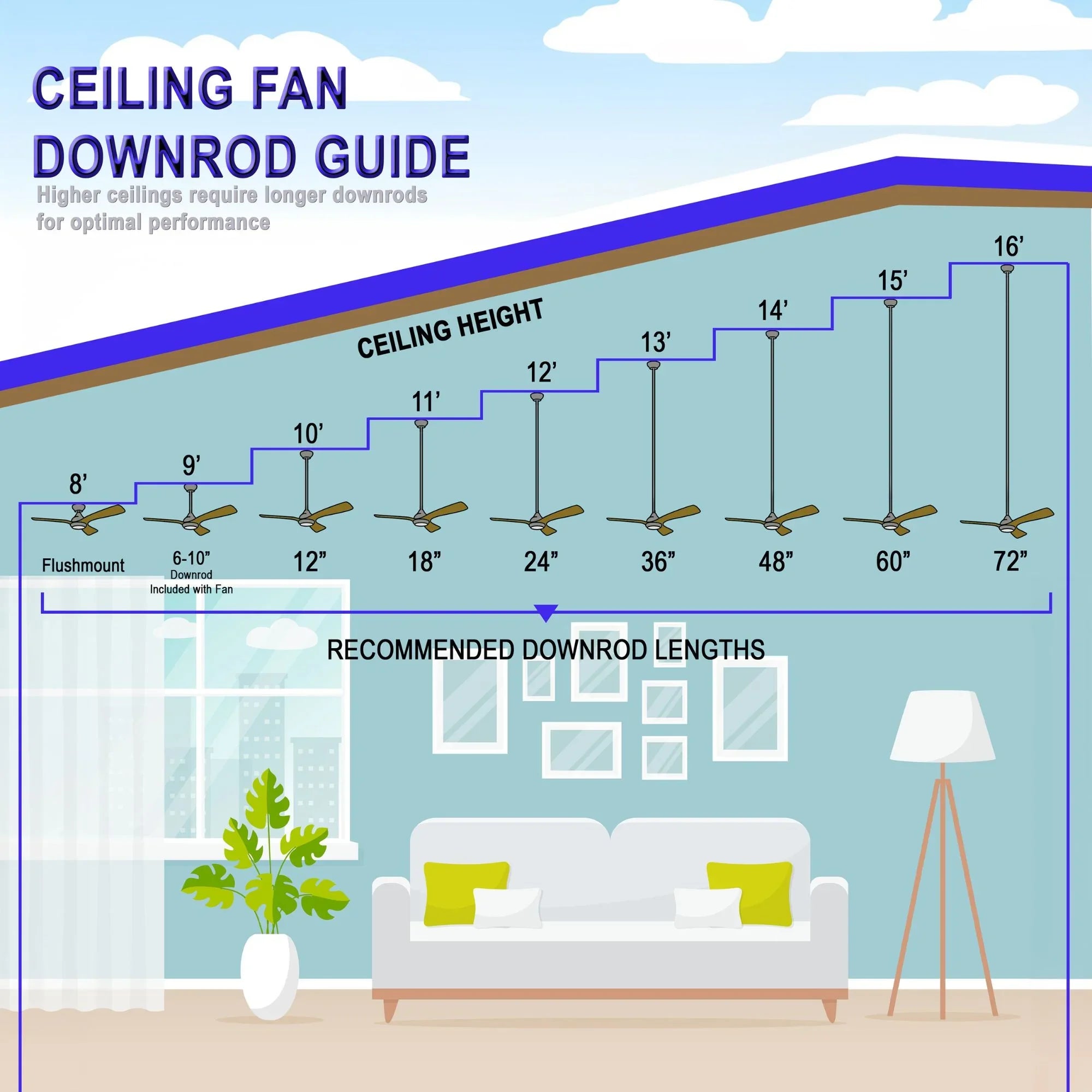

Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F698L-DB/ASW ceiling fan (Dark Bronze body + 4 Ashwood ABS blades)
- Integrated 20W LED light kit with frosted white polycarbonate lens
- RC1000 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
