Minka Aire Ventiara 52 in LED Flush Mount Ceiling Fan DC Flat White
Available in stock (258)
About this item
About this item
- Airflow & Efficiency: 3,983 CFM high (214.83 CFM/W, 18.54W) / 978 CFM low — Energy Star & Title 20 certified — ideal for medium to large indoor and covered outdoor spaces up to 300 sq ft.
- DC Motor: 125×20mm DC — 6 speeds, Summer & Winter reversible rotation — three-blade 52 in span, 8° pitch — 1-year limited manufacturer’s warranty.
- Wet Rated: ETL Listed for Wet Locations — exposed and covered patios, porches, bathrooms, and all indoor spaces.
- Control: RC1000 remote included (6-speed, full-range dimmer) — WC1000 wall control sold separately — Bond BD-1000 compatible for app + voice control (Alexa, Google Home, Ecobee, Control4).
- LED Light Kit: 20W integrated LED — 1,158 lm delivered, 3000K, CRI 90, 30,000 hrs, dimmable — etched polycarbonate lens.
Description
Description

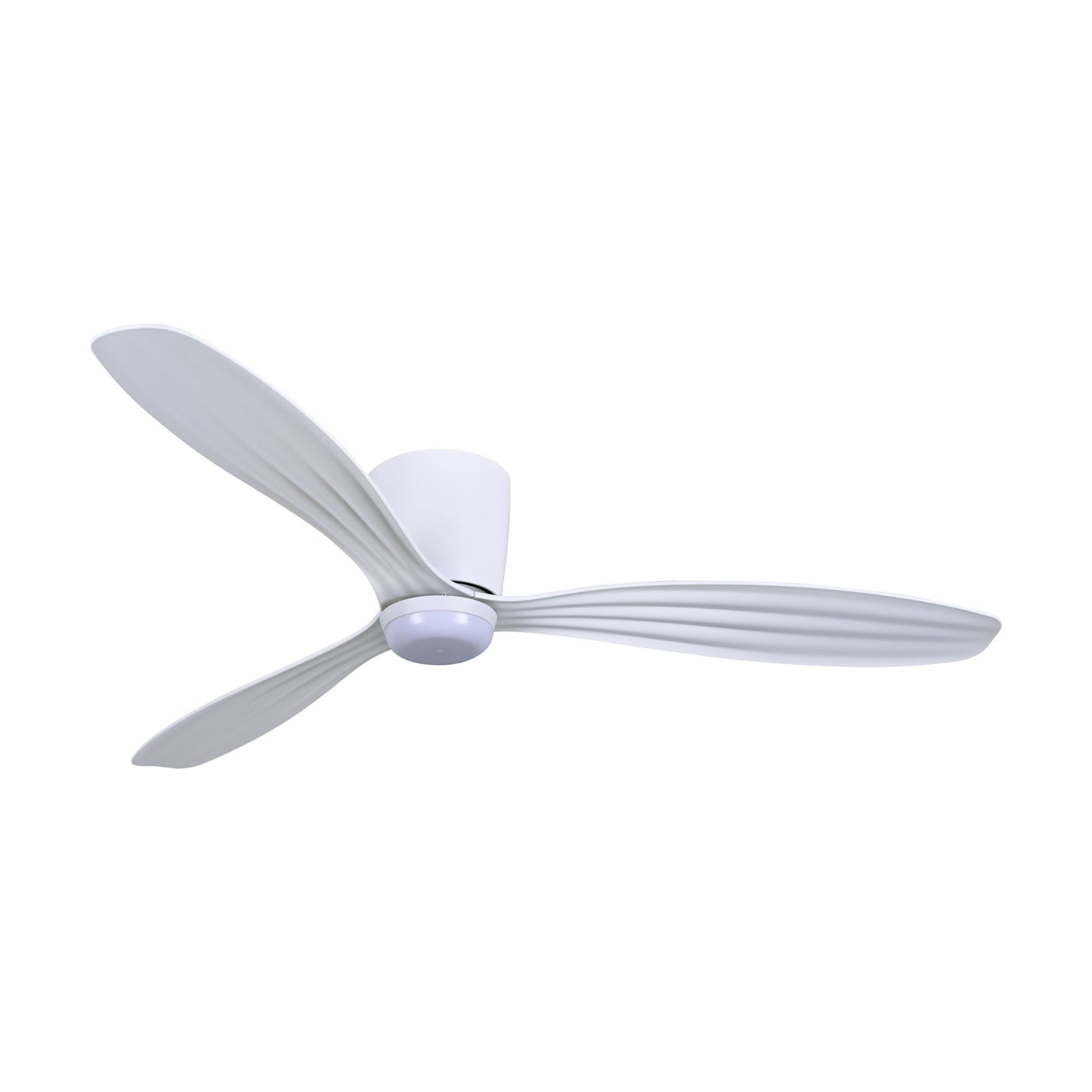

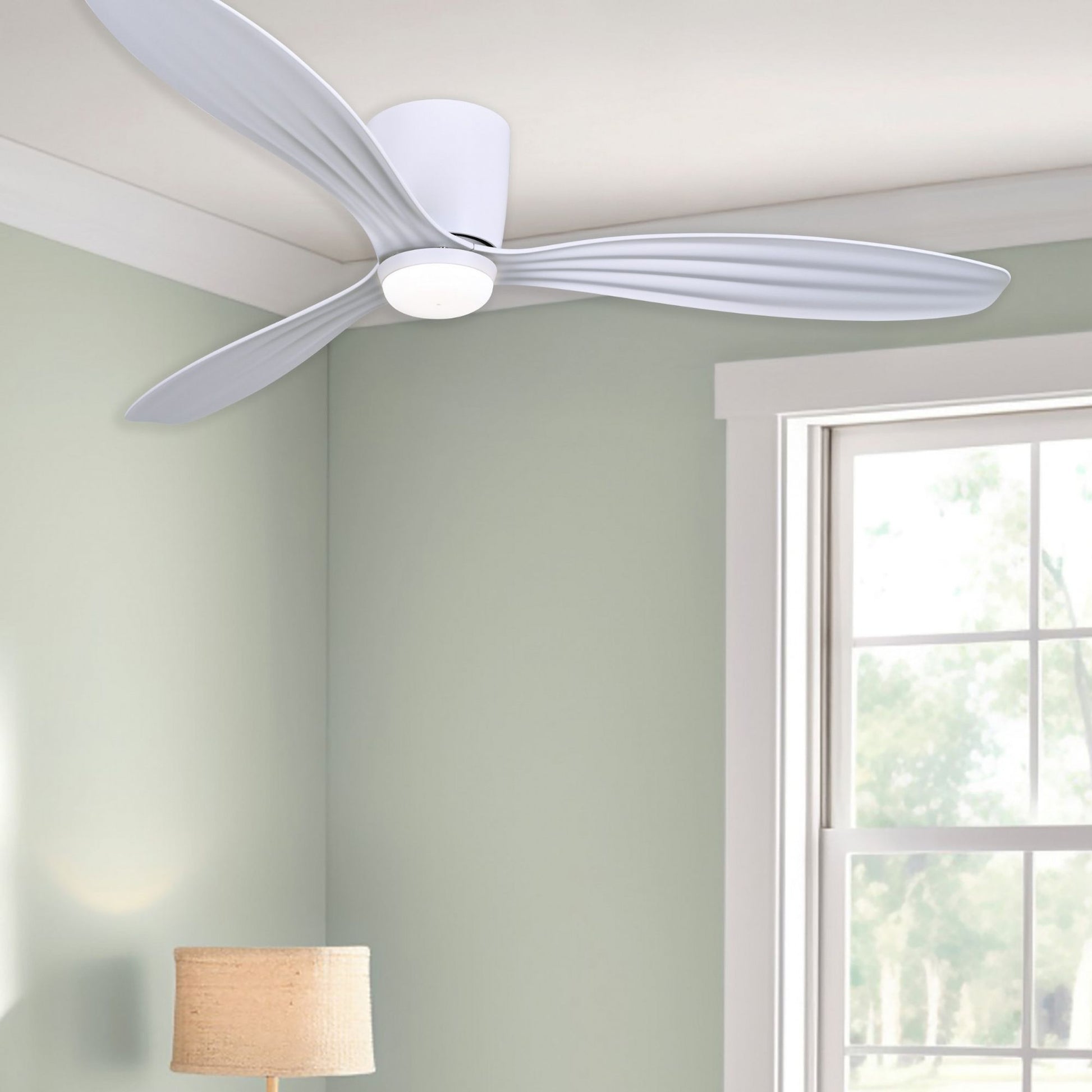

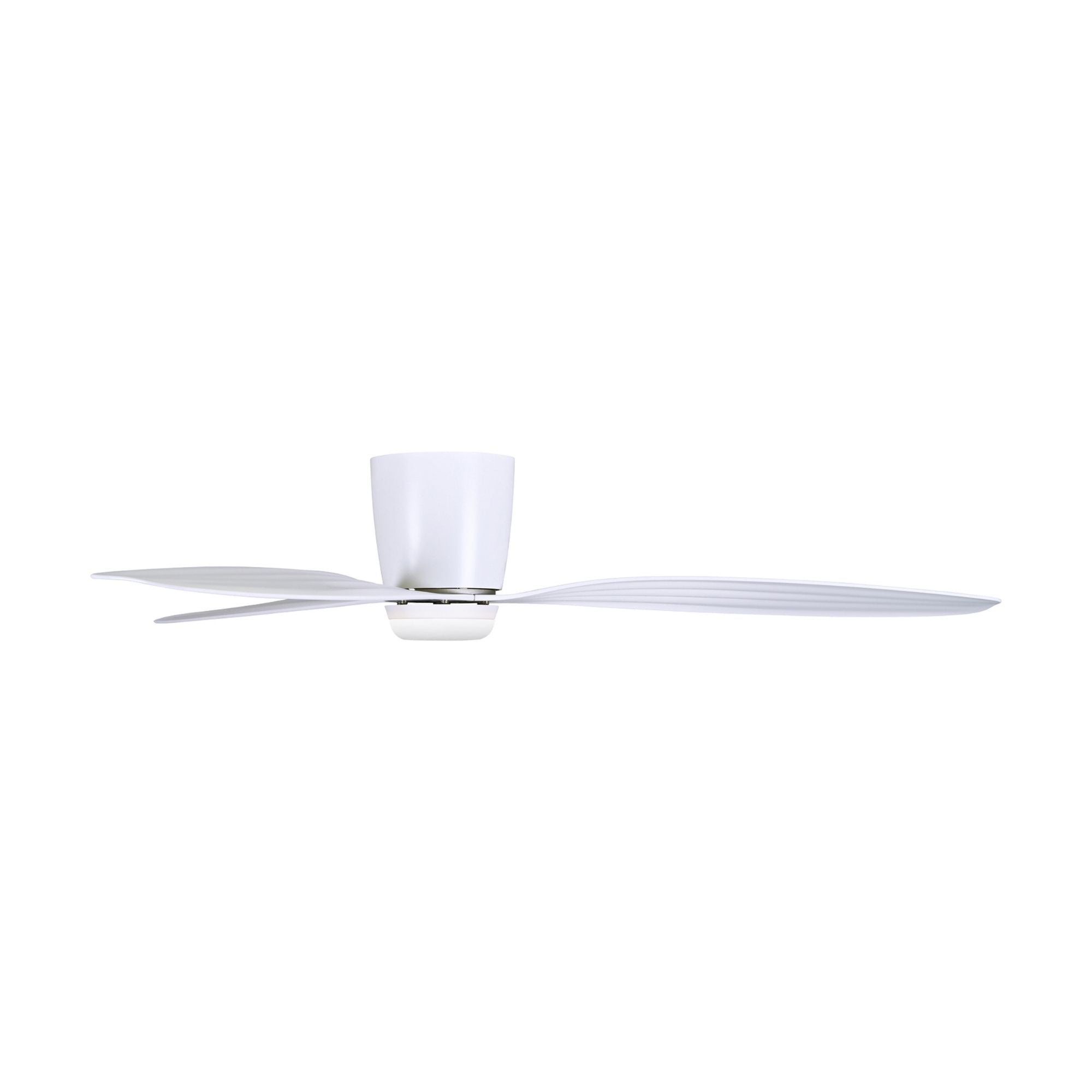

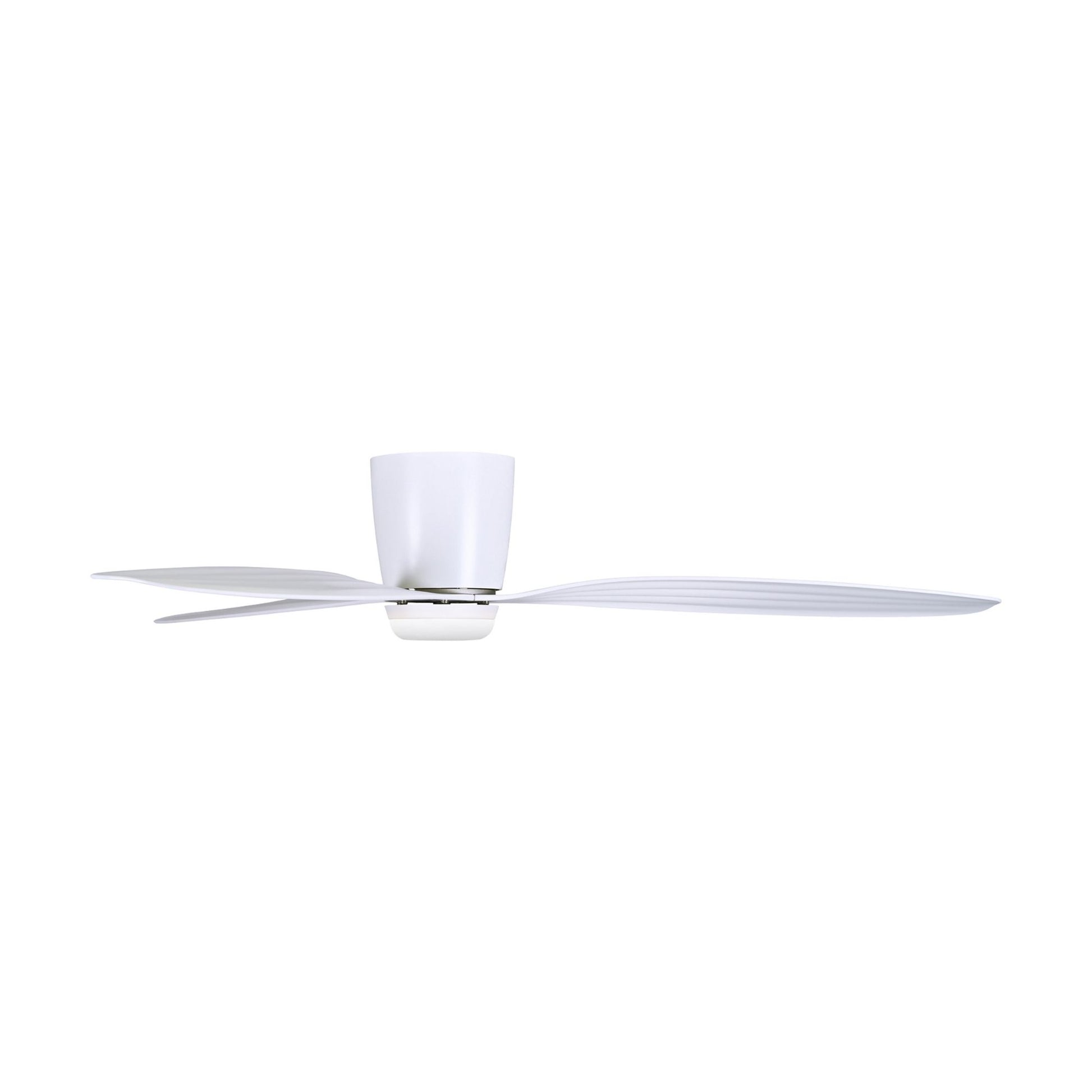

The Minka Aire Ventiara F694L-WHF is a three-blade 52 in flush mount LED ceiling fan in all-Flat White finish with matching Flat White ABS blades and an integrated 20W LED with etched polycarbonate lens. Powered by a whisper-quiet DC 125×20mm motor, it delivers 3,983 CFM at high speed — 214.83 CFM/W efficiency. ETL Listed for Wet Locations, Energy Star and Title 20 certified, Bond BD-1000 compatible, and backed by a 1-year limited manufacturer’s warranty.

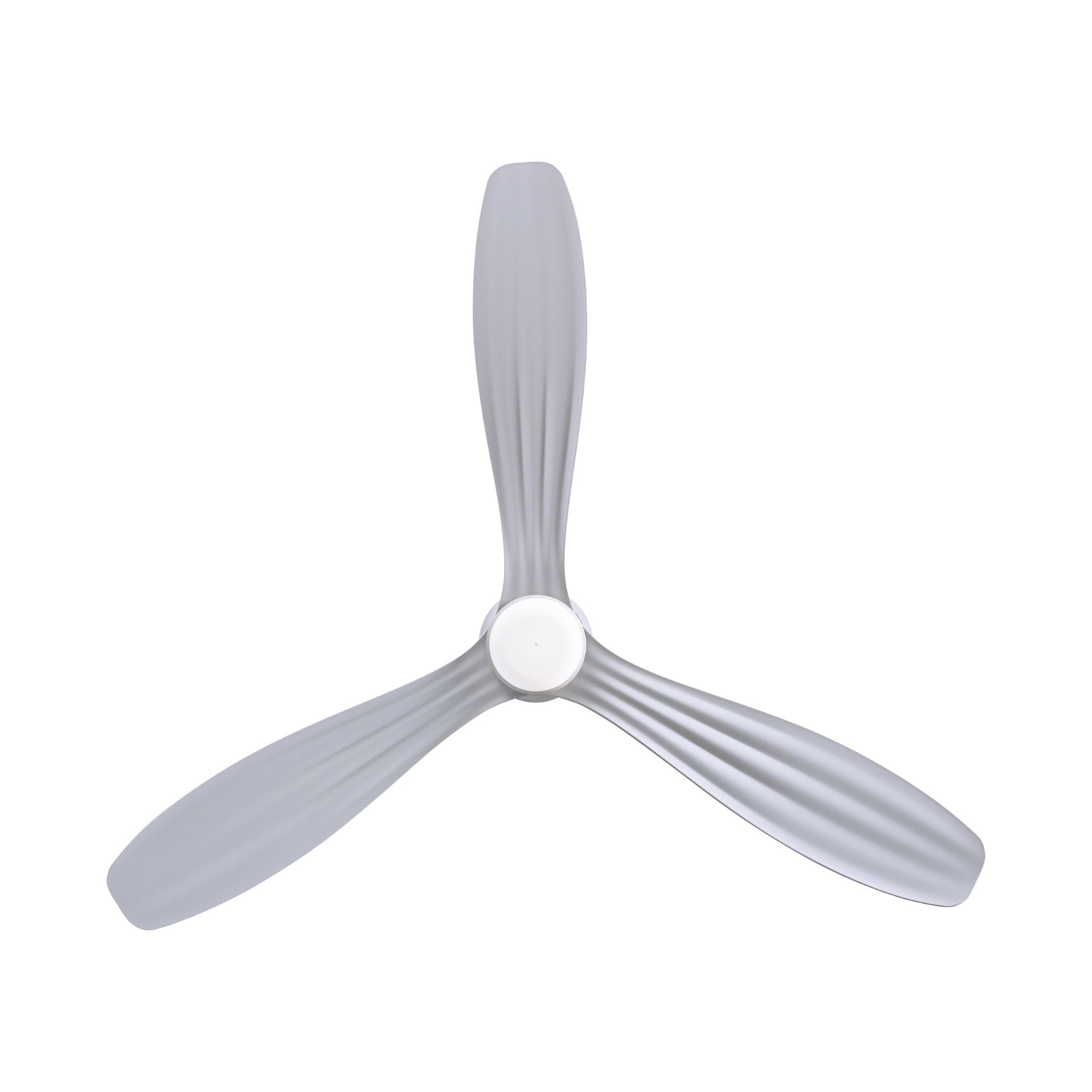

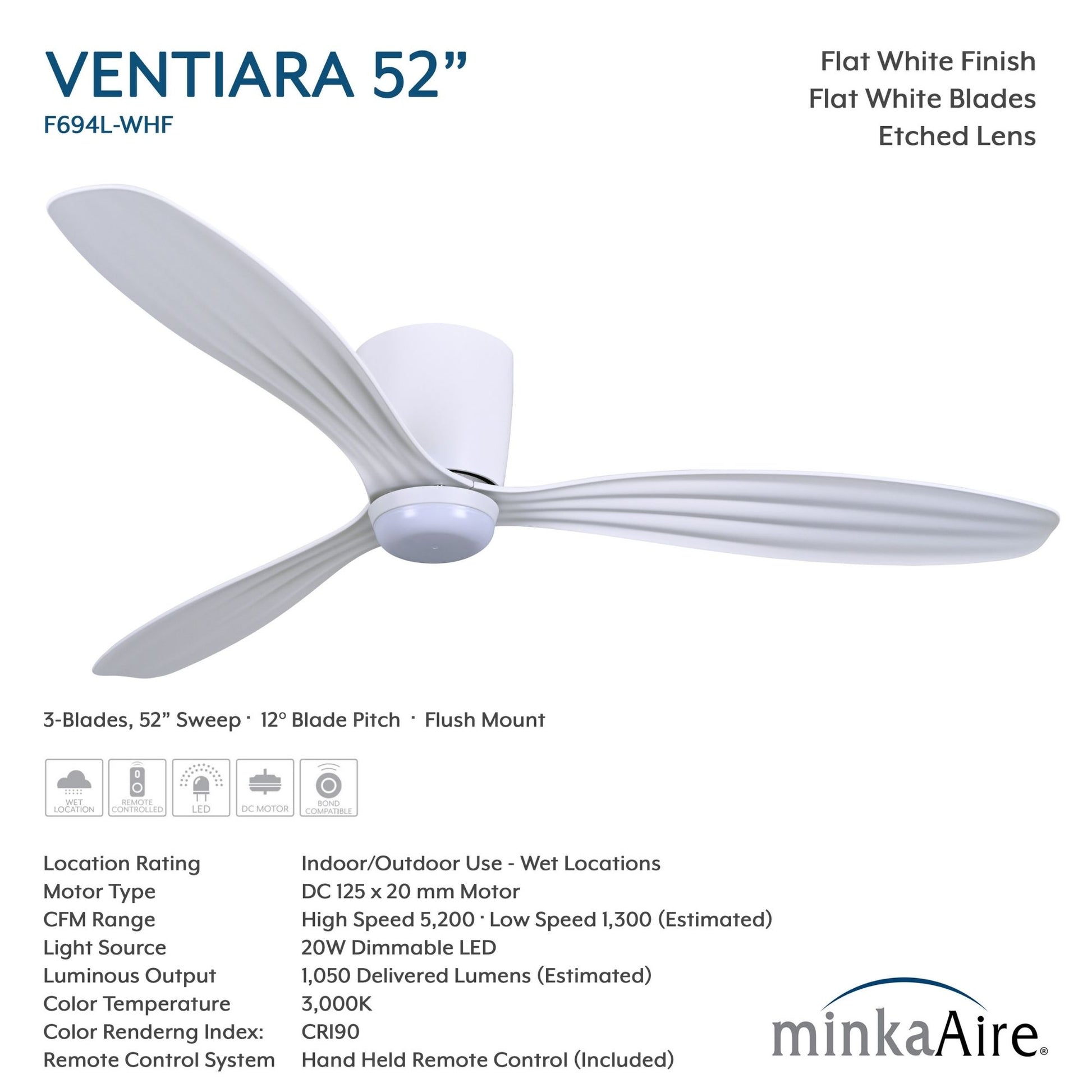

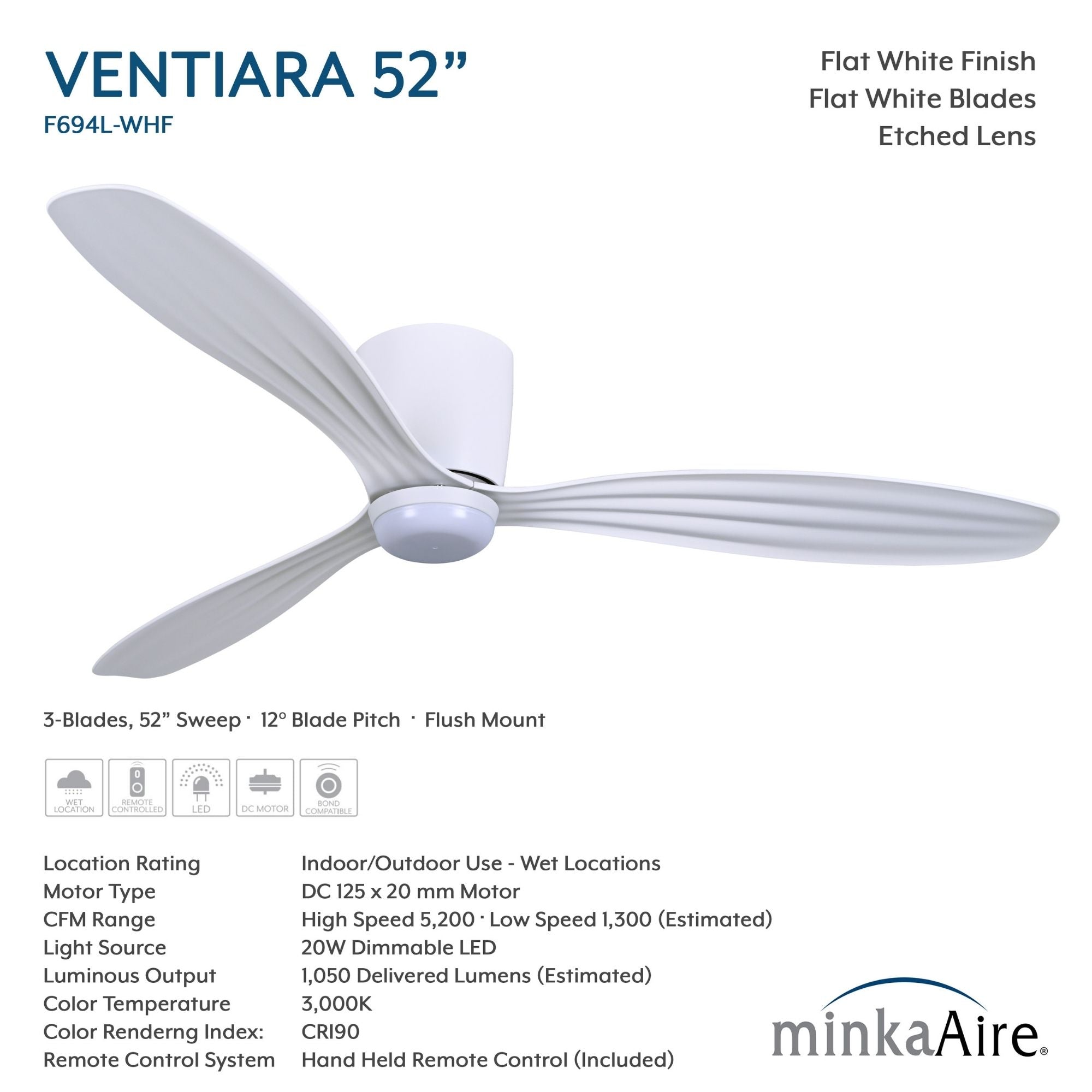

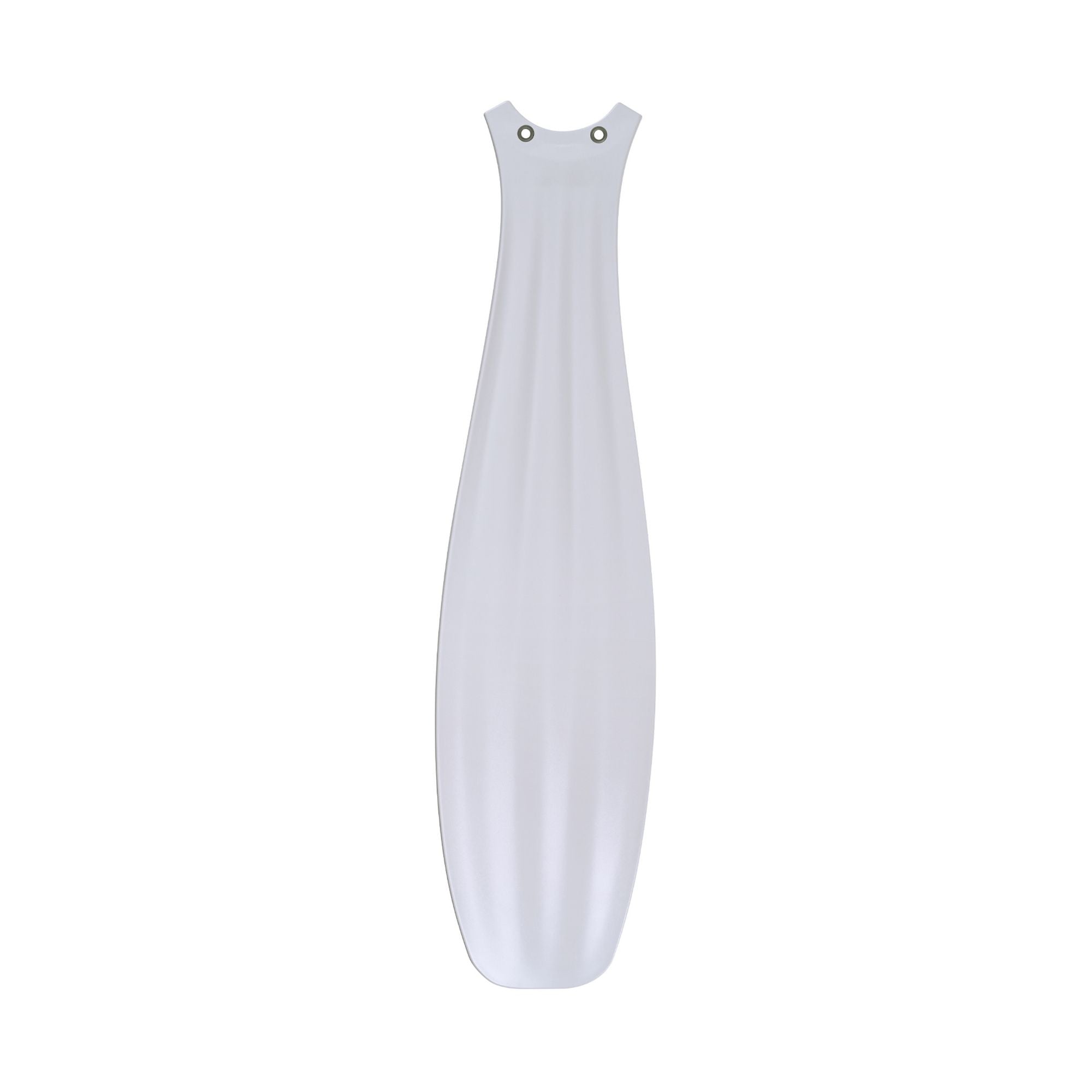

Key Features- Blade Span: 52 in, 3 ABS blades, 8° pitch, Flat White
- Motor: DC 125×20mm, 6 speeds, reversible rotation
- Airflow: 3,983 CFM high / 978 CFM low — 214.83 CFM/W high / 552.54 CFM/W low
- Wattage: 18.54W high / 1.77W low
- Light Kit: Integrated 20W LED — 1,158 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, etched polycarbonate lens
- Location Rating: ETL Listed for Wet Locations — covered and exposed outdoor areas, bathrooms, and all indoor spaces.
- Control: RC1000 remote included — Bond BD-1000 compatible (sold separately)
- Mount: Flush mount — no downrod, slope ceiling compatible

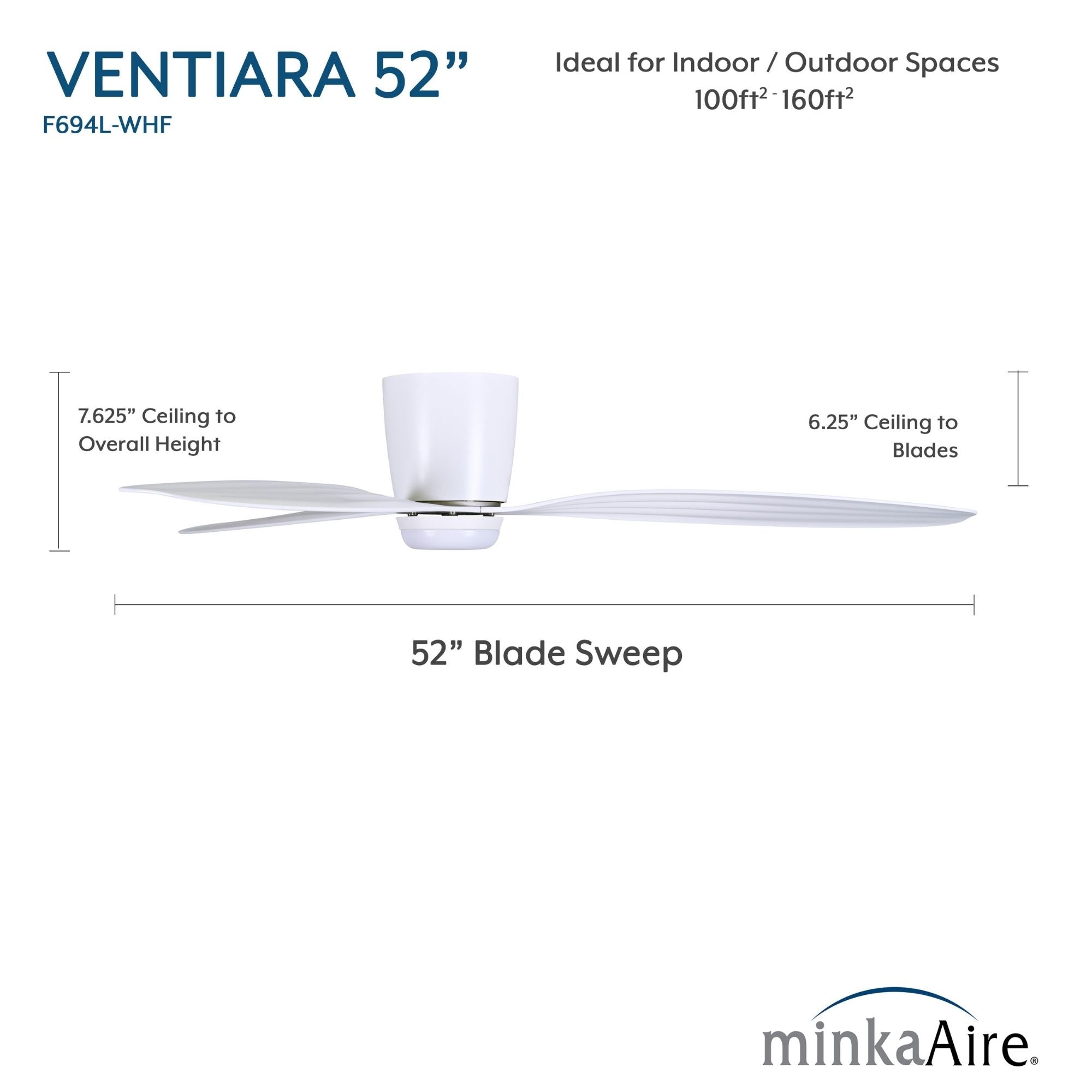

- Ceiling to Blade: 6.25 in / Lowest point: 7.5 in / Weight: 10.54 lbs

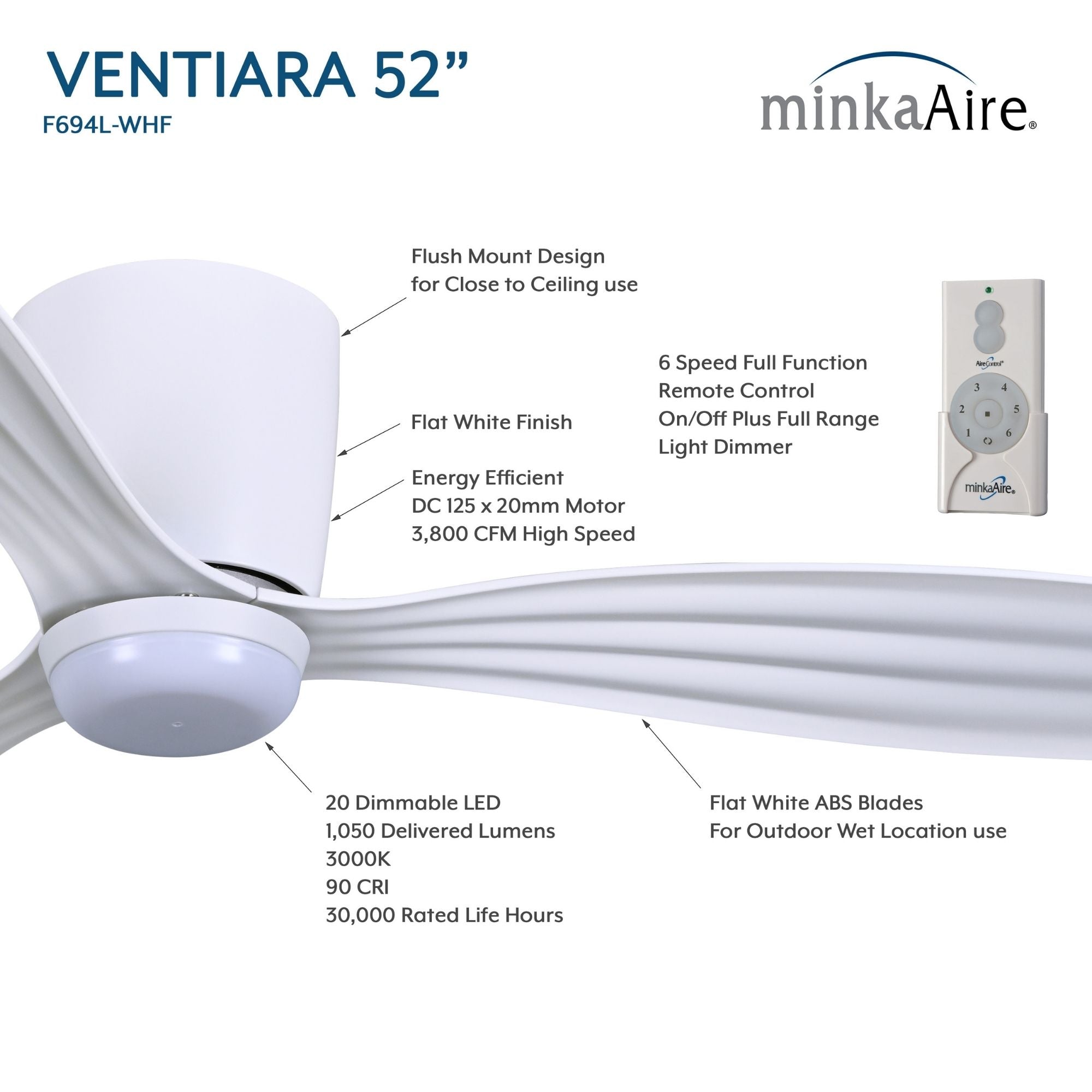

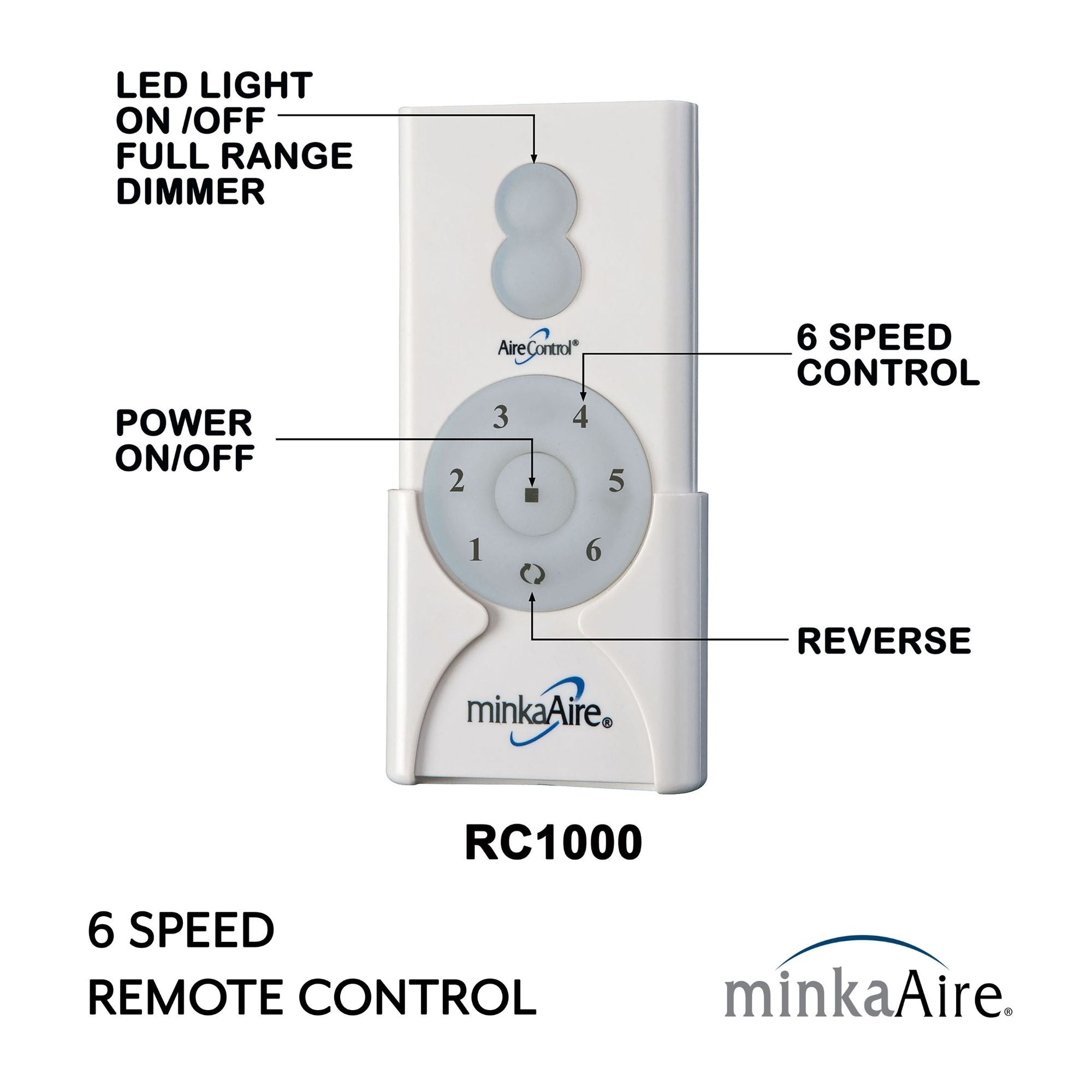

The Ventiara F694L-WHF includes the RC1000 Remote Control — 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). For smart home integration, the Ventiara is compatible with the Bond BD-1000 hub (sold separately) — enables Bond Home app (iOS & Android) with Alexa, Google Home, Ecobee, and Control4 voice integrations.

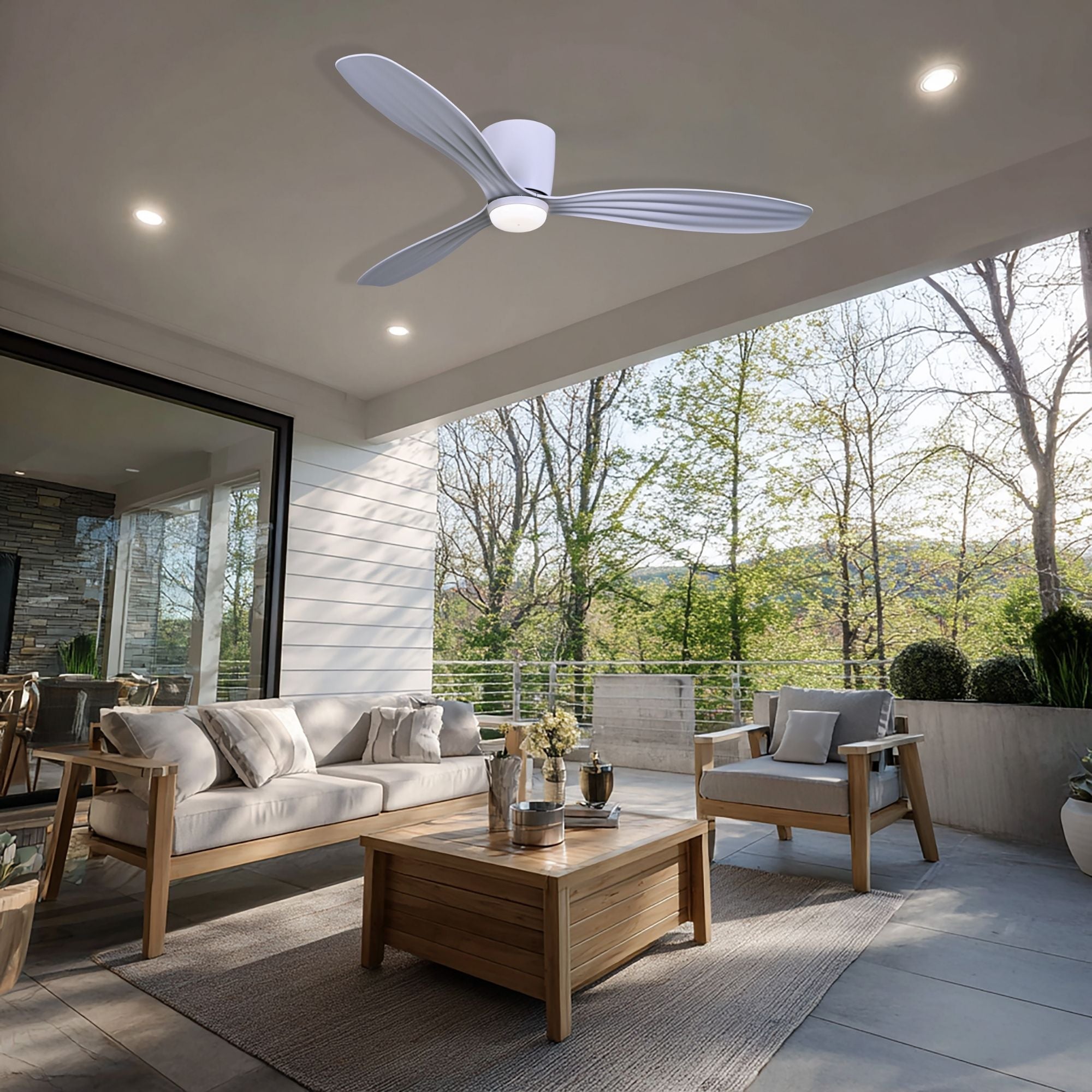

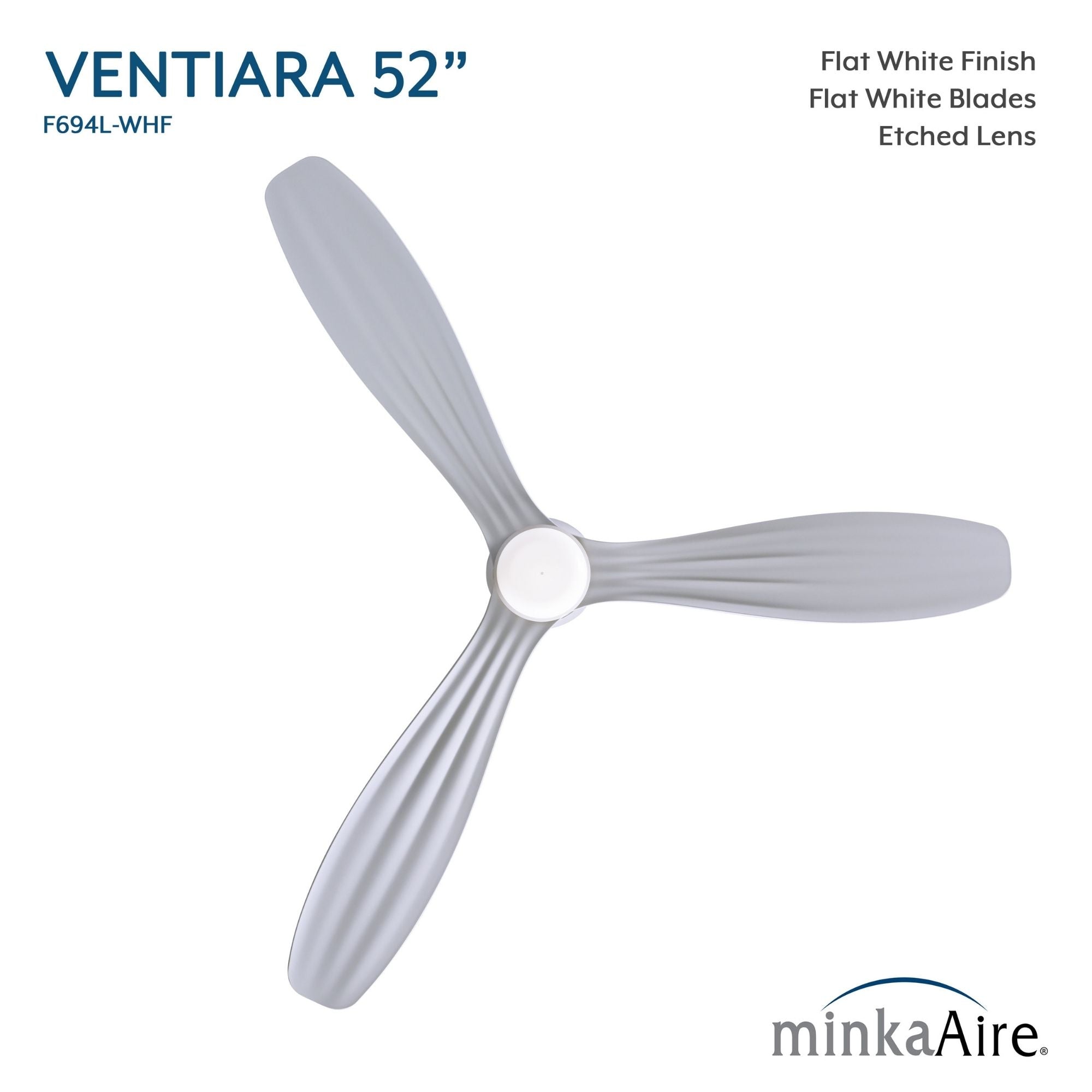

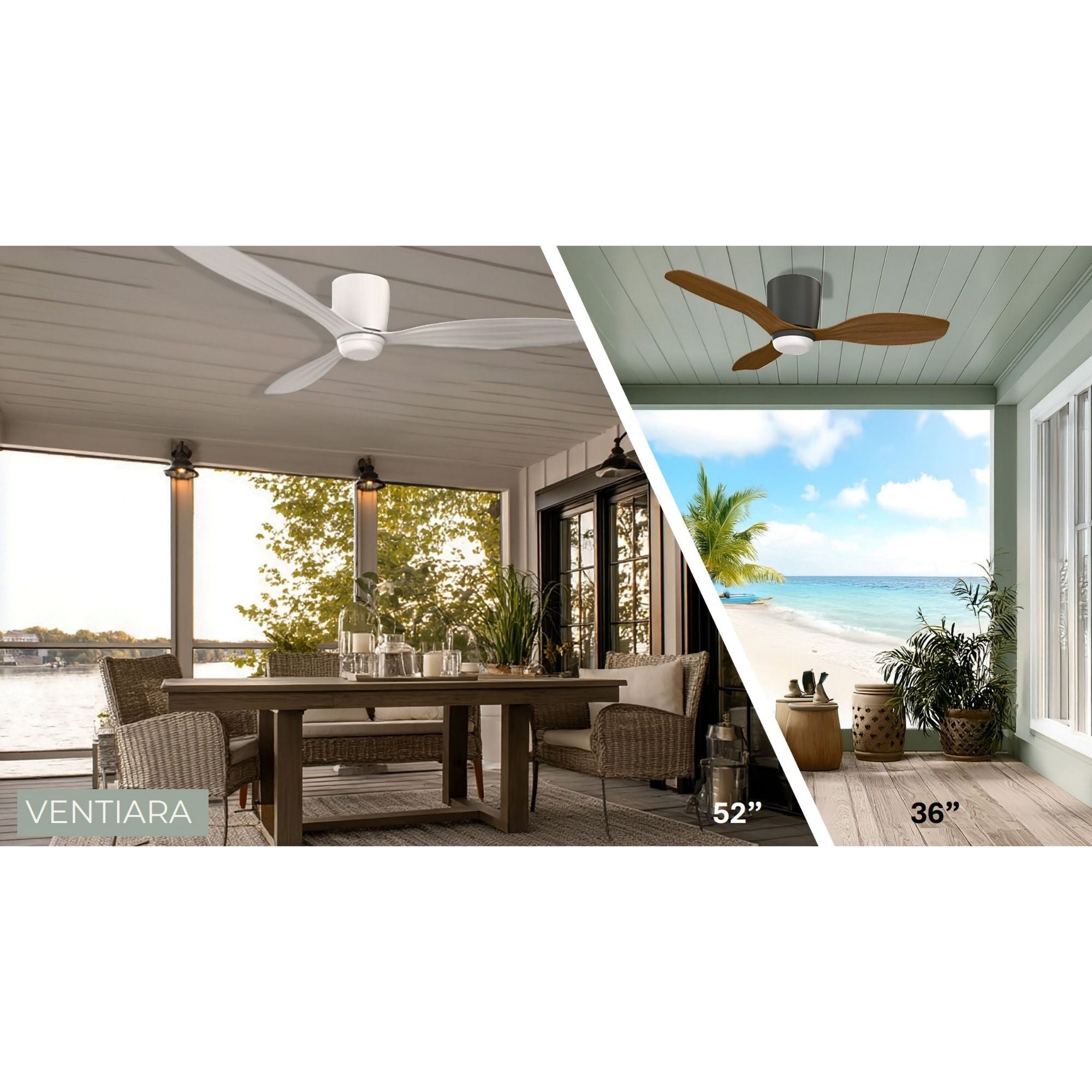

Construction & DesignAll-Flat White motor housing with three sweeping Flat White ABS blades at 8° pitch and an etched polycarbonate lens. Net weight: 10.54 lbs. The Ventiara’s 52 in flush mount profile in all-Flat White brings clean, airy lightness to low-ceiling indoor and covered outdoor spaces — covered patios, porches, great rooms, and primary bedrooms. Backed by a 1-year limited manufacturer’s warranty.
Light Output & PerformanceThe F694L-WHF delivers 3,983 CFM at high speed (214.83 CFM/W, 18.54W) and 978 CFM at low speed (552.54 CFM/W, 1.77W). The integrated 20W LED provides 1,158 delivered lumens (1,890 initial lumens) at 3000K warm white, CRI 90, rated 30,000 hours, fully dimmable, through an etched polycarbonate lens. Energy Star and Title 20 certified. Its 52 in span is ideal for medium to large indoor and covered outdoor spaces up to approximately 300 sq ft.
Electrical & Installation120V DC, 60Hz. Wire: 8 in. Flush mount — no downrod included. Slope ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Wet Locations. FCC Compliant (CHQ78046T).

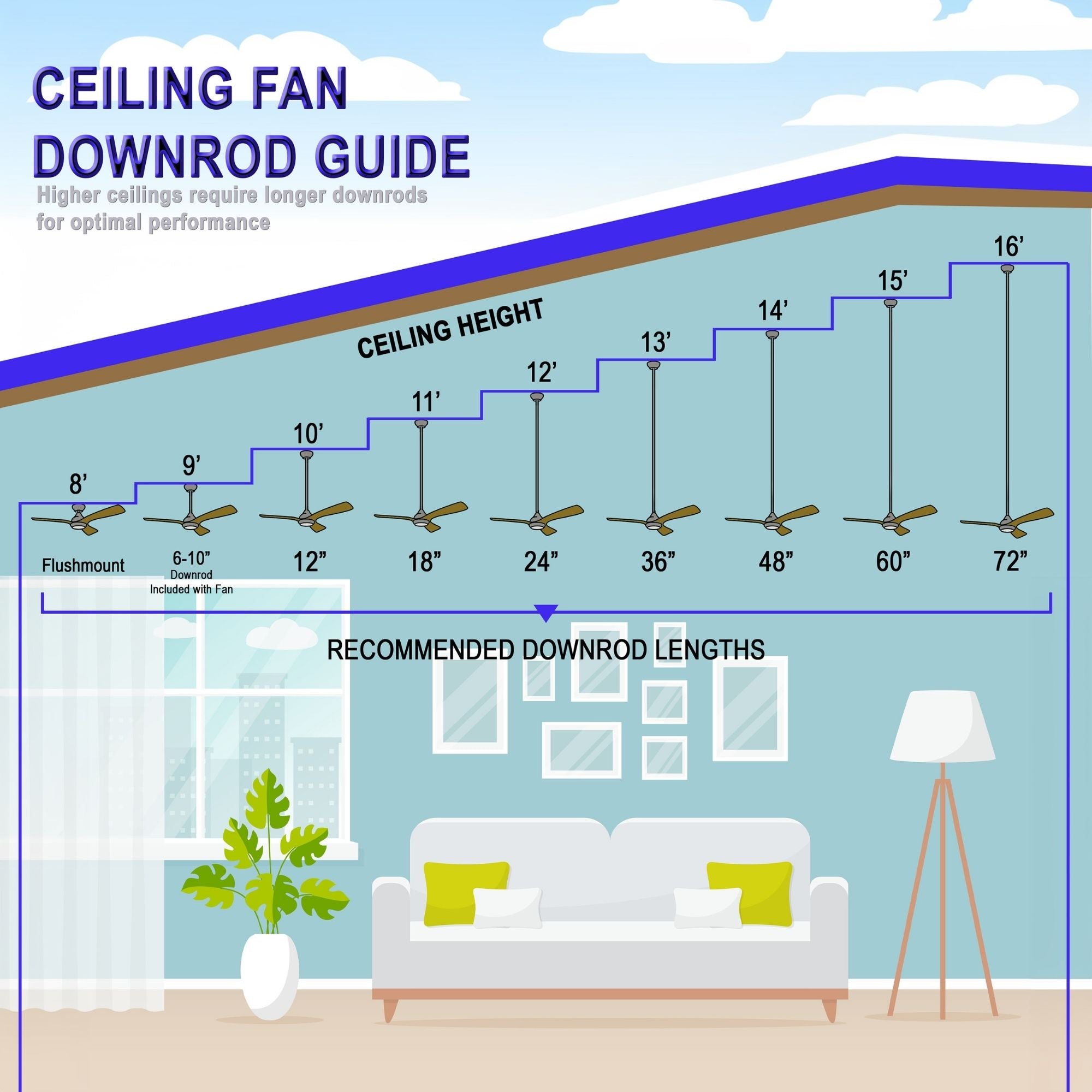

Recommended Ceiling HeightThe F694L-WHF is a flush mount fan designed for ceilings where downrod clearance is not available. Recommended for ceiling heights between 8 ft and 9 ft for optimal blade-to-floor clearance of 7 to 9 feet.
What's Included- F694L-WHF ceiling fan (Flat White body + 3 Flat White ABS blades)
- Integrated 20W LED light kit with etched polycarbonate lens
- RC1000 remote control
- Mounting hardware
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
