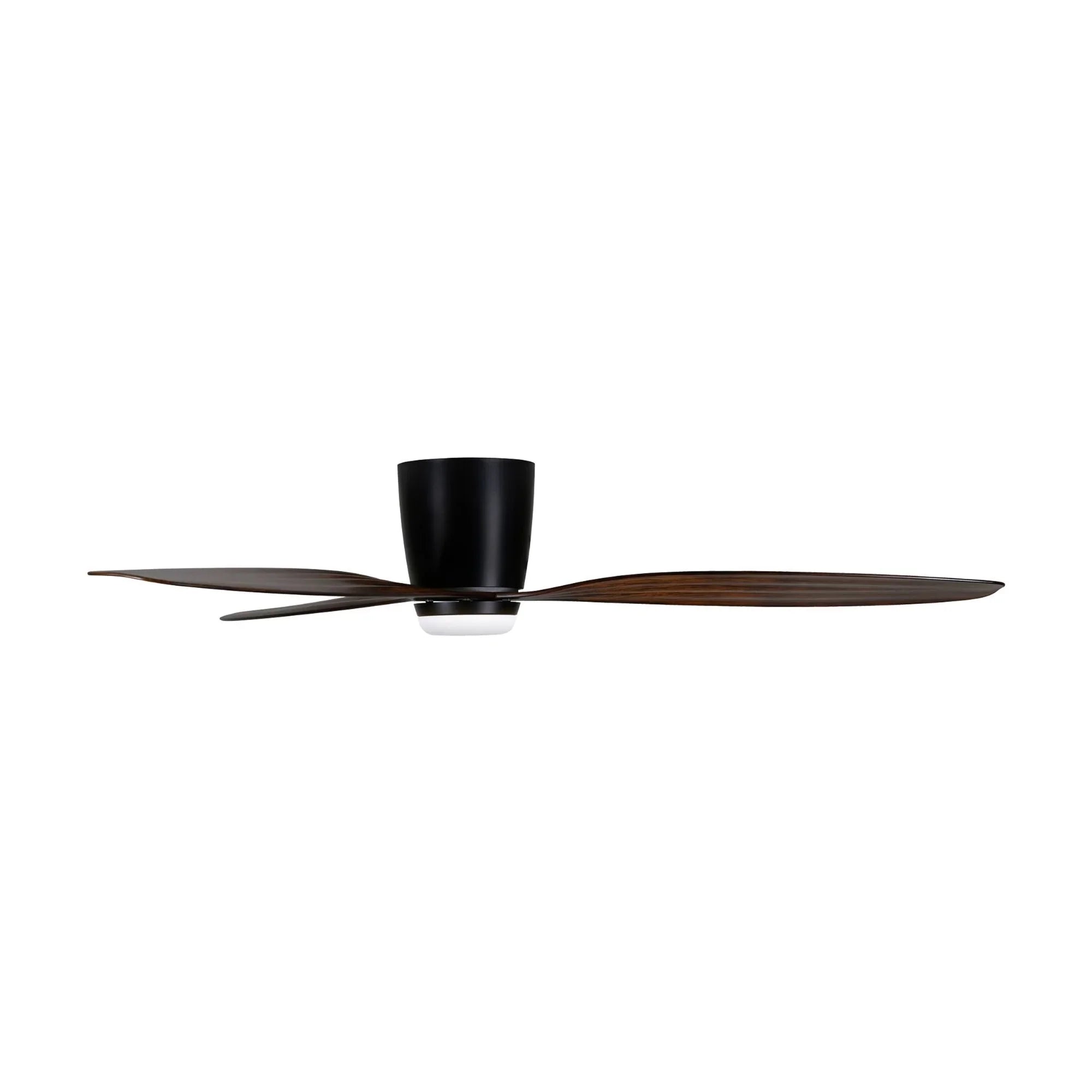

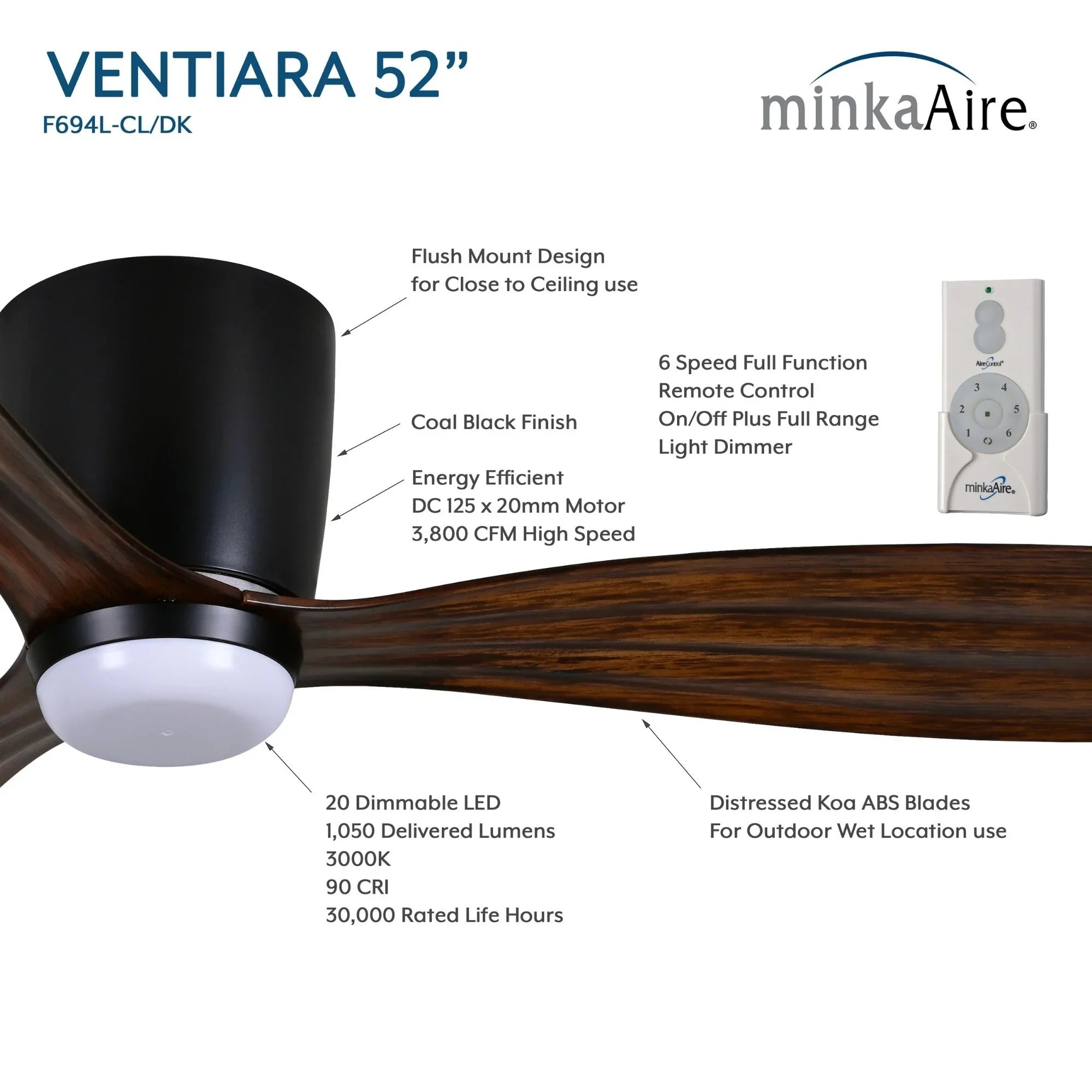

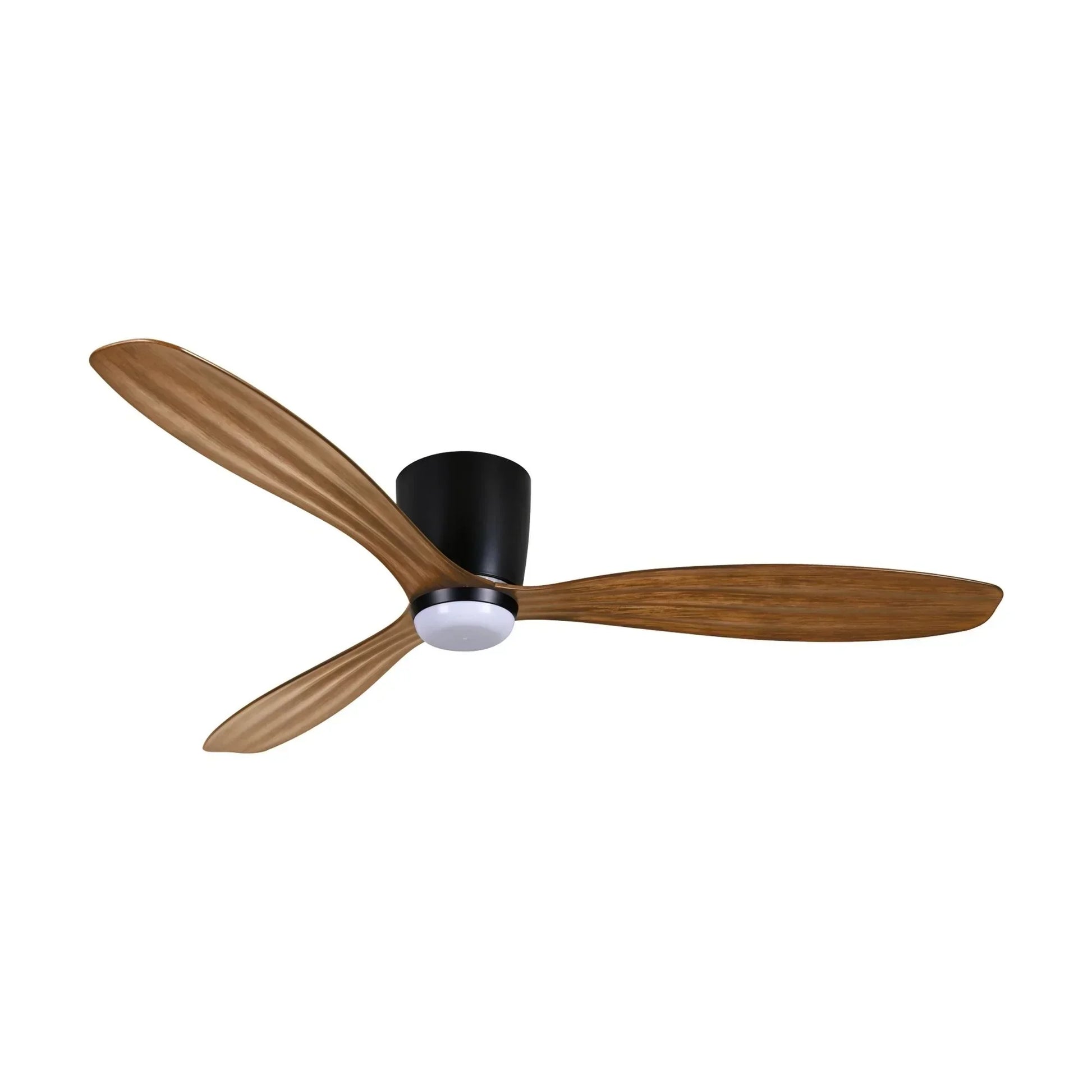

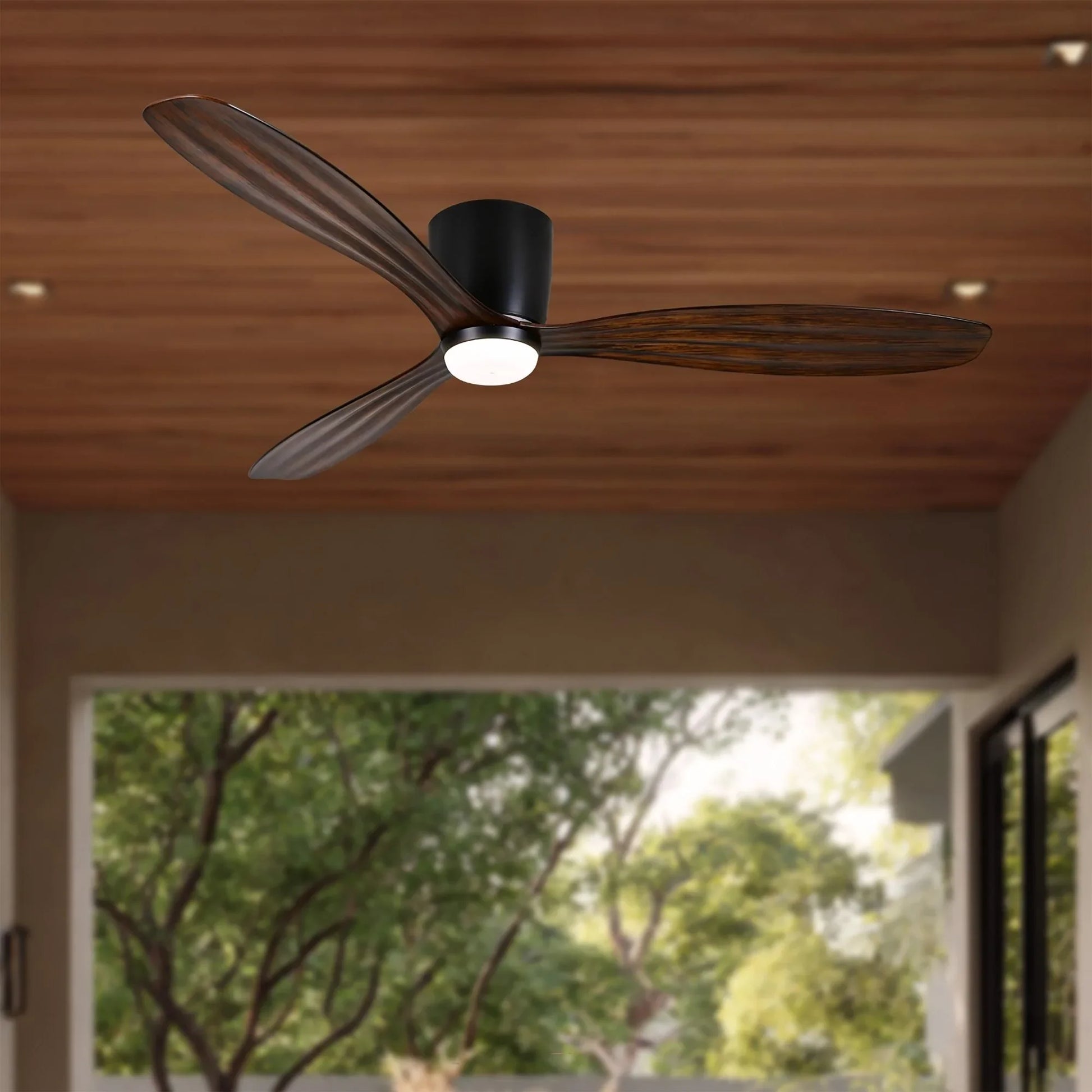

The Minka Aire Ventiara F694L-CL/DK is a three-blade 52 in flush mount LED ceiling fan in Coal Black finish with contrasting Distressed Koa ABS blades and an integrated 20W LED with etched polycarbonate lens. Powered by a whisper-quiet DC 125×20mm motor, it delivers 3,983 CFM at high speed — 214.83 CFM/W efficiency. ETL Listed for Wet Locations, Energy Star and Title 20 certified, Bond BD-1000 compatible, and backed by a 1-year limited manufacturer’s warranty.

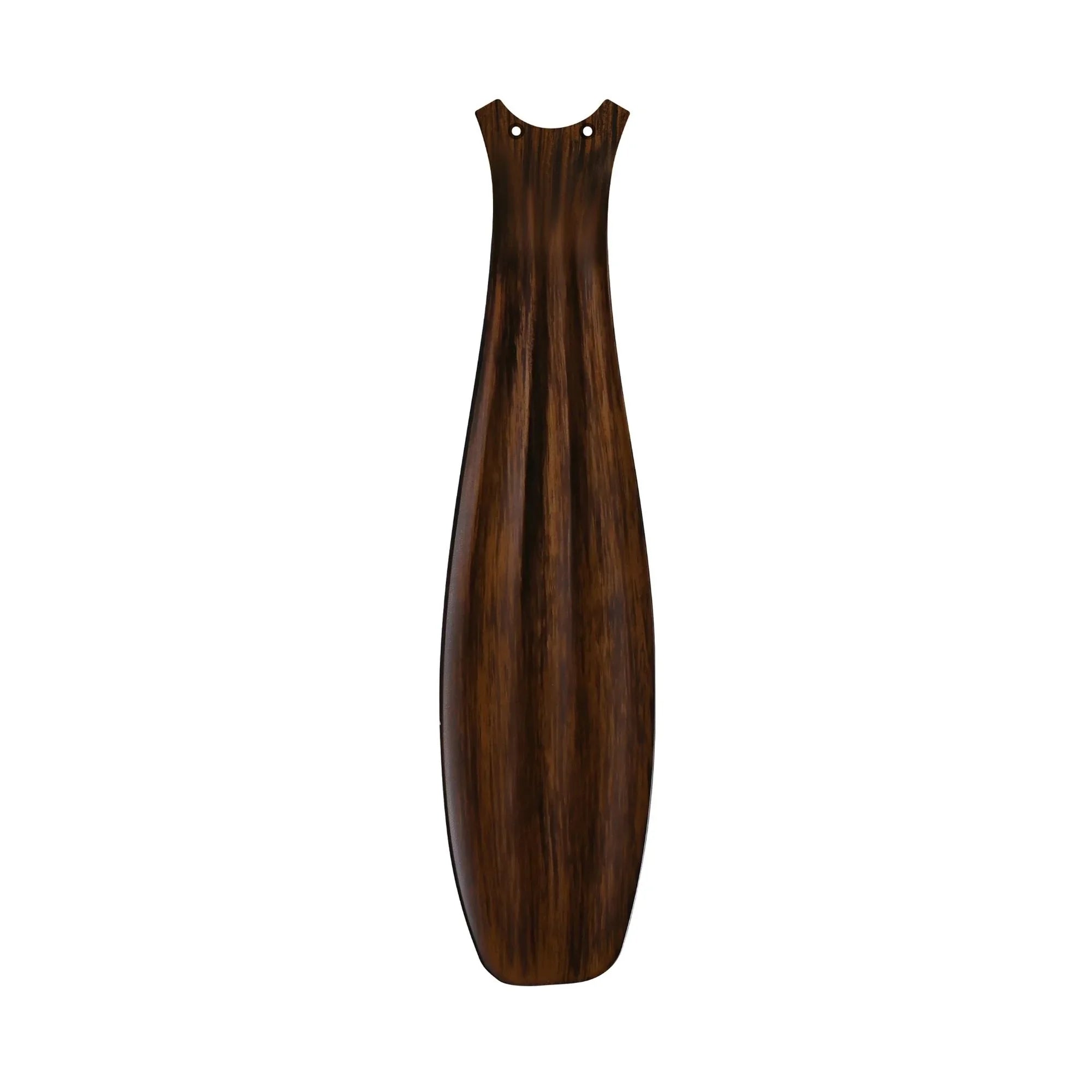

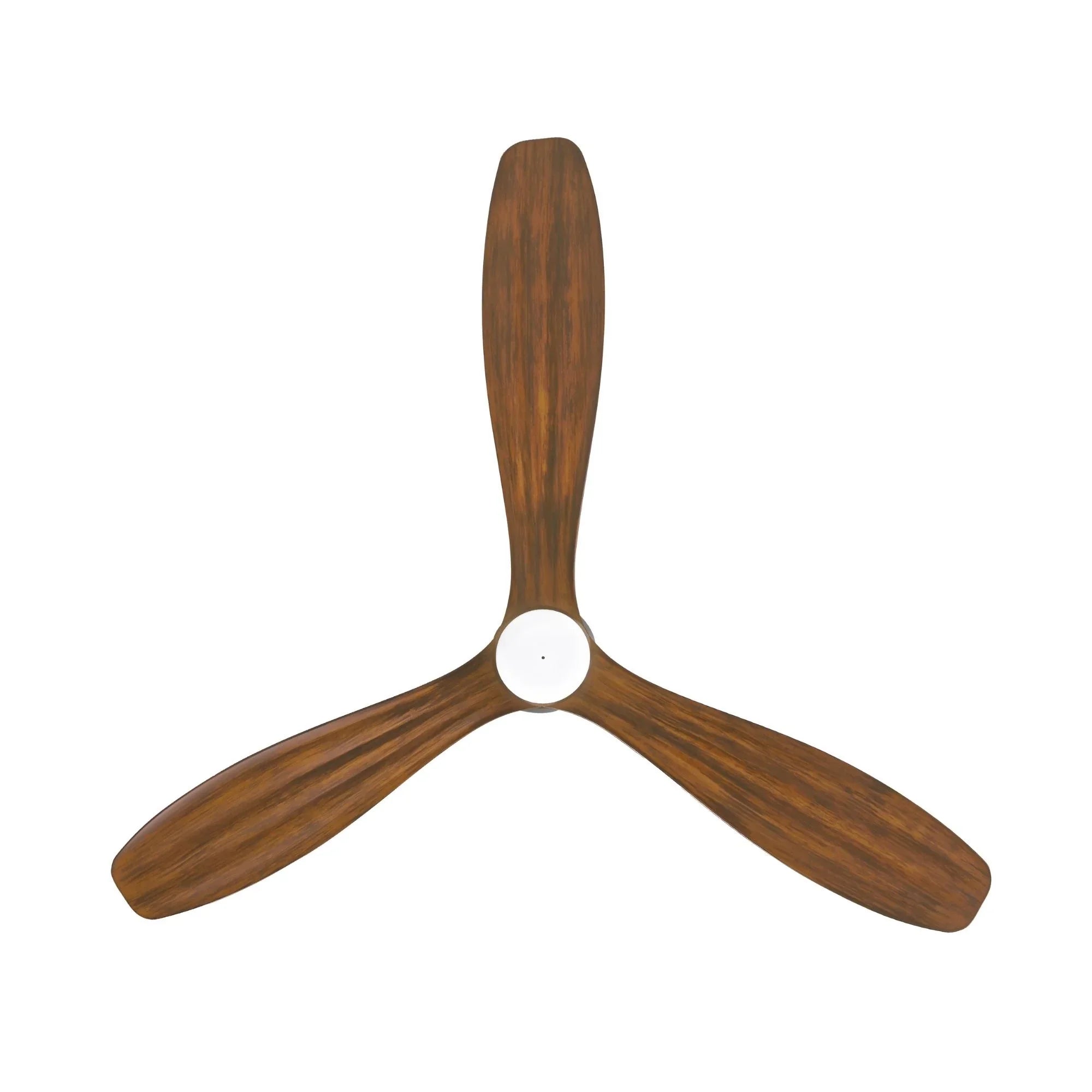

• Blade Span: 52 in, 3 ABS blades, 8° pitch, Distressed Koa
• Motor: DC 125×20mm, 6 speeds, reversible rotation
• Airflow: 3,983 CFM high / 978 CFM low — 214.83 CFM/W high / 552.54 CFM/W low
• Wattage: 18.54W high / 1.77W low
• Light Kit: Integrated 20W LED — 1,158 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, etched polycarbonate lens
• Location Rating: ETL Listed for Wet Locations — covered and exposed outdoor areas, bathrooms, and all indoor spaces.
• Control: RC1000 remote included — Bond BD-1000 compatible (sold separately)
• Mount: Flush mount — no downrod, slope ceiling compatible

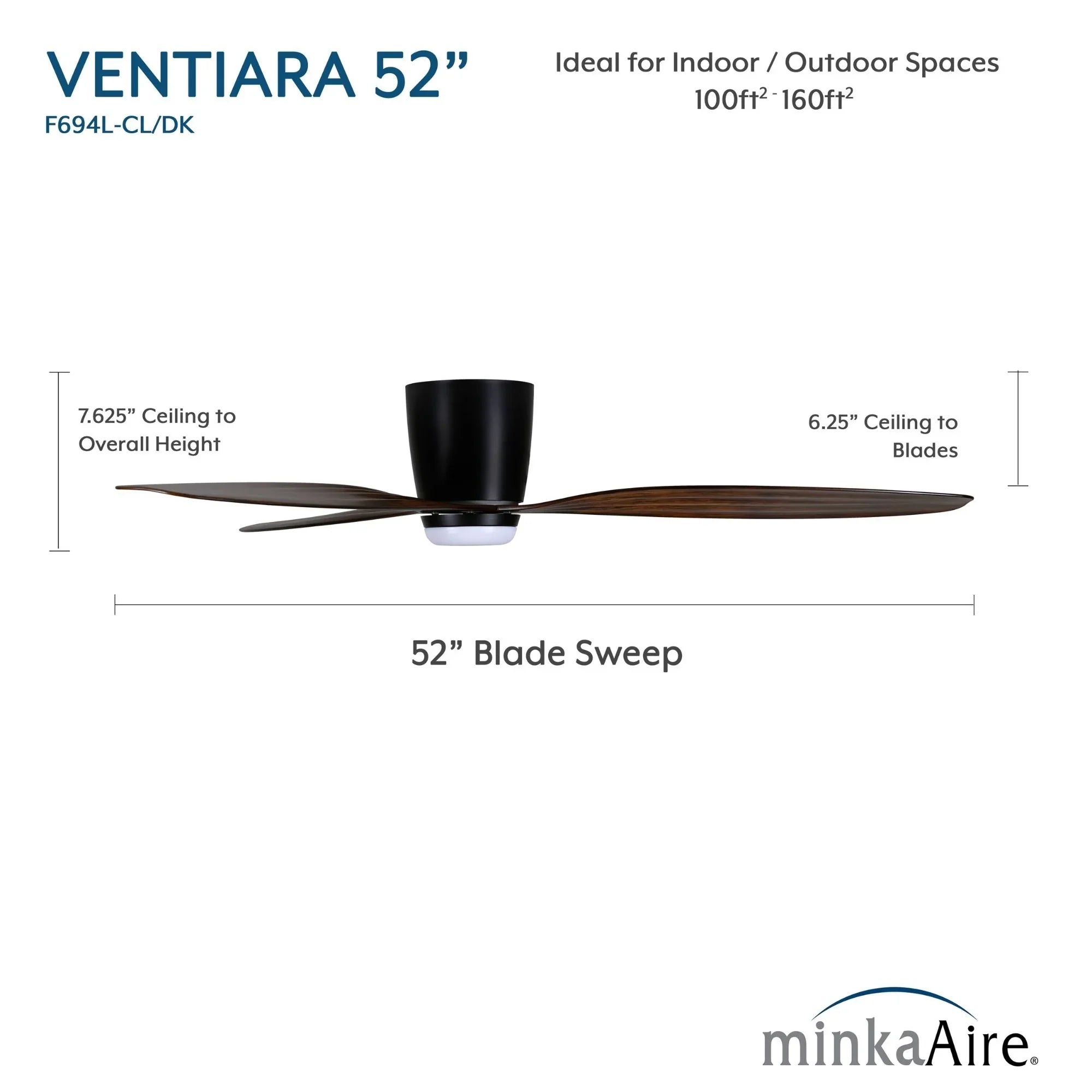

• Ceiling to Blade: 6.25 in / Lowest point: 7.5 in / Weight: 10.54 lbs

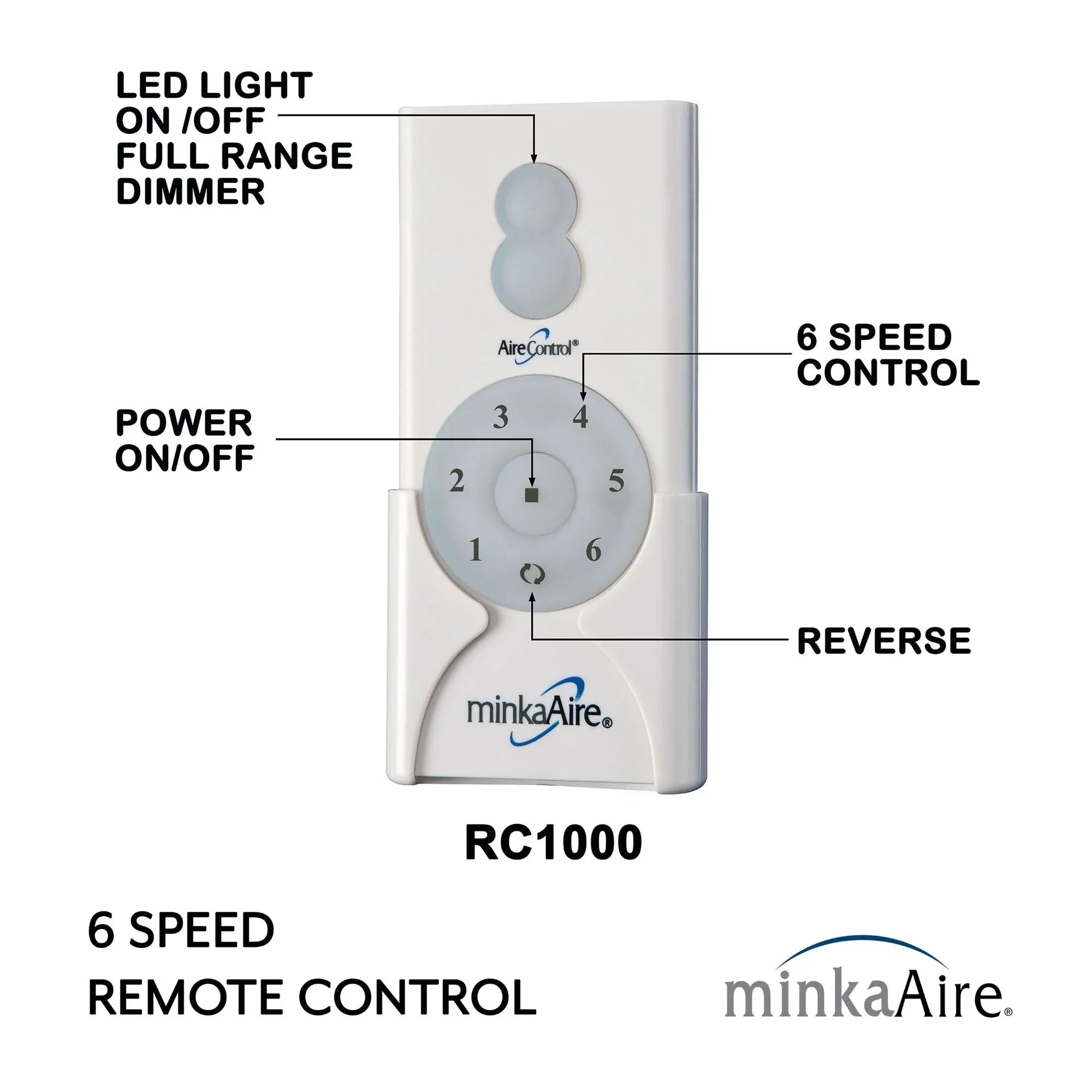

The Ventiara F694L-CL/DK includes the RC1000 Remote Control — 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). For smart home integration, the Ventiara is compatible with the Bond BD-1000 hub (sold separately) — enables Bond Home app (iOS & Android) with Alexa, Google Home, Ecobee, and Control4 voice integrations.

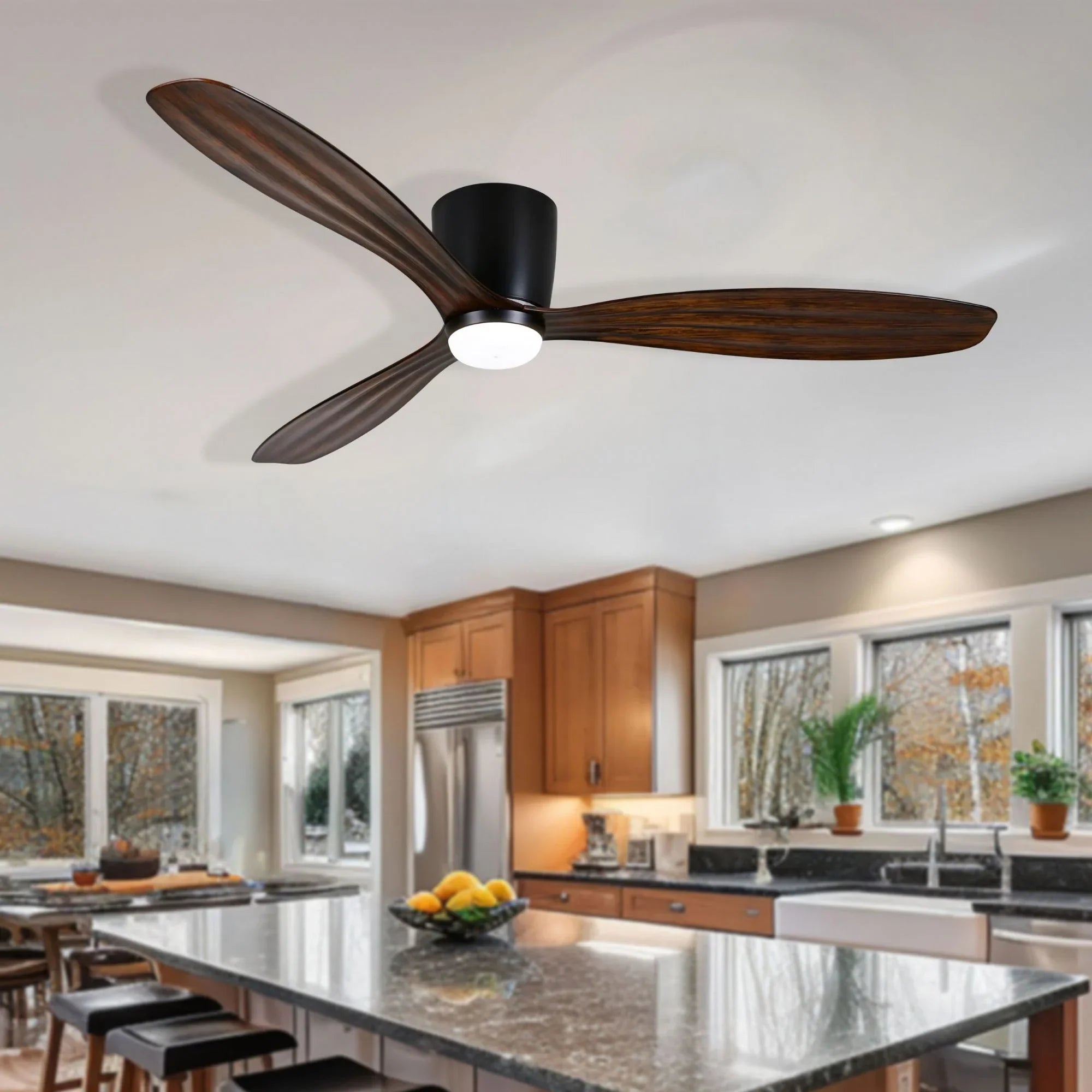

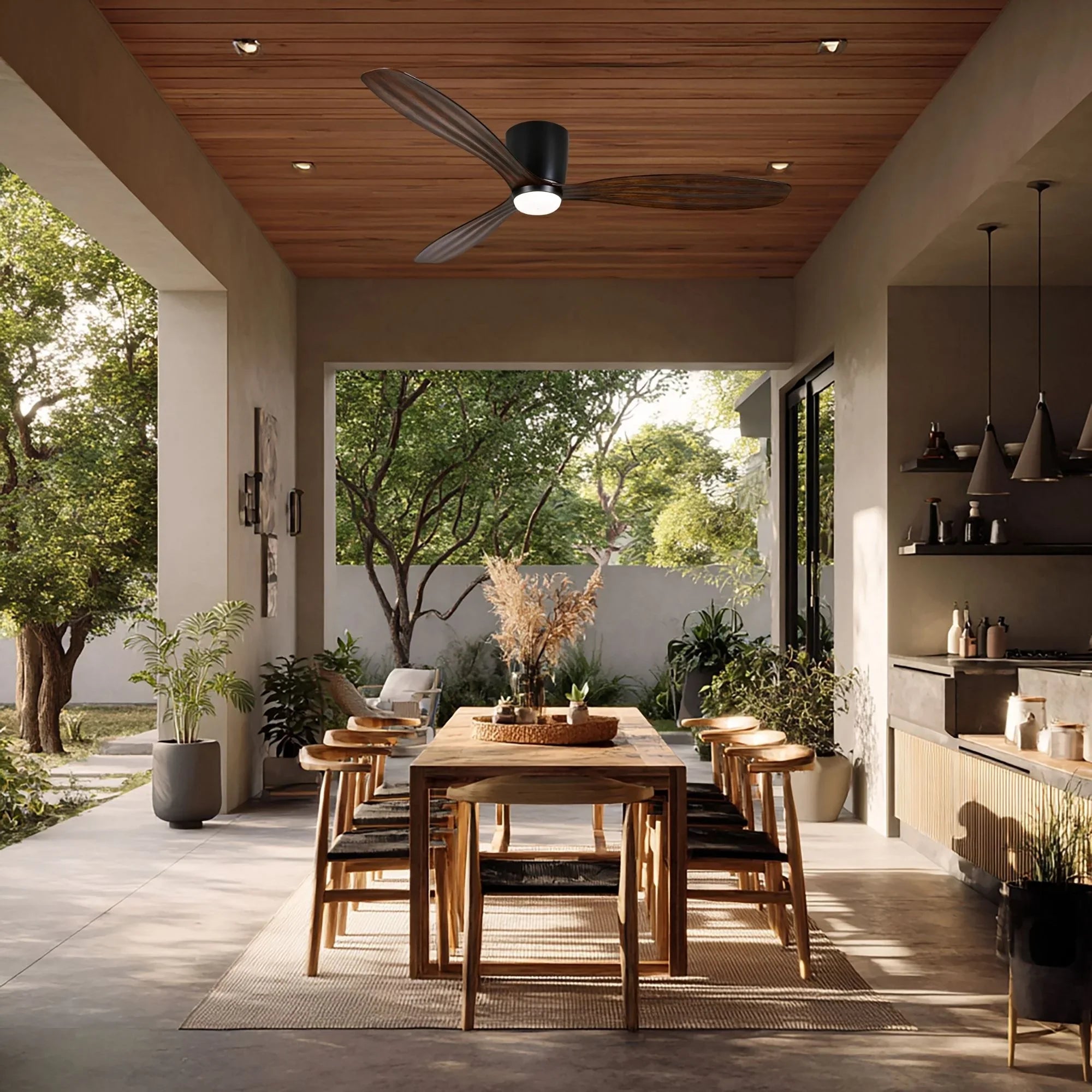

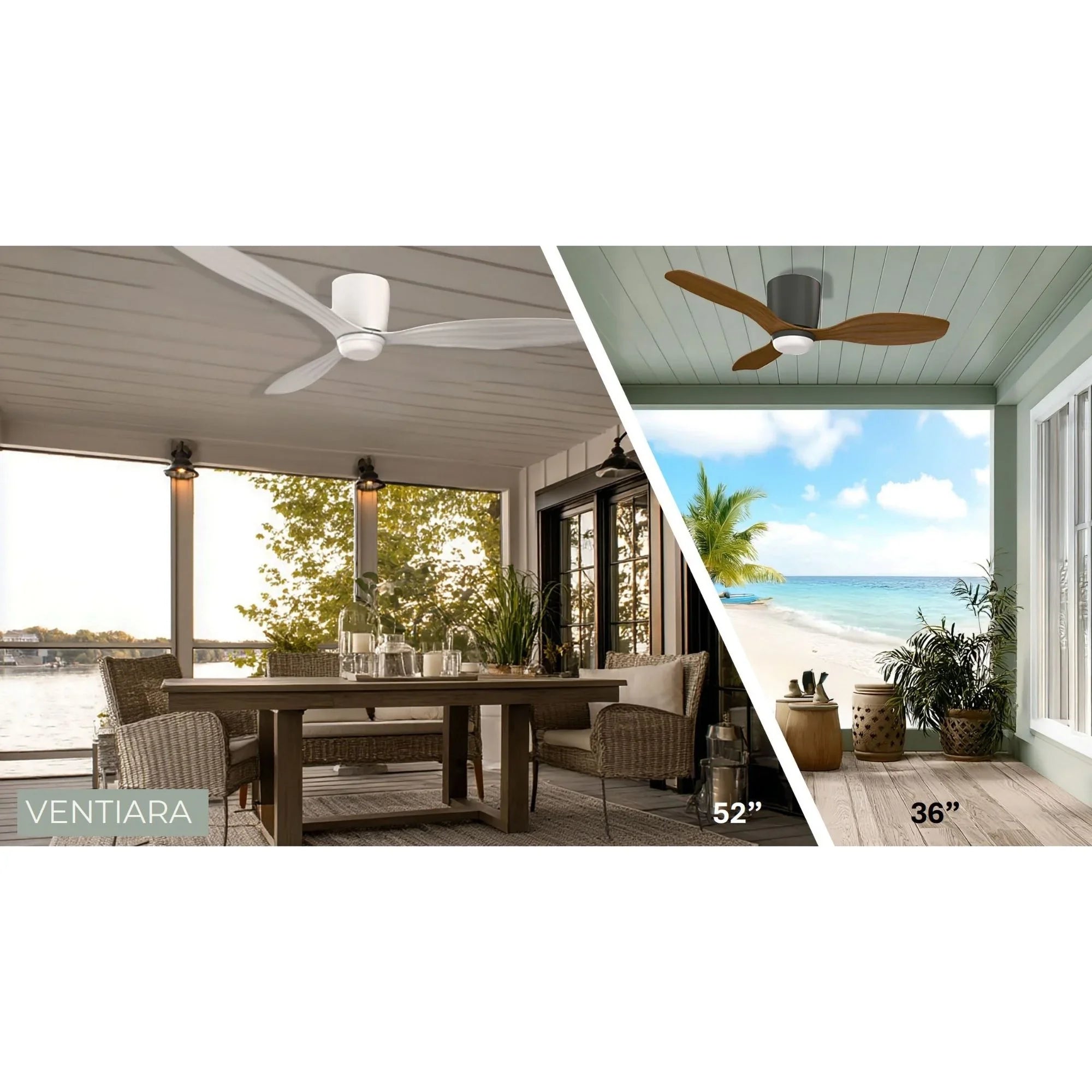

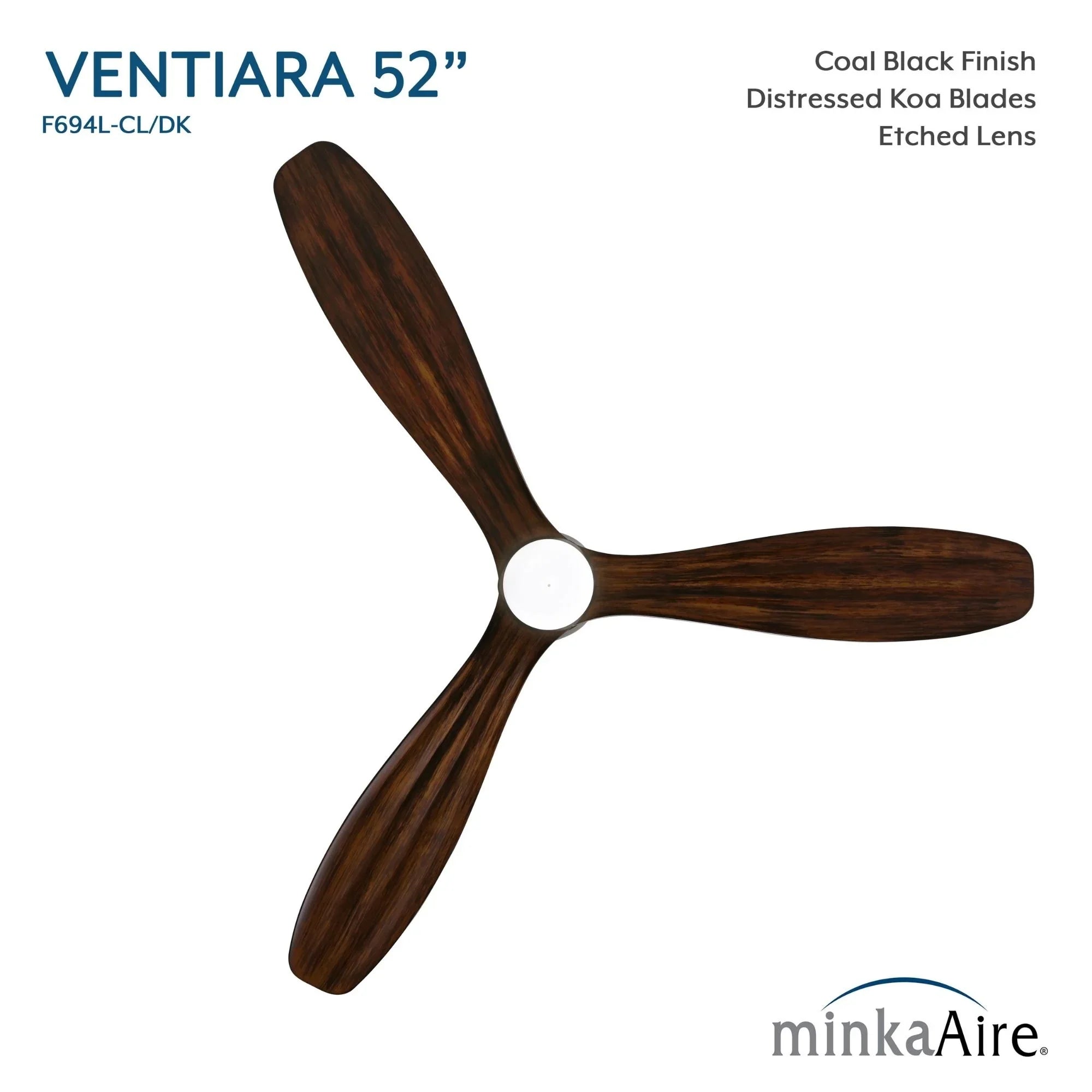

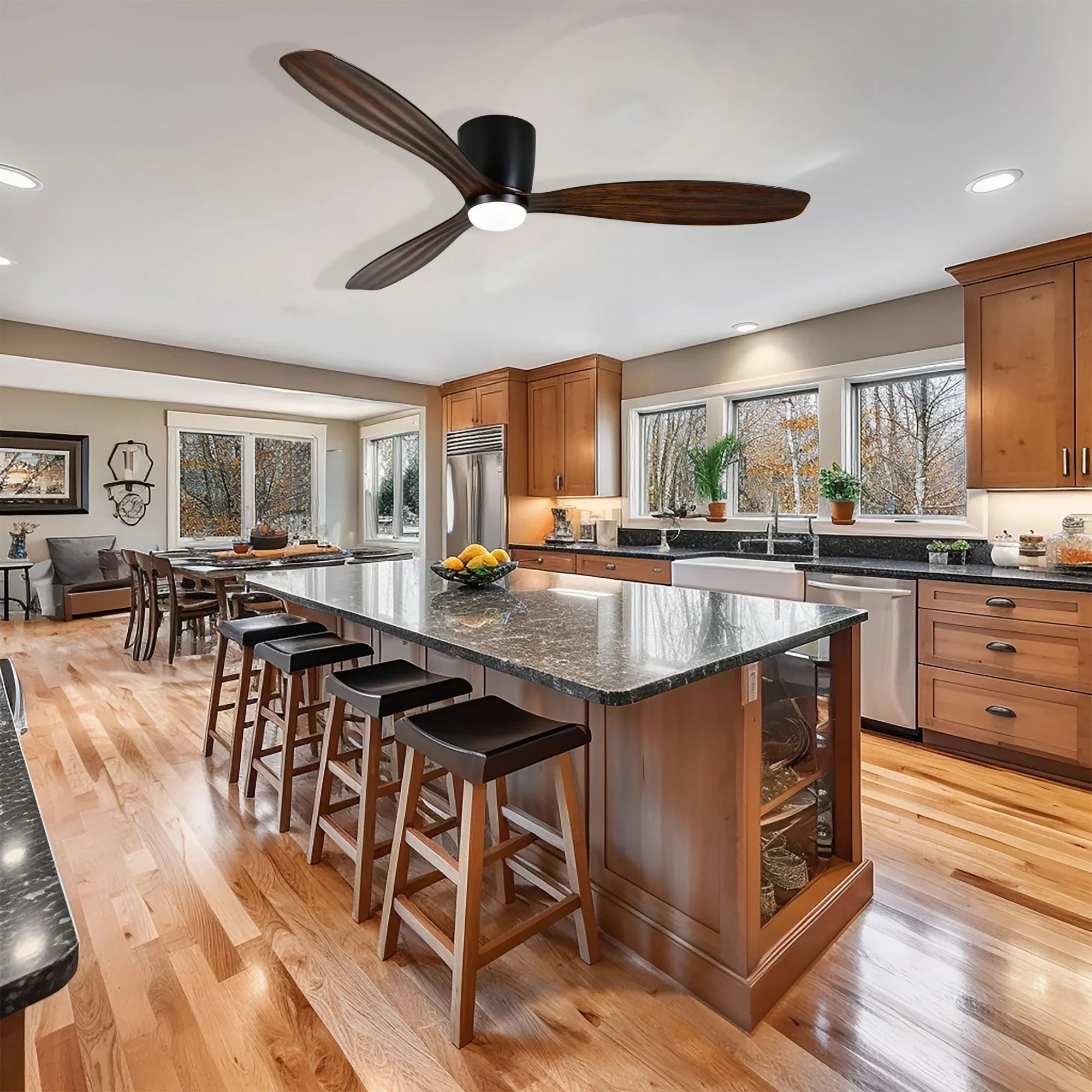

Coal Black motor housing with three sweeping Distressed Koa ABS blades at 8° pitch and an etched polycarbonate lens. Net weight: 10.54 lbs. The Ventiara’s 52 in flush mount profile and warm Distressed Koa blades make it ideal for low-ceiling indoor and covered outdoor spaces — covered patios, porches, great rooms, and primary bedrooms. Backed by a 1-year limited manufacturer’s warranty.

The F694L-CL/DK delivers 3,983 CFM at high speed (214.83 CFM/W, 18.54W) and 978 CFM at low speed (552.54 CFM/W, 1.77W). The integrated 20W LED provides 1,158 delivered lumens (1,890 initial lumens) at 3000K warm white, CRI 90, rated 30,000 hours, fully dimmable, through an etched polycarbonate lens. Energy Star and Title 20 certified. Its 52 in span is ideal for medium to large indoor and covered outdoor spaces up to approximately 300 sq ft.

120V DC, 60Hz. Wire: 8 in. Flush mount — no downrod included. Slope ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Wet Locations. FCC Compliant (CHQ78046T).

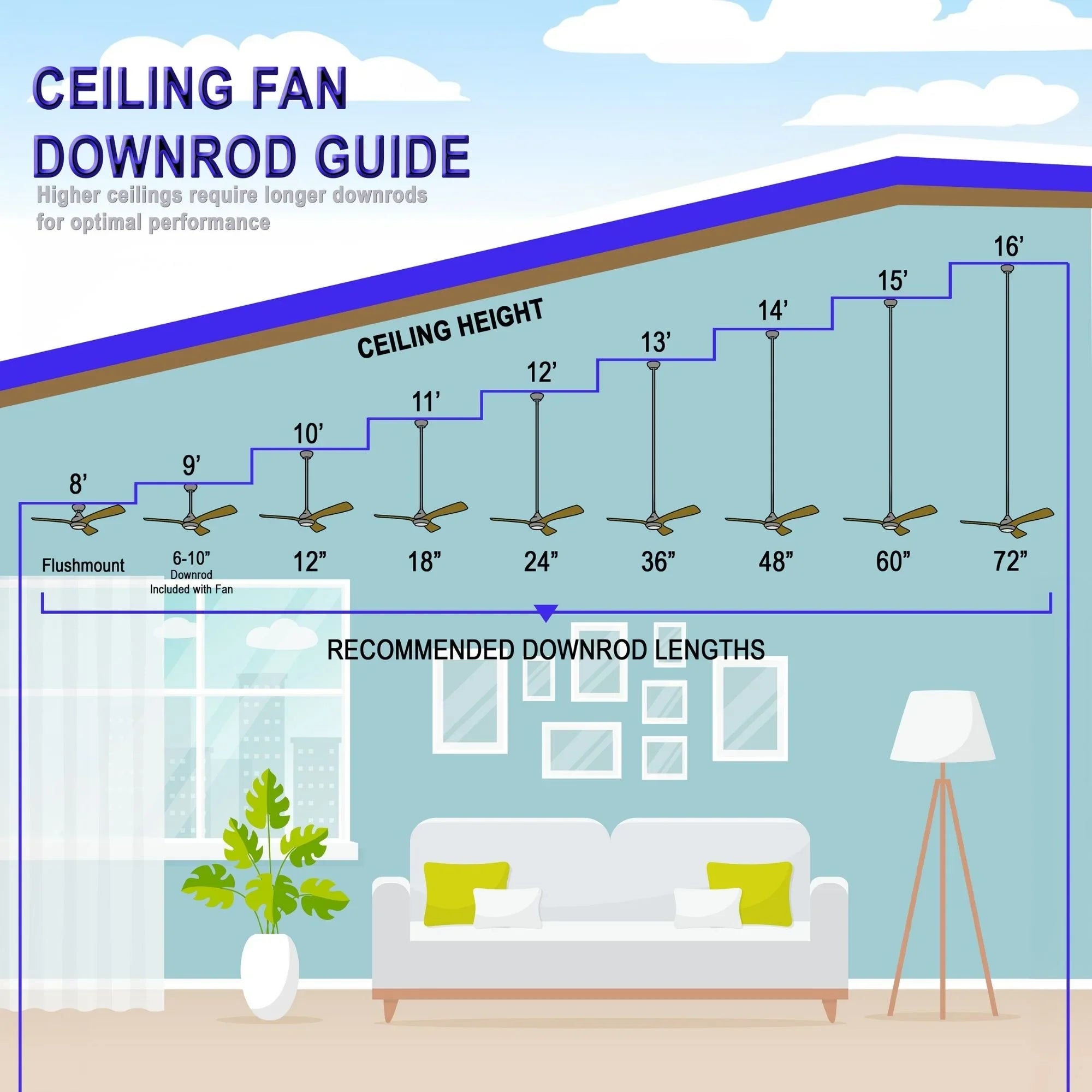

The F694L-CL/DK is a flush mount fan designed for ceilings where downrod clearance is not available. Recommended for ceiling heights between 8 ft and 9 ft for optimal blade-to-floor clearance of 7 to 9 feet.

• F694L-CL/DK ceiling fan (Coal Black body + 3 Distressed Koa ABS blades)
• Integrated 20W LED light kit with etched polycarbonate lens
• RC1000 remote control
• Mounting hardware
