Minka Aire Espace 52 in Indoor LED Ceiling Fan Oil Rubbed Bronze Maple
Available in stock (294)
About this item
About this item
- Airflow & Efficiency: 5,075 CFM high (72.49 CFM/W, 70.01W) / 1,744 CFM low — Lifetime warranty — ideal for living rooms and open-plan interiors up to 350 sq ft.
- AC Motor: 172×17mm, 3 speeds, reversible rotation — five-blade Oil Rubbed Bronze / Medium Maple plywood design for warm, reliable year-round indoor comfort.
- Dry Rated: UL Listed for dry indoor locations — living rooms, dining rooms, and open-plan spaces. Lifetime warranty.
- Smart Controls: RCS213 remote included (3-speed, full-range dimmer), WCS213 sold separately — Bond BD-1000 compatible, Bond Home app (iOS/Android), Alexa, Google Home, Ecobee.
- Integrated LED: 18W, 618 lm, 3000K, CRI 92, 30,000 hrs, dimmable — etched opal glass.
Description
Description

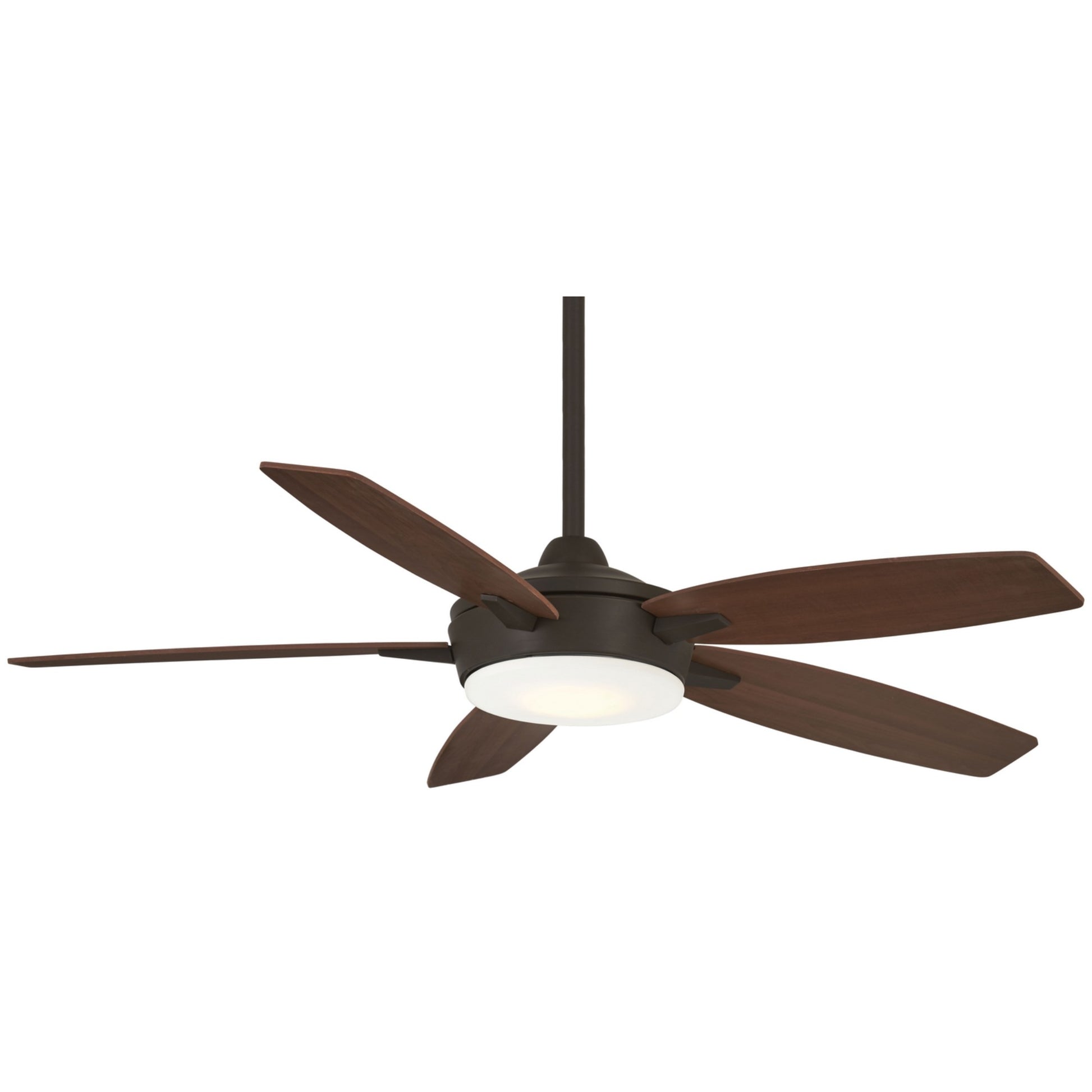

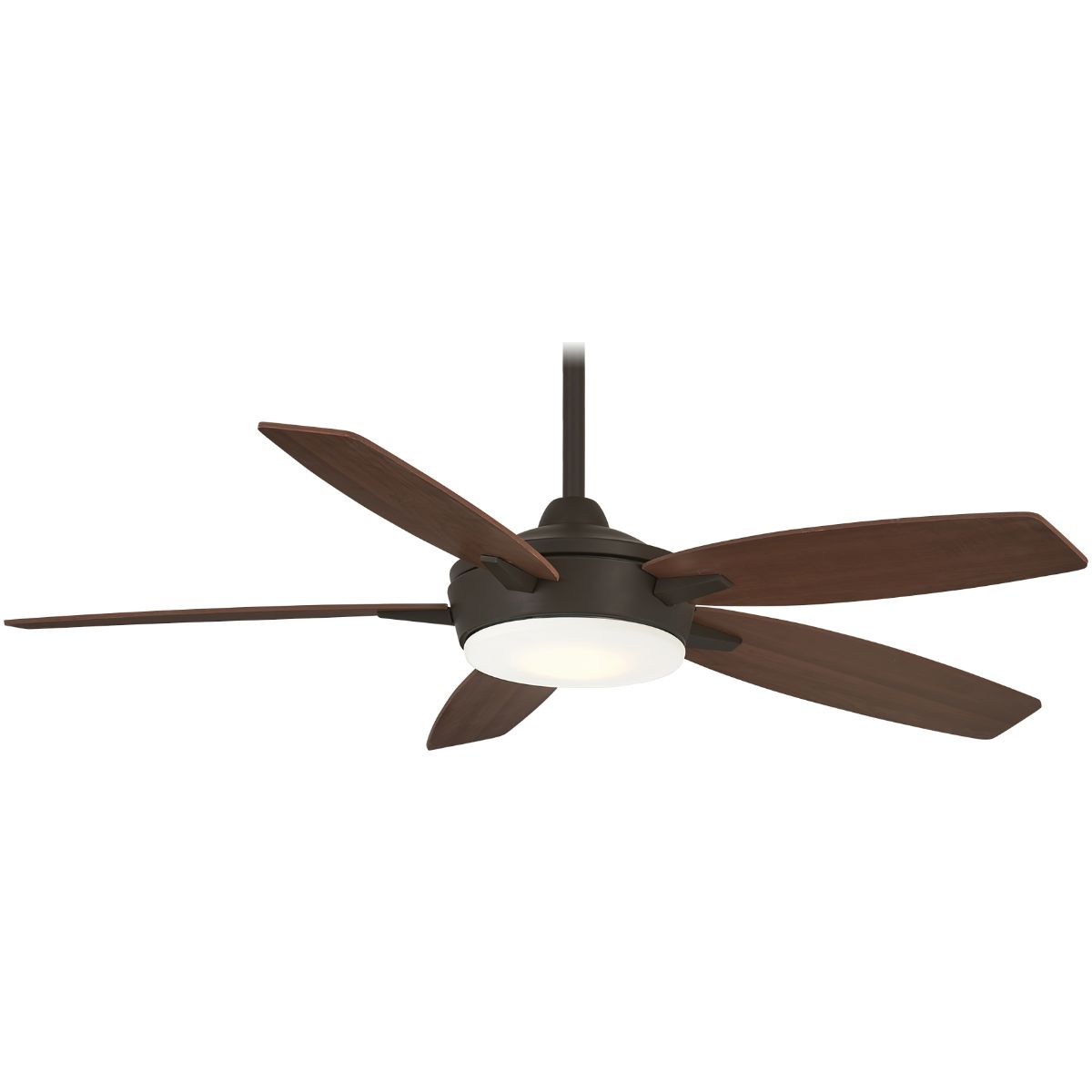

The Minka Aire Espace F690L-ORB/MM is a five-blade 52 in downrod LED ceiling fan in Oil Rubbed Bronze with Medium Maple plywood blades. Powered by a reliable AC 172×17mm motor, it delivers 5,075 CFM at high speed — a solid 72.49 CFM/W efficiency rating. Bond BD-1000 compatible, UL Listed for dry locations, Lifetime warranty.
Key Features- Blade Span: 52 in, 5 plywood blades, 14° pitch, Medium Maple
- Motor: AC 172×17mm, 3 speeds, reversible rotation
- Airflow: 5,075 CFM high / 1,744 CFM low — 72.49 CFM/W high / 148.3 CFM/W low
- Wattage: 70.01W high / 11.76W low
- Light Kit: Integrated 18W LED — 618 delivered lm, 3000K, CRI 92, 30,000 hrs, dimmable, etched opal glass
- Location Rating: UL Listed for Dry Locations — indoor use. Lifetime warranty.
- Smart Control: Bond BD-1000 compatible (sold separately) — Bond Home app + voice control
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible

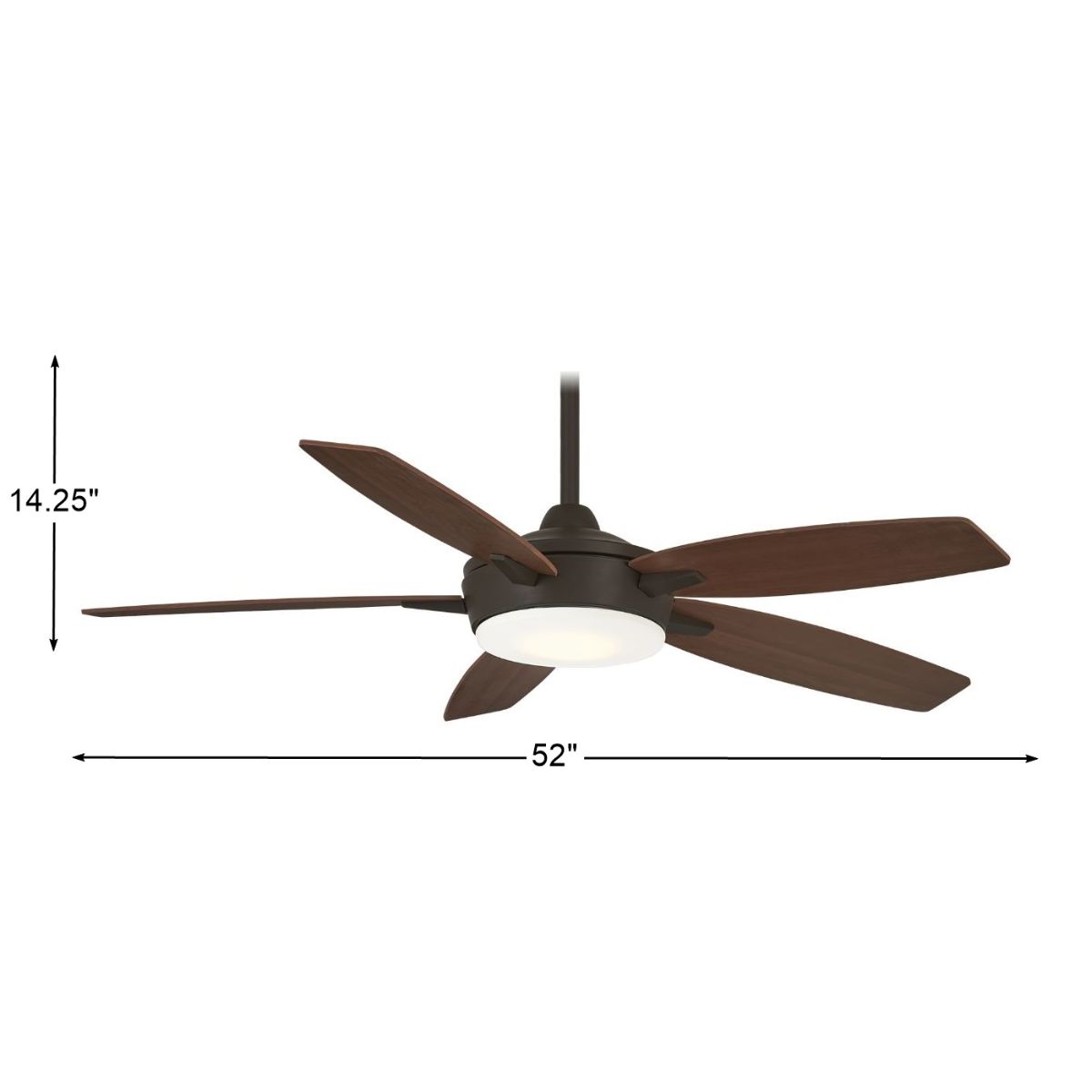

- Ceiling to Blade: 11 in / Lowest point: 14.25 in / Weight: 20.46 lbs
RCS213 Remote Control — included: 3-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WCS213 (sold separately). The Espace is compatible with the Bond BD-1000 smart hub, enabling operation via the Bond Home app (iOS & Android) and voice integrations with Amazon Alexa, Google Home, and Ecobee when used with the BD-1000 hub.

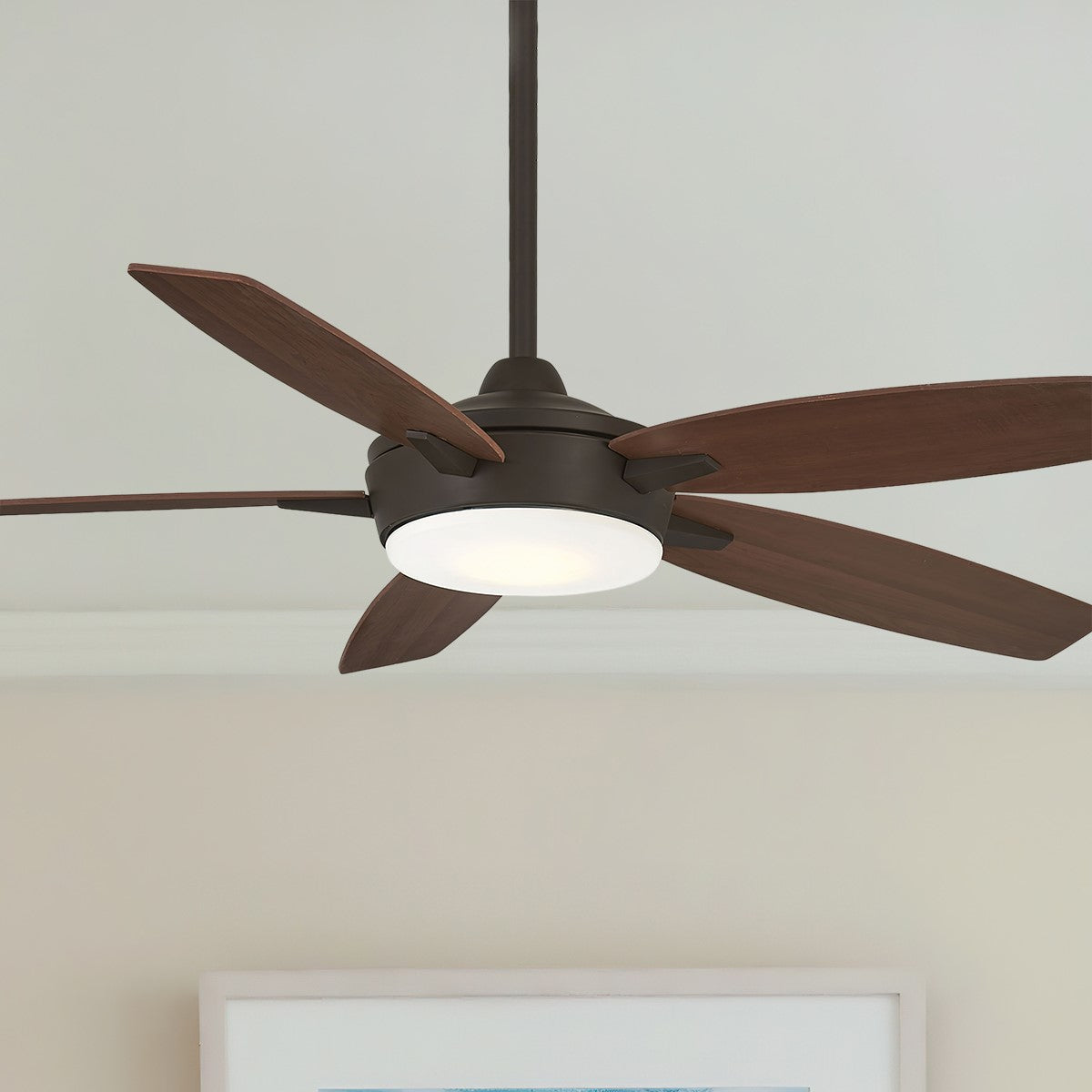

Construction & DesignOil Rubbed Bronze motor housing with five Medium Maple plywood blades at 14° pitch. Net weight: 20.46 lbs. The warm pairing of Oil Rubbed Bronze hardware with rich Medium Maple wood-tone blades brings timeless transitional warmth to living rooms, dining rooms, and open-plan interiors.
Light Output & PerformanceThe F690L-ORB/MM includes an integrated 18W LED delivering 618 delivered lumens (1,496 initial lumens) at 3000K warm white with a CRI of 92. Rated life: 30,000 hours. Light is fully dimmable via the included RCS213 remote. Etched opal glass for soft, diffused illumination.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F690L-ORB/MM ceiling fan (Oil Rubbed Bronze body + 5 Medium Maple plywood blades)
- Integrated 18W LED light kit with etched opal glass
- RCS213 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
