Minka Aire Bridge 60 in Indoor Smart LED Ceiling Fan DC Legacy Brass White
Available in stock (138)
About this item
About this item
- Airflow & Efficiency: 6,952 CFM at high speed (216 CFM/W, 33.6W) and 2,383 CFM at low (662 CFM/W, 3.6W) — Title 20 & Title 24 compliant — ideal for large living rooms and open-plan spaces up to 400 sq ft.
- DC Motor: 153×18mm, 6 speeds, reversible Summer & Winter modes — three-blade design in Legacy Brass / Flat White for ultra-efficient year-round indoor comfort.

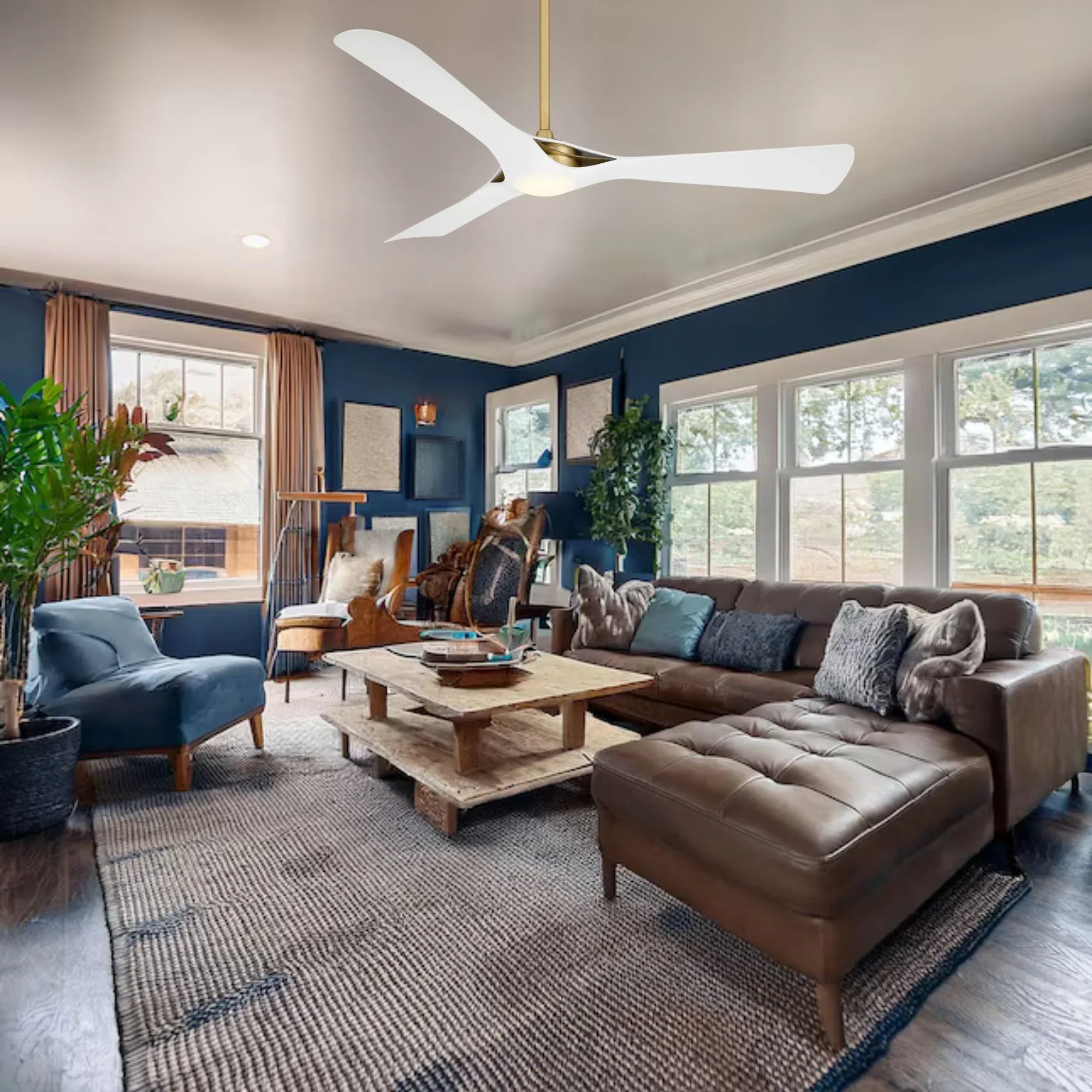

- Dry Rated: ETL Listed for dry indoor locations — designed for living rooms, great rooms, and large open-plan spaces.
- Smart Controls: Integrated Bond smart control + RC1000 remote included (6-speed, full-range dimmer), WC1000 wall control sold separately — Bond Home app (iOS/Android) with Alexa, Google Home, and Ecobee voice support.
- Integrated LED: 20W, 950.8 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable — polycarbonate etched lens for warm, diffused ambient light.
Description
Description

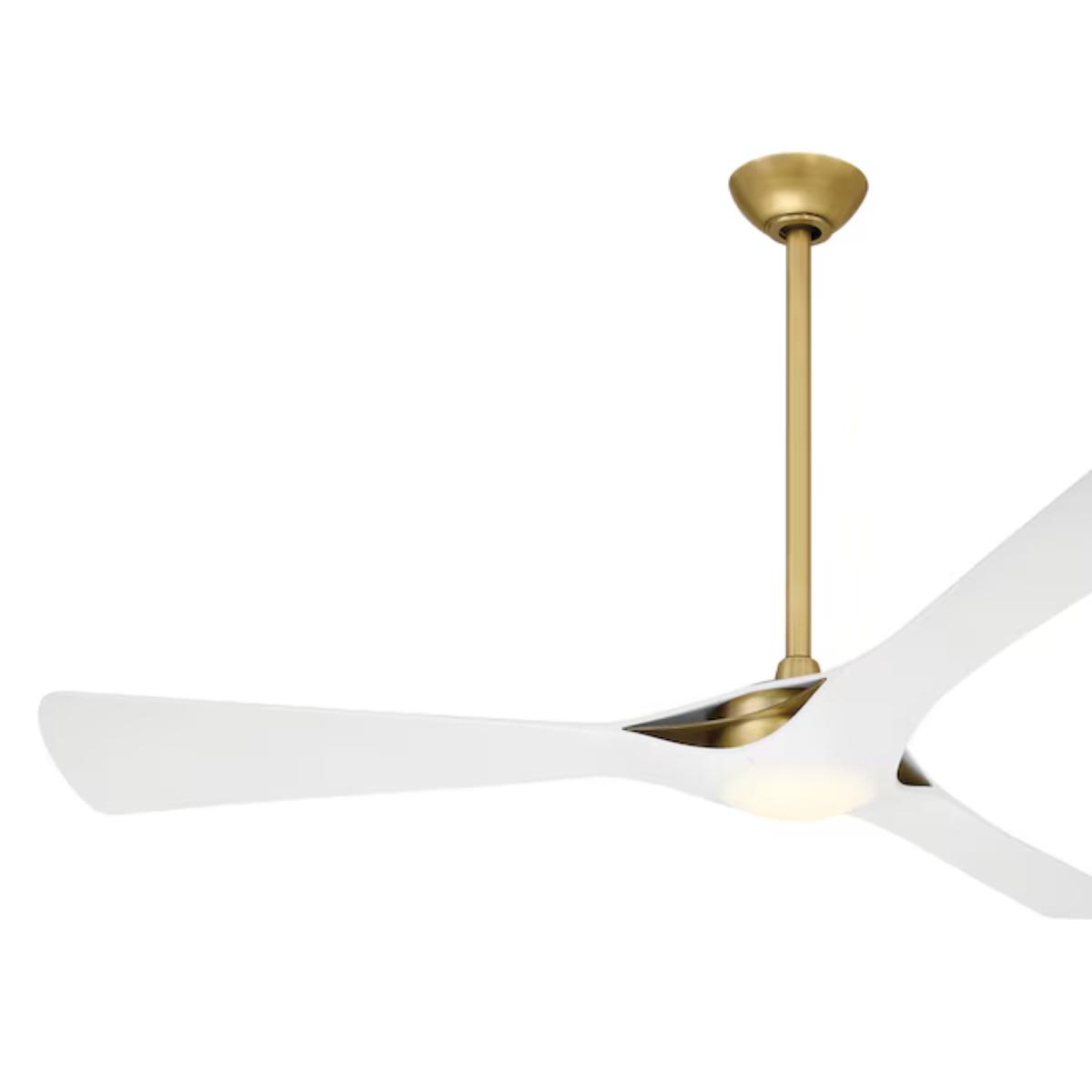

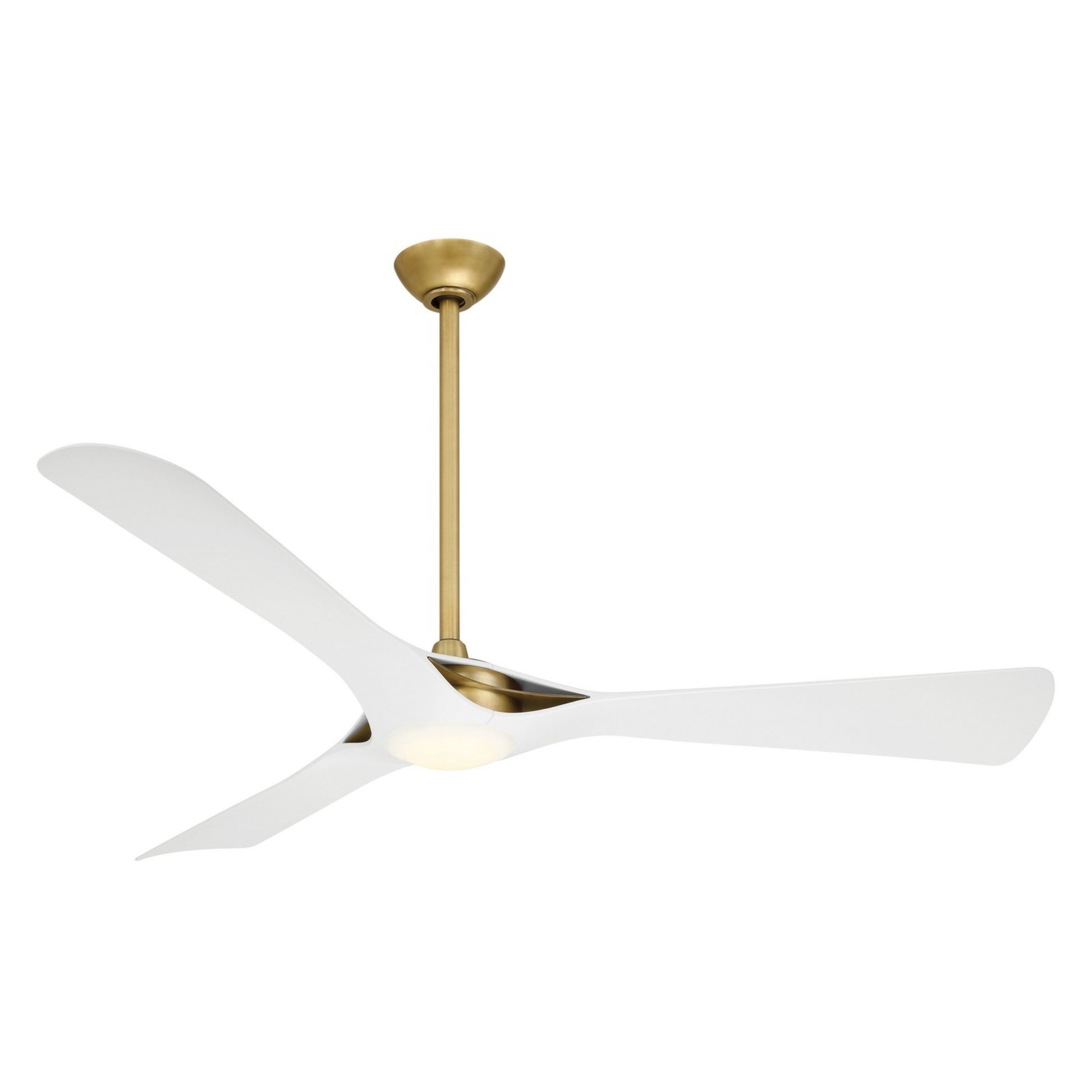

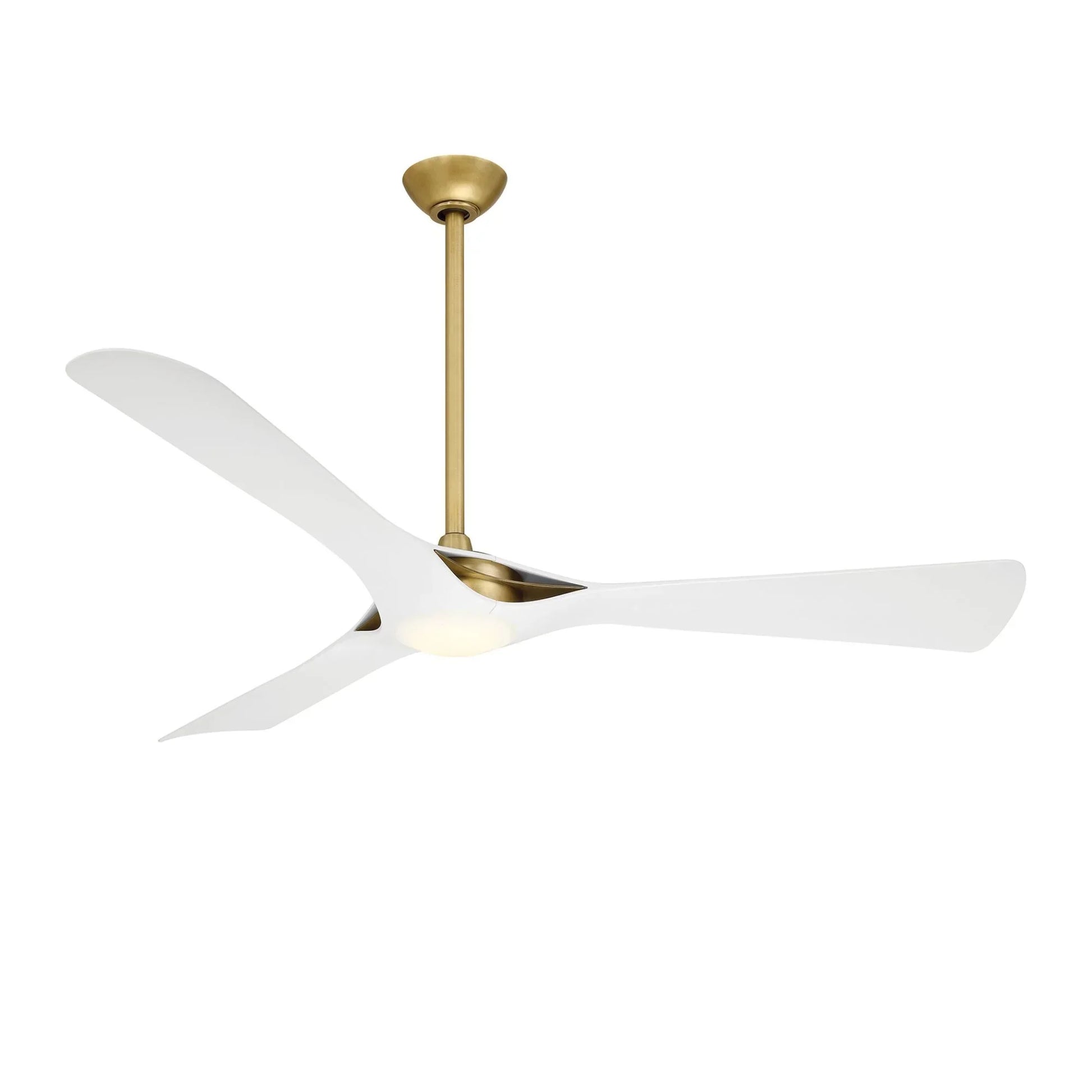

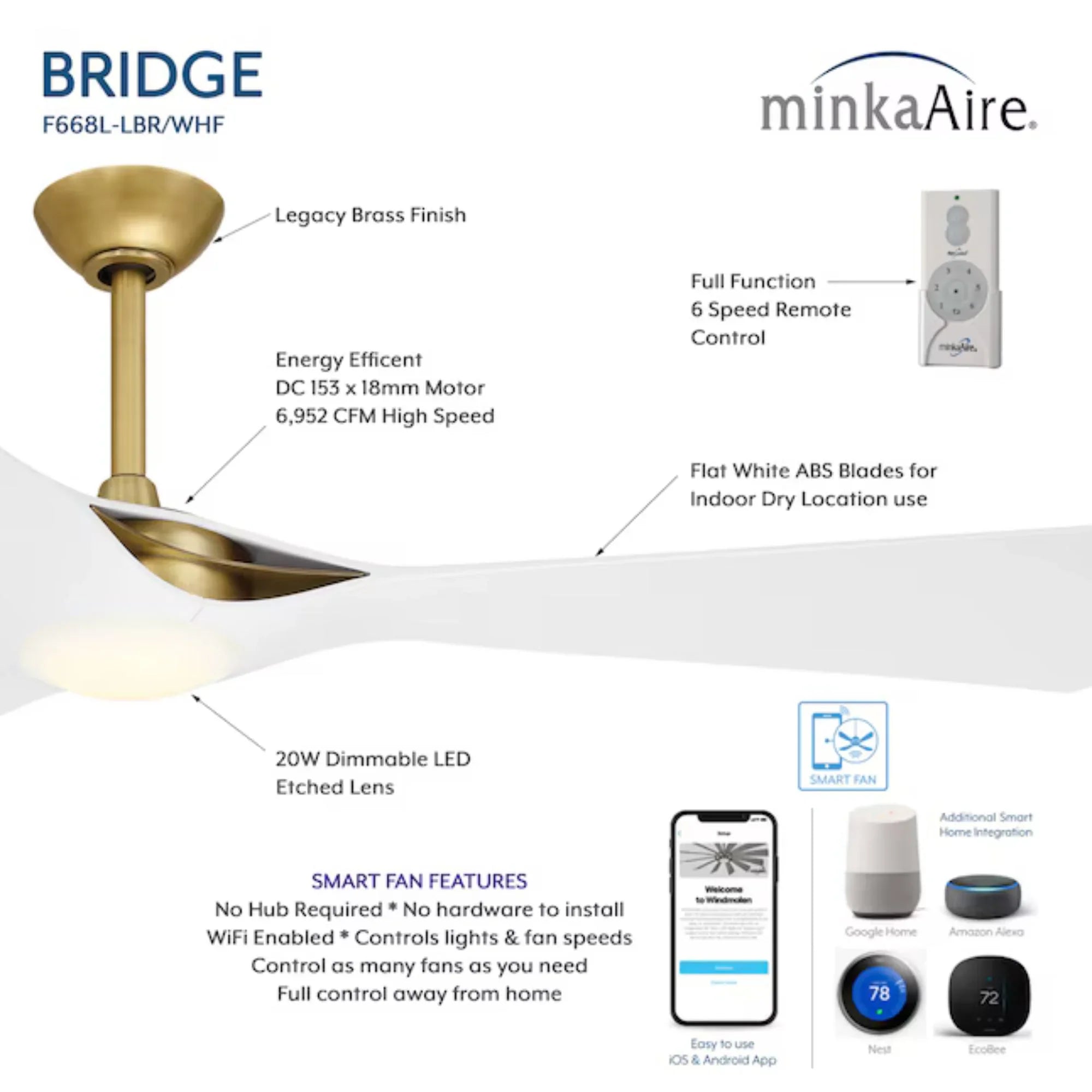

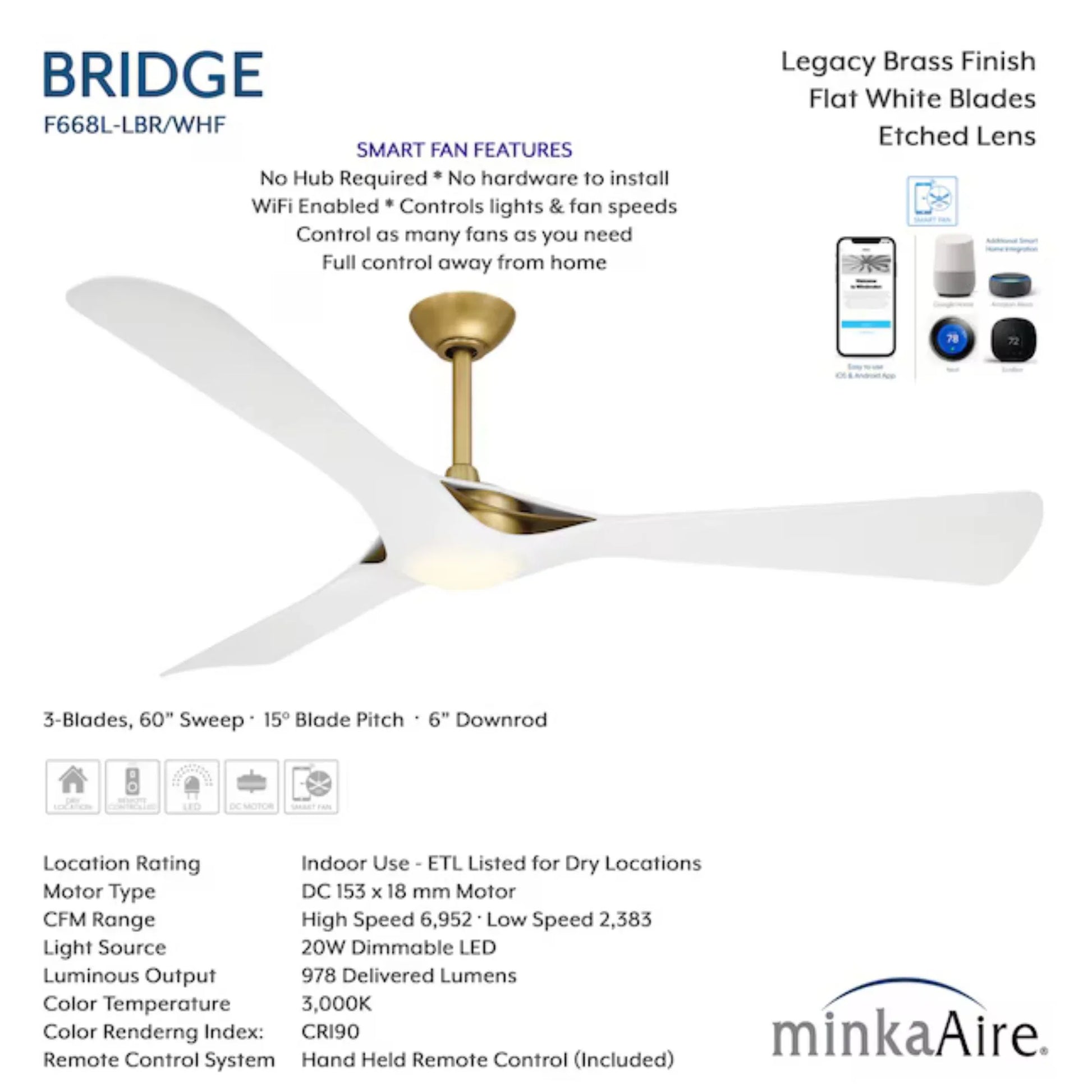

The Minka Aire Bridge F668L-LBR/WHF is a three-blade 60 in downrod smart LED ceiling fan in Legacy Brass with Flat White ABS blades. Powered by an efficient DC 153×18mm motor, it delivers 6,952 CFM at high speed at just 33.6W — an outstanding 216 CFM/W efficiency rating. Integrated Bond smart control, ETL Listed for dry locations, Title 20 and Title 24 compliant.

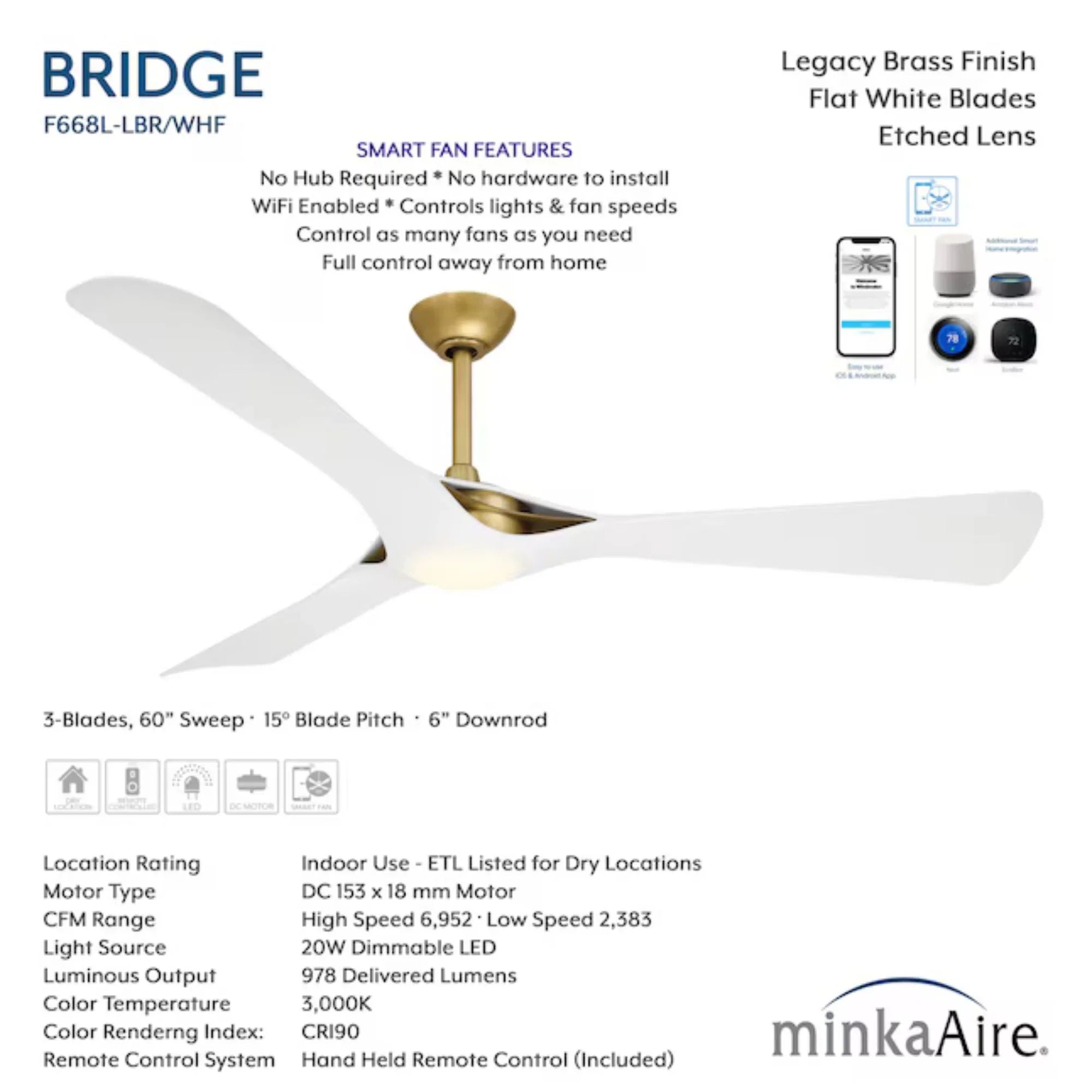

Key Features- Blade Span: 60 in, 3 ABS blades, 15° pitch, Flat White
- Motor: DC 153×18mm, 6 speeds, reversible rotation — Summer & Winter modes
- Airflow: 6,952 CFM high / 2,383 CFM low — 216 CFM/W high / 662 CFM/W low
- Wattage: 33.6W high / 3.6W low
- Light Kit: Integrated 20W LED — 950.8 delivered lm, 3000K, CRI 90, 30,000 hrs, dimmable, polycarbonate etched lens
- Location Rating: ETL Listed — Dry locations only, indoor use. Title 20 & Title 24 compliant.

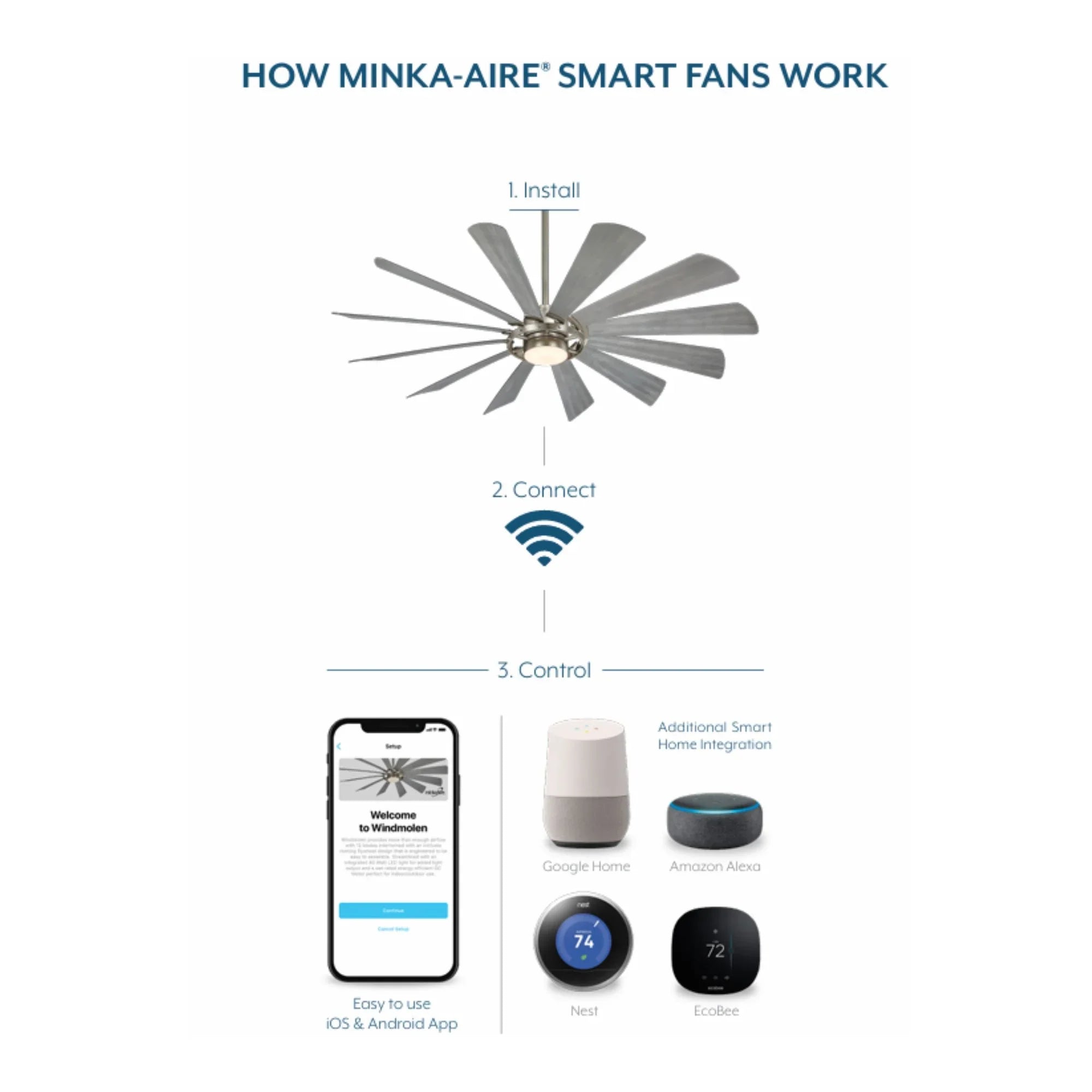

- Smart Control: Integrated Bond smart control — Bond Home app + voice control

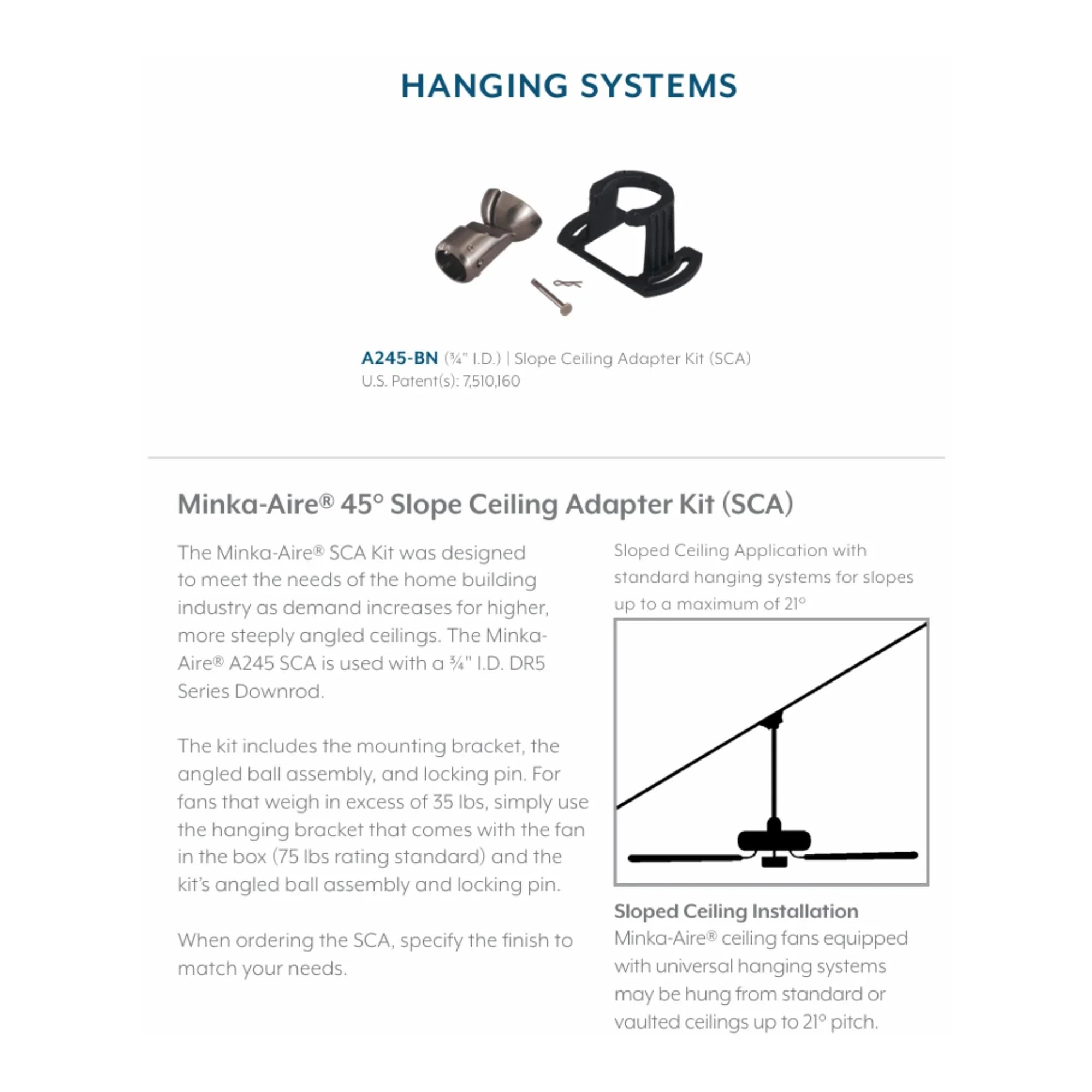

- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible

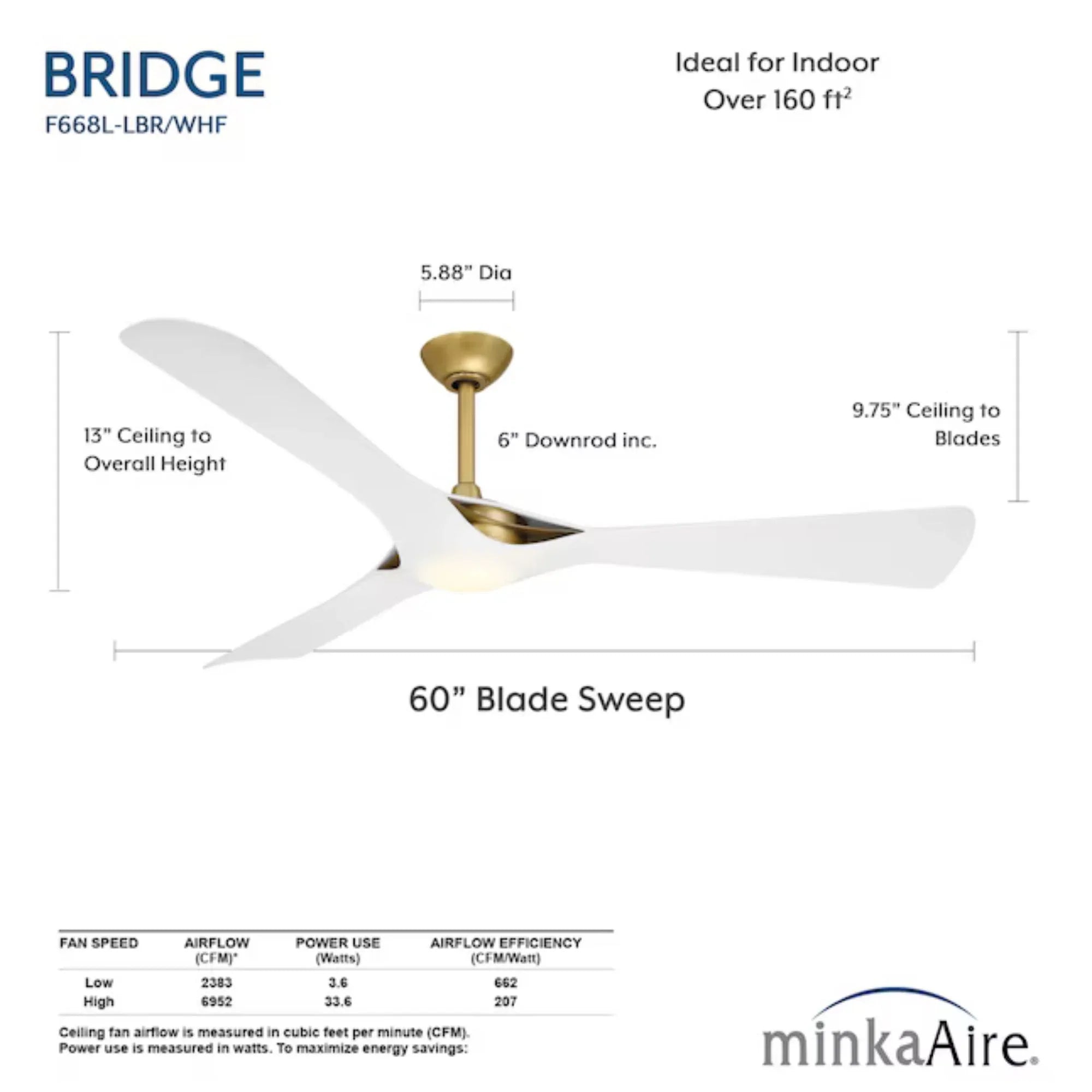

- Ceiling to Blade: 9.88 in / Lowest point: 13 in / Weight: 16.76 lbs

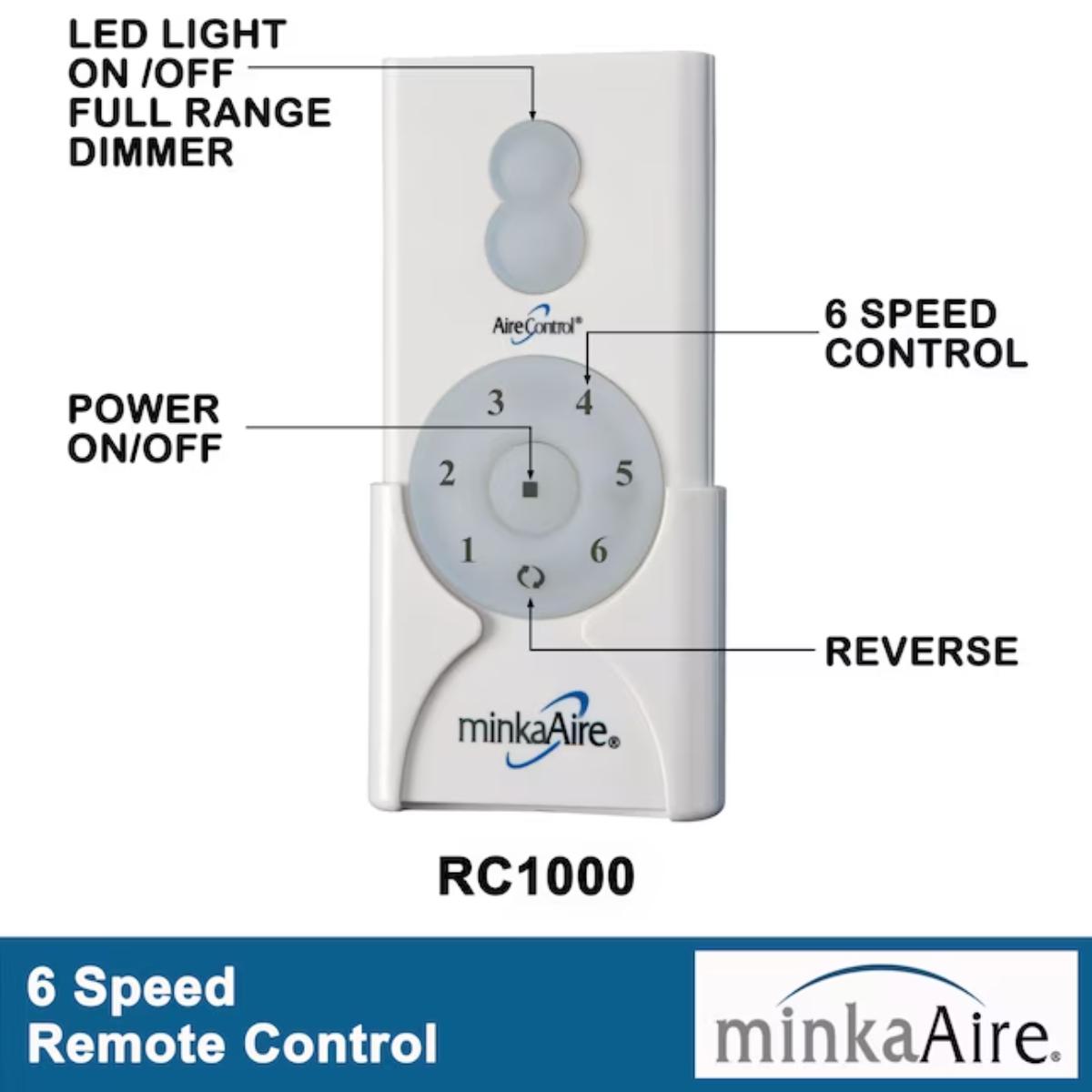

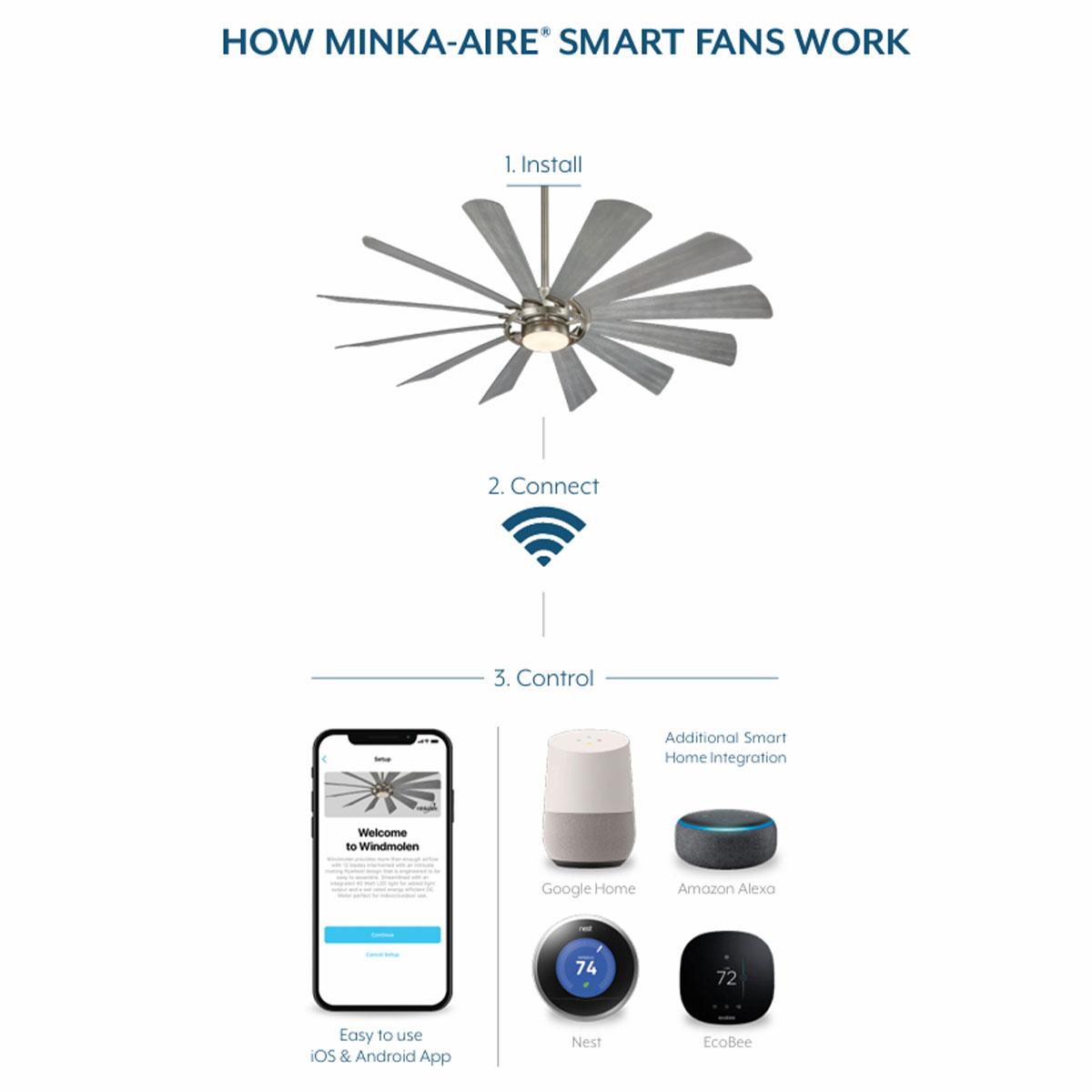

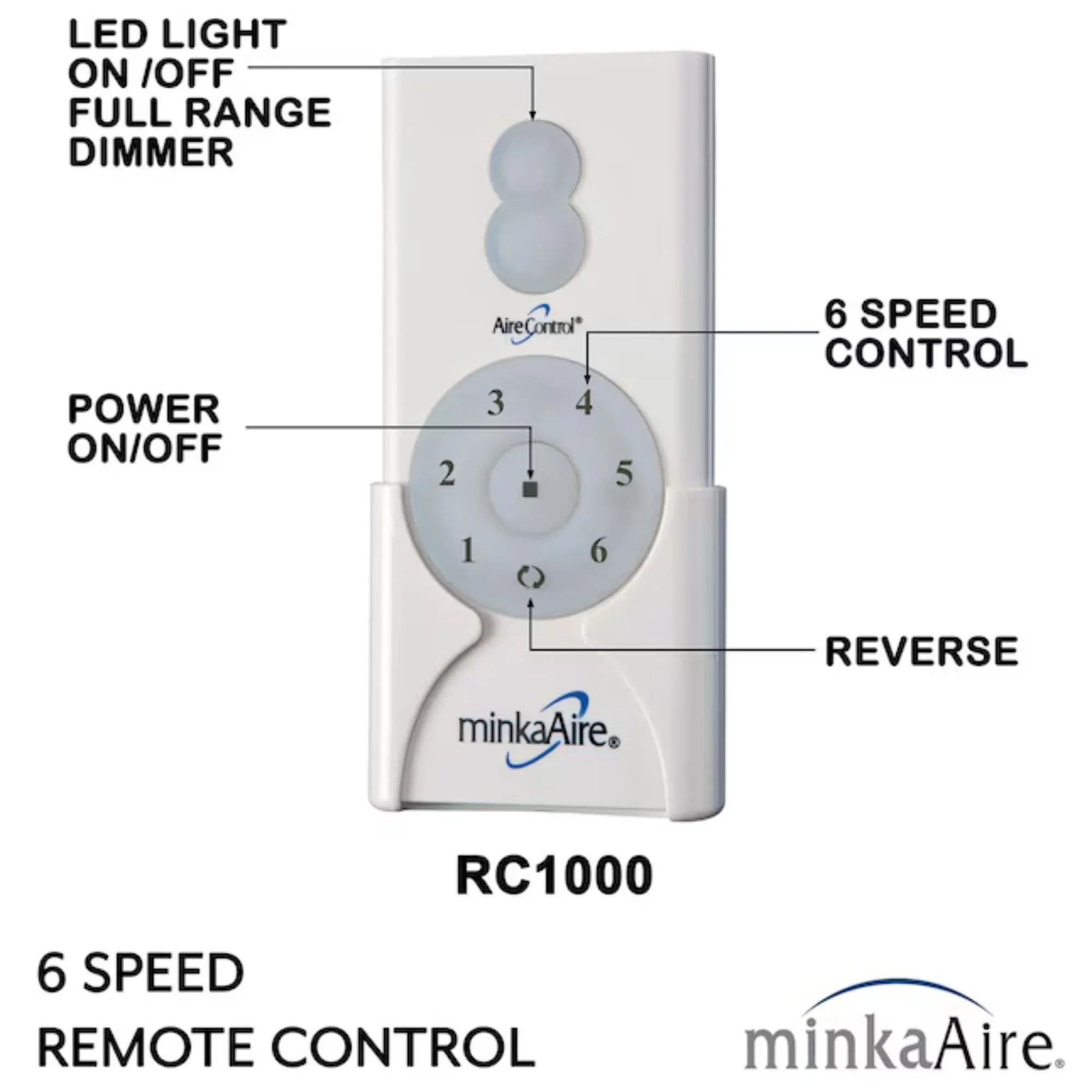

RC1000 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible wall control: WC1000 (sold separately). The Bridge features integrated Bond smart control, enabling seamless operation via the Bond Home app (iOS & Android) and confirmed voice integrations including Amazon Alexa, Google Home, and Ecobee.

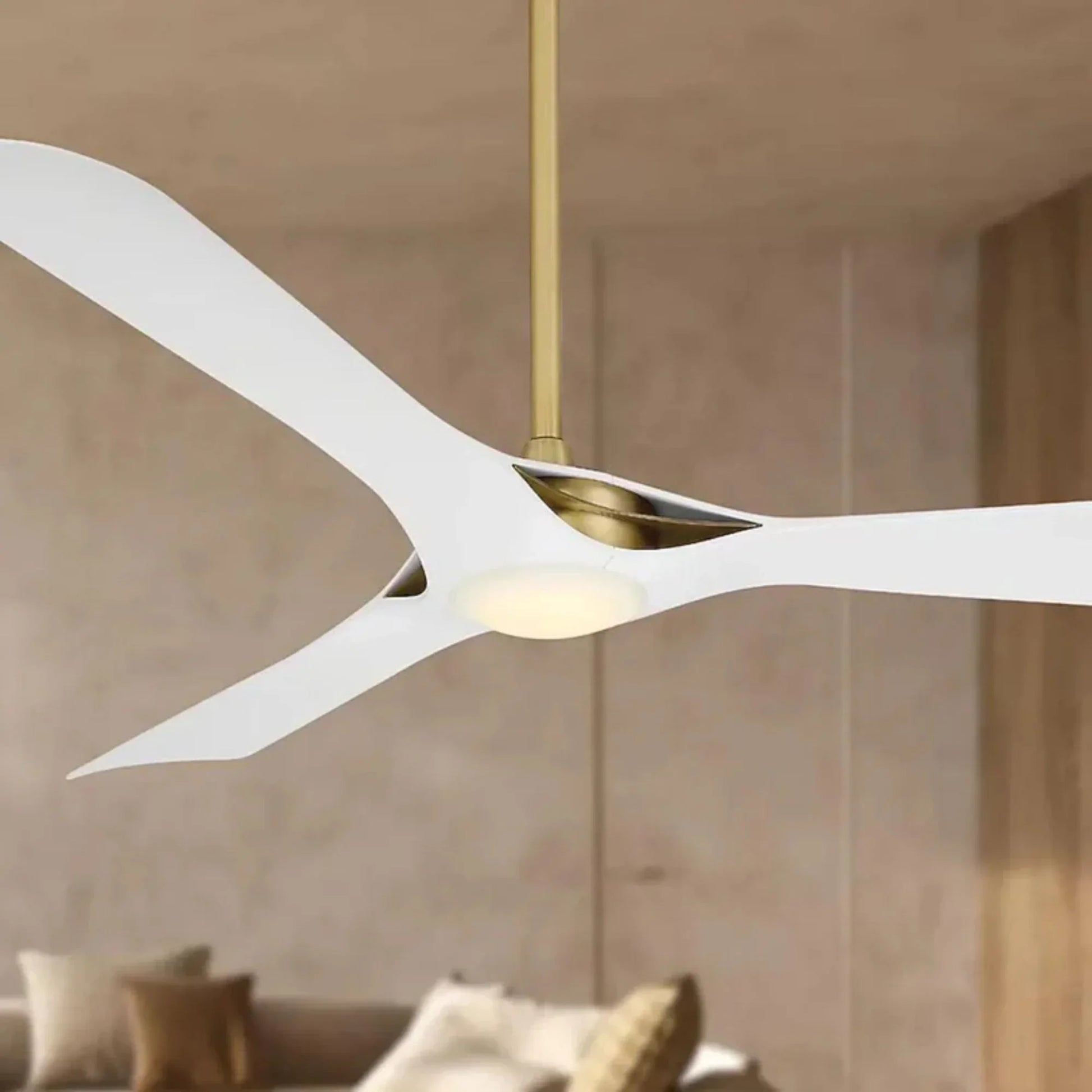

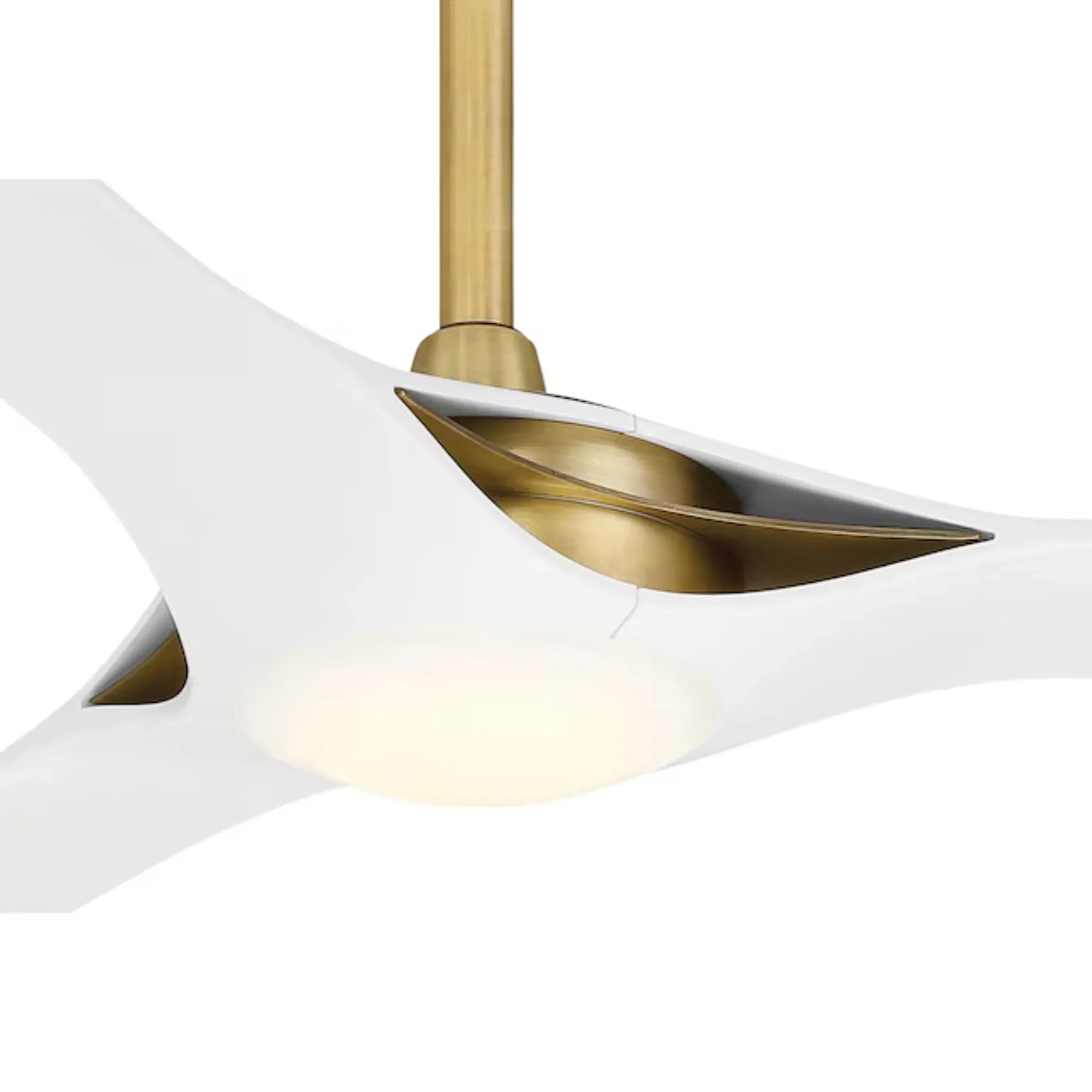

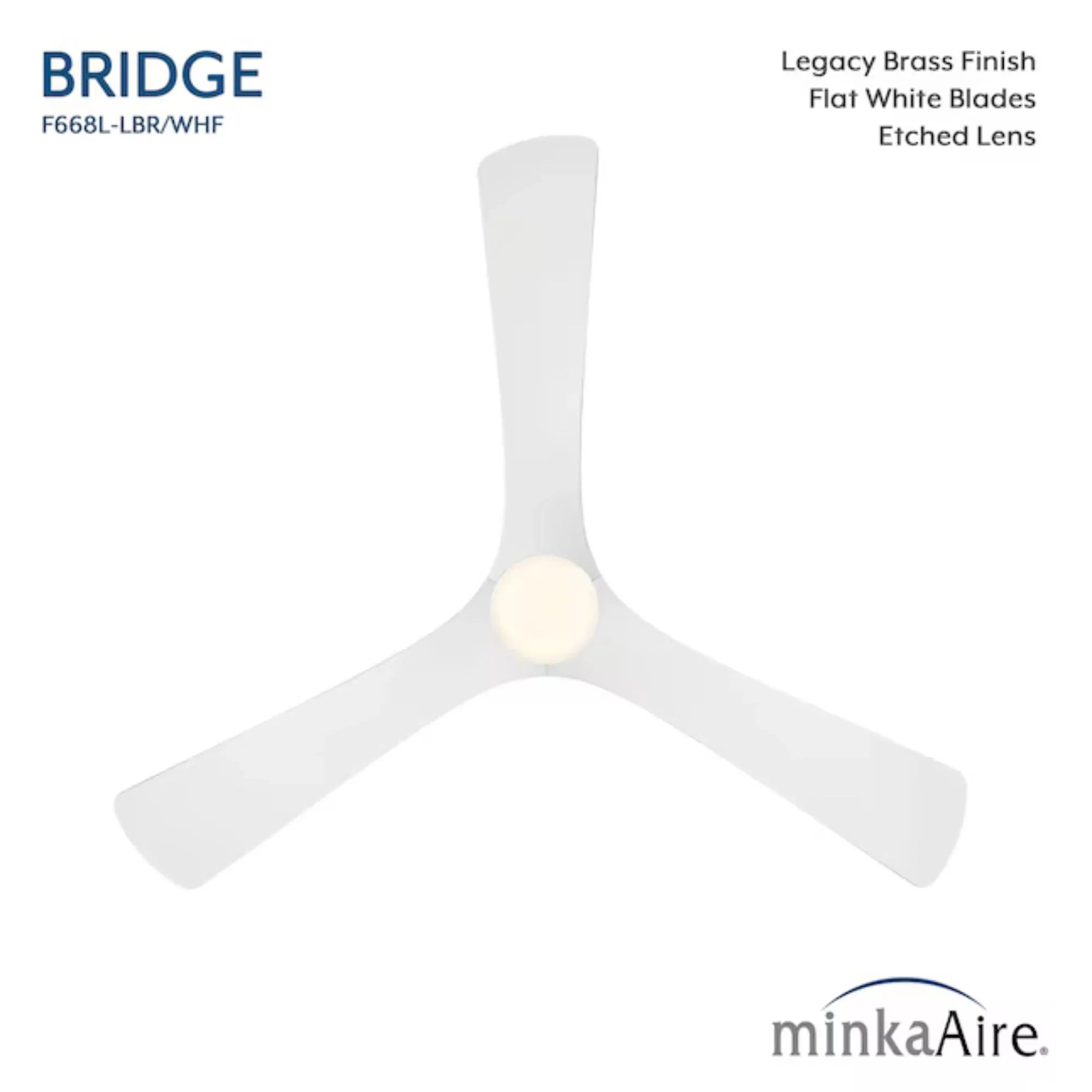

Construction & DesignLegacy Brass motor housing with three Flat White ABS blades at 15° pitch. Net weight: 16.76 lbs. The Bridge’s sweeping three-blade silhouette pairs warm Legacy Brass with clean Flat White blades — a light, airy aesthetic that brings effortless elegance to living rooms, great rooms, and large open-plan spaces.

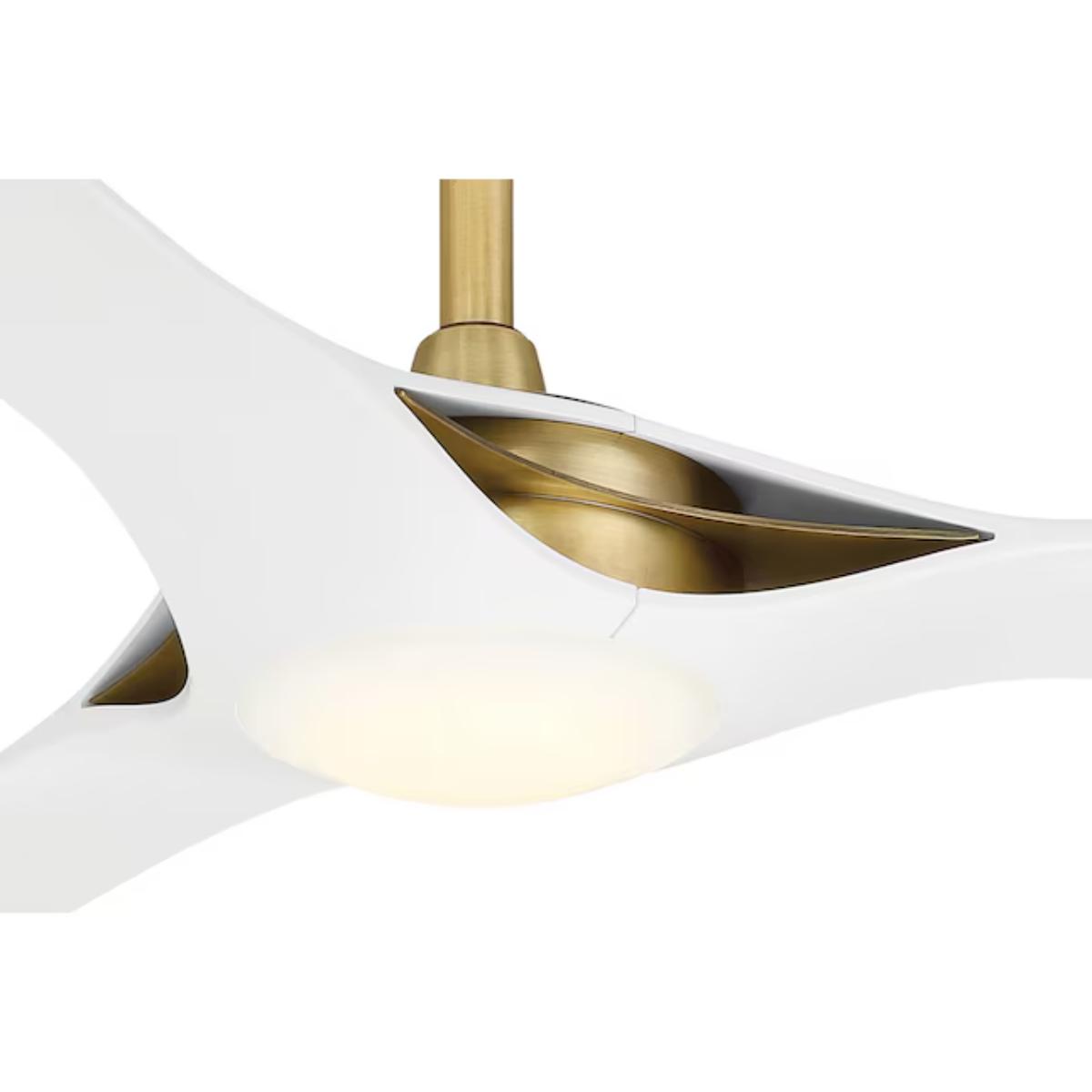

Light Output & PerformanceThe F668L-LBR/WHF includes an integrated 20W LED delivering 950.8 delivered lumens (1,500 initial lumens) at 3000K warm white with a CRI of 90. Rated life: 30,000 hours. Light is fully dimmable via the included RC1000 remote or compatible WC1000 wall control. Polycarbonate etched lens.
Electrical & Installation120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible. Fan must be attached to a securely anchored electrical junction box rated for the fan weight.

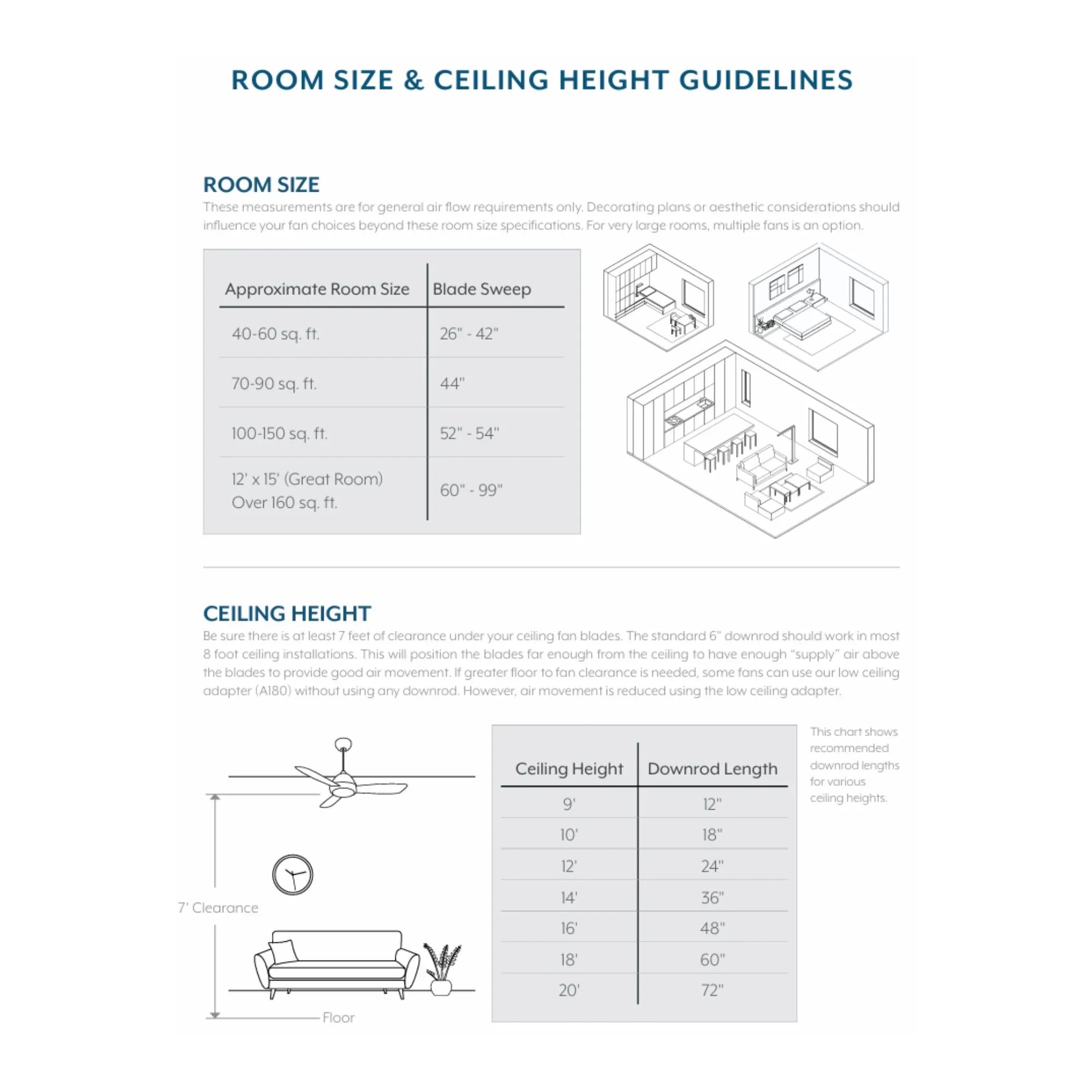

Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F668L-LBR/WHF ceiling fan (Legacy Brass body + 3 Flat White ABS blades)
- Integrated 20W LED light kit with polycarbonate etched lens
- RC1000 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
