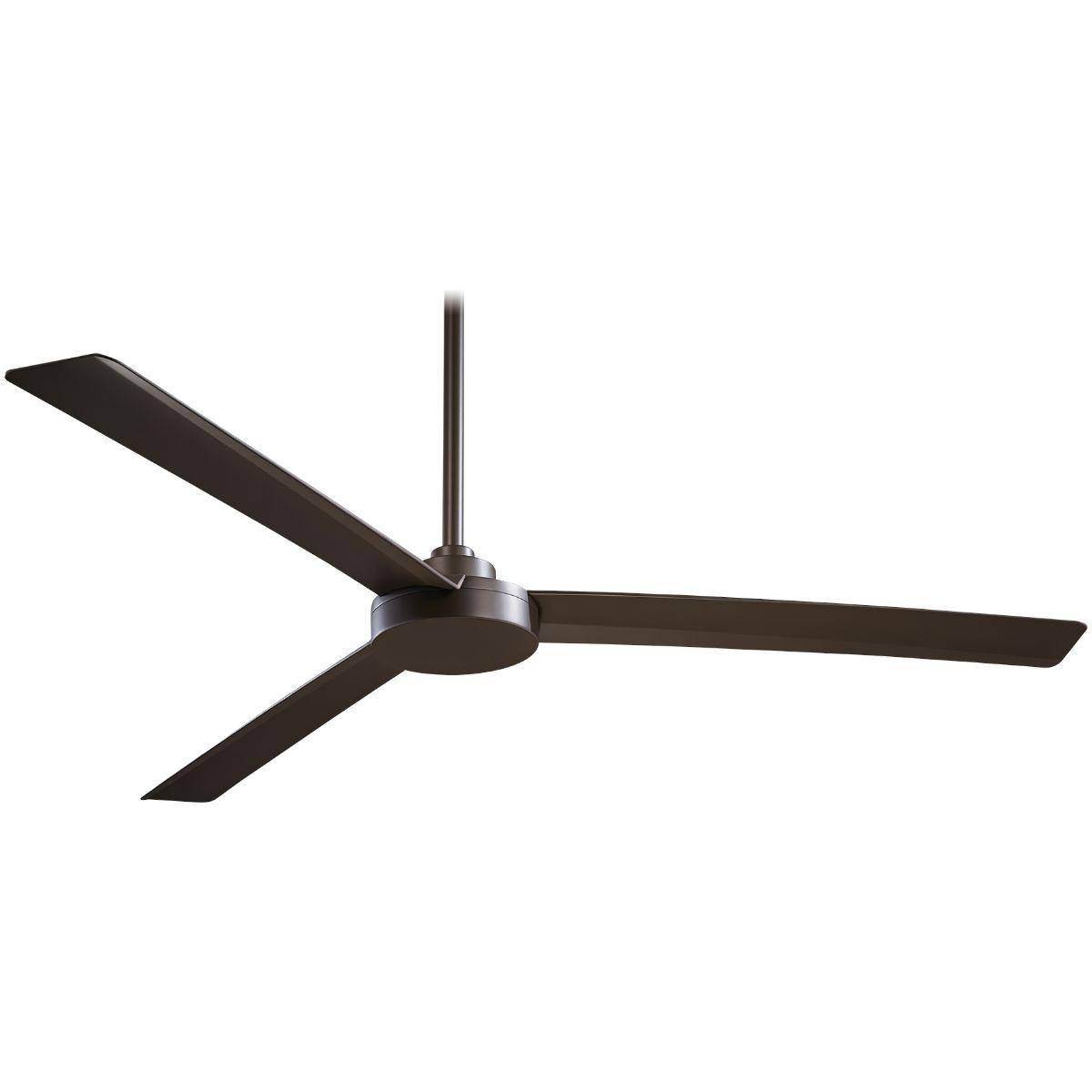

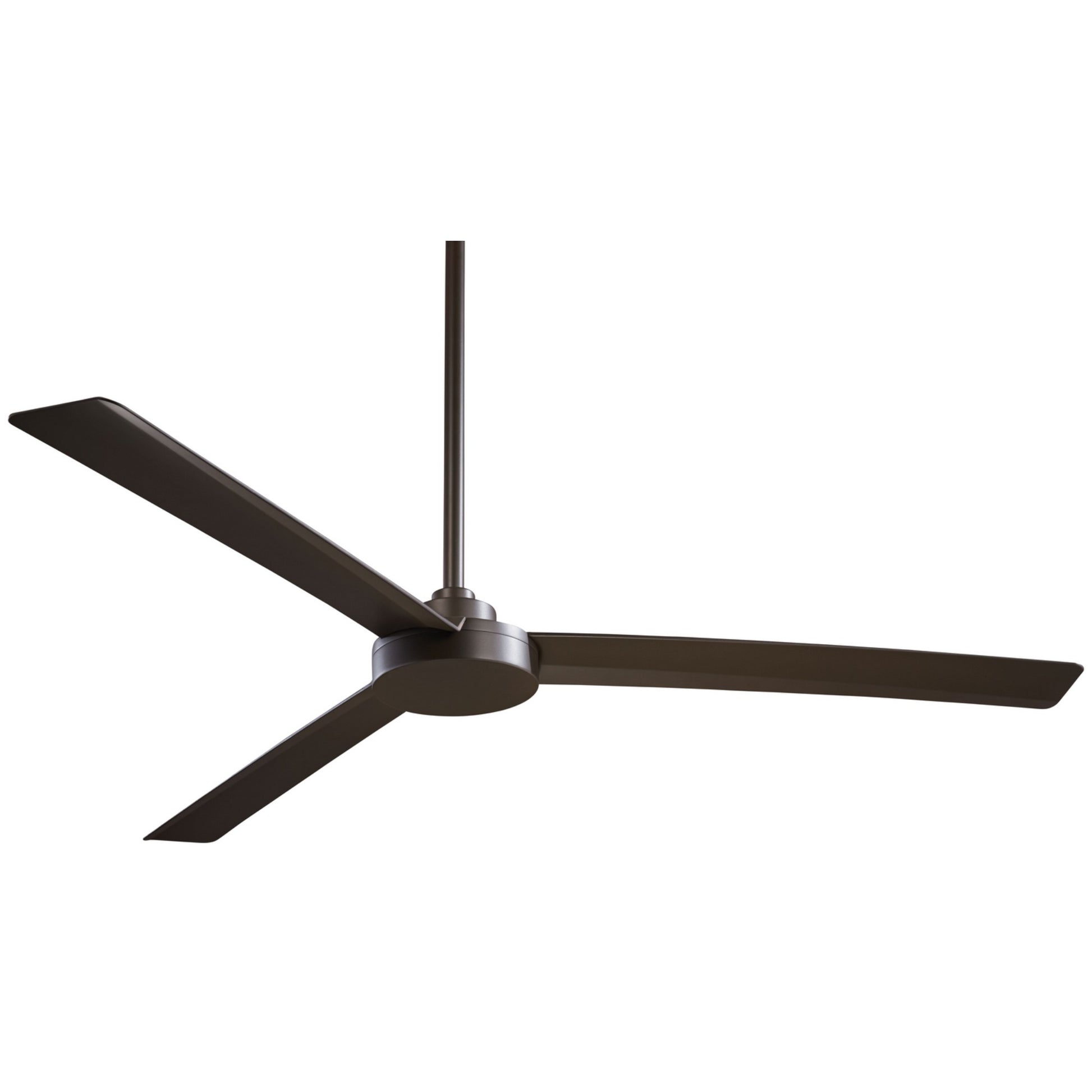

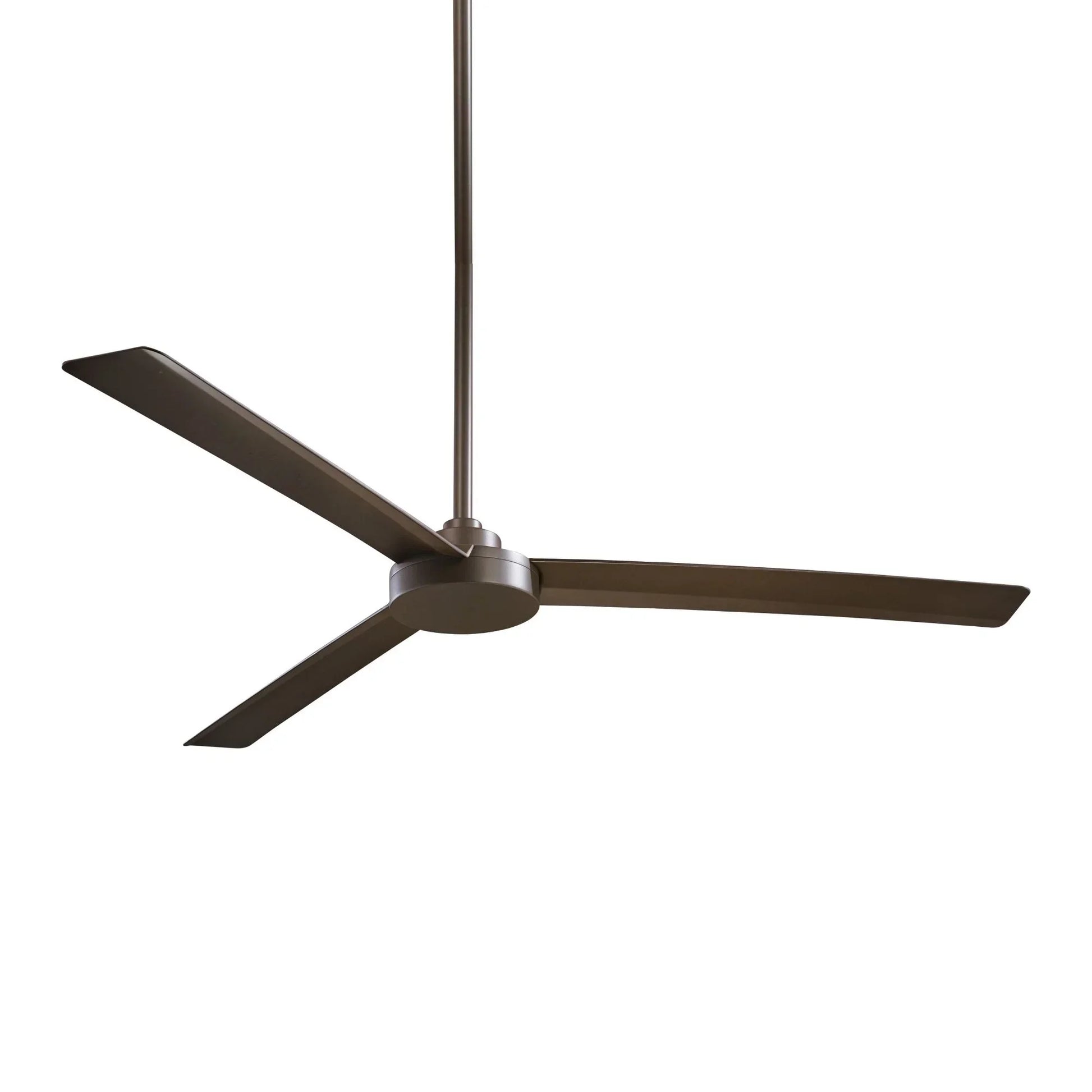

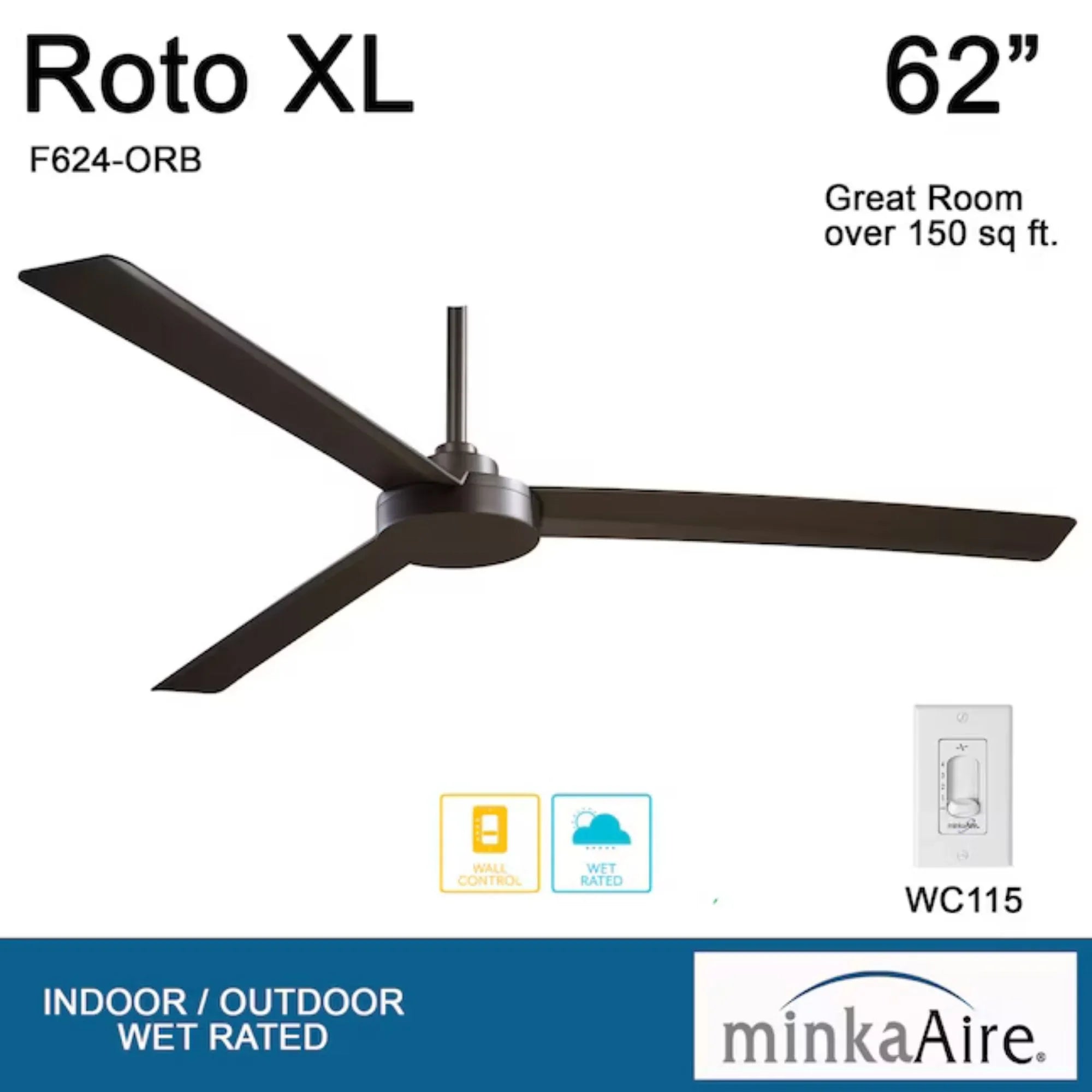

Minka Aire Roto XL 62 in AC Wet Rated Ceiling Fan — Oil Rubbed Bronze

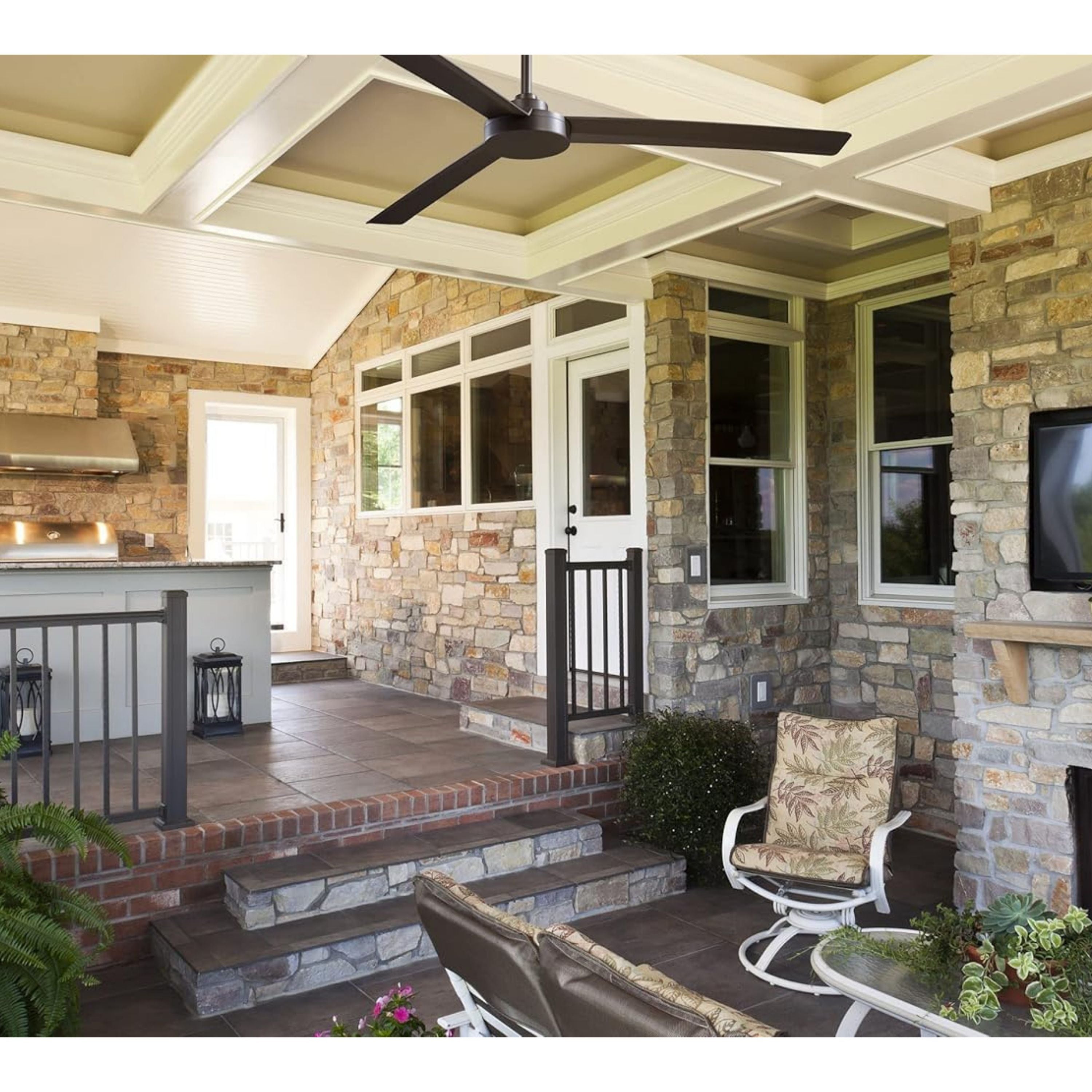

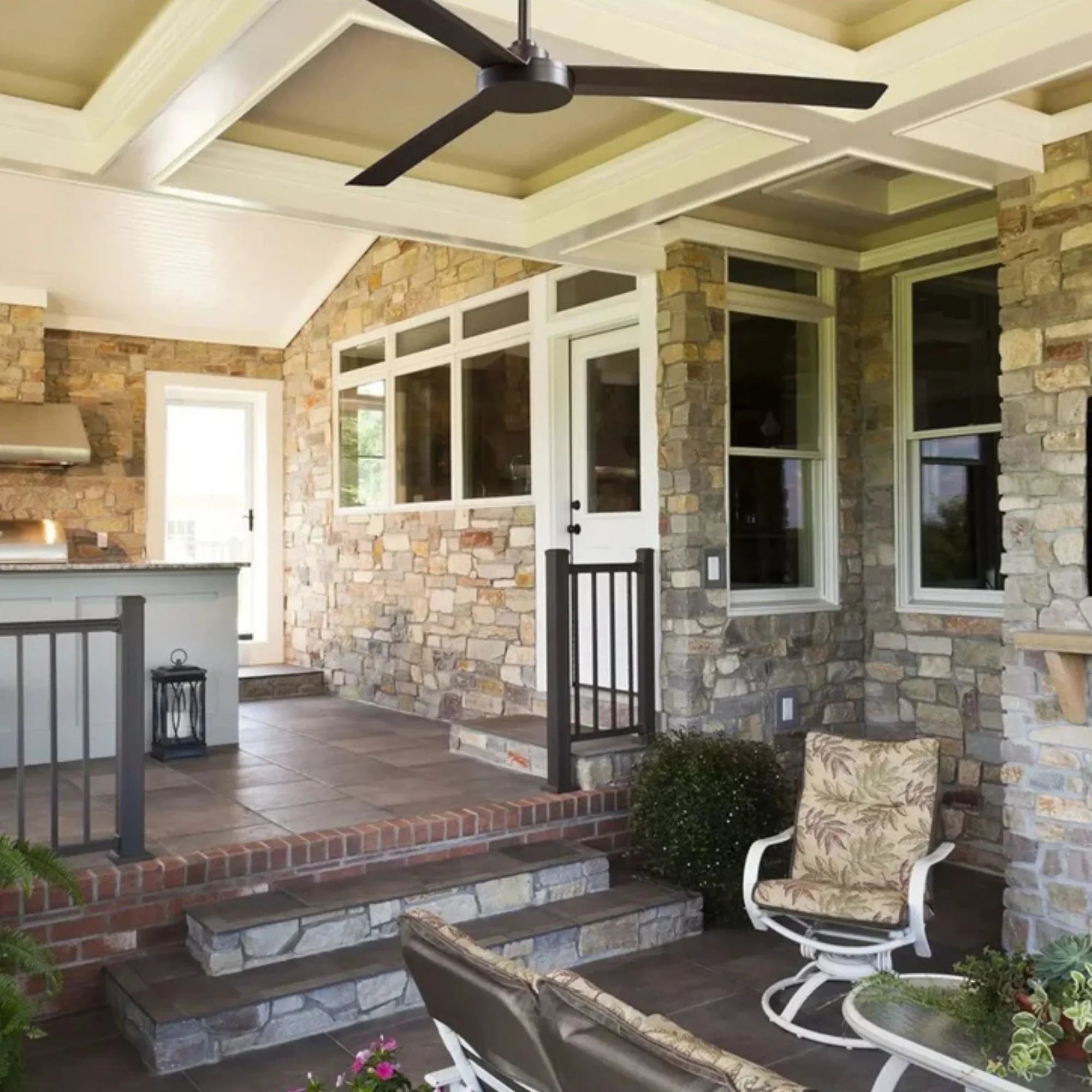

The Minka Aire Roto XL (model F624-ORB) is a 62 in wet-rated AC ceiling fan that scales the Roto’s iconic patented blade profile up to large indoor and outdoor spaces. Powered by a robust 172×16mm AC motor with 4 speeds, it moves up to 6,576 CFM at high speed — serious airflow for great rooms, covered patios, open-air living spaces, and high-ceiling commercial environments. Three Oil Rubbed Bronze ABS blades against a matching motor housing bring a warm, hand-finished patina ideal for traditional, transitional, and Mediterranean-inspired interiors and exteriors. Wet rated for indoor and outdoor use. Protected by U.S. Patent D750,221. Sloped ceiling compatible, ETL Listed, and backed by a Lifetime warranty.

Key Features

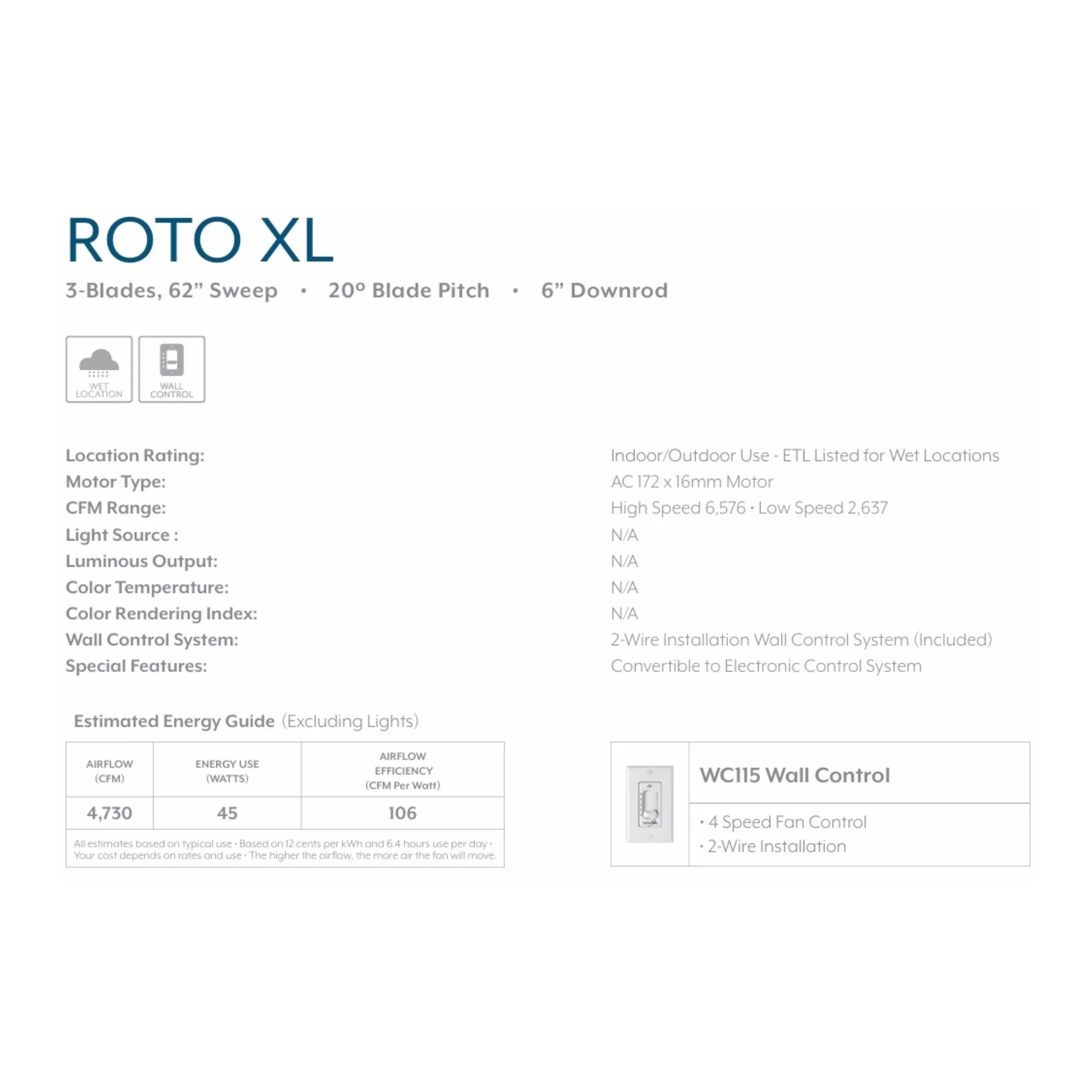

• Blade Span: 62 in | 3 Oil Rubbed Bronze ABS blades | 20° pitch
• Motor: AC — 172×16mm | 4 speeds | Reversible rotation
• Airflow: 2,638 CFM (low) / 6,576 CFM (high)
• Efficiency: 94 CFM/W at high speed
• Total Power: 70.26W (high) / 15.57W (low)
• RPM: 73 (low) / 165 (high)
• Light: No light | Not light kit compatible

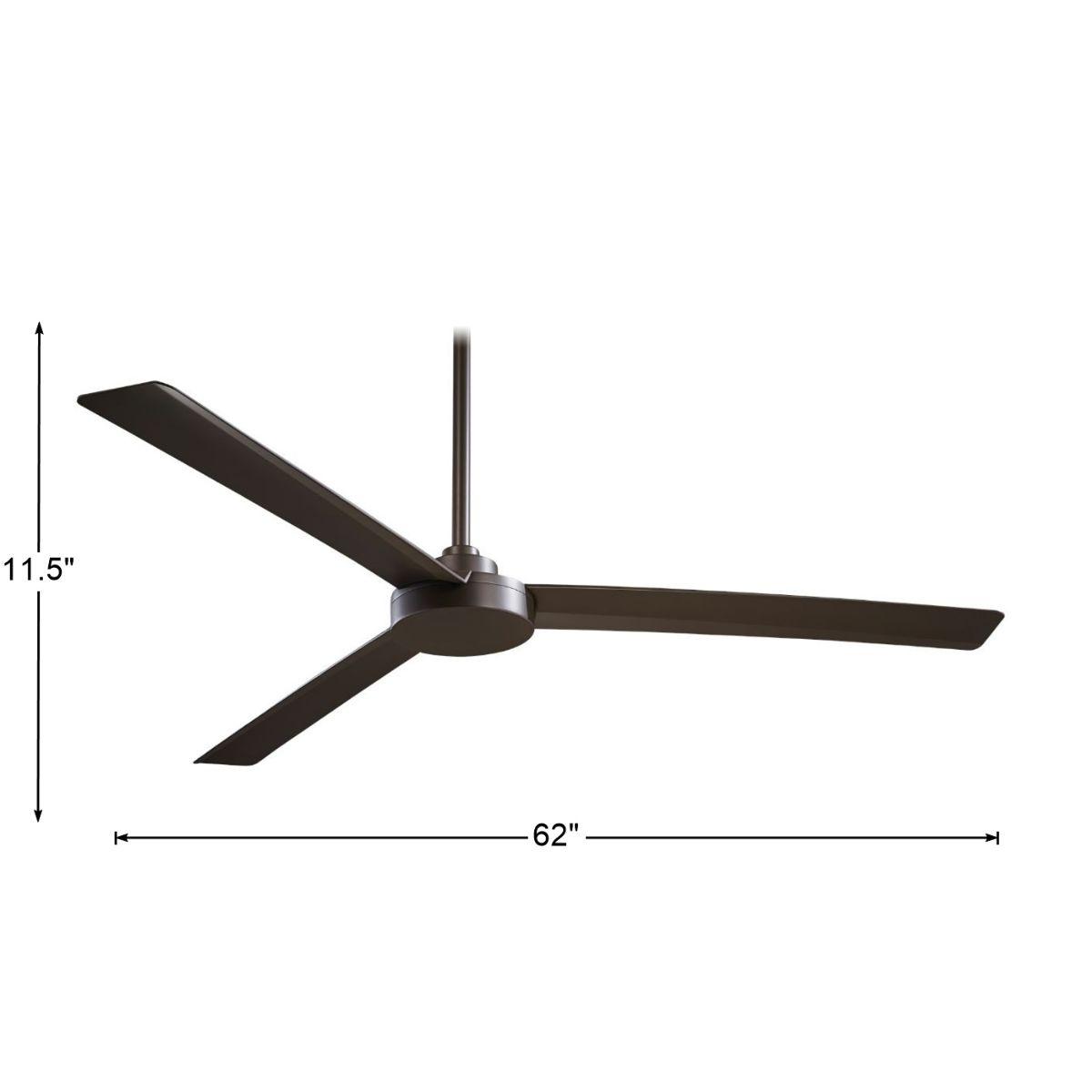

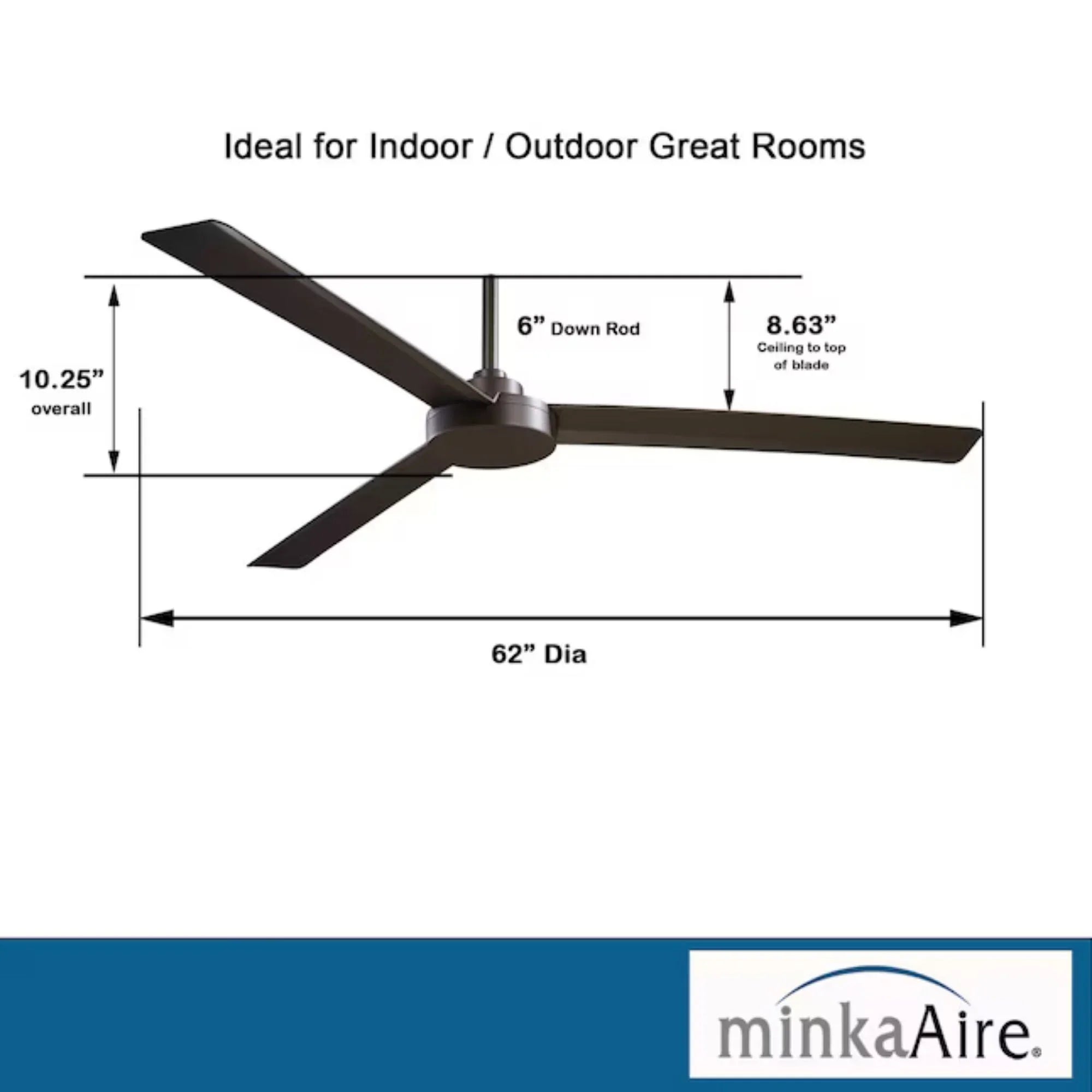

• Overall Dimensions: 62 in L × 62 in W × 11.6 in H | Ceiling-to-blade: 10.6 in
• Location Rating: Wet (Indoor & outdoor)

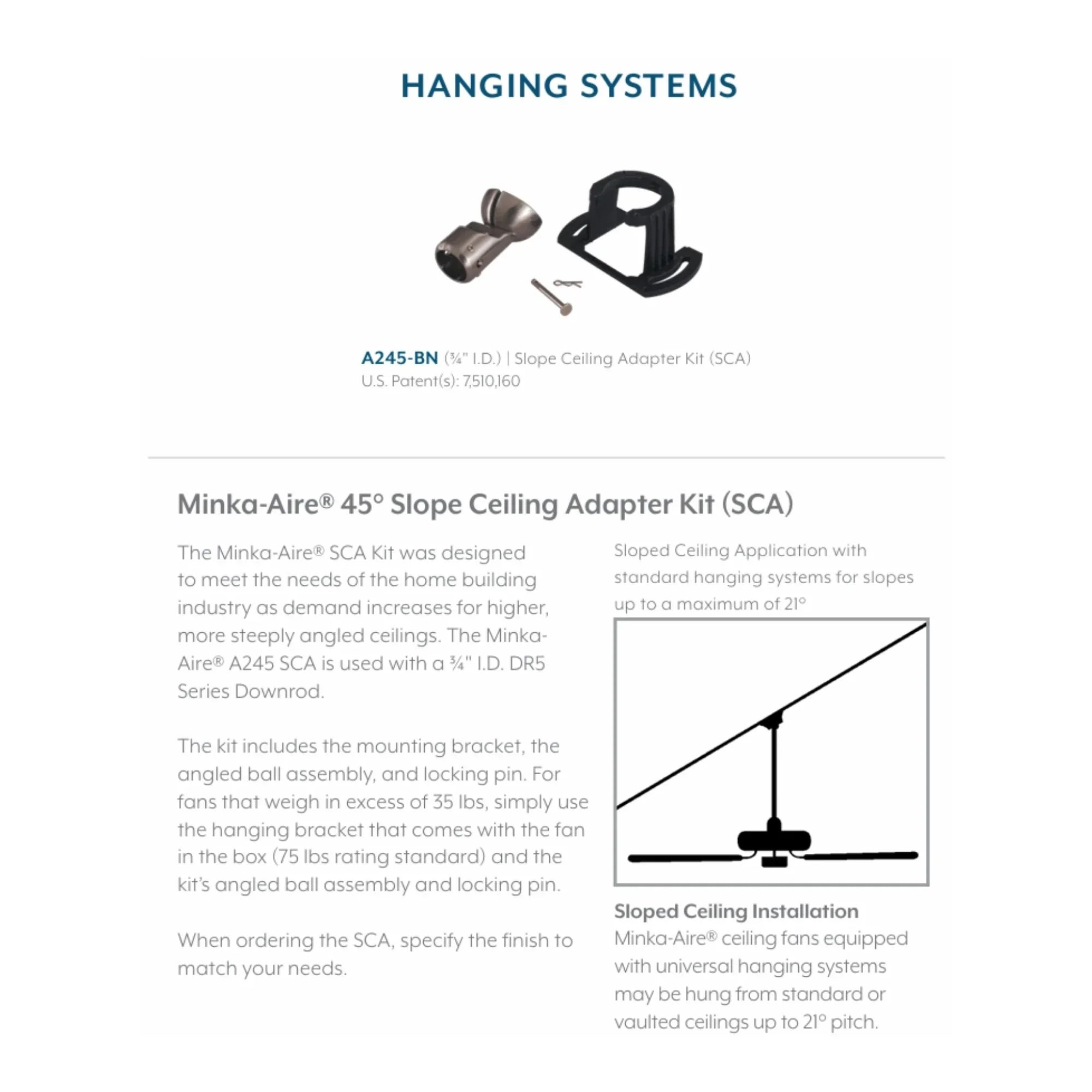

• Sloped Ceiling Compatible: Yes
• Downrod: 6 in included (0.75 in diameter) | Cord/Wire: 80 in | Weight: 13.76 lbs
• ETL Listed | Lifetime Warranty | U.S. Patent D750,221

Control Features

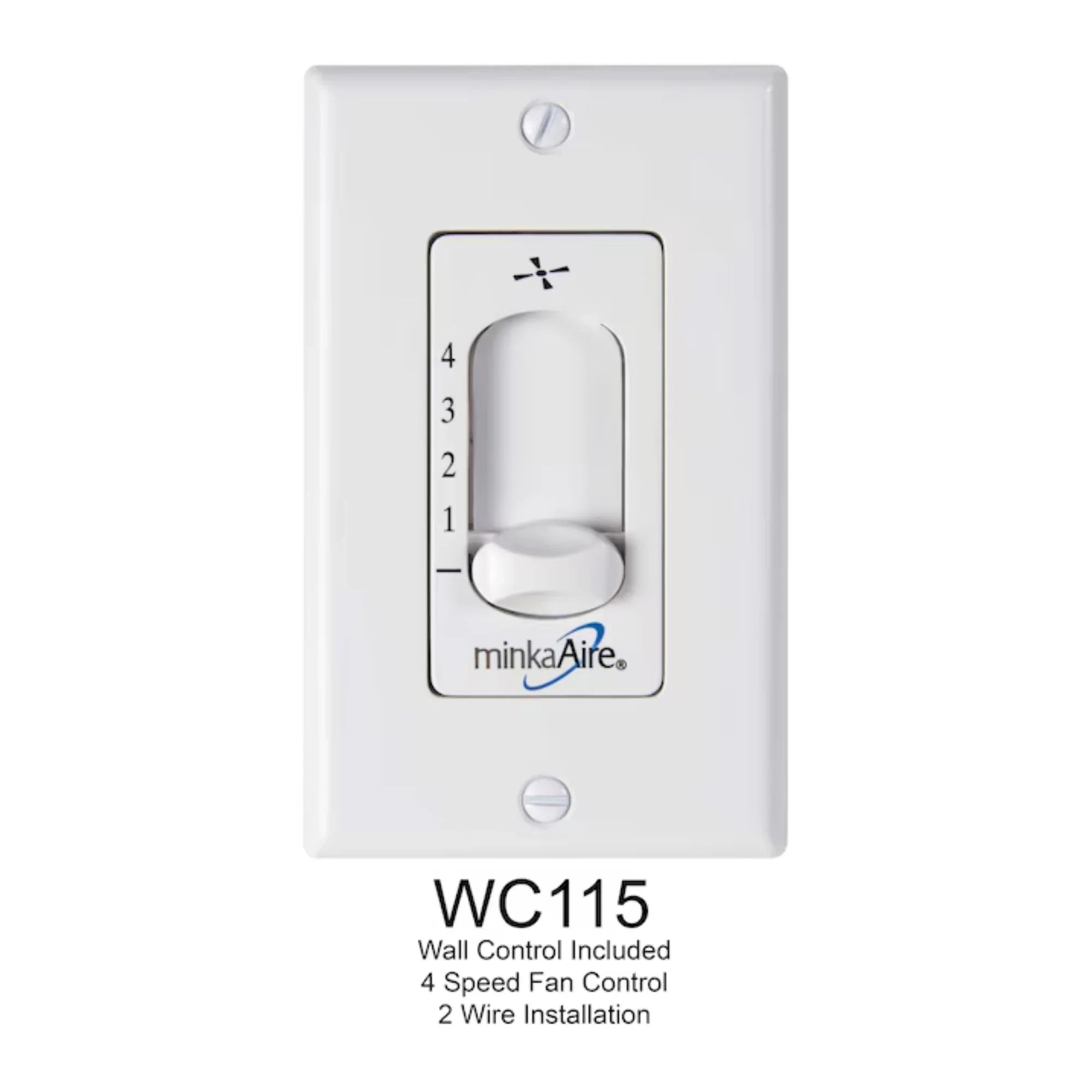

The Roto XL F624-ORB ships with a WC115 wall control for 4-speed fan operation. Direction reversal is accessible via the switch on the motor housing. No pull chain, no remote included. No integrated smart control or Bond compatibility.

Construction & Design

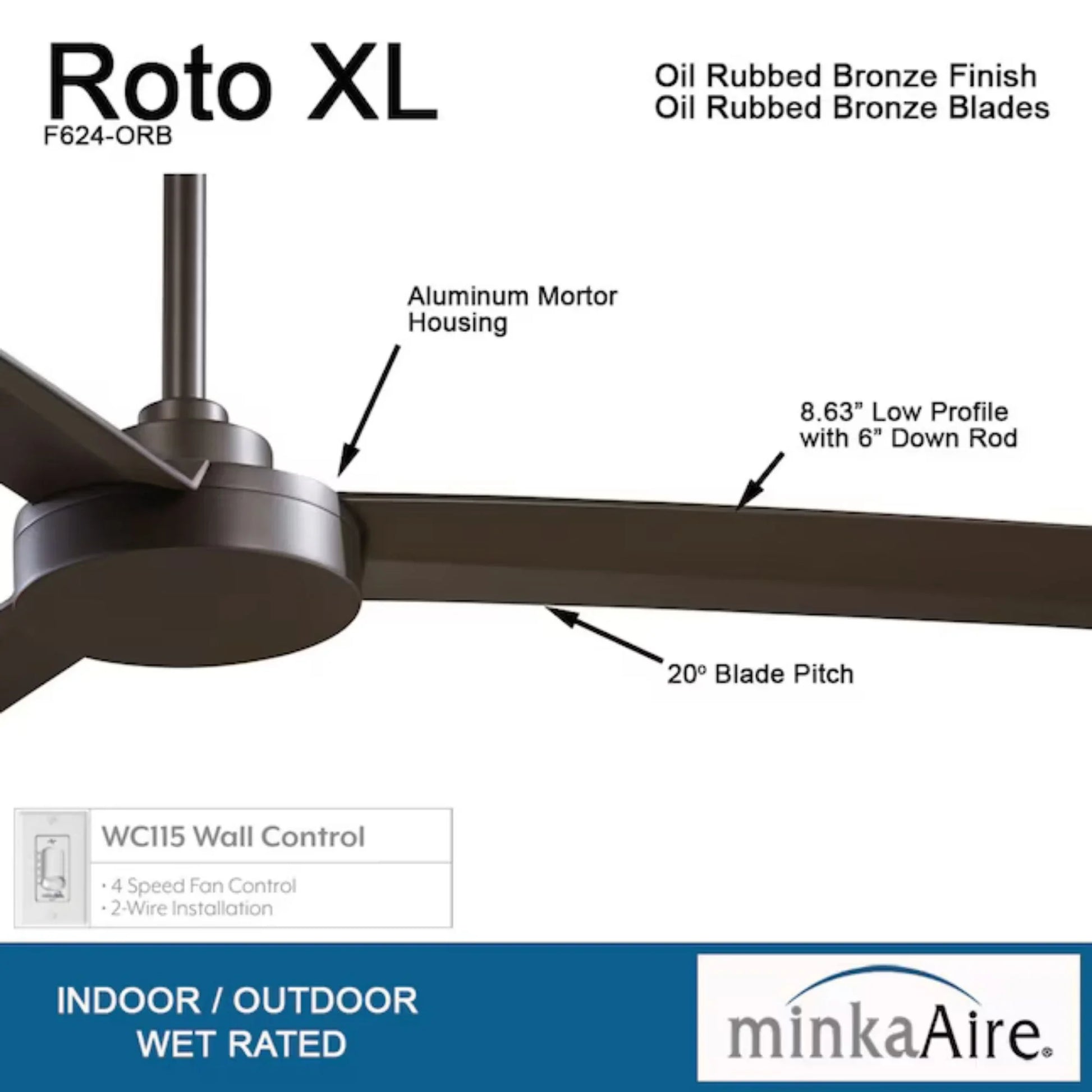

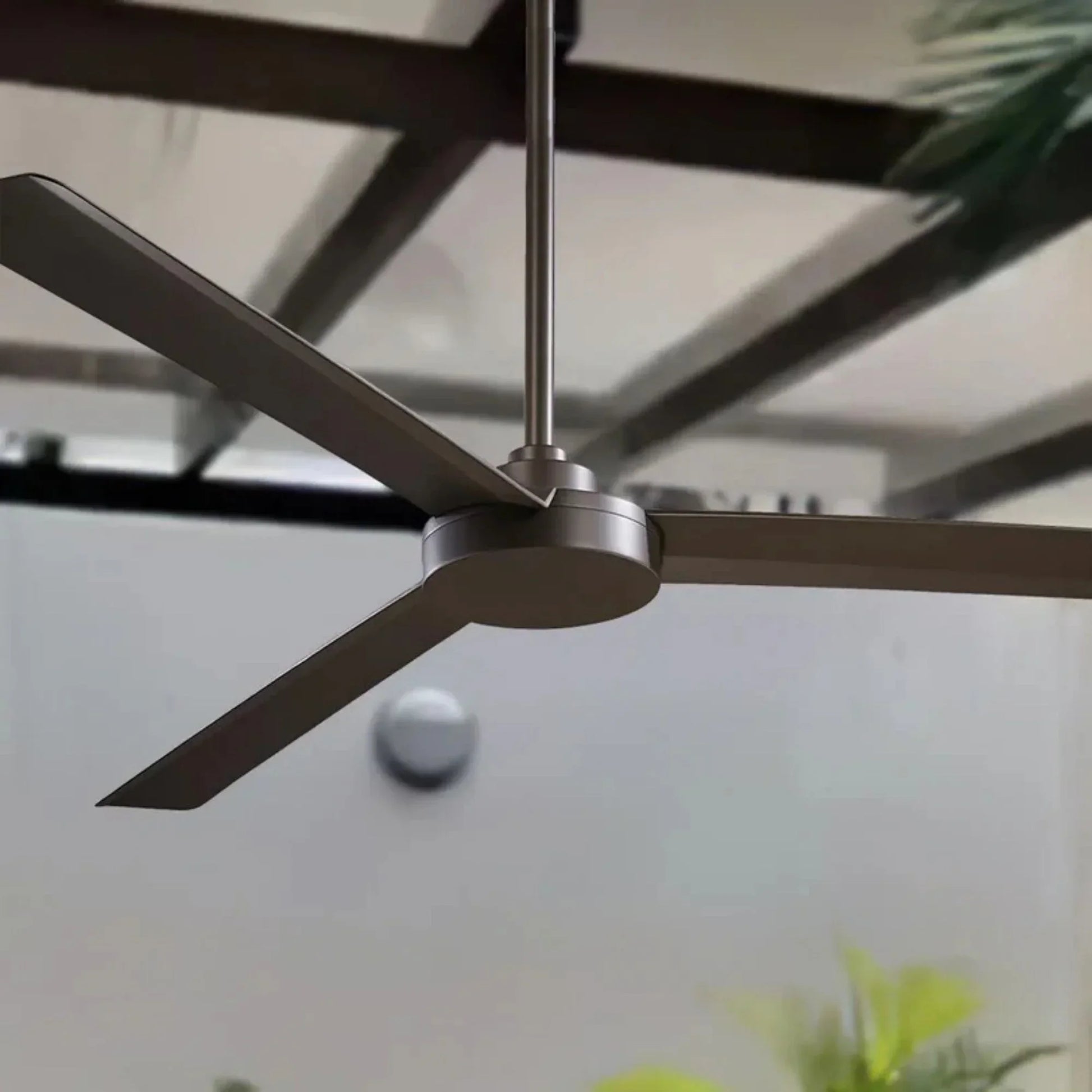

The Roto XL scales the same sculptural blade design — protected by U.S. Patent D750,221 — to a commanding 62 in sweep. Three Oil Rubbed Bronze ABS blades at a 20° pitch bring a warm, hand-applied patina that pairs naturally with the motor housing — a timeless combination for large traditional living rooms, dining rooms, covered outdoor entertaining areas, and transitional great rooms. Overall dimensions: 62 in L × 62 in W × 11.6 in H with a ceiling-to-blade clearance of 10.6 in. Wet rated — suitable for open and covered outdoor areas. Sloped ceiling compatible. Product weight: 13.76 lbs.

Light Output & Performance

The Roto XL F624-ORB does not include an integrated LED and is not light kit compatible. This is a fan-only model.

Electrical & Installation

Operates at 120V. AC motor — 4-speed operation. High: 165 RPM / 6,576 CFM / 70.26W. Low: 73 RPM / 2,638 CFM / 15.57W. Wet location rated — suitable for open and covered outdoor areas and all indoor spaces. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Cord/wire length: 80 in. This fan is not light kit compatible.

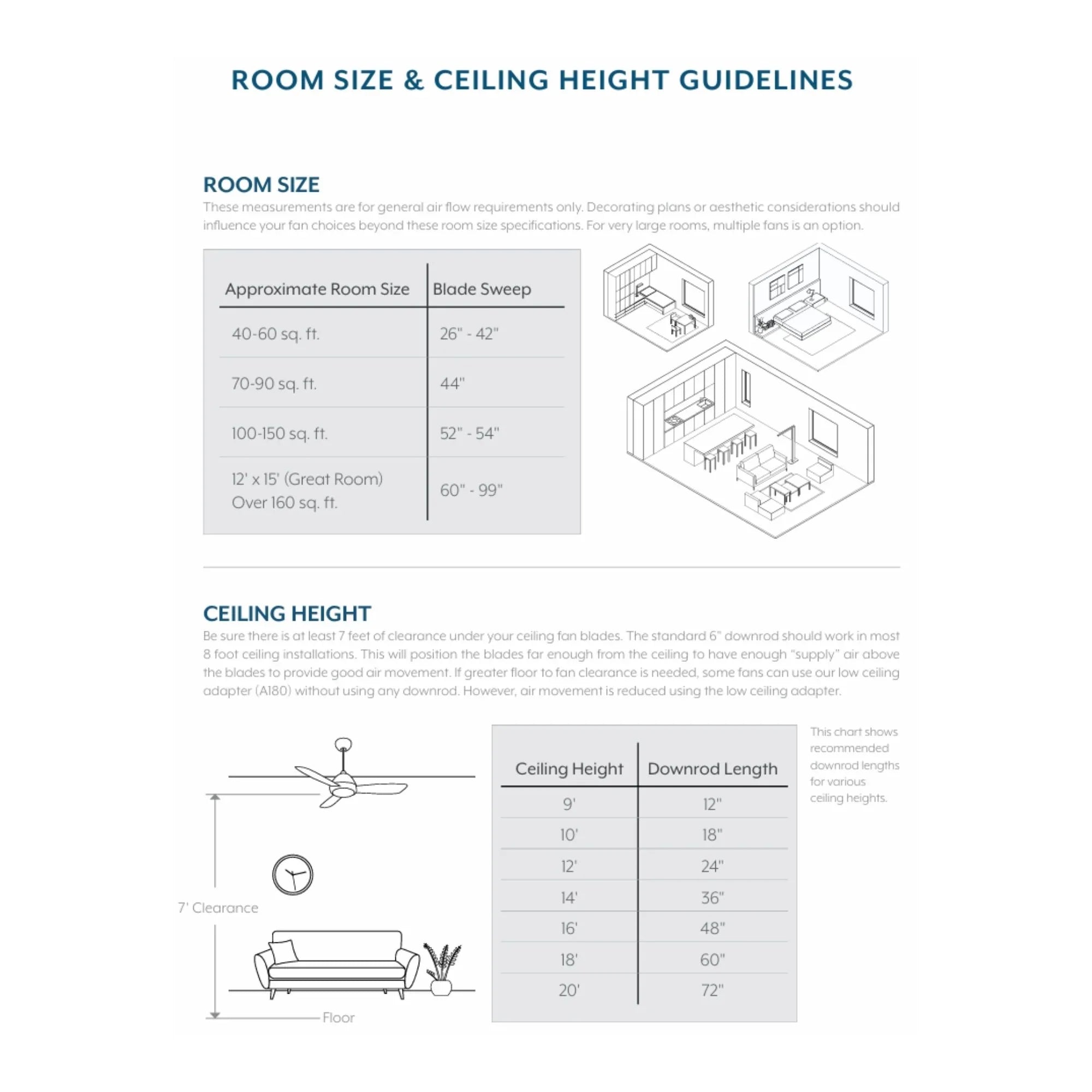

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Roto XL F624-ORB 62 in AC ceiling fan
• WC115 wall control
• 6 in downrod
• Mounting hardware
