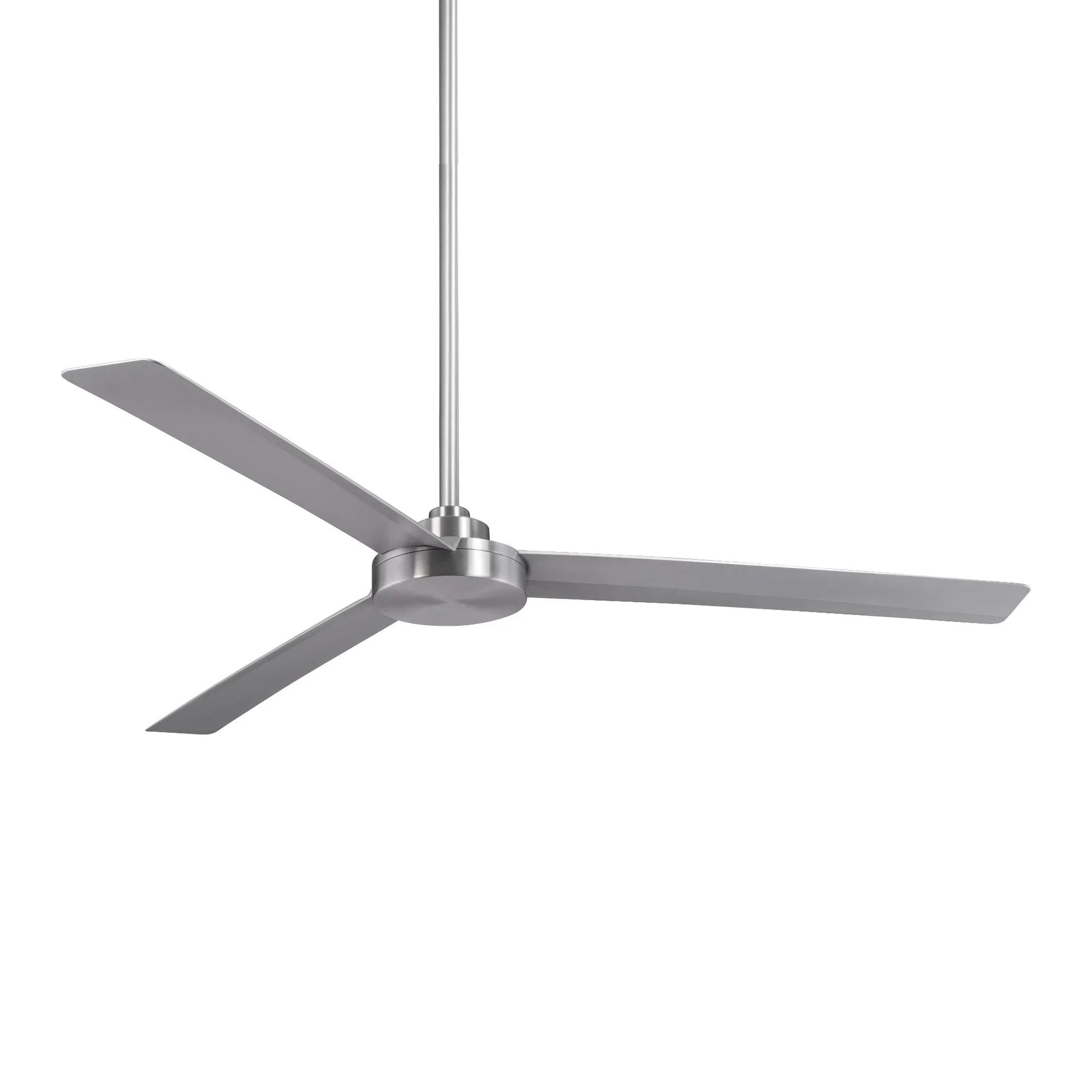

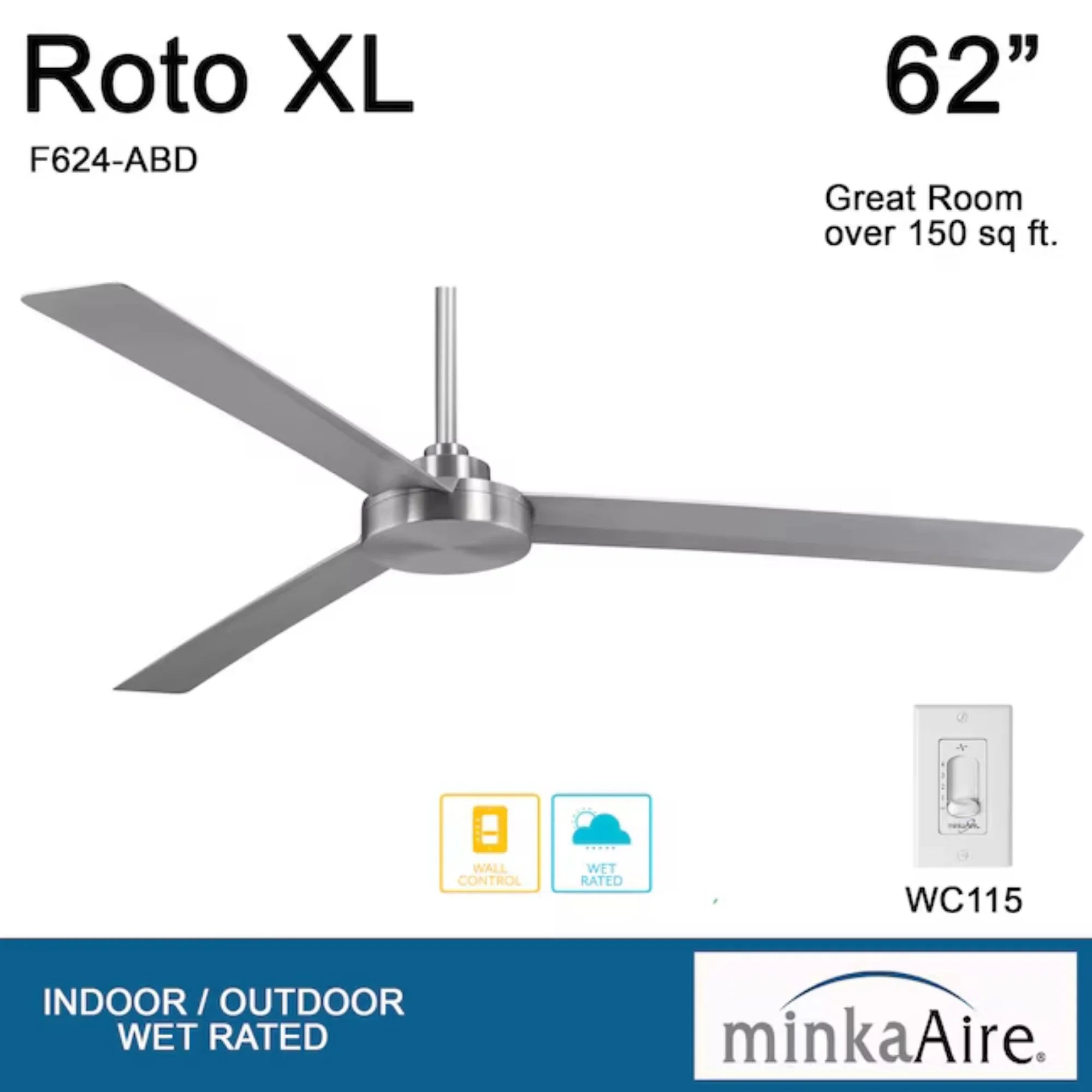

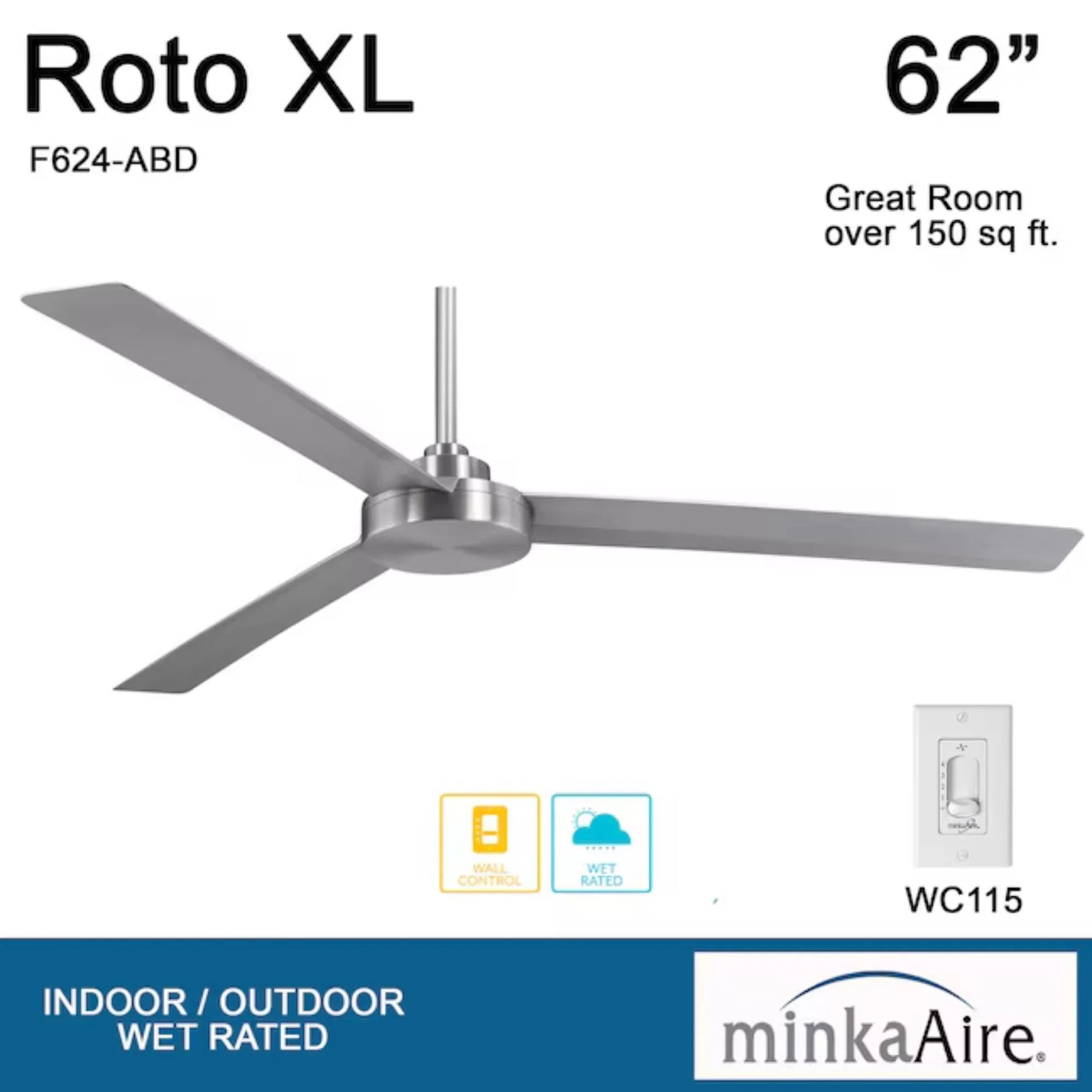

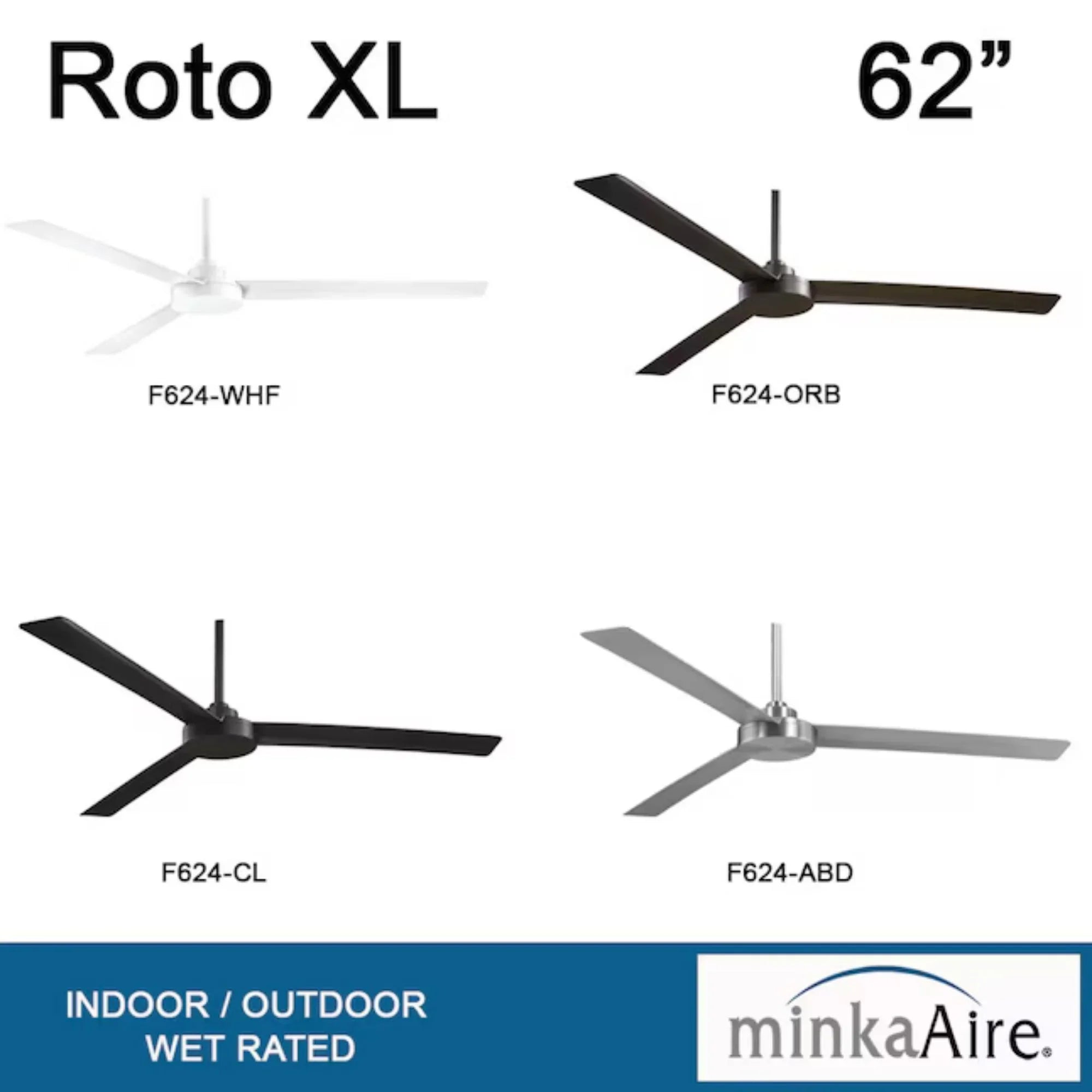

Minka Aire Roto XL 62 in AC Wet Rated Ceiling Fan — Brushed Aluminum

The Minka Aire Roto XL (model F624-ABD) is a 62 in wet-rated AC ceiling fan that scales the Roto’s iconic patented blade profile up to large indoor and outdoor spaces. Powered by a robust 172×16mm AC motor with 4 speeds, it moves up to 6,576 CFM at high speed — serious airflow for great rooms, covered patios, open-air living spaces, and high-ceiling commercial environments. Three Silver ABS blades against a Brushed Aluminum motor housing bring a contemporary metallic finish that pairs naturally with modern and transitional interiors and exteriors. Wet rated for indoor and outdoor use. Protected by U.S. Patent D750,221. Sloped ceiling compatible, ETL Listed, and backed by a Lifetime warranty.

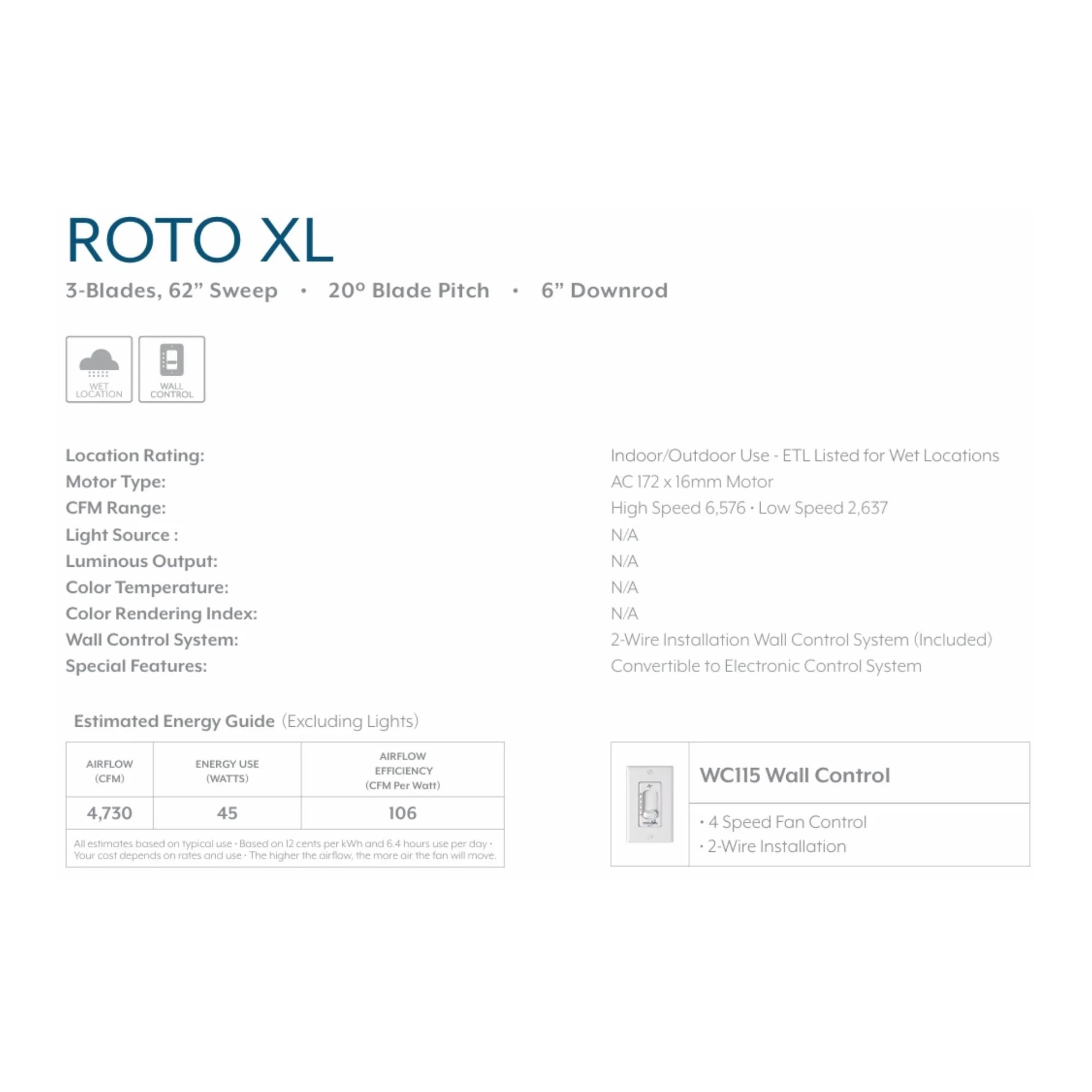

Key Features

• Blade Span: 62 in | 3 Silver ABS blades | 20° pitch
• Motor: AC — 172×16mm | 4 speeds | Reversible rotation
• Airflow: 2,638 CFM (low) / 6,576 CFM (high)
• Efficiency: 94 CFM/W at high speed
• Total Power: 70.26W (high) / 15.57W (low)
• RPM: 73 (low) / 165 (high)
• Light: No light | Not light kit compatible

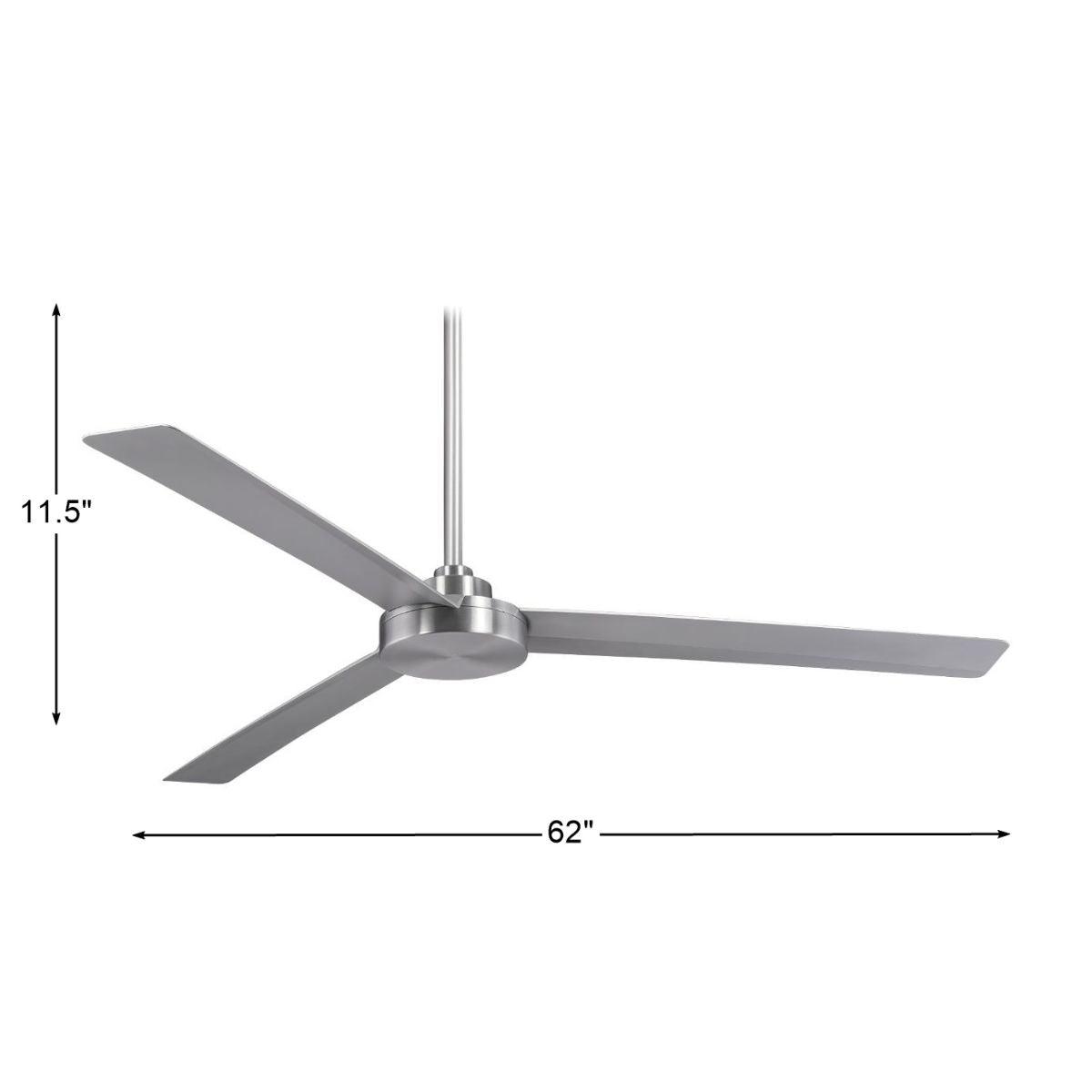

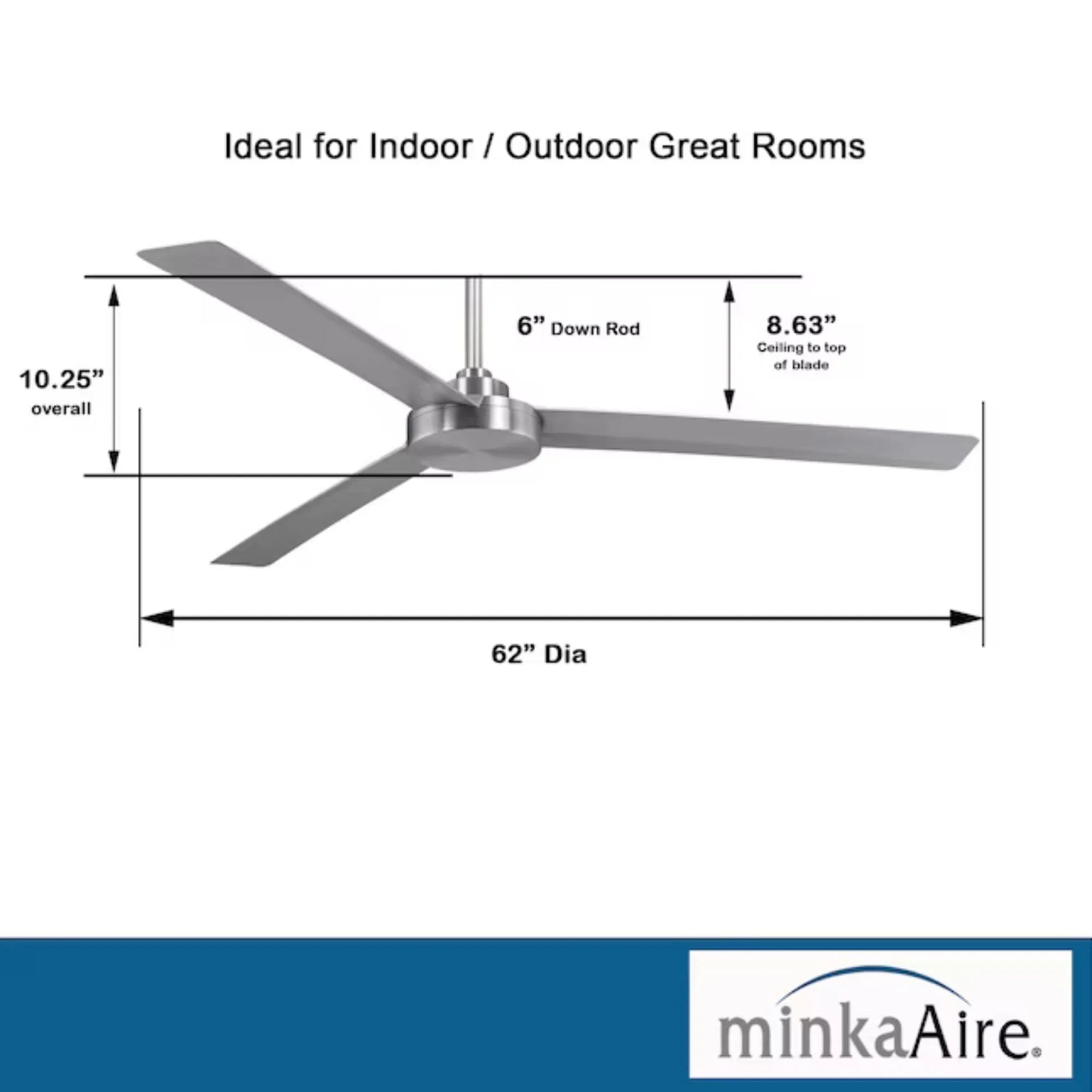

• Overall Dimensions: 62 in L × 62 in W × 11.6 in H | Ceiling-to-blade: 10.6 in

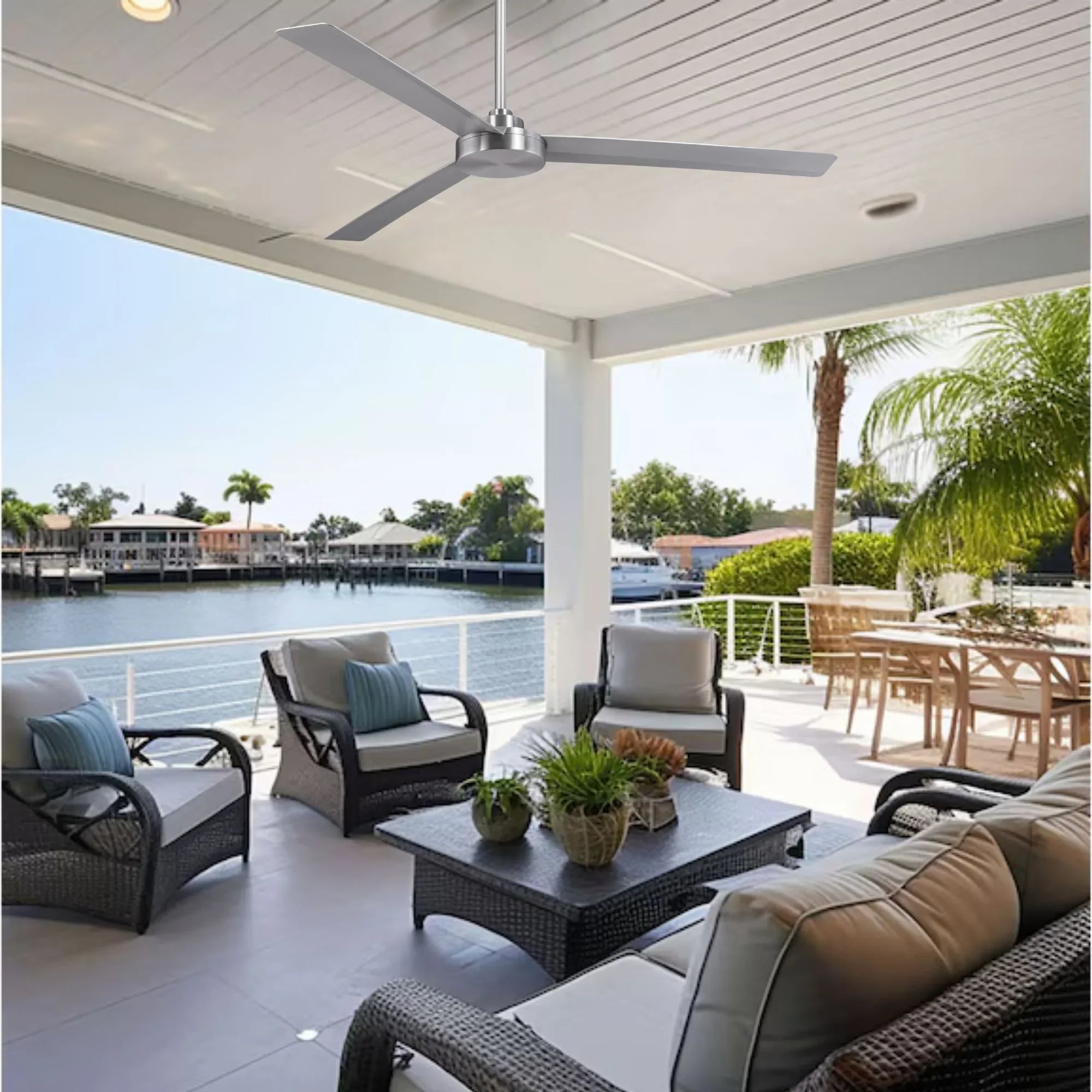

• Location Rating: Wet (Indoor & outdoor)

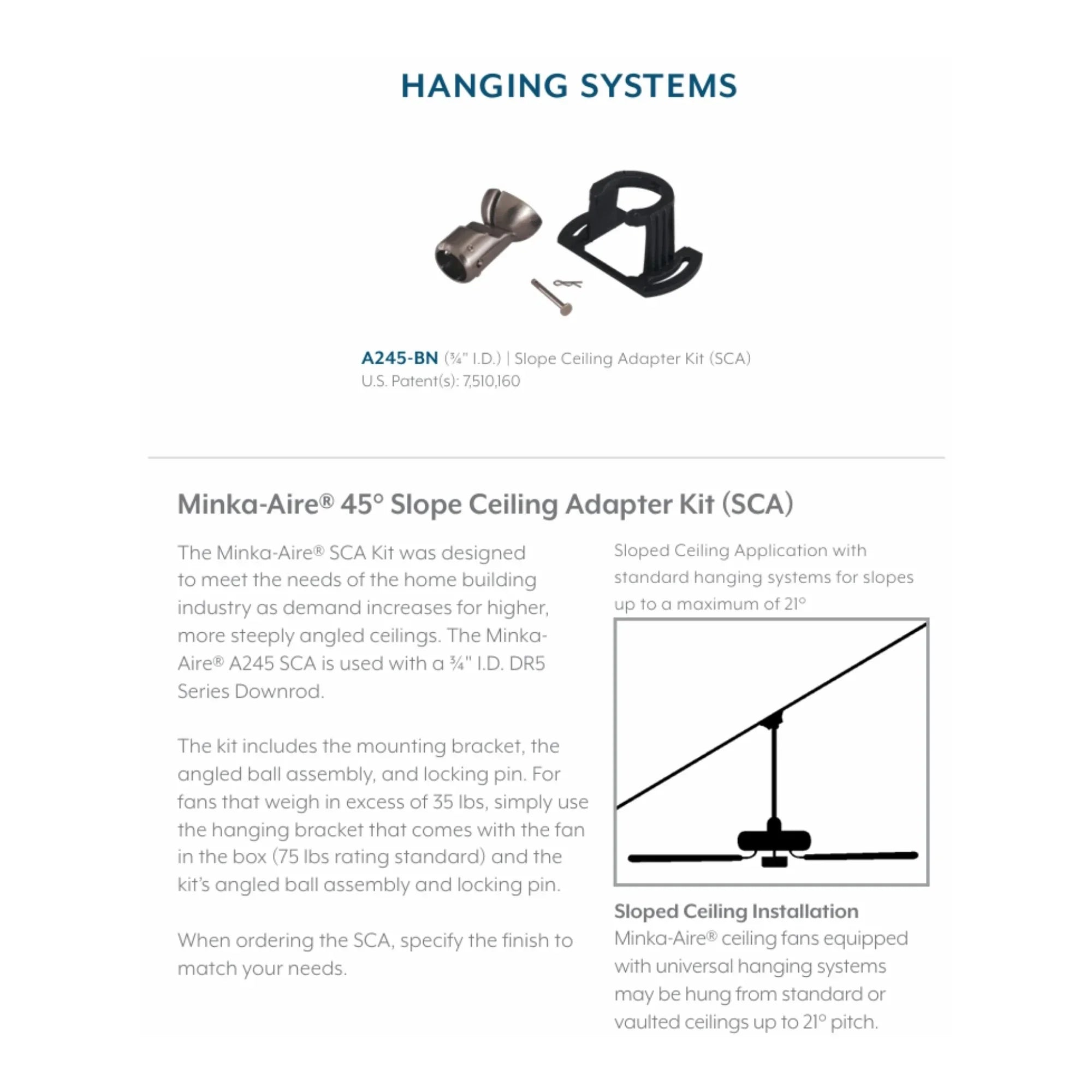

• Sloped Ceiling Compatible: Yes
• Downrod: 6 in included (0.75 in diameter) | Cord/Wire: 80 in | Weight: 13.76 lbs
• ETL Listed | Lifetime Warranty | U.S. Patent D750,221

Control Features

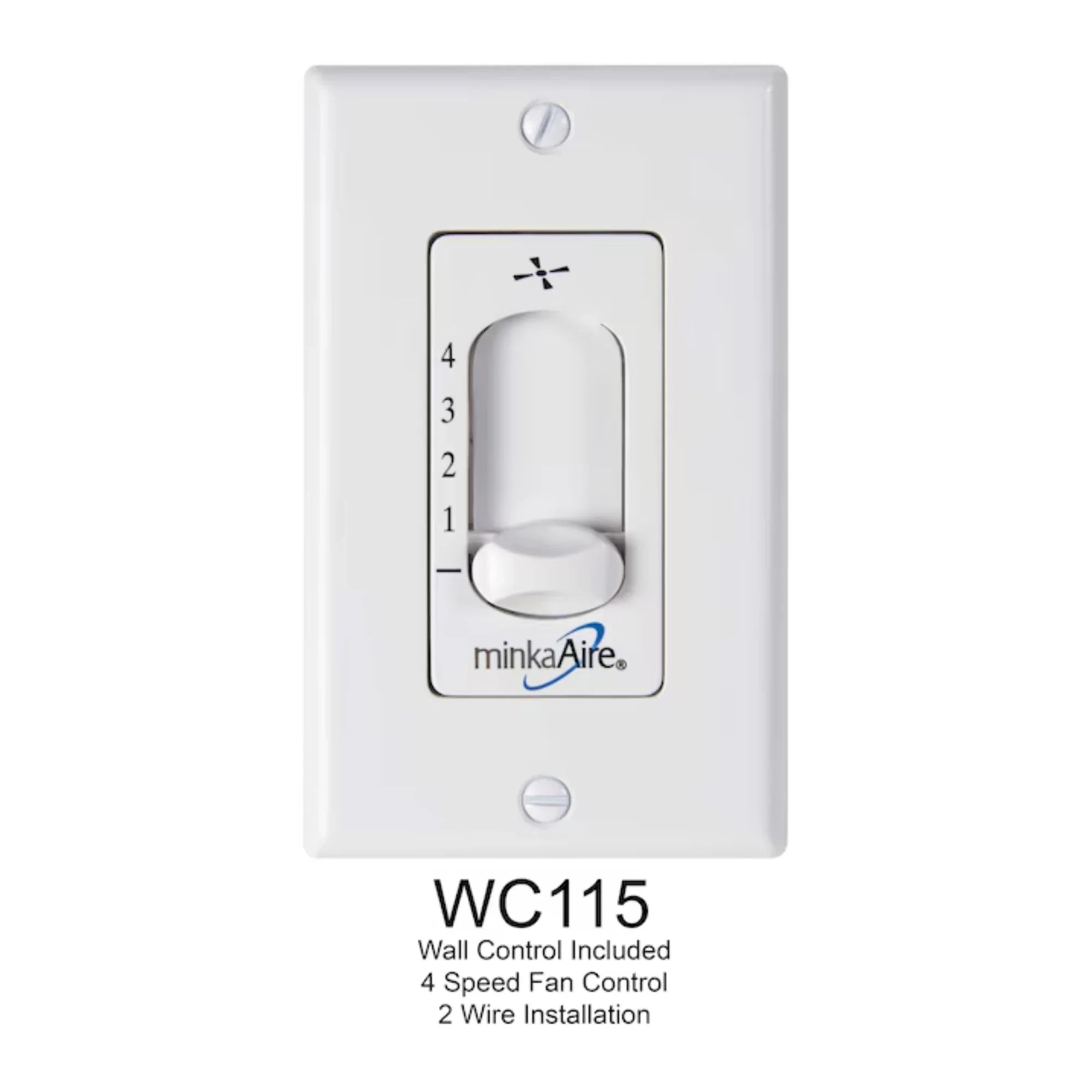

The Roto XL F624-ABD ships with a WC115 wall control for 4-speed fan operation. Direction reversal is accessible via the switch on the motor housing. No pull chain, no remote included. No integrated smart control or Bond compatibility.

Construction & Design

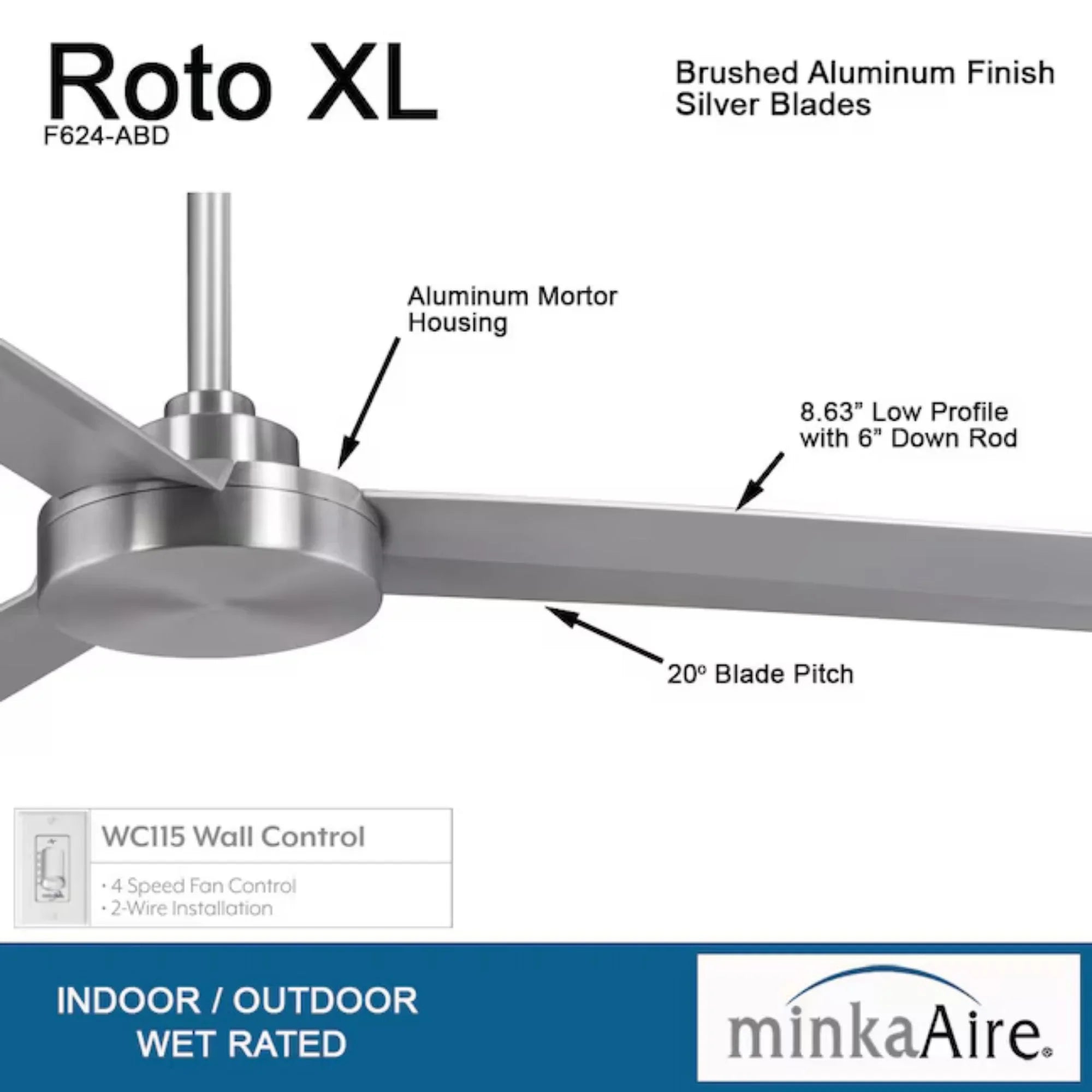

The Roto XL scales the same sculptural blade design — protected by U.S. Patent D750,221 — to a commanding 62 in sweep. Three Silver ABS blades at a 20° pitch are engineered for high-volume air displacement, while the Brushed Aluminum motor housing delivers a refined metallic presence suited to large residential and light commercial applications. Overall dimensions: 62 in L × 62 in W × 11.6 in H with a ceiling-to-blade clearance of 10.6 in. Wet rated — suitable for open and covered outdoor areas. Sloped ceiling compatible. Product weight: 13.76 lbs.

Light Output & Performance

The Roto XL F624-ABD does not include an integrated LED and is not light kit compatible. This is a fan-only model.

Electrical & Installation

Operates at 120V. AC motor — 4-speed operation. High: 165 RPM / 6,576 CFM / 70.26W. Low: 73 RPM / 2,638 CFM / 15.57W. Wet location rated — suitable for open and covered outdoor areas and all indoor spaces. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Cord/wire length: 80 in. This fan is not light kit compatible.

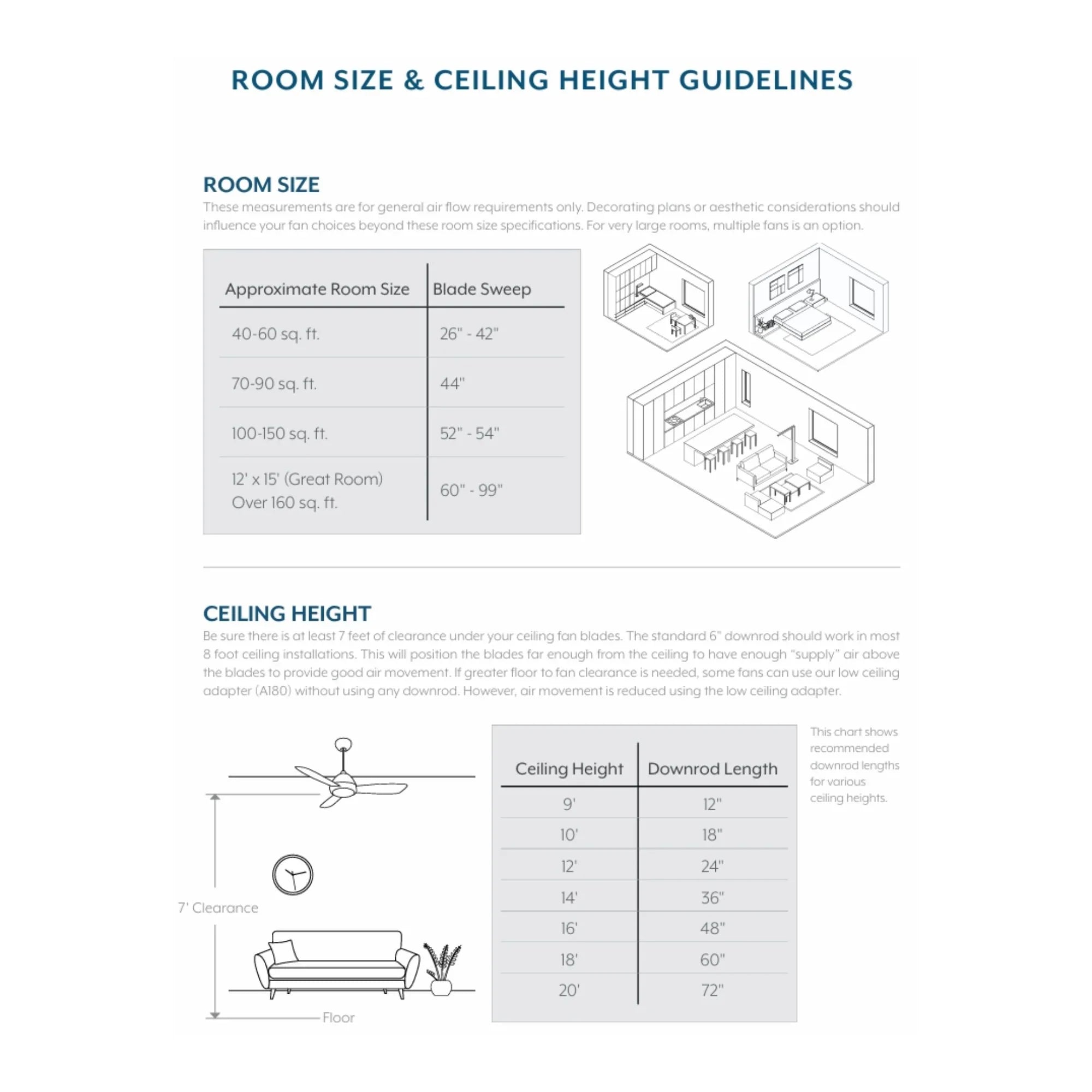

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Roto XL F624-ABD 62 in AC ceiling fan
• WC115 wall control
• 6 in downrod
• Mounting hardware
