Raptor LED 60" Flat White Modern Ceiling Fan with Remote
Out of stock
About this item
About this item
- Airflow & Efficiency: 6,956 CFM high (208.58 CFM/W, 33.35W) / 2,088 CFM low — ETL Listed for Dry Locations — ideal for large indoor spaces up to 400 sq ft.
- DC Motor: 172×12mm, 6 speeds, reversible rotation — five-blade all Flat White polycarbonate design for whisper-quiet year-round indoor comfort at 60 in span.
- Dry Rated: ETL Listed for Dry Locations — living rooms, dining rooms, and open-plan interior spaces.
- Control: RC600 remote included (6-speed, full-range dimmer), WC600 wall control sold separately — Bond BD-1000 smart hub compatible (sold separately), Bond Home app (iOS/Android), Alexa, Google Home, Ecobee, Control4.
- LED Light Kit: 20W integrated LED, 1,108.2 lm delivered, 3000K, CRI 93, 30,000 hrs, dimmable — frosted white glass shade.
We process payments securely and do not store credit card information.
Description
Description

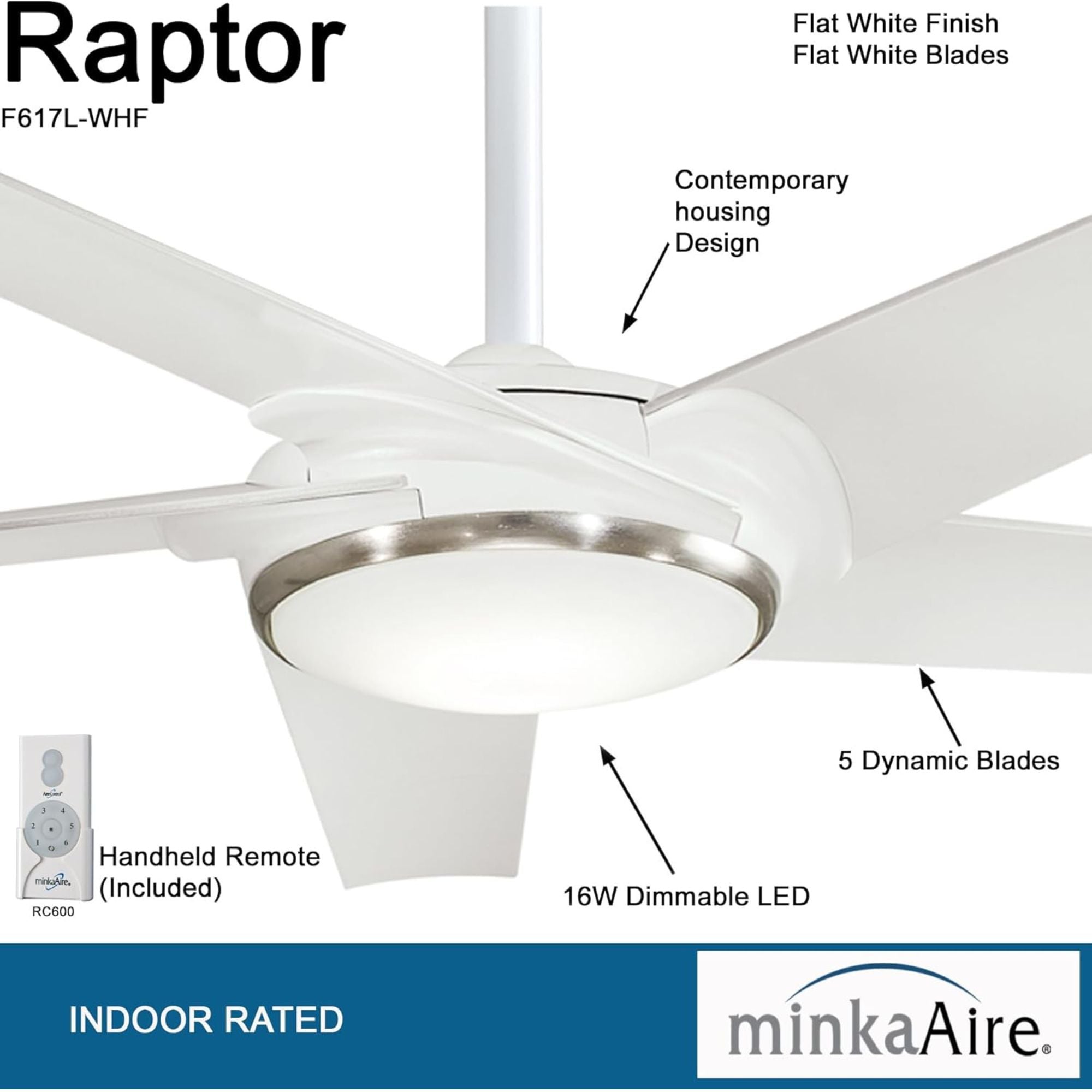

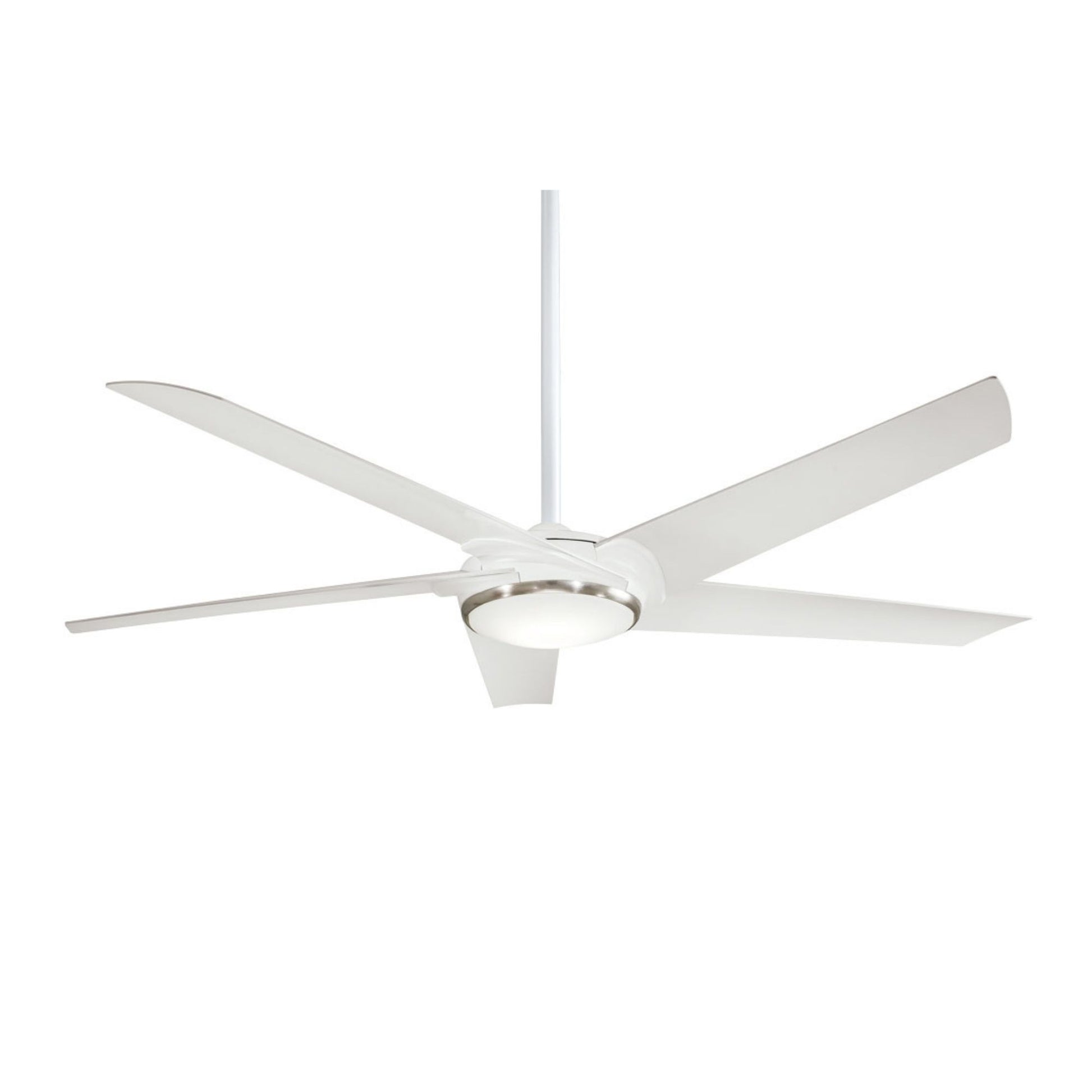

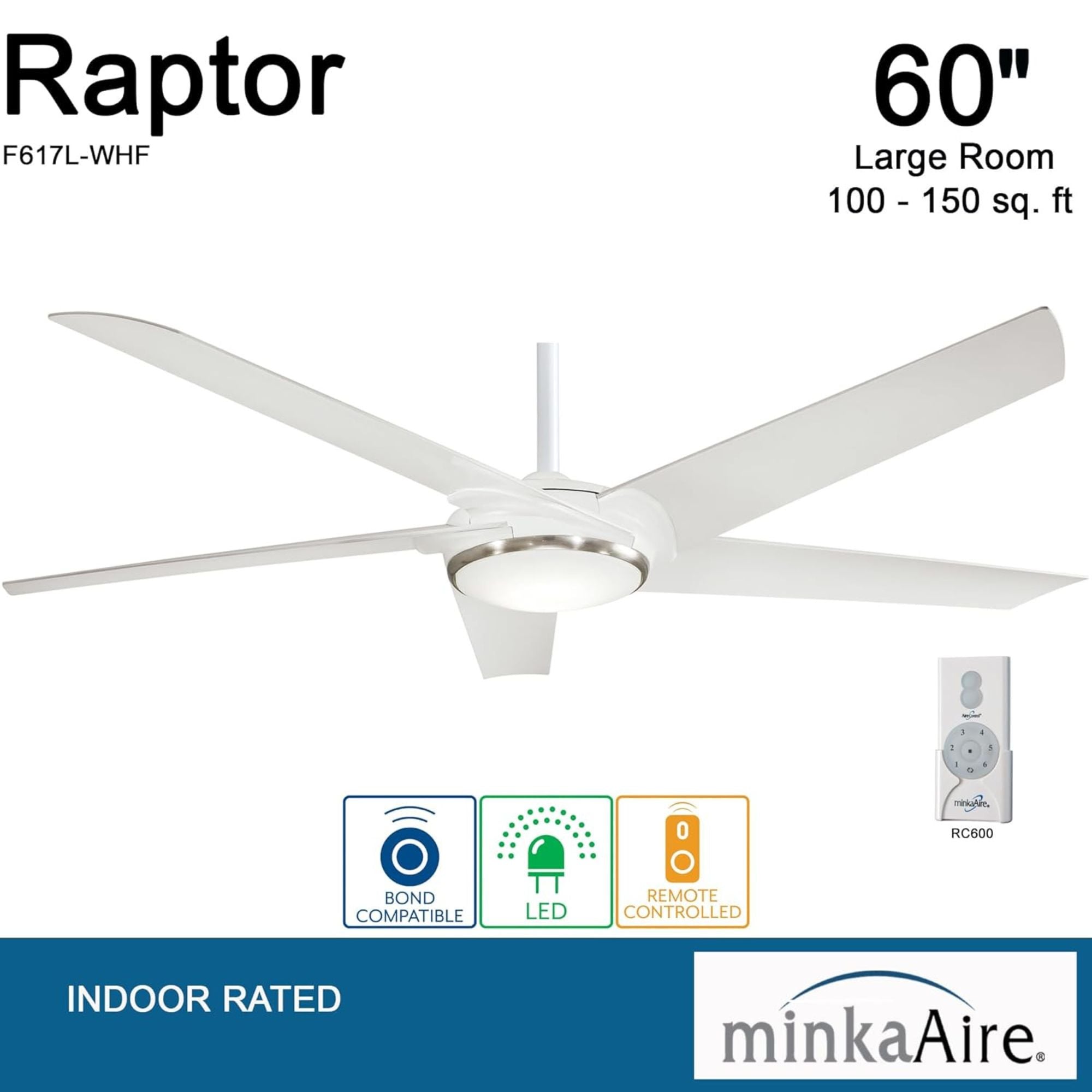

The Minka Aire Raptor F617L-WHF is a five-blade 60 in downrod LED ceiling fan in an all-Flat White finish with matching Flat White polycarbonate blades and an integrated 20W LED with frosted white glass shade. Powered by a whisper-quiet DC 172×12mm motor, it delivers 6,956 CFM at high speed — 208.58 CFM/W efficiency. Compatible with the Bond BD-1000 smart hub (sold separately), RC600 remote included, ETL Listed for dry locations.
Key Features- Blade Span: 60 in, 5 polycarbonate blades, 12° pitch, Flat White
- Motor: DC 172×12mm, 6 speeds, reversible rotation
- Airflow: 6,956 CFM high / 2,088 CFM low — 208.58 CFM/W high / 673.55 CFM/W low
- Wattage: 33.35W high / 3.1W low
- Light Kit: Integrated 20W LED — 1,108.2 delivered lm, 3000K, CRI 93, 30,000 hrs, dimmable, frosted white glass shade (GF617)
- Location Rating: ETL Listed for Dry Locations — Indoor use only.
- Control: RC600 remote included — compatible with Bond BD-1000 smart hub (sold separately)
- Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible to 18° / up to 45° with optional A245

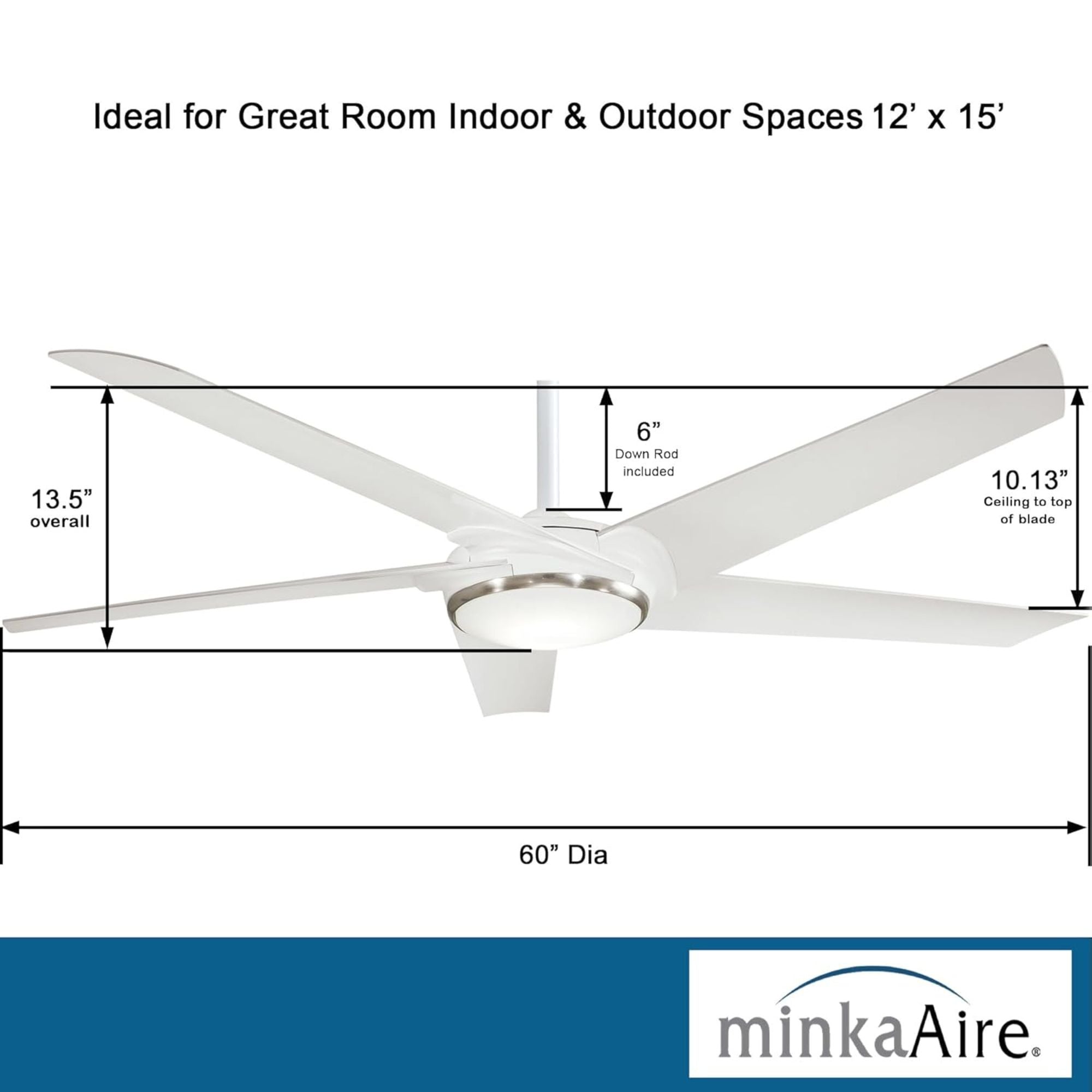

- Ceiling to Blade: 10.13 in / Lowest point: 13.5 in / Weight: 17.39 lbs
RC600 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Also compatible with RCS213 remote (sold separately) and WC600 wall control (sold separately). The Raptor is compatible with the Bond BD-1000 smart hub (sold separately) for smart home integration via the Bond Home app (iOS & Android) with voice integrations: Amazon Alexa, Google Home, Ecobee, and Control4.
Construction & DesignAll-Flat White motor housing with five sweeping Flat White polycarbonate blades at 12° pitch and a frosted white glass shade. Net weight: 17.39 lbs. The Raptor’s clean all-white silhouette brings an airy, effortless lightness to large spaces — a timeless choice for coastal, Scandinavian, and contemporary interiors where simplicity and scale define the design.
Light Output & PerformanceThe F617L-WHF delivers 6,956 CFM at high speed (208.58 CFM/W, 33.35W) and 2,088 CFM at low speed (673.55 CFM/W, 3.1W). The integrated 20W LED provides 1,108.2 delivered lumens (1,519.36 initial lumens) at 3000K warm white, CRI 93, rated 30,000 hours, fully dimmable, through a frosted white glass shade. Its 60 in span is ideal for large indoor spaces up to approximately 400 sq ft.
Electrical & Installation120V DC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Slope ceiling compatible to 18°; for steeper pitches up to 45°, the optional sloped ceiling adapter A245 is available separately. Fan must be attached to a securely anchored electrical junction box rated for the fan weight. ETL Listed for Dry Locations.
Suggested Downrod by Ceiling HeightA 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.
- 9 ft ceiling → 12 in downrod
- 10 ft ceiling → 18 in downrod
- 12 ft ceiling → 24 in downrod
- 14 ft ceiling → 36 in downrod
- 16 ft ceiling → 48 in downrod
- 18 ft ceiling → 60 in downrod
- 20 ft ceiling → 72 in downrod
- F617L-WHF ceiling fan (Flat White body + 5 Flat White polycarbonate blades)
- Integrated 20W LED light kit with frosted white glass shade (GF617)
- RC600 remote control
- 0.75 in × 6 in downrod
- Mounting hardware
