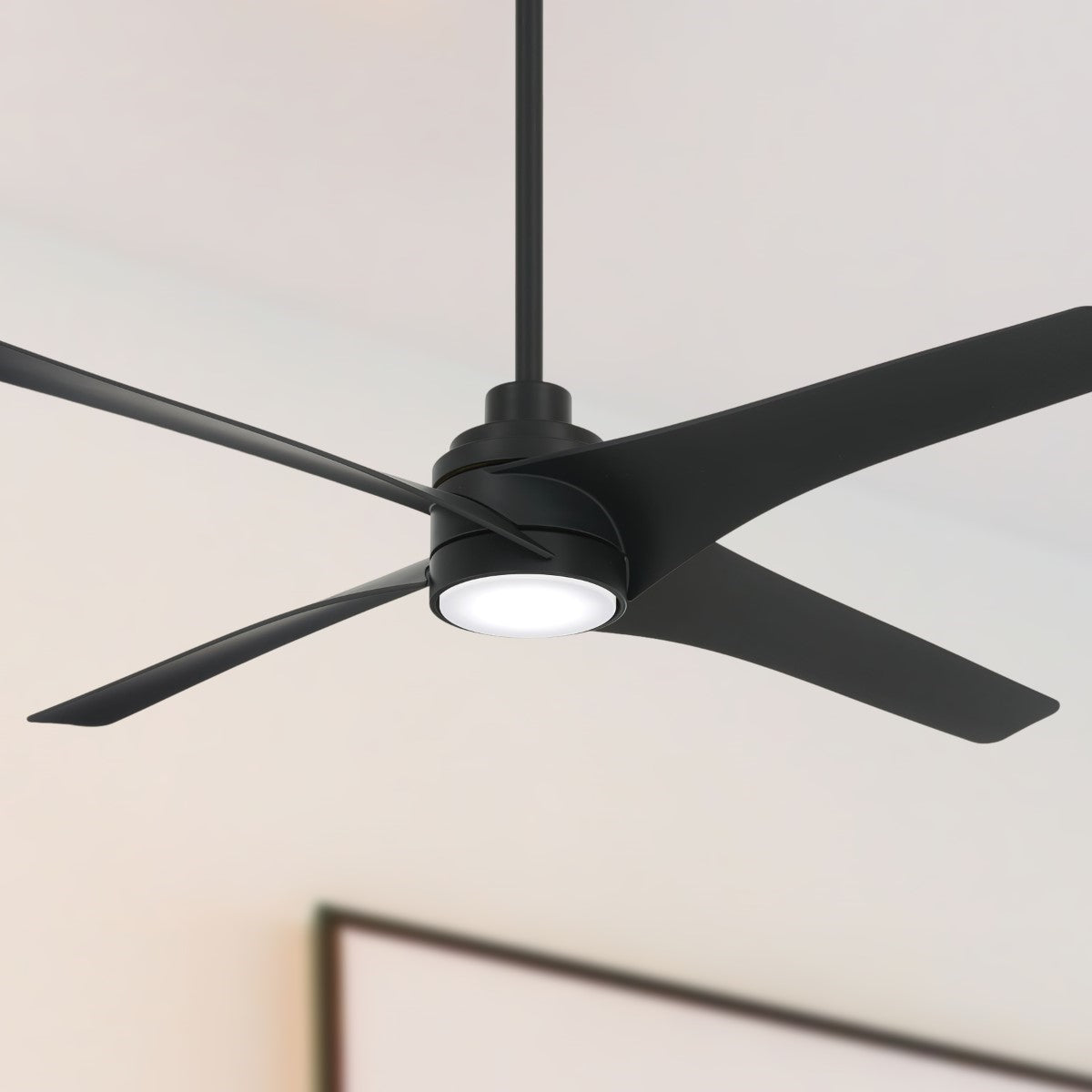

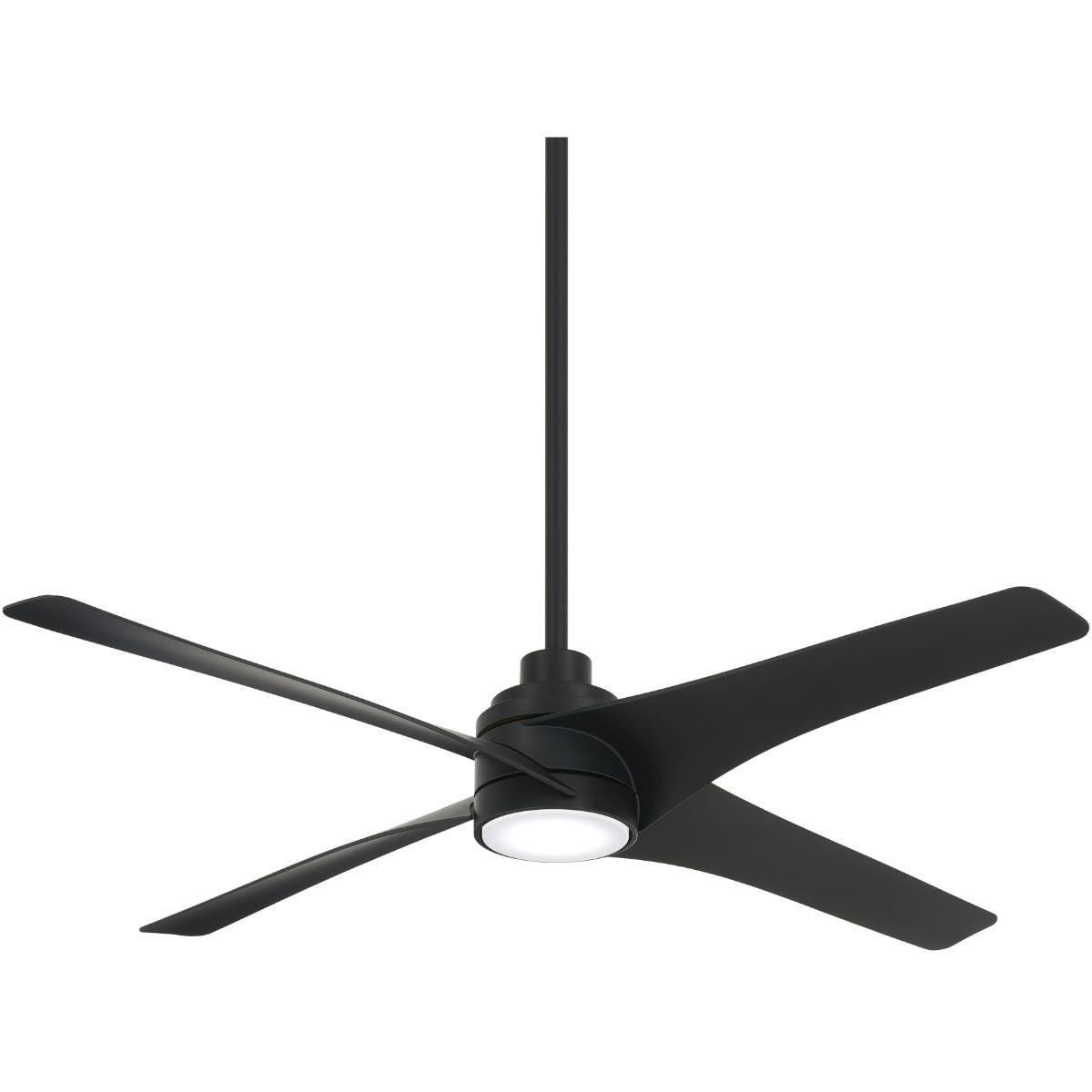

The Minka Aire Swept F543L-CL is a four-blade 56 in downrod ceiling fan in Coal Black with matching Coal Black ABS blades and a white polycarbonate lens. Powered by a high-efficiency DC 123×30mm motor, it delivers 6,896 CFM at high speed at just 24.52W — an exceptional 281.24 CFM/W efficiency rating. The Swept’s bold four-blade silhouette, integrated dimmable LED, and RC400 remote control make it a refined, high-performance choice for dry indoor spaces. Bond BD-1000 compatible. ETL listed, Lifetime warranty.

• Blade Span: 56 in, 4 ABS blades, 26° pitch, Coal Black
• Motor: DC 123×30mm, 6 speeds, Summer & Winter modes, reversible
• Airflow: 6,896 CFM high / 2,670 CFM low — 281.24 CFM/W high / 762.86 CFM/W low
• Wattage: 24.52W high / 3.5W low
• Light Kit: 20W integrated LED included — 949.19 delivered lm (1,100.4 initial), CCT 3000K fixed, CRI 96, rated 30,000 hrs, dimmable, White Polycarbonate Lens
• Location Rating: ETL listed — Dry locations only, indoor use. Lifetime warranty.
• Mount: Downrod — 0.75 in × 6 in downrod included, slope compatible up to 27°

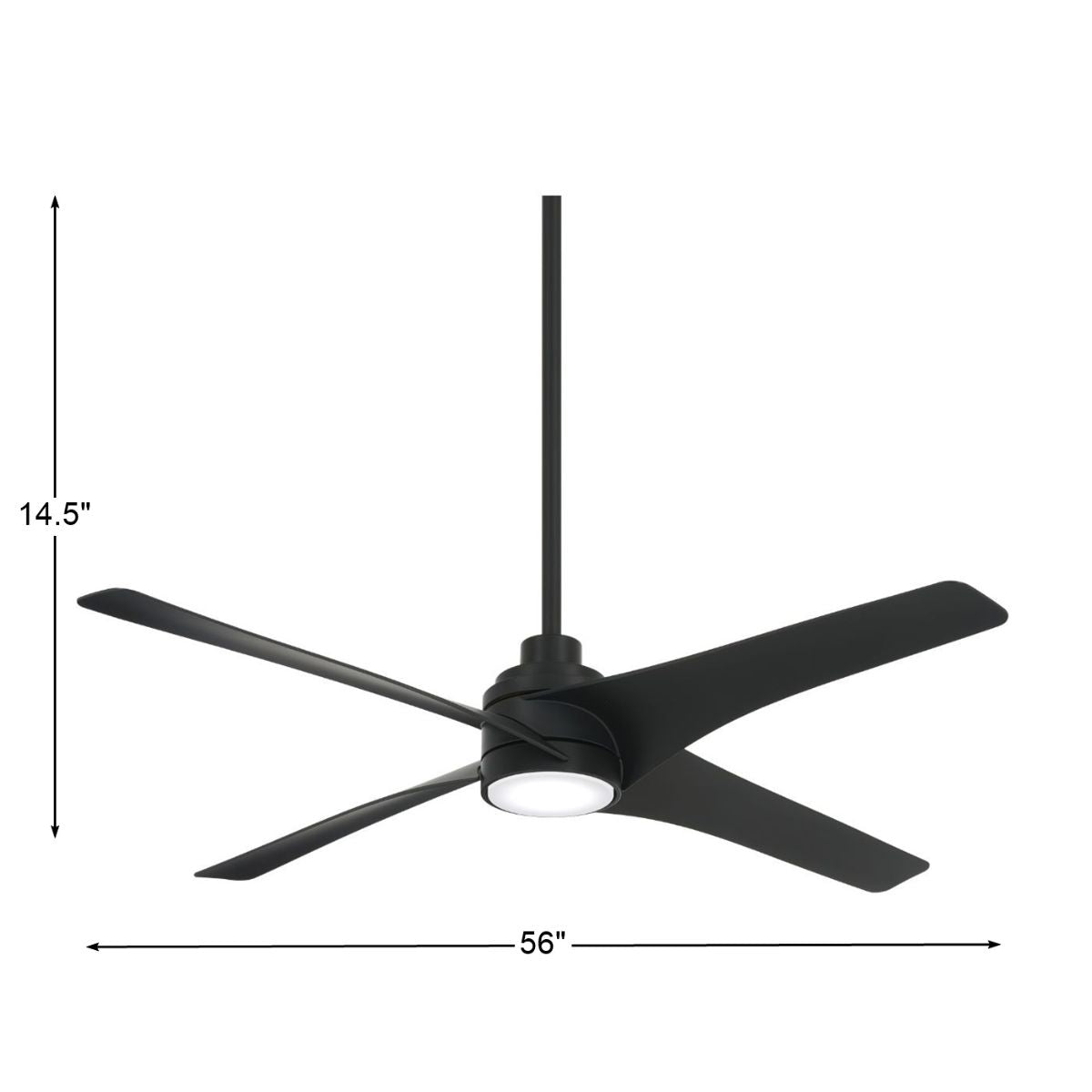

• Ceiling to Blade: 12 in / Lowest point: 14.5 in / Weight: 14.07 lbs

RC400 Remote Control — included: 6-speed fan control in Forward & Reverse, On/Off plus full-range light dimmer. Compatible Wall Control — WC400 (sold separately). Bond Hub BD-1000 compatible — connects to the Bond Home app (iOS & Android) for full fan and light control. Voice control via Alexa and Google Home. No integrated WiFi — Bond Hub BD-1000 required for smart control (sold separately).

Coal Black motor housing with four Coal Black ABS blades at 26° pitch and a white polycarbonate lens. Net weight: 14.07 lbs. The Swept’s dramatic four-blade form and deep pitch deliver powerful airflow with a sculptural, contemporary presence — a bold statement for bedrooms, living rooms, and dining spaces where modern design and DC efficiency define the space.

The F543L-CL includes a 20W integrated LED (1-20W LED Module) delivering 949.19 delivered lumens (1,100.4 initial lumens) through a white polycarbonate lens at a fixed 3000K warm white with a CRI of 96. Rated life: 30,000 hours. Light is dimmable via the RC400 remote.

120V AC, 60Hz. Wire: 80 in. Ships with 0.75 in × 6 in downrod. Sloped ceiling compatible up to 27°; up to 45° with optional Minka Aire 45 Degree Sloped Ceiling Adapter A245 (sold separately). Fan must be attached to a securely anchored electrical junction box rated for the fan weight.

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• F543L-CL ceiling fan (Coal Black body + 4 Coal Black ABS blades + 20W integrated LED + White Polycarbonate Lens)
• RC400 Remote Control
• 0.75 in × 6 in downrod
• Mounting hardware
