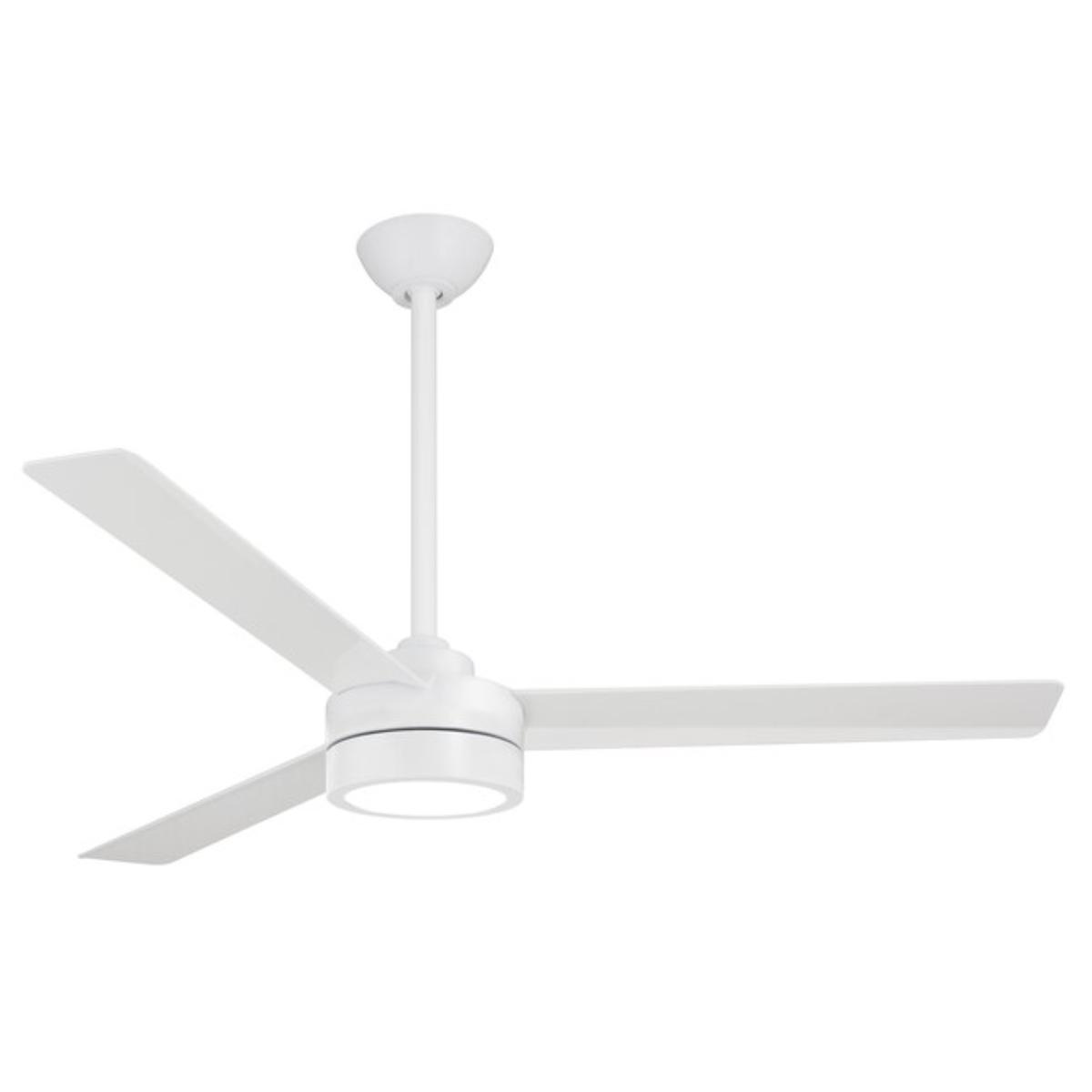

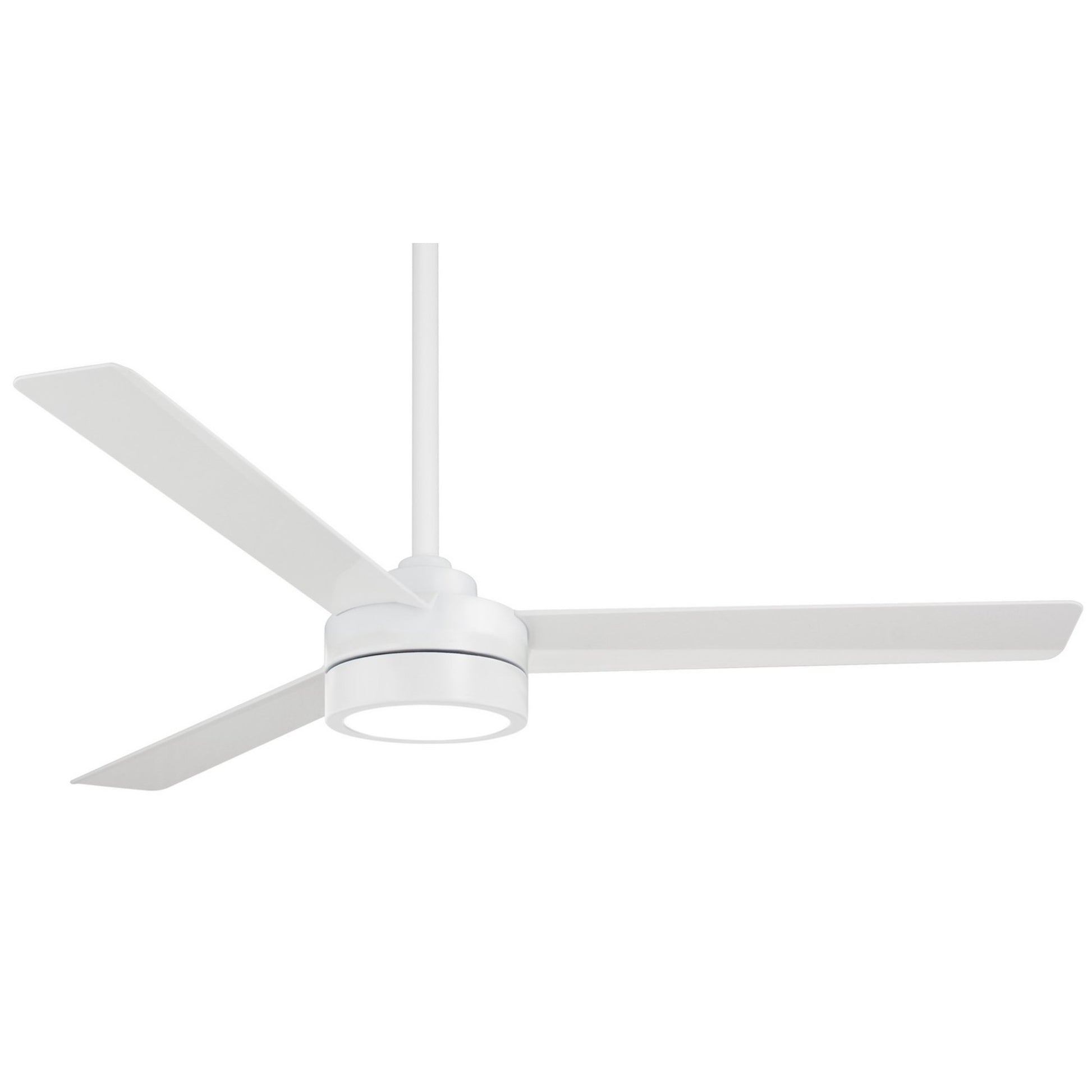

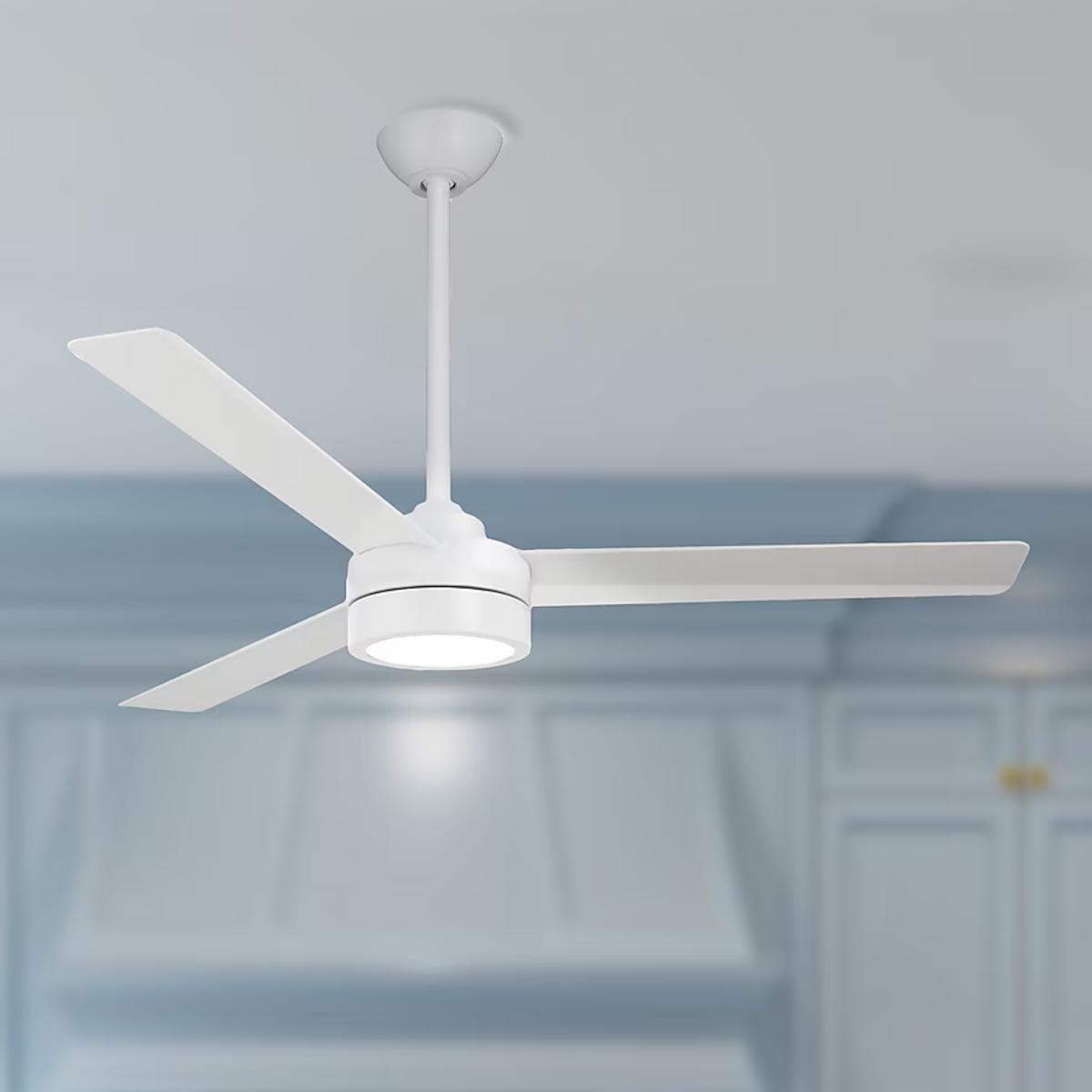

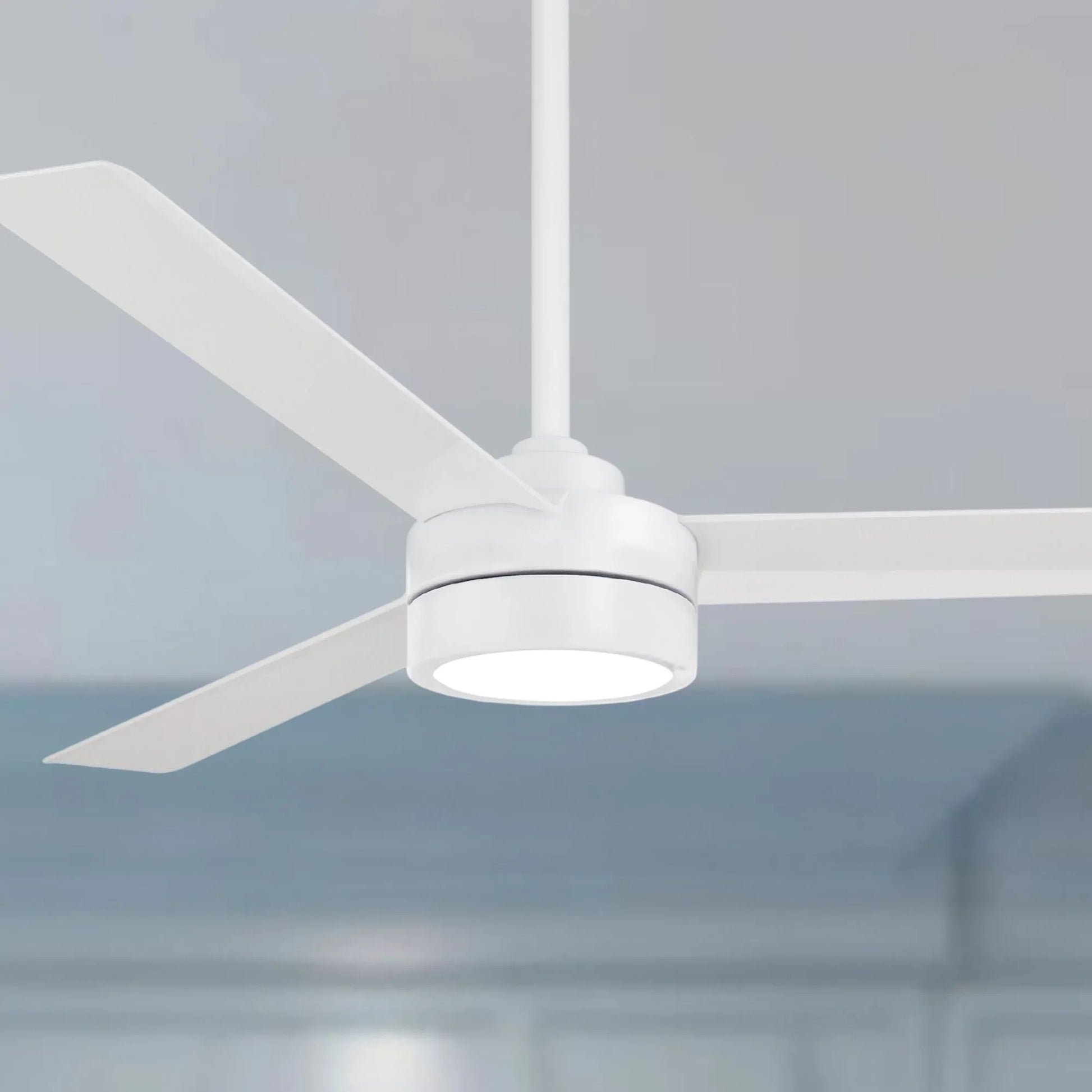

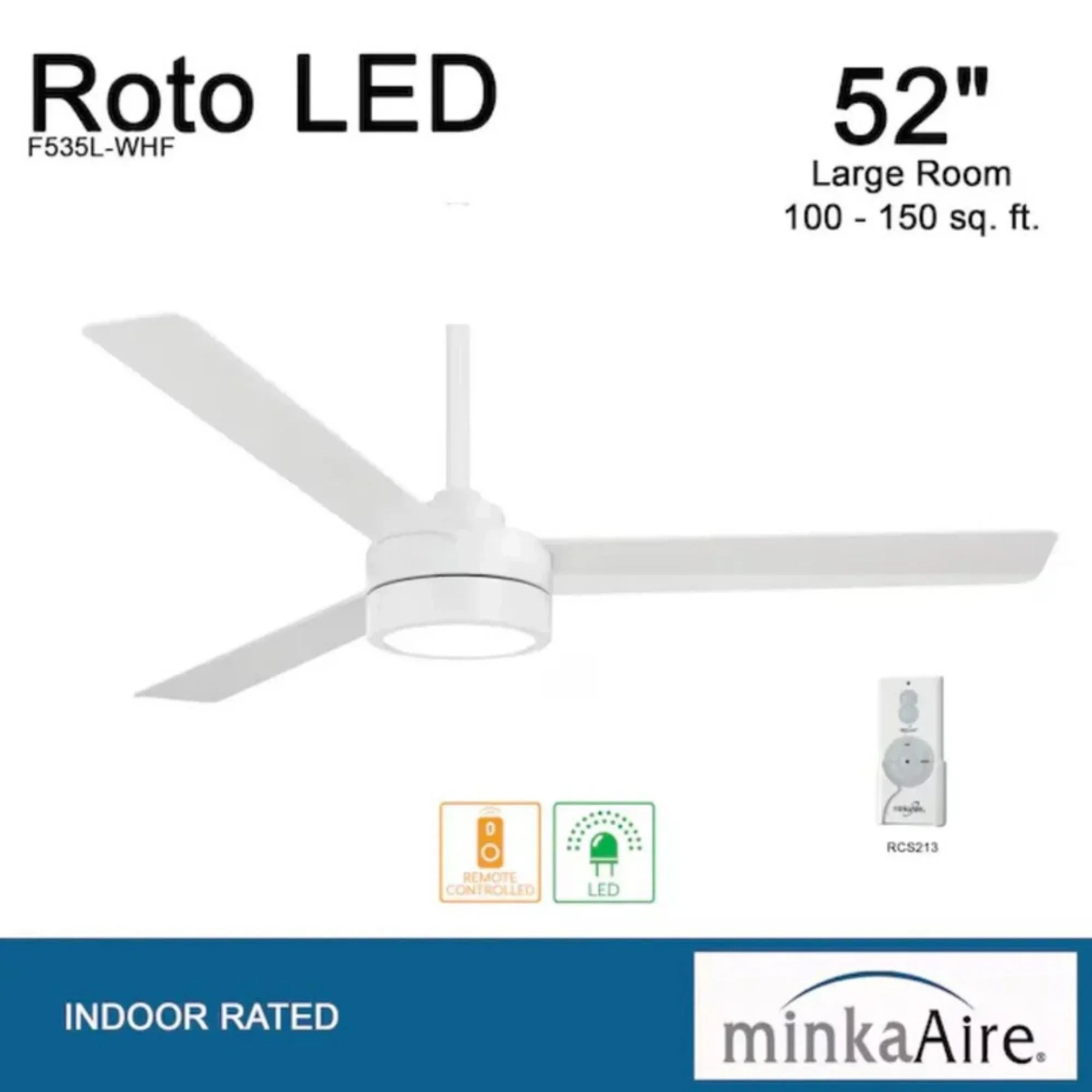

Minka Aire Roto LED 52 in AC LED Ceiling Fan — Flat White

The Minka Aire Roto LED (model F535L-WHF) is a 52 in dry-rated AC ceiling fan that pairs the Roto’s iconic patented blade profile with a high-performance integrated LED luminaire. Powered by a robust 153×15mm AC motor, it delivers up to 4,606 CFM at high speed while the built-in 20W LED array produces 1,622 delivered lumens at 3000K with a CRI of 94 — warm, high-fidelity light through an etched polycarbonate lens. Three Flat White ABS blades against a matching Flat White motor housing create a seamless, light-friendly ceiling presence that recedes naturally into white and neutral interiors. Bond Compatible, ETL Listed, and backed by a Lifetime warranty. U.S. Patent D750,221.

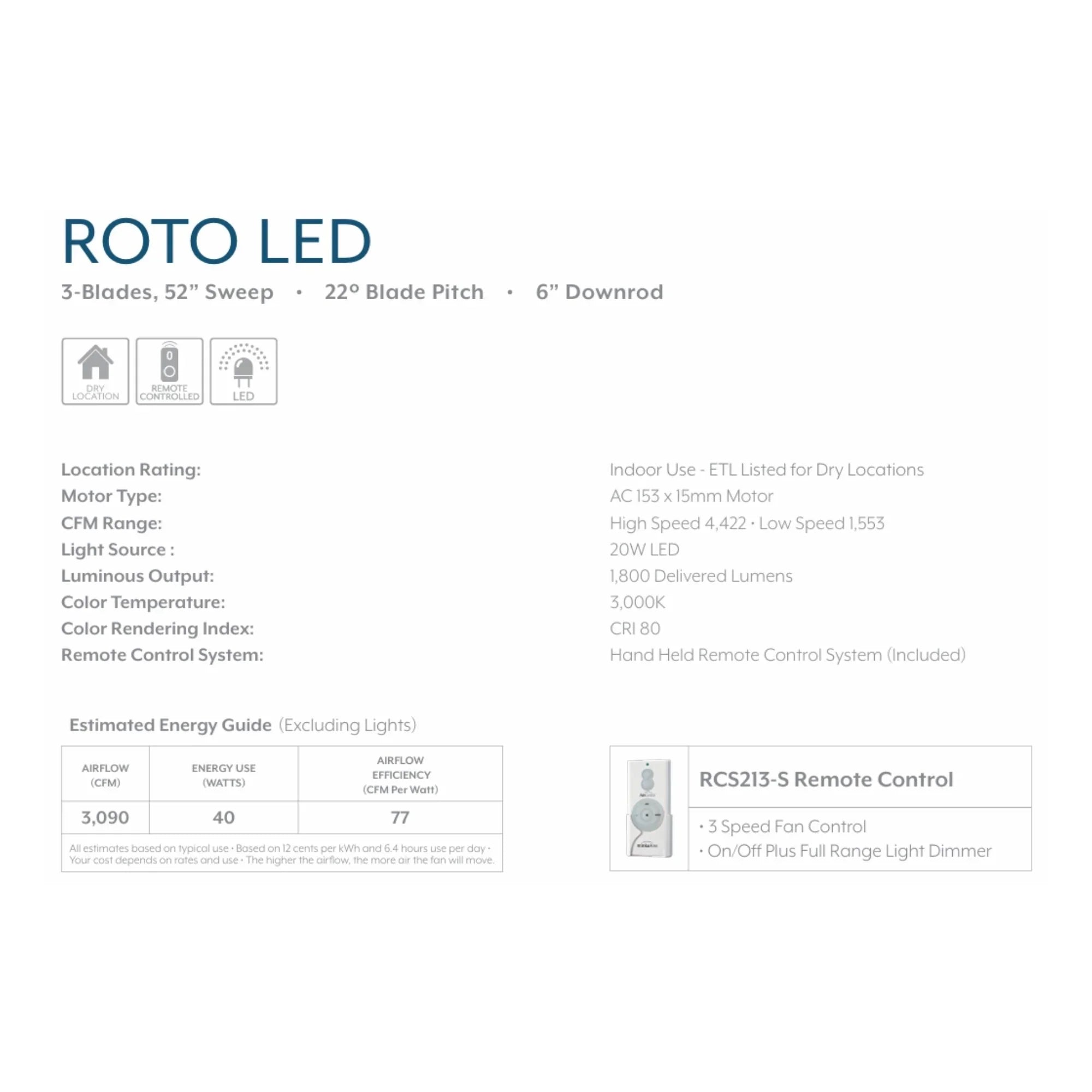

Key Features

• Blade Span: 52 in | 3 Flat White ABS blades | 22° pitch
• Motor: AC — 153×15mm | 3 speeds | Reversible rotation
• Airflow: 2,246 CFM (low) / 4,606 CFM (high)
• Efficiency: 85 CFM/W at high speed
• Total Power: 53.99W (high) / 16.68W (low)
• RPM: 93 (low) / 174 (high)
• Integrated LED: 20W | 1,622 delivered lumens | 3000K | CRI 94 | Dimmable | 50,000 hr rated life
• Lens: Etched polycarbonate (6.42 in W × 1.02 in H)

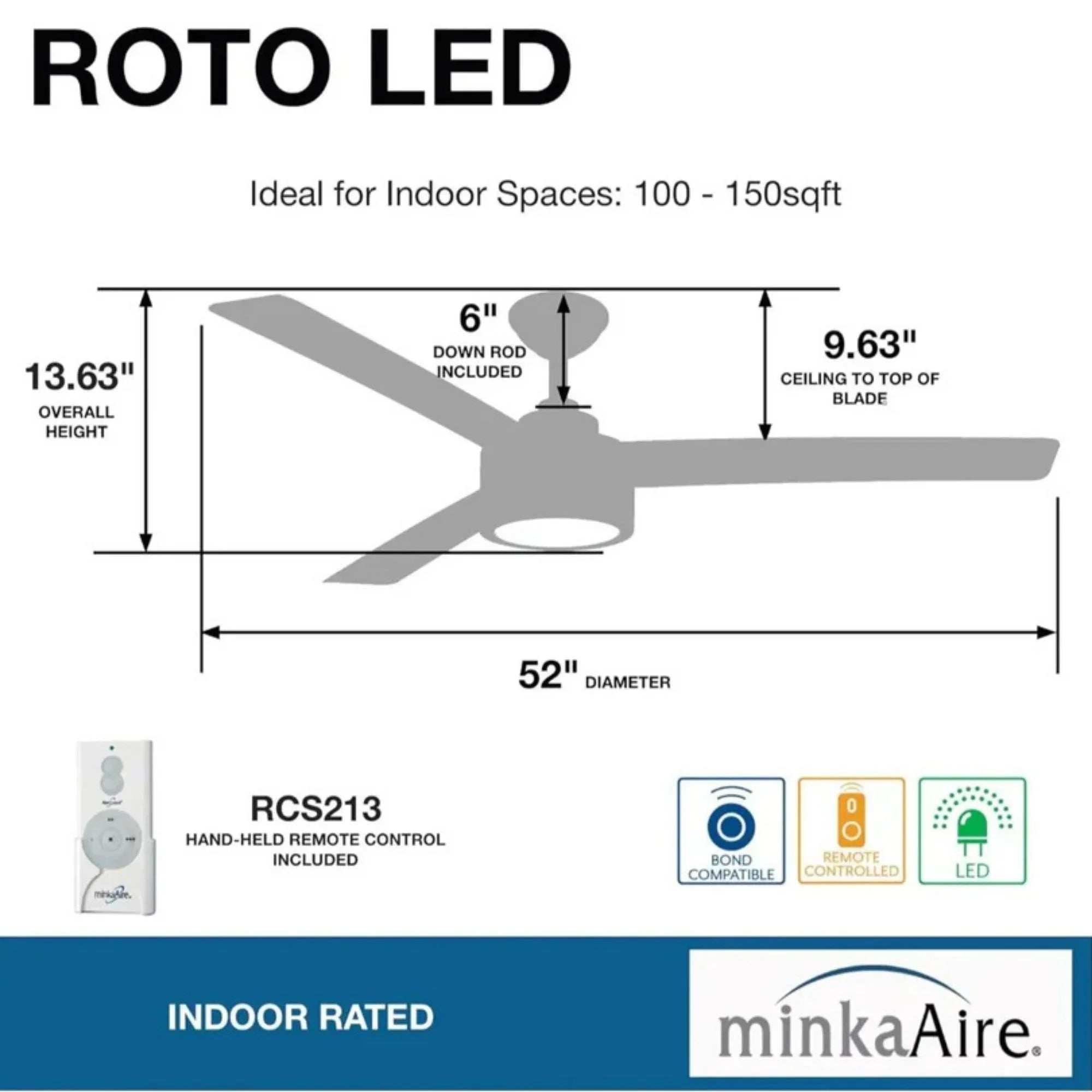

• Overall Dimensions: 52 in W × 13.63 in H | Ceiling-to-blade: 9.63 in
• Location Rating: Dry (Indoor use only)

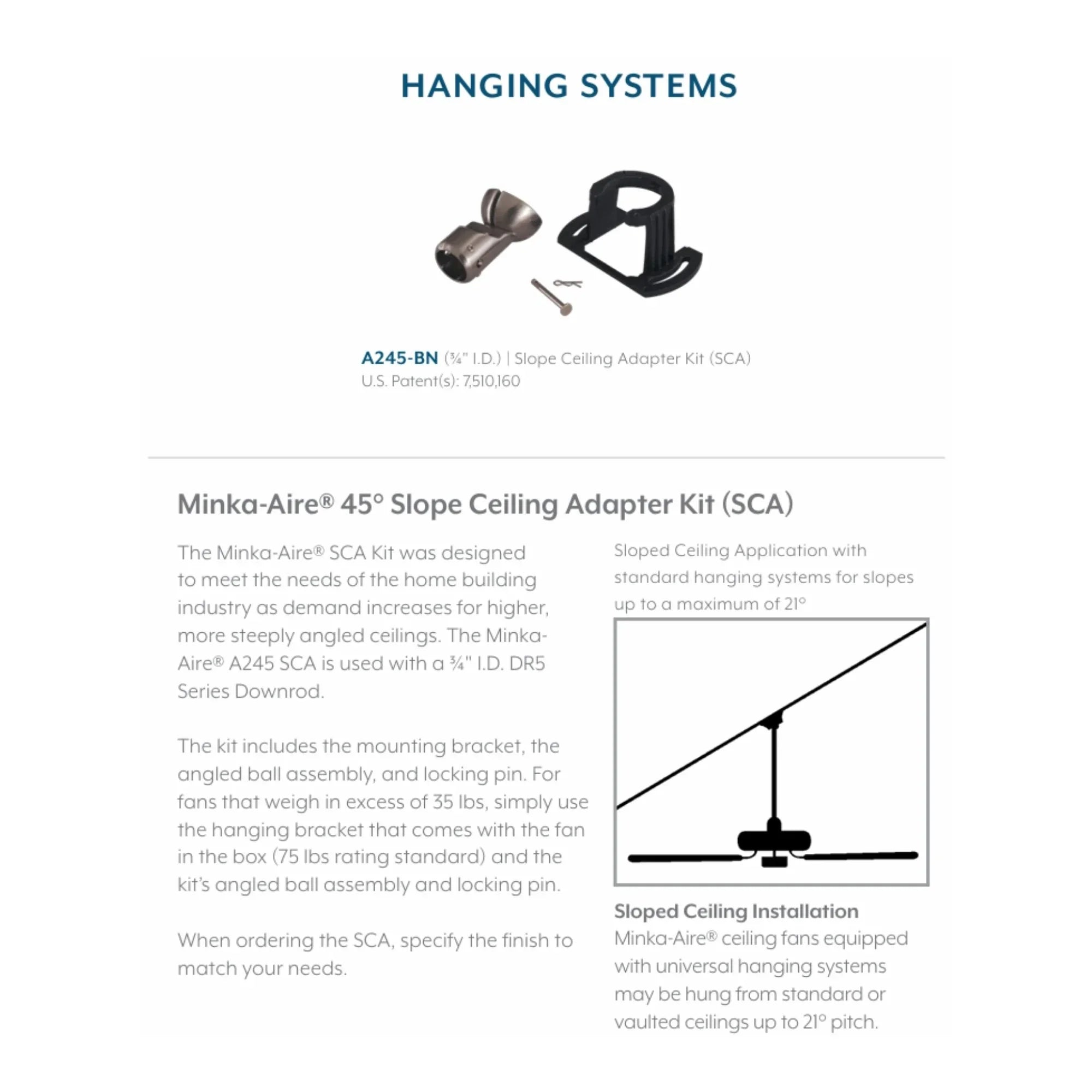

• Sloped Ceiling Compatible: Yes
• Downrod: 6 in included (0.75 in diameter) | Cord/Wire: 80 in | Weight: 12.28 lbs
• Bond Compatible | ETL Listed | Lifetime Warranty | U.S. Patent D750,221

Control Features

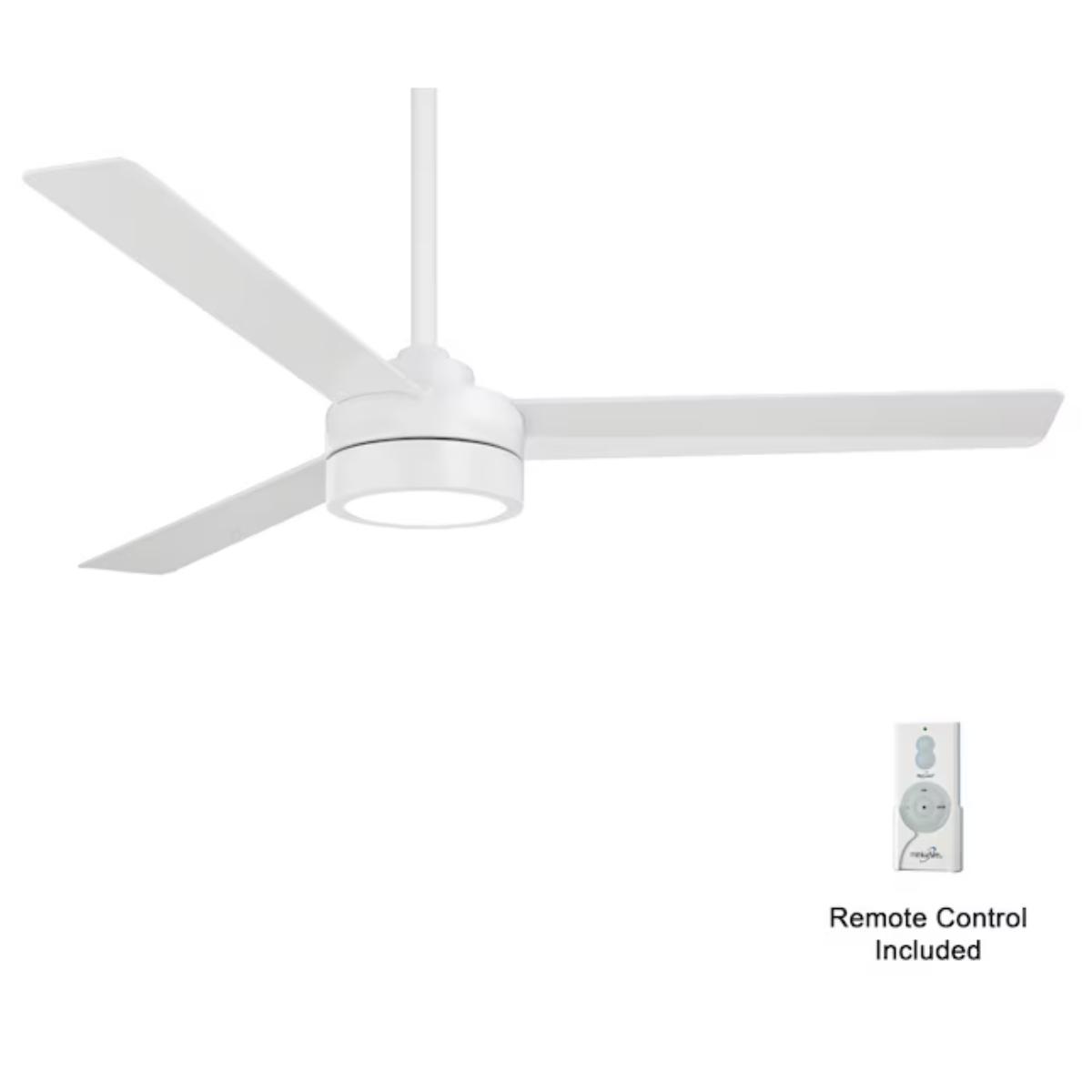

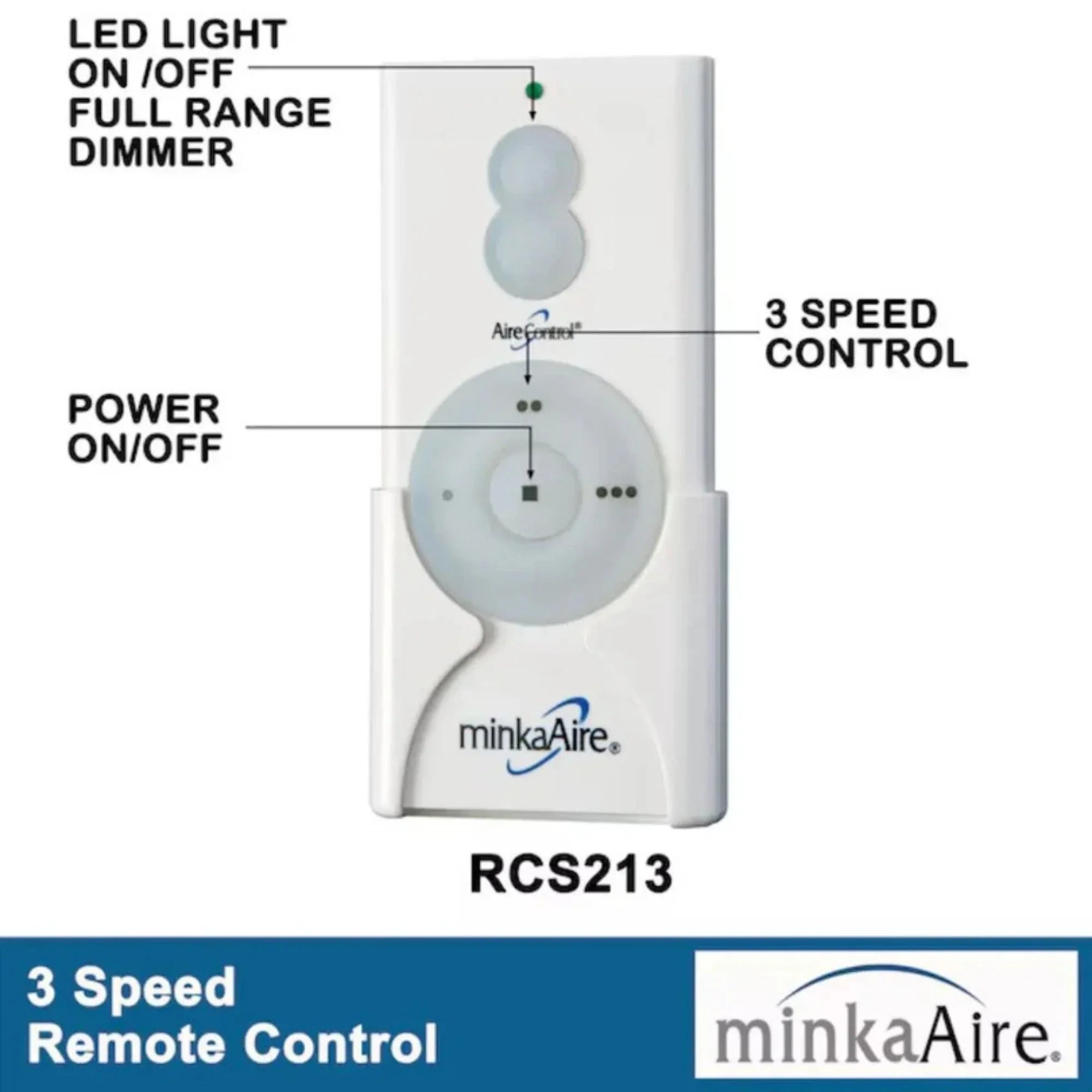

The Roto LED F535L-WHF ships with an RCS213-S remote control for 3-speed fan operation, direction reversal, and LED dimming. No pull chain, no wall control included. The WCS213-S wall control is available separately. For smart home integration, the fan is compatible with the BD-1000 Bond Bridge, enabling app and voice control. No integrated WiFi or Bluetooth.

Construction & Design

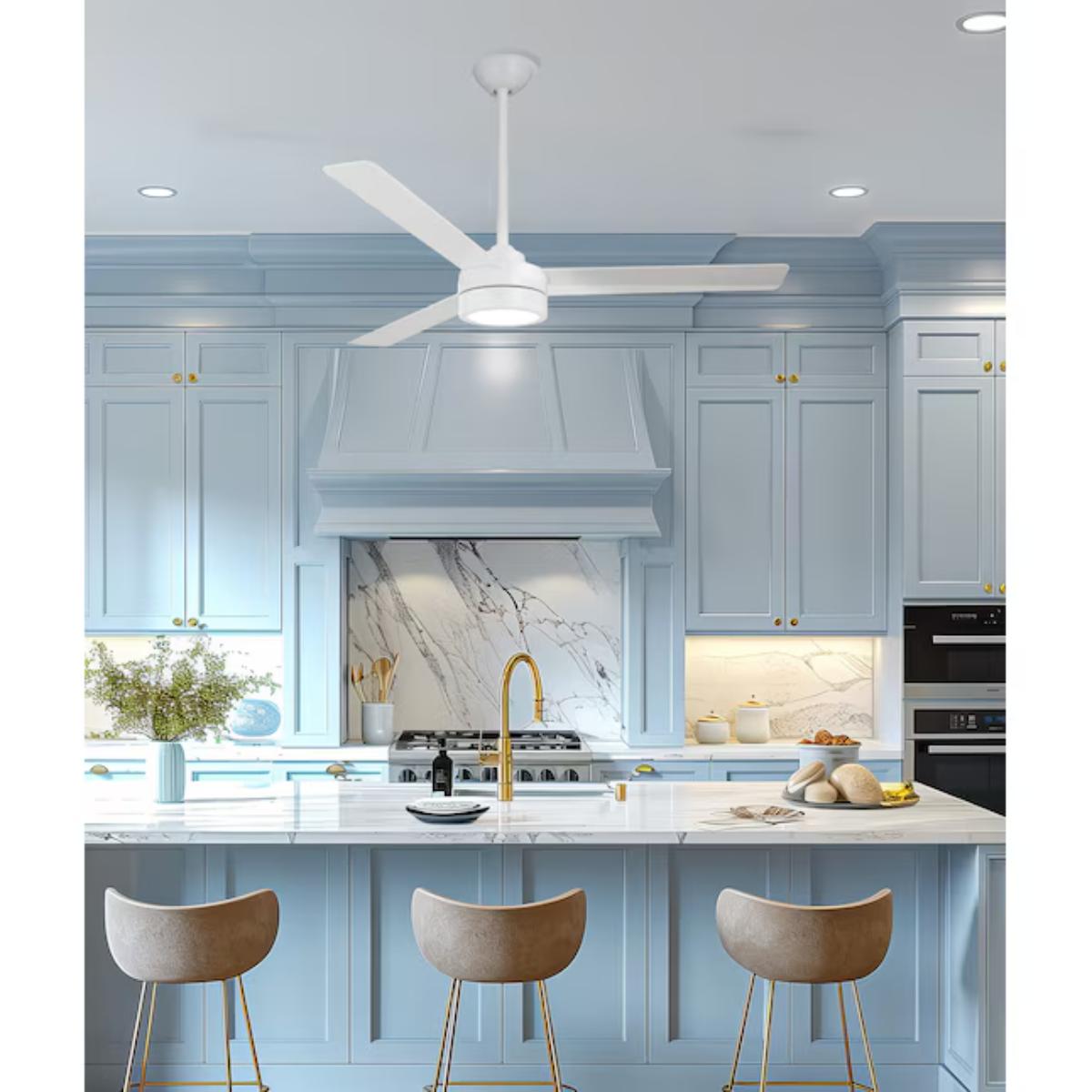

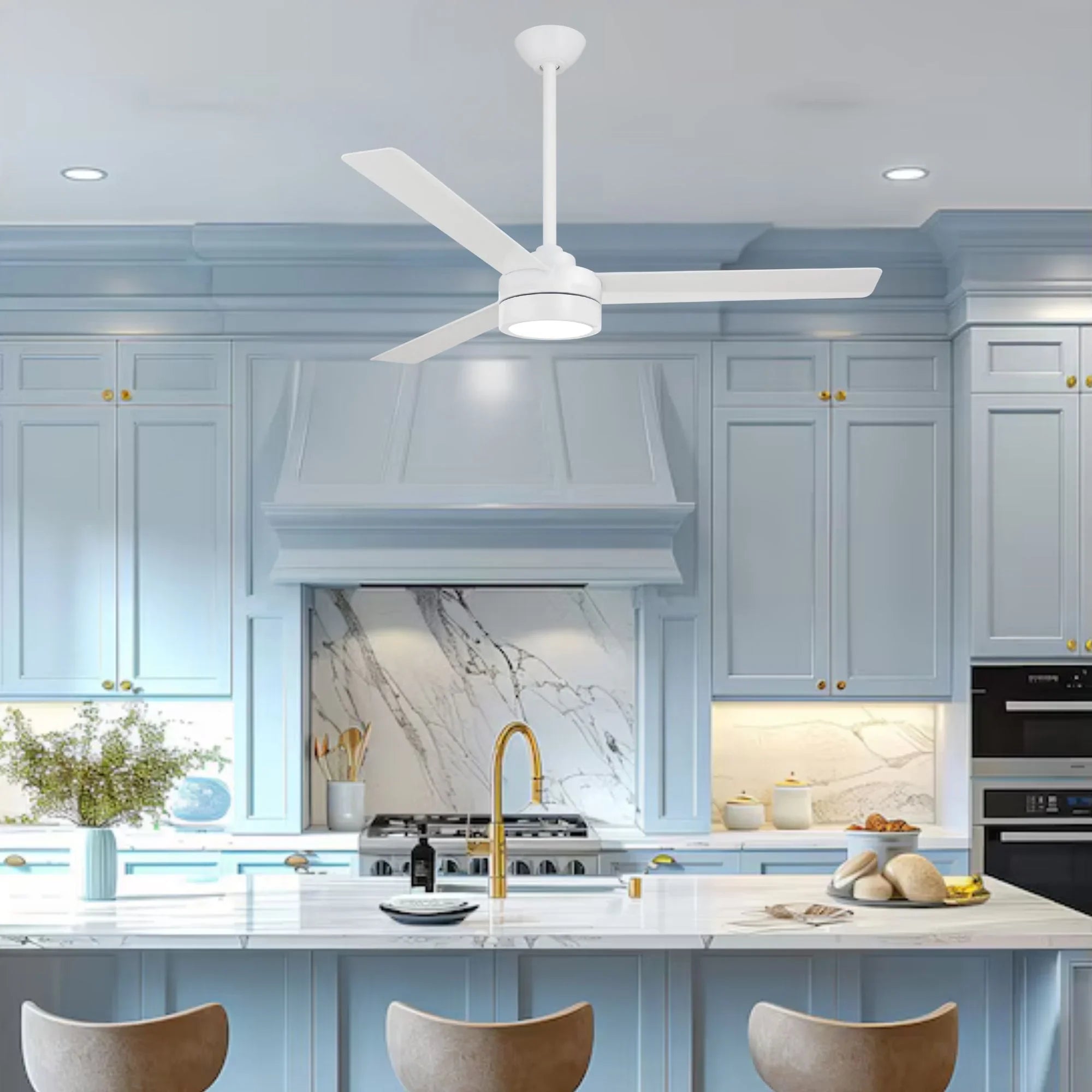

The Roto LED shares the same sculptural blade design — protected by U.S. Patent D750,221 — as the non-LED Roto collection. Three Flat White ABS blades at a steep 22° pitch deliver a clean, shadow-free aesthetic that pairs effortlessly with white ceilings in bedrooms, kitchens, living rooms, and bright contemporary spaces. Overall dimensions: 52 in W × 13.63 in H with a ceiling-to-blade clearance of 9.63 in. Sloped ceiling compatible. Product weight: 12.28 lbs.

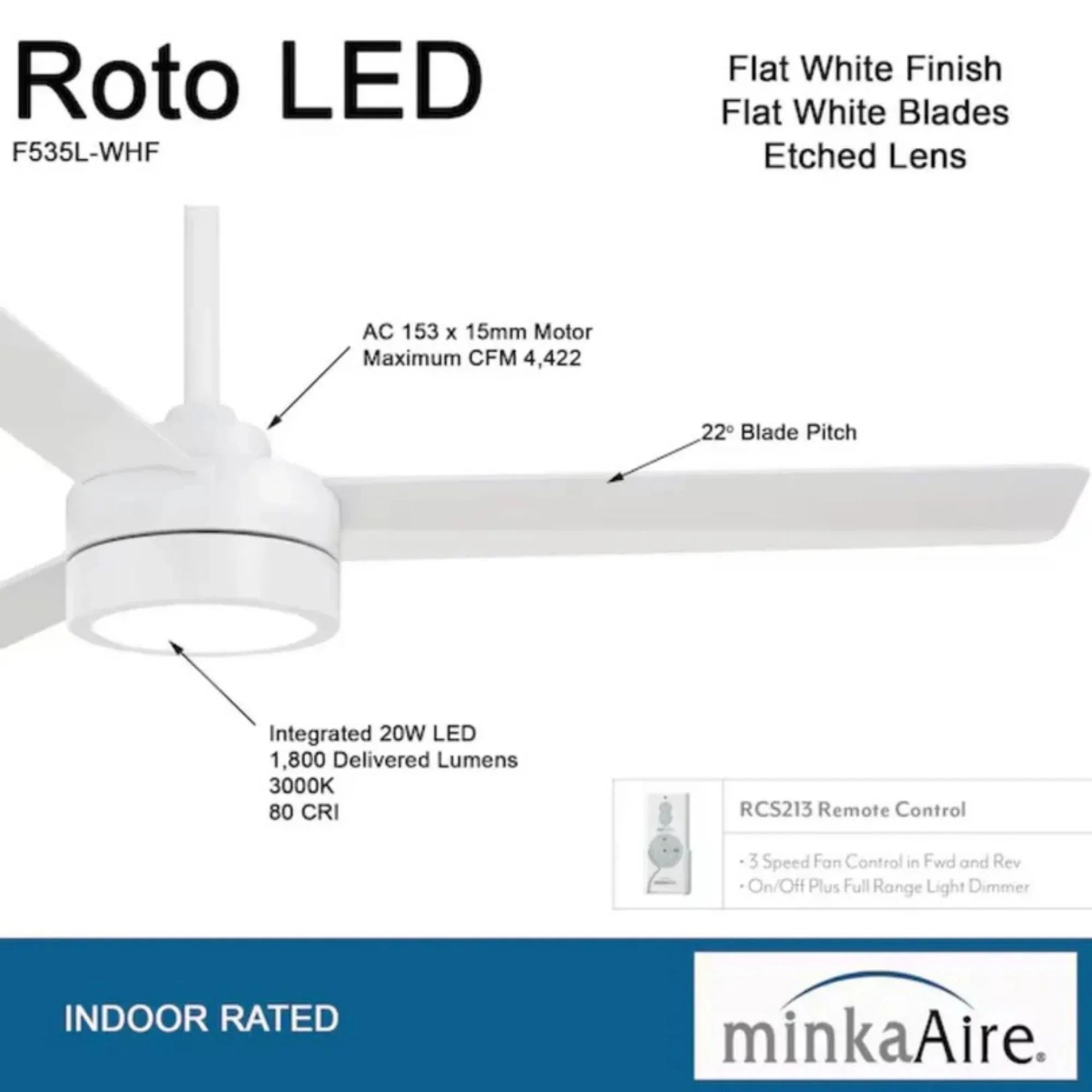

Light Output & Performance

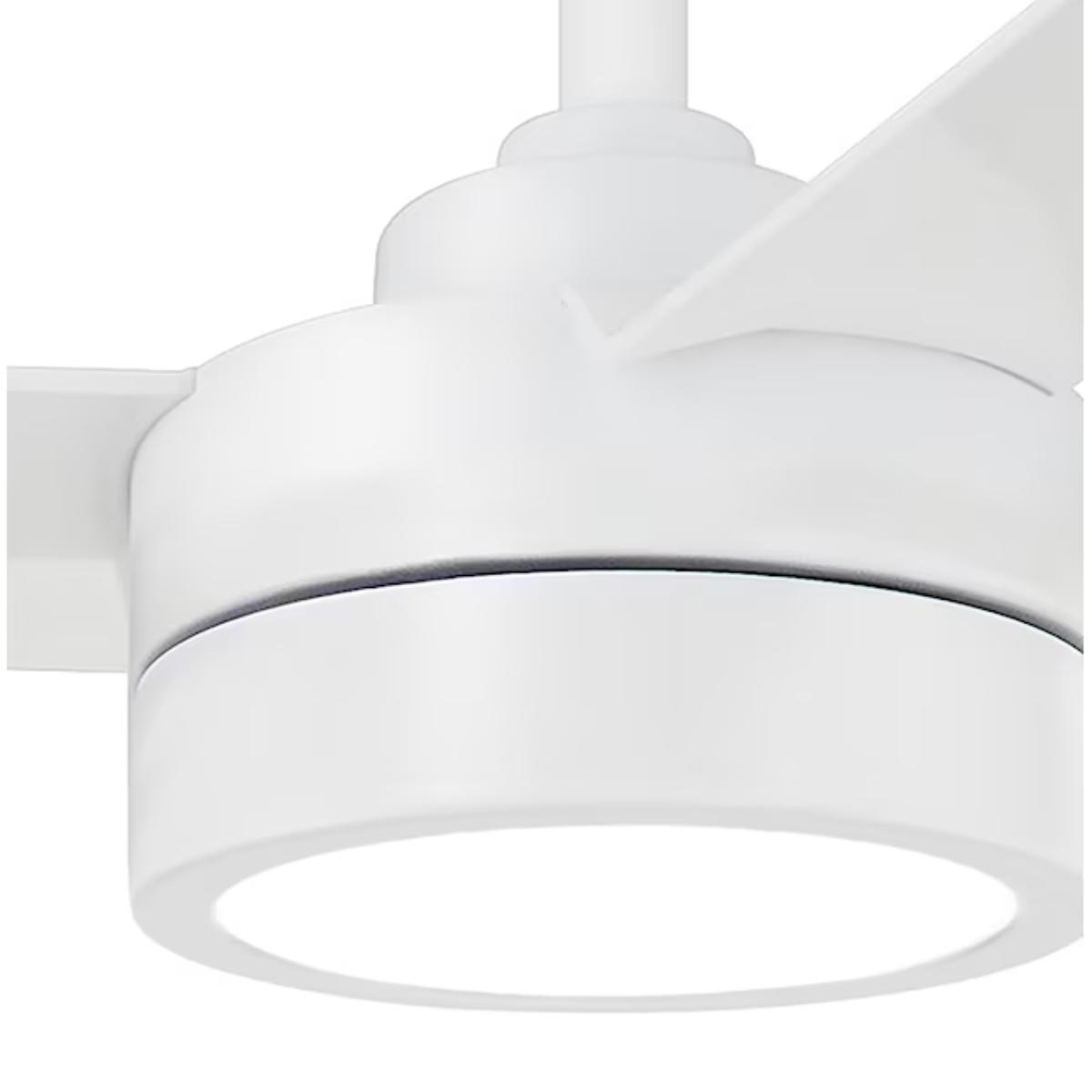

The integrated 20W LED array delivers 1,622 lumens of warm, dimmable light at 3000K with an exceptional CRI of 94, diffused through an etched polycarbonate lens (6.42 in W × 1.02 in H). Rated for 50,000 hours. The luminaire is pre-installed and not light kit compatible — no additional kit can be added. If you prefer the same Roto silhouette without integrated lighting, see the Roto collection — F524-WHF, the direct sister fan in the same Flat White finish.

Electrical & Installation

Operates at 120V. AC motor — 3-speed operation. High: 174 RPM / 4,606 CFM / 53.99W. Low: 93 RPM / 2,246 CFM / 16.68W. Dry location rated — indoor use only. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Cord/wire length: 80 in.

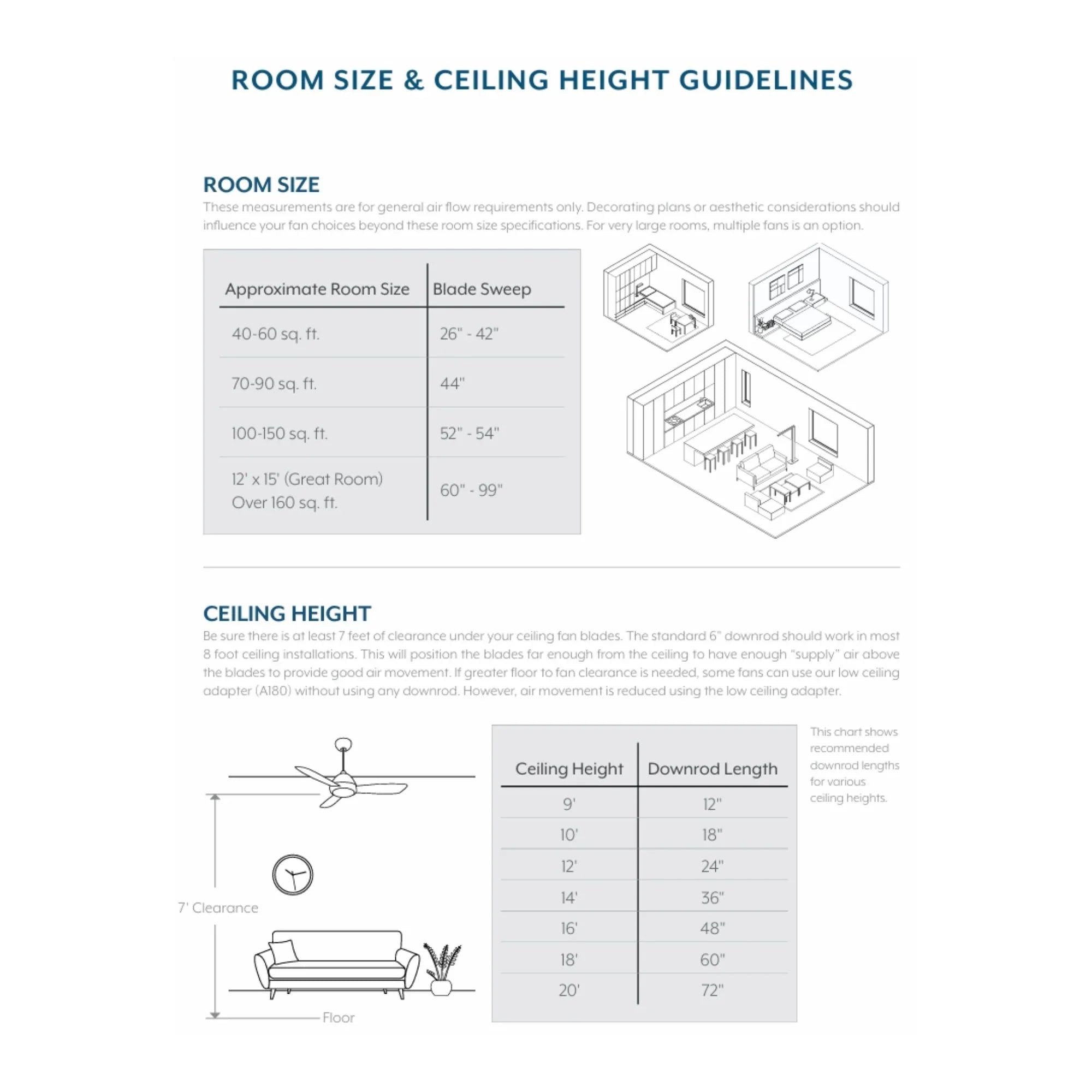

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Roto LED F535L-WHF 52 in AC LED ceiling fan
• Integrated 20W LED array (pre-installed)
• RCS213-S remote control
• 6 in downrod
• Mounting hardware
