Minka Aire Roto 52 in AC Ceiling Fan — Flat White

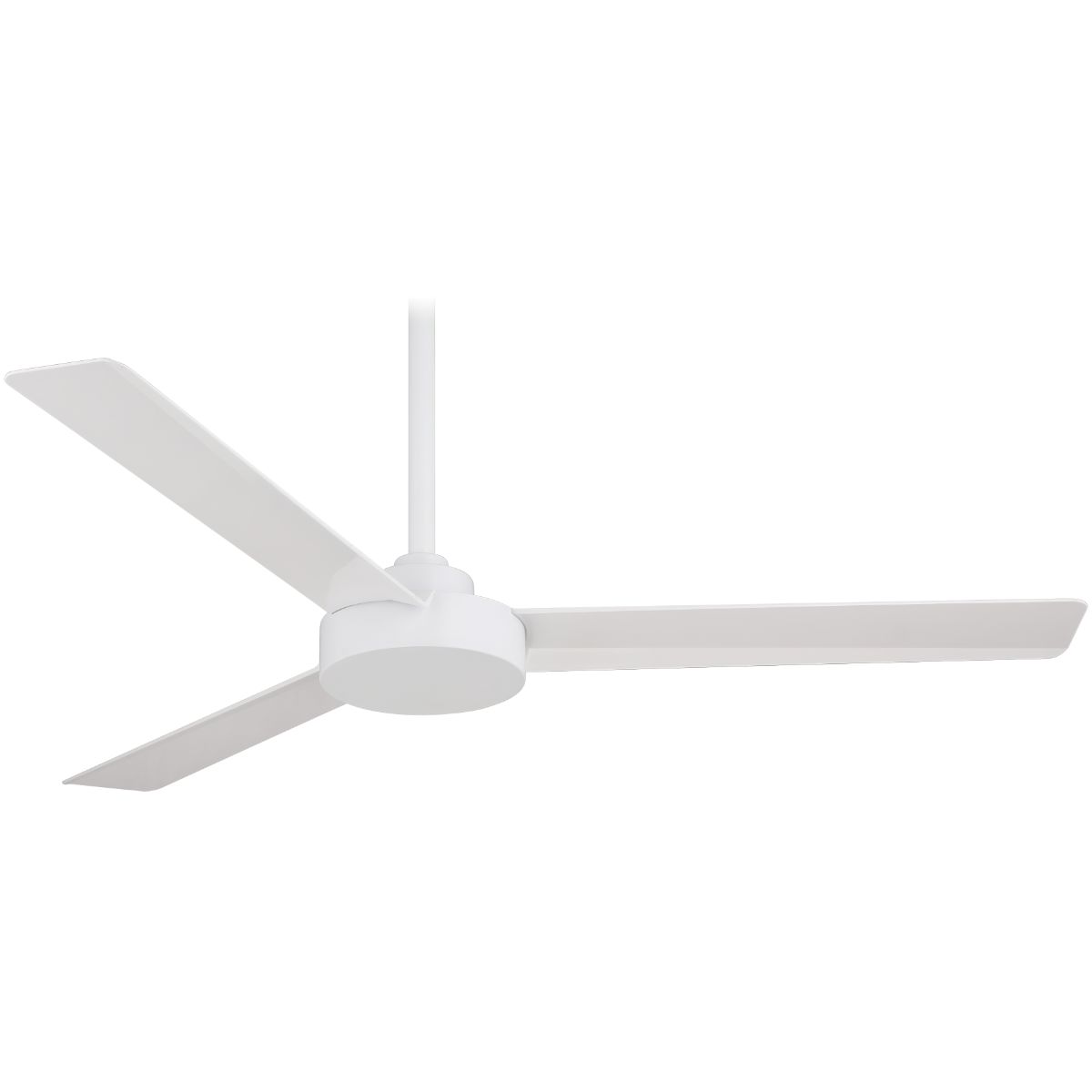

The Minka Aire Roto (model F524-WHF) is a 52 in dry-rated AC ceiling fan that delivers powerful, dependable airflow in a clean, versatile finish. Powered by a robust 153×15mm AC motor with 4 speeds, it moves up to 4,422 CFM at high speed — a workhorse profile built for living rooms, bedrooms, and high-ceiling spaces. Three Flat White ABS blades against a matching Flat White motor housing create a seamless, light-friendly ceiling presence that recedes naturally into white and neutral interiors. Protected by U.S. Patent D750,221. Sloped ceiling compatible, ETL Listed, and backed by a Lifetime warranty.

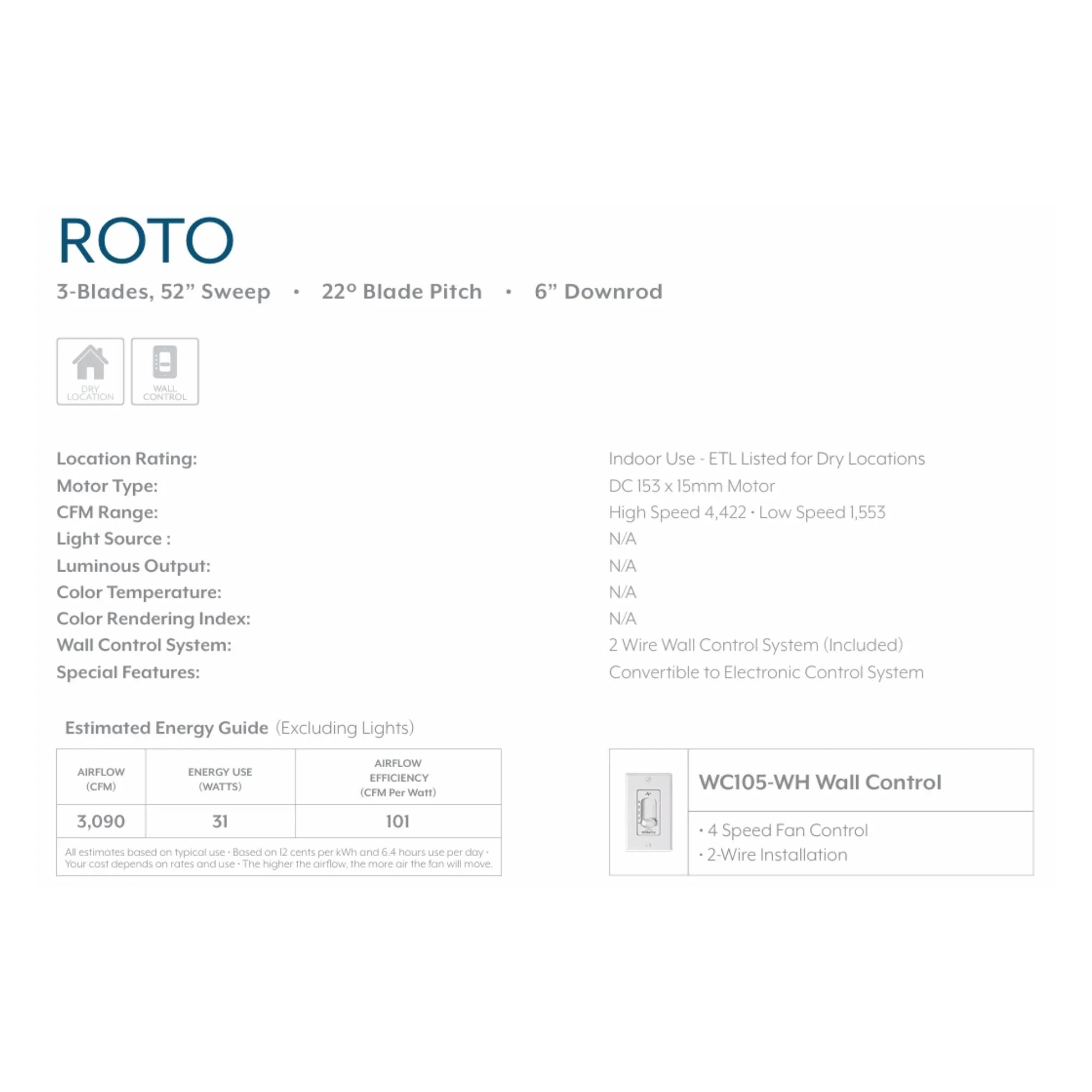

Key Features

• Blade Span: 52 in | 3 Flat White ABS blades | 22° pitch
• Motor: AC — 153×15mm | 4 speeds | Reversible rotation
• Airflow: 1,553 CFM (low) / 4,422 CFM (high)
• Efficiency: 77 CFM/W at high speed
• Total Power: 57.72W (high) / 9.16W (low)
• RPM: 73 (low) / 203 (high)
• Light: No light | Not light kit compatible

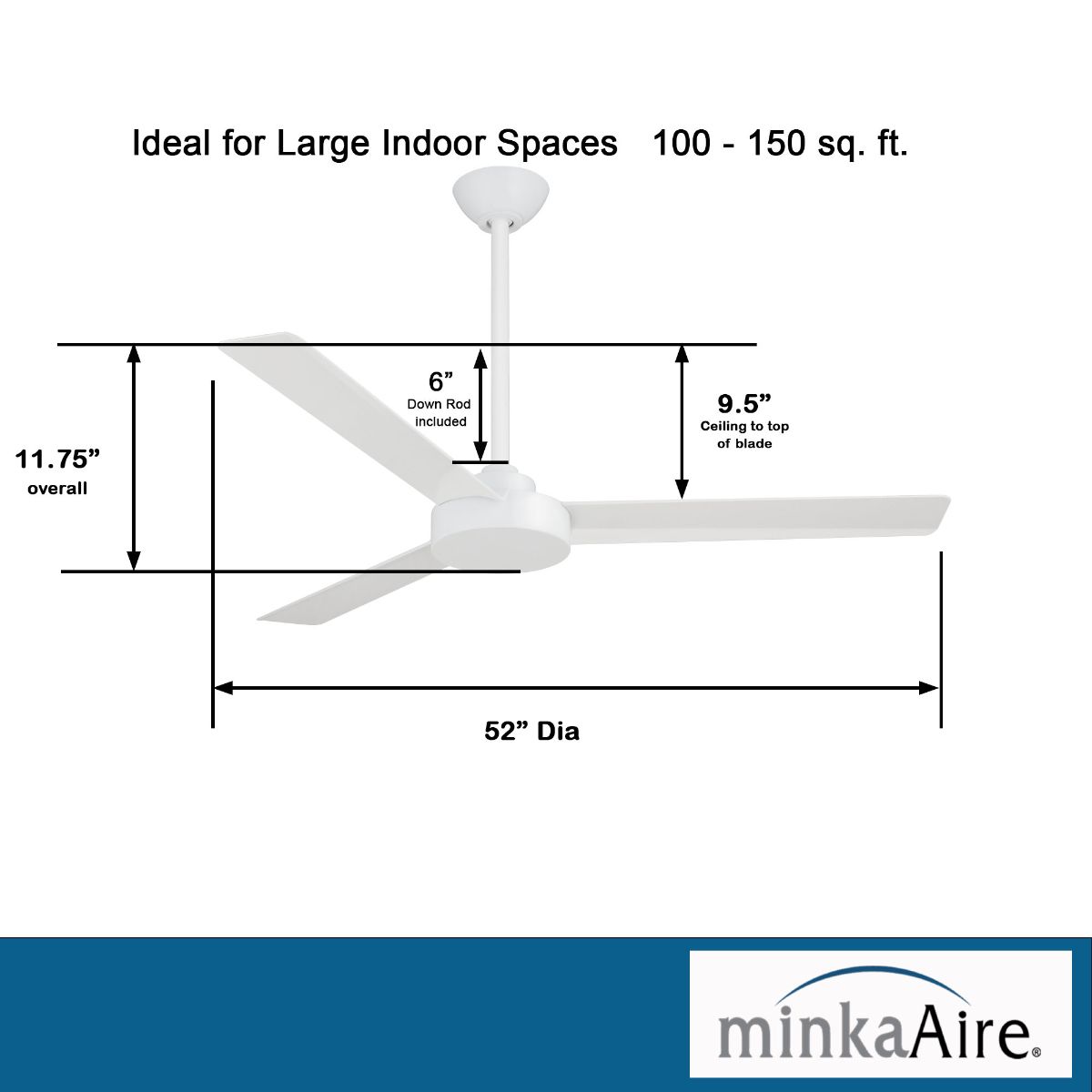

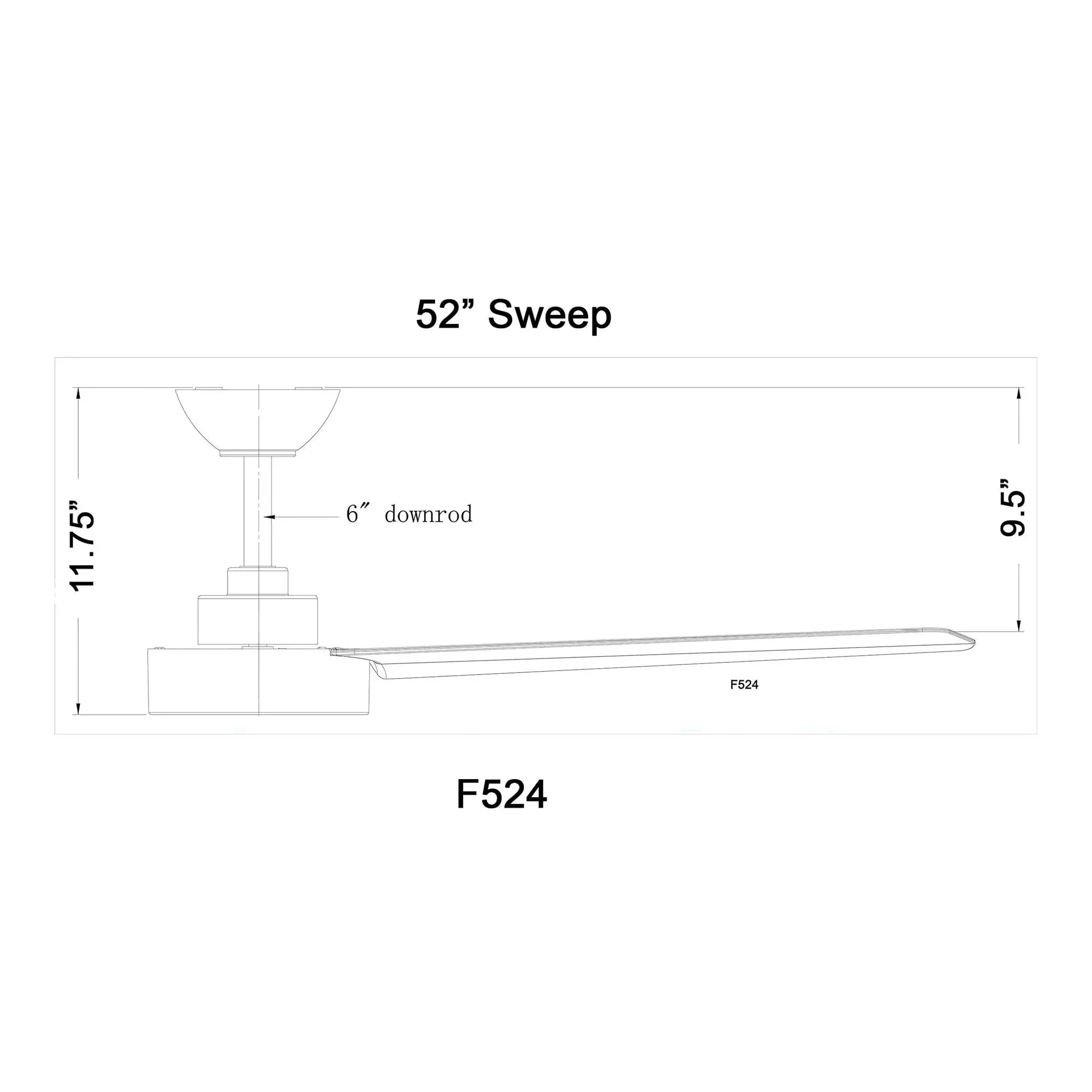

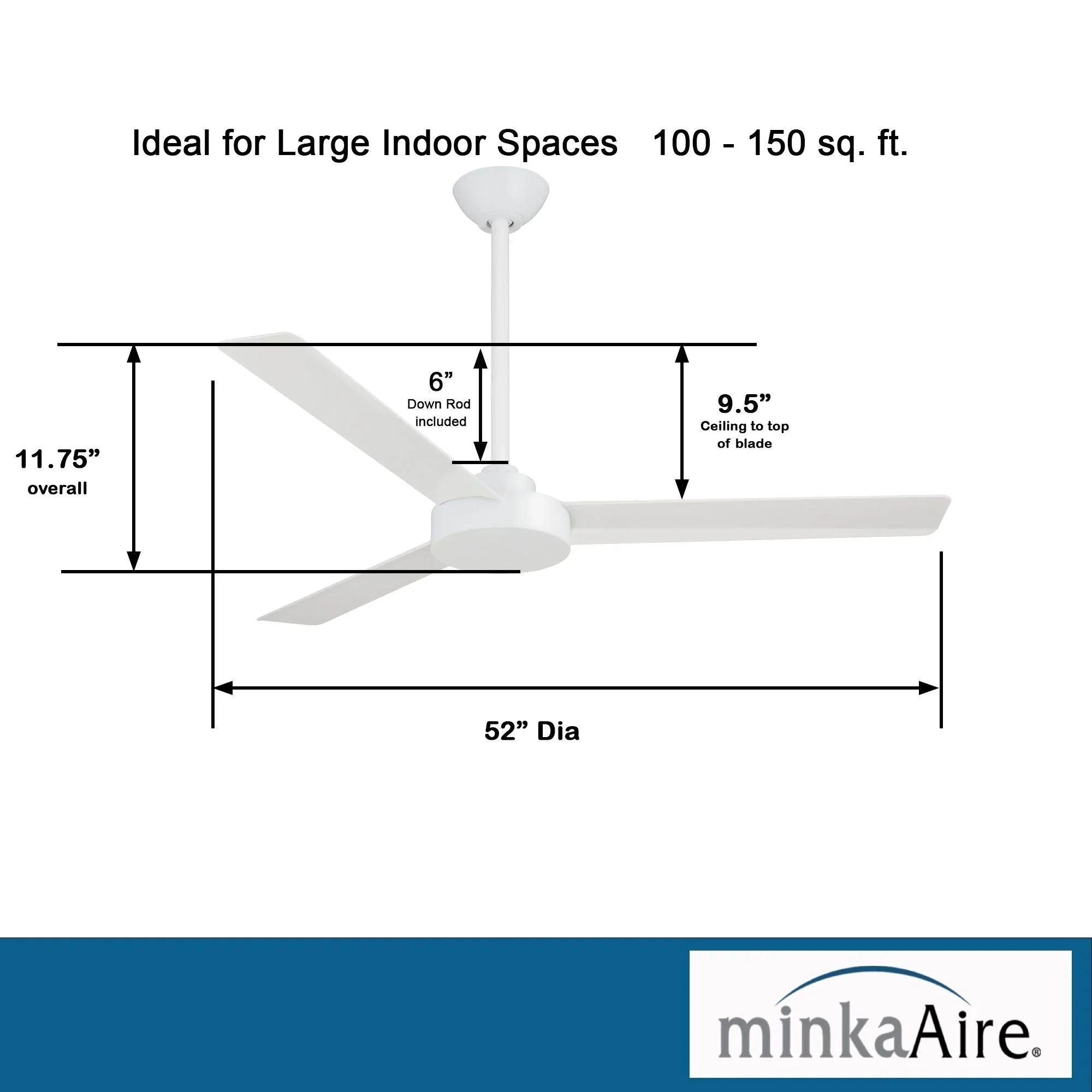

• Overall Dimensions: 52 in L × 52 in W × 11.6 in H | Ceiling-to-blade: 9.44 in
• Location Rating: Dry (Indoor use only)
• Sloped Ceiling Compatible: Yes

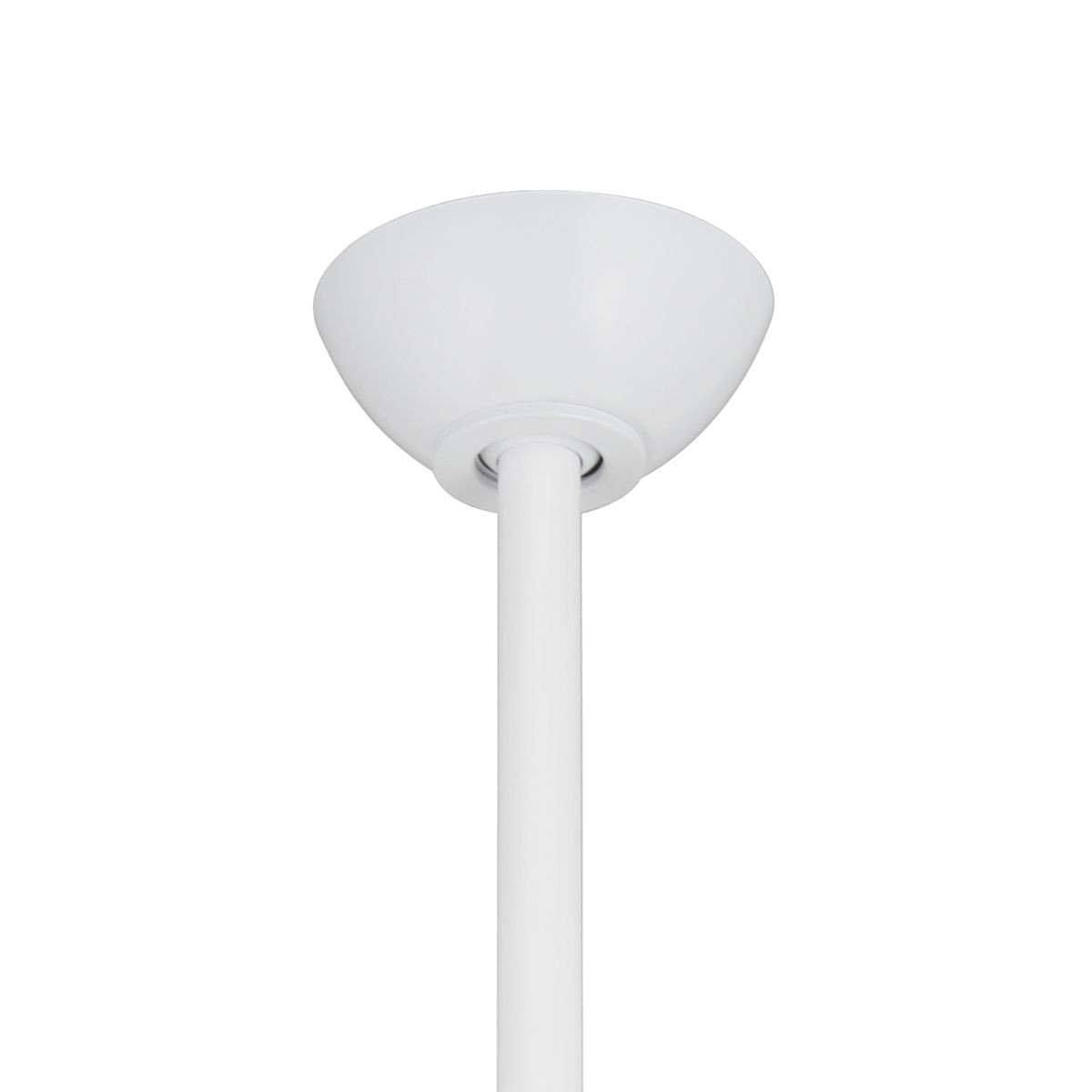

• Downrod: 6 in included (0.75 in diameter) | Cord/Wire: 80 in | Weight: 10.36 lbs
• ETL Listed | Lifetime Warranty | U.S. Patent D750,221

Control Features

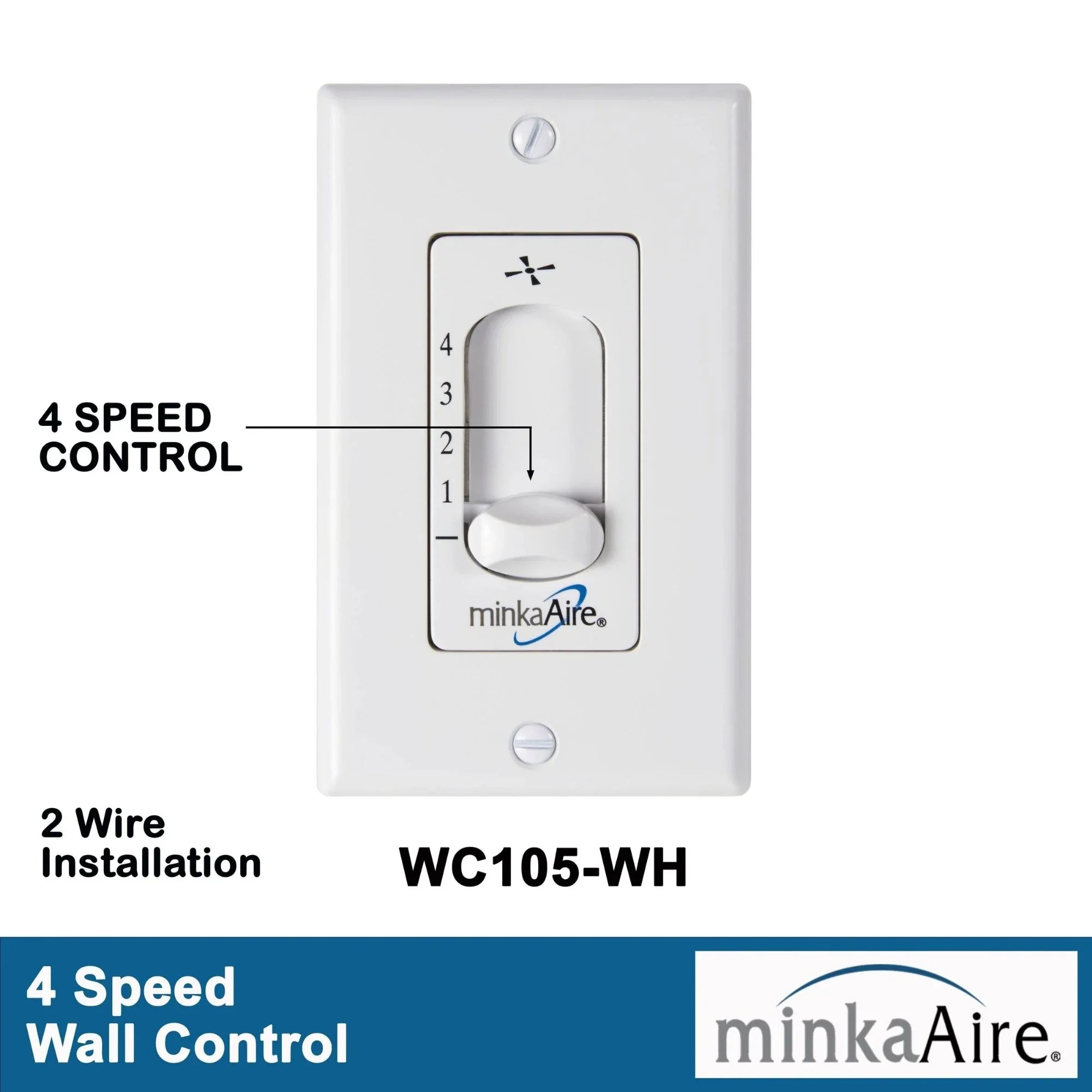

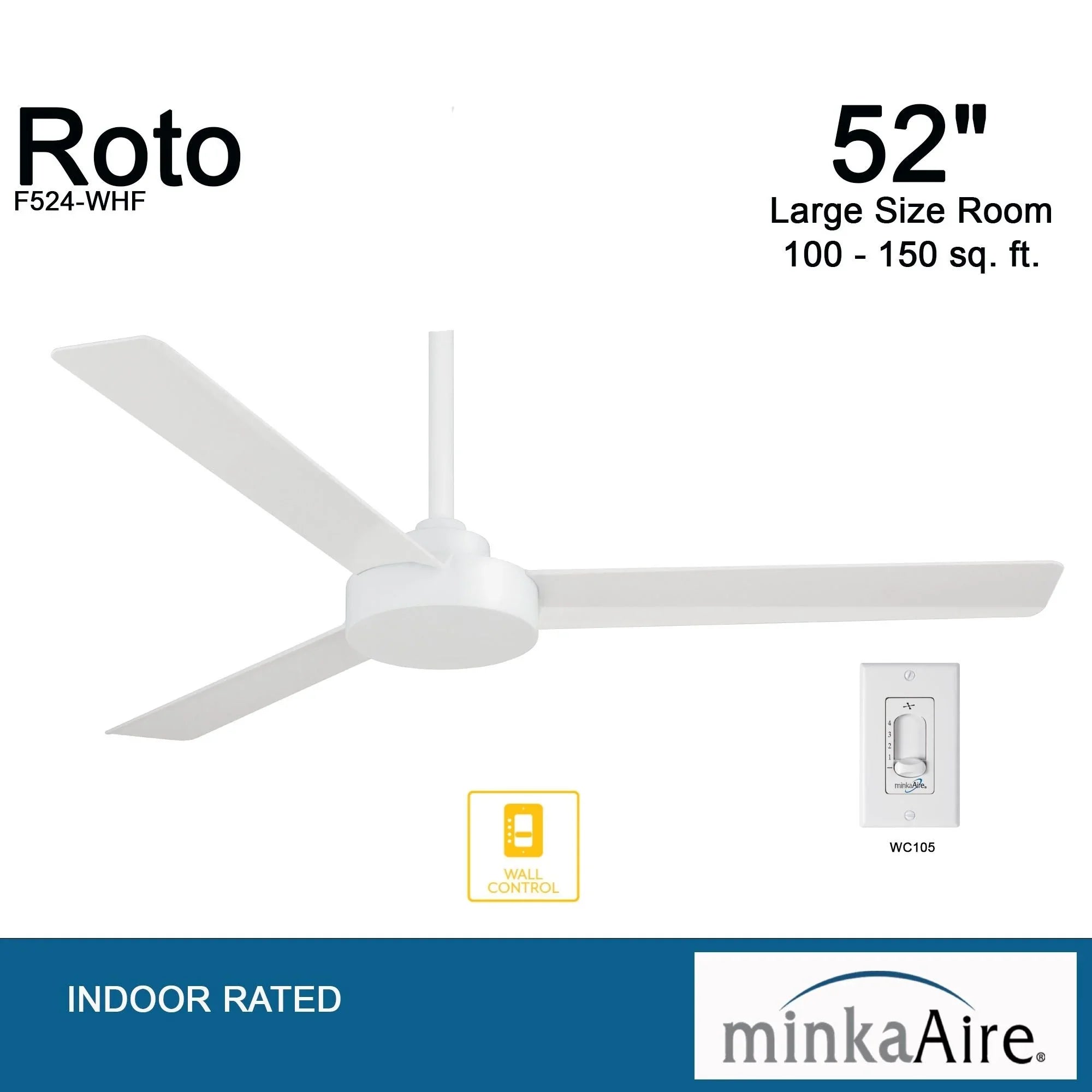

The Roto F524-WHF ships with a WC105-WH wall control for 4-speed fan operation and reverse. No pull chain, no remote included. The RCS223 remote control and WCS223 wall control are available separately for added flexibility. No integrated smart control or Bond compatibility.

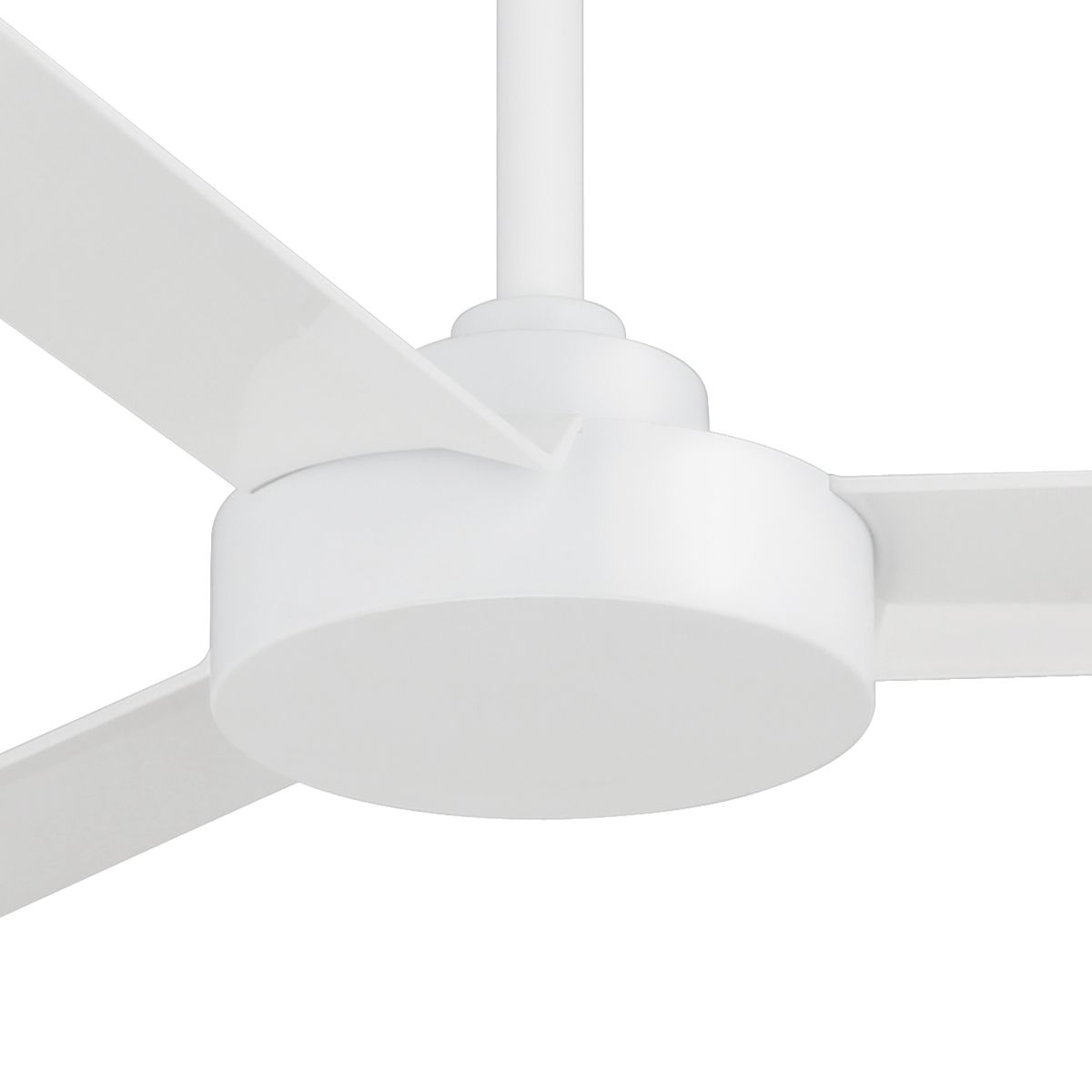

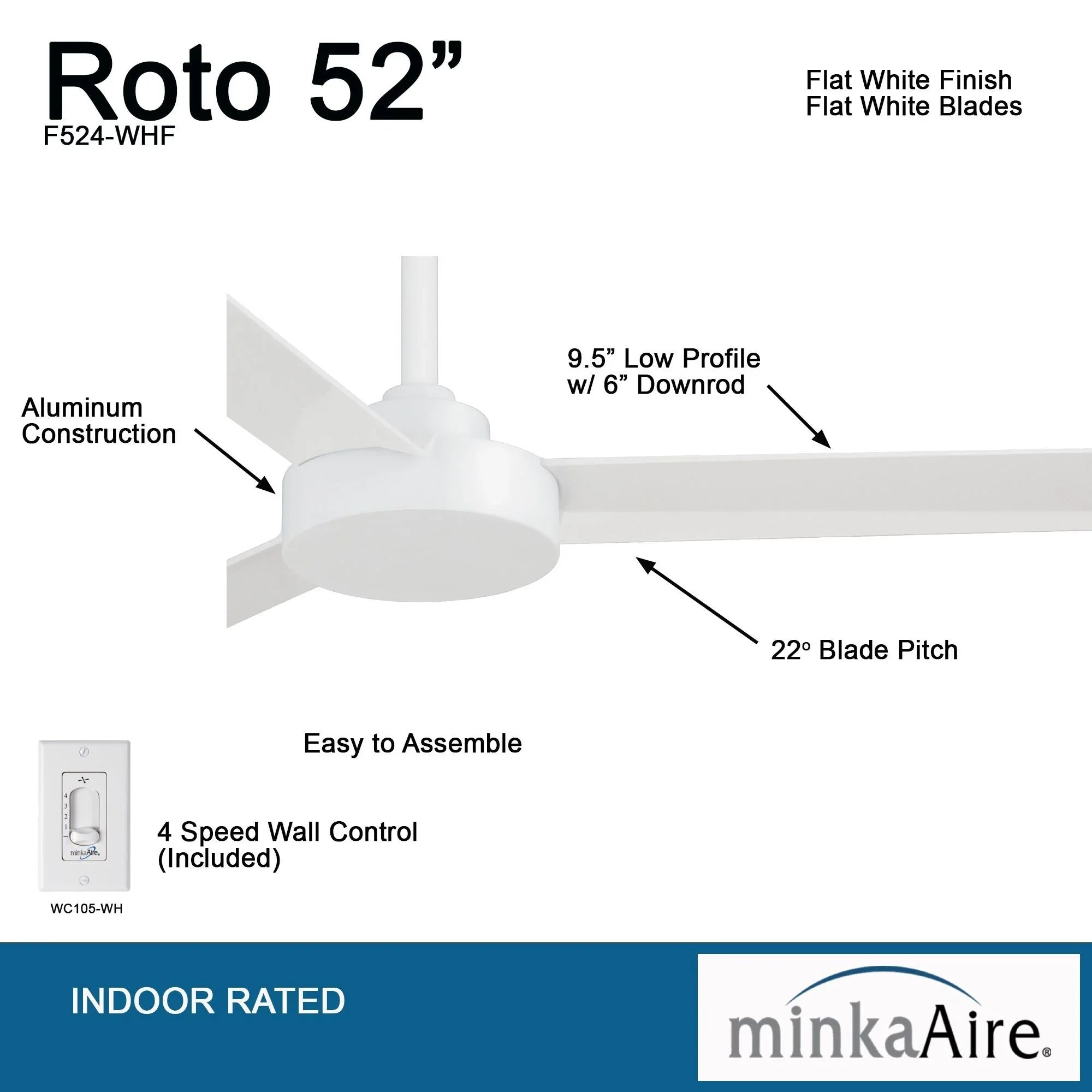

Construction & Design

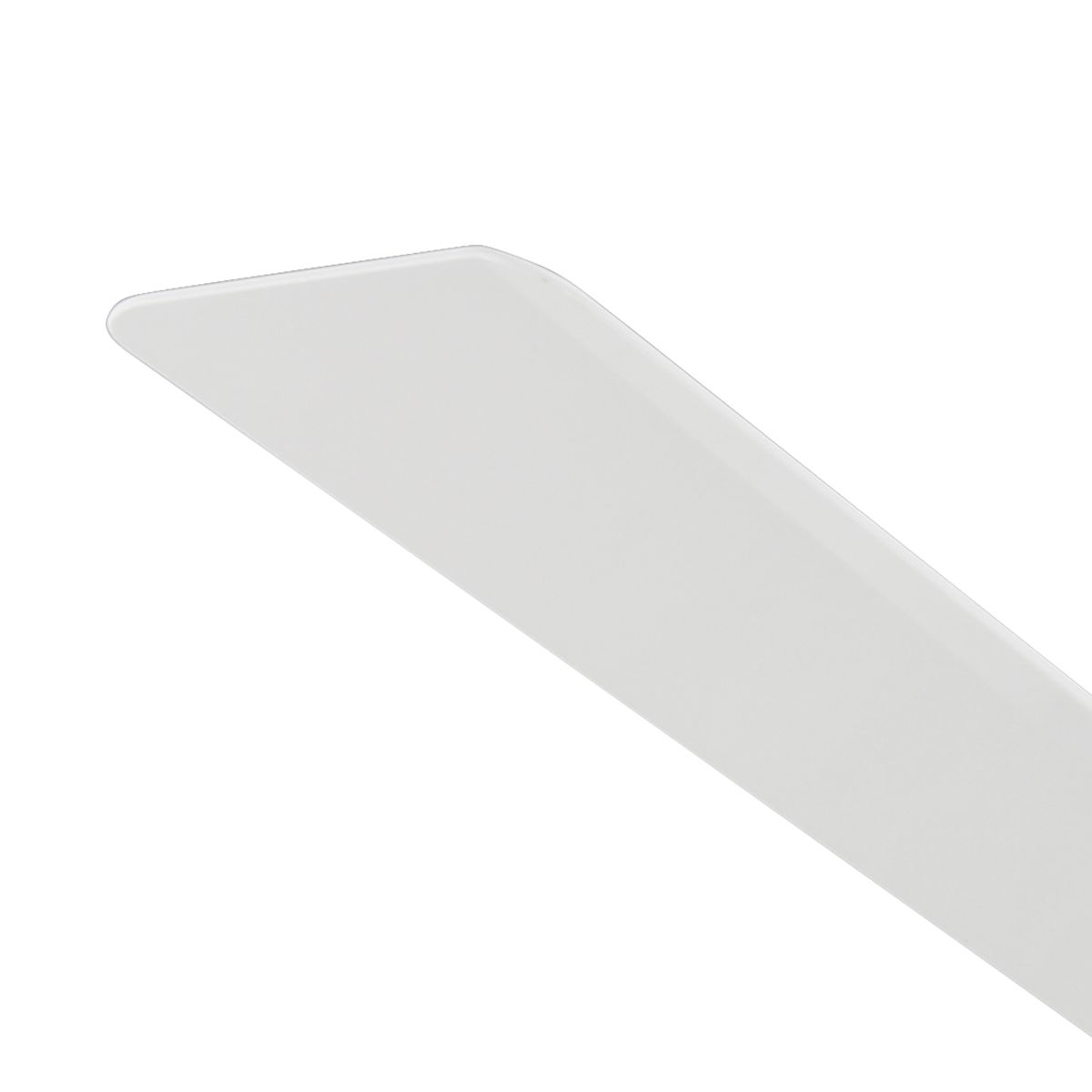

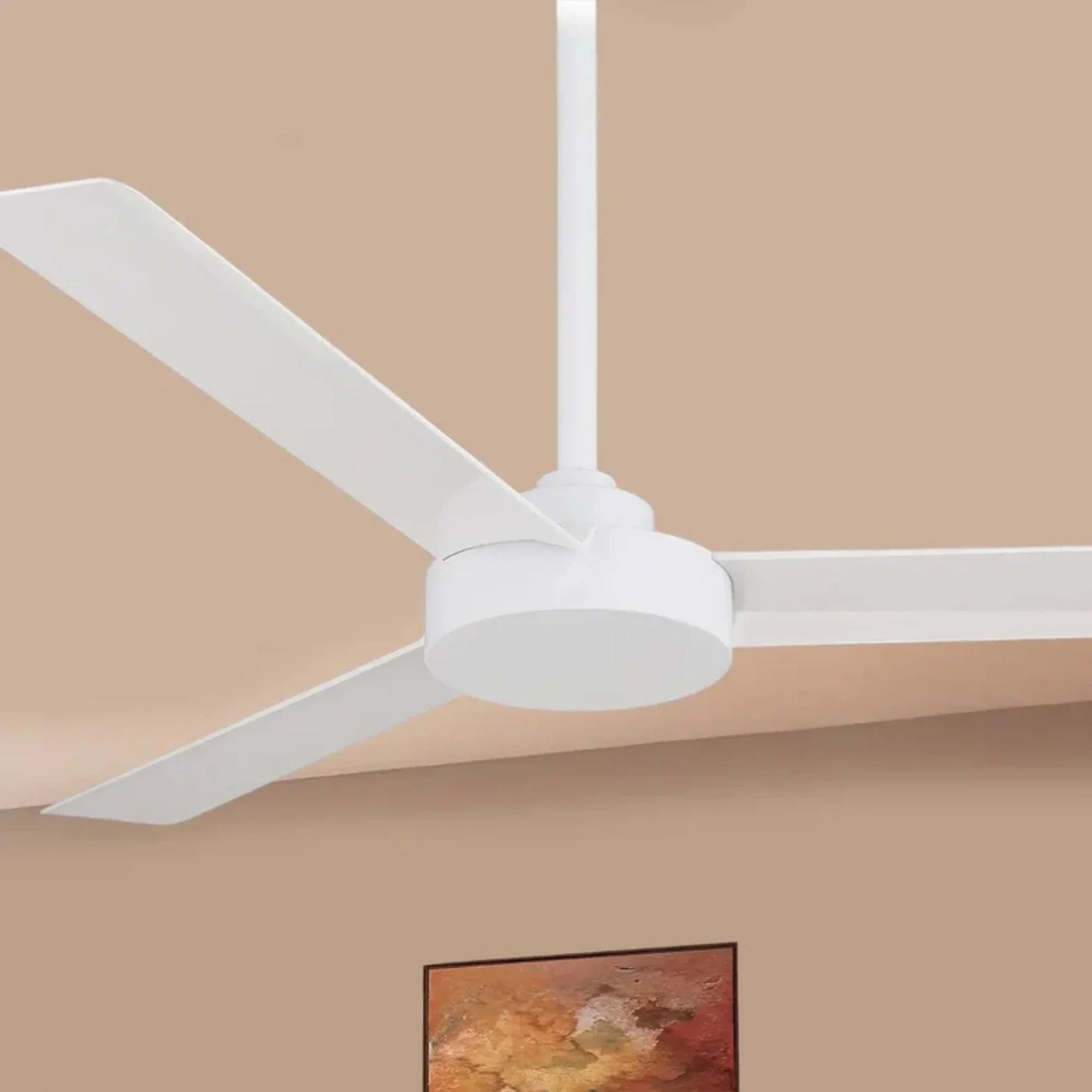

The Roto’s sculptural blade design — protected by U.S. Patent D750,221 — sets it apart from conventional ceiling fans. Three Flat White ABS blades at a steep 22° pitch deliver a clean, shadow-free aesthetic that pairs effortlessly with white ceilings in bedrooms, kitchens, living rooms, and bright contemporary spaces. Overall dimensions: 52 in L × 52 in W × 11.6 in H with a ceiling-to-blade clearance of 9.44 in. Sloped ceiling compatible. Product weight: 10.36 lbs.

Light Output & Performance

The Roto F524-WHF does not include a light kit and is not light kit compatible. If you prefer the same Roto silhouette with an integrated LED luminaire, see the Roto LED collection — F535L-WHF, the direct sister fan with built-in LED in the same Flat White finish.

Electrical & Installation

Operates at 120V. AC motor — 4-speed operation. High: 203 RPM / 4,422 CFM / 57.72W. Low: 73 RPM / 1,553 CFM / 9.16W. Dry location rated — indoor use only. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Cord/wire length: 80 in. This fan is not light kit compatible.

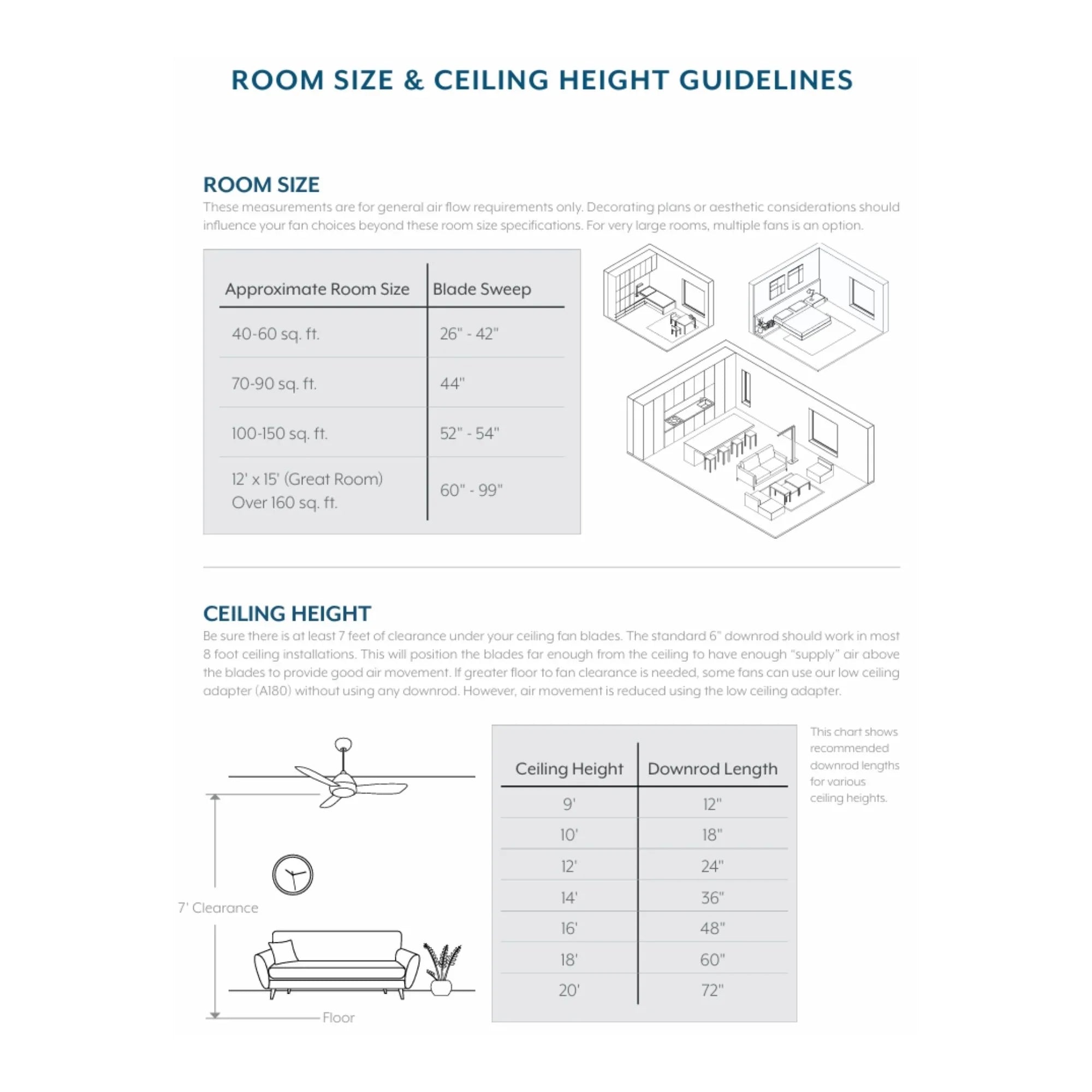

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Roto F524-WHF 52 in AC ceiling fan
• WC105-WH wall control
• 6 in downrod
• Mounting hardware
