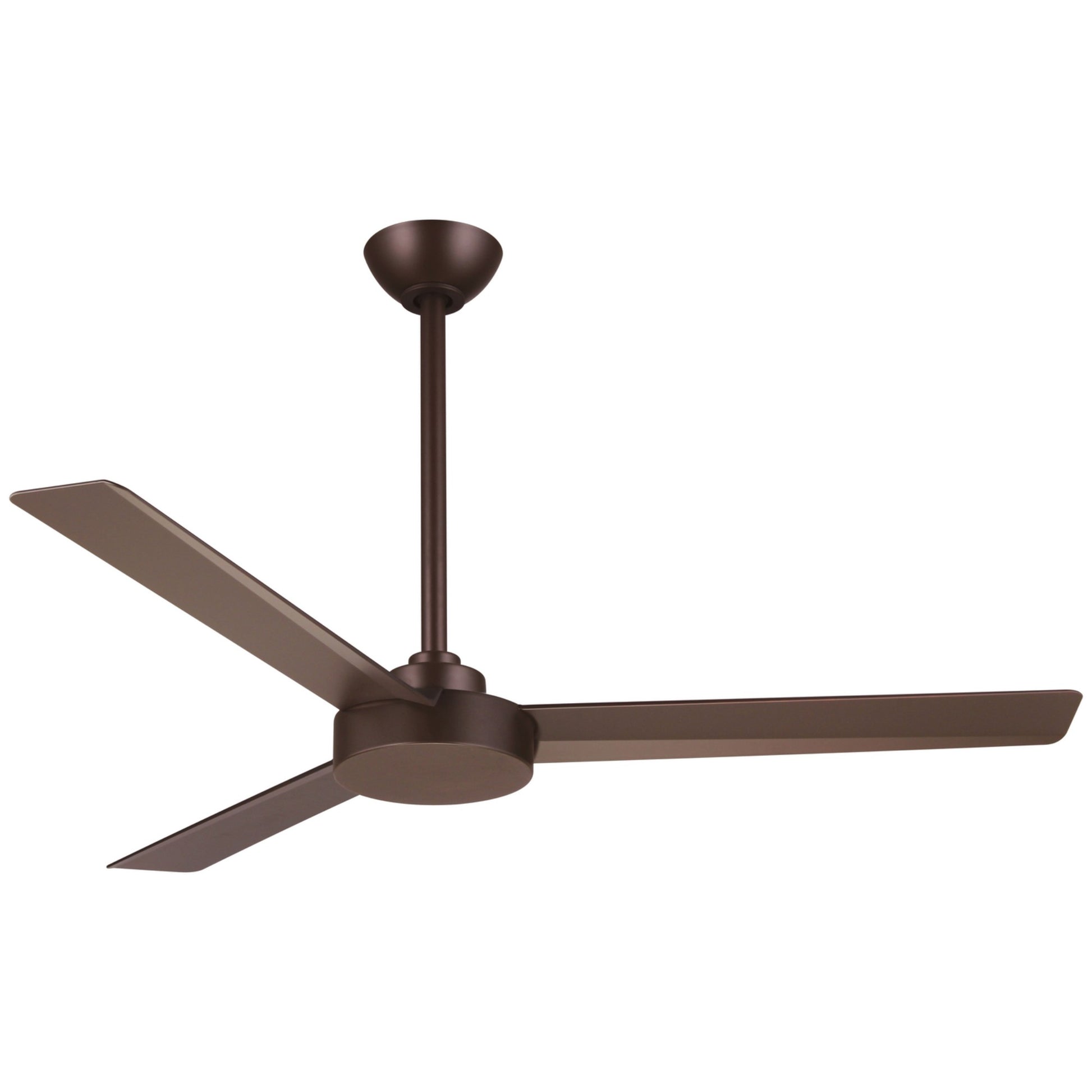

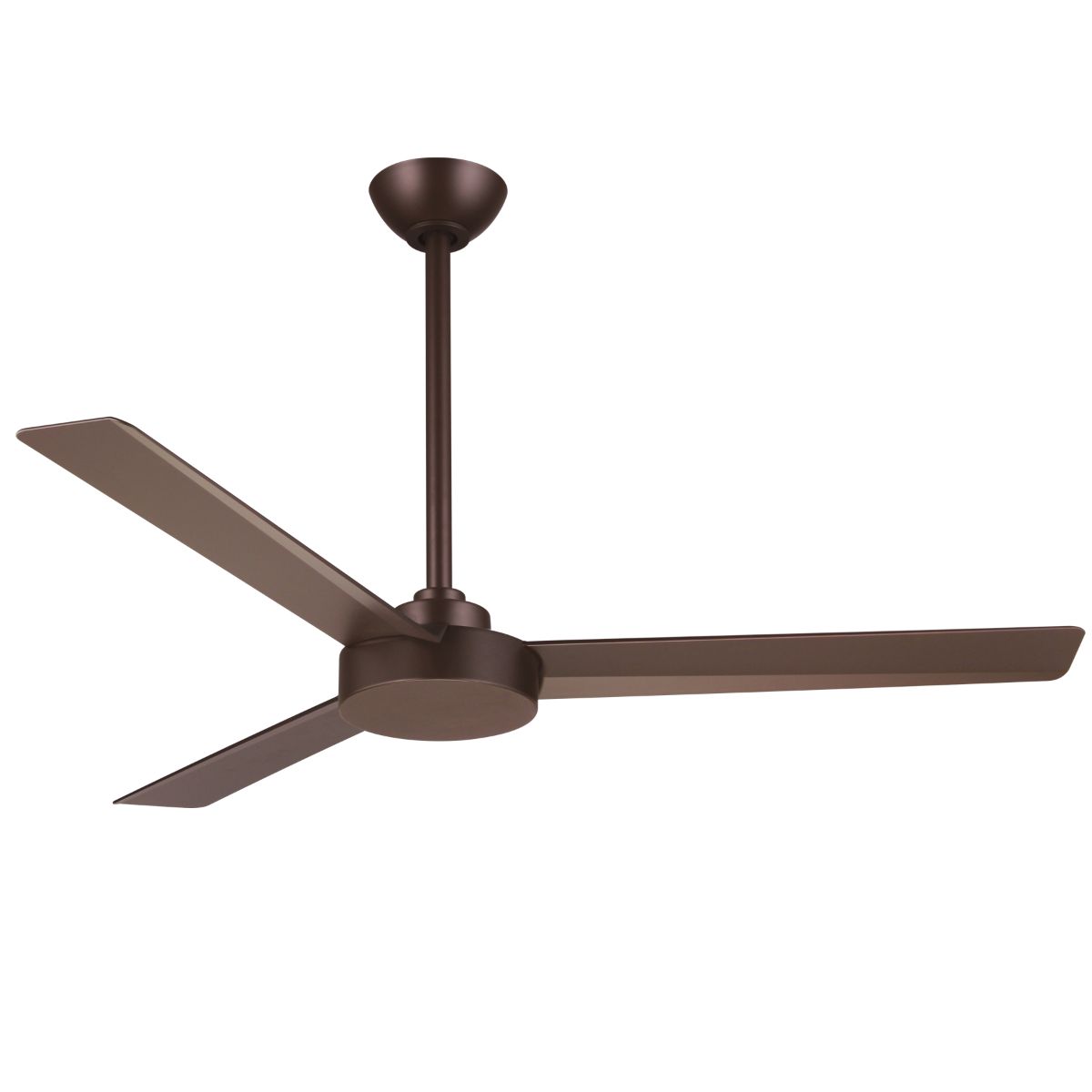

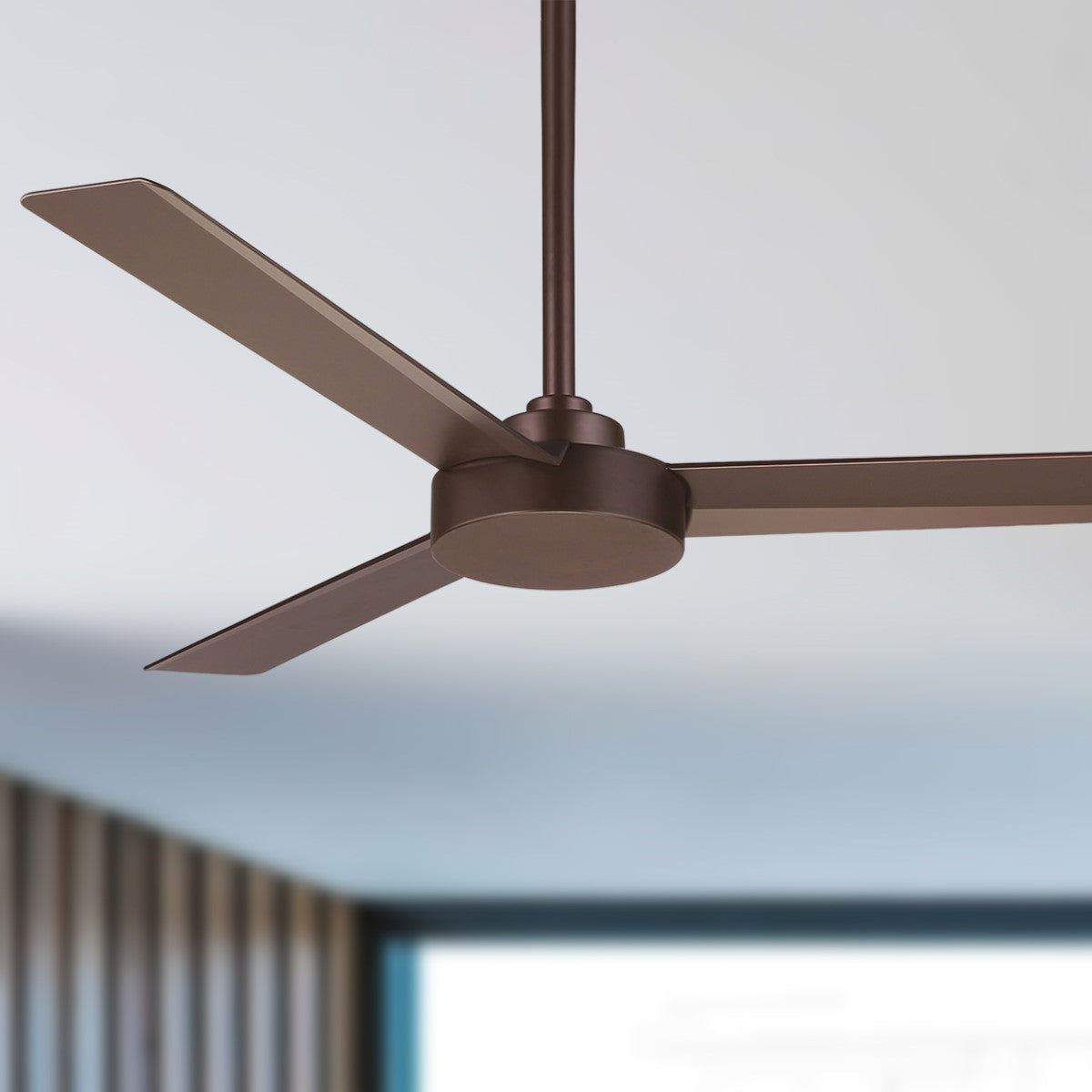

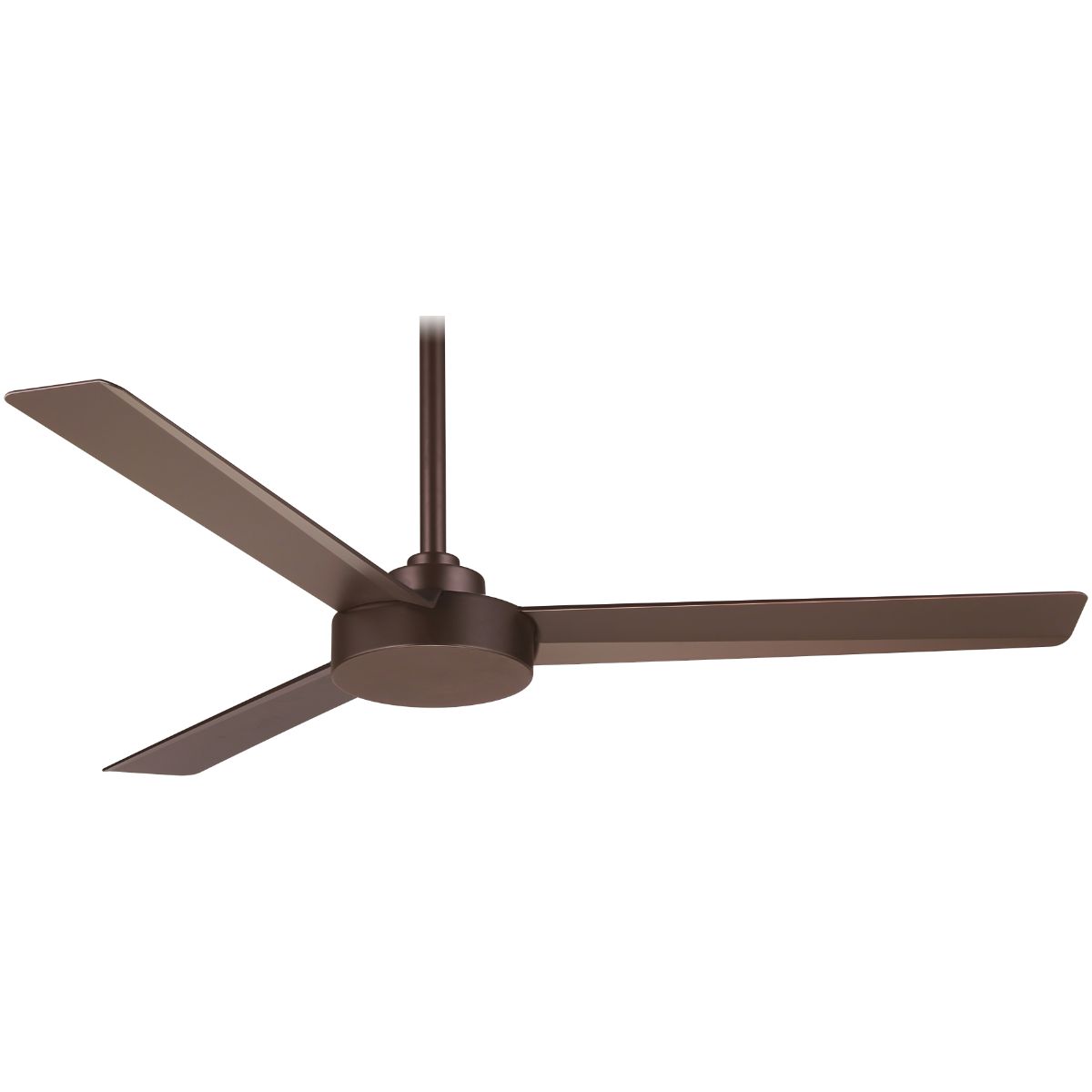

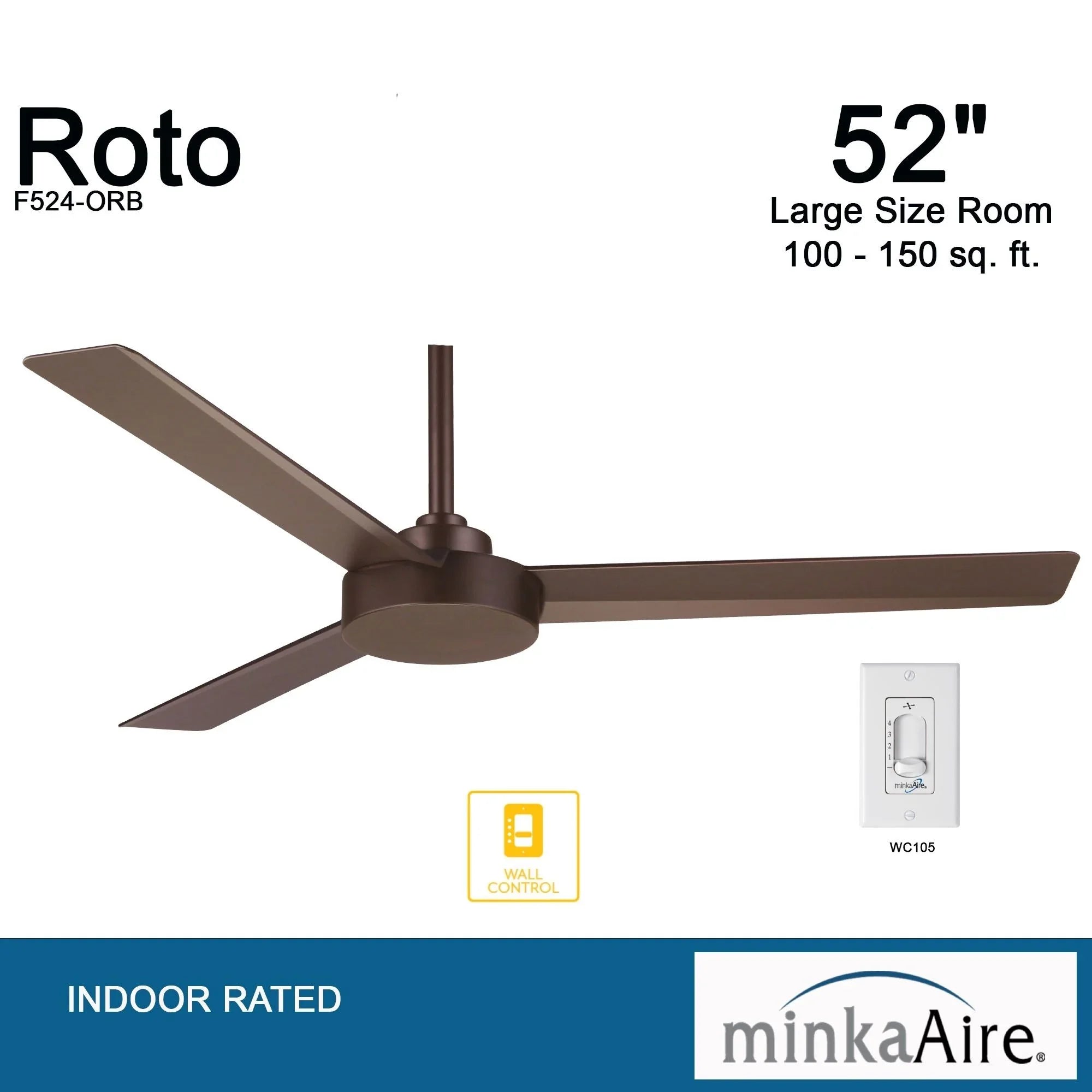

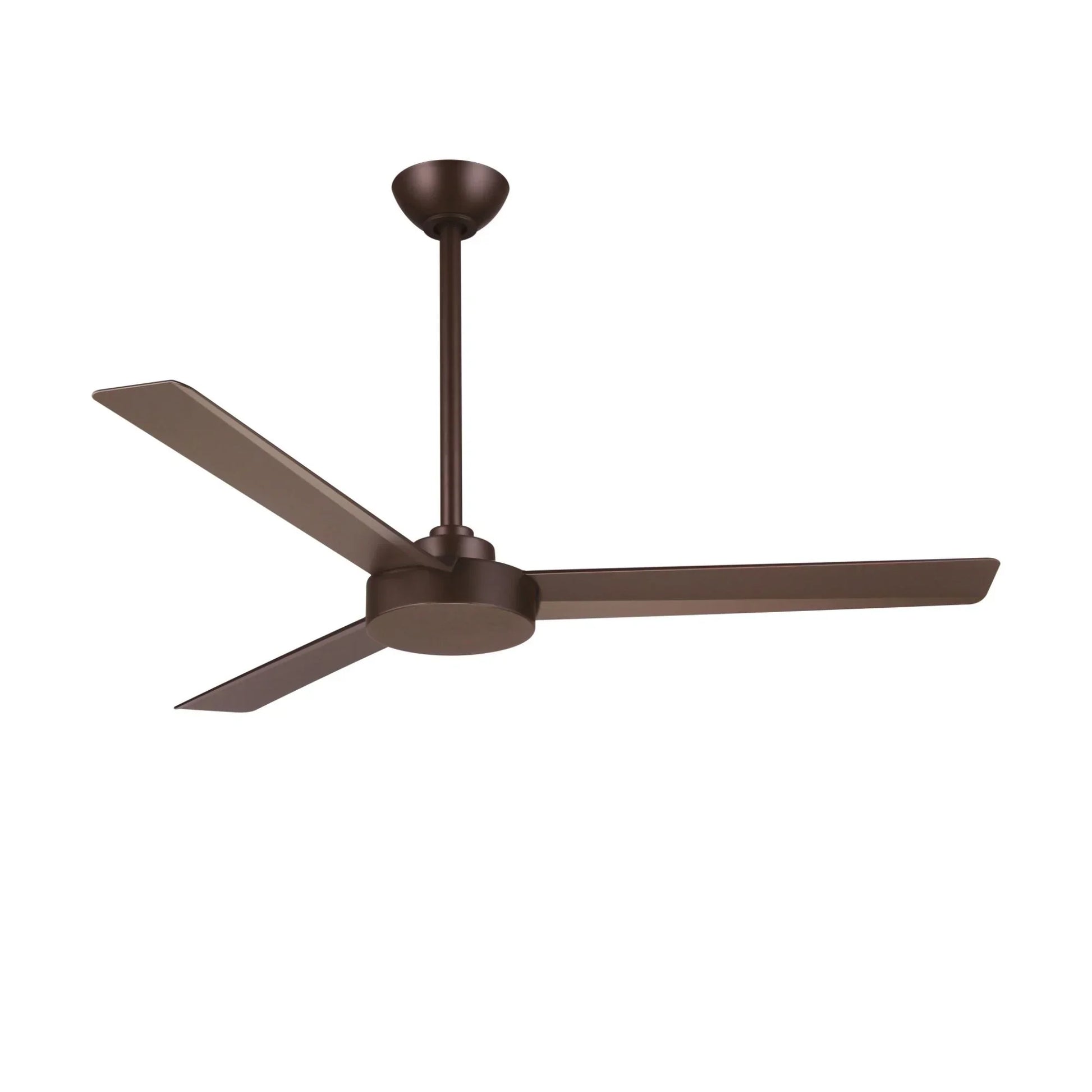

Minka Aire Roto 52 in AC Ceiling Fan — Oil Rubbed Bronze

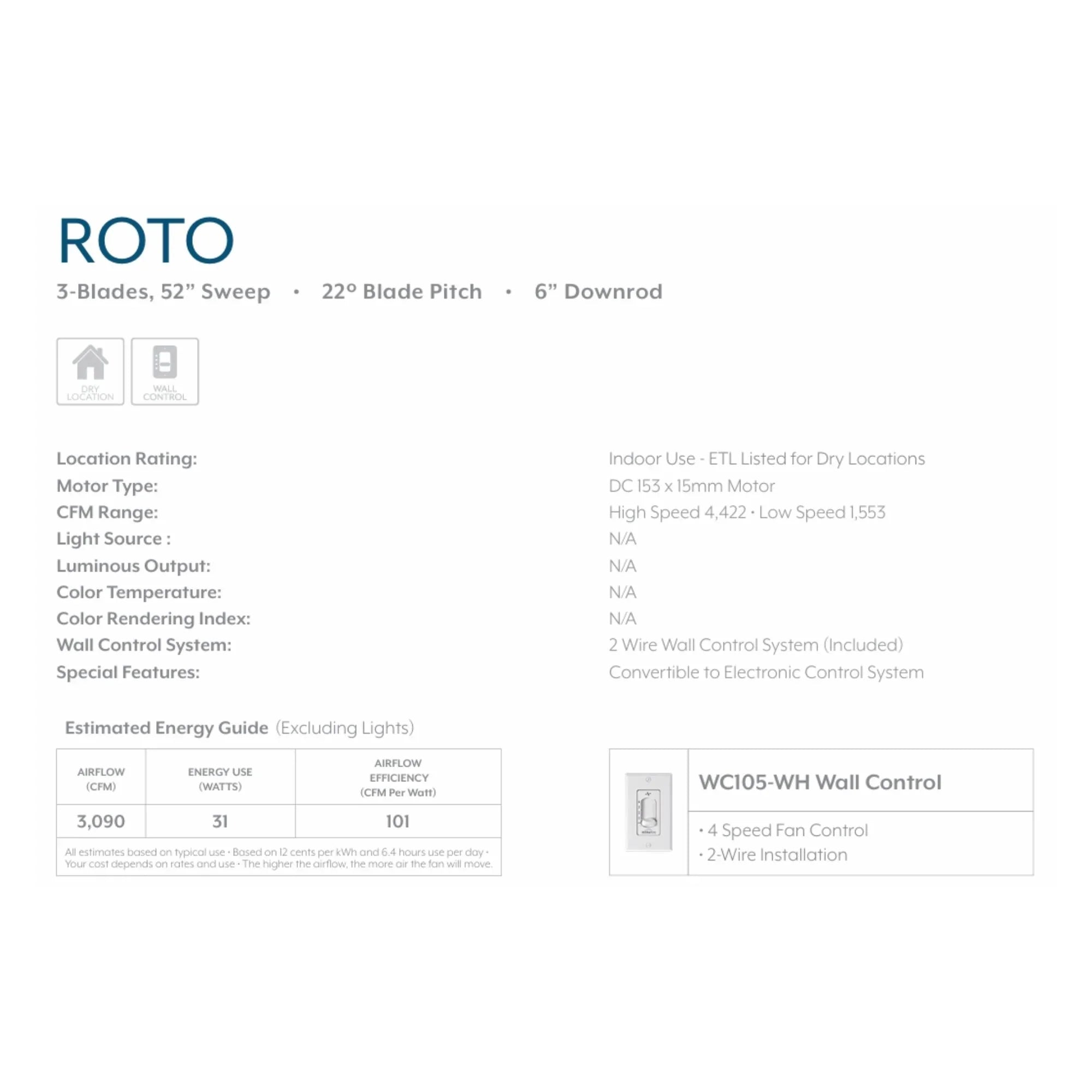

The Minka Aire Roto (model F524-ORB) is a 52 in dry-rated AC ceiling fan that delivers powerful, dependable airflow in a warm, classic finish. Powered by a robust 153×15mm AC motor with 4 speeds, it moves up to 4,422 CFM at high speed — a workhorse profile built for living rooms, bedrooms, and high-ceiling spaces. Three Oil Rubbed Bronze ABS blades against a matching motor housing bring a rich, hand-finished patina ideal for traditional, transitional, and Mediterranean-inspired interiors. Protected by U.S. Patent D750,221. Sloped ceiling compatible, ETL Listed, and backed by a Lifetime warranty.

Key Features

• Blade Span: 52 in | 3 Oil Rubbed Bronze ABS blades | 22° pitch
• Motor: AC — 153×15mm | 4 speeds | Reversible rotation
• Airflow: 1,553 CFM (low) / 4,422 CFM (high)
• Efficiency: 77 CFM/W at high speed
• Total Power: 57.72W (high) / 9.16W (low)
• RPM: 73 (low) / 203 (high)
• Light: No light | Not light kit compatible

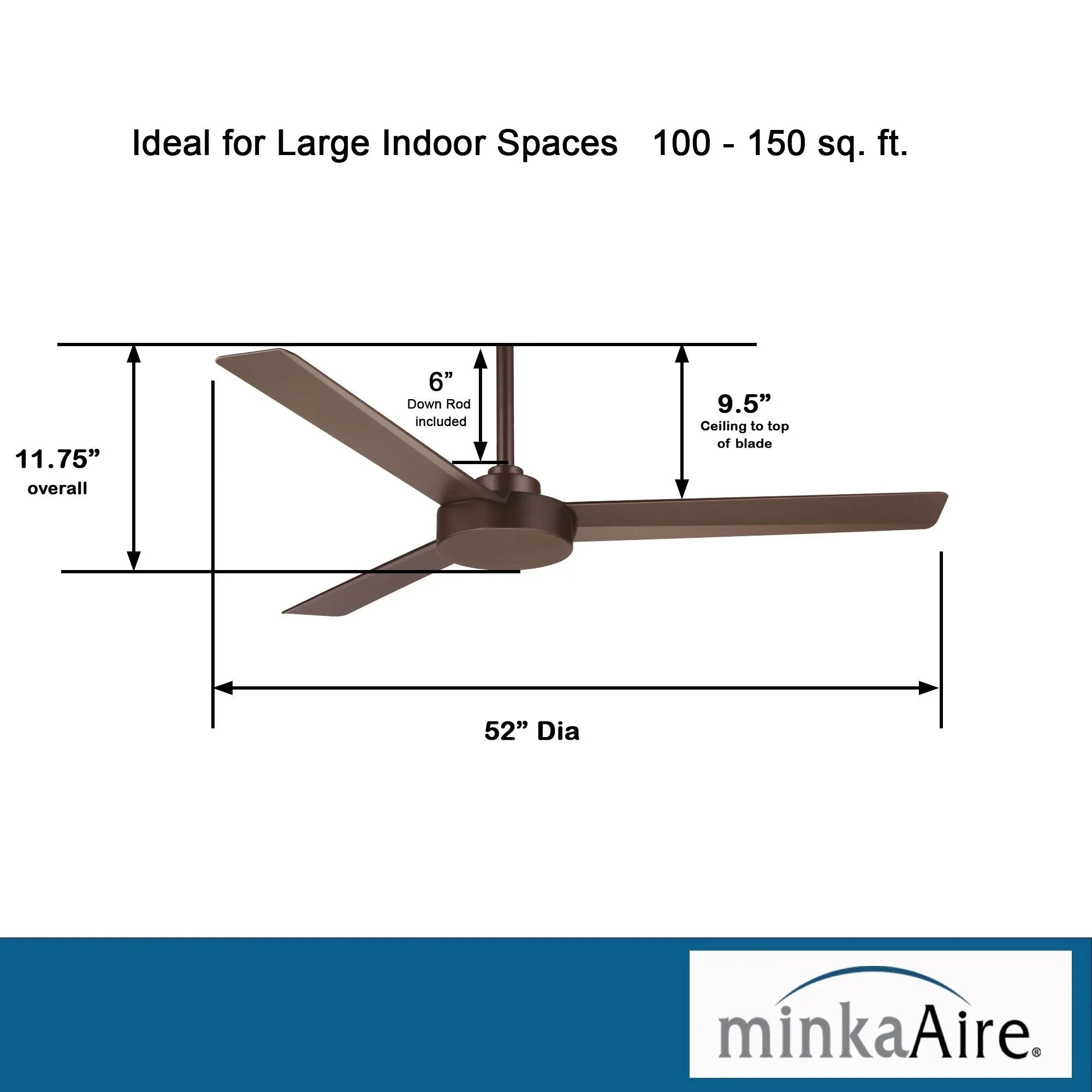

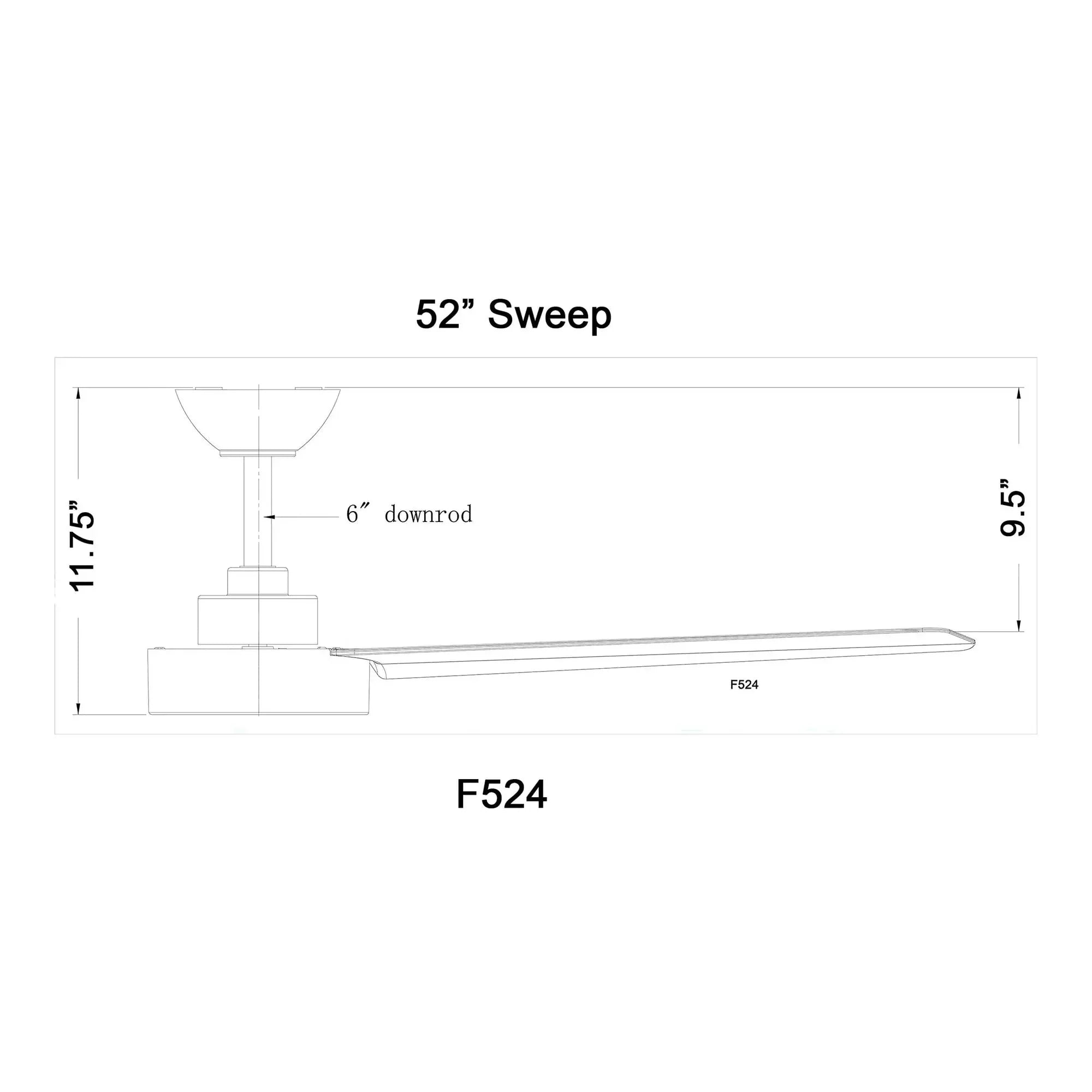

• Overall Dimensions: 52 in L × 52 in W × 11.6 in H | Ceiling-to-blade: 9.44 in
• Location Rating: Dry (Indoor use only)

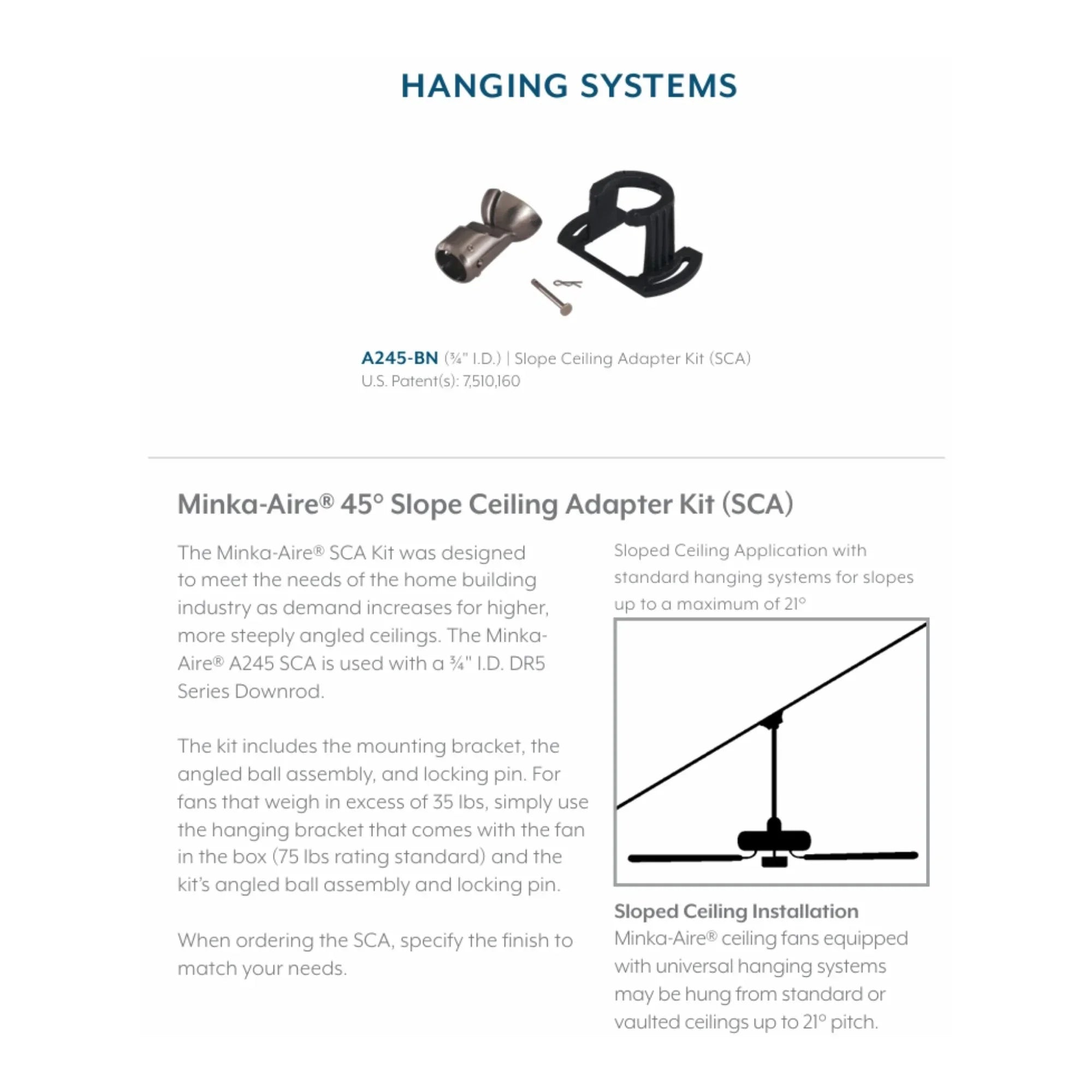

• Sloped Ceiling Compatible: Yes

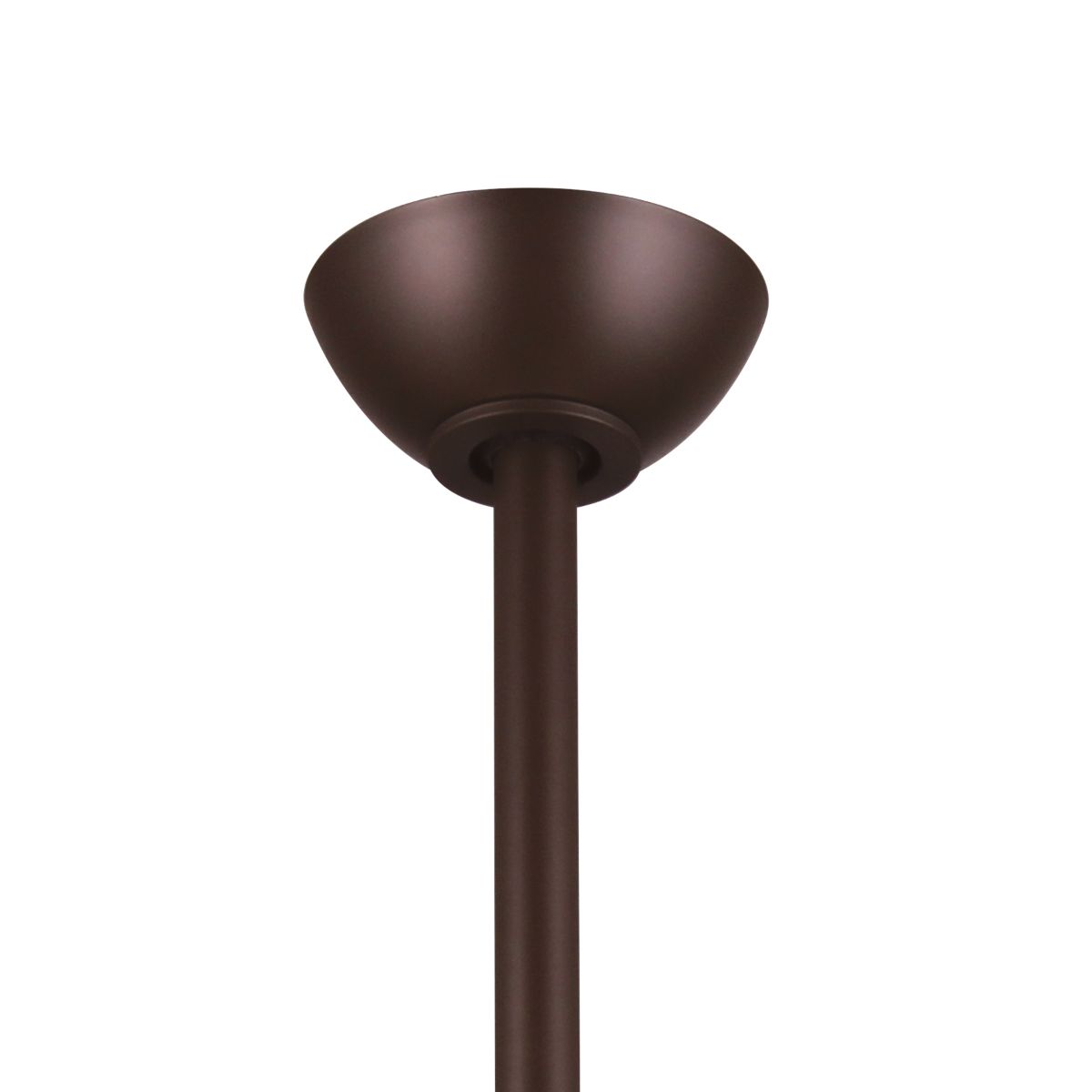

• Downrod: 6 in included (0.75 in diameter) | Cord/Wire: 80 in | Weight: 10.36 lbs
• ETL Listed | Lifetime Warranty | U.S. Patent D750,221

Control Features

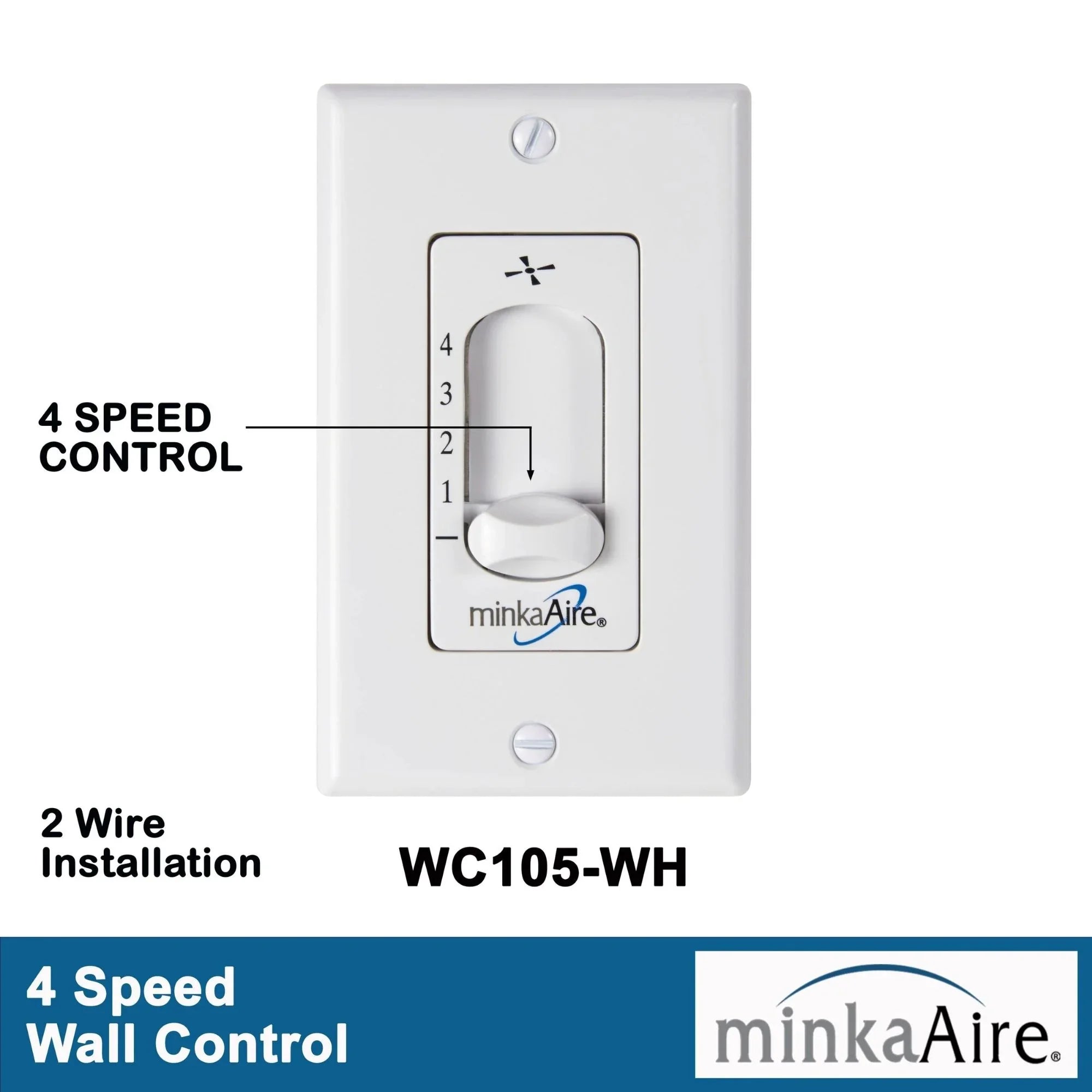

The Roto F524-ORB ships with a WC105-WH wall control for 4-speed fan operation and reverse. No pull chain, no remote included. The RCS223 remote control and WCS223 wall control are available separately for added flexibility. No integrated smart control or Bond compatibility.

Construction & Design

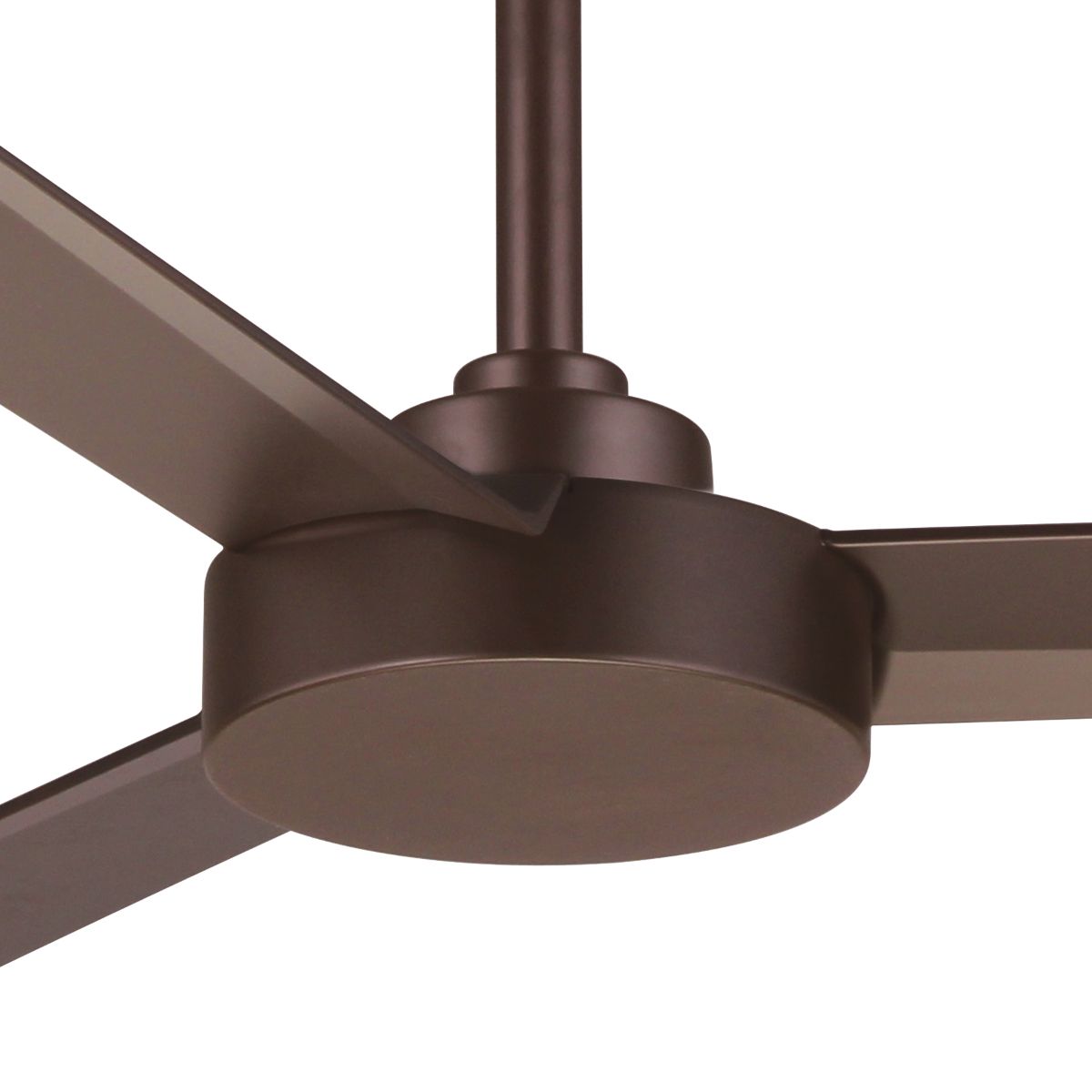

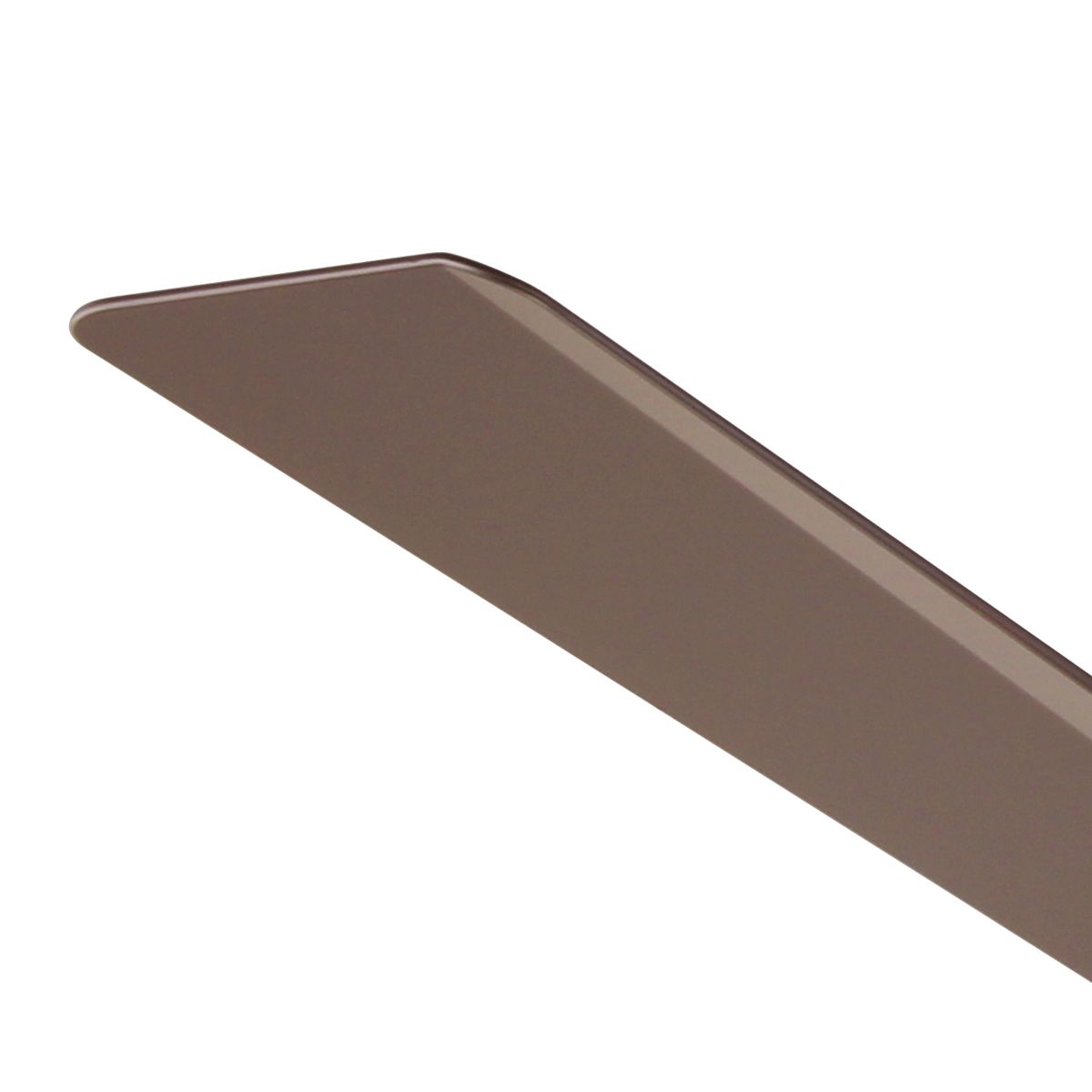

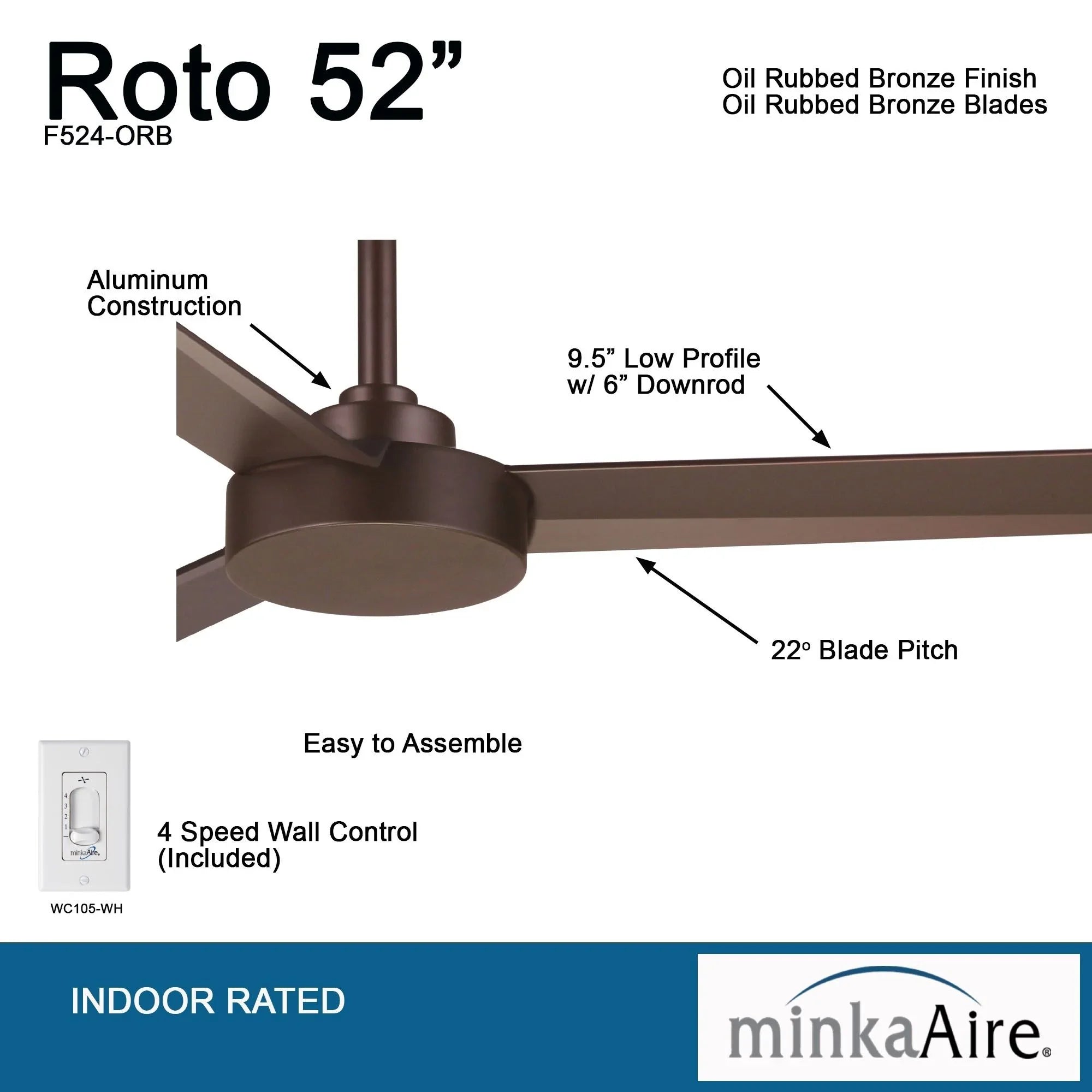

The Roto’s sculptural blade design — protected by U.S. Patent D750,221 — sets it apart from conventional ceiling fans. Three Oil Rubbed Bronze ABS blades at a steep 22° pitch bring a warm, hand-applied patina that pairs naturally with the motor housing — a timeless combination for traditional living rooms, dining rooms, and transitional great rooms. Overall dimensions: 52 in L × 52 in W × 11.6 in H with a ceiling-to-blade clearance of 9.44 in. Sloped ceiling compatible. Product weight: 10.36 lbs.

Light Output & Performance

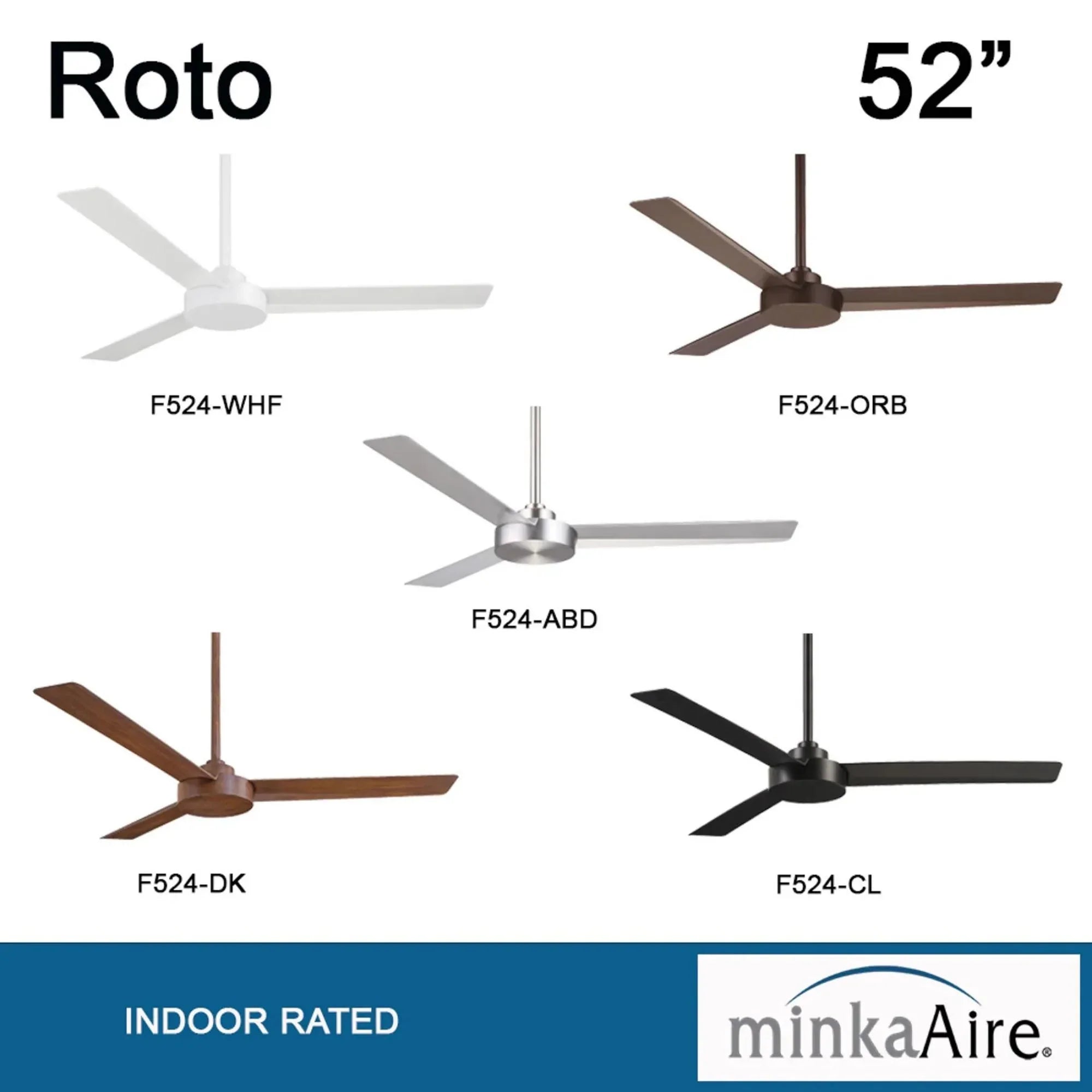

The Roto F524-ORB does not include a light kit and is not light kit compatible. This finish is available in the fan-only Roto collection; for an integrated LED version, explore other finishes in the Roto LED (F535L) series.

Electrical & Installation

Operates at 120V. AC motor — 4-speed operation. High: 203 RPM / 4,422 CFM / 57.72W. Low: 73 RPM / 1,553 CFM / 9.16W. Dry location rated — indoor use only. Sloped ceiling compatible. Includes 6 in downrod (0.75 in diameter). Cord/wire length: 80 in. This fan is not light kit compatible.

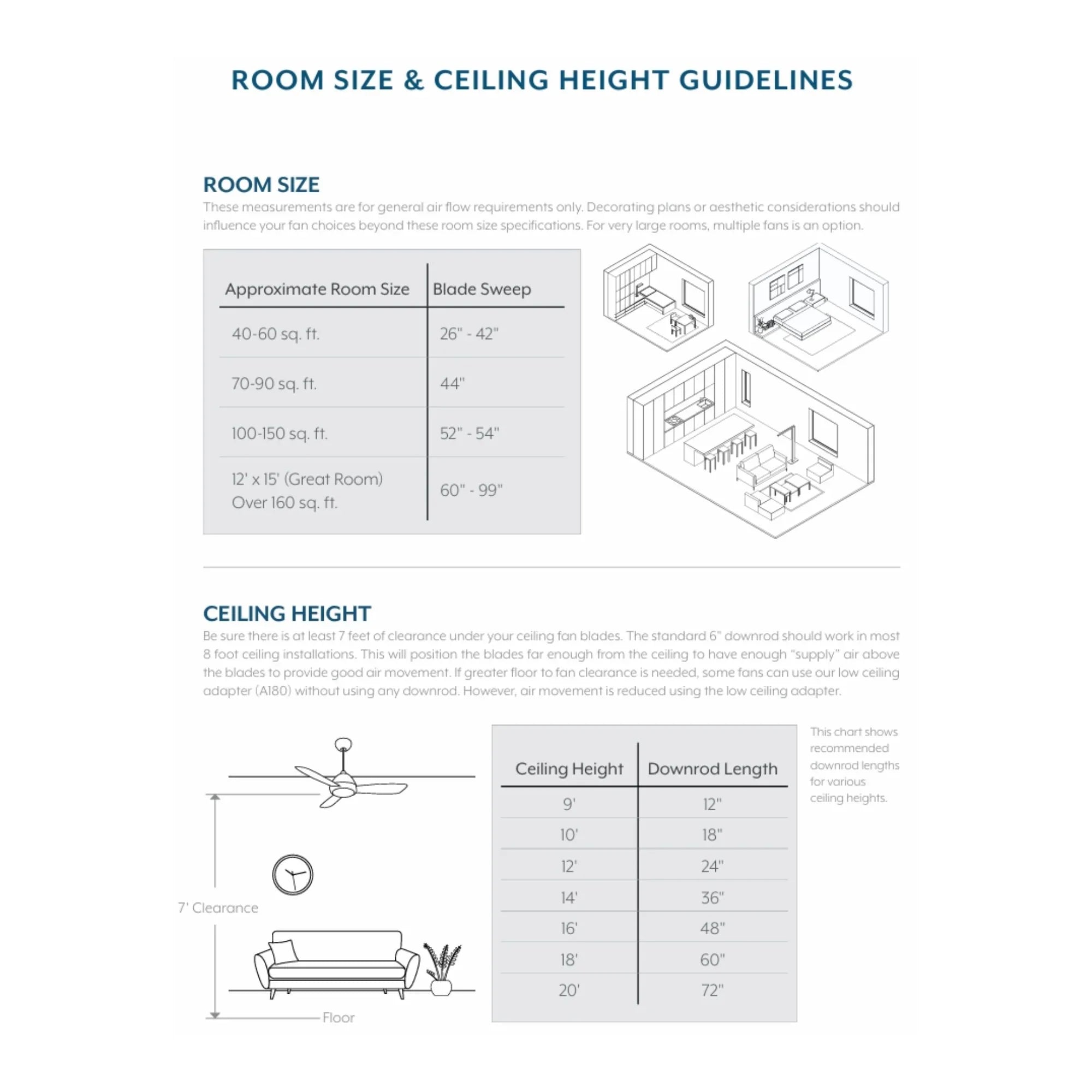

Suggested Downrod by Ceiling Height

• 8 ft ceiling → 6 in downrod (included)
• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Roto F524-ORB 52 in AC ceiling fan
• WC105-WH wall control
• 6 in downrod
• Mounting hardware
