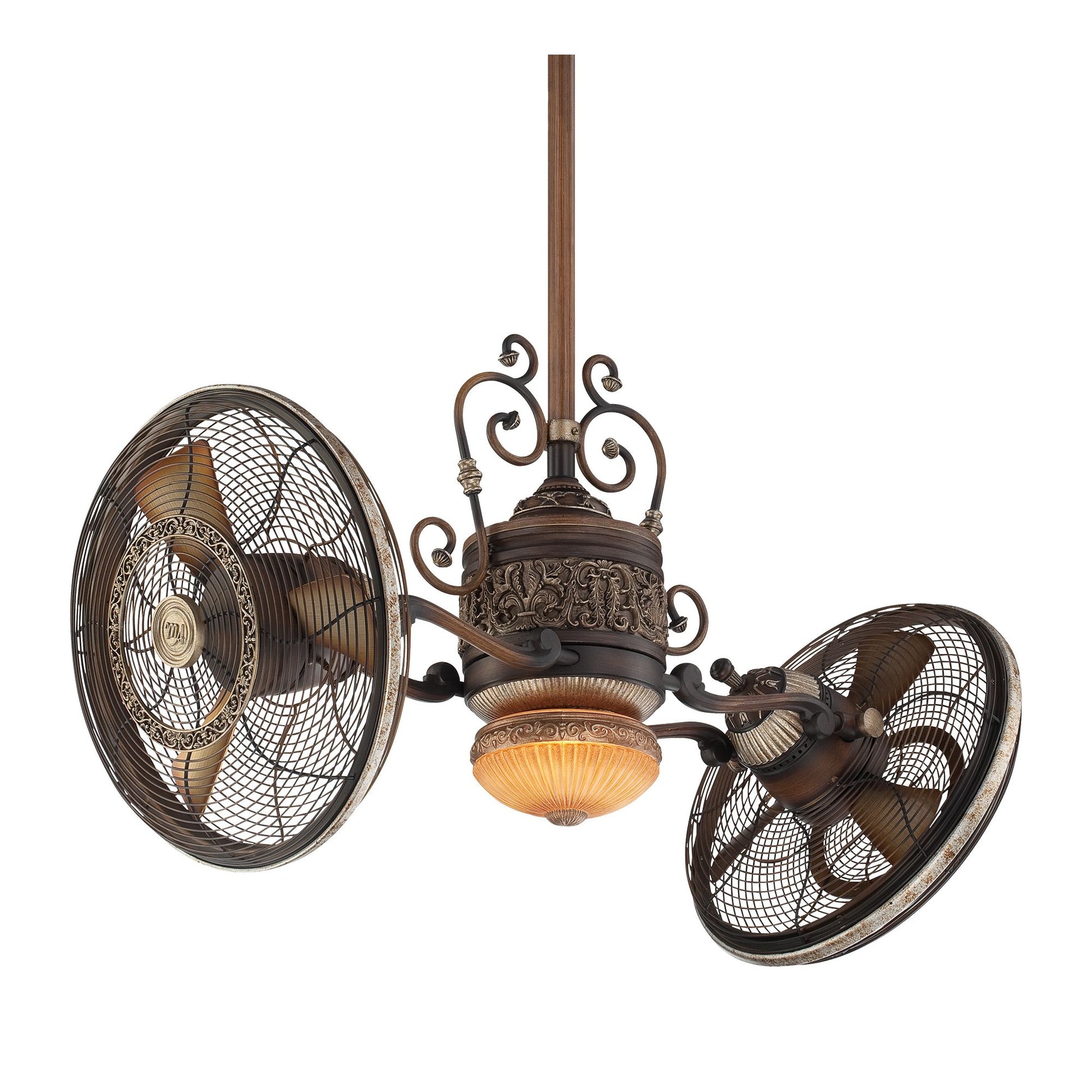

Minka Aire Traditional Gyro 42 in Dual-Head LED Ceiling Fan — Belcaro Walnut

The Minka Aire Traditional Gyro (model F502L-BCW) is one of the most distinctive ceiling fans ever engineered — a 42 in dual-headed AC-motor fan that pairs Victorian ornamental ironwork with two independently rotating fan heads for wide-angle, multi-directional airflow in a single fixture. The richly detailed Belcaro Walnut™ finish envelops the scrollwork frame, dual motor housings, and matching ABS blades in a deep, antiqued walnut tone, while a warm amber glass shade centers the composition with soft, dimmable light. Dry rated for indoor use. Bond Compatible and UL Listed.

Key Features

• Configuration: Dual-head | 6 total blades (3 per head) | 42 in sweep per head
• Finish: Belcaro Walnut™ | ABS blades | 20° blade pitch | 14 in blade length
• Motor: AC — 82×25mm | 3 speeds | Reversible (Reverse Module)
• Airflow: 1,773 CFM (low) / 3,088 CFM (high)
• Efficiency: 31 CFM/W at high speed
• Total Power: 99.33W (high) / 45.21W (low)
• RPM: 906 (low) / 1,305 (high)
• Integrated LED: 1× 4W T5 Mini Candelabra E11 | 450 lumens | 3000K | CRI 85 | Dimmable | 20,000 hr rated life
• Glass Shade: 7×7 in | Belcaro Walnut finish | Glass
• Overall Dimensions: 42 in L × 42 in W × 17 in H | Ceiling-to-blade: 16.5 in
• Location Rating: Dry (Indoor use only)
• Sloped Ceiling Compatible: Yes
• Cord/Wire Length: 80 in | Weight: 38.82 lbs
• Bond Compatible | UL Listed

Control Features

The Traditional Gyro F502L-BCW ships with a WCS212 wall control for 3-speed fan operation and light dimming — no pull chain. The RCS212 remote control is available separately for handheld operation. For smart home integration, the fan is compatible with the BD-1000 Bond Bridge, enabling control via app, voice, and smart home ecosystems. No integrated WiFi or Bluetooth.

Construction & Design

The Traditional Gyro’s dual-head configuration is built around an ornate scrollwork yoke that evokes the craftsmanship of Victorian-era ceiling fixtures — a design protected by U.S. Patents D567,350; 6,832,902; 7,183,680; and 7,229,255. Each of the two fan heads carries three ABS blades at a 20° pitch, rotating independently to distribute airflow across a wide horizontal arc. The Belcaro Walnut™ finish — a warm, hand-applied antiqued walnut tone — runs consistently across the frame, motor housings, blades, and glass shade for a unified, heirloom aesthetic. Two downrods are included: a 4.5 in and a 12 in (both 0.75 in diameter), offering flexibility for standard and higher ceilings. Sloped ceiling compatible.

Light Output & Performance

The integrated luminaire houses a single 4W T5 Mini Candelabra (E11) LED bulb — included — delivering 450 lumens at 3000K with a CRI of 85. Fully dimmable. The warm amber glass shade (7×7 in) diffuses the light with a soft, candlelit quality appropriate to the fan’s traditional aesthetic. Rated for 20,000 hours. This model is not light kit compatible — no additional light kit or adapter can be added.

Electrical & Installation

AC motor — 3-speed operation. High: 1,305 RPM / 3,088 CFM / 99.33W. Low: 906 RPM / 1,773 CFM / 45.21W. Dry location rated — indoor use only. Sloped ceiling compatible. Two downrods included: 4.5 in and 12 in (0.75 in diameter). Cord/wire length: 80 in. Product weight: 38.82 lbs.

Suggested Downrod by Ceiling Height

• 9 ft ceiling → 12 in downrod (included)
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

What’s Included

• Minka Aire Traditional Gyro F502L-BCW 42 in dual-head LED ceiling fan
• 1× 4W T5 Mini Candelabra E11 LED bulb
• WCS212 wall control
• 4.5 in downrod
• 12 in downrod
• Mounting hardware
