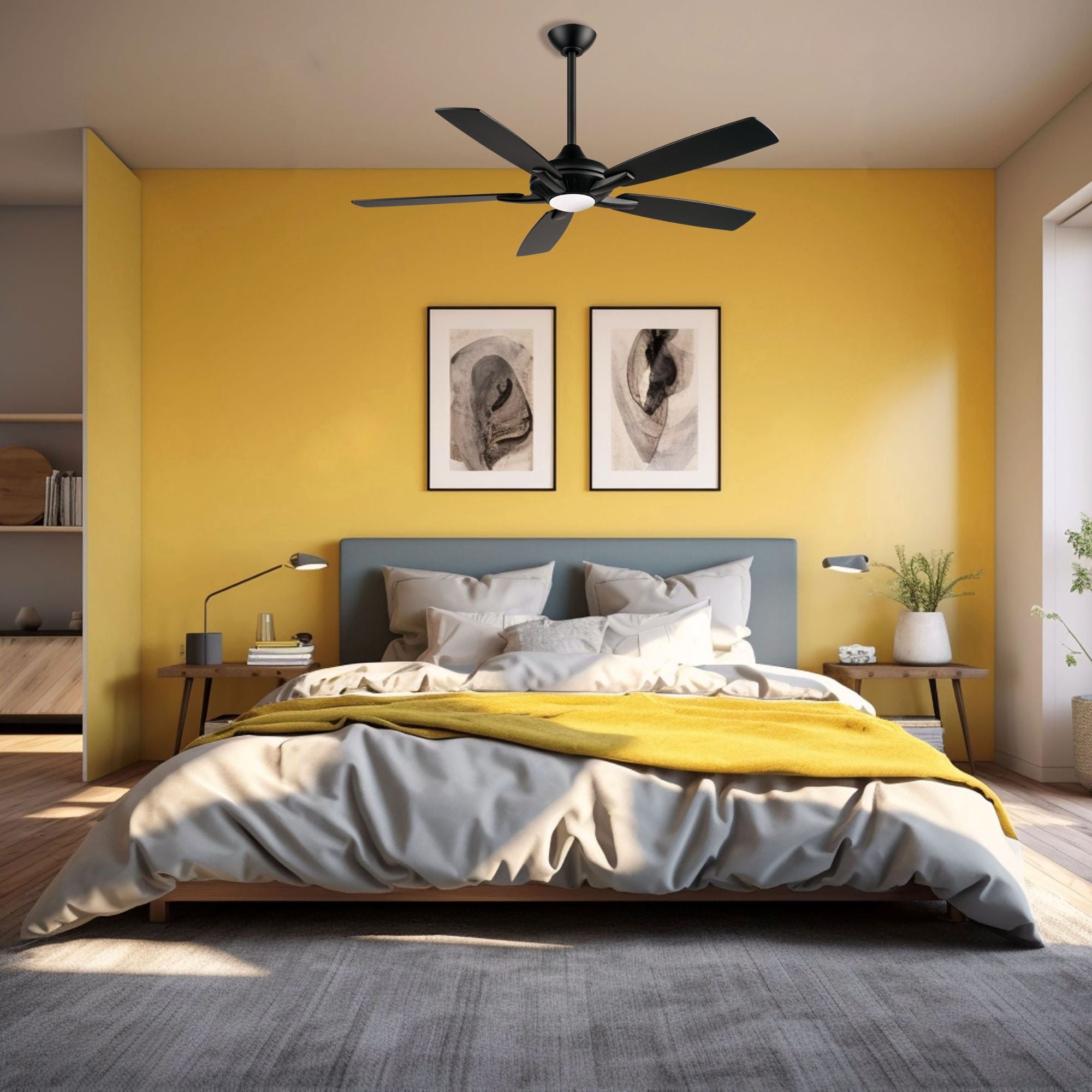

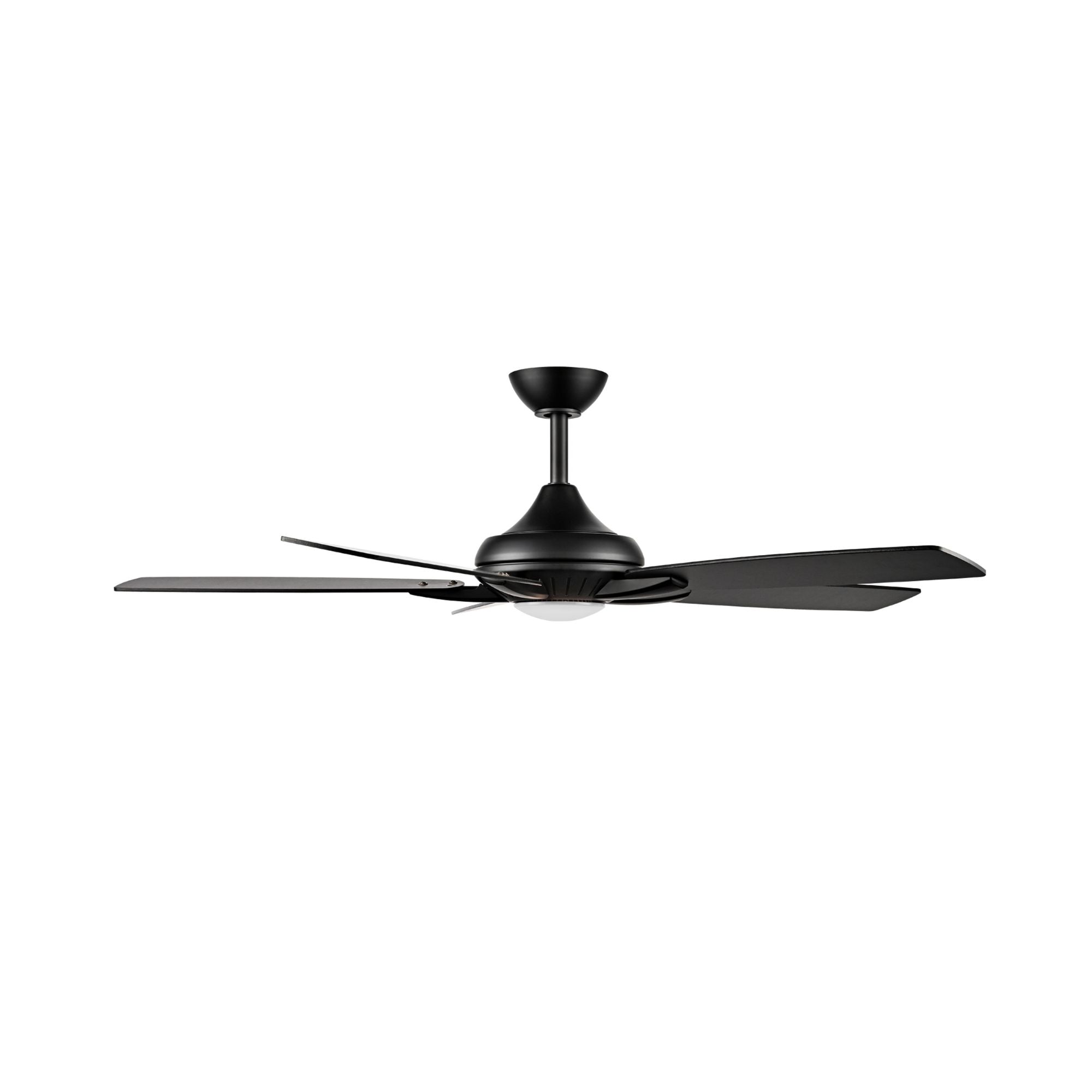

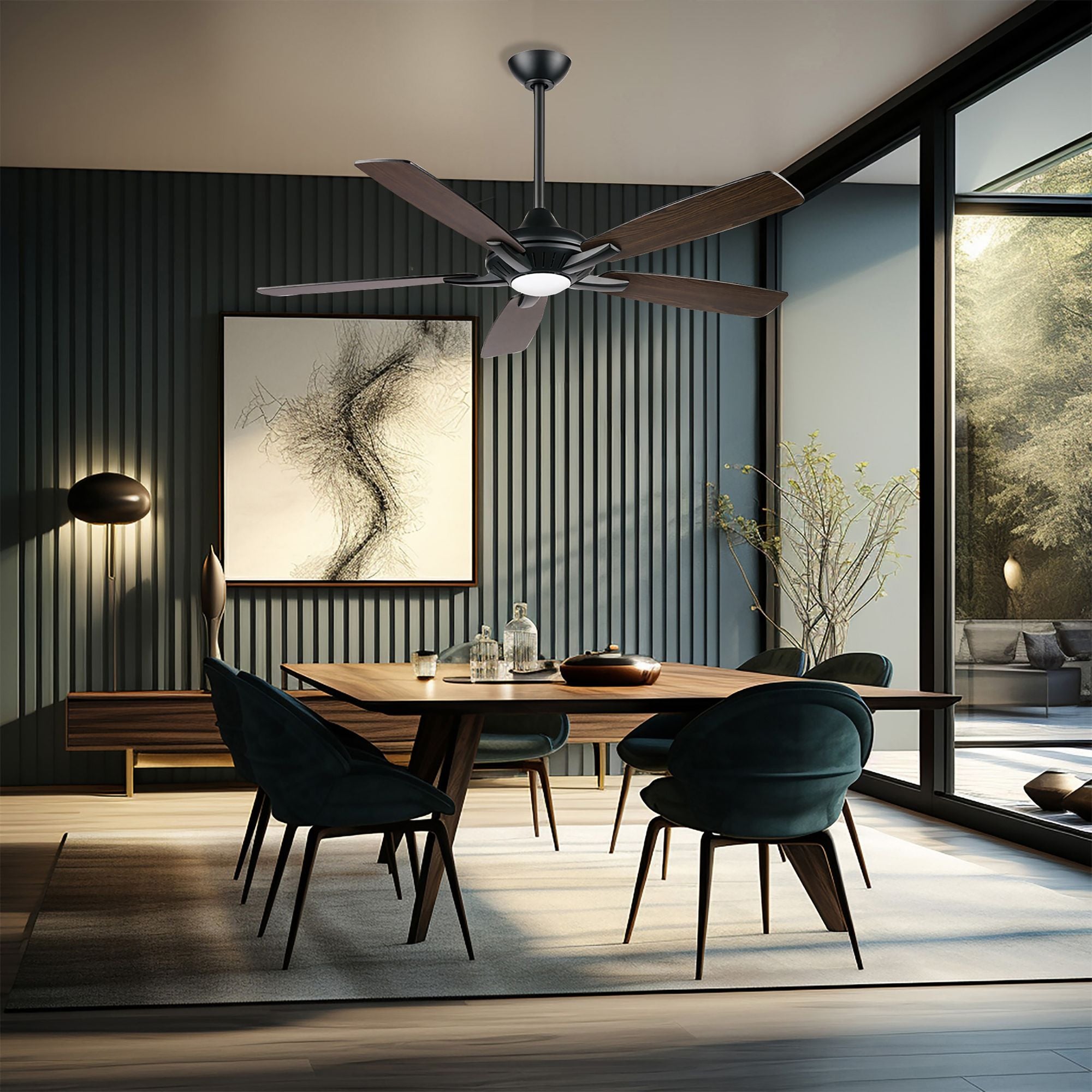

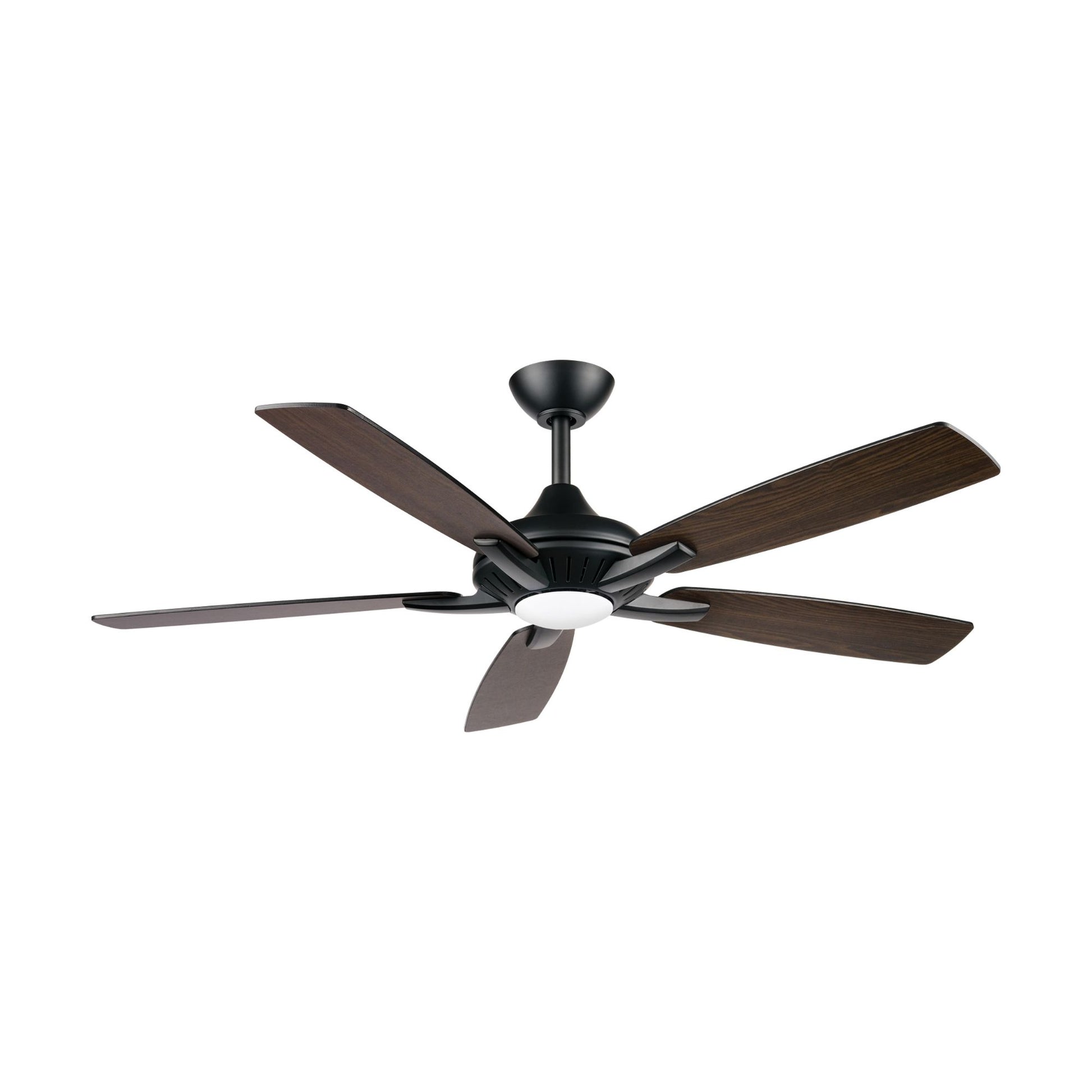

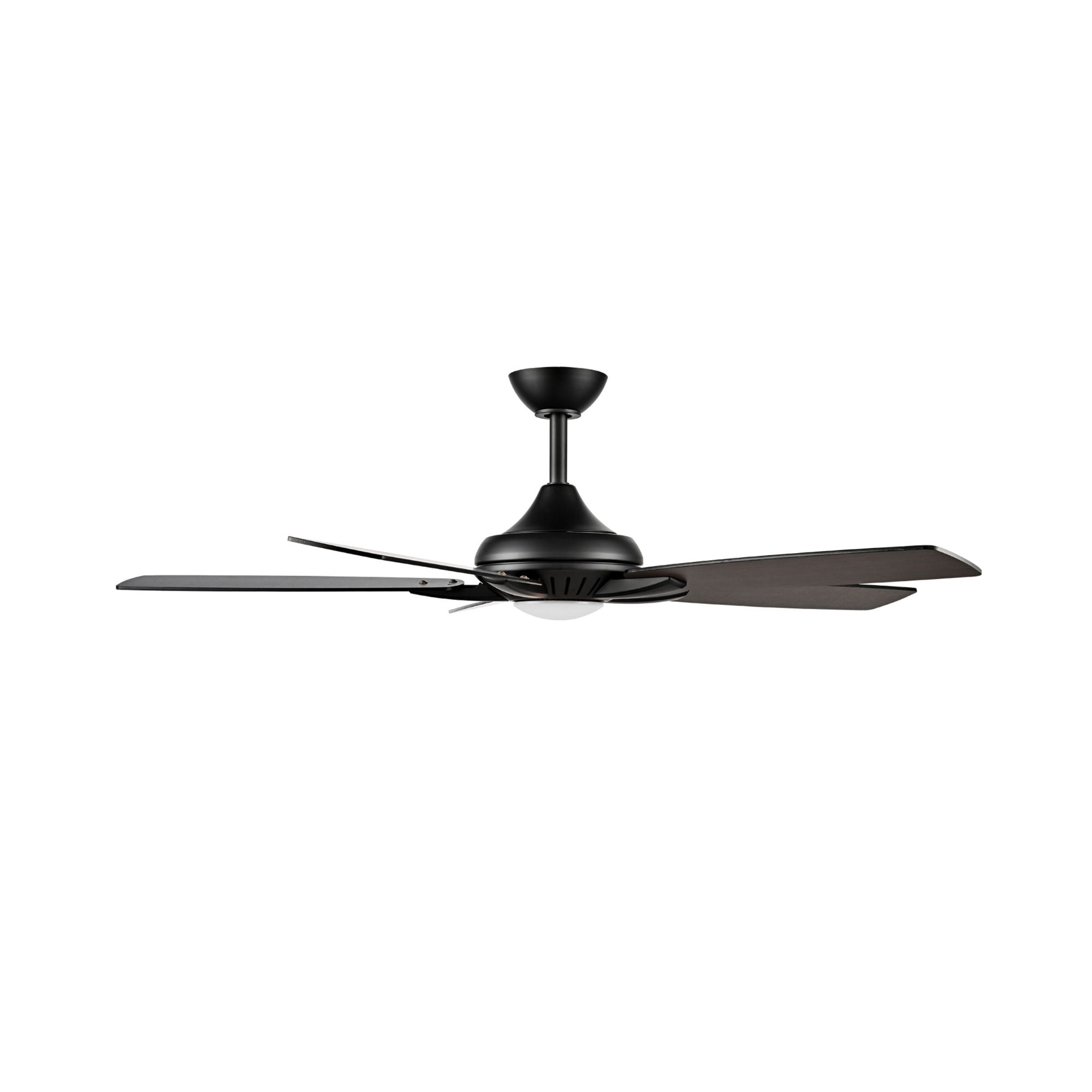

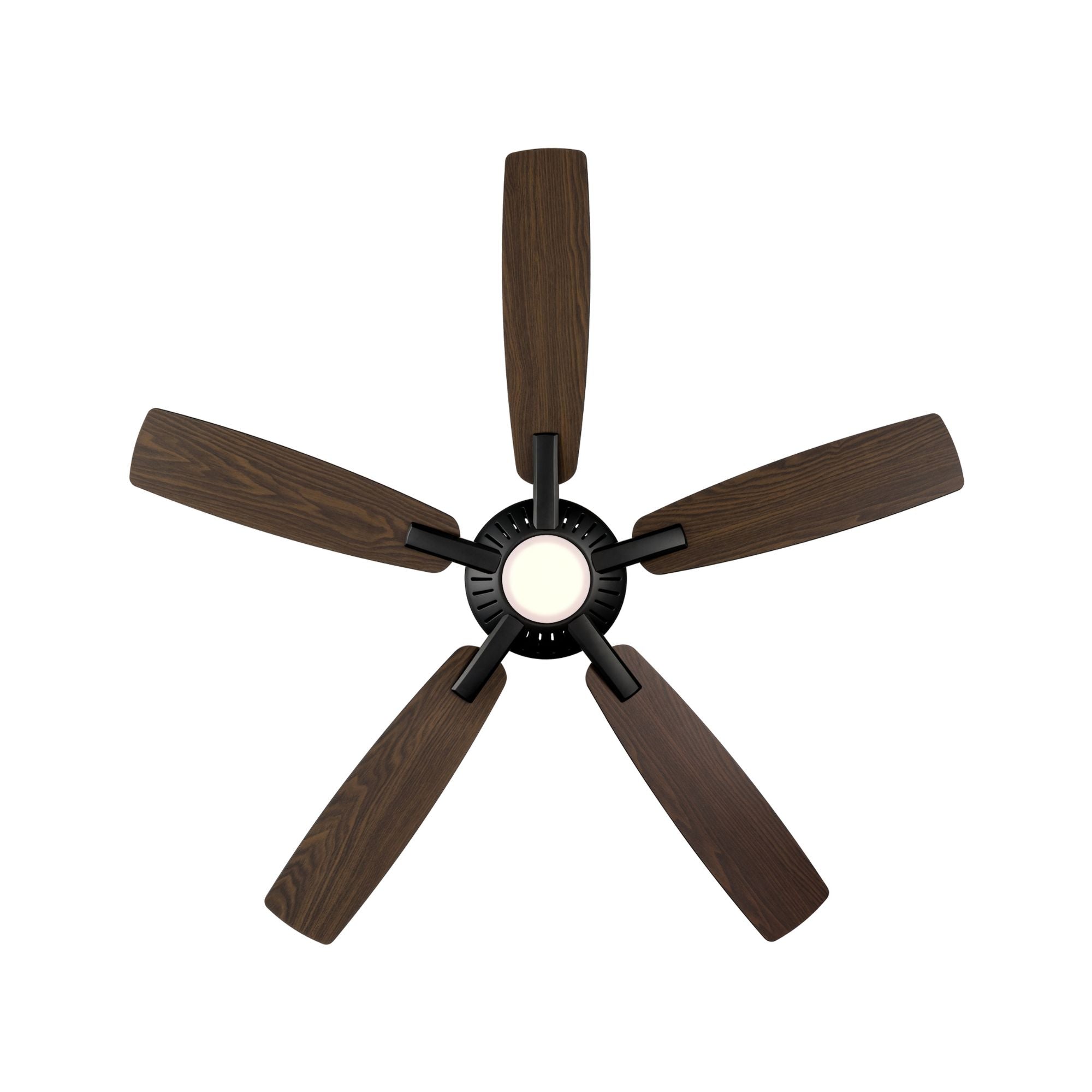

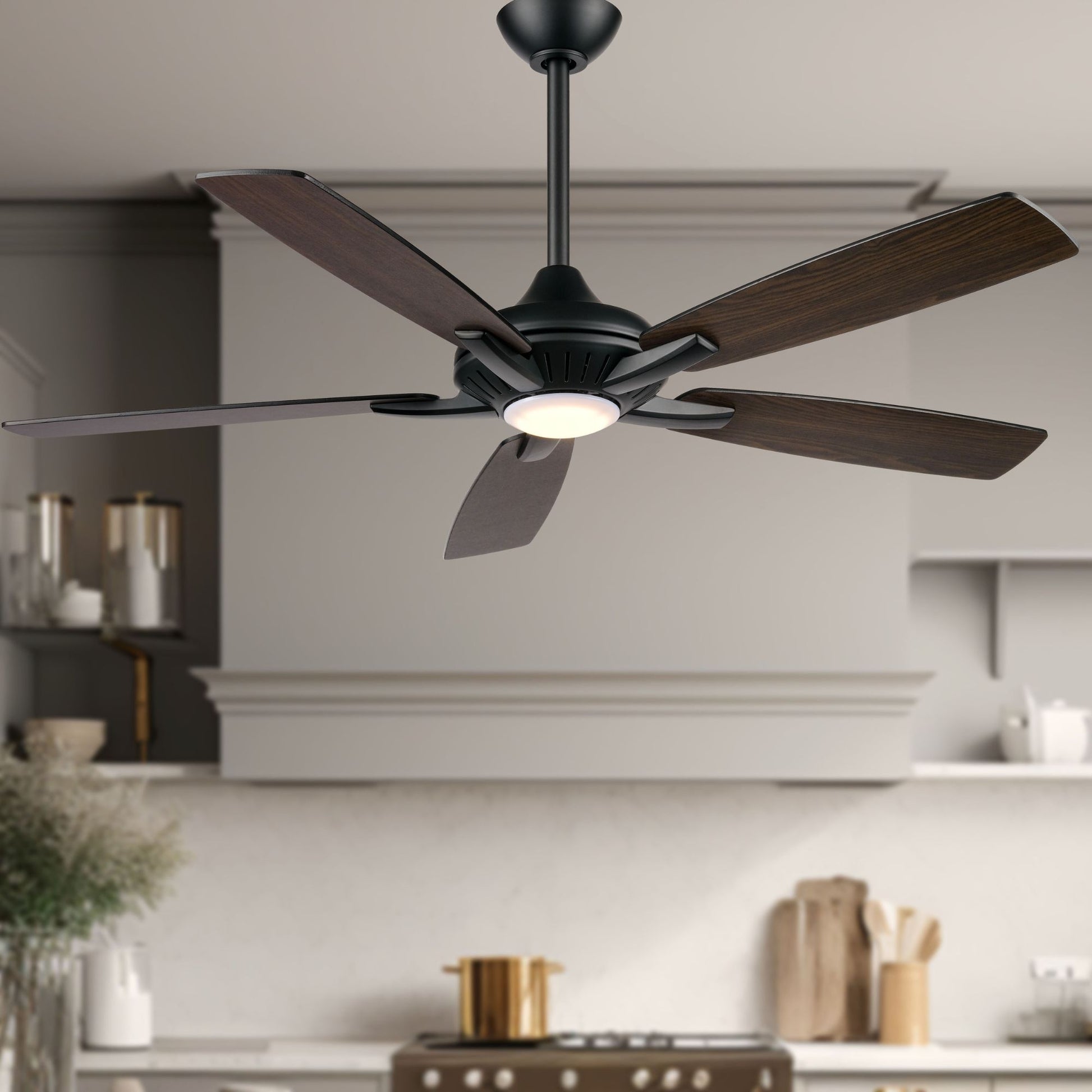

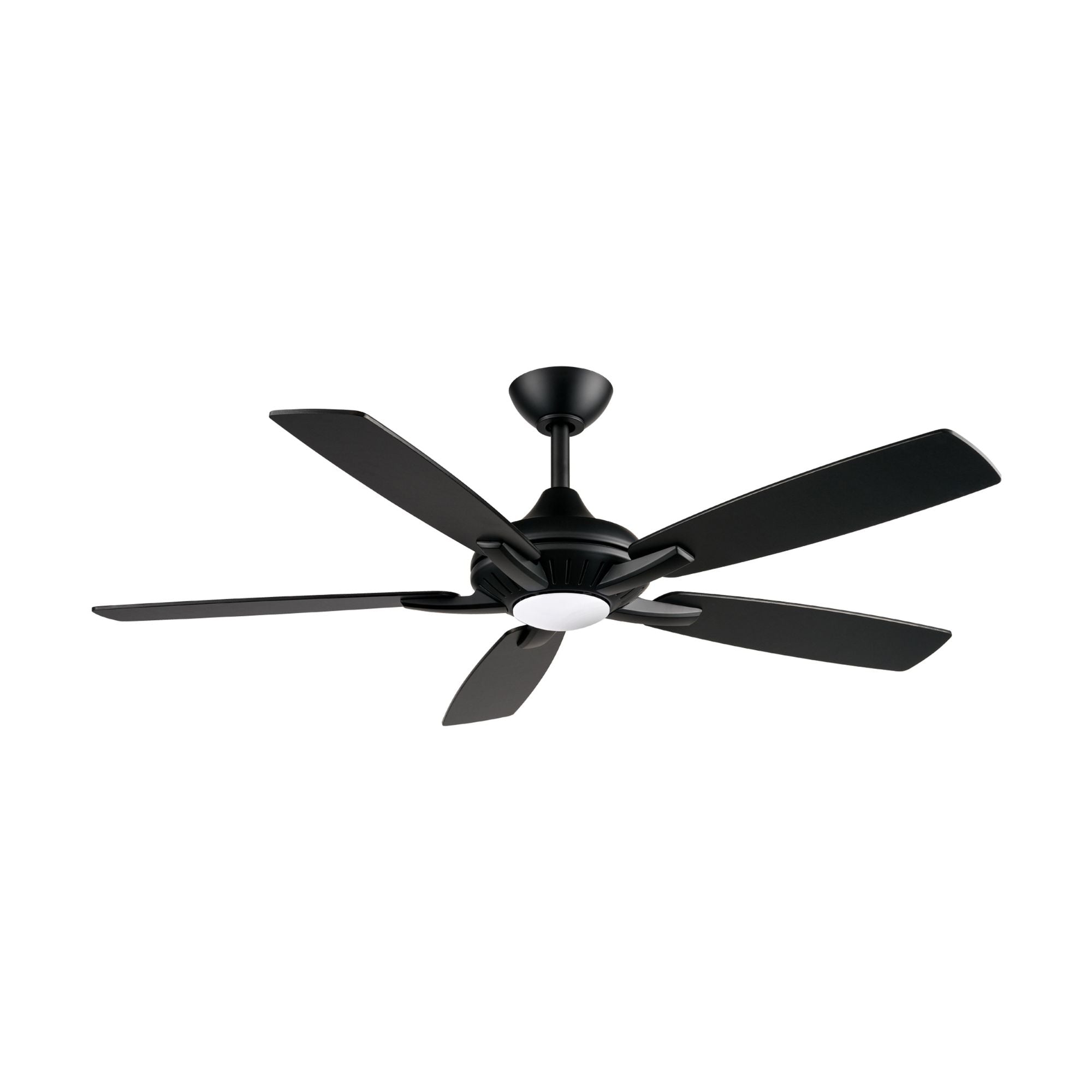

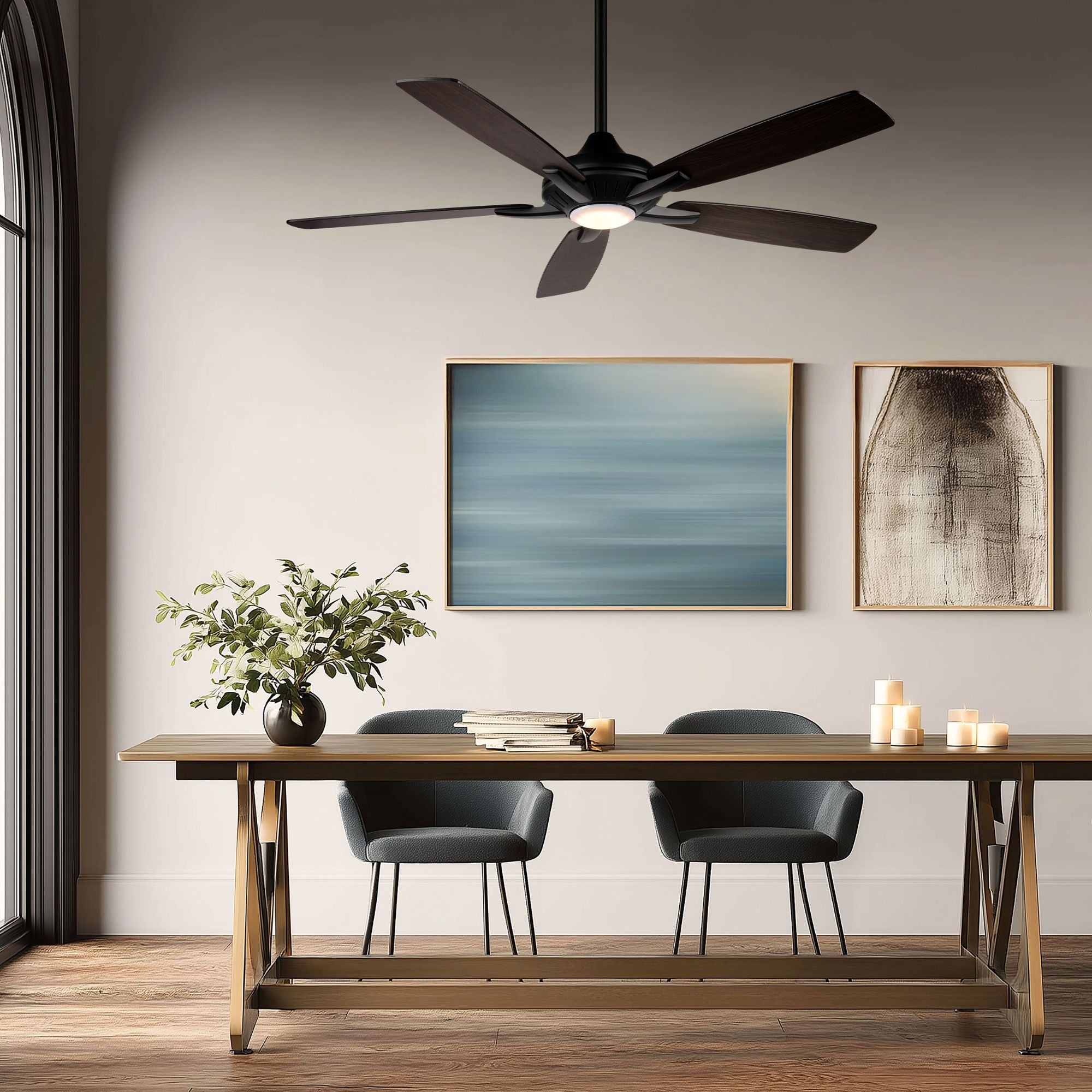

The Minka Aire Dyno F1000-CL/DTW is a 52 in dry-rated ceiling fan that delivers rich, two-tone drama to modern and industrial-leaning interiors. Five reversible plywood blades — Dark Textured Walnut on one side, Coal on the other — at 12° pitch are driven by a 153x17mm AC motor delivering 4,509 CFM at high speed at 69.58 CFM/W efficiency. An integrated 20W LED module produces 1,594 delivered lm at a warm 3000K with CRI 90, behind an etched polycarbonate lens. Dry rated and ETL listed, the Coal Black motor housing with reversible Dark Textured Walnut / Coal blades creates a versatile, high-contrast look suited to contemporary living rooms, dining rooms, and bedrooms. Includes RCS213-S remote and is compatible with the Bond Hub BD-1000 for smart home integration.

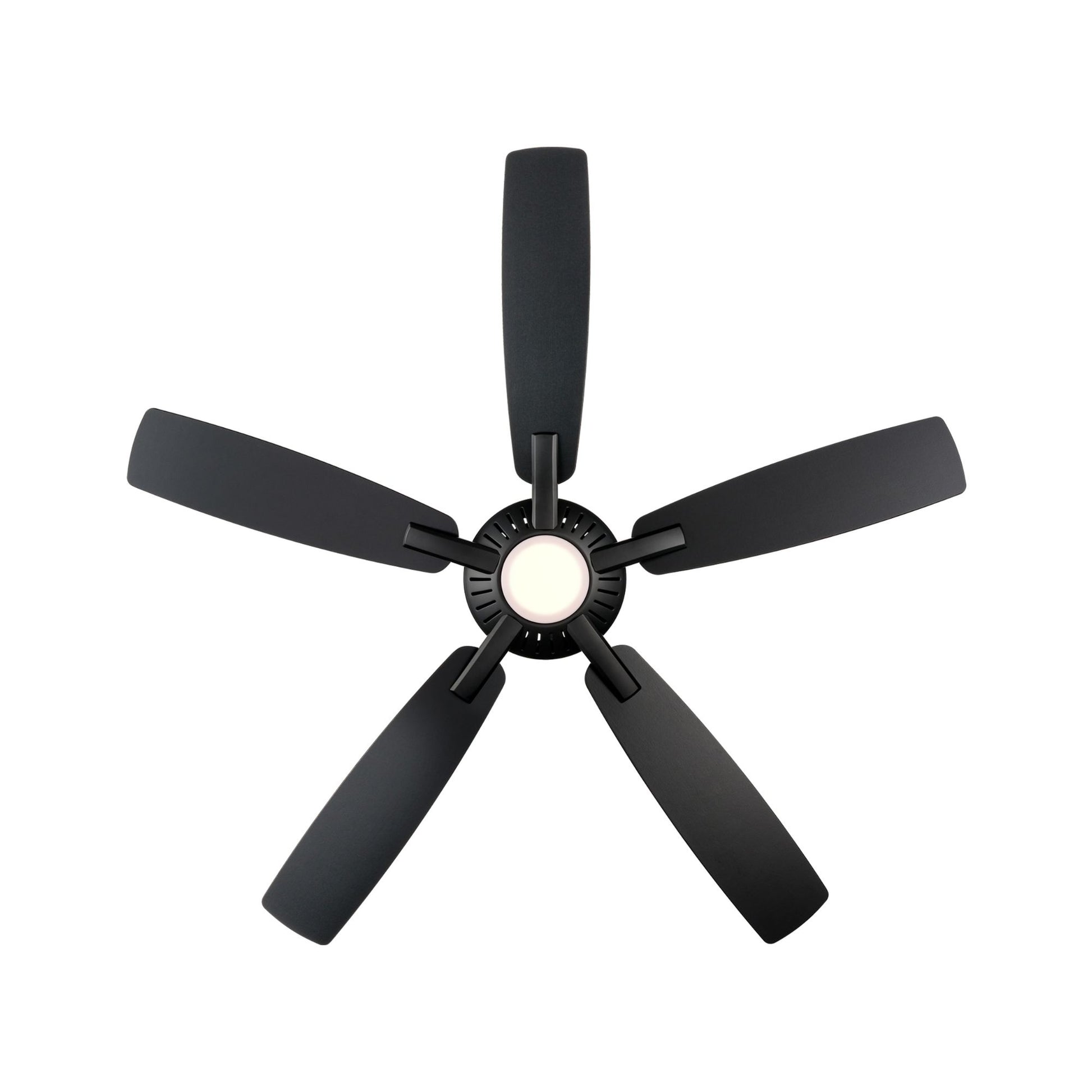

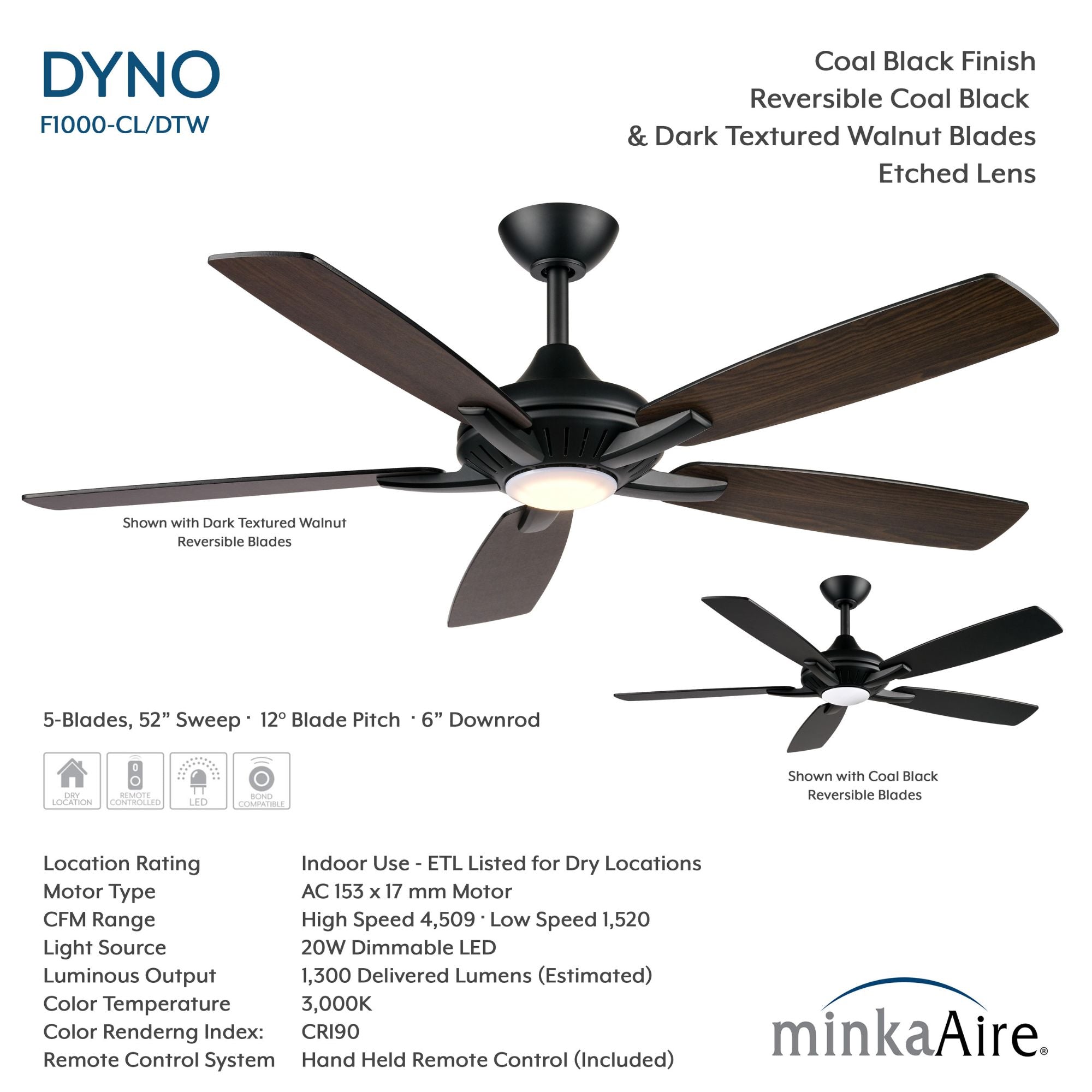

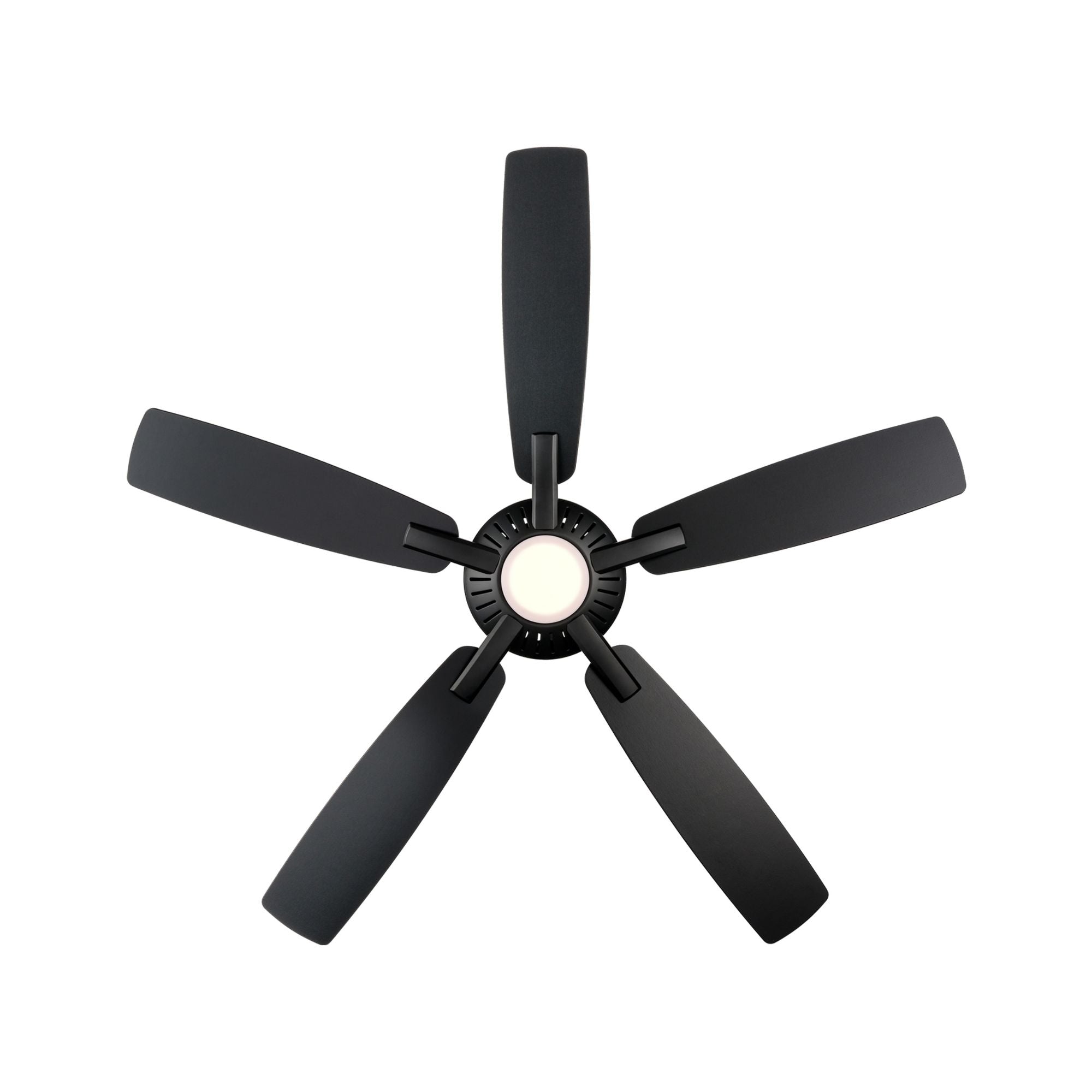

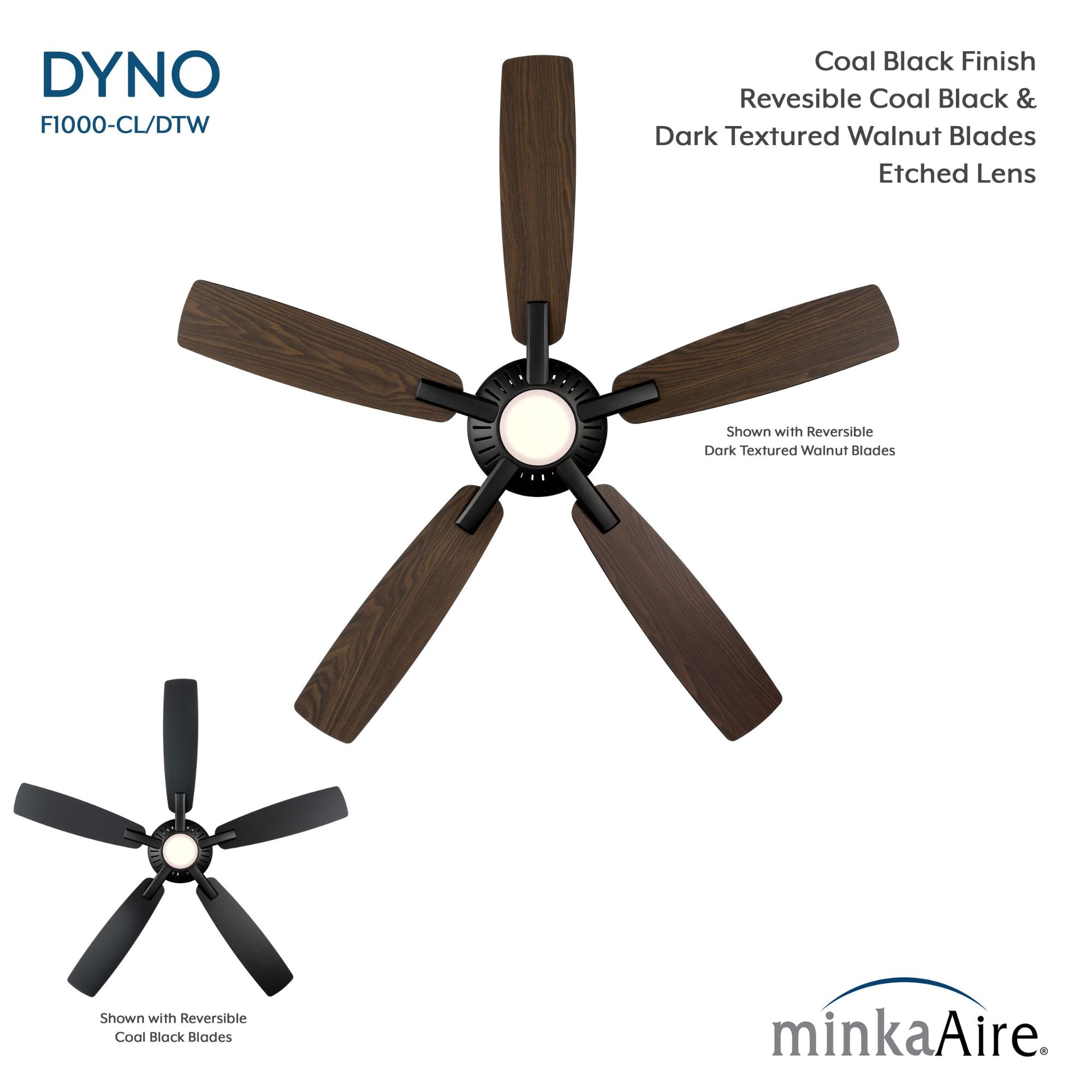

• Blade Span: 52 in, 5 reversible plywood blades, 12° pitch — Dark Textured Walnut / Coal
• Mount Type: Downrod — 6 in included (0.75 in OD), sloped ceiling compatible

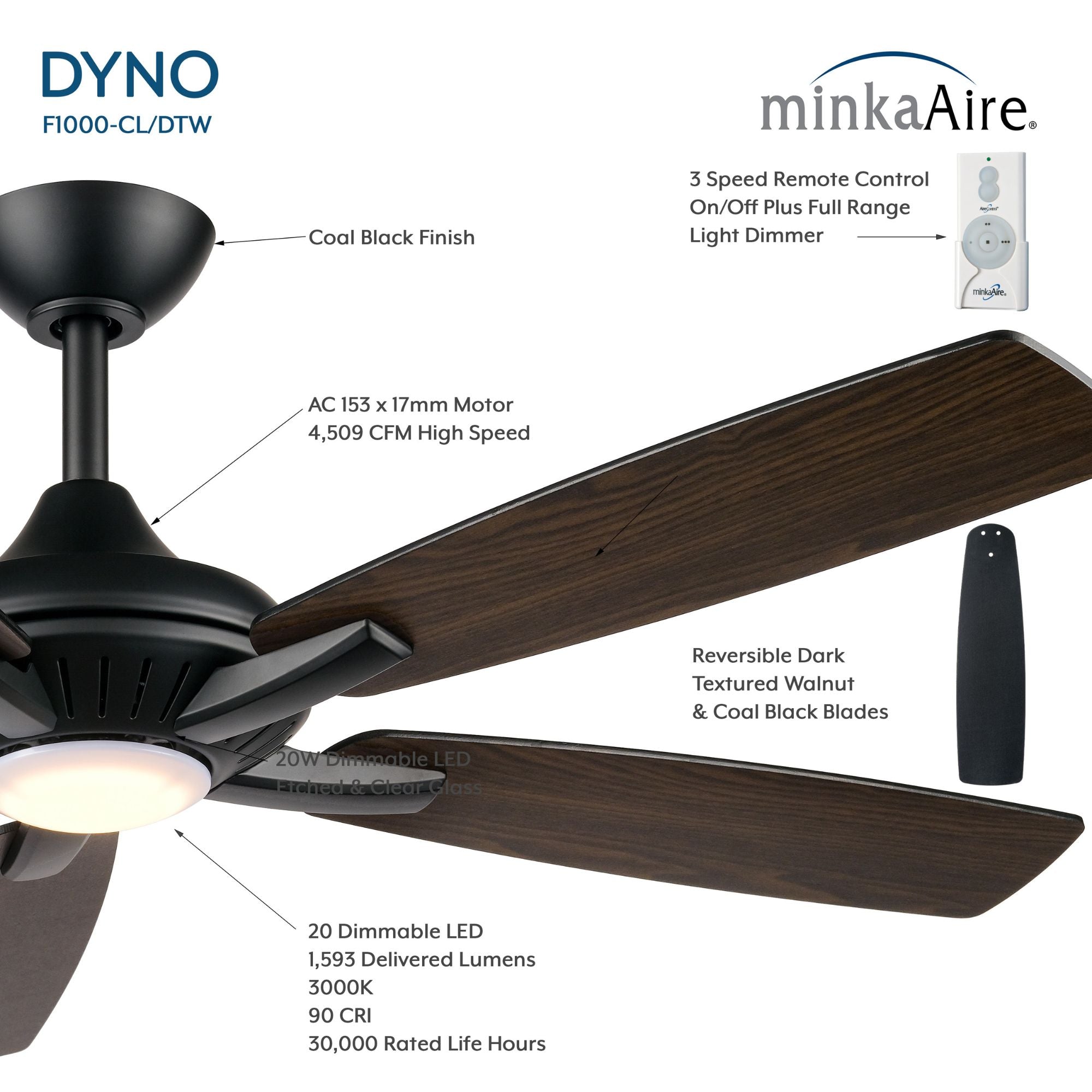

• Motor: 153x17mm AC, 3-speed, reversible (manual reverse switch) — Coal Black finish
• Airflow: 4,509 CFM high / 3,492 CFM med / 1,520 CFM low
• Efficiency: 69.58 CFM/W high / 114.12 CFM/W med / 144.21 CFM/W low
• Wattage: 64.8W high / 30.6W med / 10.54W low
• Light: 20W integrated LED, 1,594 delivered lm, CRI 90, 3000K fixed, dimmable, 30,000 hr rated life — etched polycarbonate lens
• Location: Dry rated — ETL listed, Title 17 compliant, Lifetime warranty
• Weight: 15.43 lbs

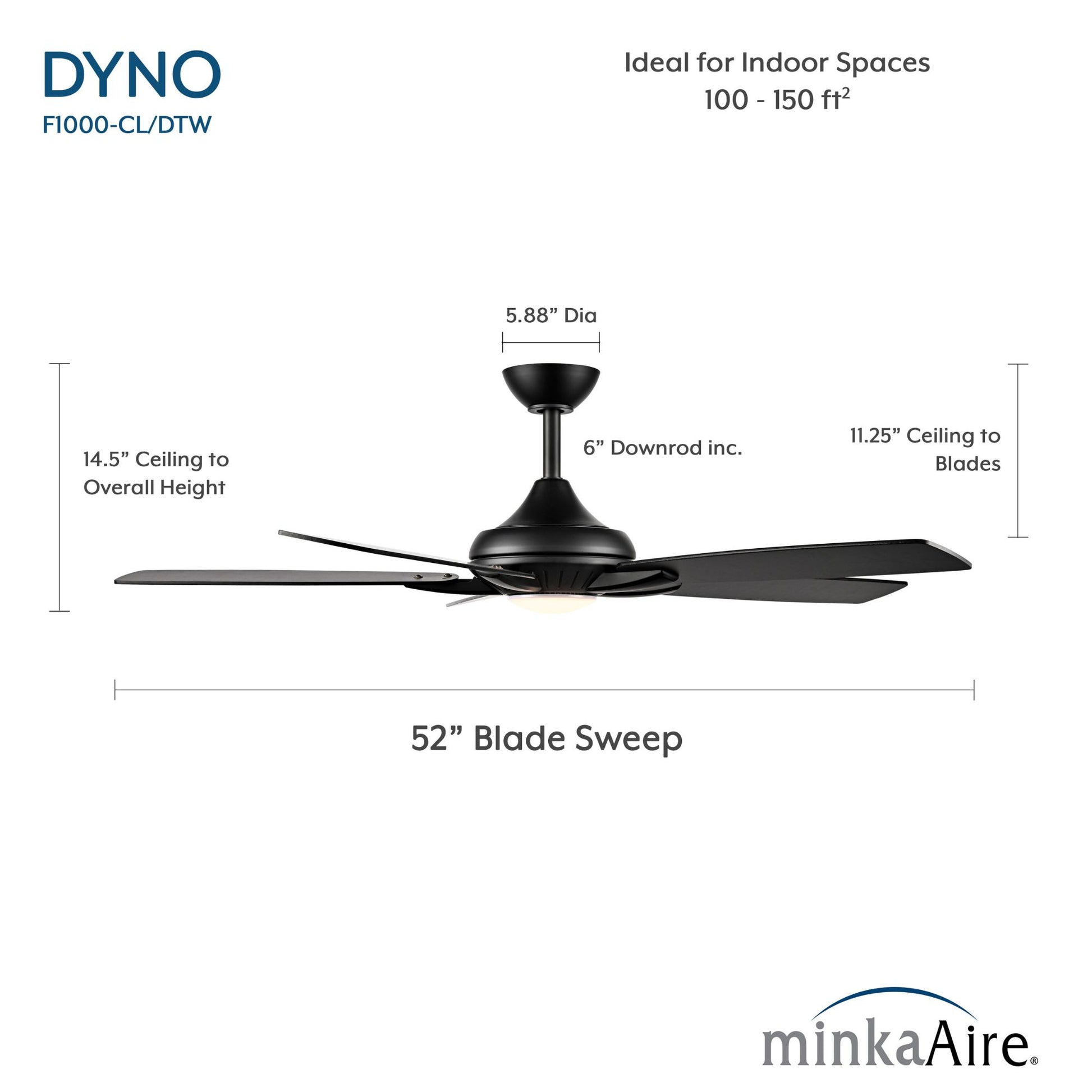

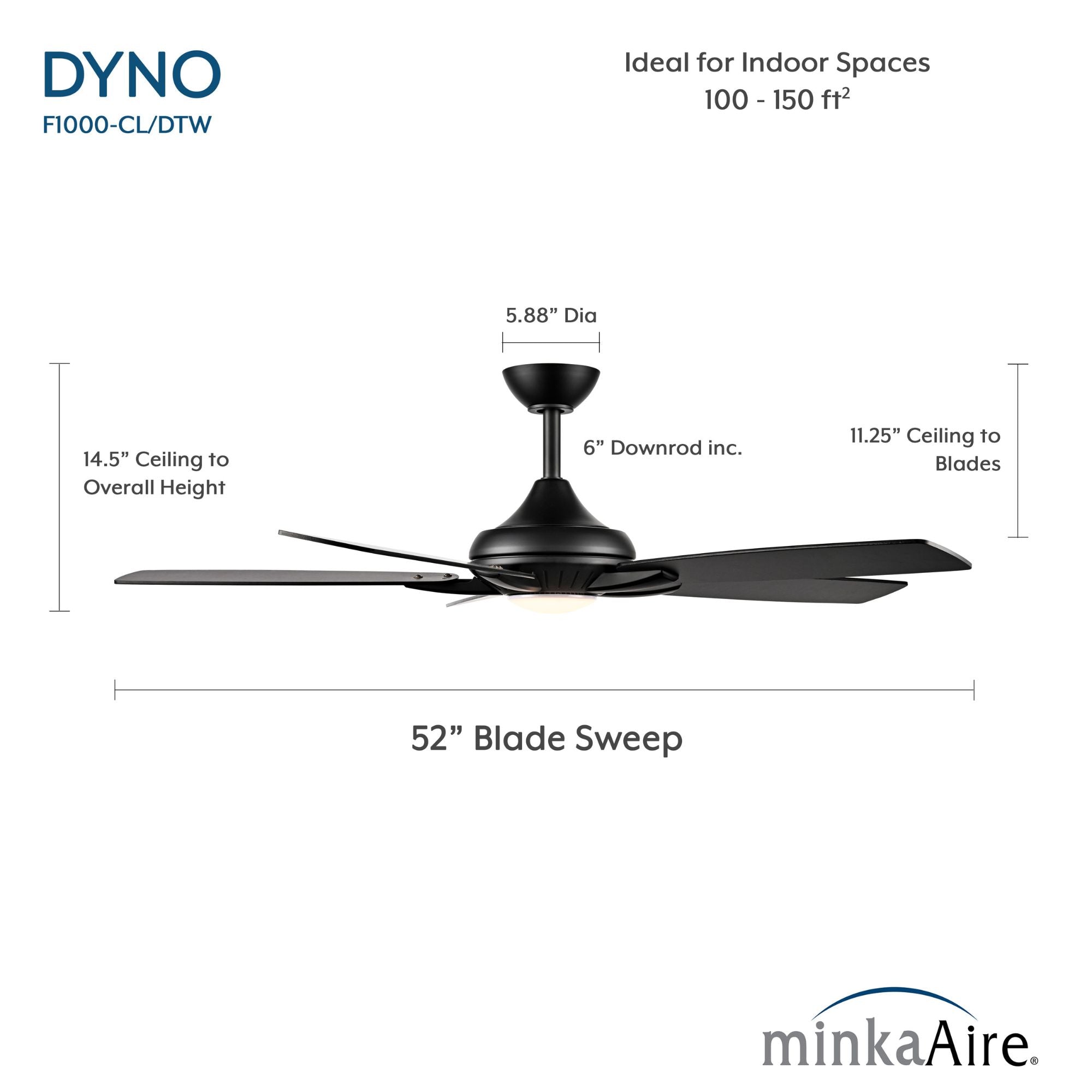

• Ceiling to blade: 11.3 in / Overall height: 14.5 in

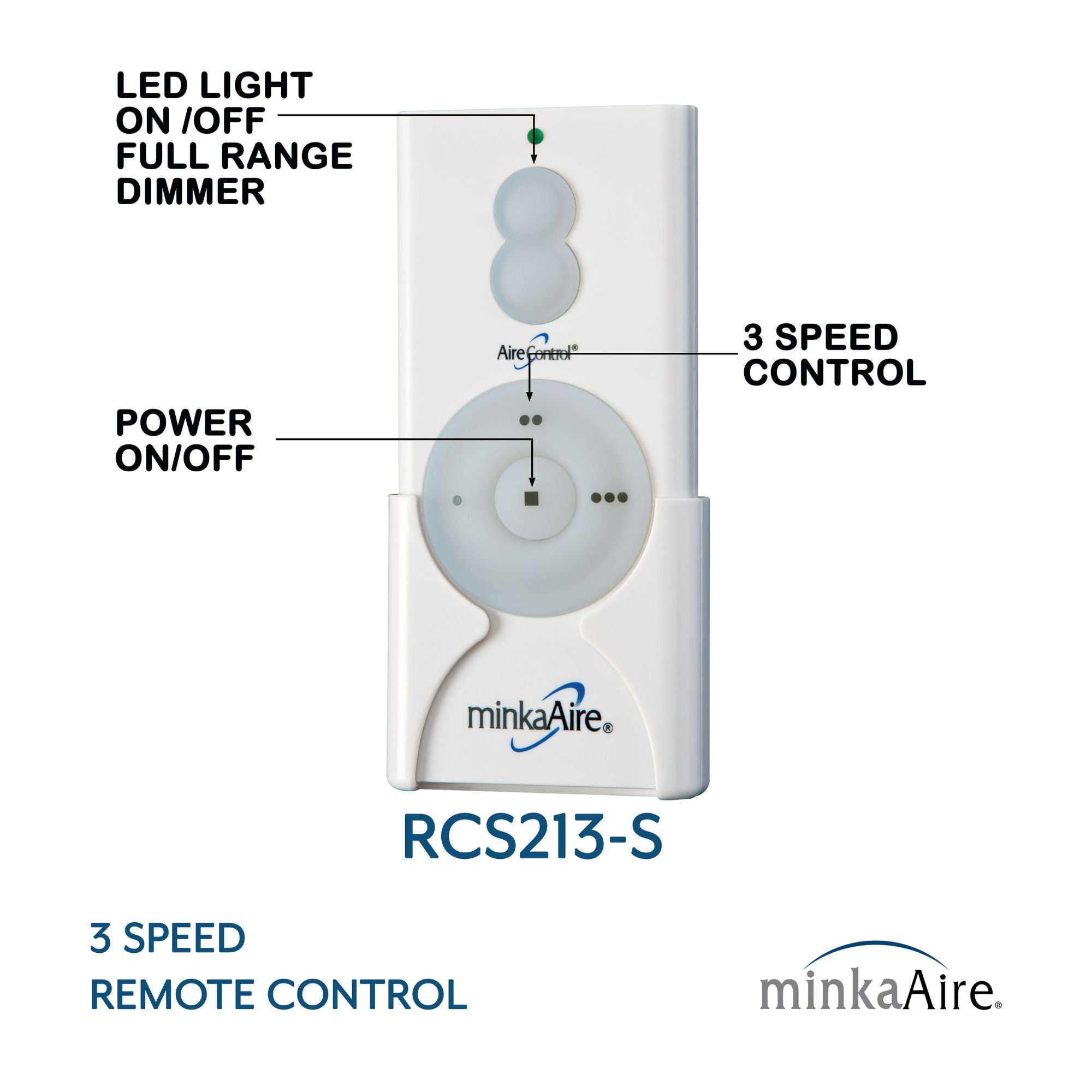

The F1000-CL/DTW includes the RCS213-S remote control — 3-speed fan control, on/off plus full-range light dimmer. Compatible wall control: WCS213-S (sold separately). Compatible with the Bond Hub BD-1000 for smart home and voice assistant integration via the Bond app — Bond Hub sold separately.

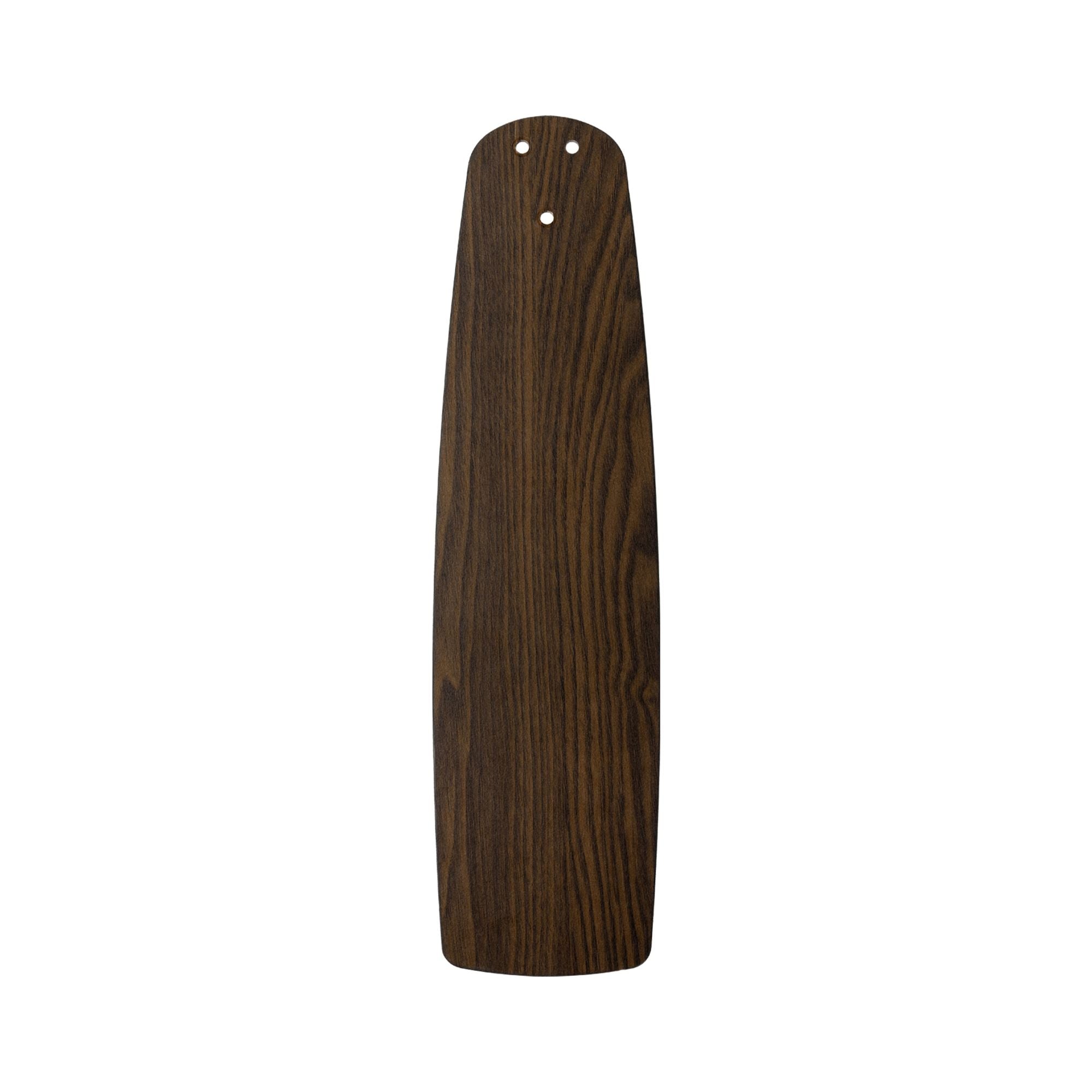

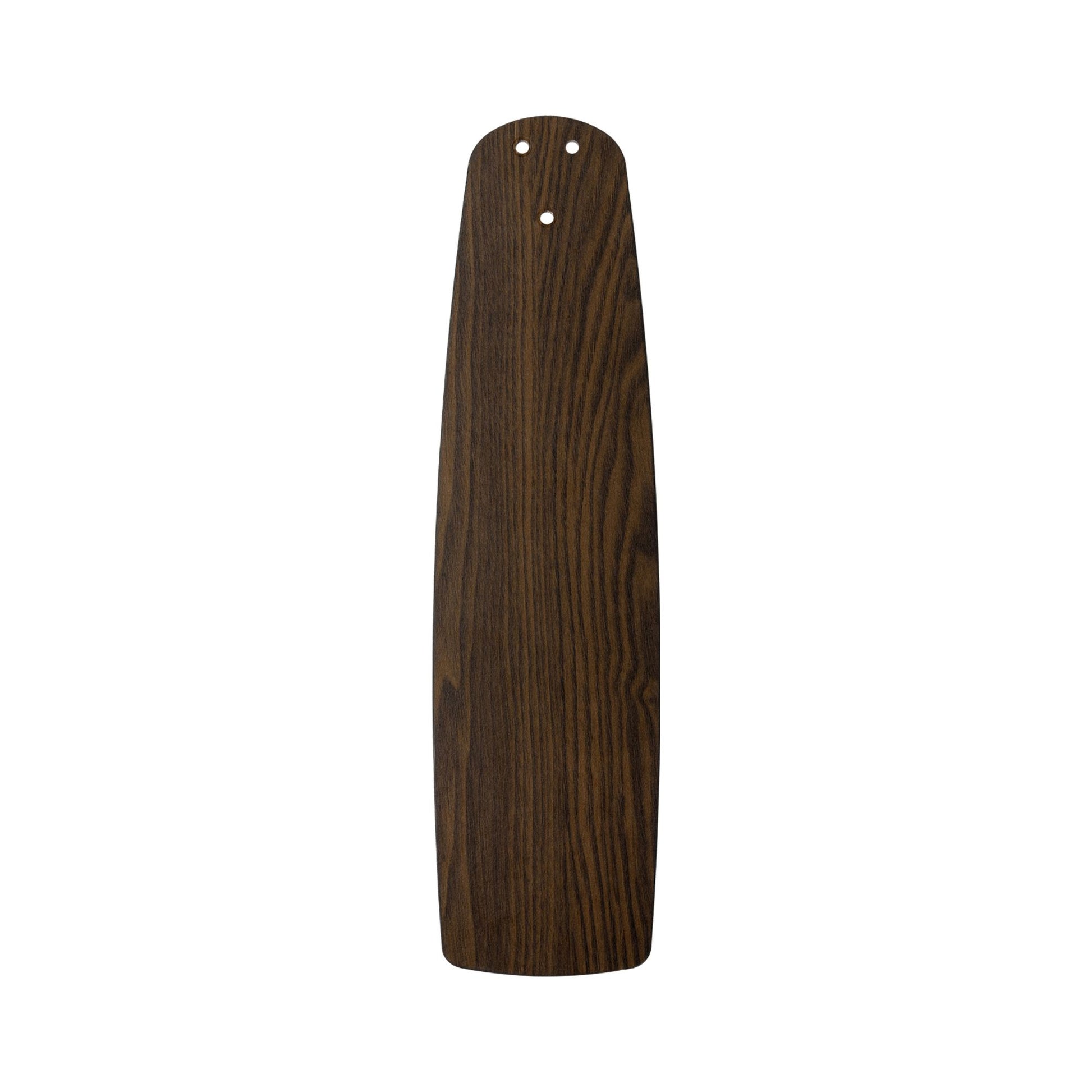

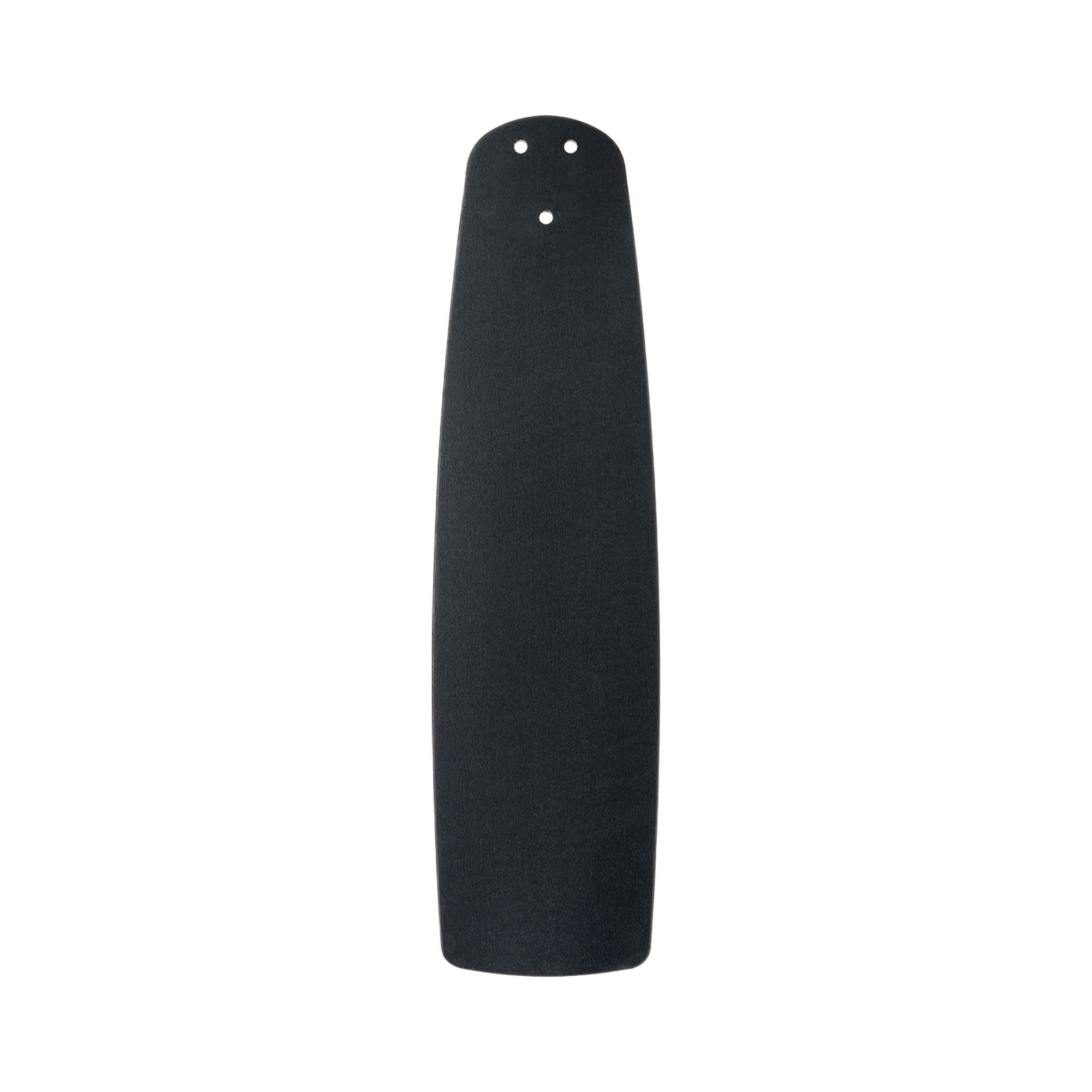

Coal Black motor housing with 5 reversible plywood blades (Dark Textured Walnut / Coal), 12° pitch, paper overlay finish. Integrated 20W LED module with etched polycarbonate lens. Downrod: 6 in included (0.75 in OD). Sloped ceiling compatible — Minka Aire 45° Sloped Ceiling Adapter A245 available separately. Cord/wire: 80 in. ETL listed. Title 17 compliant. Lifetime warranty.

20W integrated LED, 2,212.9 initial lumens / 1,593.65 delivered lumens, CRI 90, 3000K fixed, dimmable, 30,000 hr rated life. Etched polycarbonate lens. Fan: 4,509 CFM high at 69.58 CFM/W.

153x17mm AC motor, 120V, 3-speed. Dry rated — ETL listed, Title 17 compliant. Downrod: 6 in included (0.75 in OD). Cord/wire: 80 in. Sloped ceiling compatible — Minka Aire 45° Sloped Ceiling Adapter A245 available separately. Overall height: 14.5 in. Ceiling to blade: 11.3 in. Weight: 15.43 lbs. Lifetime warranty.

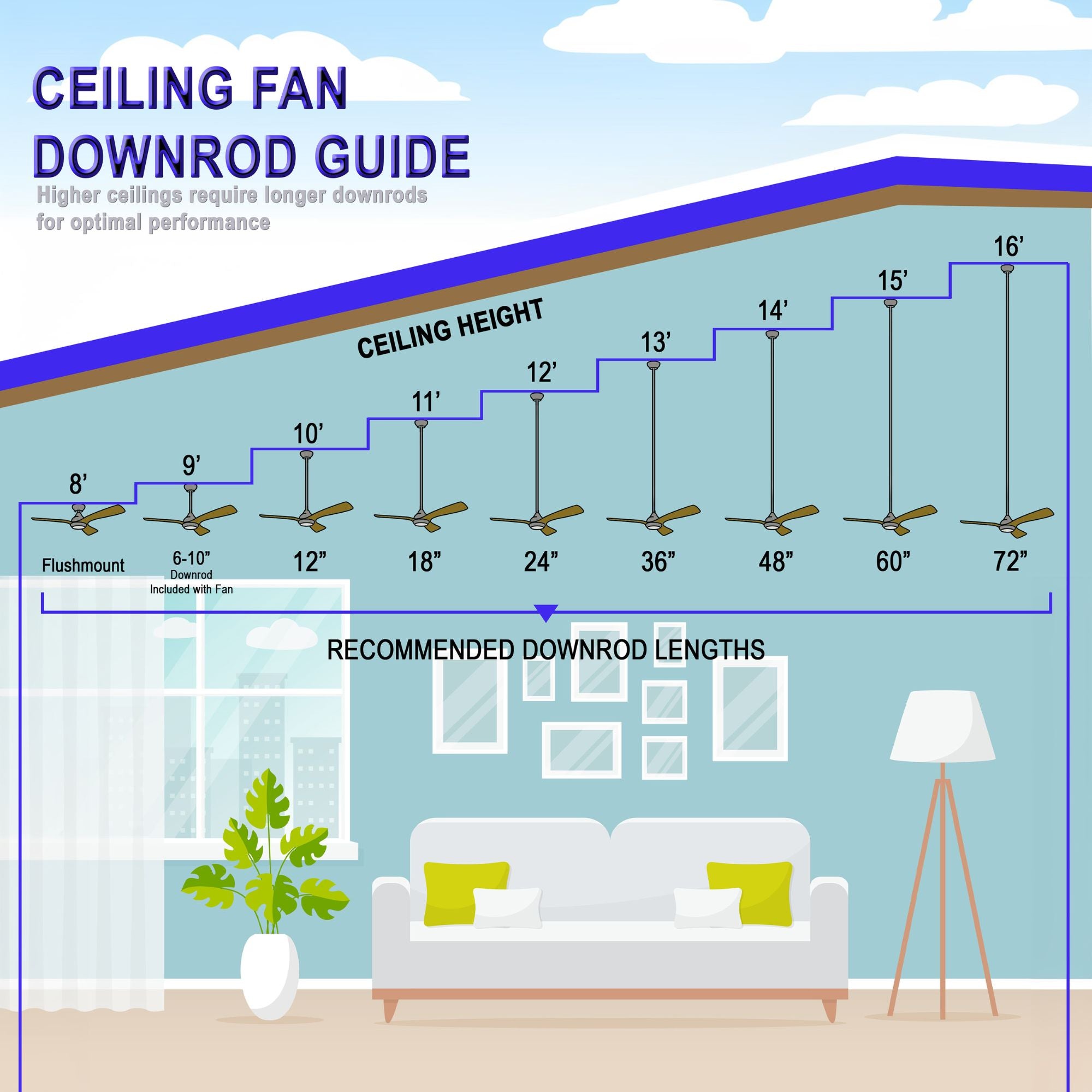

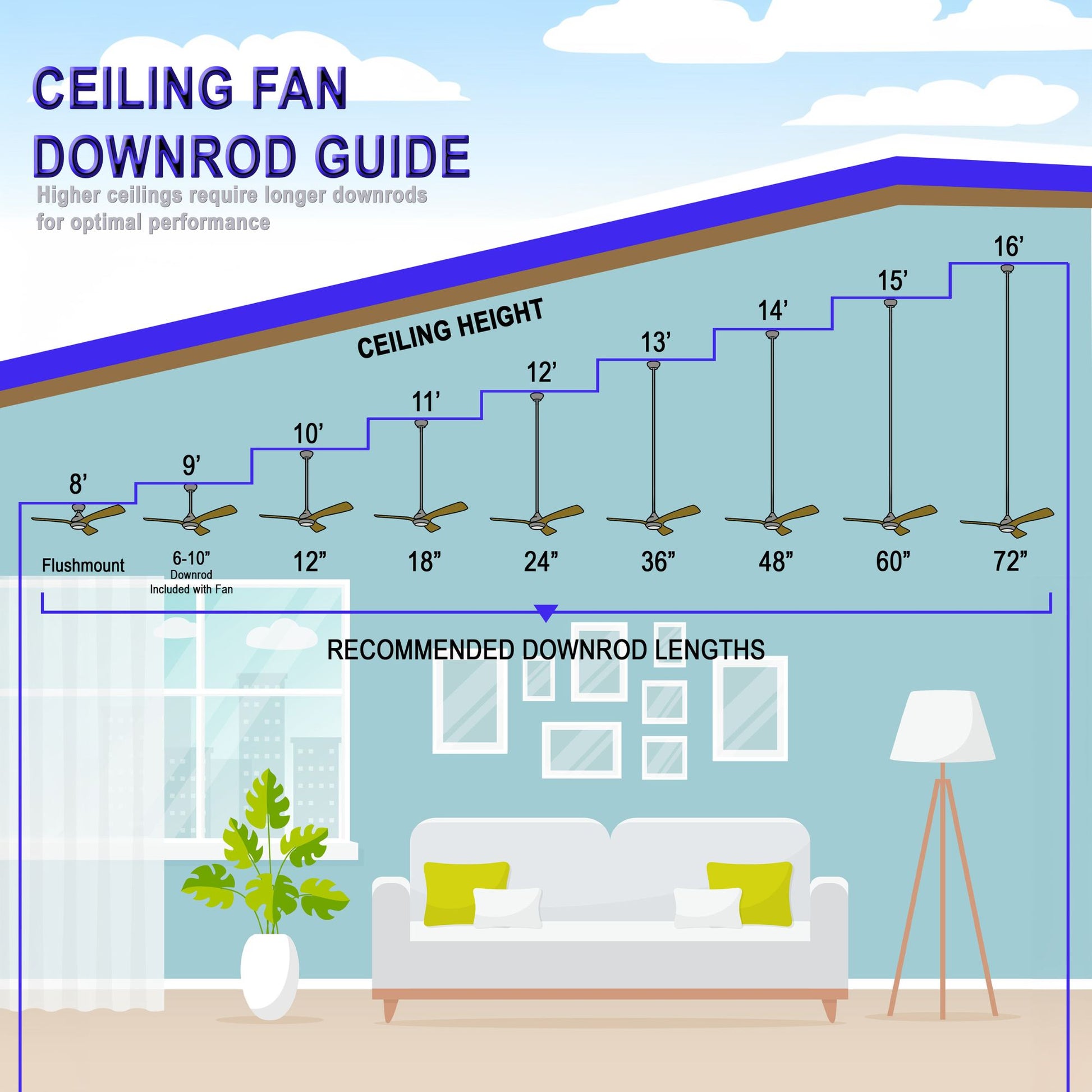

Ships with 6 in downrod. Maintain 7 ft minimum floor-to-blade clearance. Additional Minka Aire downrods available separately.

• 9 ft → 12 in
• 10 ft → 18 in
• 12 ft → 24 in
• 14 ft → 36 in
• 16 ft → 48 in
• 18 ft → 60 in
• 20 ft → 72 in

• Minka Aire Dyno 52 in ceiling fan (motor + 5 reversible Dark Textured Walnut / Coal plywood blades)
• Integrated 20W LED light module (etched polycarbonate lens)
• RCS213-S remote control
• 6 in downrod (0.75 in OD)
• Mounting hardware
