Maxim Lighting CounterMax 5K 24" Undercabinet 5K W 3 Prong, Bronze, 5CCT 2700K–5000K, 1150 Lumens, 120V, 2 Outlets, 15A
Available in stock (74)
About this item
About this item
- Two-Foot Task Light: The 24-inch Bronze fixture delivers 1150 lumens from a 13W integrated LED for preparation counters and work surfaces.

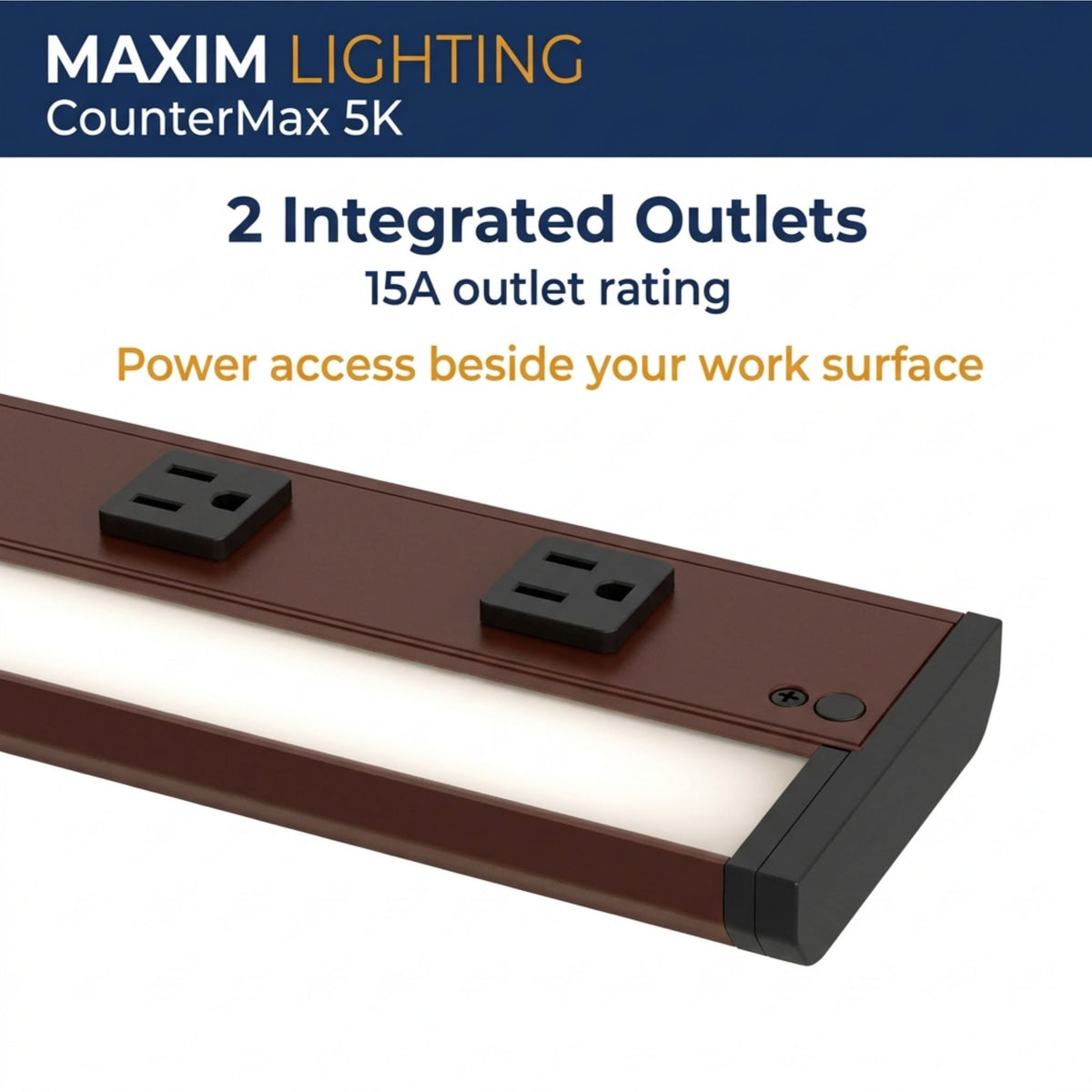

- Outlet Access: Two integrated outlets with a 15A rating provide nearby power independently of the stated 13W LED consumption.
- CCT Coordination: Settings at 2700K, 3000K, 3500K, 4000K and 5000K let the installer align task-light color with adjacent fixtures.
- Dimming & Aiming: TRIAC/ELV dimming and 120° light-bar rotation adjust brightness and direction to the task.

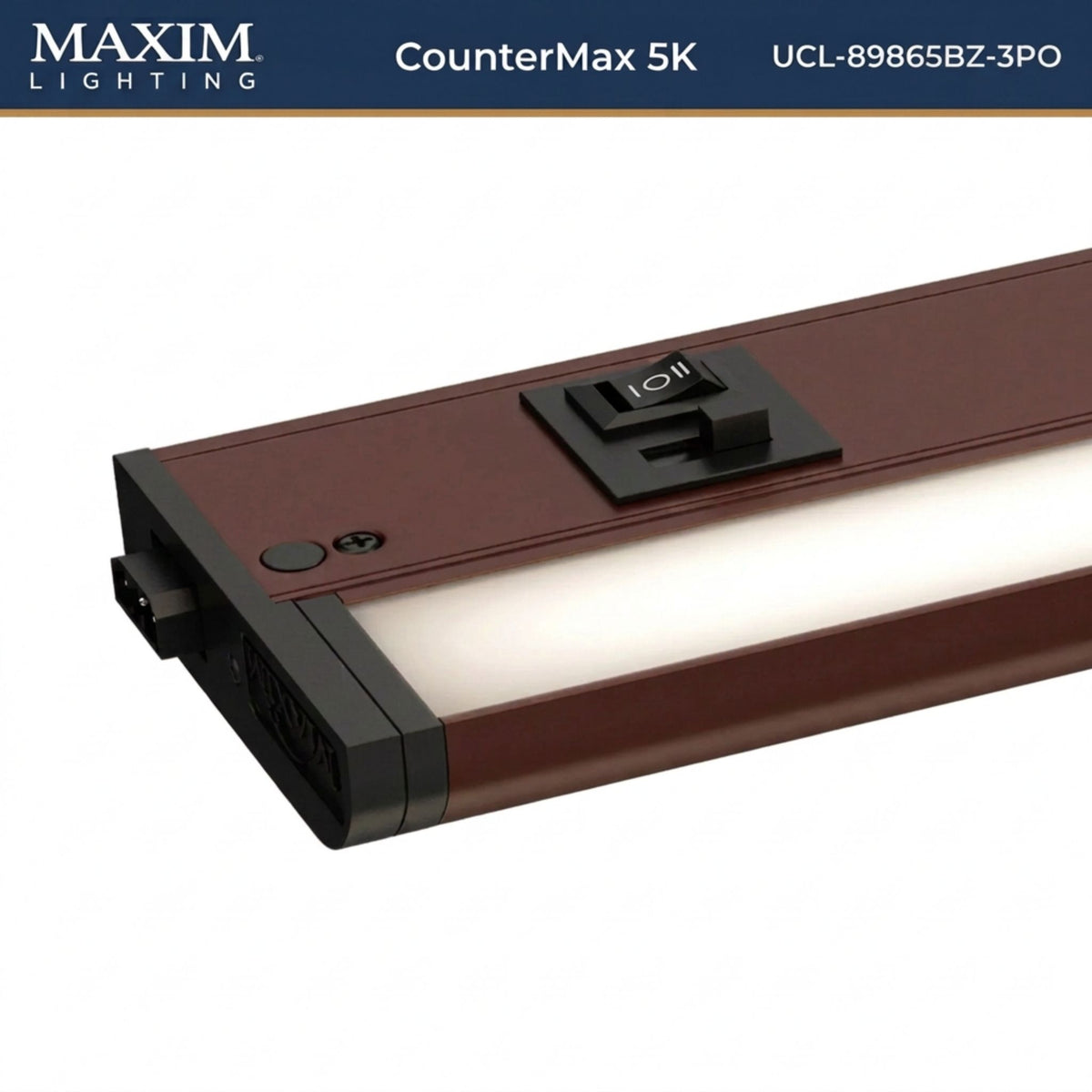

- Linked Installation: Back/bottom 3/8-inch knockouts provide wiring access, while end-to-end or MX interlink-cord connections support up to 750W from one supply.
Description
Description

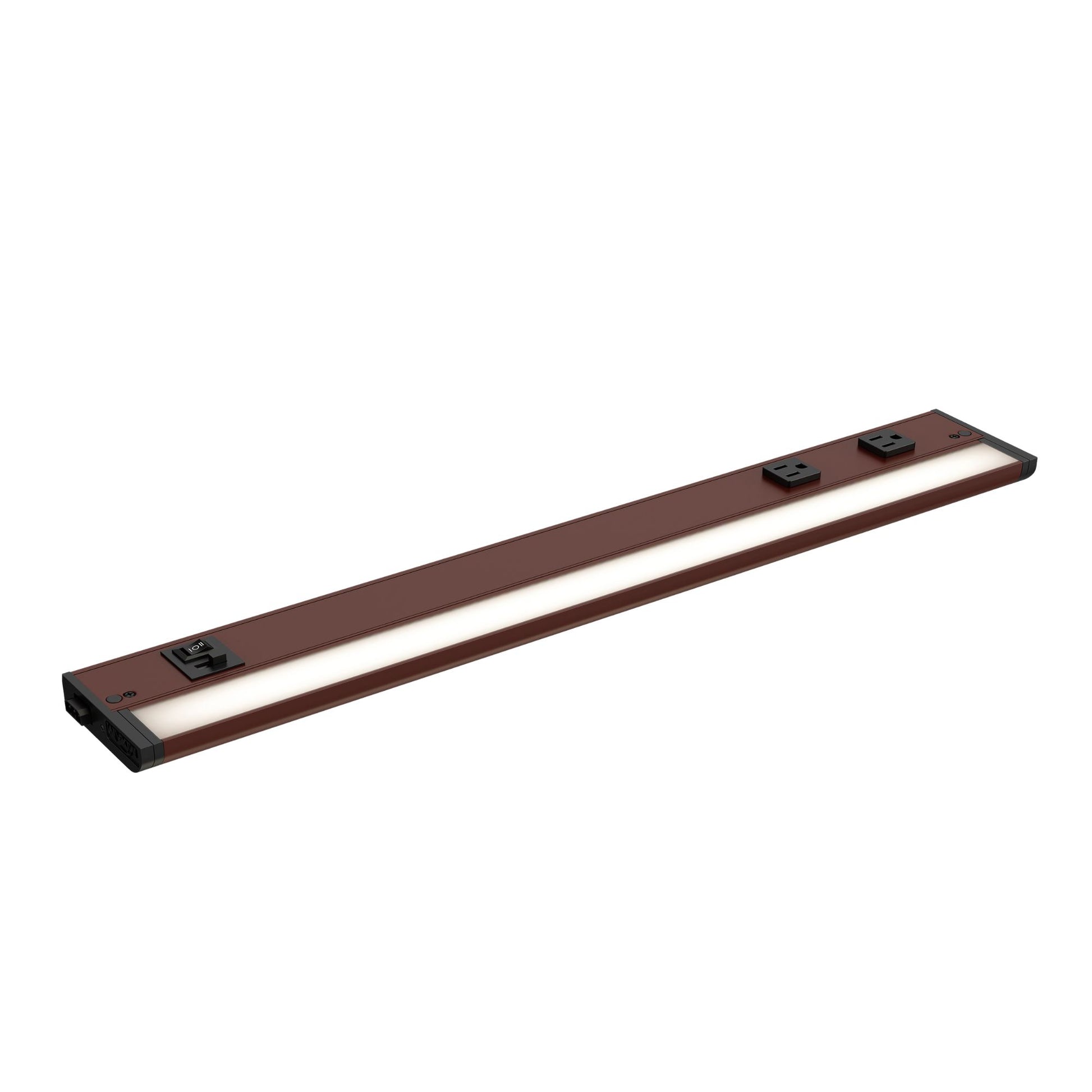

Maxim Lighting CounterMax 5K Undercabinet 5K W 3 Prong — Bronze & Adjustable Illumination

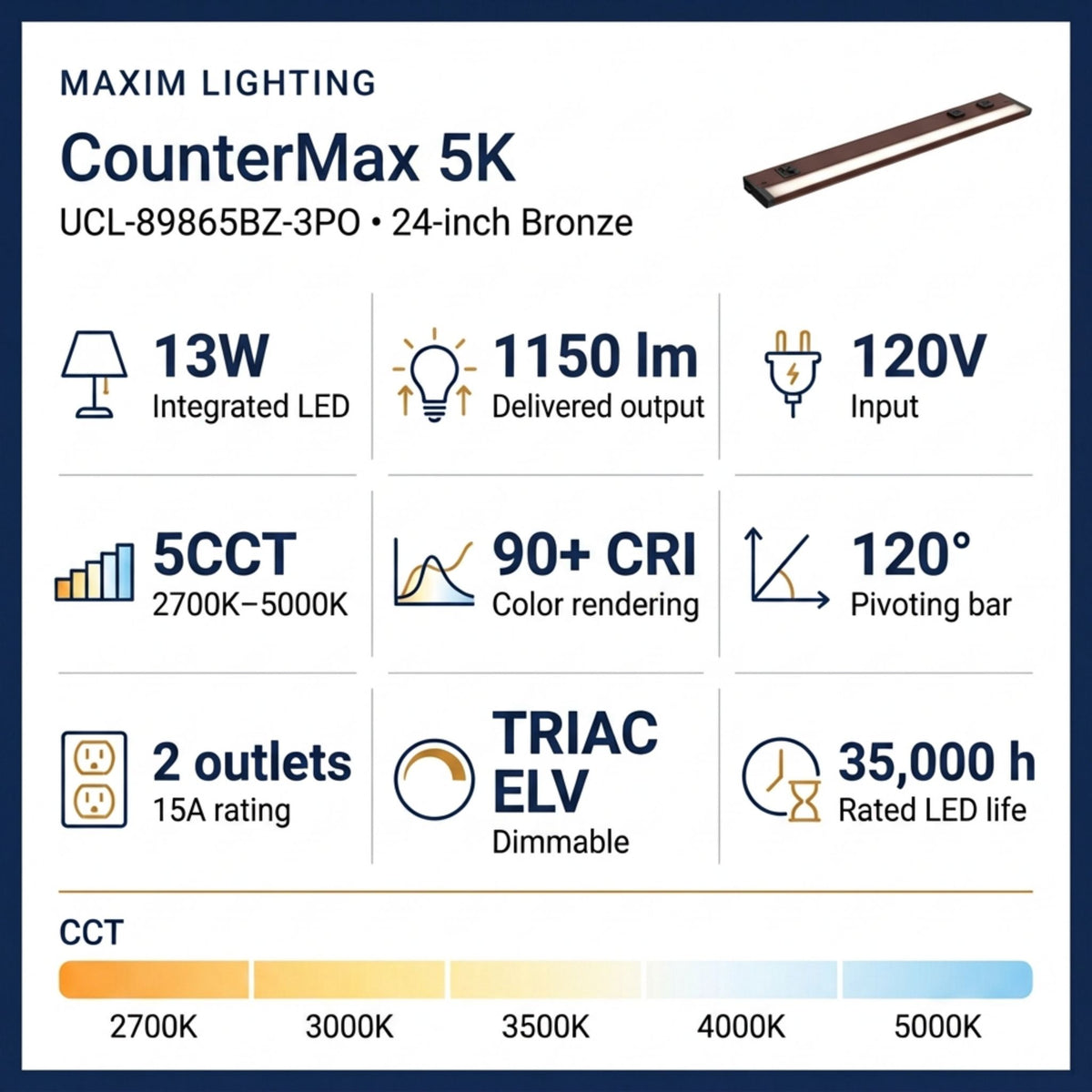

Specify UCL-89865BZ-3PO for a 24-inch Bronze aluminum/PC Undercabinet 5K W 3 Prong with two outlets, 15A rating. The 13W integrated LED operates on 120V.
Key Features

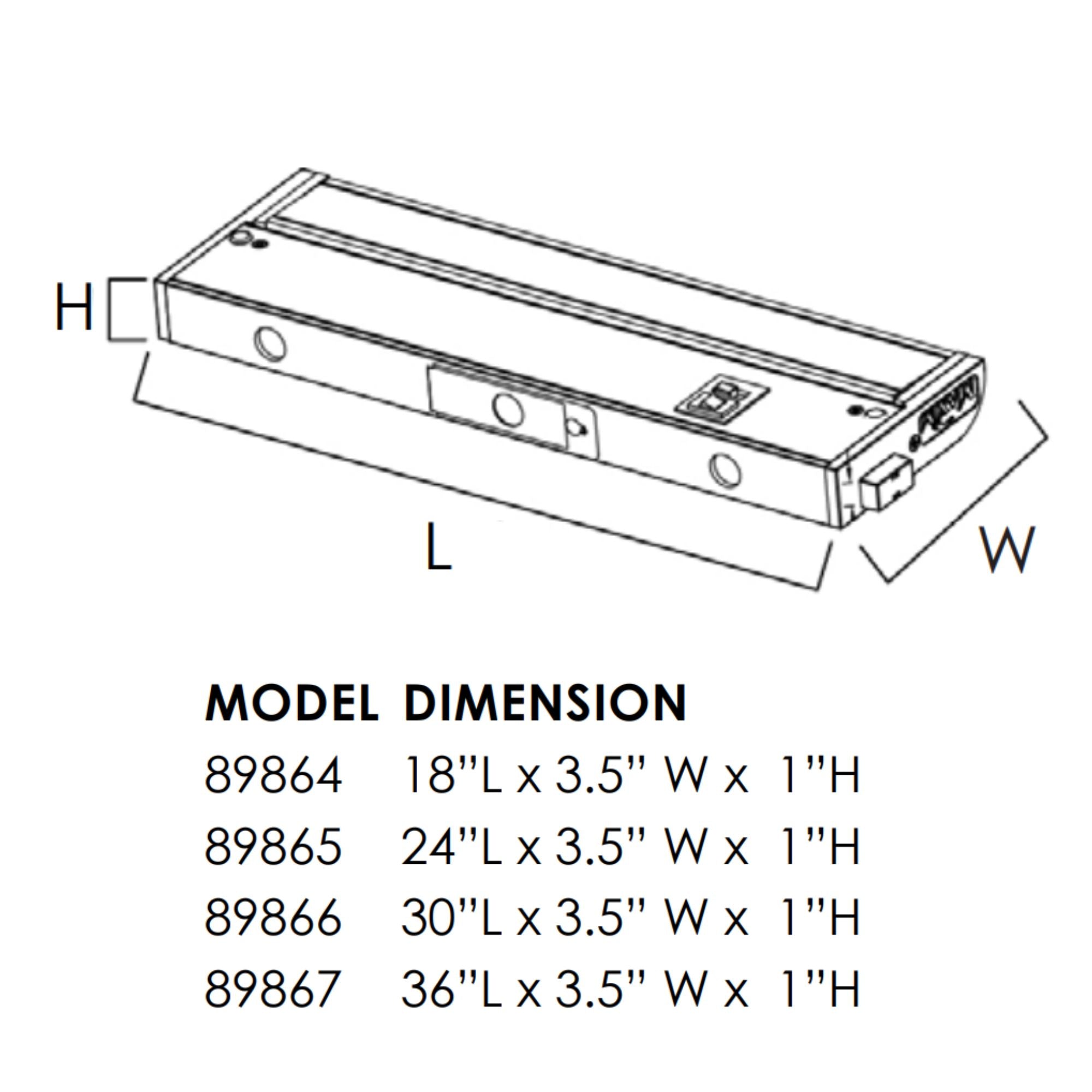

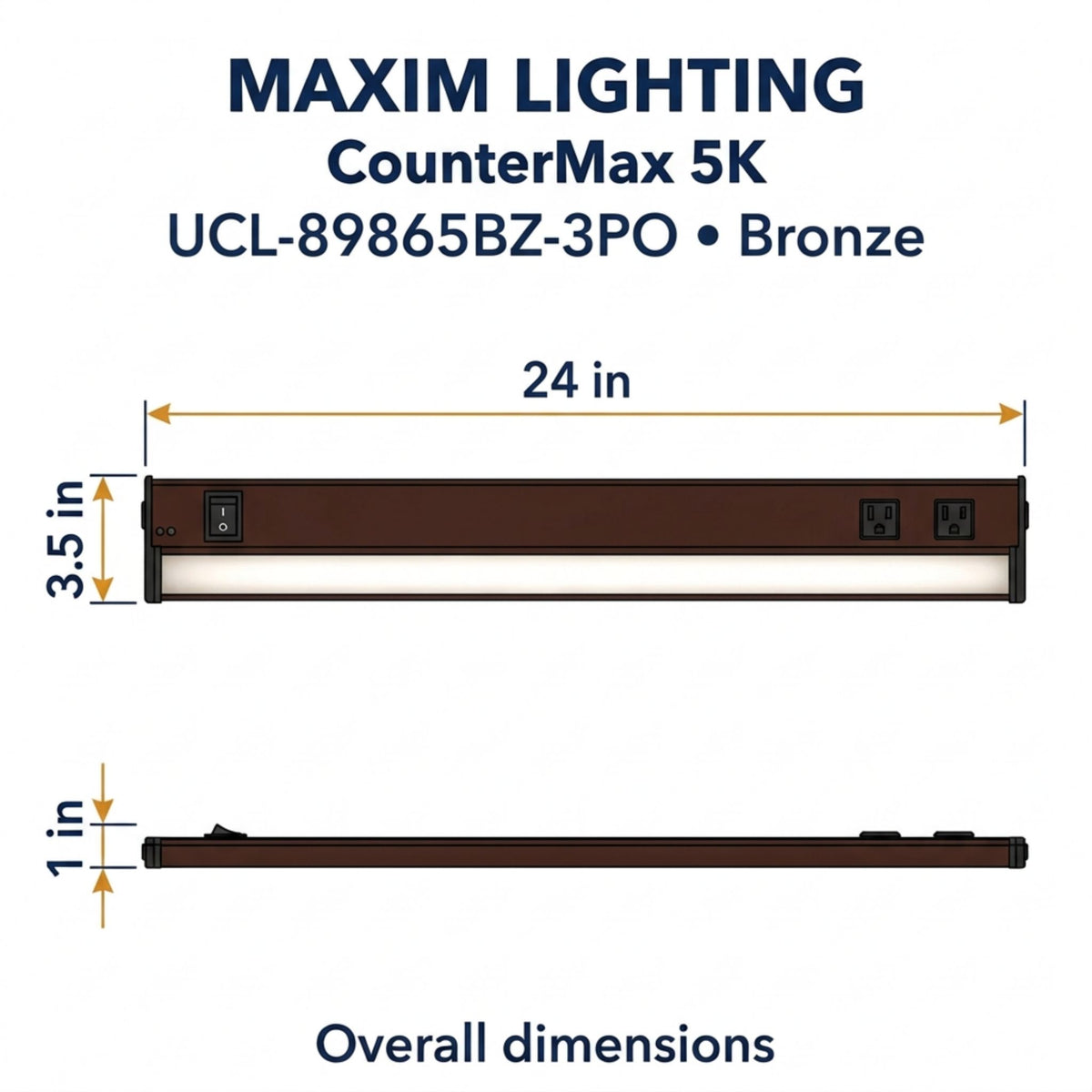

- Dimensions: 24 x 3.5 x 1 inches suits a two-foot cabinet section.
- Supply: 120V input powers the 13W LED.
- Delivered Output: 1150 lumens illuminate preparation tasks.
- CCT Options: 2700K, 3000K, 3500K, 4000K and 5000K coordinate light color.
- CRI: 90+ supports material color assessment.
- Rated Life: 35,000 hours for the integrated LED.
- Dimming: TRIAC/ELV control adapts brightness.
- Aiming: 120° rotation directs task light.

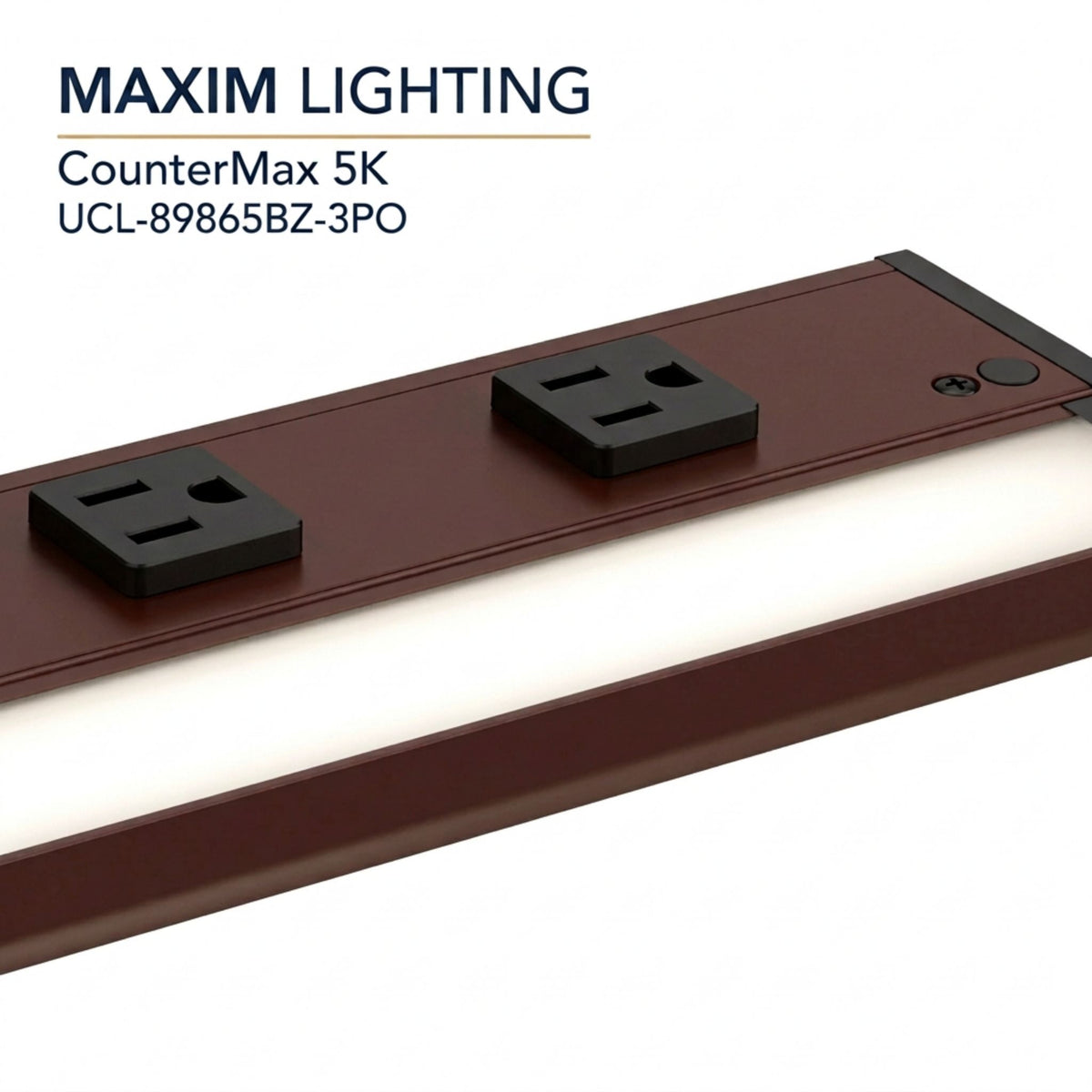

- Utility: Two outlets with a 15A rating provide nearby power.
Core Design & Profile

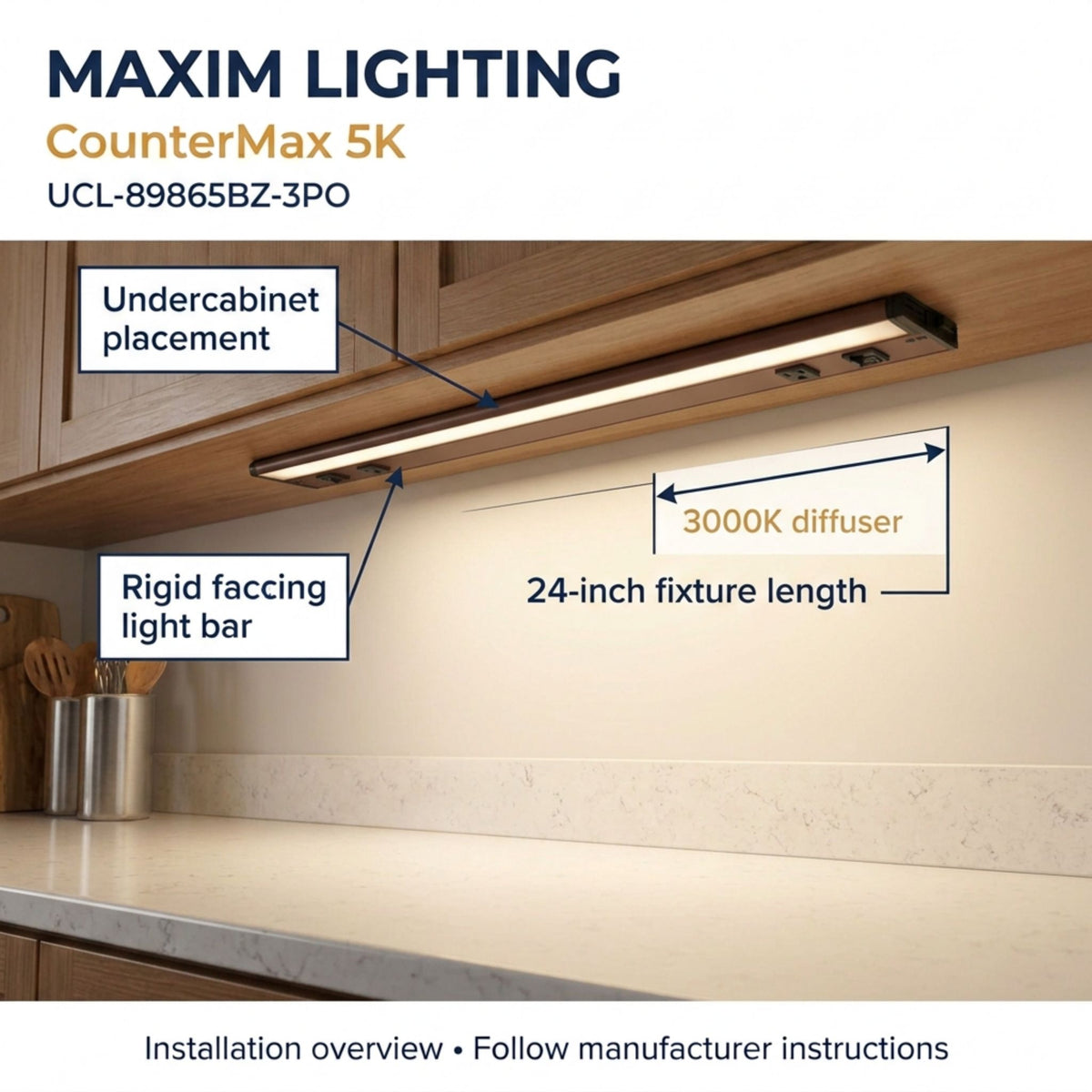

Bronze aluminum/PC construction combines a 24-inch length with a 1-inch-high under-cabinet profile.
LED Illumination & Performance
The 13W LED delivers 1150 lumens at 90+ CRI. Five selectable temperatures range from warm 2700K to cool 5000K.
Power, Wiring & Linkability
Access 120V wiring through 3/8-inch back/bottom knockouts. Link end-to-end or by MX interlink cord, up to 750W from one supply. The 15A outlet rating is separate from the 13W LED load.

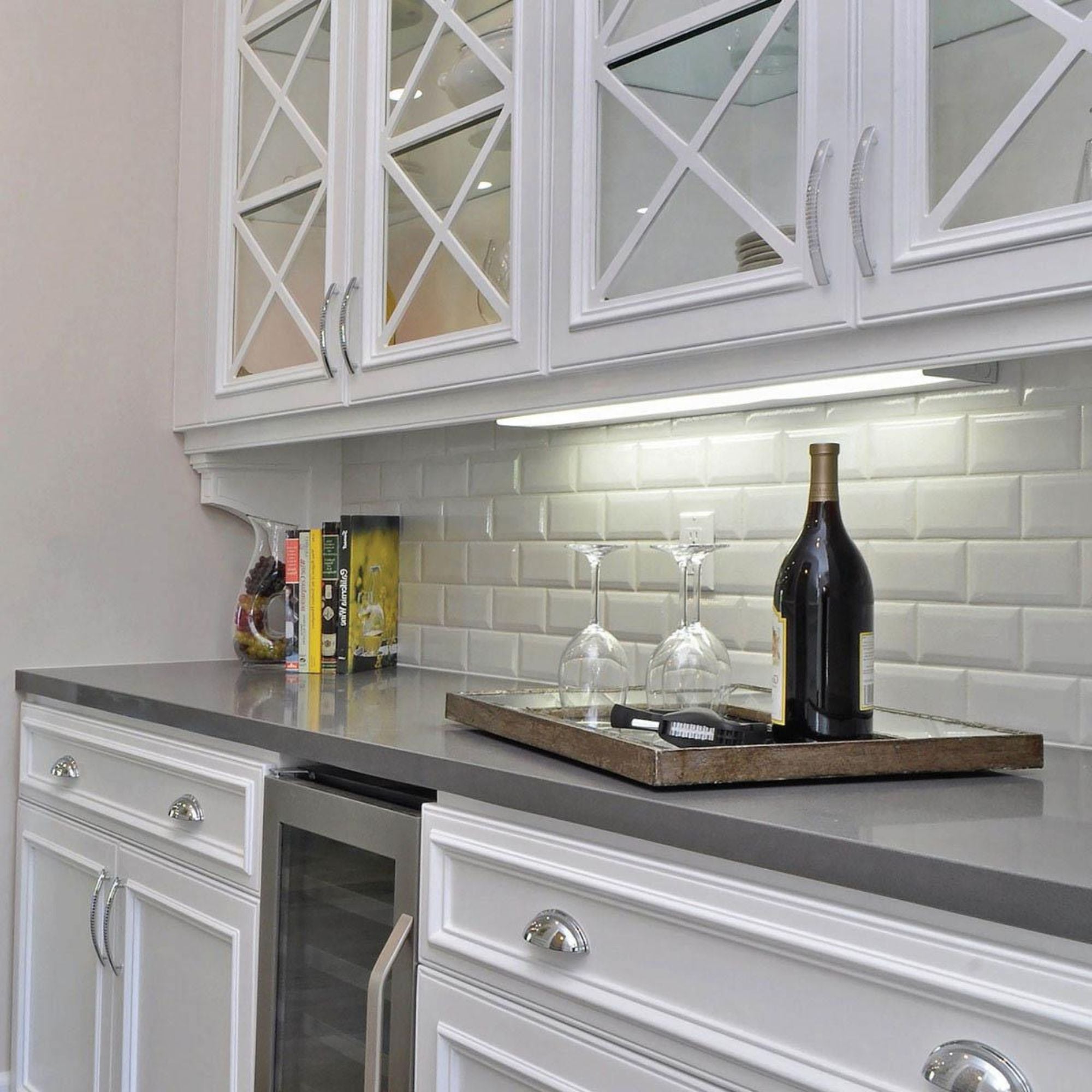

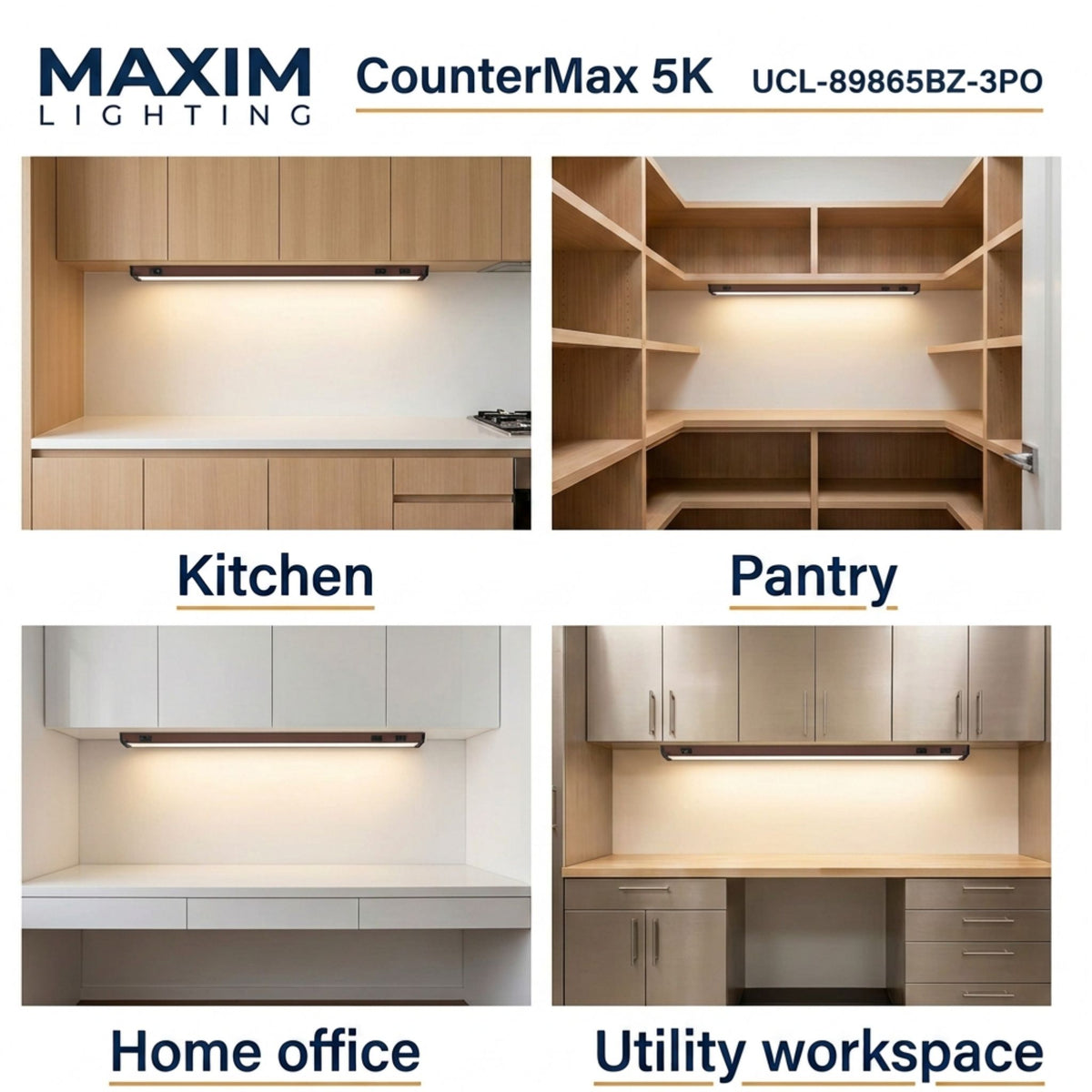

Where This Fixture Works Best
- Kitchen preparation counters
- Pantry work areas
- Built-in desk lighting
- Utility workbenches
What's Included
- Romex connector
- Mounting screws
