CounterMax 5K Under Cabinet Light — Bronze & Selectable CCT

The CounterMax 89862BZ in bronze is a 6 in. under cabinet light designed for versatile lighting applications. This fixture features a 3W LED integrated light source, delivering 198 lumens at 120V. The selectable CCT allows for five different color temperatures, providing flexibility in lighting design.

Key Features

• Dimensions: Measures 6 in. length, 3.5 in. width, and 1 in. height.
• Voltage: Operates at 120V for standard residential applications.
• Wattage: Consumes 3 watts for energy-efficient operation.
• Lumens: Provides 198 lumens for effective task lighting.
• Color Temperature: Selectable CCT from 2700K to 5000K for customizable ambiance.
• CRI: 90+ for accurate color rendering.
• Lifespan: Rated for 40,000 hours of use.
• Dimmable: Compatible with Triac and ELV dimmers for adjustable light levels.
• Material: Constructed from aluminum with LED and PC components.
• Installation: Includes 3/8 in. knockouts and Romex connector for easy installation.

Core Design & Profile

This under cabinet light features a slim profile with a bronze finish, constructed from durable aluminum. It is rated for dry locations and is cETLus and Energy Star certified.

LED Illumination & Performance

The integrated LED provides 198 lumens with a power consumption of 3 watts. It offers a CRI of 90+ and selectable CCT ranging from 2700K to 5000K, ensuring versatile lighting performance.

Power, Wiring & Linkability

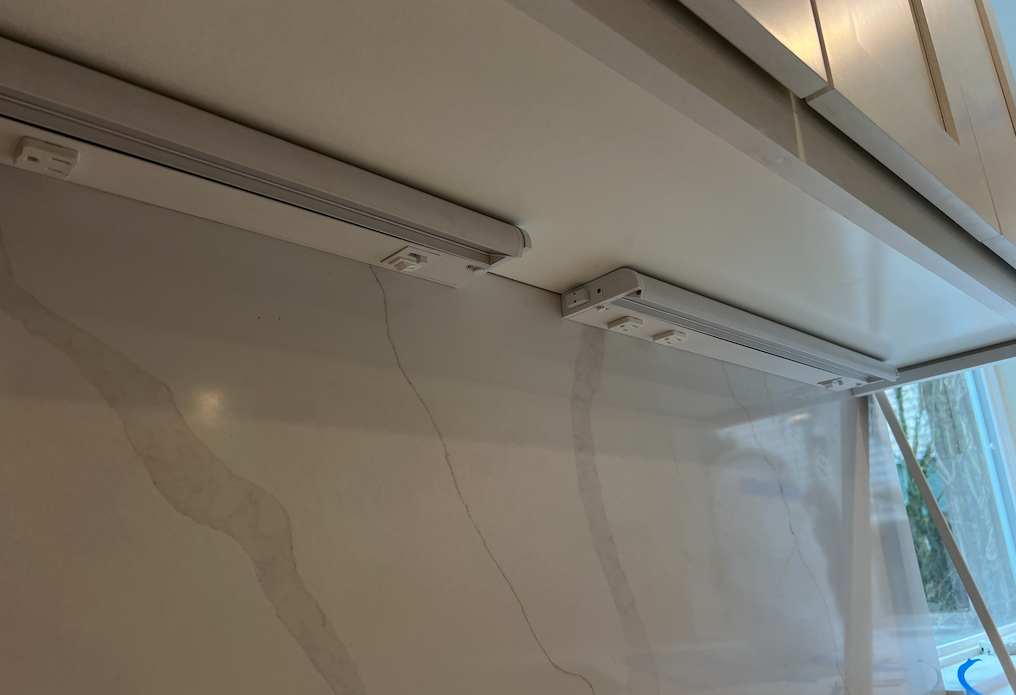

This fixture is designed for direct wire installation with 120V input. It includes 3/8 in. knockouts and a Romex connector. The light is linkable end-to-end or with an MX interlink cord, supporting up to 750 watts from a single power supply.

Where This Fixture Works Best

• Kitchen under cabinets
• Office workstations
• Retail display cases
• Workshop task areas
• Home office desks

What's Included

• CounterMax 5K under cabinet light
• Mounting screws
• Romex connector
