Maxim Sky 48" x 12" (1x4) LED Flush Mount 45W Bronze 3000K

Vendor: Maxim Lighting

SKU: 57764WTBZ

$238.00
$0.00
Shipping calculated at checkout.
Color: Bronze
Size: 48"

Available in stock (91)

Must be ordered in quantities of .

About this item
  • Elongated Edge-Lit Design: Bronze aluminum and acrylic fixture, nominal 48 x 12 in (1x4), with a 0.75 in profile
  • Integrated LED Output: 45W PCB LED produces 3600 lumens without separate bulbs
  • Fixed Warm Light: 3000K with 90+ CRI for accurate color rendering; not selectable CCT
  • Electrical Compatibility: 120–277V input, integrated driver and ELV dimming at 120V
  • Listed Performance: ETL/cETL, IP65, wet-location rated, ENERGY STAR, Title 24 and 50,000-hour rated life
View More Details

Description

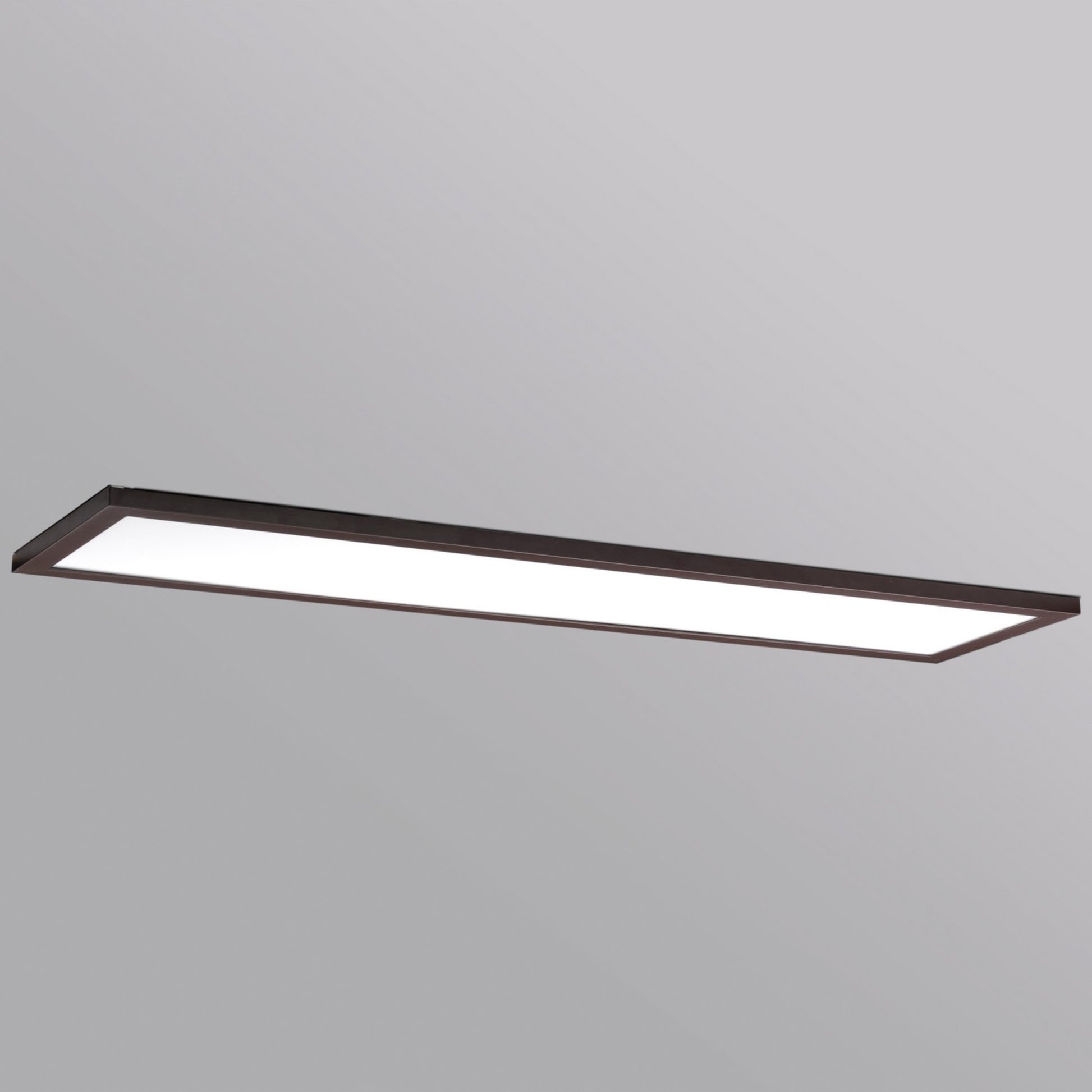

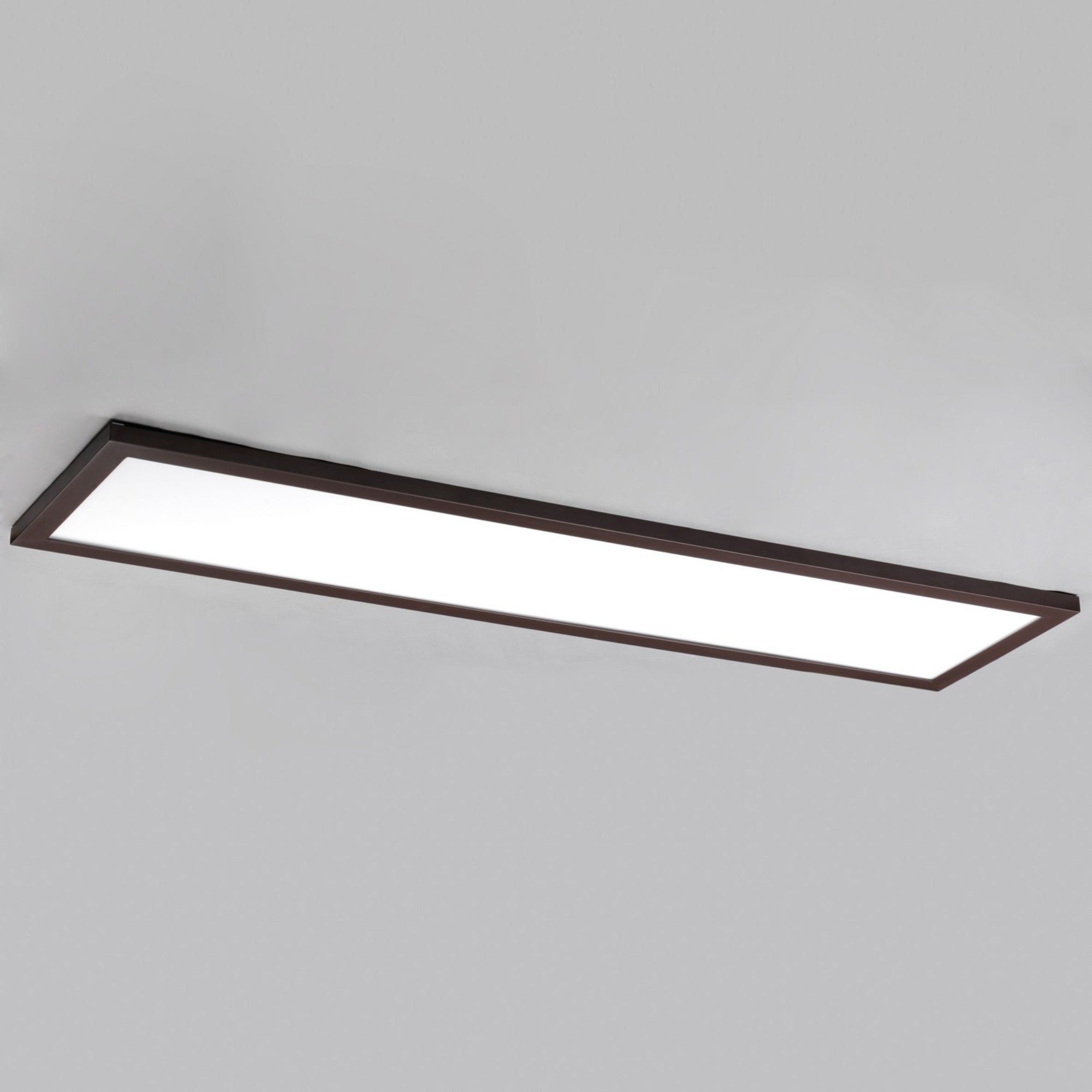

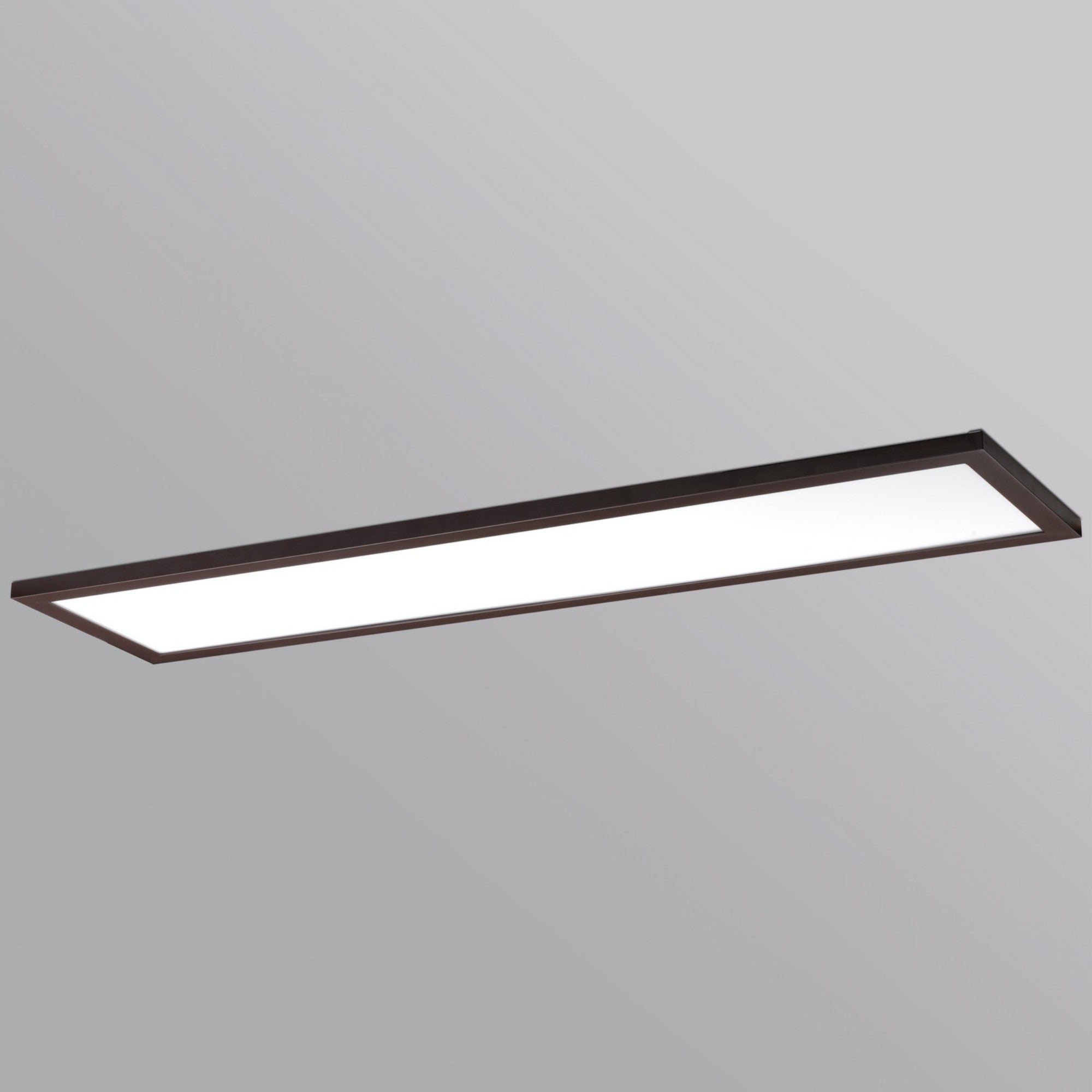

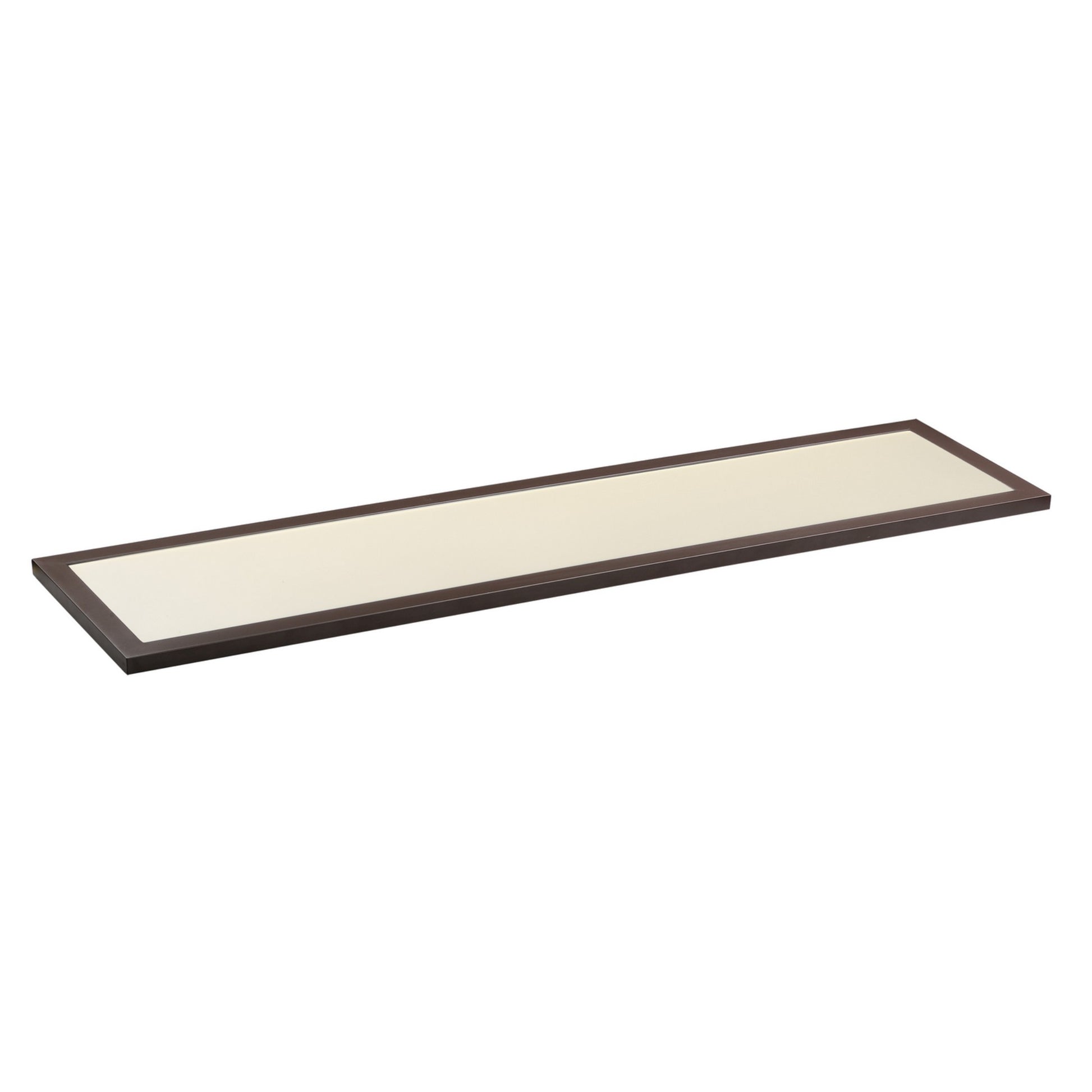

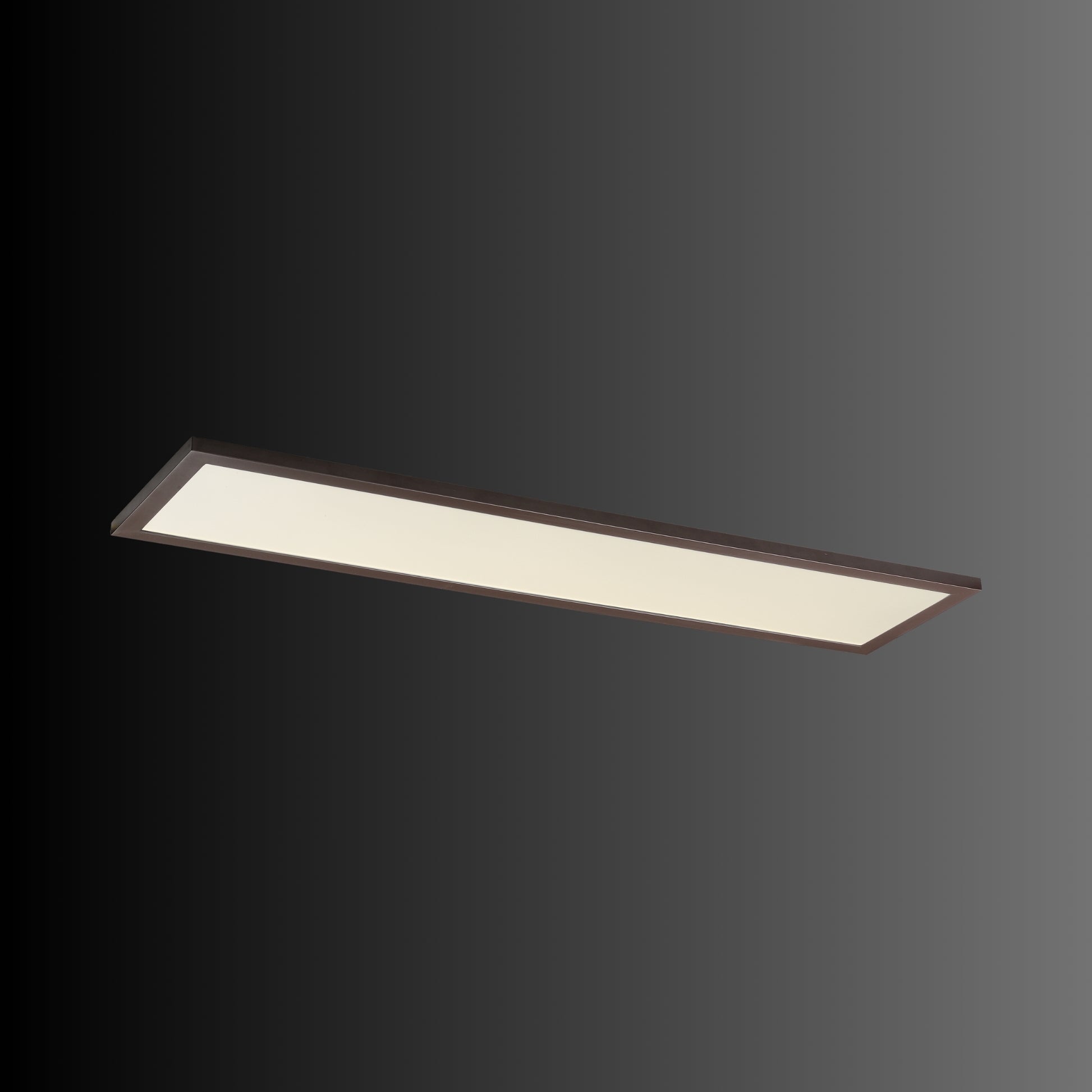

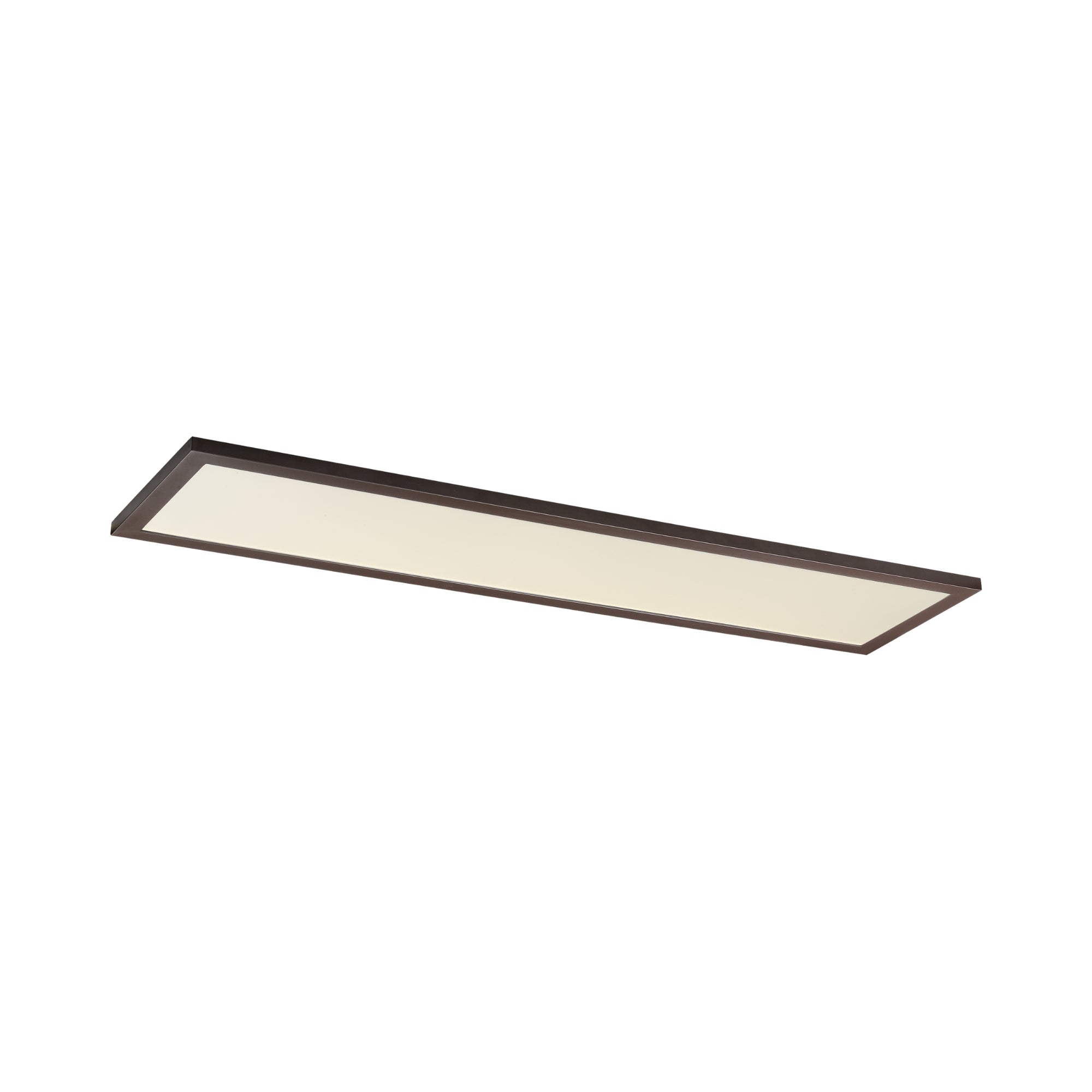

Maxim Lighting Sky 57764WTBZ — 48 x 12 in (1x4) LED Flush Mount in Bronze

The Maxim Lighting Sky 57764WTBZ edge-lit LED ceiling flush mount pairs a Bronze finish with aluminum and acrylic construction. Its 45W integrated PCB LED provides 3600 lumens at fixed 3000K with 90+ CRI. Nominally 48 x 12 in (1x4), it measures 48 in long by 11.75 in wide by 0.75 in high, providing an elongated lighting surface close to the ceiling.

Key Features

  • Collection: Sky
  • Fixture Type: Rectangular edge-lit LED ceiling flush mount
  • Finish: Bronze
  • Construction: Aluminum and acrylic
  • Light Source: Integrated 45W PCB LED
  • Output: 3600 lumens
  • Color Temperature: Fixed 3000K, not selectable CCT
  • Color Rendering: 90+ CRI
  • Electrical and Dimming: 120–277V input; ELV dimming at 120V specified in the lamping table

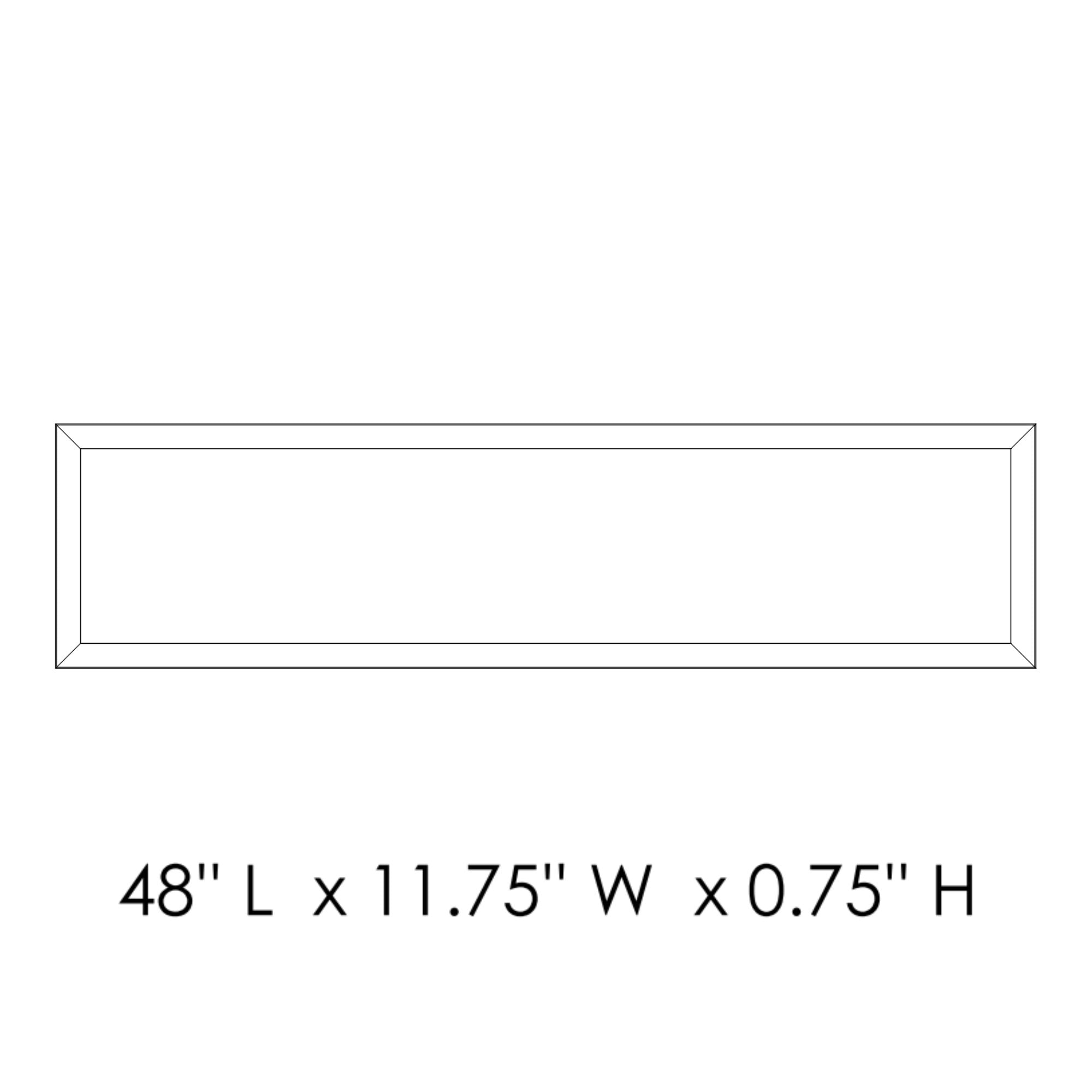

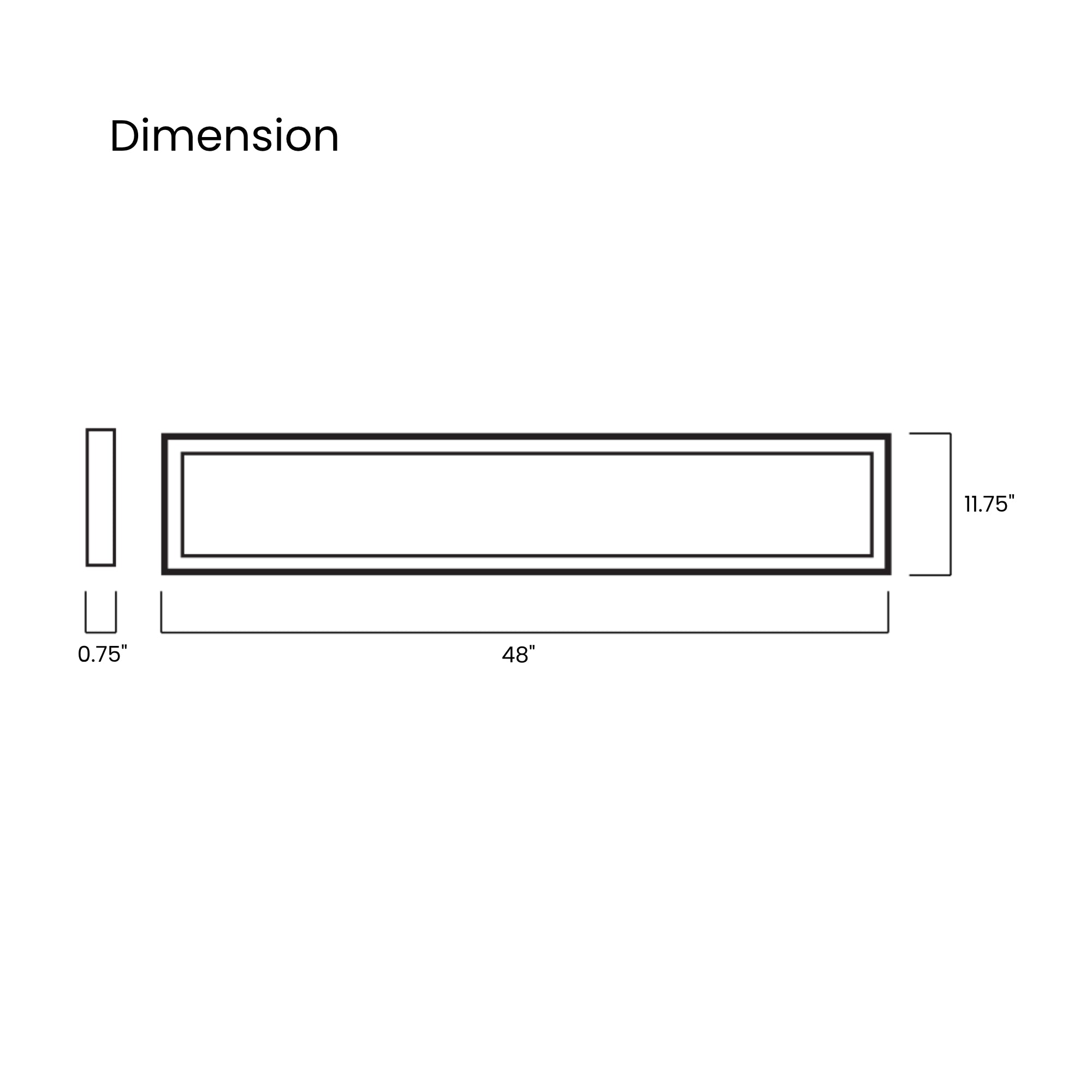

  • Dimensions and Weight: 48 in long by 11.75 in wide by 0.75 in high; 13.01 lb hanging weight
  • Ratings: ETL/cETL listed, IP65, wet-location rated, ENERGY STAR and Title 24; closet suitability listed according to NEC 410.8 and 410.16
  • Life and Temperature: 50,000-hour rated life; -4°F to 104°F operating temperature

Construction & Design

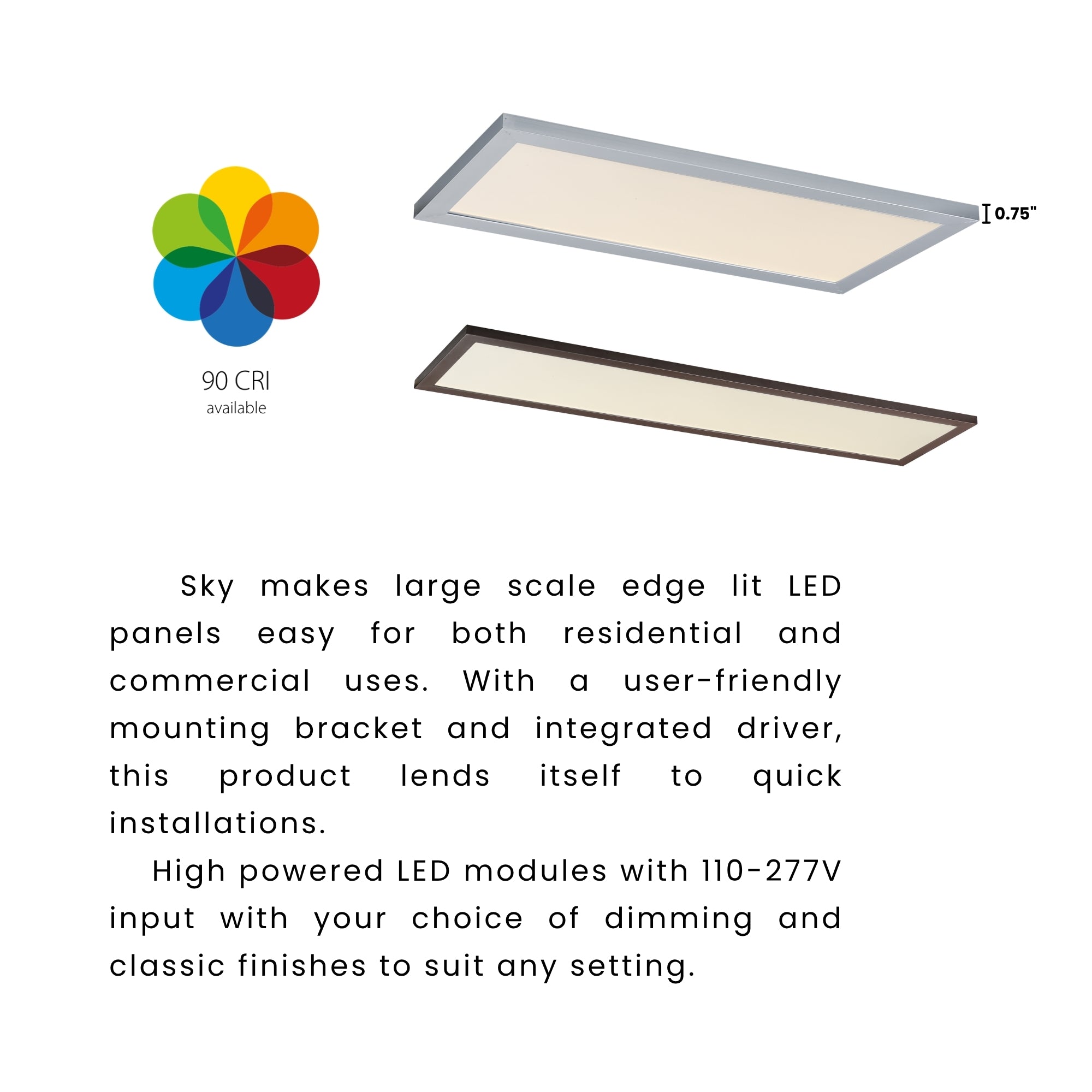

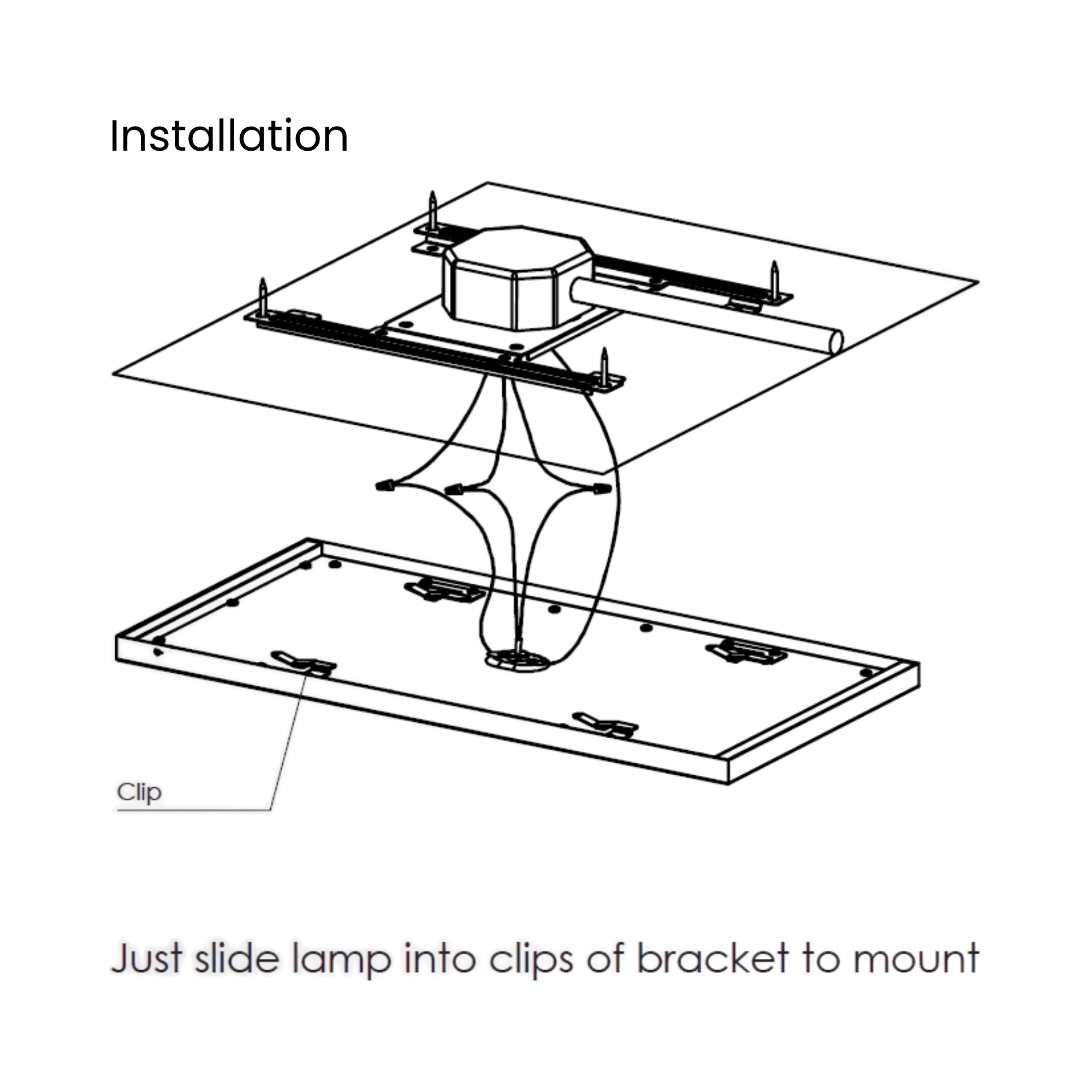

The Bronze finish complements the elongated edge-lit design. Construction is aluminum and acrylic, with actual dimensions of 48 in by 11.75 in by 0.75 in. Listed hanging weight is 13.01 lb. An integrated driver and user-friendly mounting bracket support installation.

Light Output & Performance

The 45W integrated PCB LED supplies 3600 lumens at fixed 3000K with 90+ CRI. This is not a selectable-CCT model. Rated life is 50,000 hours.

Electrical & Installation

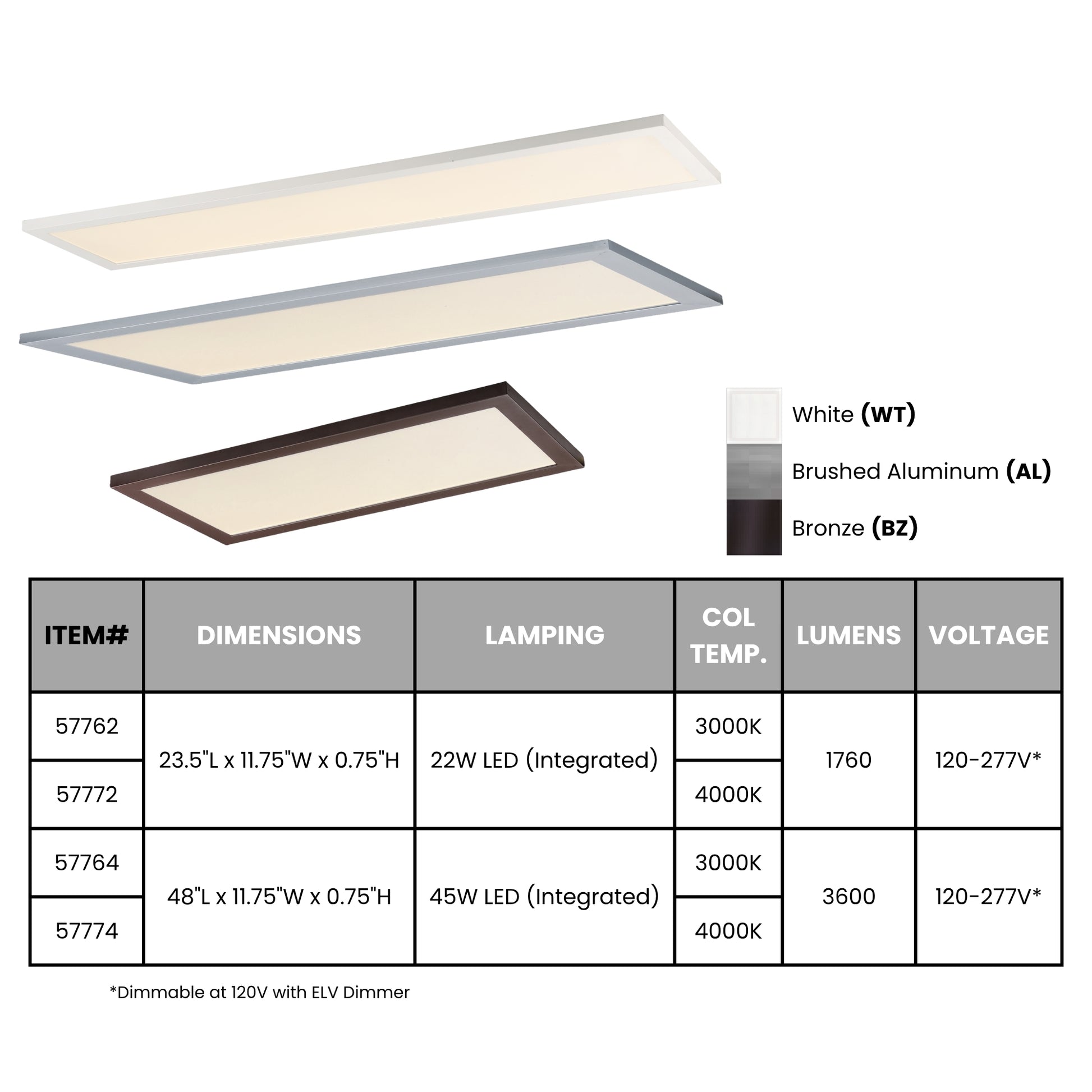

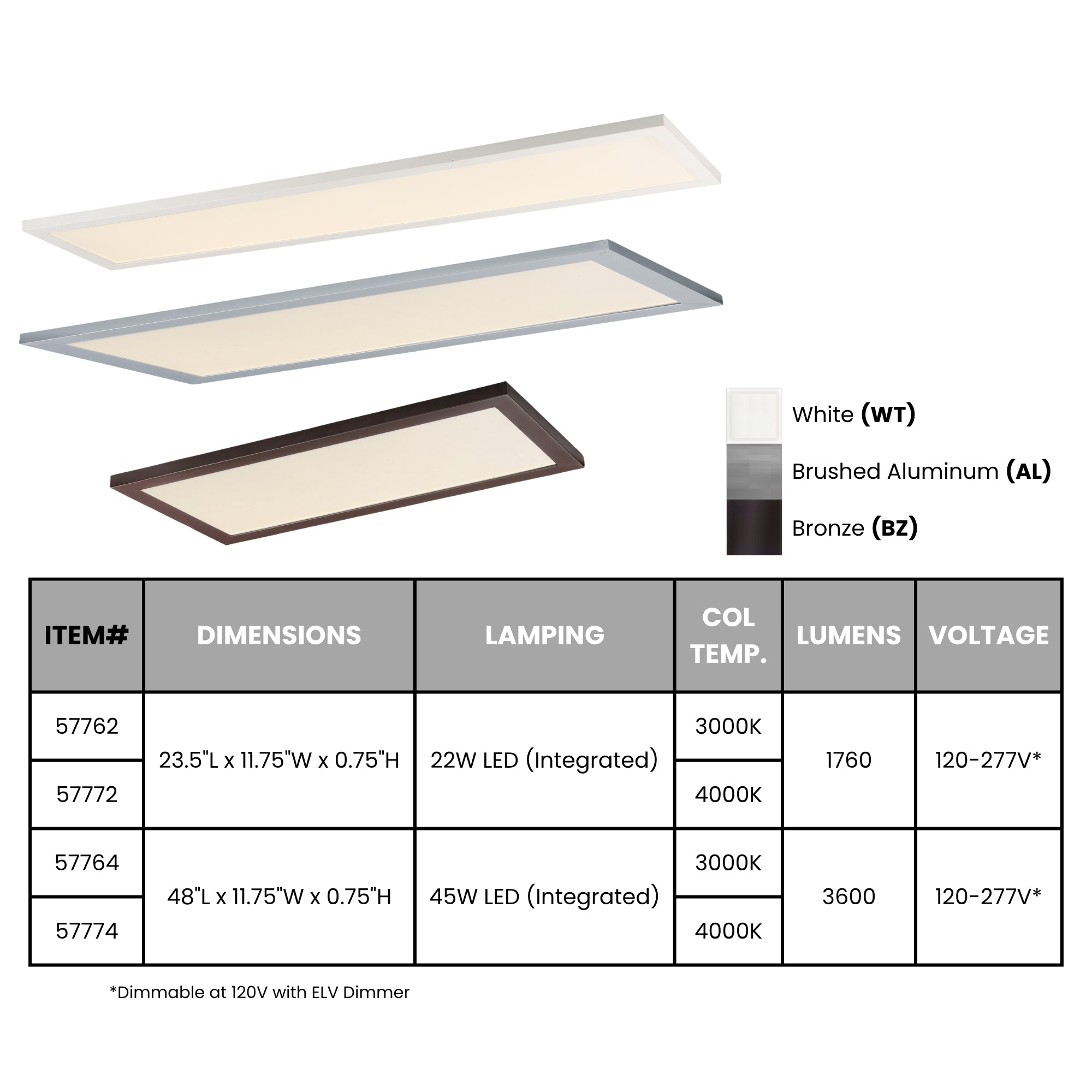

The fixture accepts 120–277V input. The lamping table specifies ELV dimming at 120V; the general header mentions 0–10V or ELV options without identifying a separate 0–10V configuration for this model. ELV dimming at 277V is not confirmed. Plan placement using the actual 48 in by 11.75 in footprint and 0.75 in height and 13.01 lb hanging weight. The sheet lists ETL/cETL, IP65 and wet-location suitability, plus ENERGY STAR and Title 24, and closet suitability according to NEC 410.8 and 410.16. Operating temperature is -4°F to 104°F.

Typical Applications

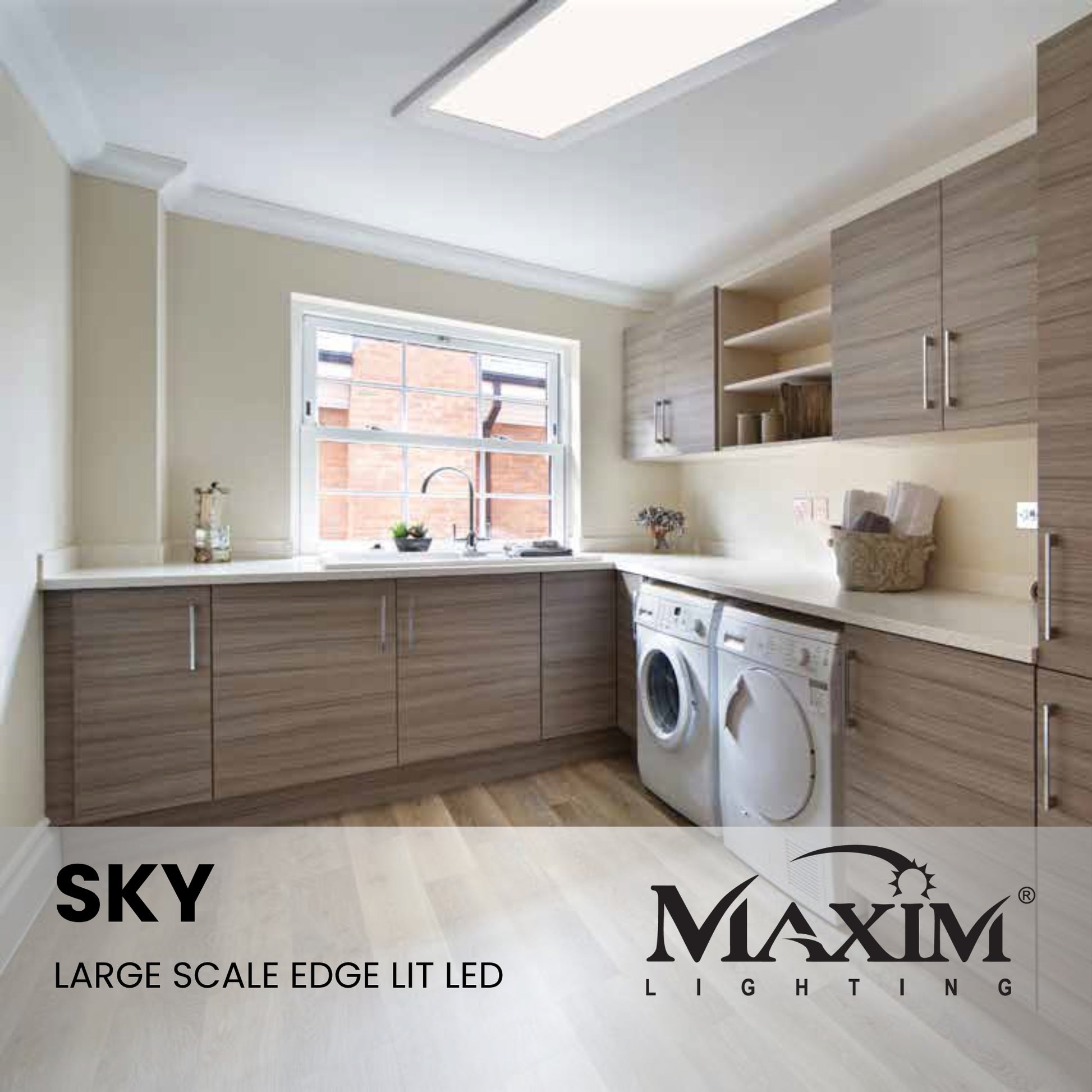

  • Residential kitchens and utility rooms
  • Hallways and circulation spaces
  • Commercial interior ceiling lighting

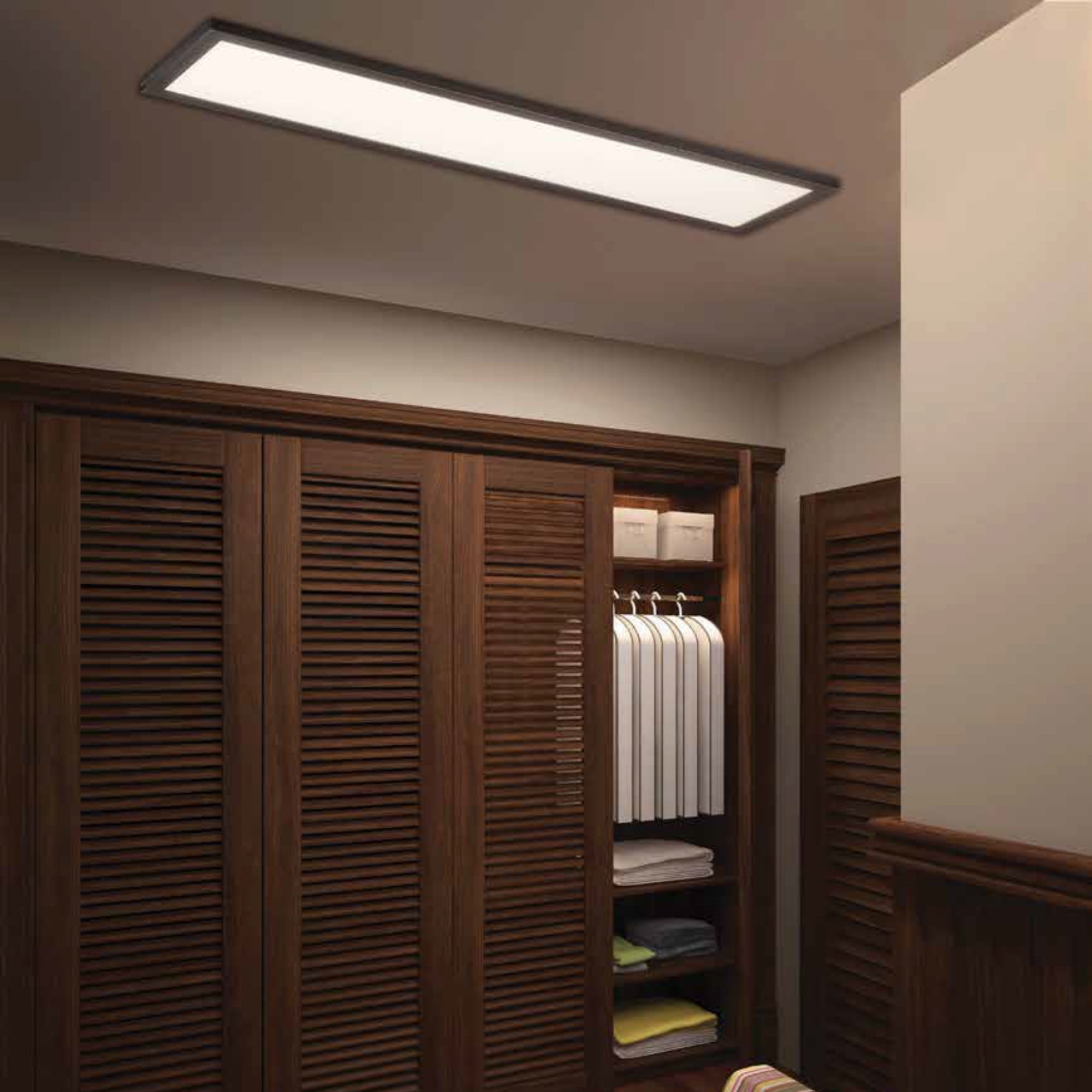

  • Closets installed according to applicable requirements

What's Included

  • One Maxim Lighting Sky 57764WTBZ LED flush mount in Bronze
  • Integrated 45W PCB LED light source and driver
  • Mounting bracket

Specifications

Dimensions

Length/Depth
48 in
Width/Diameter
11.75 in
Height
0.75 in
Weight
9.7 lb
Wire
10.6"

Documents

Style & Materials

Finish
Bronze
Material
Aluminum
Glass
White

Characteristics & Features

Lamp Source
LED
Base Type
PCB Integrated
Bulb Included
Yes
Integrated LED
Yes
Number of Lights
1
Lamp Color
3000K
Color Rendering
90 CRI
Delivered Lumens
3800

Electrical Information

Voltage
120-277V
Total Wattage
45W
Bulb Wattage
45W

Item Details

MPN
57764WTBZ
Brand
Maxim Lighting
Family
Sky
UPC
783209203143

Warranty & Certifications

Product Warranty
5
Product Rating
Damp
Safety Listing
cETLus

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is 57764WTBZ suitable for wet locations?
Yes — 57764WTBZ is listed for wet locations with ETL/cETL and IP65 ratings. Its operating temperature range is -4°F to 104°F.

Can 57764WTBZ be dimmed with an ELV dimmer?
Yes — the lamping table specifies ELV dimming at 120V for 57764WTBZ. The fixture accepts 120–277V input, but ELV dimming at 277V is not confirmed. The general header mentions 0–10V or ELV options without identifying a separate 0–10V configuration for this model.

Does 57764WTBZ include its LED light source?
Yes — 57764WTBZ has an integrated 45W PCB LED and integrated driver, producing 3600 lumens at 90+ CRI with a 50,000-hour rated life. No separate bulbs are required.

Does 57764WTBZ have selectable color temperature?
No — 57764WTBZ is the fixed 3000K model. The sheet identifies 57774 as the separate 4000K model; this fixture is not selectable CCT.

Is 57764WTBZ a nominal 48 x 12 in (1x4) fixture?
Yes — 57764WTBZ uses the nominal 48 x 12 in (1x4) designation. Actual dimensions are 48 in long by 11.75 in wide by 0.75 in high, with 13.01 lb listed hanging weight and aluminum and acrylic construction.
