Maxim Sky 24" x 12" (1x2) LED Flush Mount 22W White 3000K
Available in stock (1063)
About this item
About this item
- Slim Edge-Lit Design: White aluminum and acrylic fixture, nominal 24 x 12 in (1x2), with a 0.75 in profile
- Integrated LED Output: 22W PCB LED produces 1760 lumens without separate bulbs
- Fixed Warm Light: 3000K with 90+ CRI for accurate color rendering; not selectable CCT
- Electrical Compatibility: 120–277V input, integrated driver and ELV dimming at 120V
- Listed Performance: ETL/cETL, IP65, wet-location rated, ENERGY STAR, Title 24 and 50,000-hour rated life
Description
Description

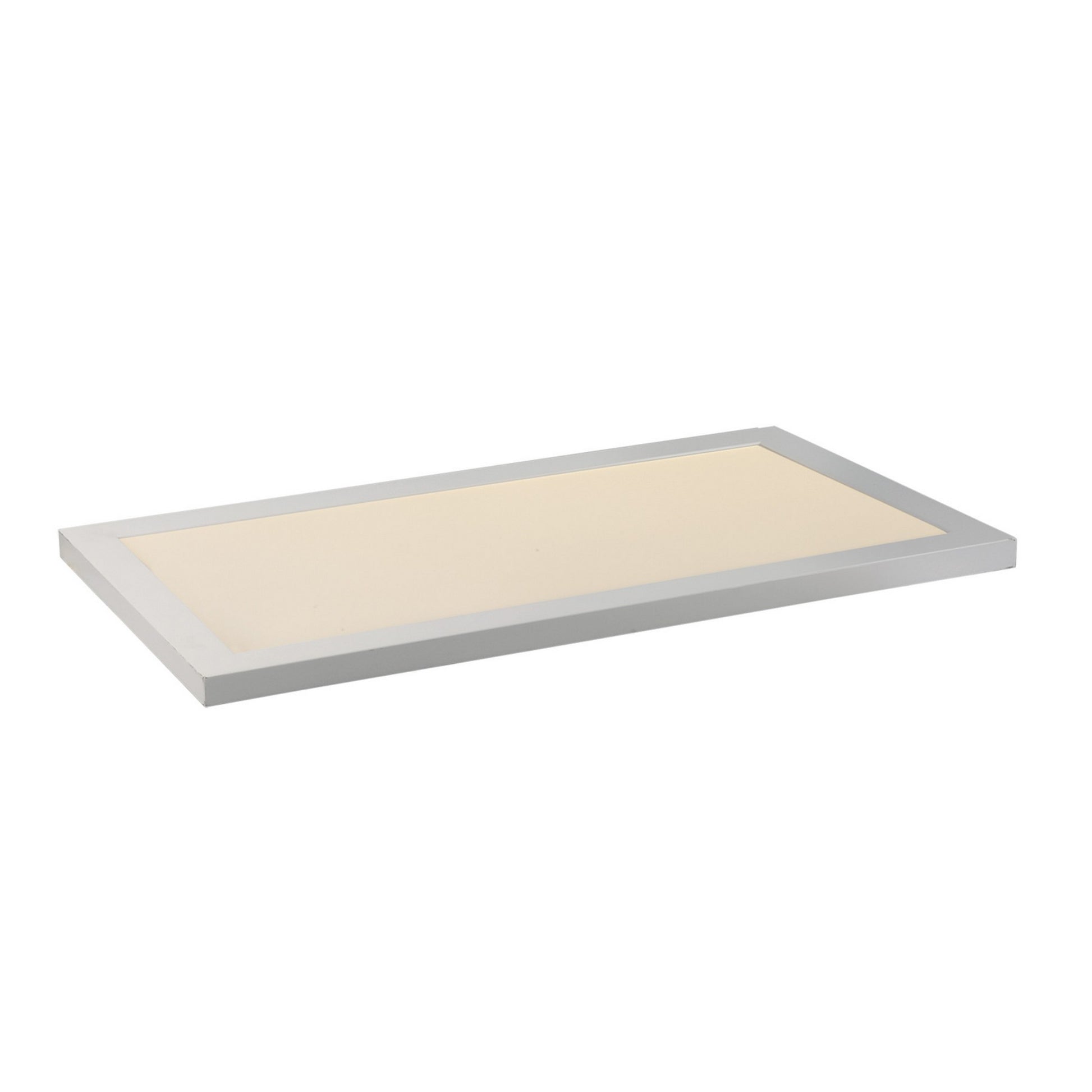

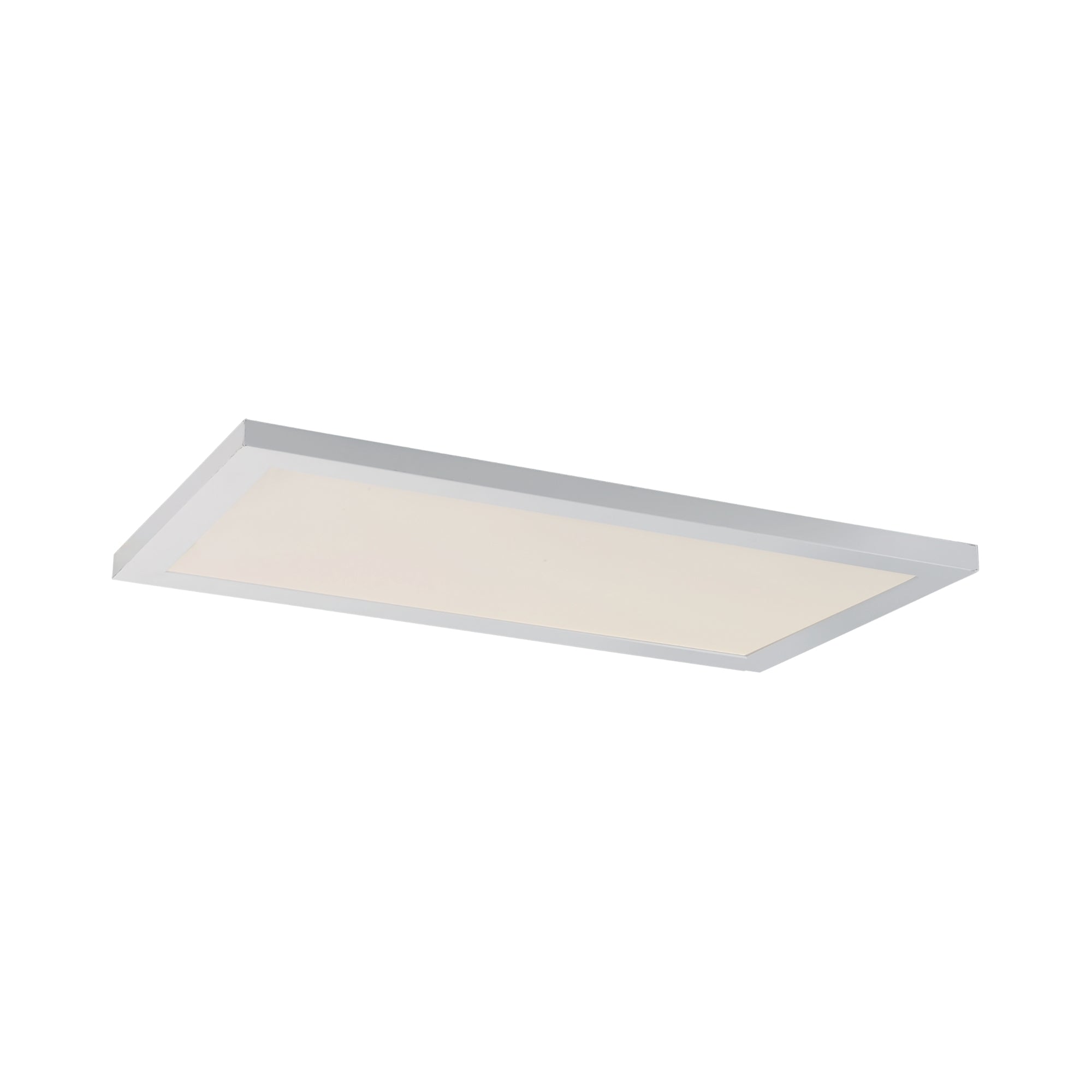

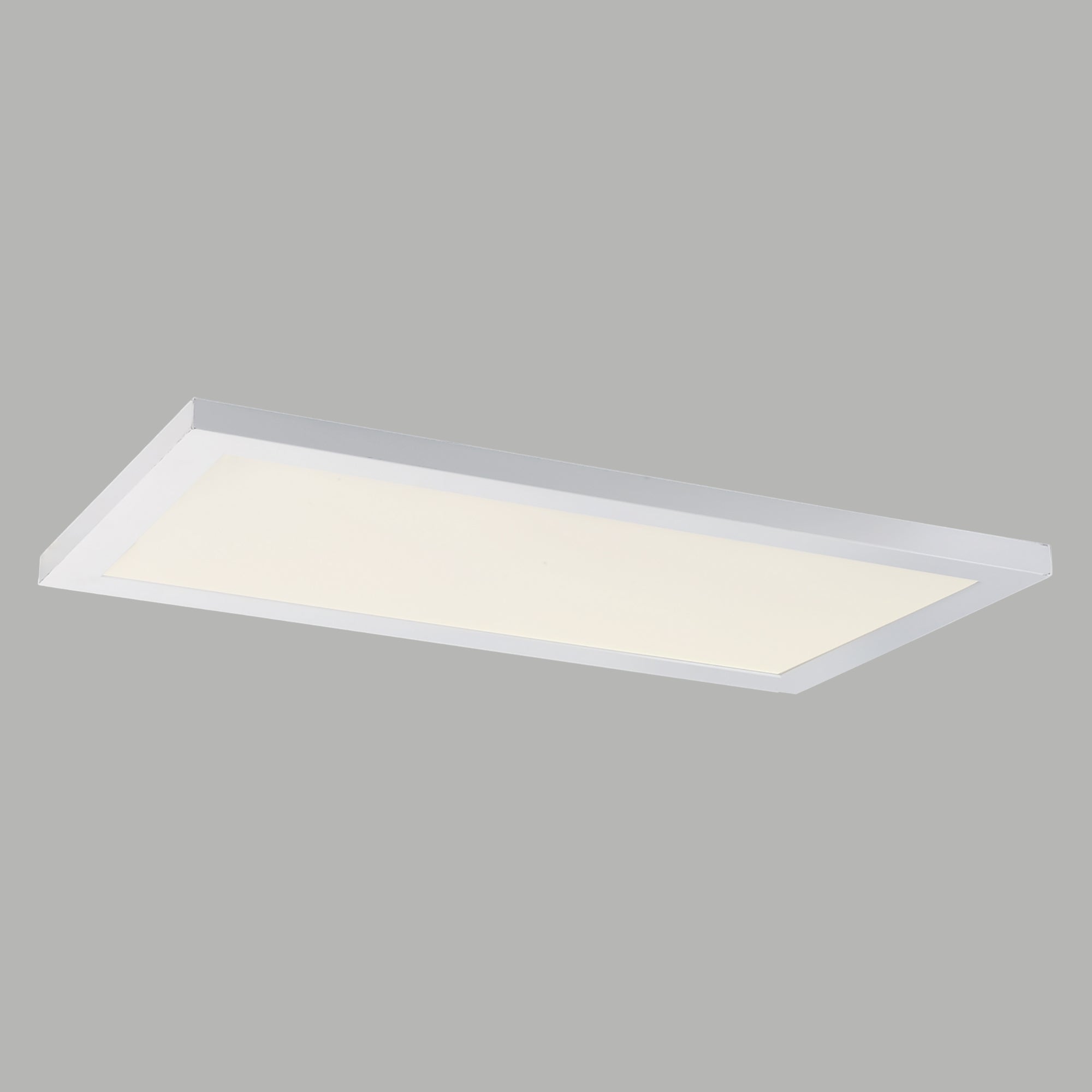

Maxim Lighting Sky 57762WTWT — 24 x 12 in (1x2) LED Flush Mount in White

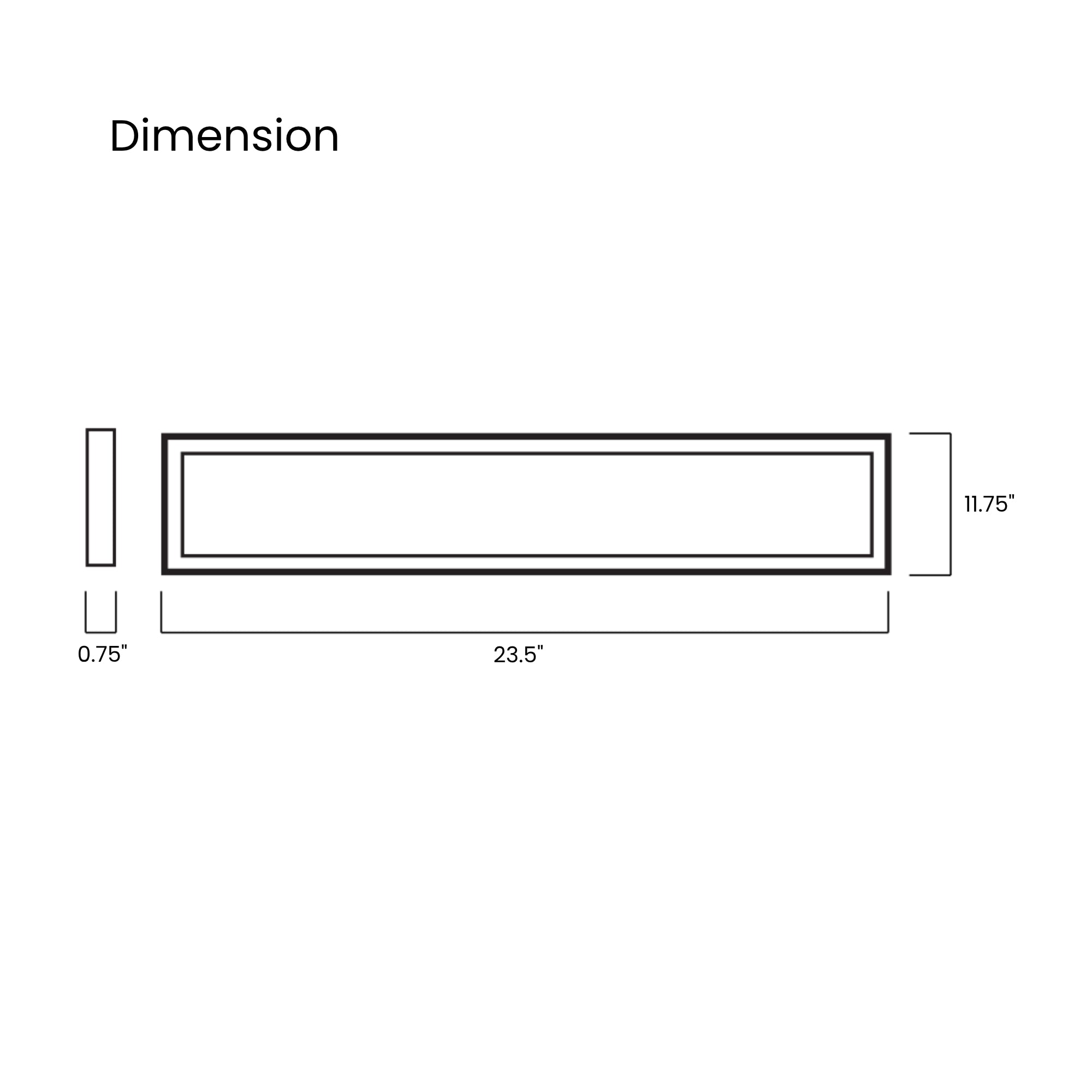

The Maxim Lighting Sky 57762WTWT edge-lit LED ceiling flush mount pairs a White finish with aluminum and acrylic construction. Its 22W integrated PCB LED supplies 1760 lumens at fixed 3000K with 90+ CRI. Nominally 24 x 12 in (1x2), it measures 23.5 in long by 11.75 in wide by 0.75 in high, keeping the broad lighting surface close to the ceiling.
Key Features
- Collection: Sky

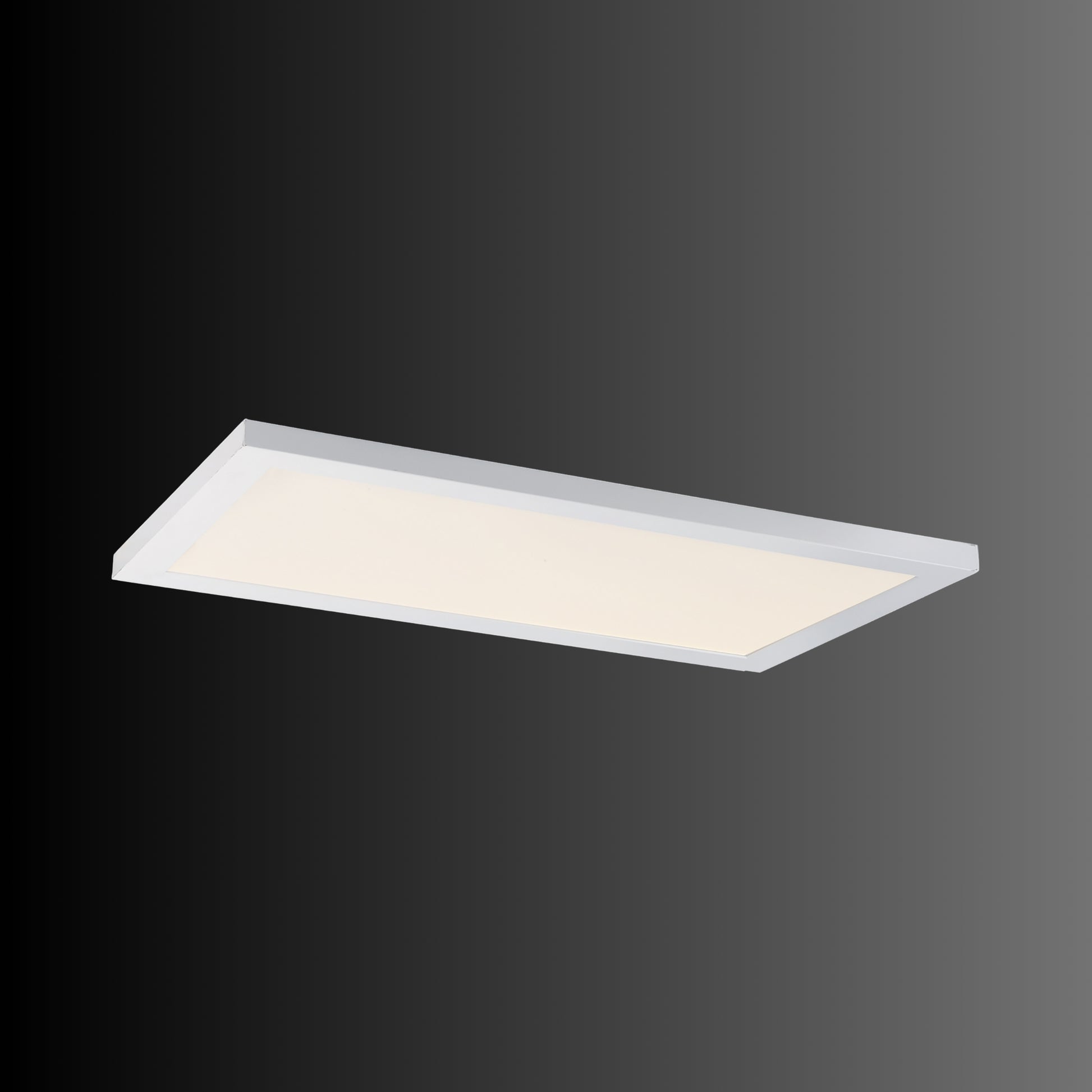

- Fixture Type: Rectangular edge-lit LED ceiling flush mount
- Finish: White
- Construction: Aluminum and acrylic
- Light Source: Integrated 22W PCB LED
- Output: 1760 lumens
- Color Temperature: Fixed 3000K, not selectable CCT
- Color Rendering: 90+ CRI
- Electrical and Dimming: 120–277V input; ELV dimming at 120V specified in the lamping table
- Dimensions and Weight: 23.5 in long by 11.75 in wide by 0.75 in high; 7.07 lb hanging weight
- Ratings: ETL/cETL listed, IP65, wet-location rated, ENERGY STAR and Title 24; closet suitability listed according to NEC 410.8 and 410.16
- Life and Temperature: 50,000-hour rated life; -4°F to 104°F operating temperature
Construction & Design

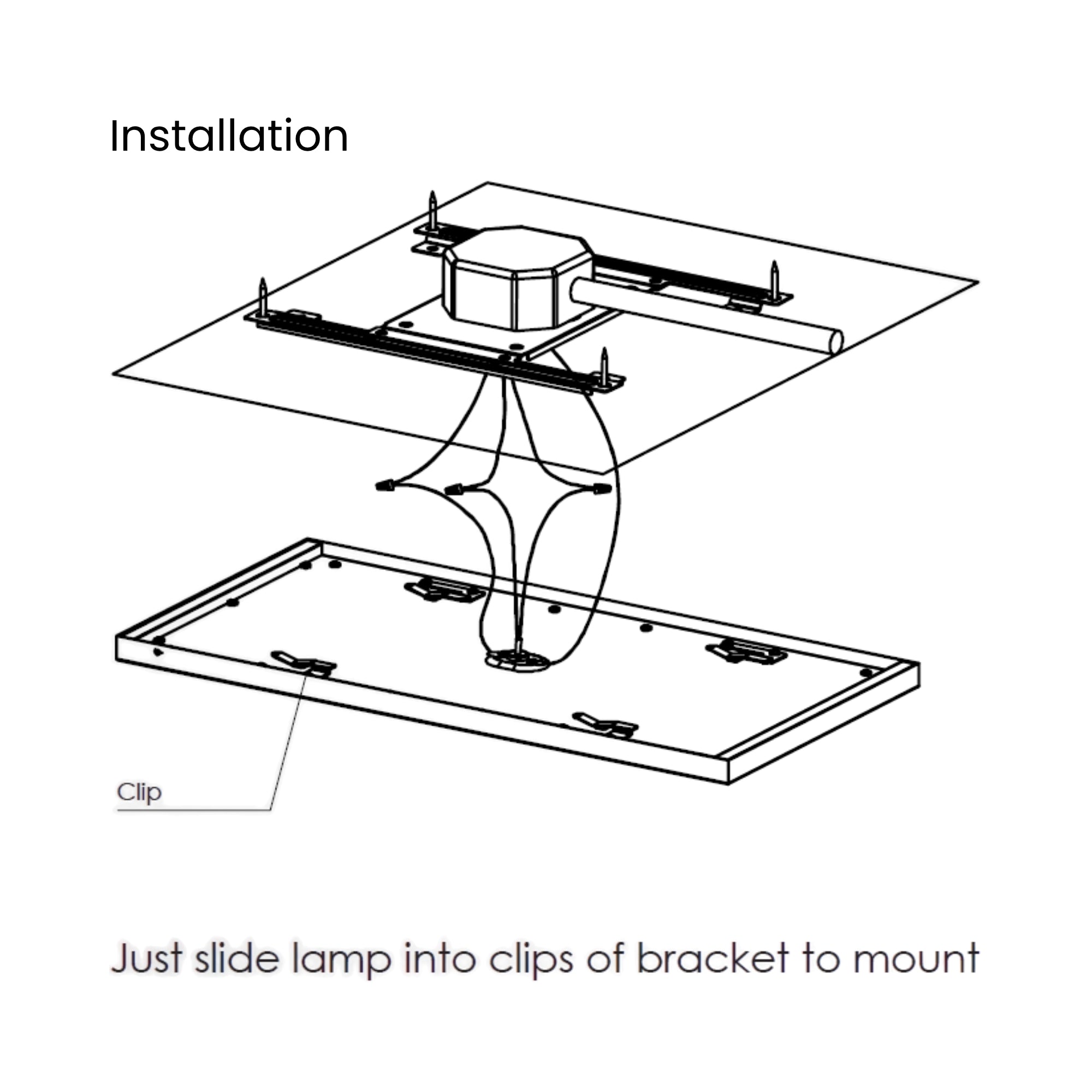

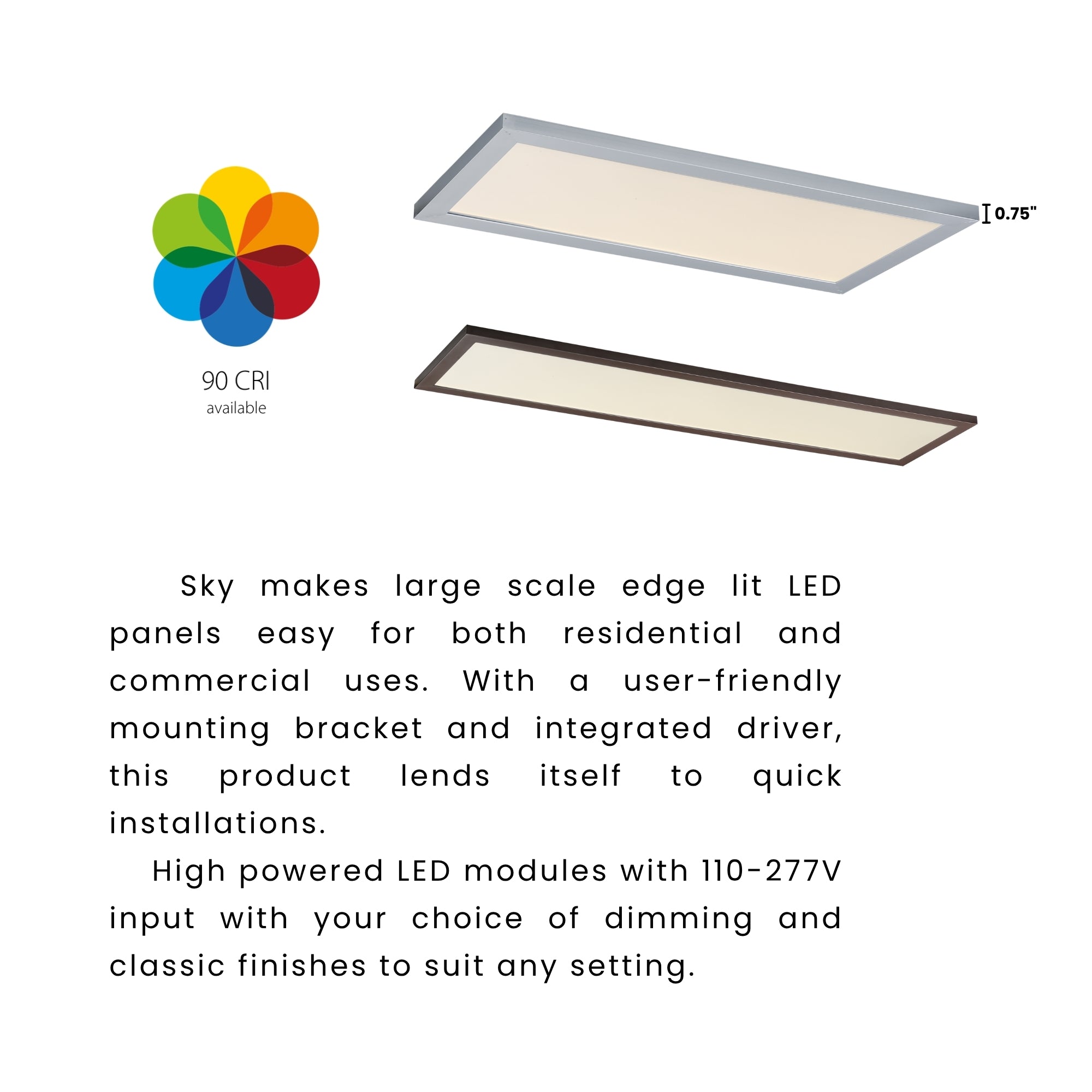

The White finish complements the rectangular edge-lit design. Construction is aluminum and acrylic, with actual dimensions of 23.5 in by 11.75 in by 0.75 in. Listed hanging weight is 7.07 lb. An integrated driver and user-friendly mounting bracket support installation.
Light Output & Performance
The 22W integrated PCB LED provides 1760 lumens at fixed 3000K with 90+ CRI. This is not a selectable-CCT model. Rated life is 50,000 hours.
Electrical & Installation

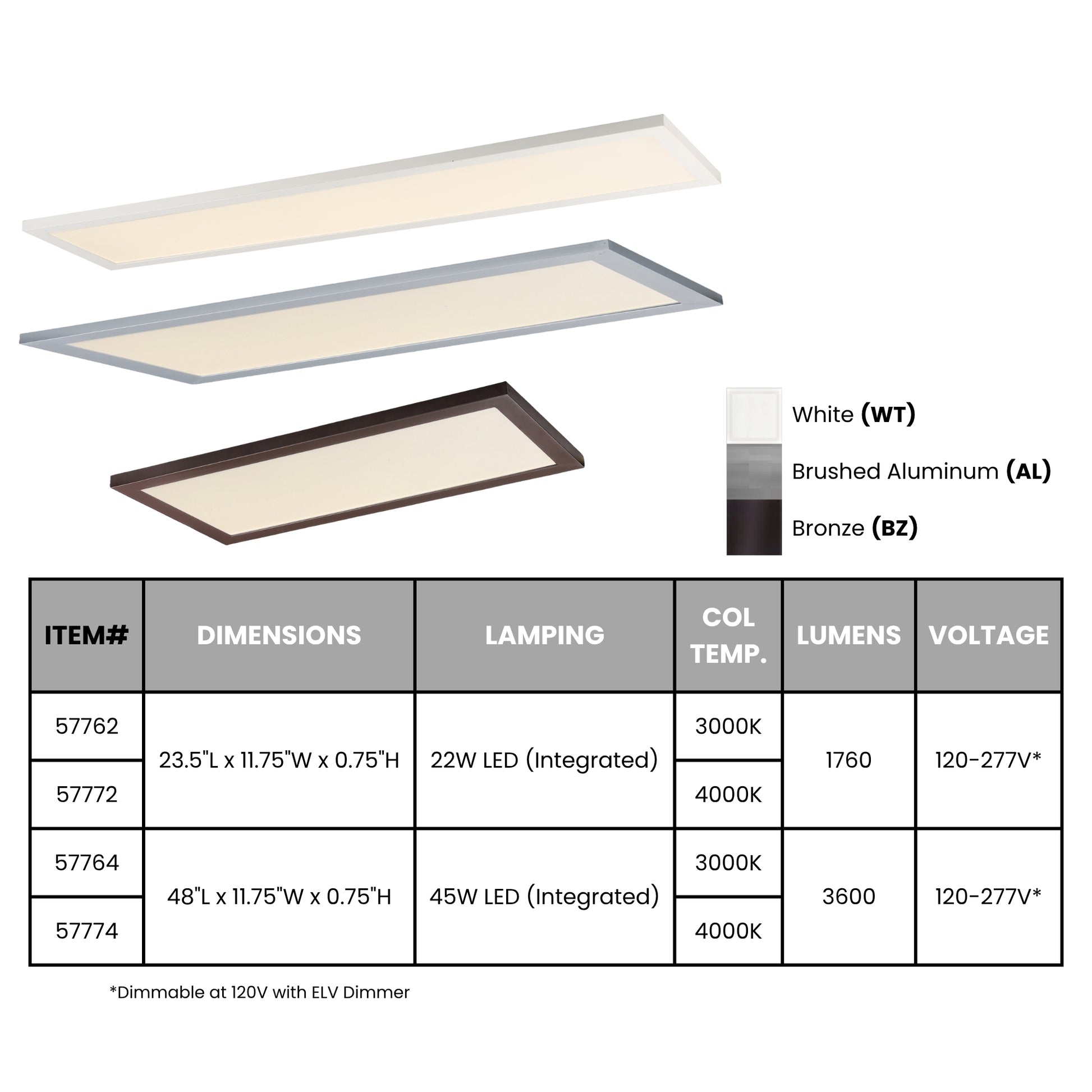

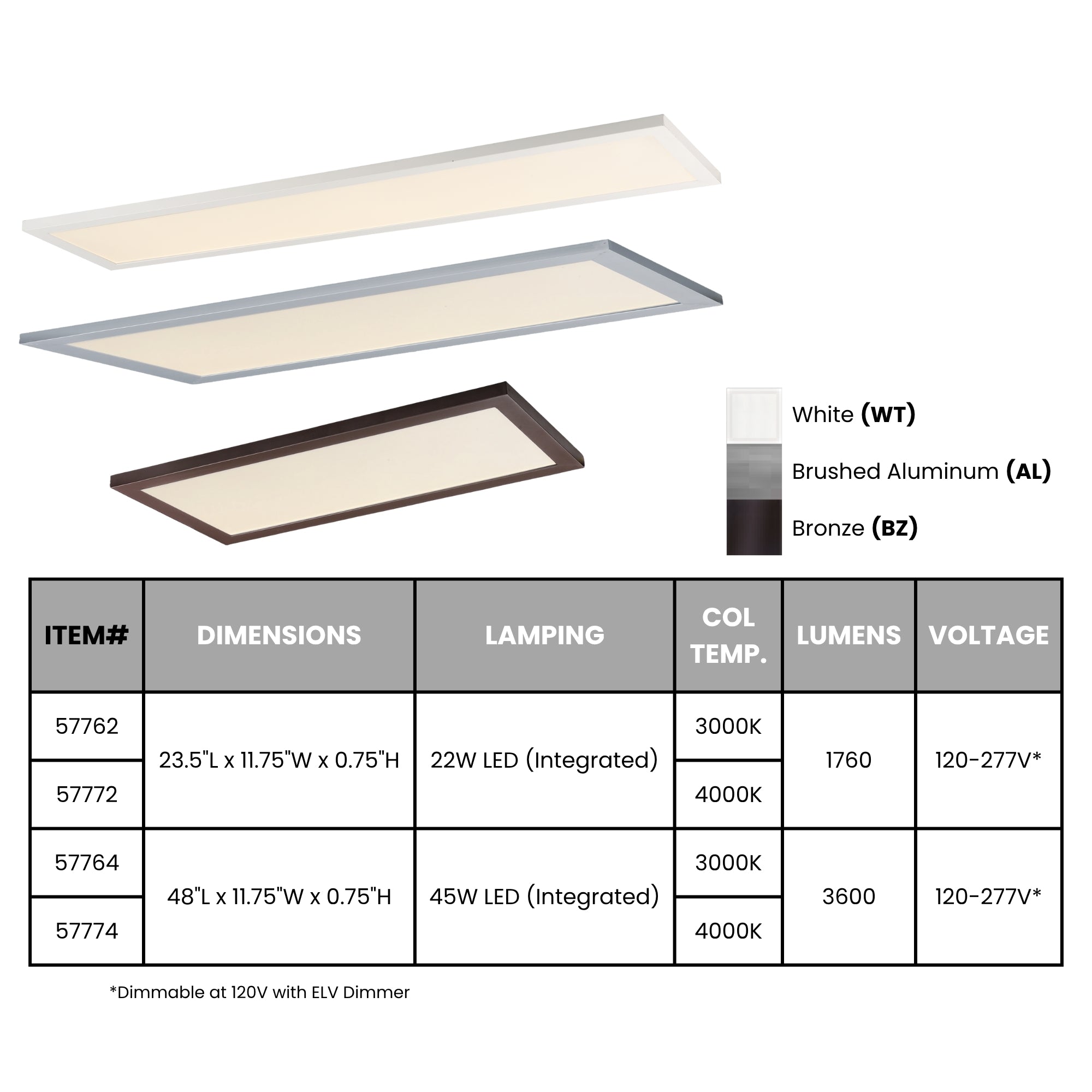

The fixture accepts 120–277V input. The lamping table specifies ELV dimming at 120V; the general header mentions 0–10V or ELV options without identifying a separate 0–10V configuration for this model. ELV dimming at 277V is not confirmed. Plan placement using the actual 23.5 in by 11.75 in footprint and 0.75 in height. The sheet lists ETL/cETL, IP65 and wet-location suitability, plus ENERGY STAR and Title 24, and closet suitability according to NEC 410.8 and 410.16. Operating temperature is -4°F to 104°F.
Typical Applications

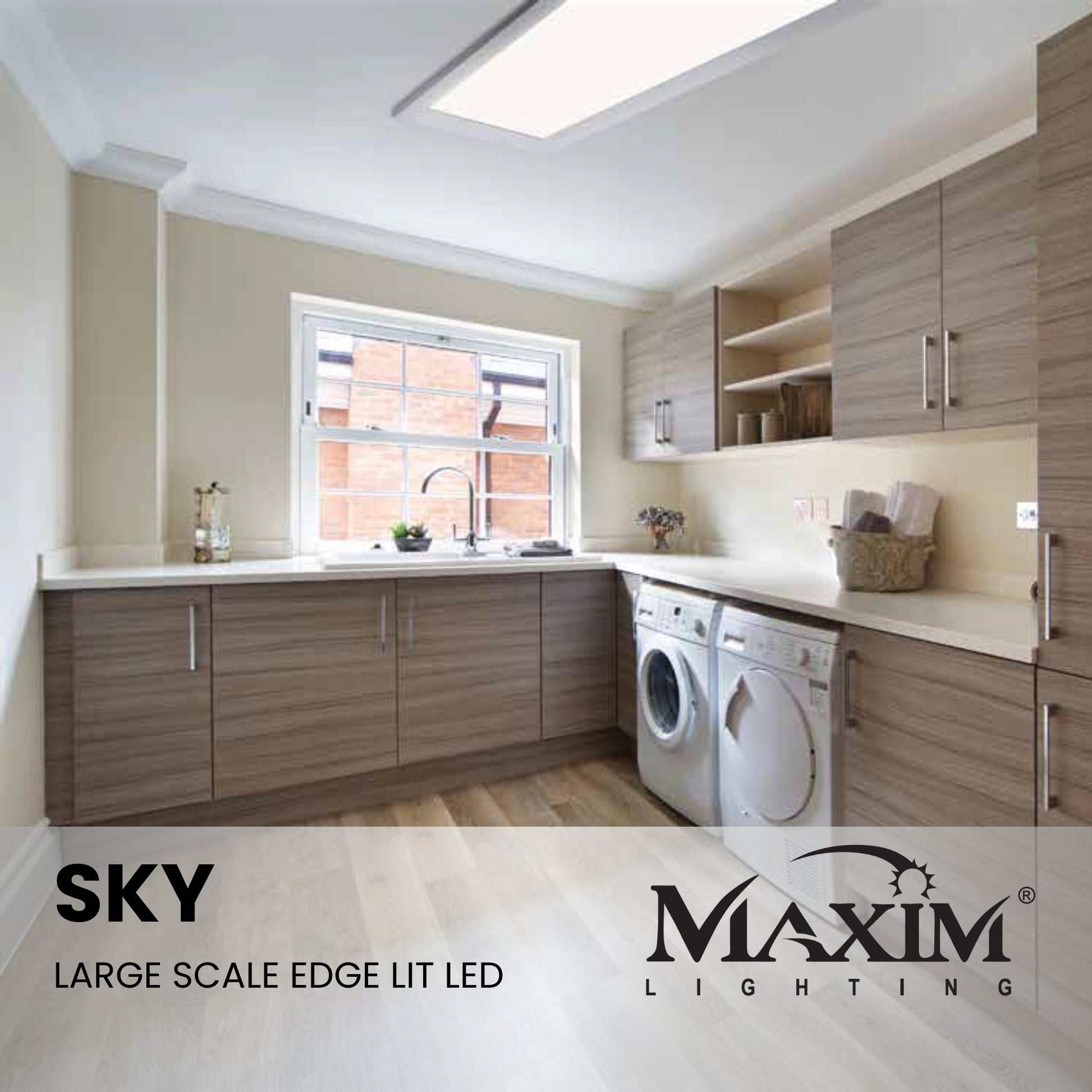

- Residential kitchens and utility rooms
- Hallways and circulation spaces
- Commercial interior ceiling lighting

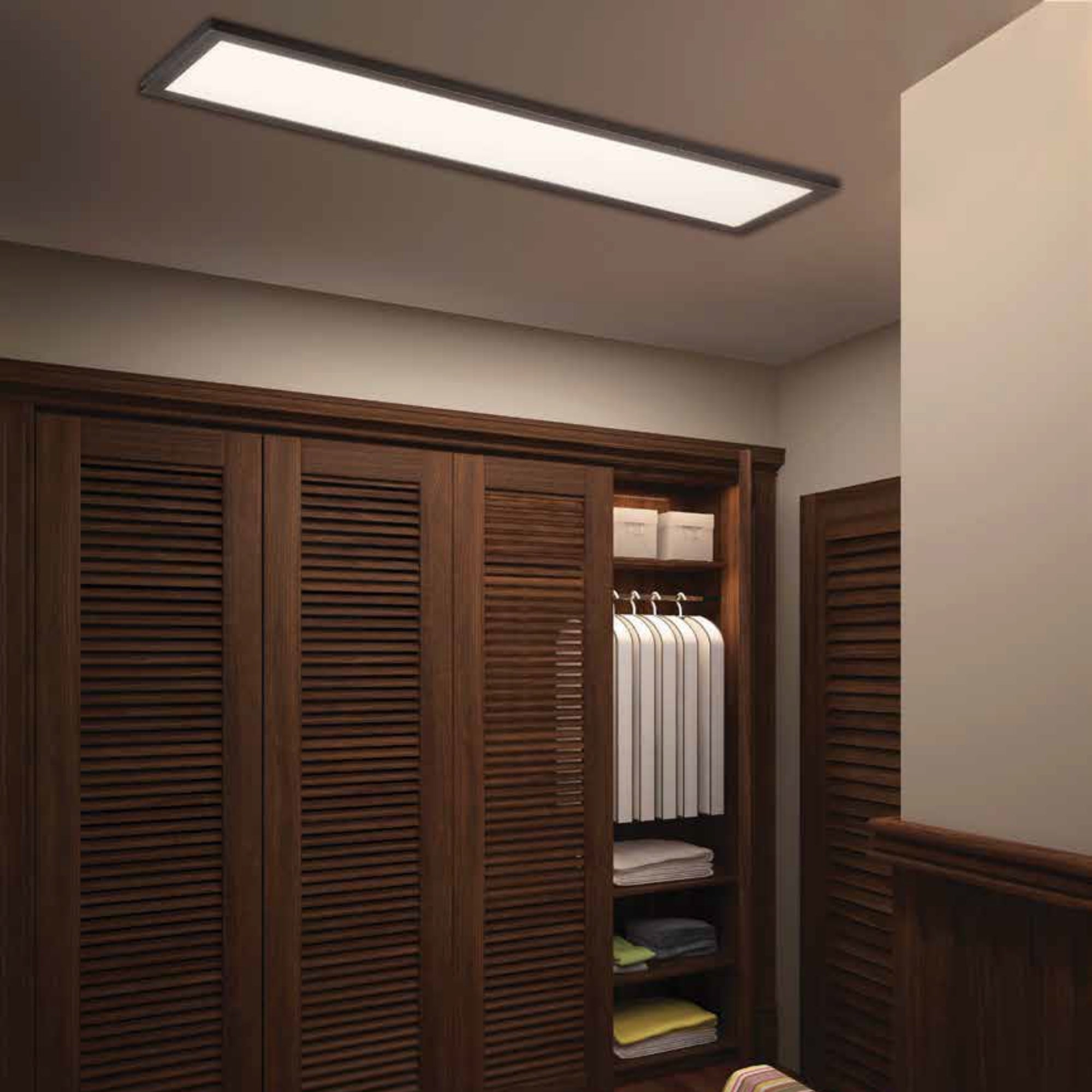

- Closets installed according to applicable requirements
What's Included
- One Maxim Lighting Sky 57762WTWT LED flush mount in White
- Integrated 22W PCB LED light source and driver
- Mounting bracket
