VersaDrive 300W 24VDC LED Driver with 5-Way Dimming, 120-277V
Available in stock (43)
About this item
About this item
- 300W Constant Voltage Output: Regulated 24V DC output for 24V LED tape and constant voltage fixtures
- 5-Way Universal Dimming: Forward phase, reverse phase, 0-10V, PWM, and potentiometer dimming down to 1%
- Universal Input: 120-277VAC input range, 50/60Hz for broad commercial and residential compatibility
- Outdoor-Rated Enclosure: Stamped steel housing with 1/2 in. trade size knockouts for field wiring
- Protection Features: Over-voltage, over-temperature (auto-recovery), overload (current limit), and short-circuit (auto-recovery)
We process payments securely and do not store credit card information.
Description
Description

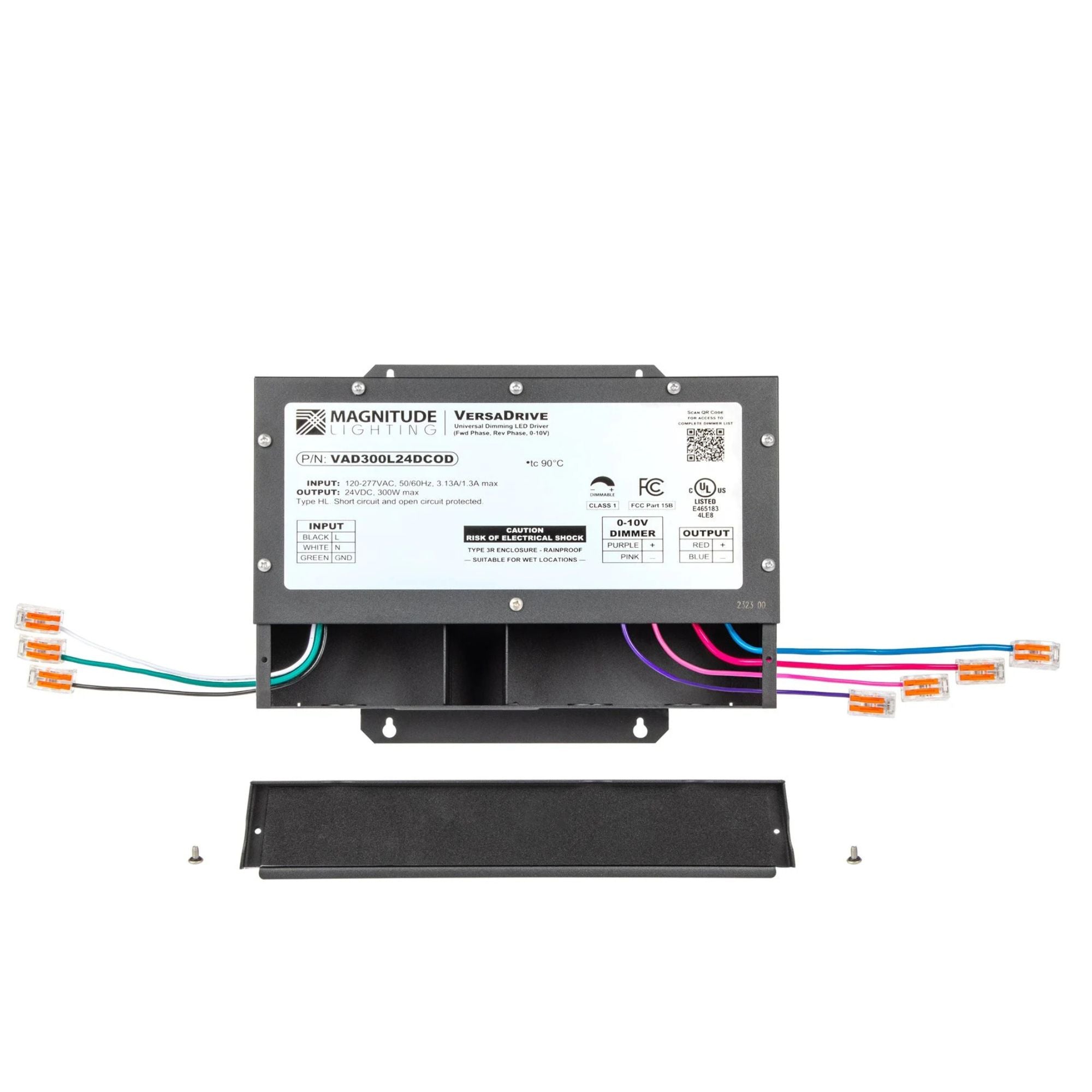

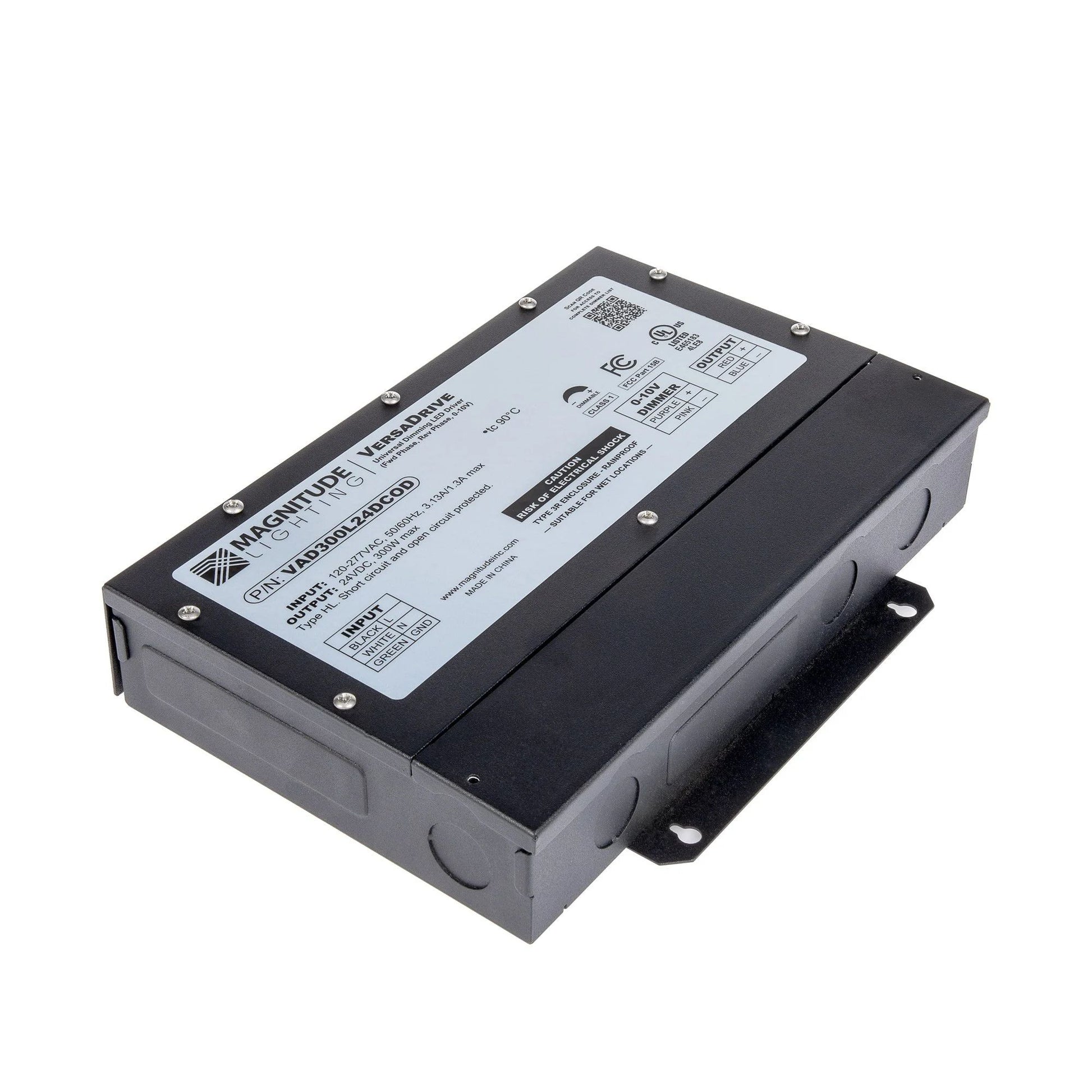

Magnitude Lighting VersaDrive 300W LED Driver — 24V DC
Magnitude Lighting VAD300L24DCOD LED Driver delivers 300W of Constant Voltage power with a regulated 24V DC output from a universal 120-277VAC input. It features Universal Dimming (forward phase, reverse phase, 0-10V, PWM, and potentiometer) with smooth dimming down to 1% and a specified minimum load for stable dimming. The stamped steel enclosure is IP65 / NEMA 3R for outdoor installations and includes trade-size knockouts for conduit entry.
Key Features
- Power: 300W maximum load
- Input Voltage: 120-277VAC ±10%, 50/60Hz
- Output Voltage: 24VDC
- Output Dimming: PWM output / 3.9KHz; 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, potentiometer)
- Minimum Load for Dimming: 40W
- Dimensions: 9.9 in. L x 7.6 in. W x 1.9 in. H
- Enclosure Type: Stamped steel, powder coat, with 1/2 in. trade size knockouts
- IP / Enclosure Rating: IP65 / NEMA 3R
- Class 2: Class 2
- Certifications: UL Listed; meets Title 24/JA8
Physical Design & Installation

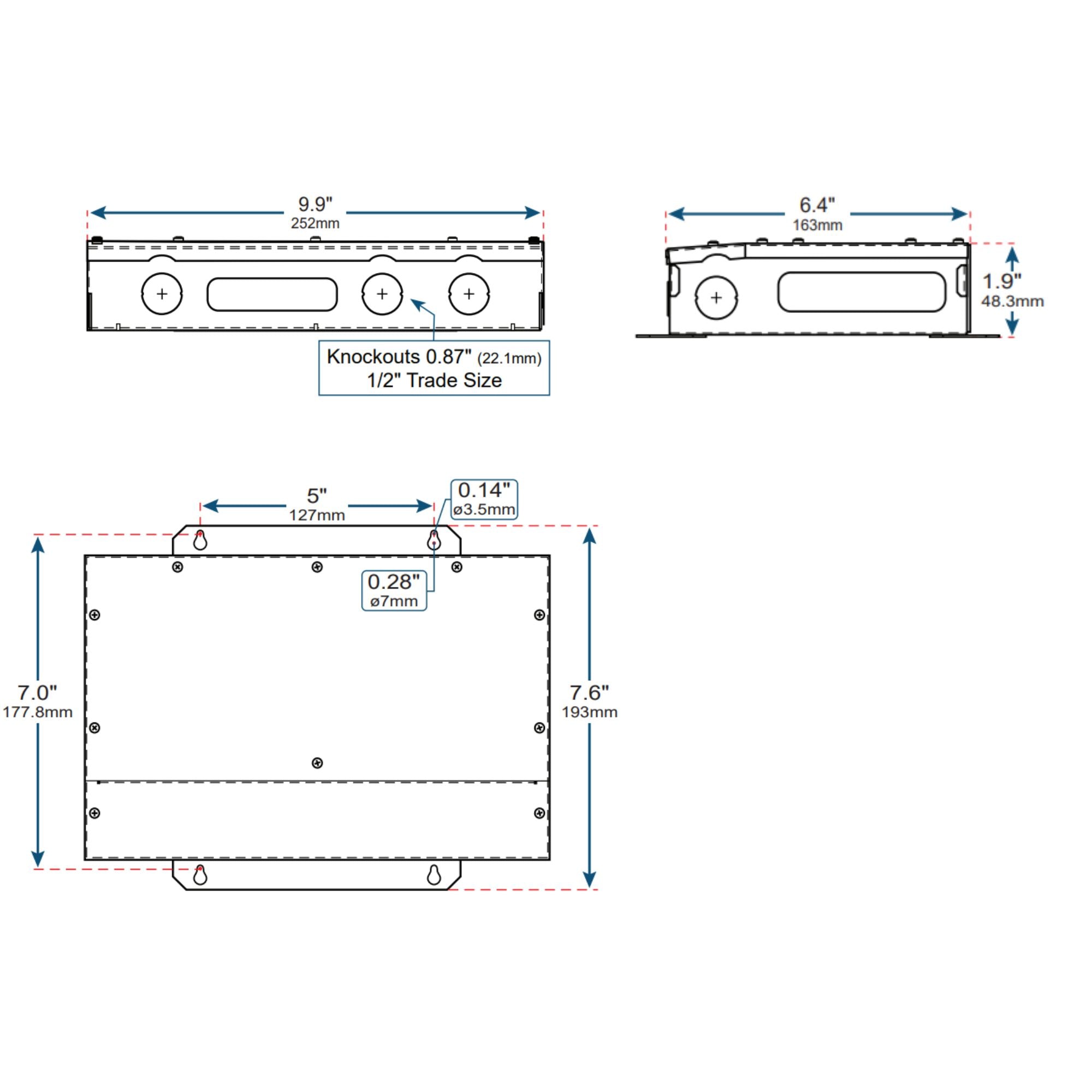

Built in a stamped steel, powder-coated housing with stainless steel cover screws for corrosion resistance. The enclosure provides 1/2 in. trade size knockouts (0.87 in. / 22.1mm) to support conduit entry and clean field wiring for outdoor-rated installations.
Dimming & Controls

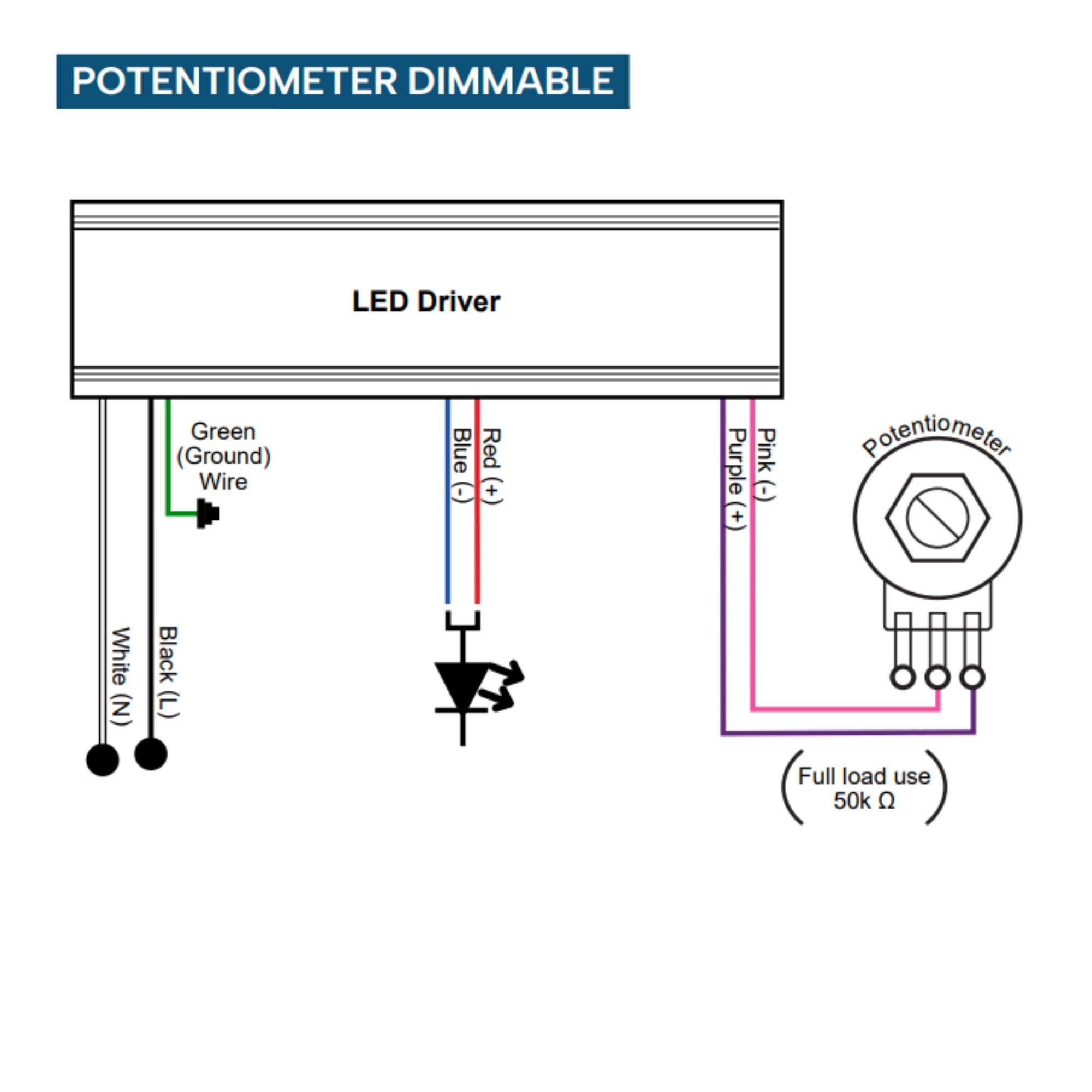

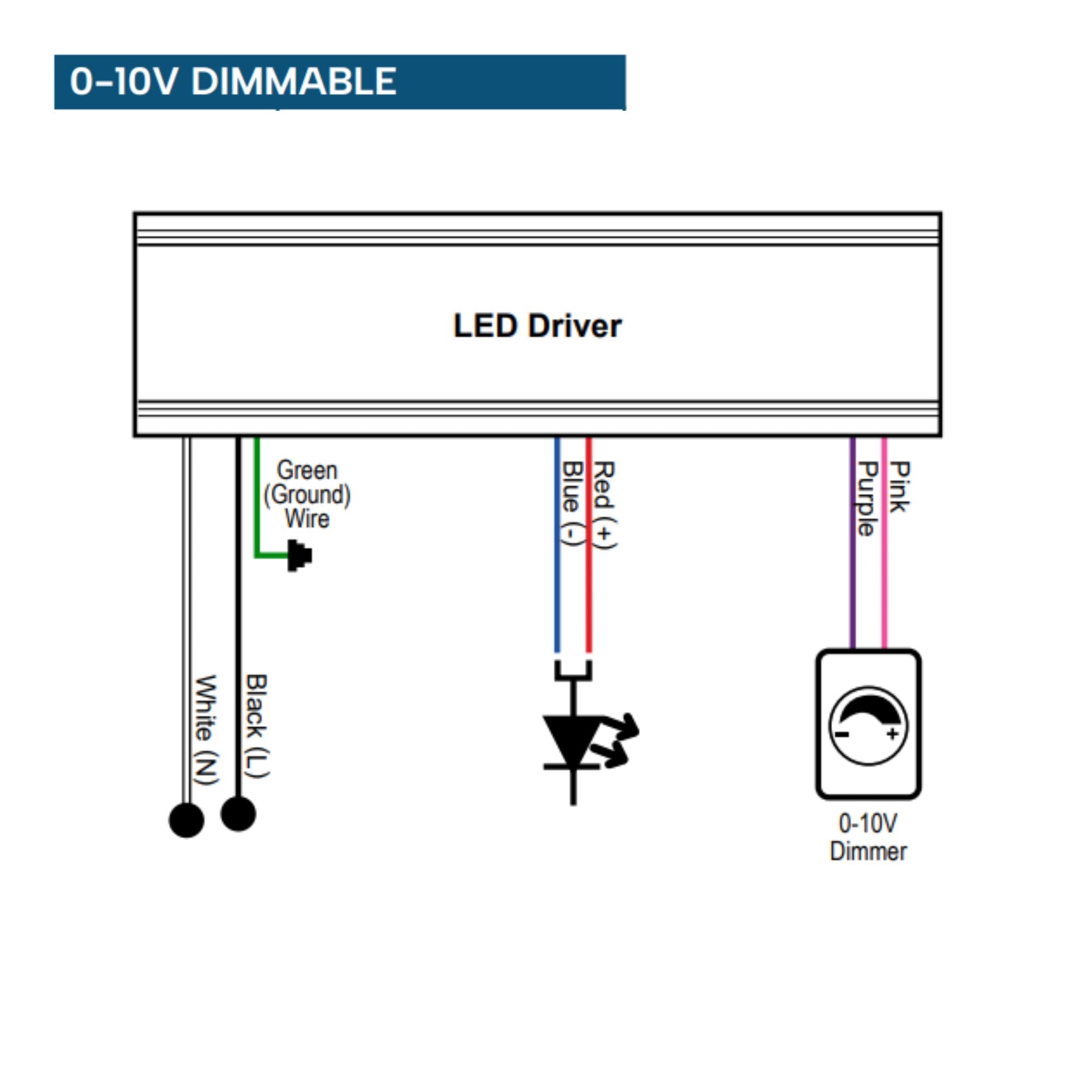

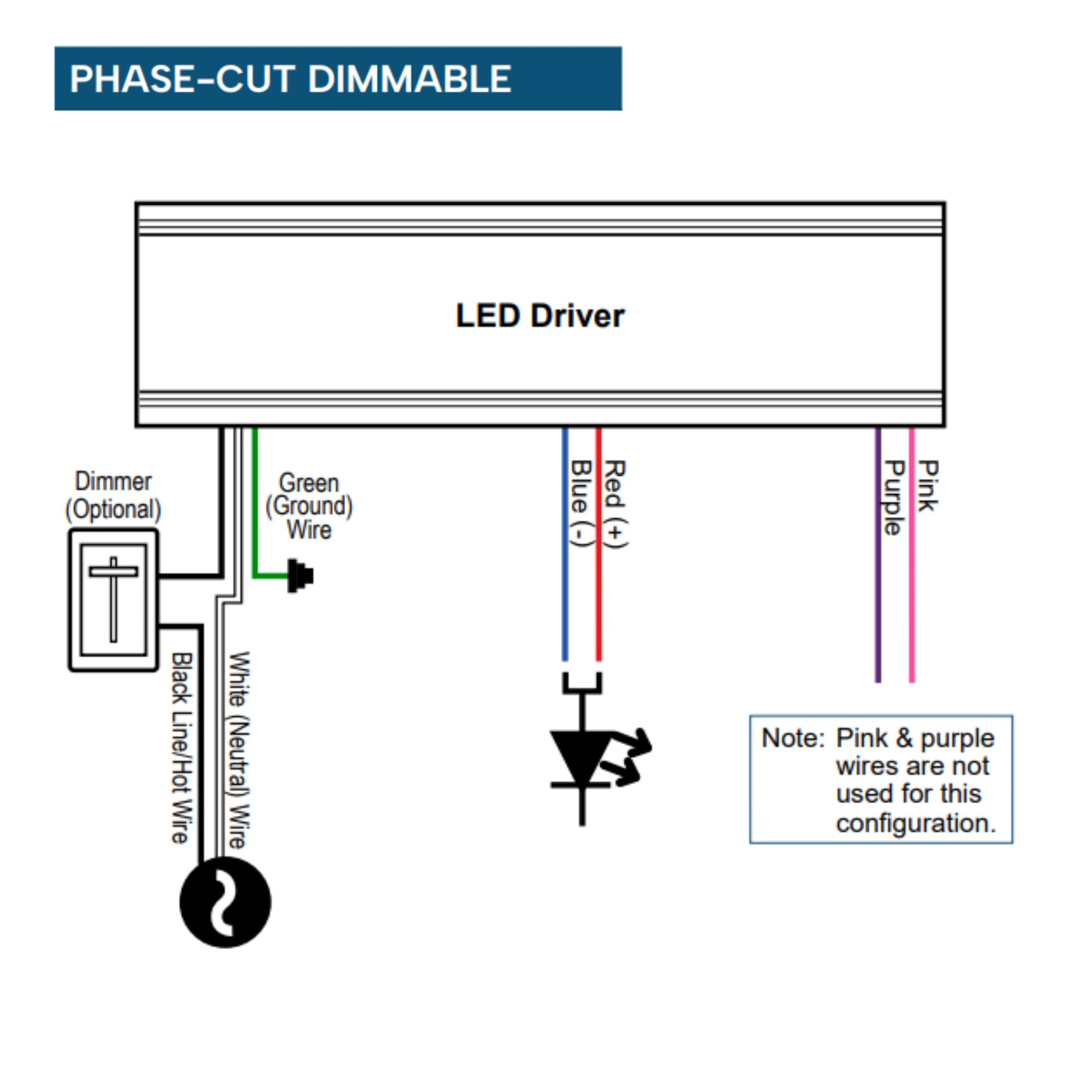

Supports 5-way universal dimming: forward phase and reverse phase (phase-cut), 0-10V, PWM, and potentiometer control. Output uses PWM at 3.9KHz and is designed for smooth, flicker-free dimming down to 1% with a linear dimming curve. For stable dimming performance, maintain the specified minimum load of 40W.
Performance & Build
Designed for long service life (≥ 80,000 hours at Tc ≤ 60°C) and includes over-voltage protection, over-temperature protection with auto-recovery, overload protection via current limiting, and short-circuit protection with auto-recovery. The driver is Class 2 and housed in an IP65 / NEMA 3R enclosure for demanding environments.
Typical Applications
- Outdoor 24V LED tape and linear lighting systems
- Wet-location architectural accents and façade lighting
- Landscape and hardscape 24V constant voltage LED loads
- Signage and perimeter lighting requiring 24VDC with dimming
