VersaDrive 3-Channel 288W 24VDC LED Driver with 5-Way Dimming, Class 2, 120-277V
Available in stock (43)
About this item
About this item
- High-Power 24VDC Output: 288W total (3 x 96W channels) constant voltage output for 24V LED tape and fixtures.
- 5-Way Universal Dimming: Forward phase, reverse phase, 0-10V, PWM, and potentiometer dimming; dims down to 1%.
- Universal Input Range: 120-277VAC ±10%, 50/60Hz for broad commercial and residential compatibility.
- Outdoor-Rated Enclosure: Stamped steel, powder coat housing with Integrated Junction Box and 1/2 in. trade size knockouts.
- Protection & Reliability: Over-voltage, over-temperature (auto-recovery), overload current-limit, and short-circuit (auto-recovery) protection.
We process payments securely and do not store credit card information.
Description
Description

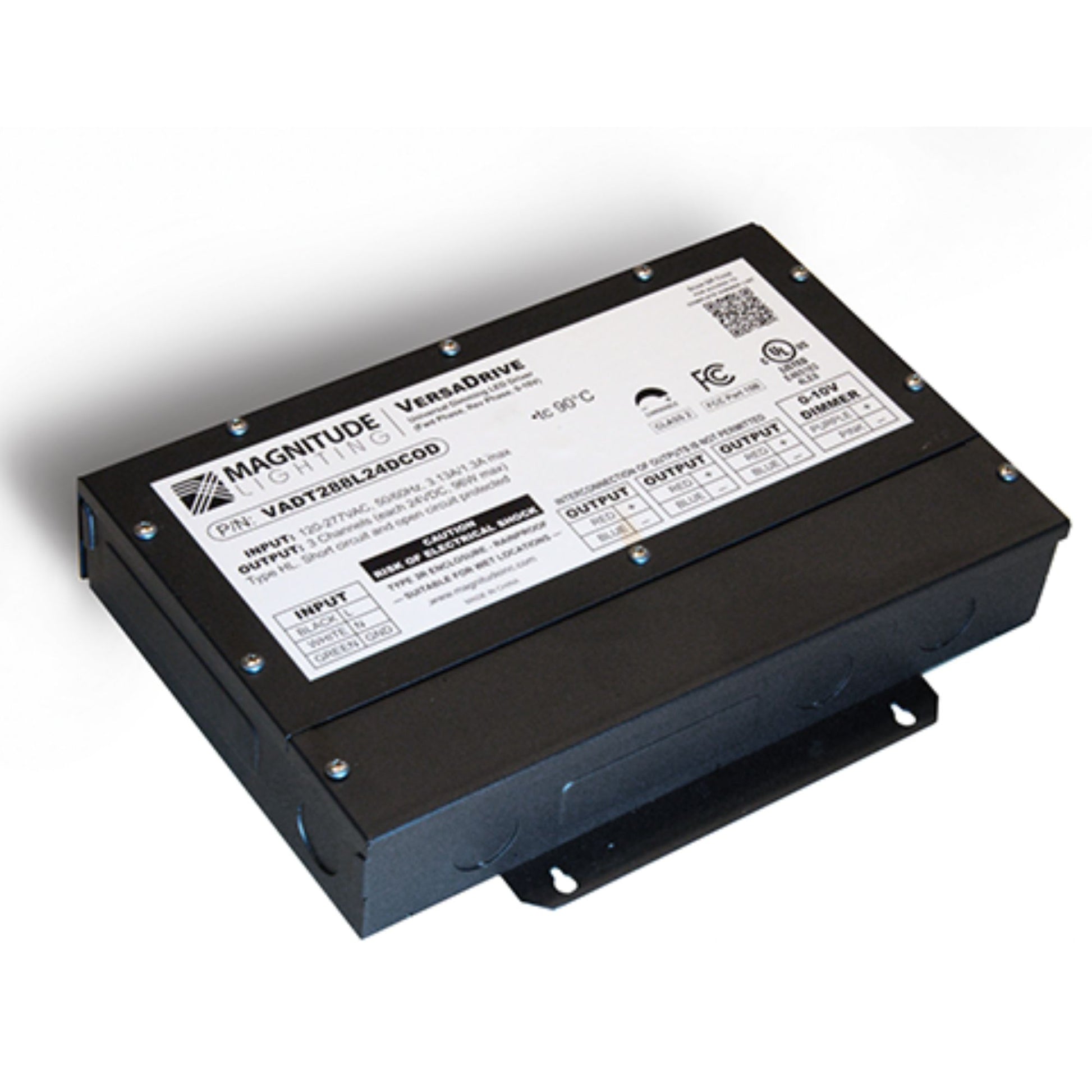

Magnitude Lighting VersaDrive 288W LED Driver — 24V DC
VADT288L24DCOD is a Magnitude Lighting VersaDrive LED Driver delivering 288W total at 24V DC Constant Voltage output with three 96W channels. It accepts 120-277VAC input and provides 5-way universal dimming (forward phase, reverse phase, 0-10V, PWM, and potentiometer) with smooth dimming down to 1%. Built in a stamped steel, powder-coated housing with an Integrated Junction Box, it is UL Listed and Class 2.
Key Features
- Power: 288W total (3 x 96W channels)
- Input Voltage: 120-277VAC ±10%
- Output Voltage: 24VDC per channel
- Dimming: 5-way universal (forward phase, reverse phase, 0-10V, PWM, potentiometer); dims to 1%
- Minimum Load: 20W per channel for dimming

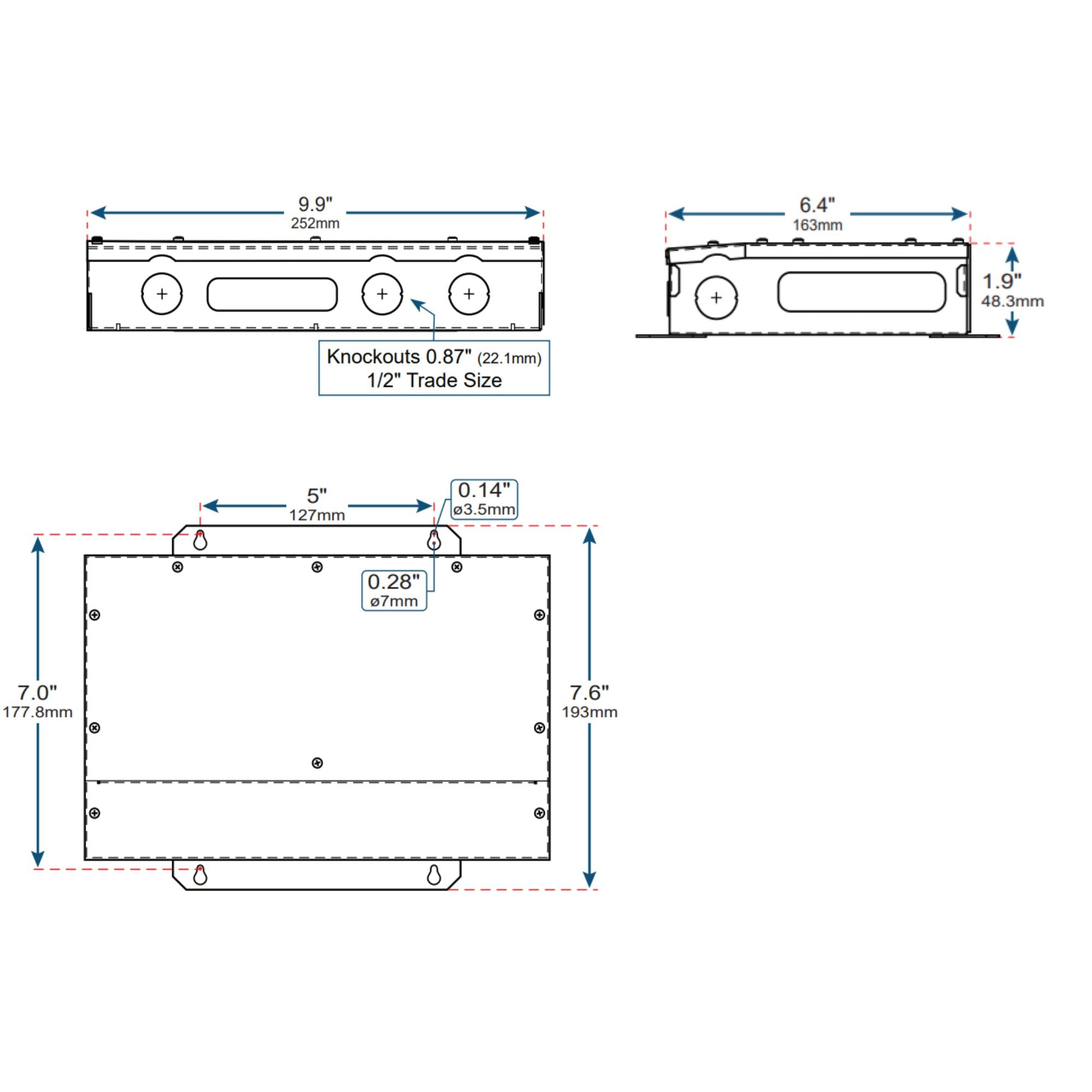

- Dimensions: 9.9 in. L x 7.6 in. W x 1.9 in. H
- Enclosure Type: Integrated Junction Box with 1/2 in. trade size knockouts; stamped steel, powder coat
- IP / Enclosure Rating: IP65 / NEMA 3R
- Class 2: Class 2
- Certifications: UL Listed
Physical Design & Installation

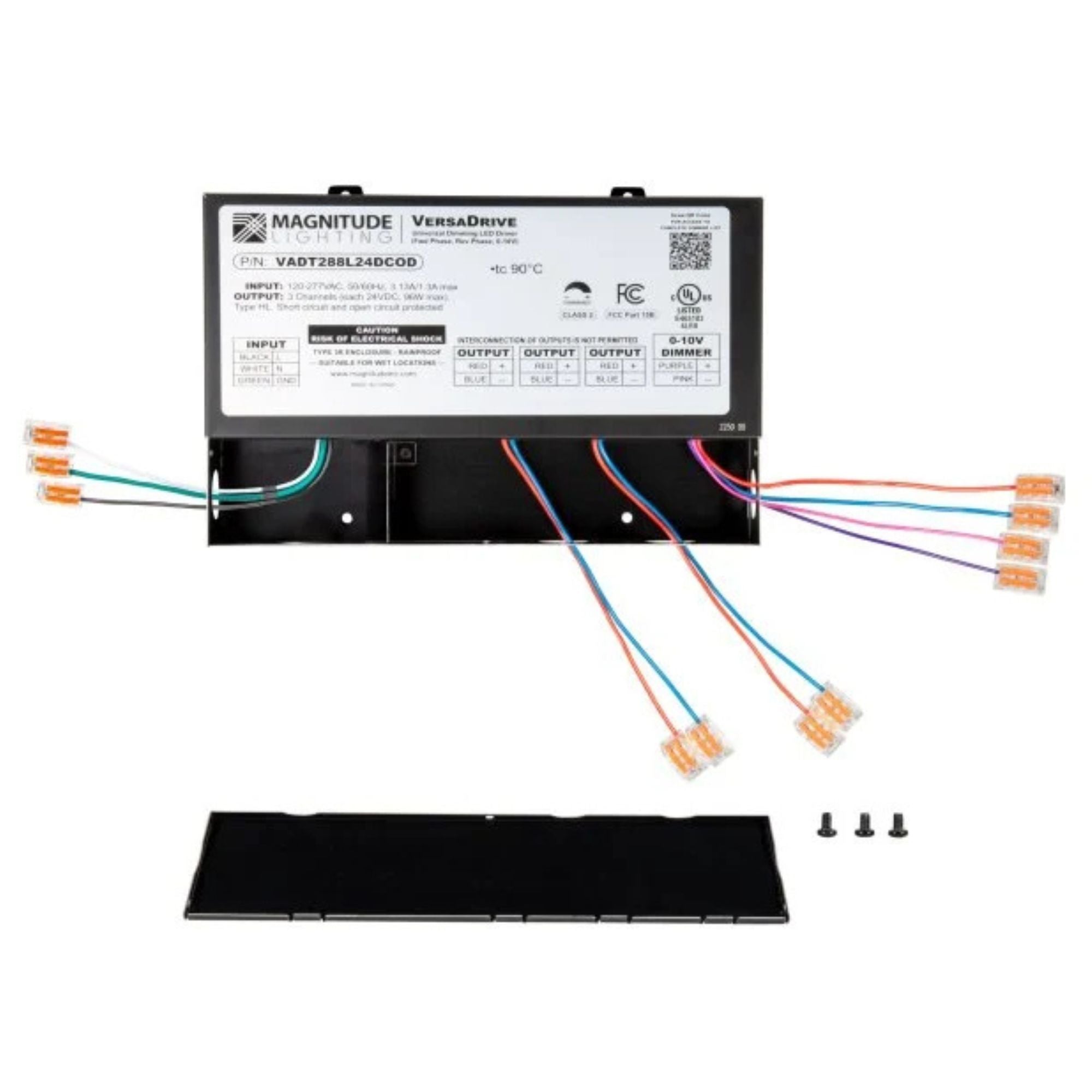

Stamped steel, powder-coated enclosure is designed for field wiring and includes an Integrated Junction Box with 1/2 in. trade size knockouts. Lever style connectors are pre-installed on all wire leads to speed installation and service.
Dimming & Controls

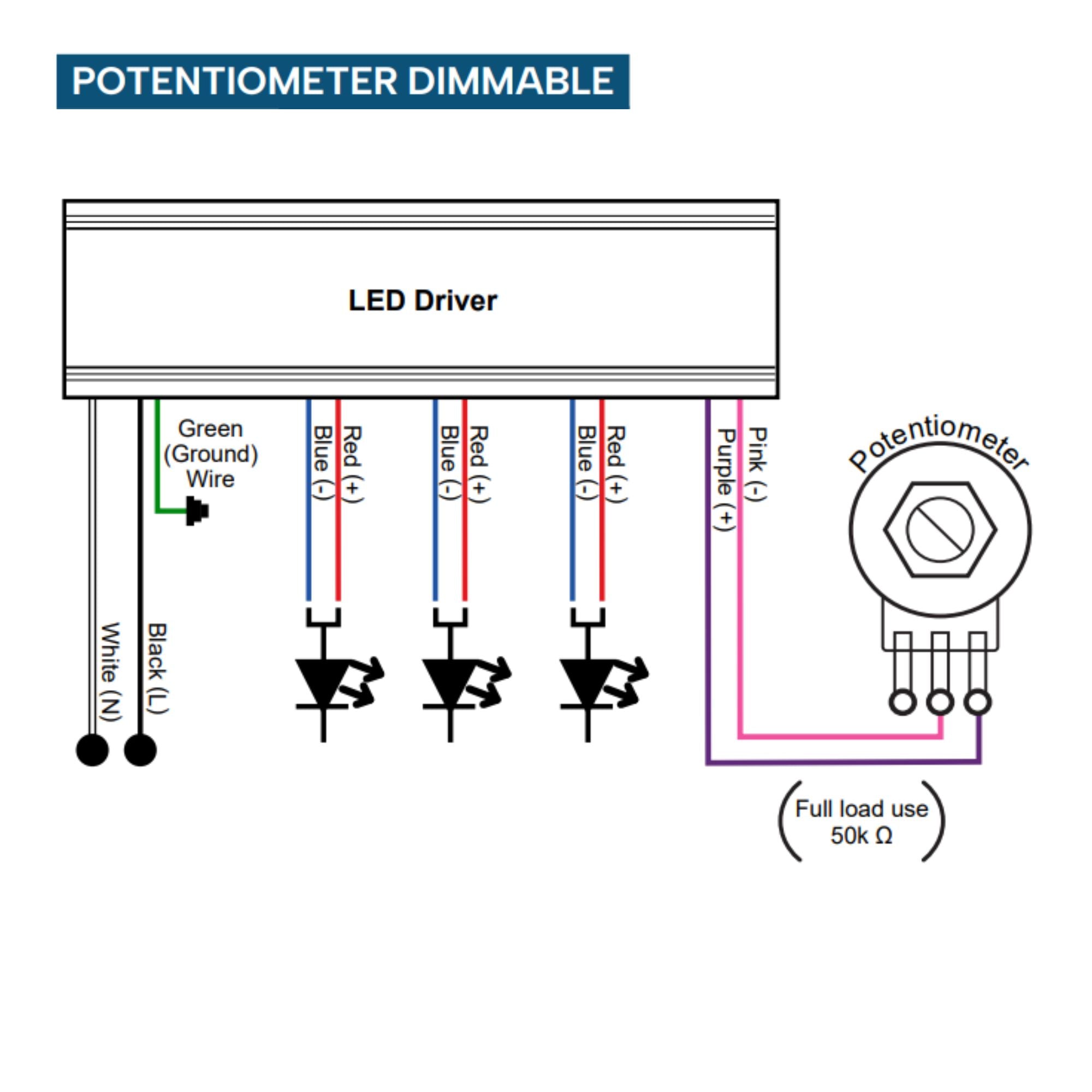

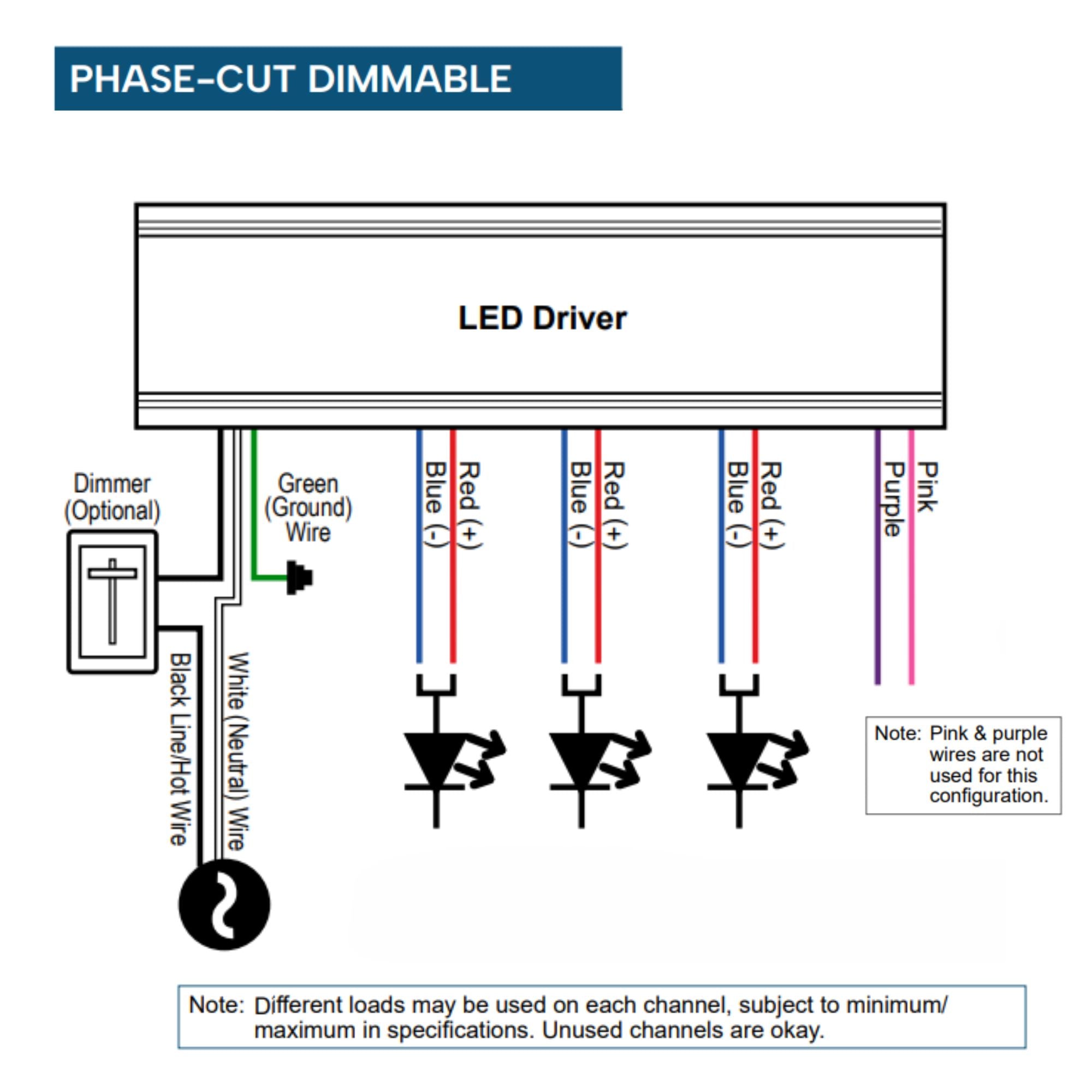

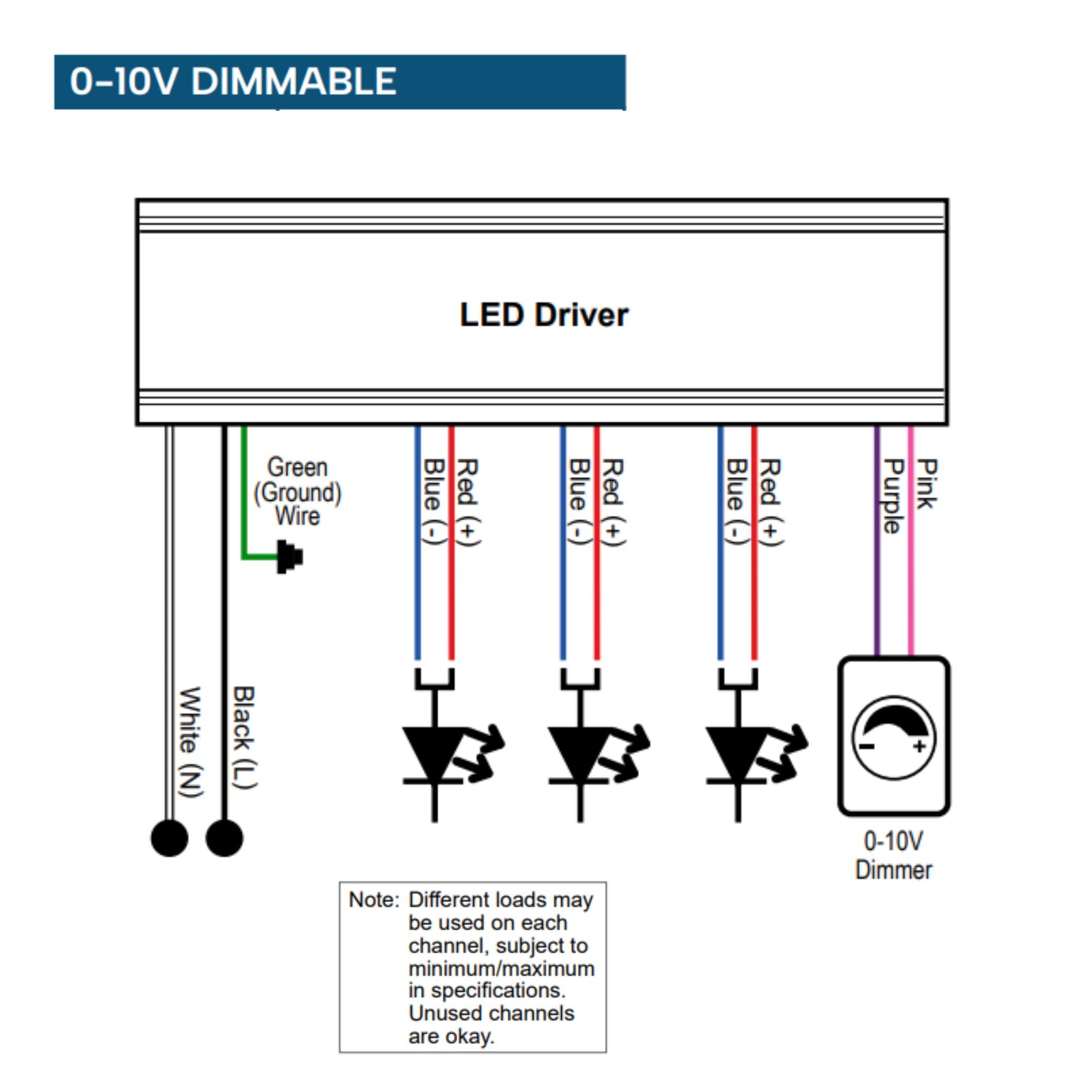

This driver supports 5-way universal dimming: phase-cut (forward or reverse phase), 0-10V, PWM, and a potentiometer option. For dimming performance, maintain at least 20W per channel; unused channels are permitted. PWM output is 3.9 kHz, and the PWM dimming signal frequency range is 500Hz to 2Khz.
Performance & Build
Designed for stable constant voltage operation with current-limiting overload protection, plus over-voltage protection, over-temperature protection with auto-recovery, and short-circuit protection with auto-recovery. Rated IP65 / NEMA 3R and listed as Class 2.
Typical Applications
- Outdoor LED tape and linear lighting systems
- Wet-location architectural accents and coves
- Signage and perimeter lighting using 24VDC loads
- Commercial and residential installations requiring multi-protocol dimming
