M-Series 96W 24VDC Magnetic Phase Dimmable LED Driver, Class 2, 120V
Available in stock (46)
About this item
About this item
- 24VDC Constant Voltage Output: 96W max load for 24V LED tape, linear, and tube lighting systems.
- MLV TRIAC Phase Dimming: Leading (forward) edge MLV TRIAC dimmer only; dims down to 1%.
- 120VAC Input: 120VAC ±5%, 50/60Hz input for standard line-voltage feeds.
- Integrated Junction Box: Metal enclosure with multiple 7/8 in. knockouts and 2-hole flange mounting.
- Built-In Protection: Primary and secondary auto-reset circuit breaker protection for driver and LED load.
We process payments securely and do not store credit card information.
Description
Description

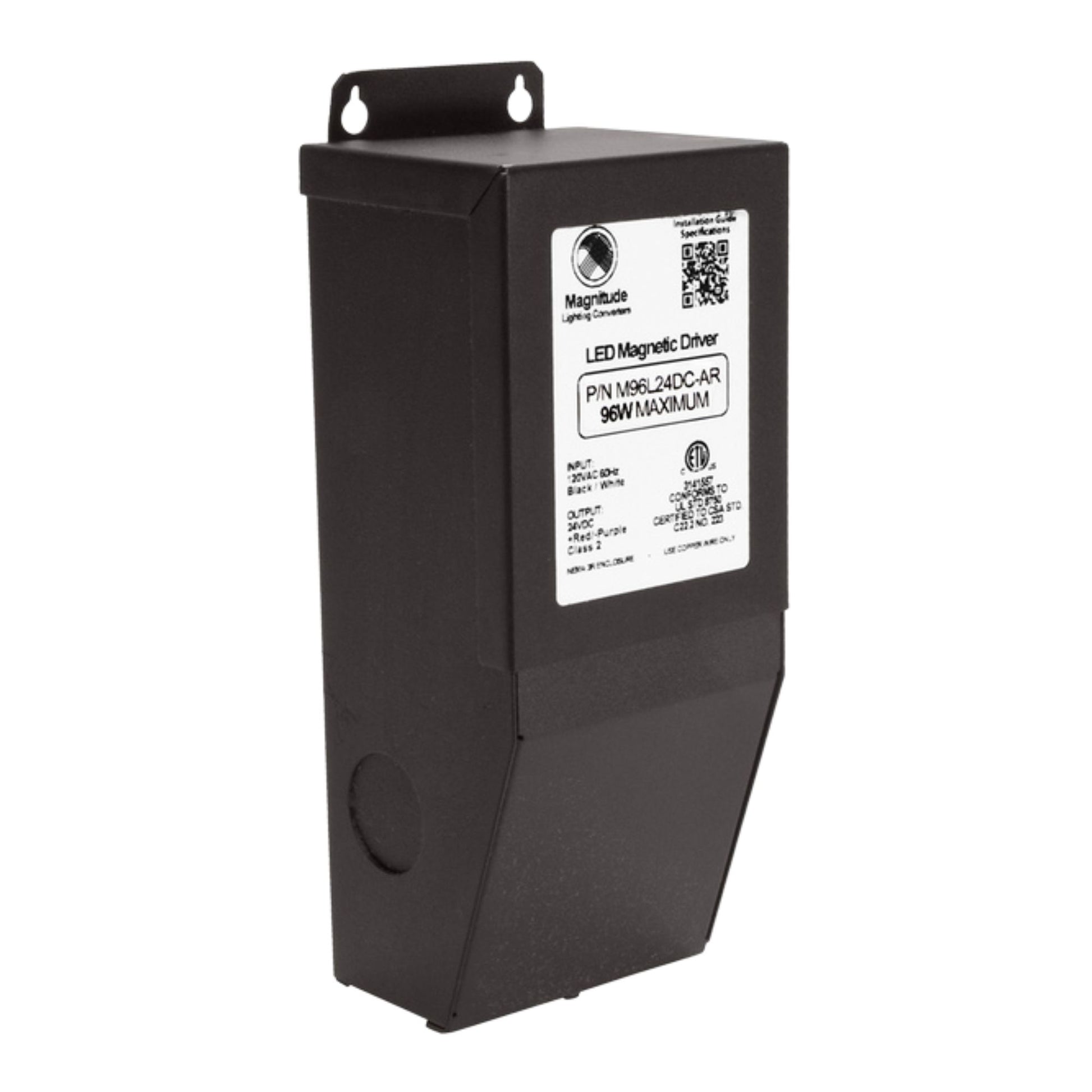

Magnitude Lighting M-Series 96W LED Driver — 24V DC
M96L24DC-AR is a 96W LED Driver with 120VAC input and 24V DC Constant Voltage output for tape, tube, and linear LED loads. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is built in a coated metal housing with an Integrated Junction Box and multiple 7/8 in. knockouts. Class 2 construction is specified for the 96W model.
Key Features
- Max Power: 96W
- Input Voltage: 120VAC ±5%, 50/60Hz
- Output Voltage: 24VDC (constant voltage)
- Dimming: Phase dimmable, leading-edge MLV TRIAC dimmer only
- Min Dimming Level: 1%

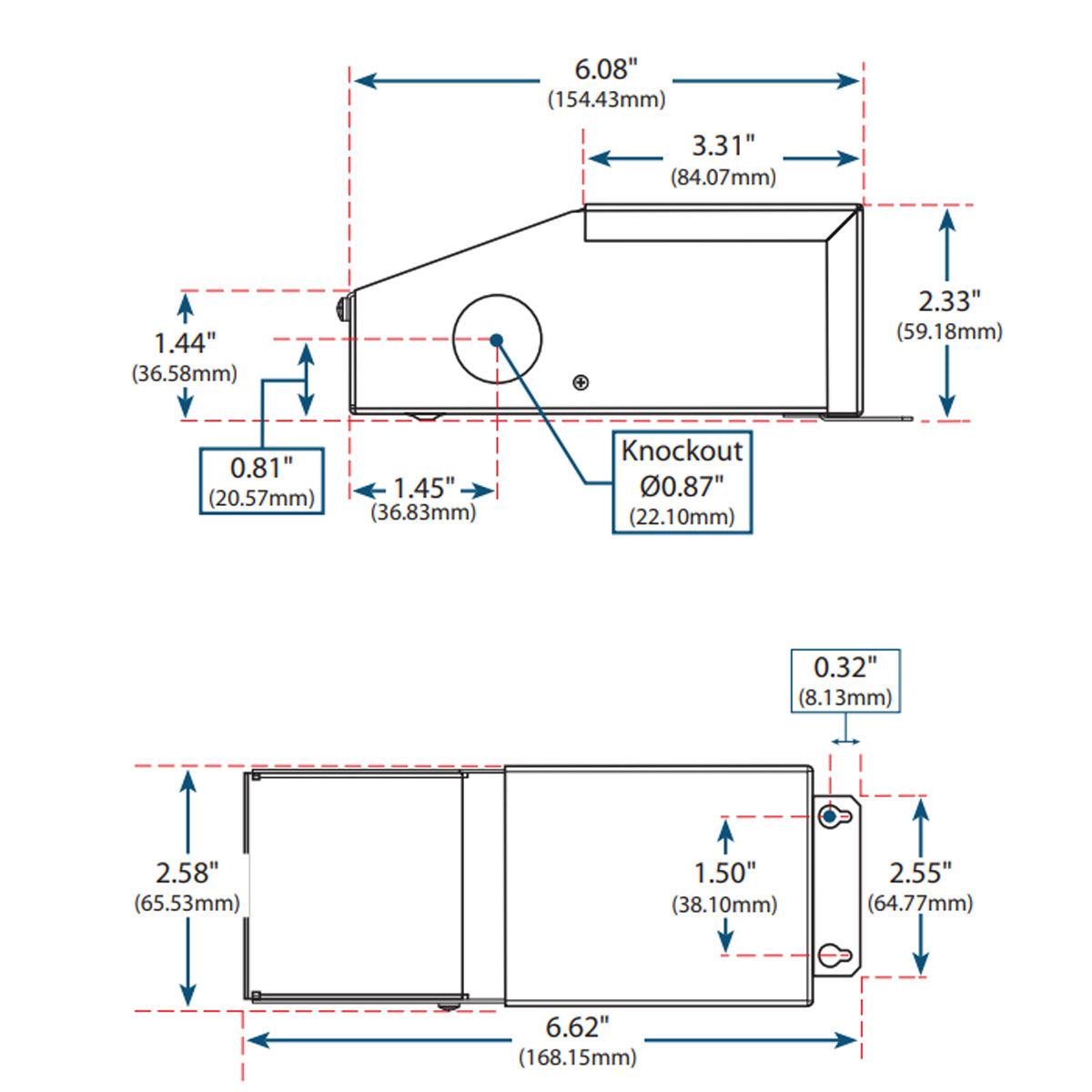

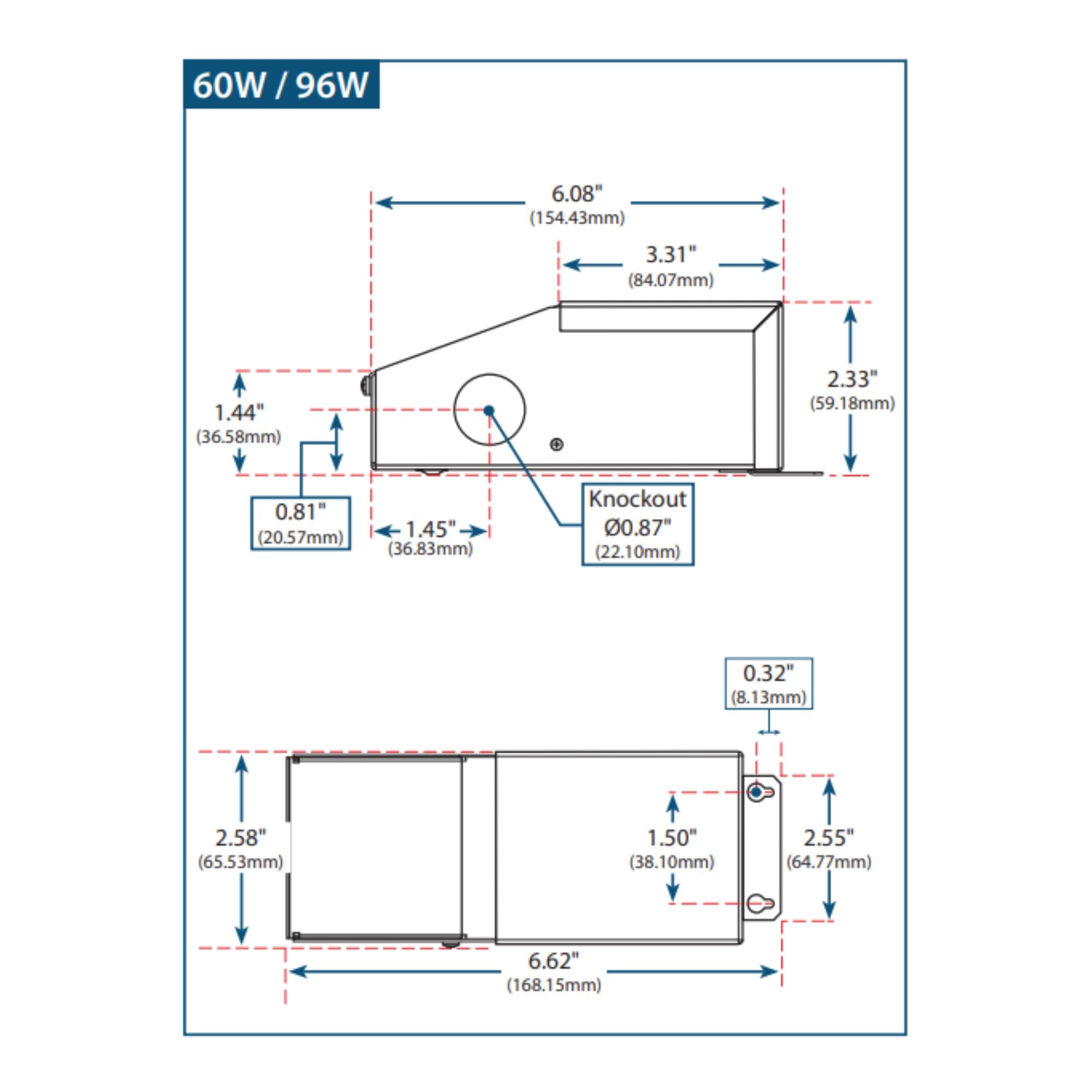

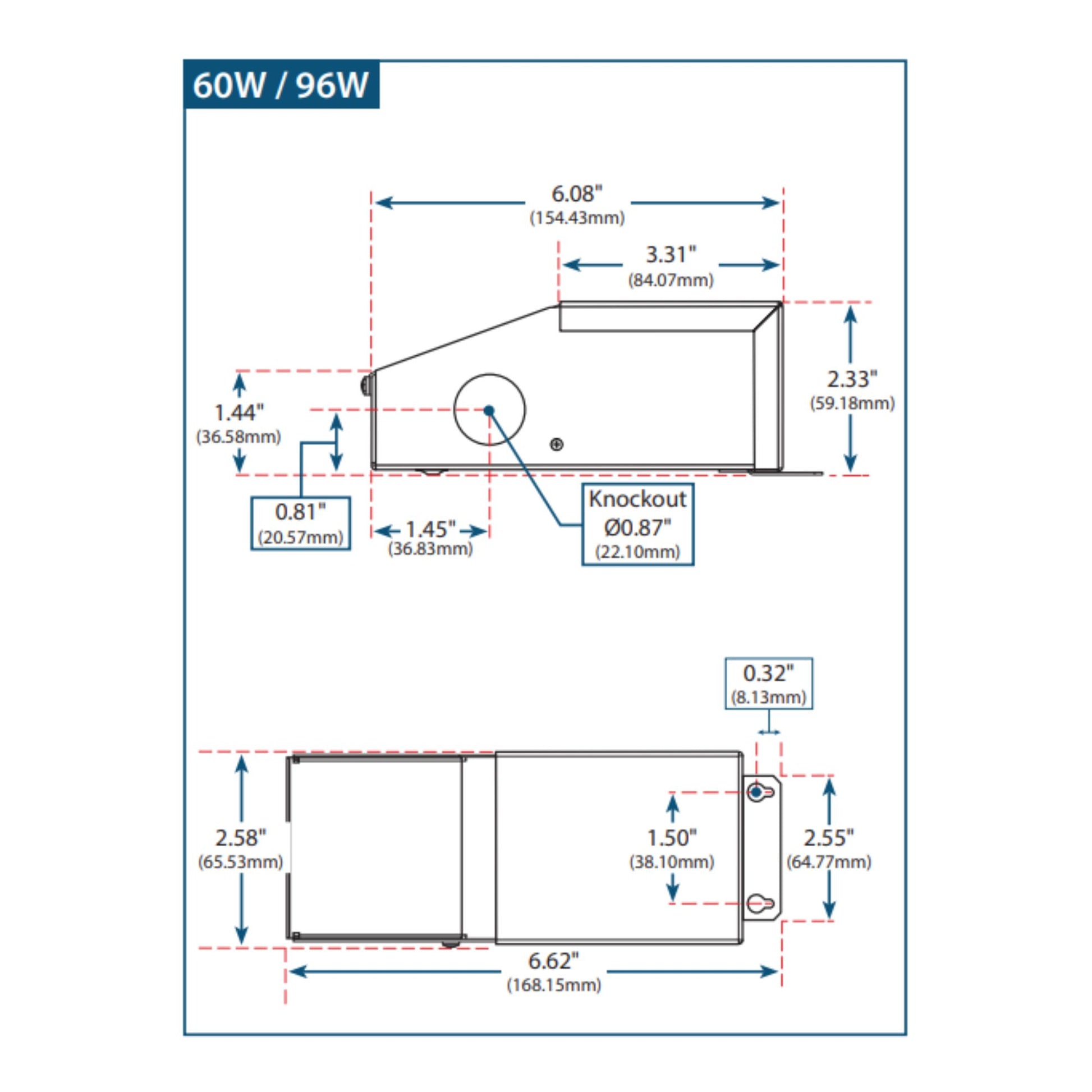

- Dimensions: 6.62 in. L x 2.58 in. W x 2.33 in. H
- Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts; coated metal housing
- Environmental: Dry & Damp
- Class 2: Yes (96W Class 2 option)
- Certifications: ETL Listed; conforms to UL STD 2108; C22.2 No. 223
Physical Design & Installation

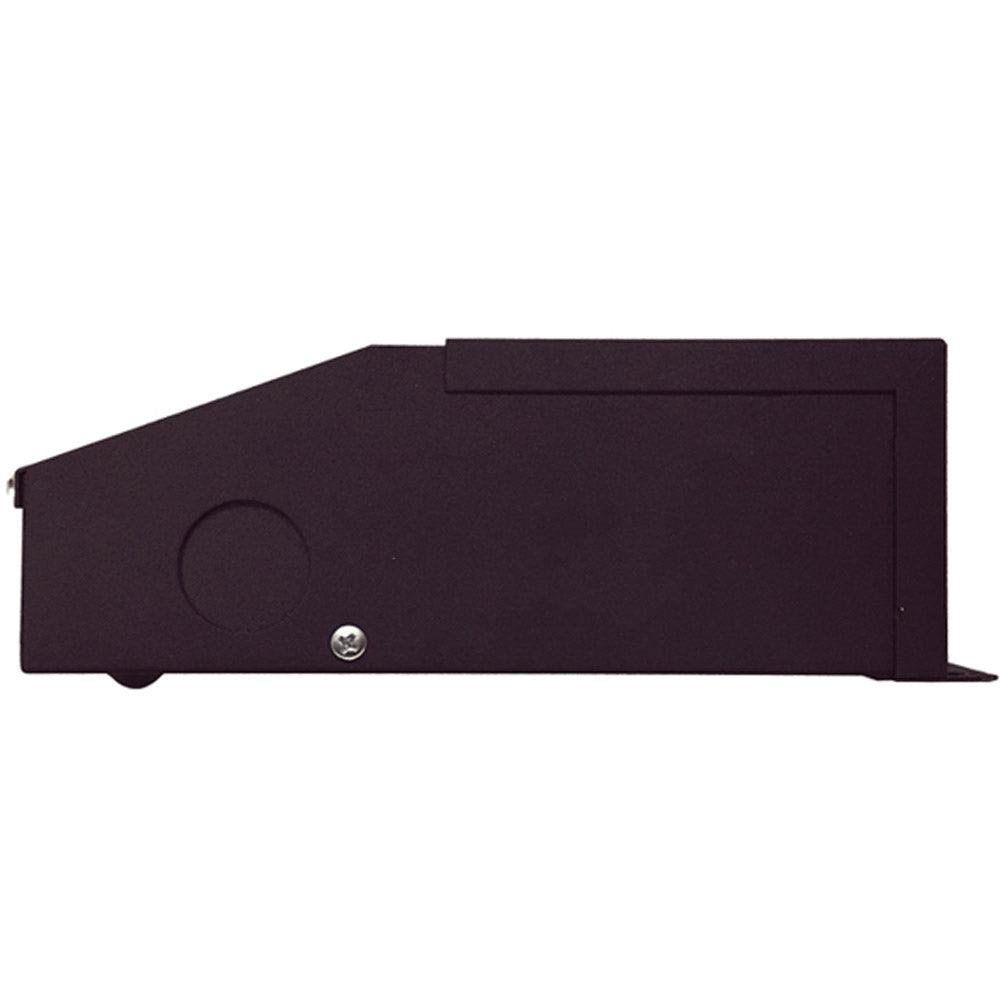

Constructed in a coated metal enclosure with a built-in Integrated Junction Box for hardwired installs. The housing includes multiple 7/8 in. knockouts and a 2-hole flange mount to simplify mounting and conduit entry.
Dimming & Controls
Dimming is via phase control using a leading (forward) edge MLV TRIAC dimmer only. The driver supports dimming down to 1% (performance depends on dimmer and load). Input is 120VAC, 50/60Hz and output is 24VDC constant voltage for compatible 24V LED loads.
Performance & Build
Designed with primary and secondary auto-reset circuit breaker protection to help protect both the driver and the connected LED load. Rated for dry and damp environments and built as a Class 2 constant voltage driver for 24VDC LED systems.
Typical Applications
- 24V LED tape and accent lighting
- Linear LED runs and coves
- LED tube and architectural details
- Residential and commercial dimmable 24VDC systems
