Magnitude Lighting M-Series 60W LED Driver — 12V DC

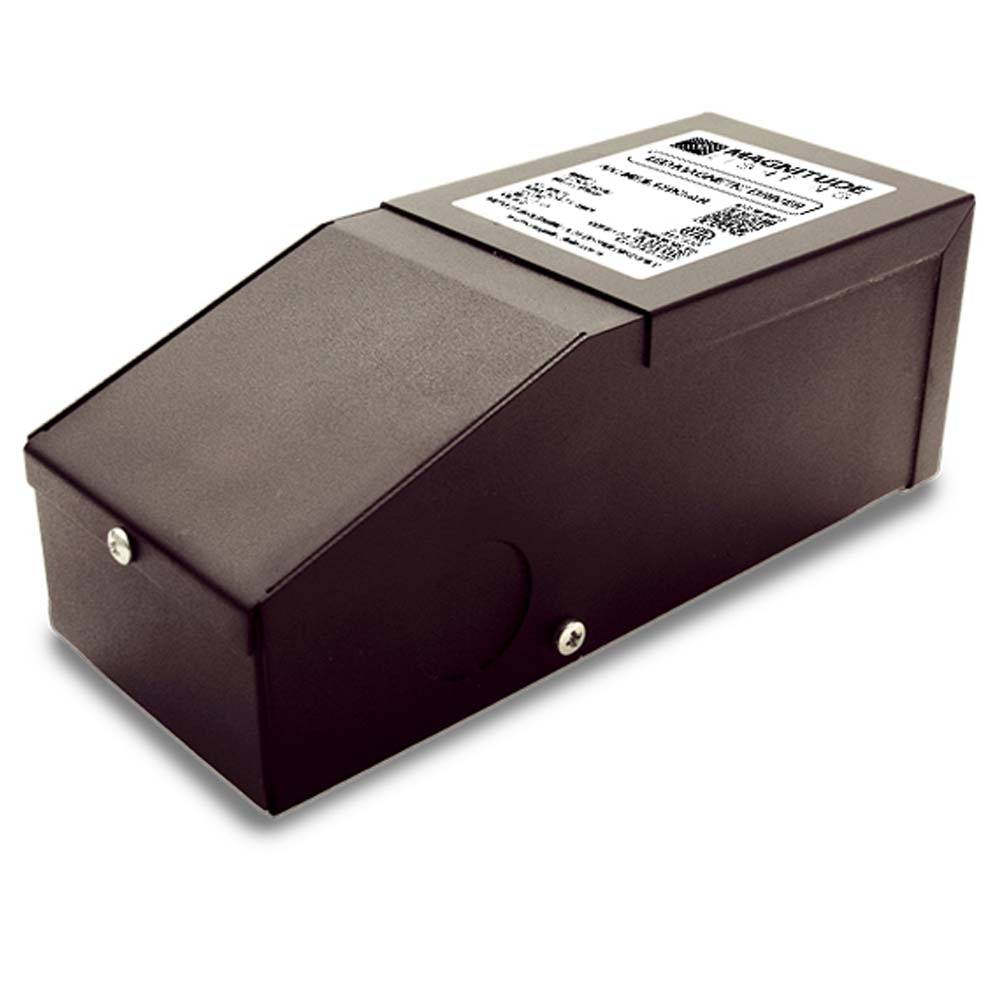

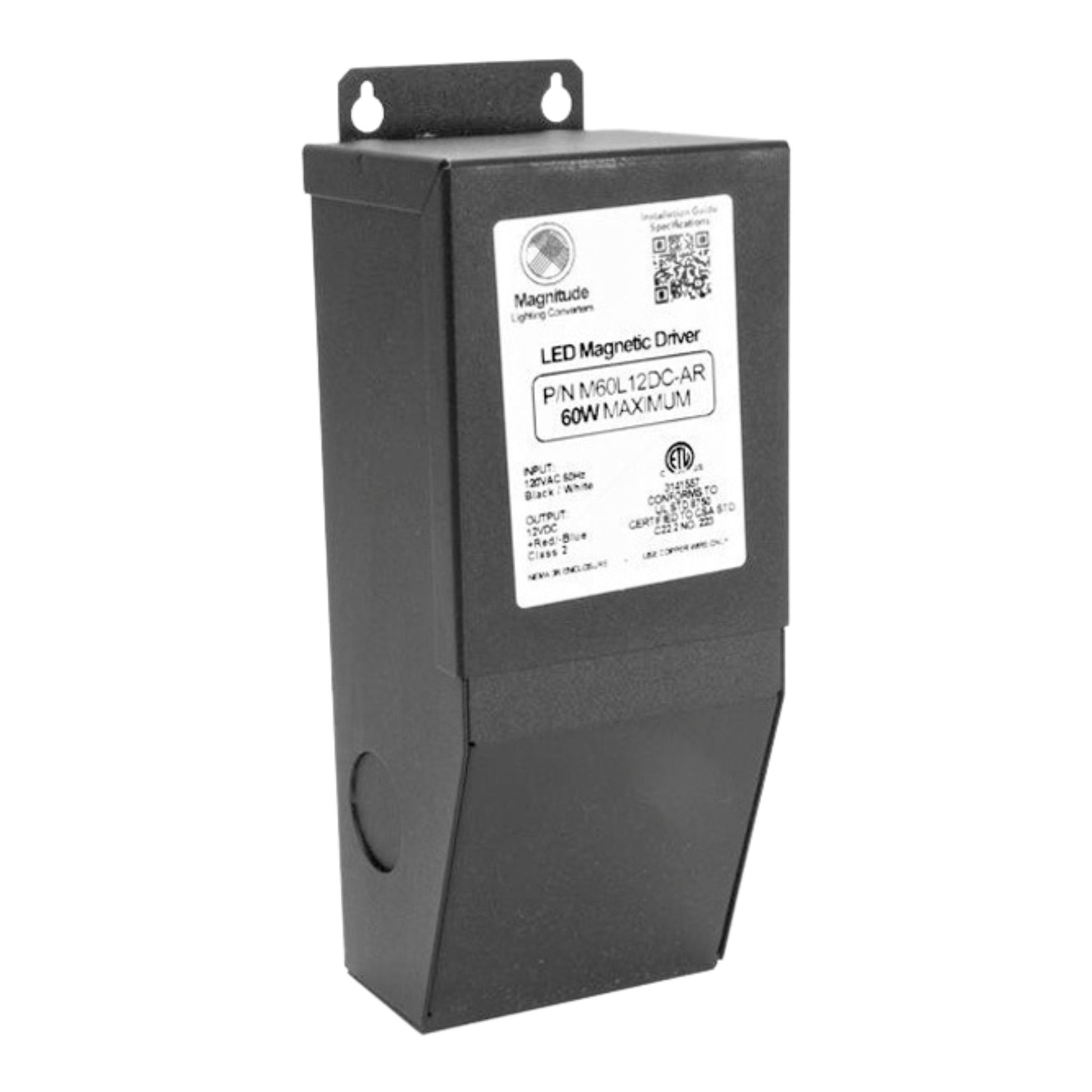

M60L12DC-AR is a Magnitude Lighting LED Driver rated 60W with 120VAC input and 12V DC Constant Voltage output for 12V LED tape, linear, and other constant-voltage fixtures. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is listed as Class 2 for this power level. The coated metal housing includes an Integrated Junction Box with multiple 7/8 in. knockouts for streamlined wiring.

Key Features

• Power: 60W max load
• Input Voltage: 120VAC ±5%, 50/60Hz
• Output Voltage: 12VDC
• Dimming: Phase dimmable with leading (forward) edge MLV TRIAC dimmer only
• Minimum Dimming Level: 1%

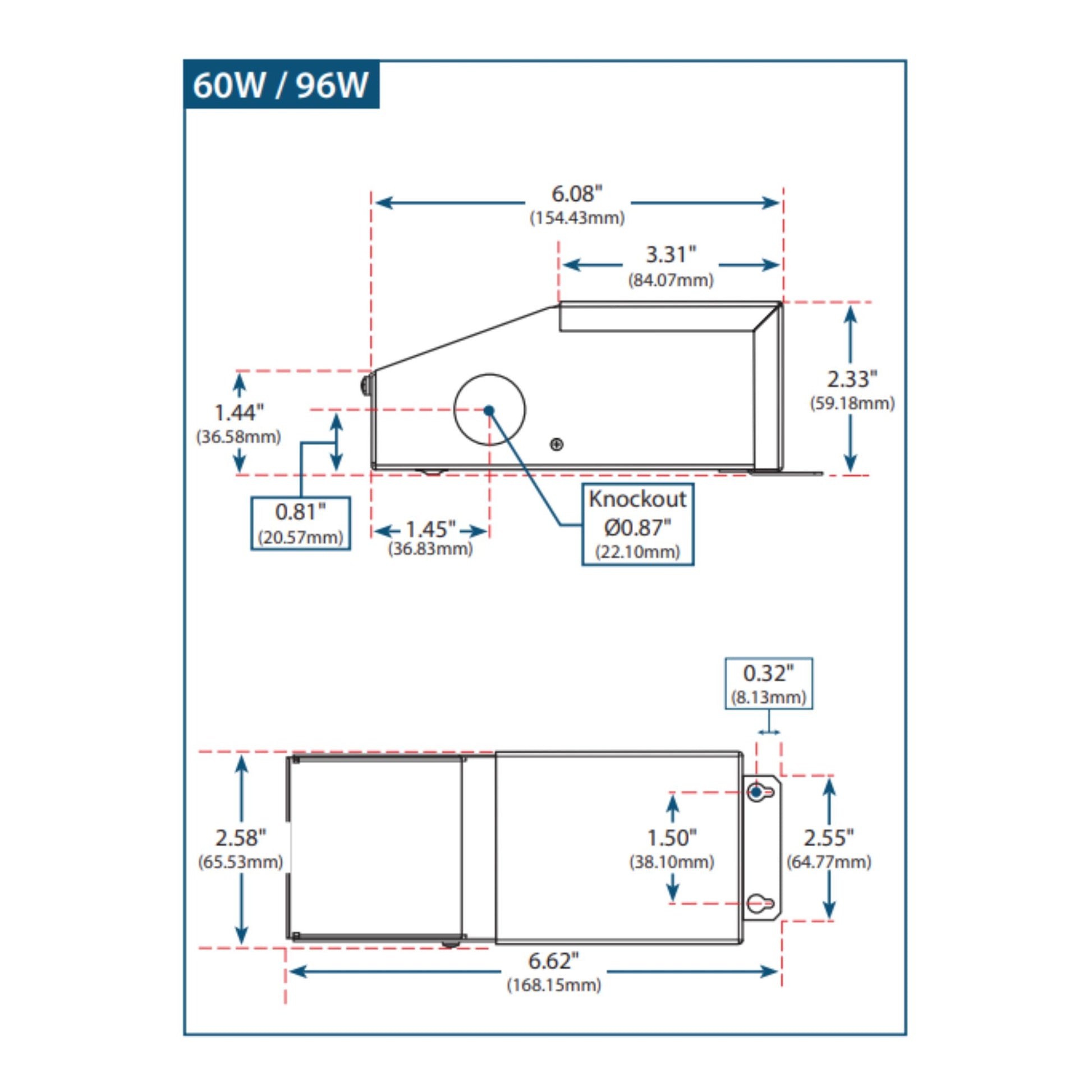

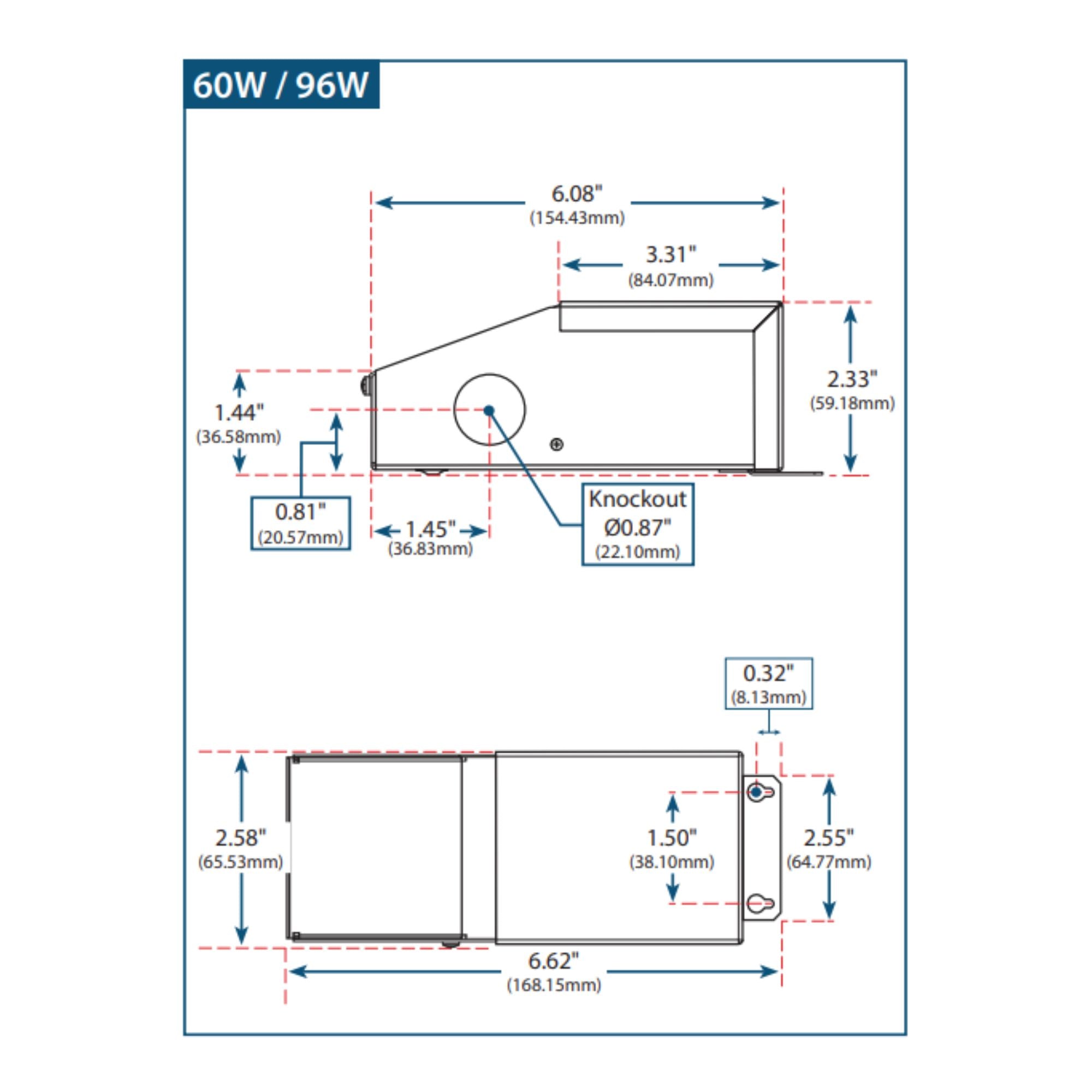

• Dimensions: 6.62 in. L x 2.58 in. W x 2.33 in. H
• Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts; coated metal housing
• IP Rating: NEMA 3R
• Class 2: Class 2

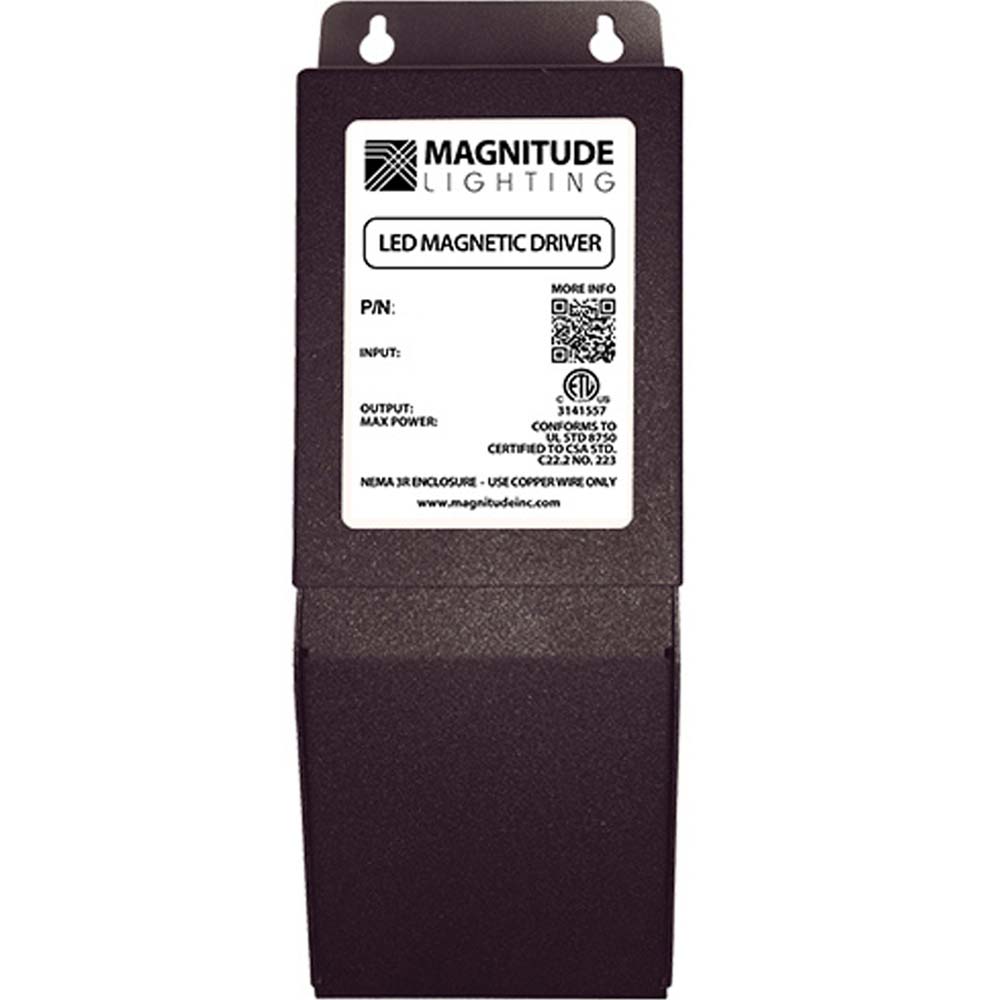

• Certifications: ETL Listed; conforms to UL STD 2108; C22.2 No. 223

Physical Design & Installation

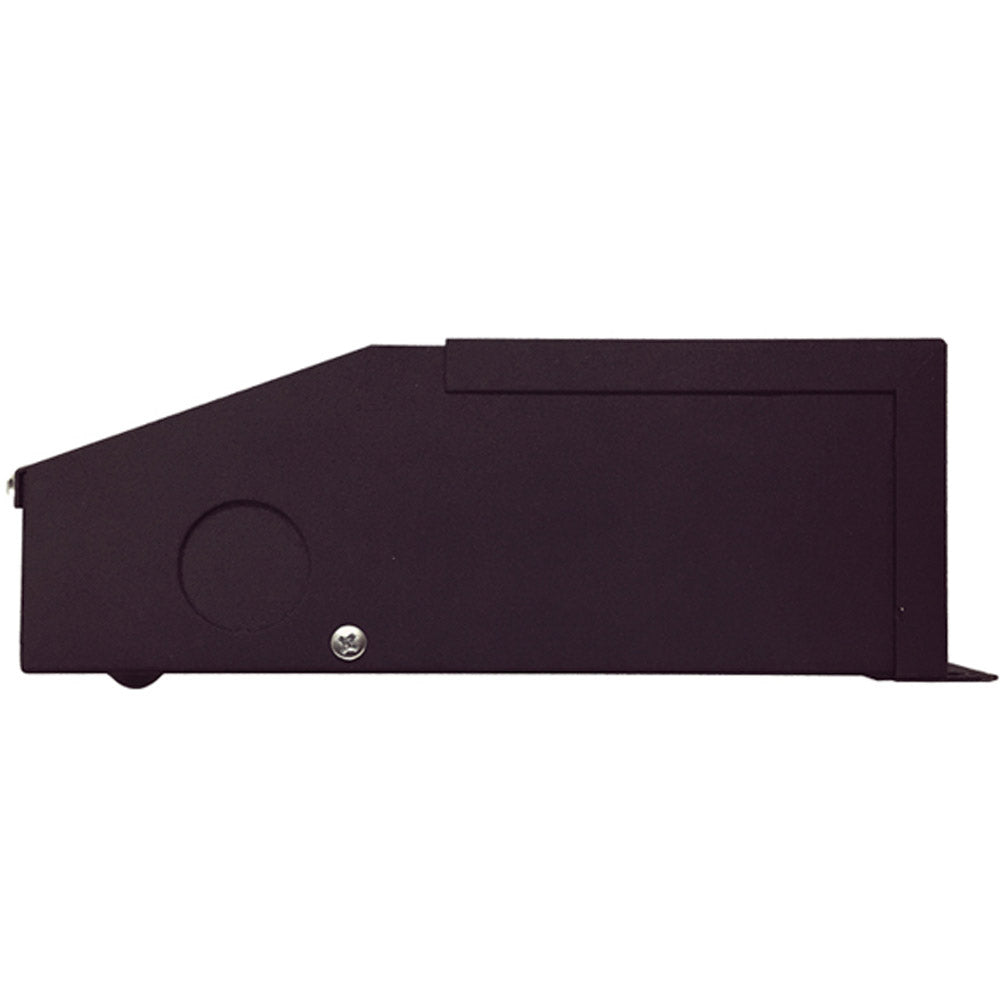

Built in a coated metal enclosure with a 2-hole flange mount, this driver is designed for contractor-friendly installs. The Integrated Junction Box provides multiple 7/8 in. knockouts for conduit entry and organized line-voltage and low-voltage wiring terminations.

Dimming & Controls

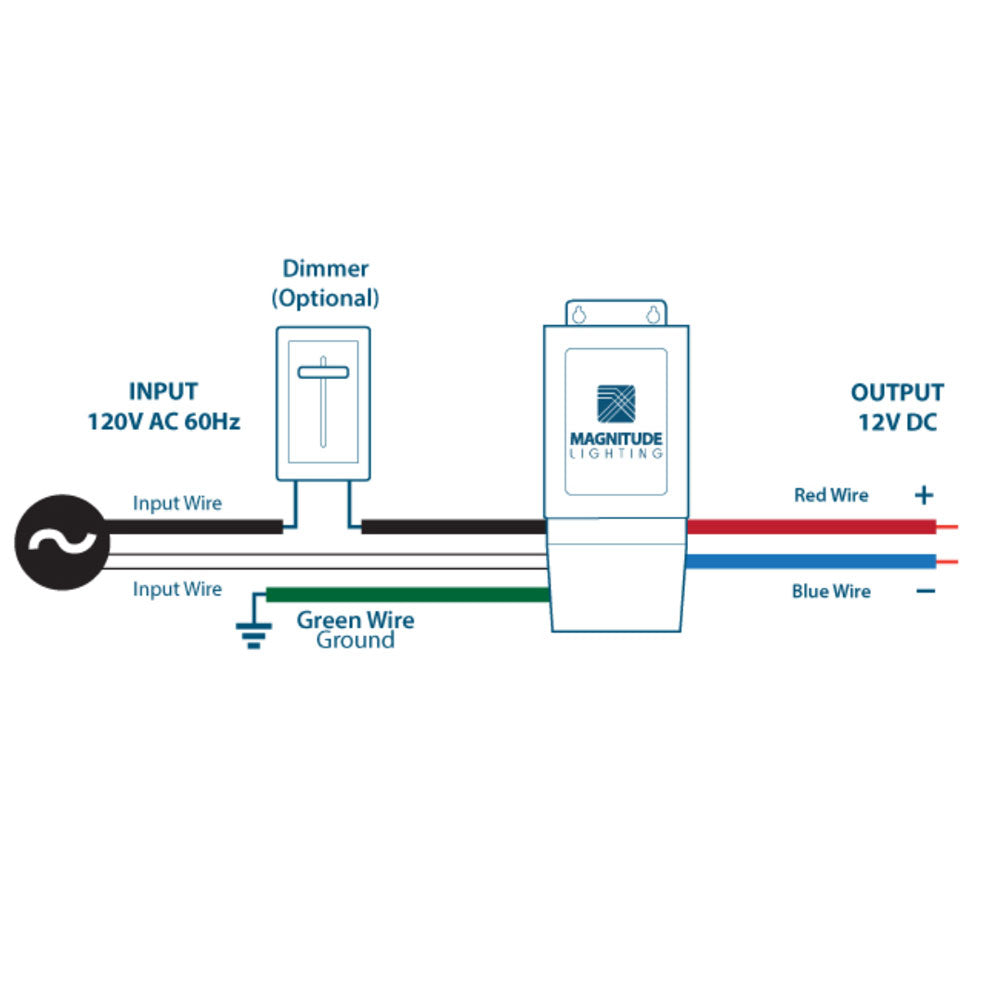

Dimming is phase-cut only: use a standard leading (forward) edge MLV TRIAC dimmer. The driver supports dimming down to 1% (minimum dimming level). Input is 120VAC ±5% at 50/60Hz and output is 12VDC constant voltage for compatible LED loads.

Performance & Build

Protection is provided by primary and secondary auto-reset circuit breakers to help safeguard both the driver and the connected LED load. This model is Class 2 and is housed in a NEMA 3R rated enclosure, with environmental suitability noted for dry and damp conditions.

Typical Applications

• 12VDC LED tape and accent lighting runs
• Linear and tube-style constant-voltage LED fixtures
• Residential and commercial dimmable LED retrofits using MLV TRIAC controls
• Dry and damp area installations requiring a NEMA 3R enclosure
