M-Series 300W 12VDC Magnetic Phase Dimmable LED Driver, 120V
Available in stock (44)
About this item
About this item
- 300W Constant Voltage Output: Regulated 12V DC power for tape, tube, and linear LED loads
- Phase Dimming Compatibility: Dims with leading (forward) edge MLV TRIAC dimmers; 1% minimum dimming level
- 120VAC Input: Designed for 120VAC, 50/60Hz branch circuits
- Integrated Wiring Compartment: Integrated Junction Box with multiple 7/8 in. knockouts for streamlined installs
- Built-In Protection: Primary and secondary manual reset circuit breakers help protect driver and LED load
We process payments securely and do not store credit card information.
Description
Description
Magnitude Lighting M-Series 300W LED Driver — 12V DC
M300L12DC is a Magnitude Lighting LED Driver rated 300W with 120VAC input and 12V DC Constant Voltage output for low-voltage LED lighting. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is built in a coated metal housing with an Integrated Junction Box and multiple 7/8 in. knockouts. Protection is provided by primary and secondary manual reset circuit breakers.
Key Features
- Power: 300W max
- Input Voltage: 120VAC ± 5%, 50/60Hz
- Output Voltage: 12VDC
- Driver Type: Constant Voltage magnetic, single channel
- Dimming: Phase dimmable with leading (forward) edge MLV TRIAC dimmer only; 1% minimum dimming level

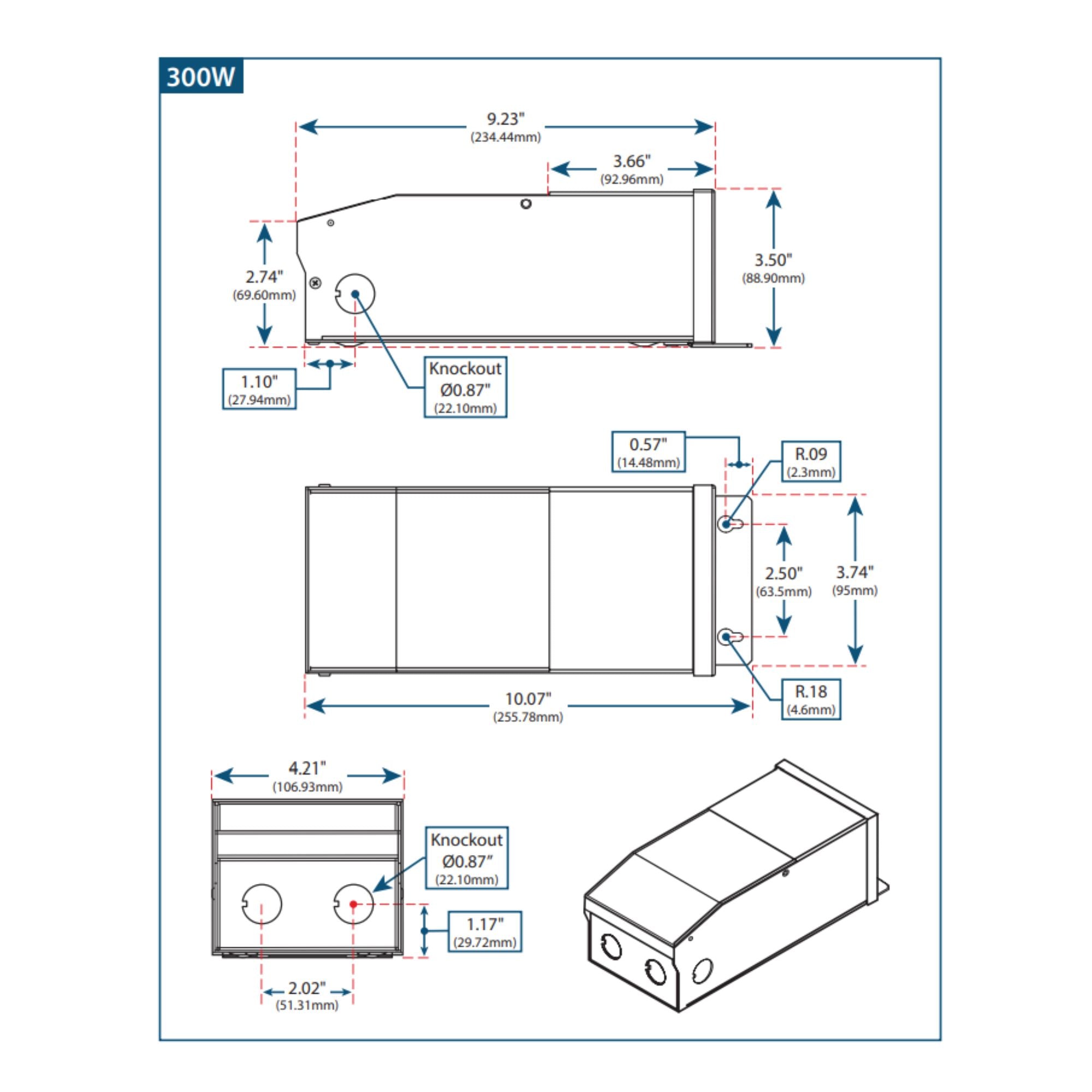

- Dimensions: 10.07 in. L x 4.20 in. W x 3.50 in. H
- Enclosure Type: Coated metal housing with Integrated Junction Box and multiple 7/8 in. knockouts
- Environmental: Dry & Damp
- Certifications: ETL Listed; conforms to UL STD 2108; C22.2 No. 223
Physical Design & Installation
Coated metal enclosure in black with a built-in wiring compartment for line and low-voltage connections. The Integrated Junction Box includes multiple 7/8 in. knockouts and uses a 2-hole flange mount for secure mounting. Maintain 5 in. minimum installation spacing as specified by the manufacturer.
Dimming & Controls
Phase dimming is supported with a standard leading (forward) edge MLV TRIAC dimmer only. For accurate output verification, the manufacturer notes average voltage measurement should be taken with an oscilloscope (multimeters may read inaccurately). Minimum dimming level is 1%.
Performance & Build
Designed for 120VAC operation with a magnetic core constant voltage output stage. Primary and secondary manual reset circuit breakers provide protection for both the driver and connected LED load. Environmental rating is Dry & Damp.
Typical Applications
- LED tape and ribbon lighting
- LED tube lighting
- Linear LED lighting systems
- Residential and commercial low-voltage LED installations
