M-Series 200W 24VDC Magnetic Phase Dimmable LED Driver, 120V
Available in stock (44)
About this item
About this item
- 24VDC Constant Voltage Output: 200W driver for 24V LED tape, linear, and tube lighting loads
- Phase Dimming (MLV TRIAC): Leading (forward) edge magnetic low-voltage TRIAC dimmer compatible; dims to 1%
- 120VAC Input: 120VAC ± 5%, 50/60Hz input for standard line-voltage feeds
- Integrated Junction Box: Metal enclosure with multiple 7/8 in. knockouts and 2-hole flange mounting
- Protection Built In: Primary and secondary circuit breaker protection (manual reset)
We process payments securely and do not store credit card information.
Description
Description

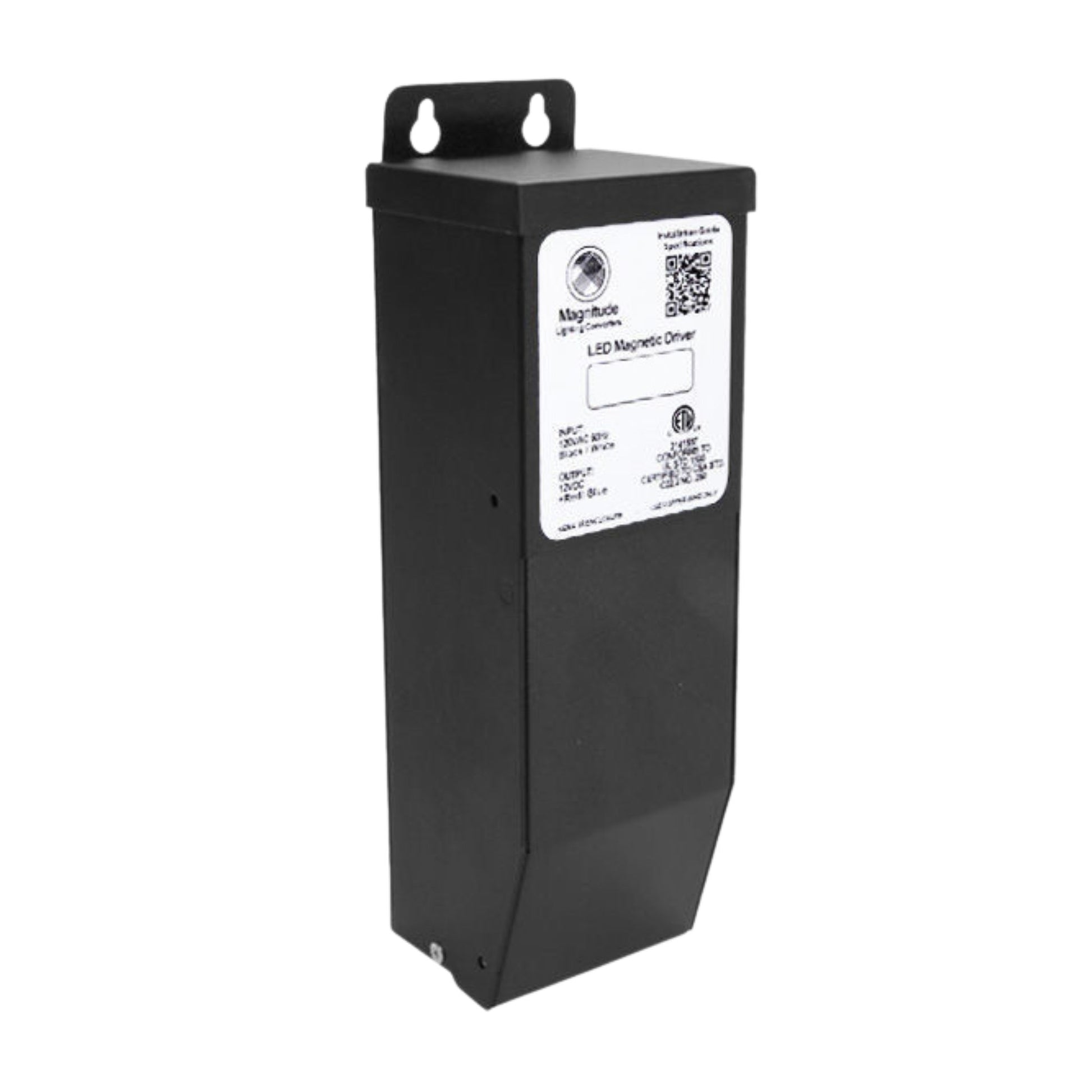

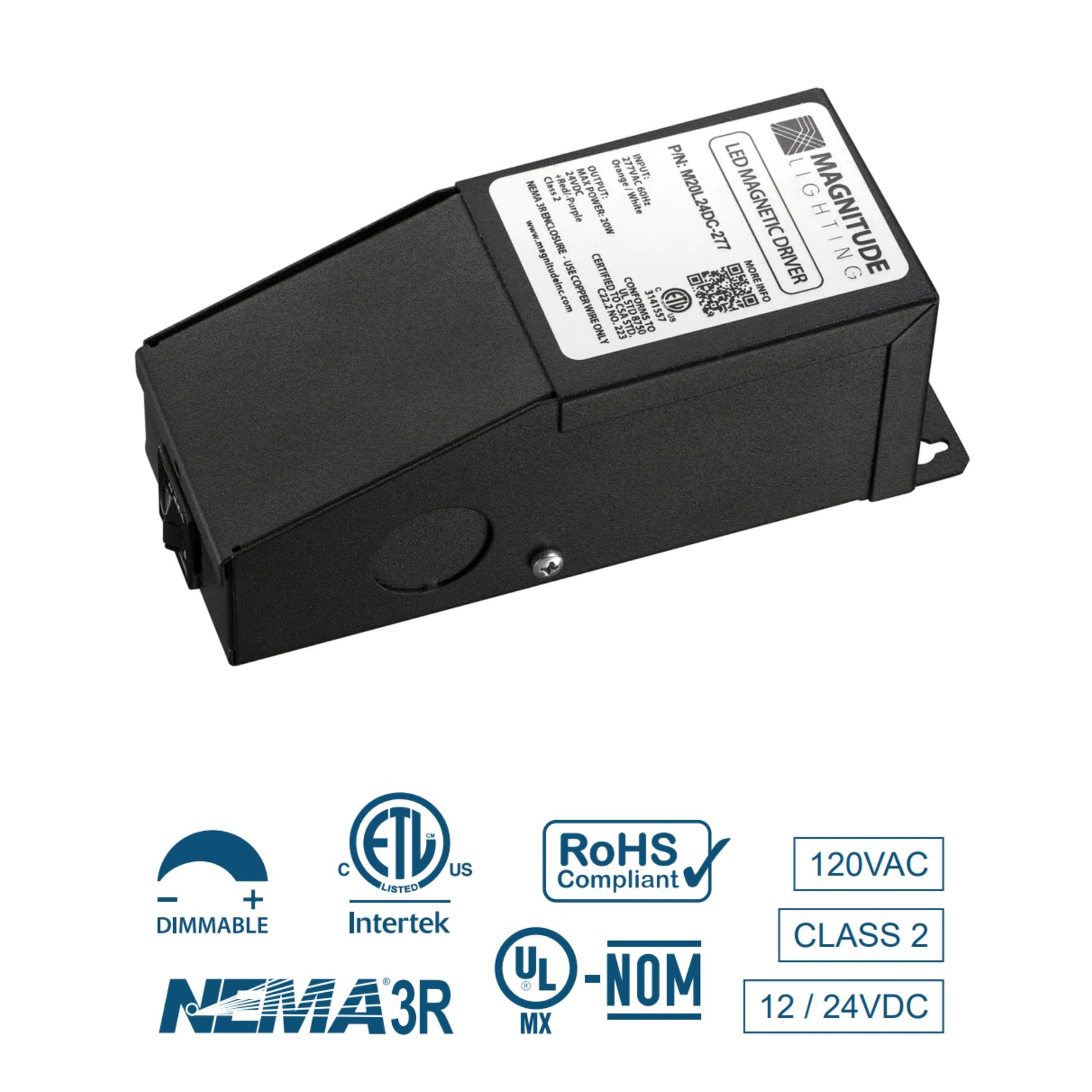

Magnitude Lighting M-Series 200W LED Driver — 24V DC
M200L24DC is a Magnitude Lighting LED Driver rated 200W with 120VAC input and 24V DC Constant Voltage output for 24V LED loads. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and is built in a metal housing with an Integrated Junction Box and multiple 7/8 in. knockouts. This model is a higher power single-channel option (not Class 2 per series guide) and includes primary and secondary circuit breaker protection.
Key Features
- Power: 200W max
- Input Voltage: 120VAC ± 5%, 50/60Hz
- Output Voltage: 24VDC (constant voltage)
- Dimming: Phase dimmable; leading (forward) edge MLV TRIAC dimmer only
- Minimum Load: Not specified

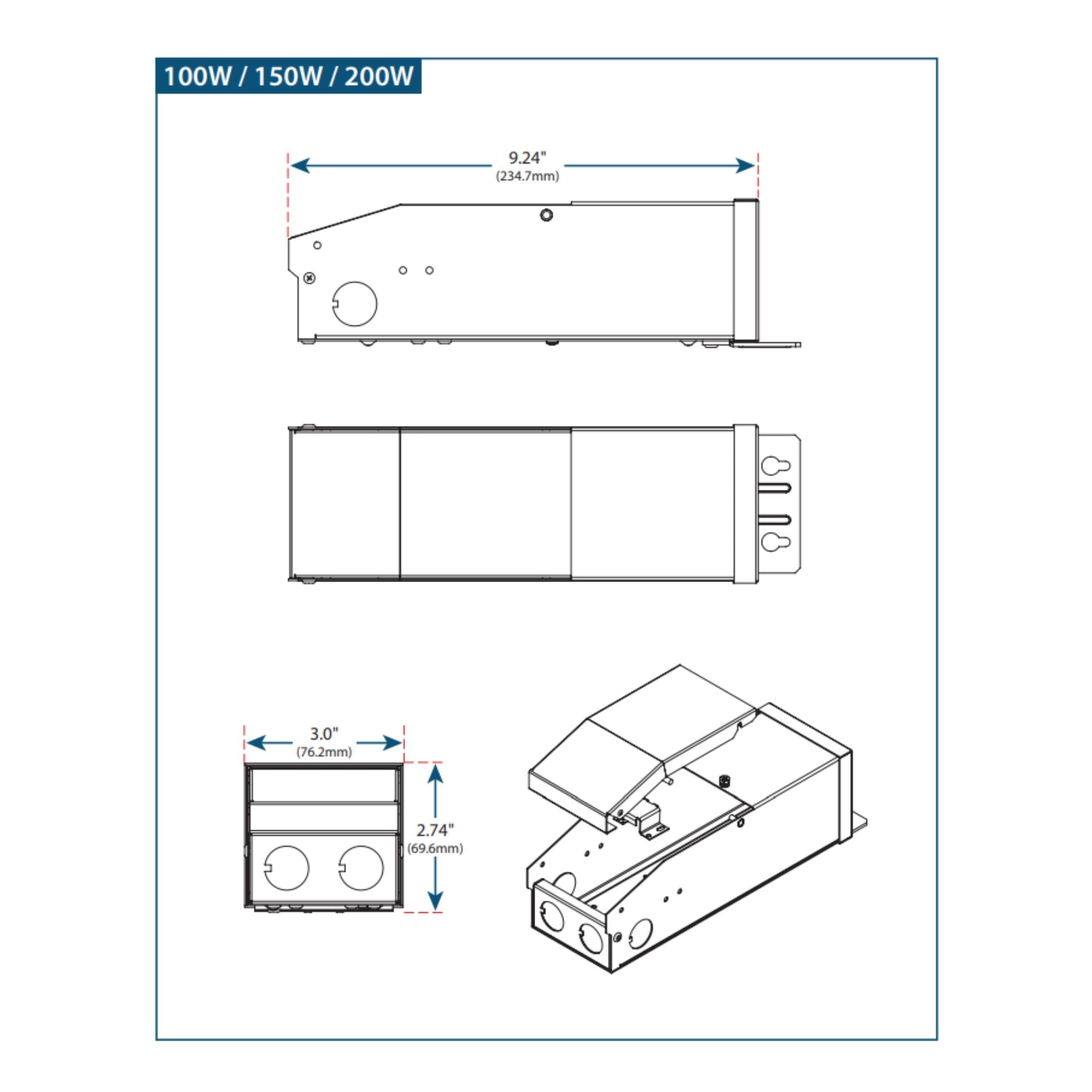

- Dimensions: 9.80 in. L x 3.00 in. W x 2.74 in. H
- Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts; coated metal housing
- IP Rating: Not specified
- Class 2: Not specified for this wattage in series guide
- Certifications: ETL Listed; conforms to UL STD 2108; C22.2 No. 223
Physical Design & Installation
Coated metal enclosure with a built-in Integrated Junction Box and multiple 7/8 in. knockouts to simplify line-voltage and low-voltage wiring transitions. Designed for 2-hole flange mounting; allow 5 in. minimum installation spacing as specified by the manufacturer.
Dimming & Controls
Supports phase dimming with a standard leading (forward) edge MLV TRIAC dimmer only. Minimum dimming level is 1% per the specification sheet. Minimum load requirement is not specified; for best results, match the dimmer type to MLV/forward-phase and size the LED load appropriately for the dimmer and driver.
Performance & Build
Built with primary and secondary circuit breaker protection (manual reset for the 200W model). Rated for dry and damp environments per the manufacturer environmental specification. Thermal class is B130°C with an operating temperature range of -30°C to +45°C.
Typical Applications
- 24V LED tape and accent lighting runs
- Linear LED lighting systems
- LED tube and cove lighting retrofits using 24VDC loads
- Residential and commercial dimmable low-voltage LED installations
