M-Series 100W 12VDC Magnetic Phase Dimmable LED Driver, 120V

Vendor: Magnitude Lighting

SKU: M100L12DC-AR

Quick Ship
$123.04
$123.04 $0.00
Shipping calculated at checkout.
Buy More, Save More: Get 10% Off 3+ Auto-applied in cart.
Voltage: 12V DC
Wattage: 100W
Safety: Auto Reset

Available in stock (47)

Must be ordered in quantities of .

About this item
  • 12VDC Constant Voltage Output: 100W magnetic LED driver for 12VDC LED loads
  • Phase Dimming Compatibility: Leading (forward) edge MLV TRIAC dimmer only; dims down to 1%
  • 120VAC Input: 120VAC ±5%, 50/60Hz input for standard line-voltage feeds
  • Integrated Junction Box: Coated metal enclosure with multiple 7/8 in. knockouts for streamlined wiring
  • Protection Built In: Primary and secondary auto-reset circuit breakers help protect driver and LED load
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

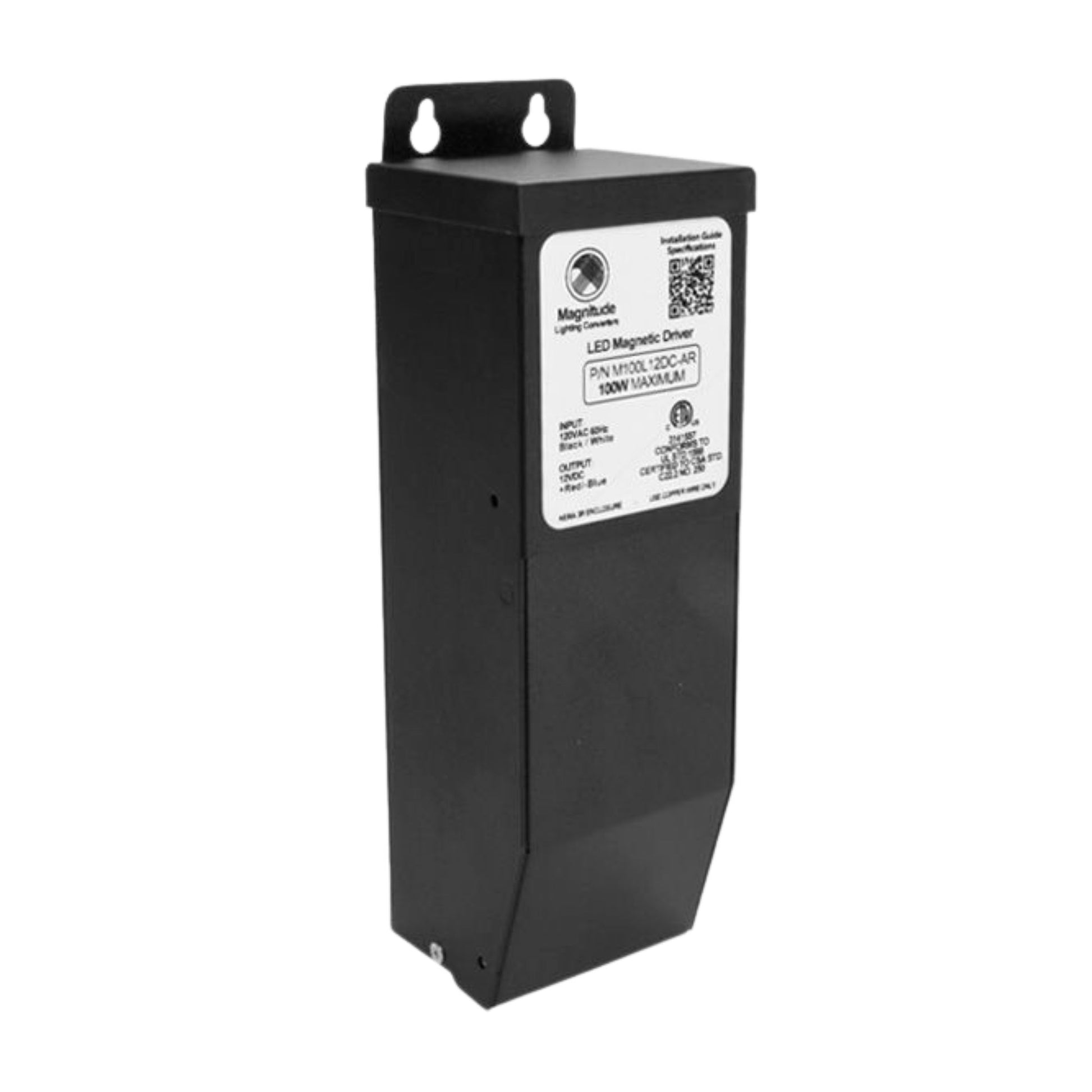

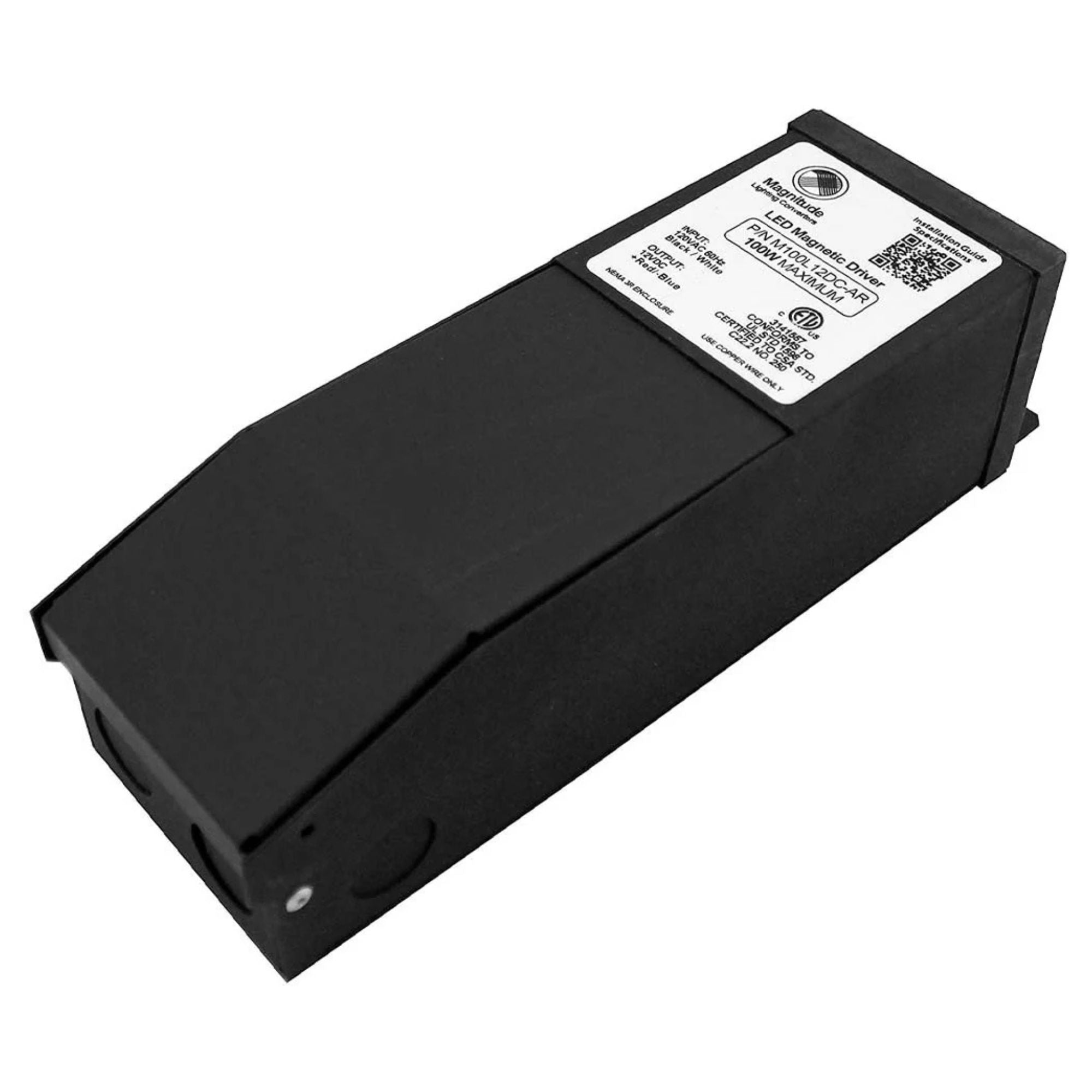

Magnitude Lighting M-Series 100W LED Driver — 12V DC

Magnitude Lighting M-Series LED Driver M100L12DC-AR is a 100W Constant Voltage magnetic driver with 120VAC input and 12V DC output. It is phase dimmable using a leading (forward) edge MLV TRIAC dimmer only and supports dimming down to 1%. Built in a coated metal housing with an Integrated Junction Box and multiple 7/8 in. knockouts for clean installation.

Key Features

  • Power: 100W max
  • Input Voltage: 120VAC ±5%, 50/60Hz
  • Output Voltage: 12VDC
  • Driver Type: Constant Voltage (magnetic)
  • Dimming: Phase dimmable; leading (forward) edge MLV TRIAC dimmer only; 1% minimum dimming level

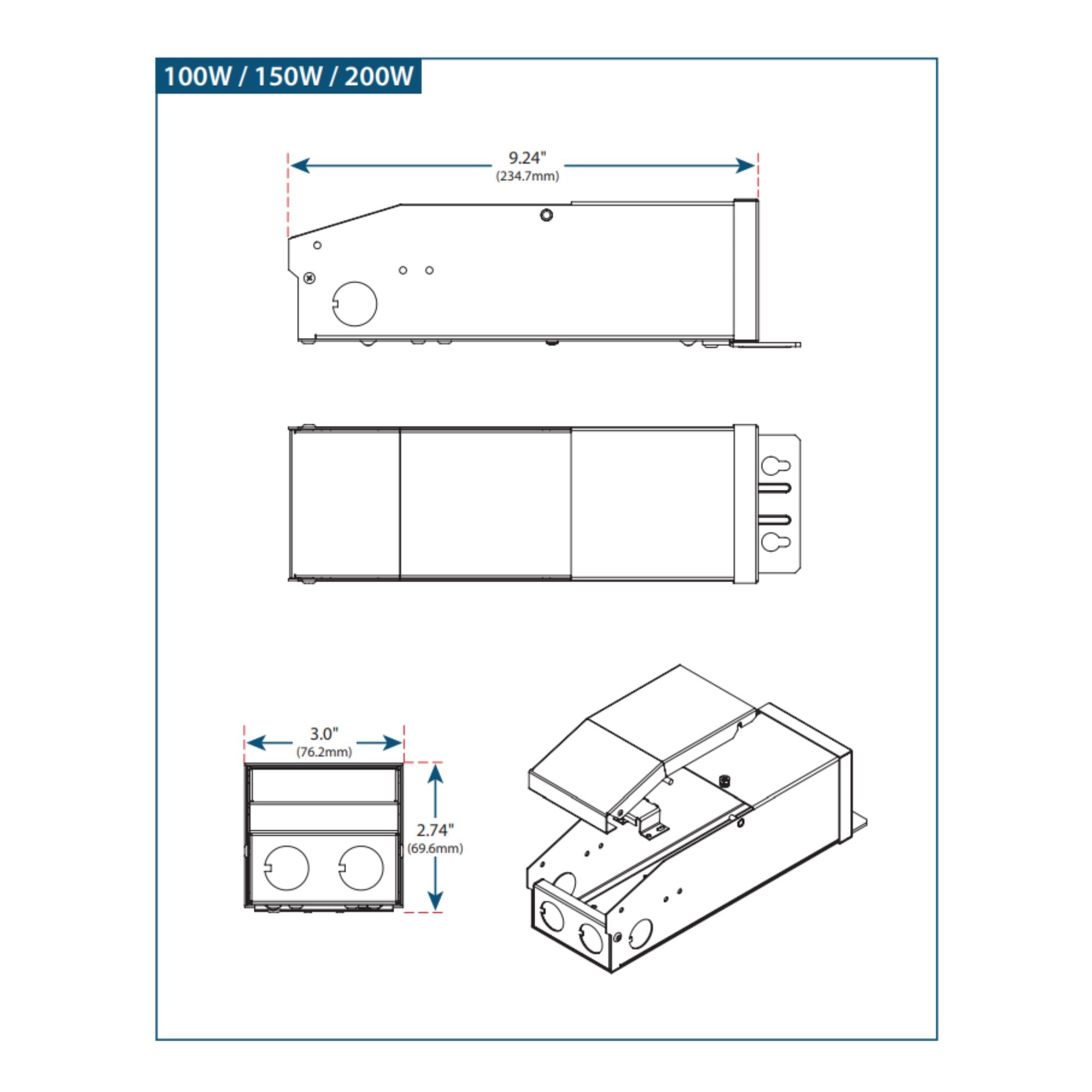

  • Dimensions: 9.80 in. L x 3.00 in. W x 2.74 in. H
  • Enclosure Type: Integrated Junction Box with multiple 7/8 in. knockouts; coated metal housing
  • IP Rating: Not specified
  • Class 2: Not specified for 100W model
  • Certifications: ETL Listed; conforms to UL STD 2108; C22.2 No. 223

Physical Design & Installation

Coated metal enclosure with flange mounting and an Integrated Junction Box designed for hardwiring. Multiple 7/8 in. knockouts support standard fittings and simplify routing of line and low-voltage conductors.

Dimming & Controls

Phase dimming is supported with a standard leading (forward) edge MLV TRIAC dimmer only. This is a constant voltage 12VDC driver intended for 12V LED tape, linear, and other 12VDC loads; dimming performance is specified down to 1% minimum dimming level. Minimum load requirement is not specified.

Performance & Build

Magnetic core design with primary and secondary auto-reset circuit breakers for protection. Environmental rating is dry and damp per the specification sheet; ETL Listed and conforms to UL STD 2108 and C22.2 No. 223.

Typical Applications

  • 12VDC LED tape and accent lighting runs
  • Linear and under-cabinet lighting systems
  • Residential and commercial dimmable 12VDC LED installations
  • Dry and damp location installations

Specifications

Dimensions

Length/Depth
9.8 in
Width/Diameter
3 in
Height
2.74 in
Weight
4.8 lb

Documents

Style & Materials

Material
Metal

Characteristics & Features

Dimmable
Yes

Electrical Information

Voltage
120V
Output Voltage
12V DC
Wattage Rating
100.0W
Amps Rating
1.07 A

Item Details

MPN
M100L12DC-AR
Brand
Magnitude Lighting
Family
M-Series
UPC
857814006007

Warranty & Certifications

Product Warranty
5 Years
Product Rating
Damp Rated, NEMA 3R

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What dimmer type is compatible with this driver?
It is phase dimmable with a leading (forward) edge MLV TRIAC dimmer only.

Does this driver have a minimum load requirement for dimming?
A minimum load requirement is not specified in the provided specification text.

Does it include an integrated junction box for wiring?
Yes. It is built with an integrated junction box and multiple 7/8 in. knockouts.

What is the input and output voltage?
Input is 120VAC (±5%) at 50/60Hz, and output is 12VDC constant voltage.

What IP rating does this driver have?
An IP rating is not specified in the provided specification text.
