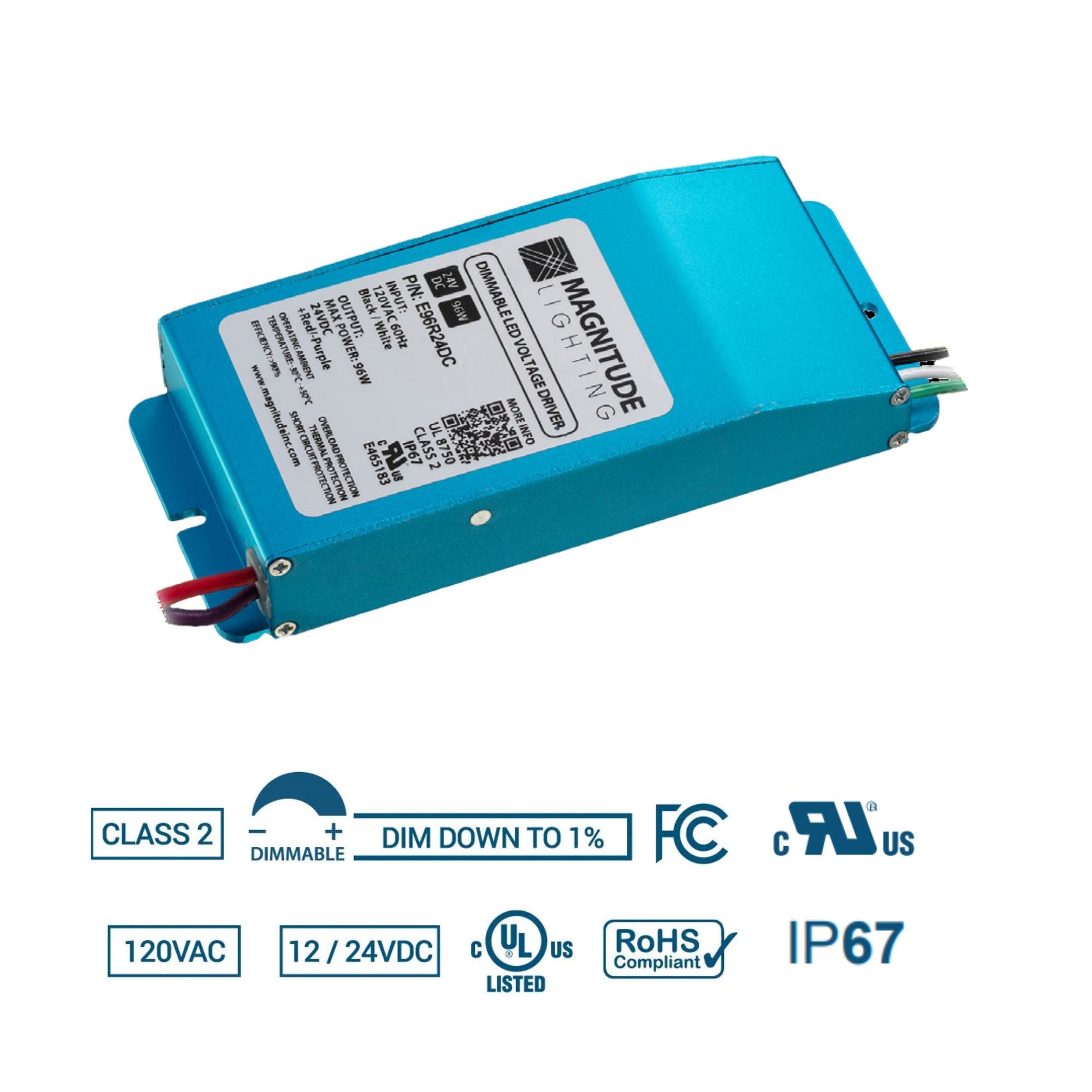

E-Series 60W 12VDC Dimmable LED Driver, Class 2, 120V, IP67 Rated
Available in stock (53)
About this item
About this item
- Output Power & Voltage: 60W 12V DC constant voltage for compatible LED tape and fixtures
- TRIAC Dimming: Forward-phase dimmable down to 1%; requires 8W minimum load for smooth dimming
- 120V Input: 120VAC ±10%, 50/60Hz input for standard line-voltage installations
- Enclosure Style: Compact anodized aluminum case with flying leads; no Integrated Junction Box
- Protection Features: Auto-reset short circuit and over-voltage protection for reliable operation
We process payments securely and do not store credit card information.
Description
Description
Magnitude Lighting E-Series 60W LED Driver — 12V DC
E60R12DC is a Magnitude Lighting LED Driver rated 60W with 120V input and 12V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and is listed as Class 2. The driver uses a compact aluminum housing with flying leads and is a sealed module (no Integrated Junction Box).
Key Features
- Power: 60W max
- Input Voltage: 120VAC ±10%, 50/60Hz
- Output Voltage: 12VDC constant voltage
- Dimming: Forward-phase (TRIAC), dim to 1%
- Minimum Load: 8W required for smooth dimming

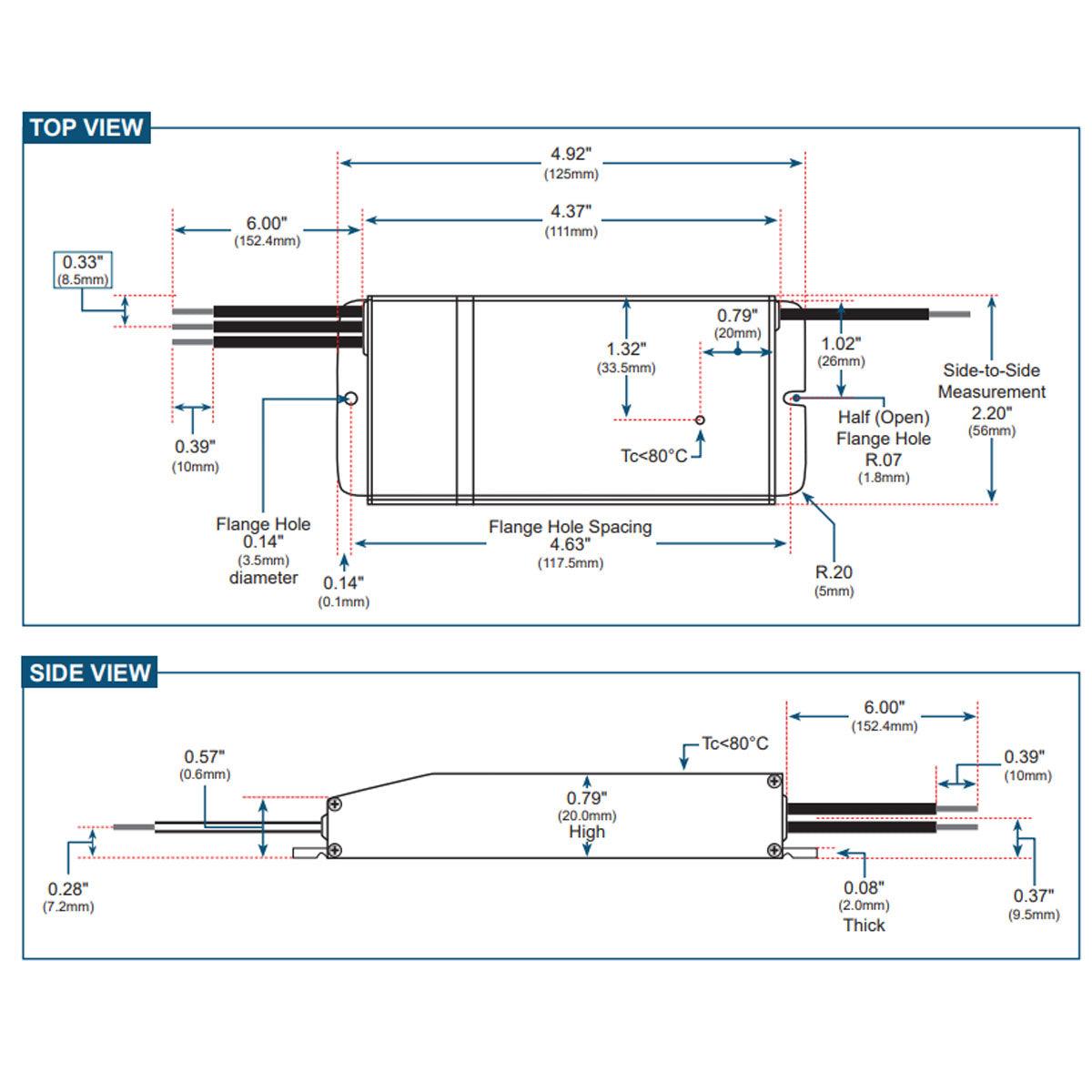

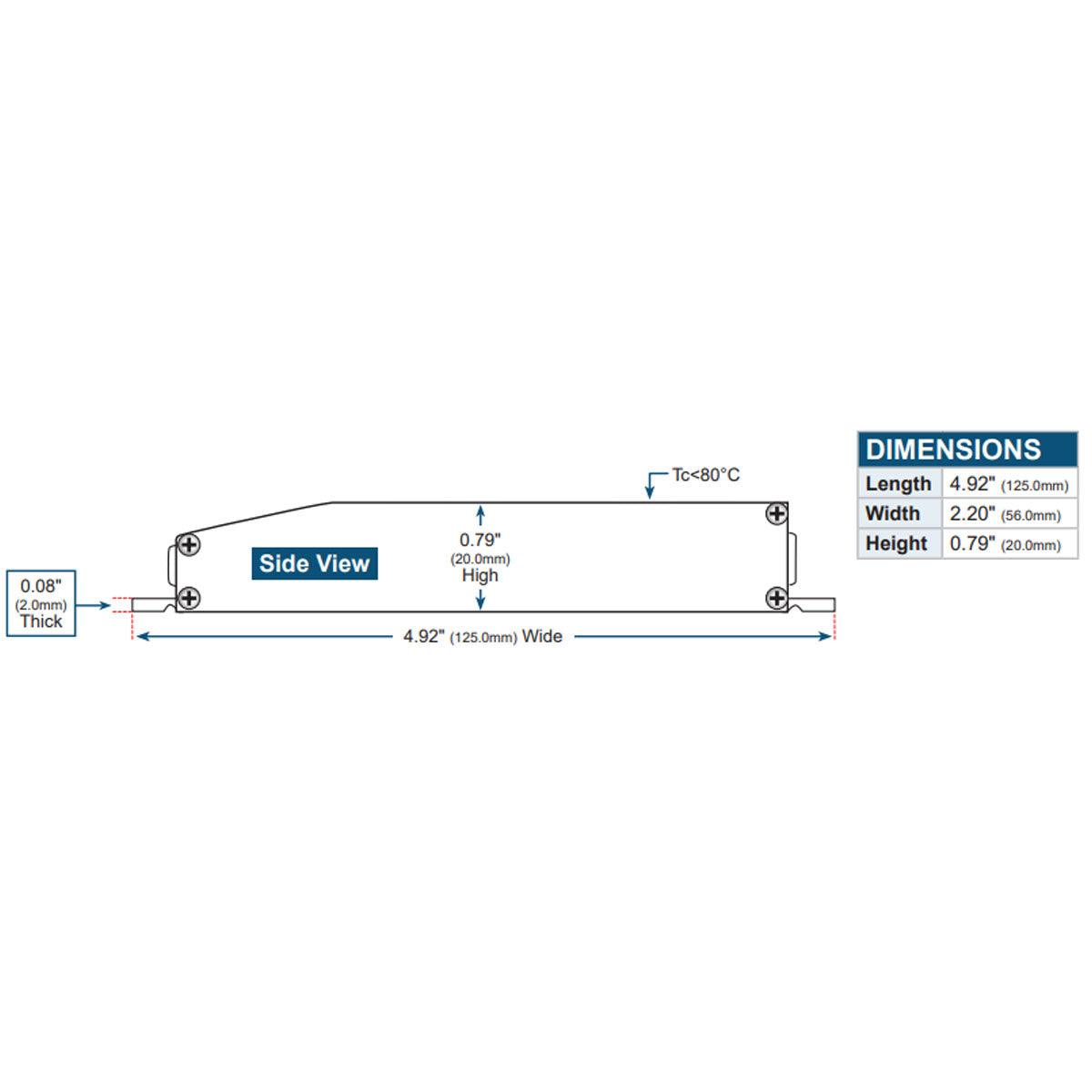

- Dimensions: 4.92 in. L x 2.20 in. W x 0.79 in. H
- Enclosure Type: Sealed aluminum case with flying leads; no junction box
- IP Rating: IP67
- Class 2: Yes
- Certifications: UL8750 Recognized; UL 879
Physical Design & Installation

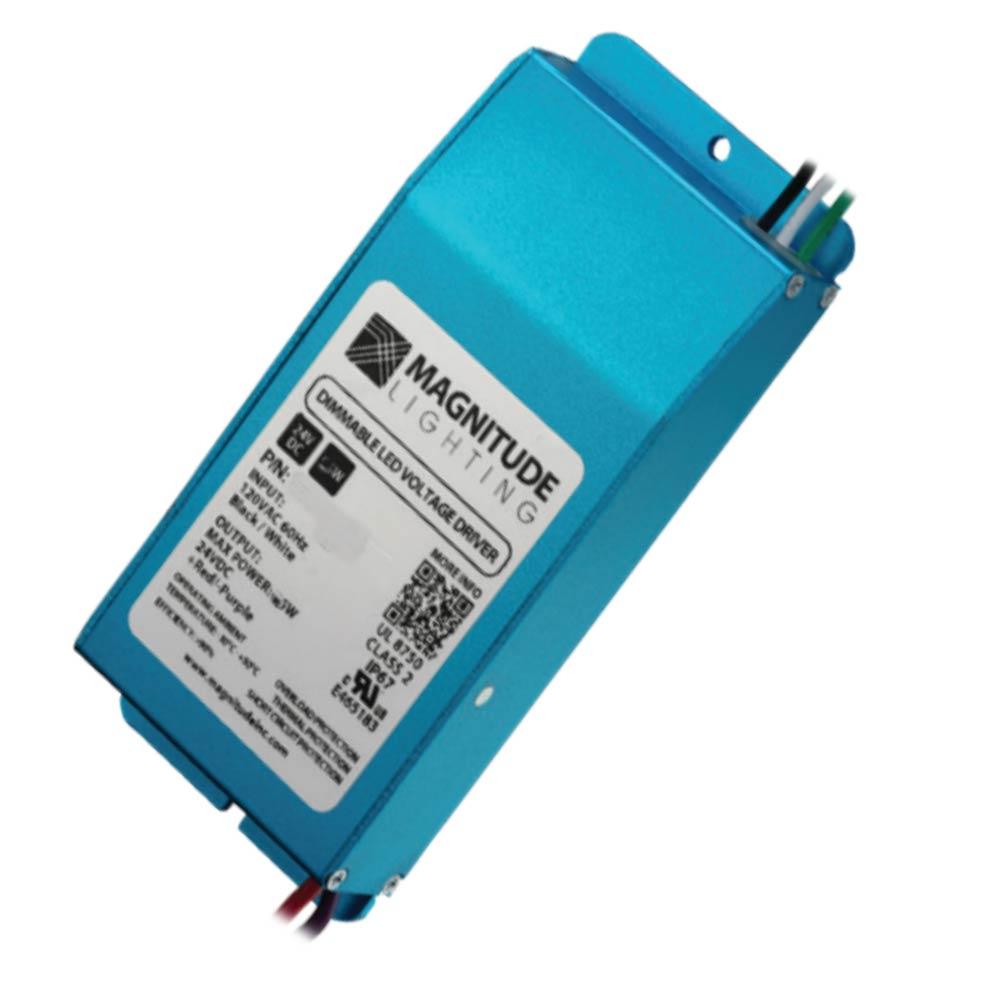

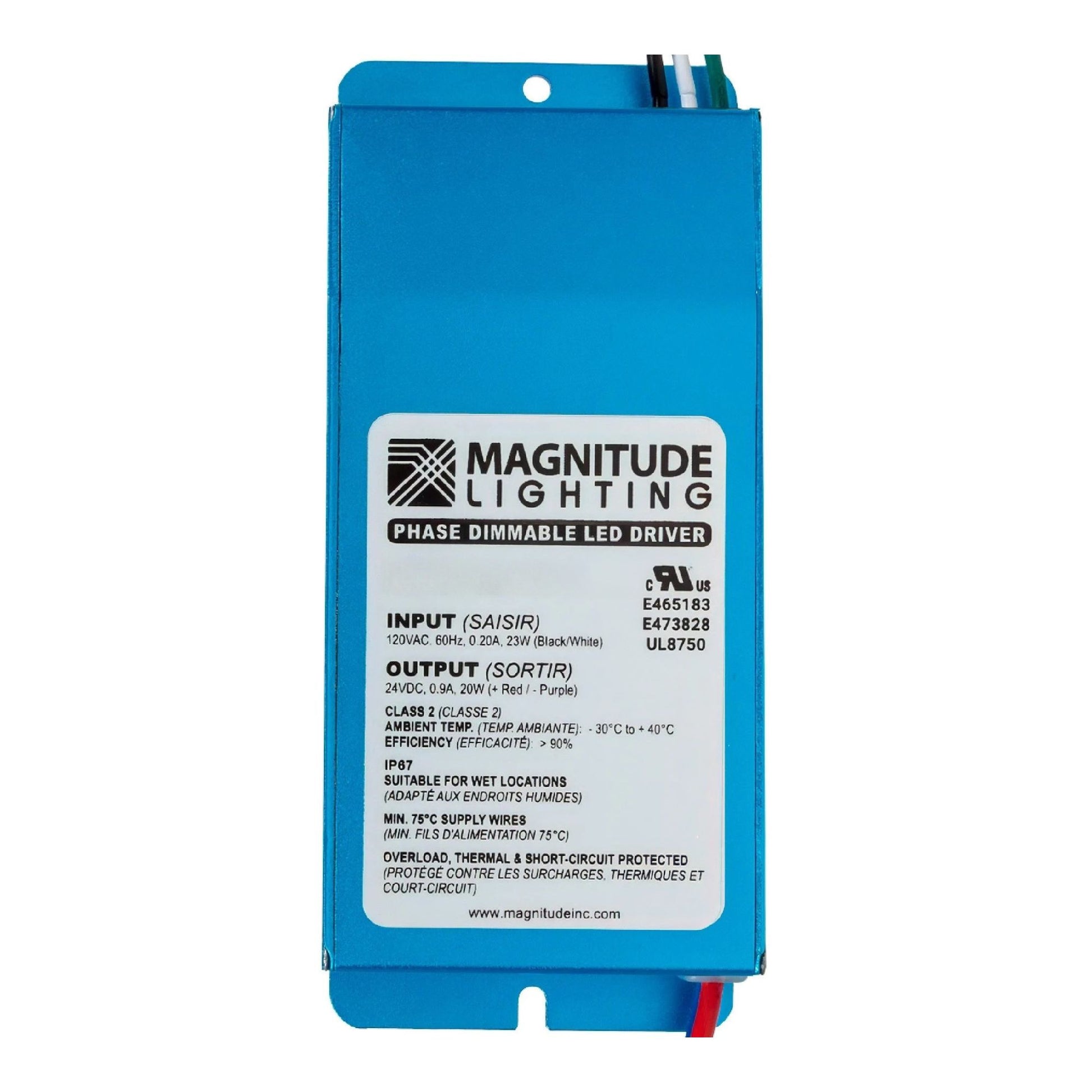

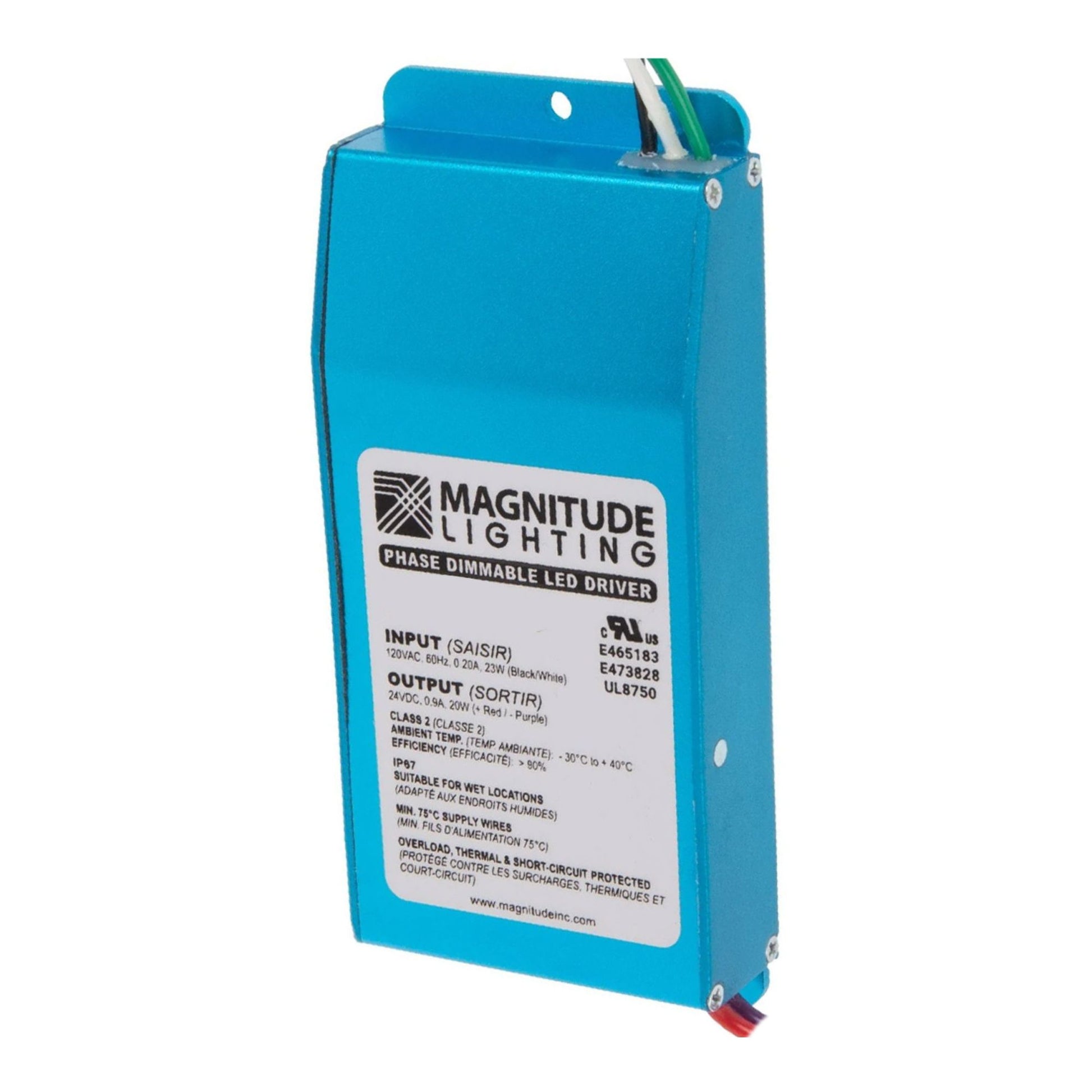

Compact anodized aluminum housing designed for easy concealment. This driver is not an integrated junction box style; it uses flying leads for line and low-voltage connections and includes flange mounting points.
Dimming & Controls

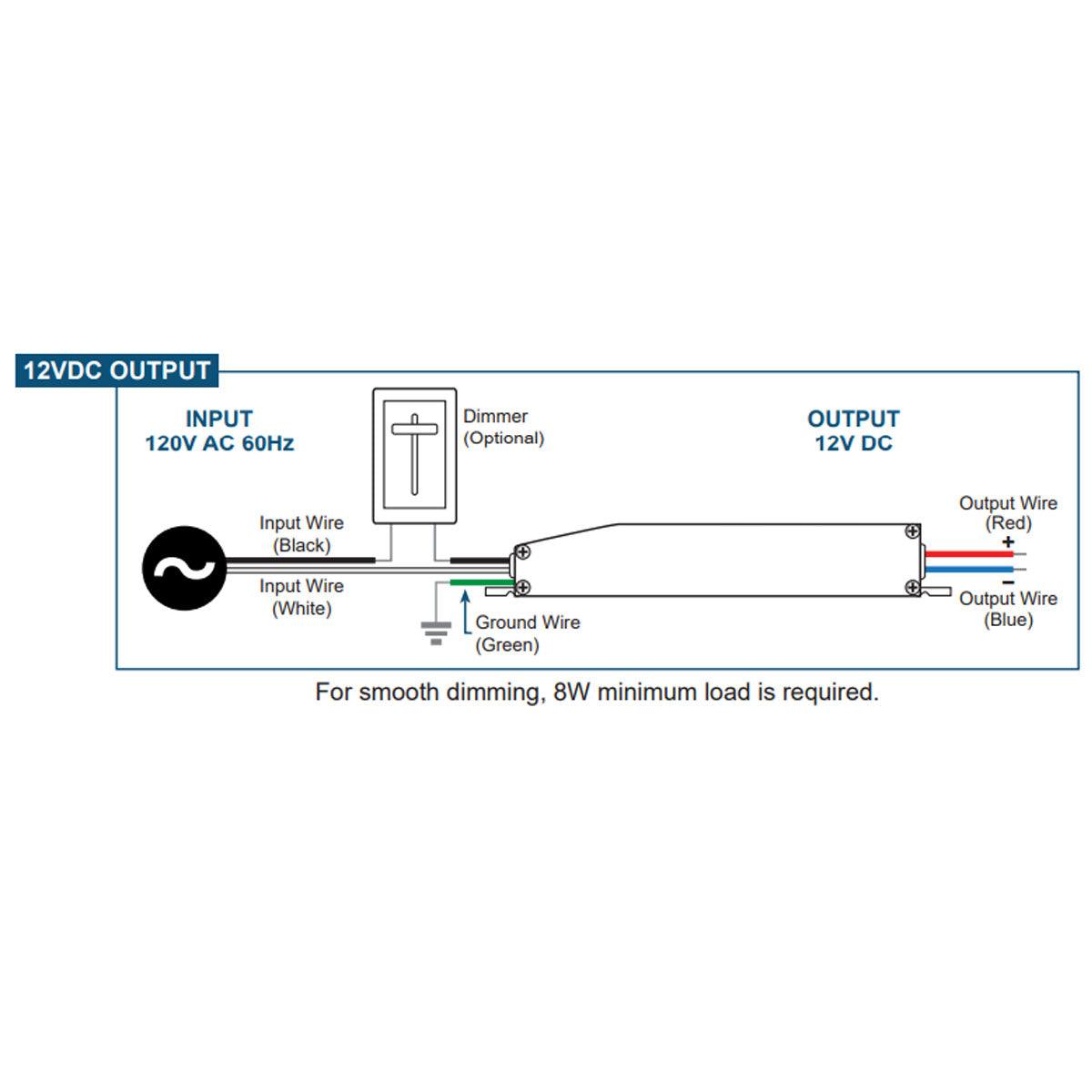

Supports forward-phase (TRIAC) dimming and can dim down to 1% with compatible dimmers. For smooth dimming performance, maintain an 8W minimum connected load on the driver output.
Performance & Build
High-efficiency design (>90% per series data) with auto-reset short circuit and over-voltage protection. Rated Class 2 and sealed to IP67 for wet-rated installations.
Typical Applications
- Wet-location LED tape lighting power supplies
- Outdoor architectural accent lighting using 12VDC constant-voltage loads
- Sign and display lighting (UL 879 component applications)
- Indoor or outdoor low-voltage LED fixtures requiring TRIAC dimming
