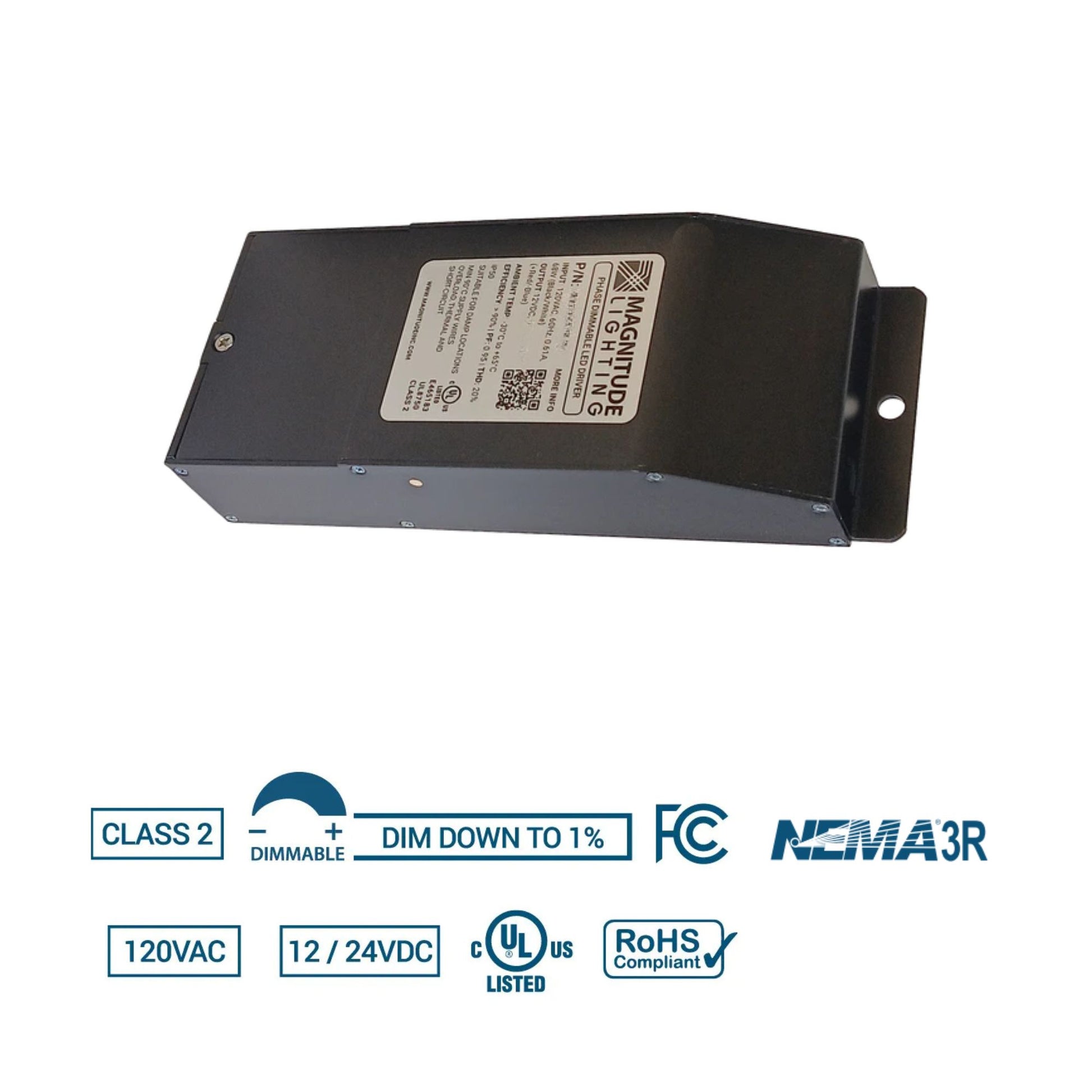

Magnitude Lighting E-Series 40W LED Driver — 24V DC

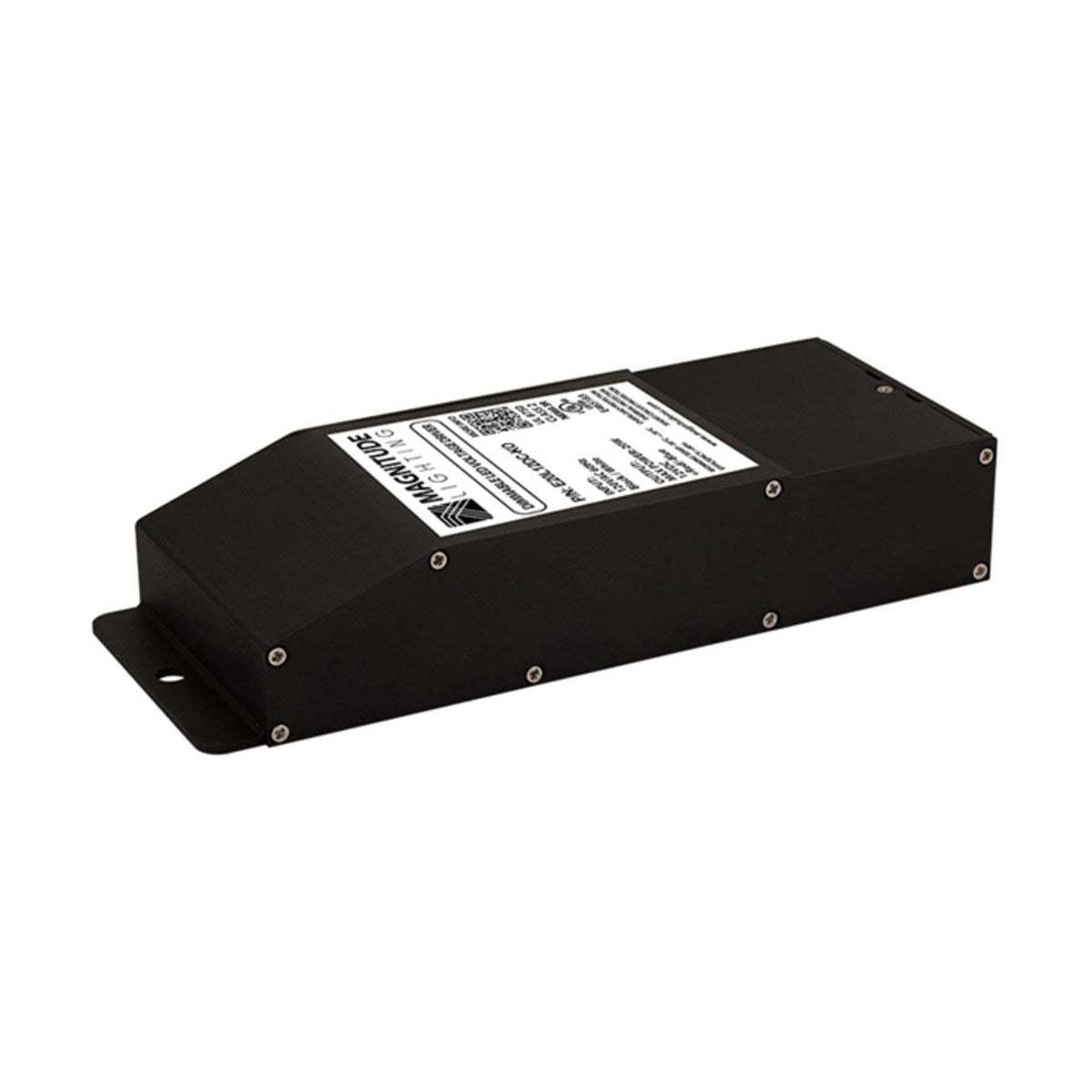

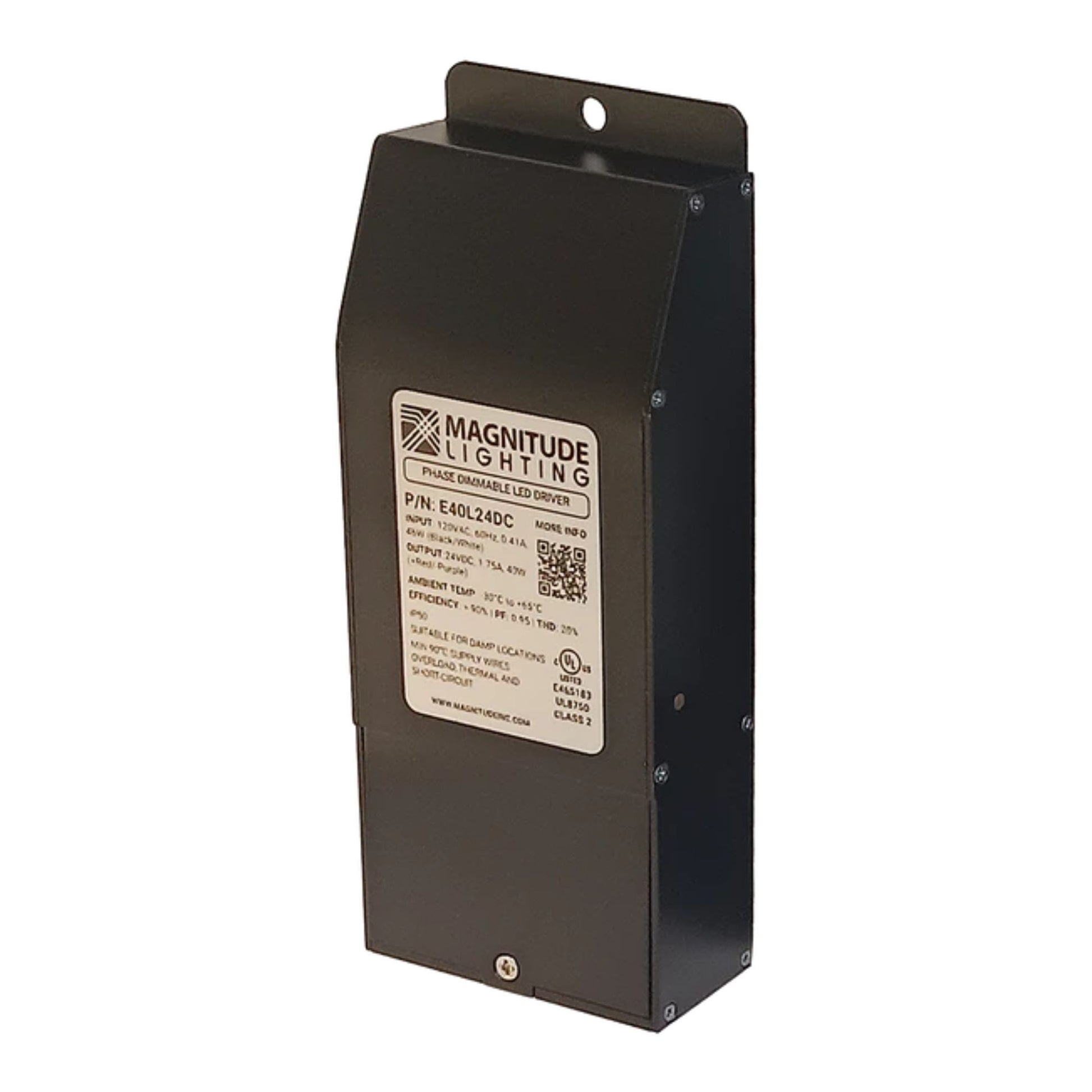

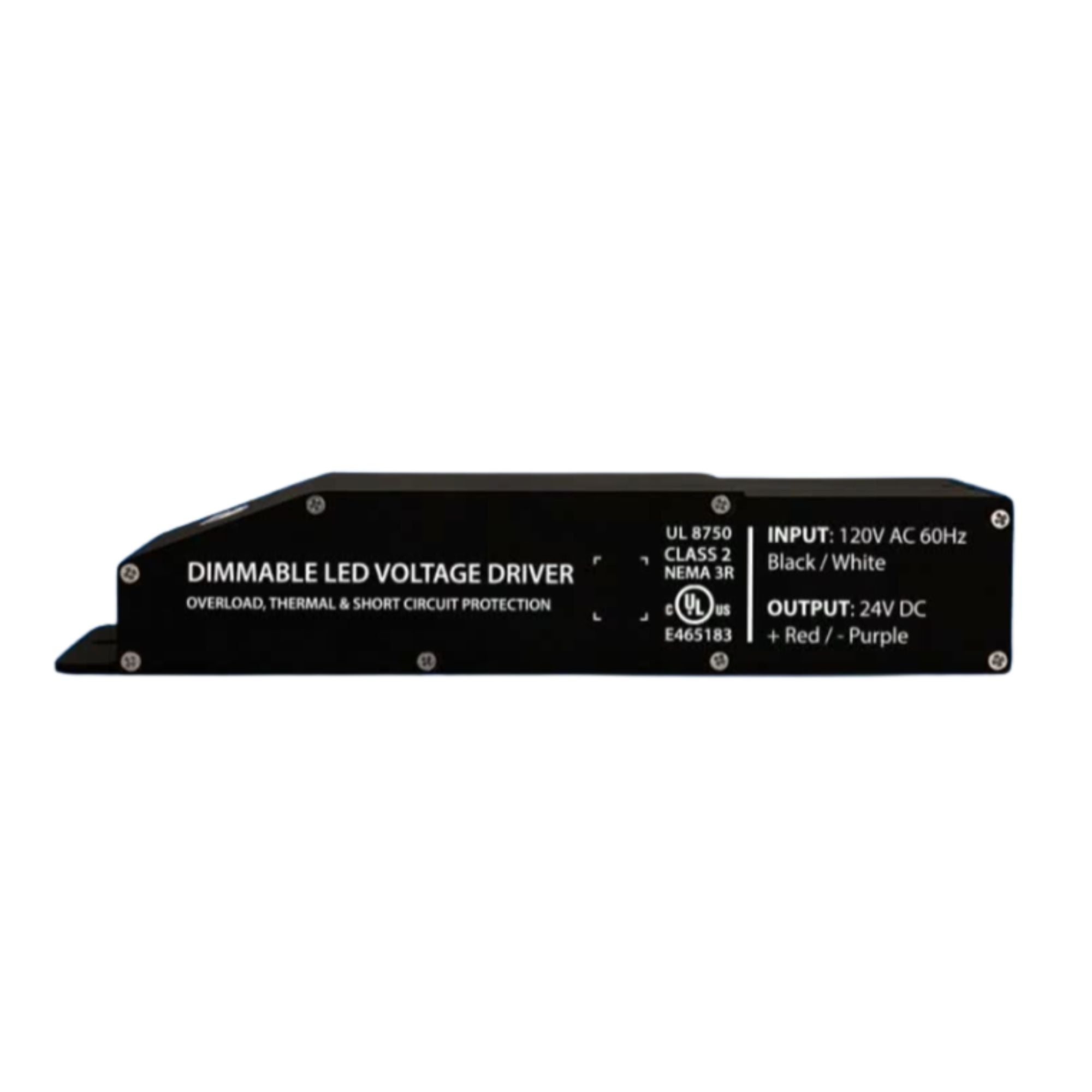

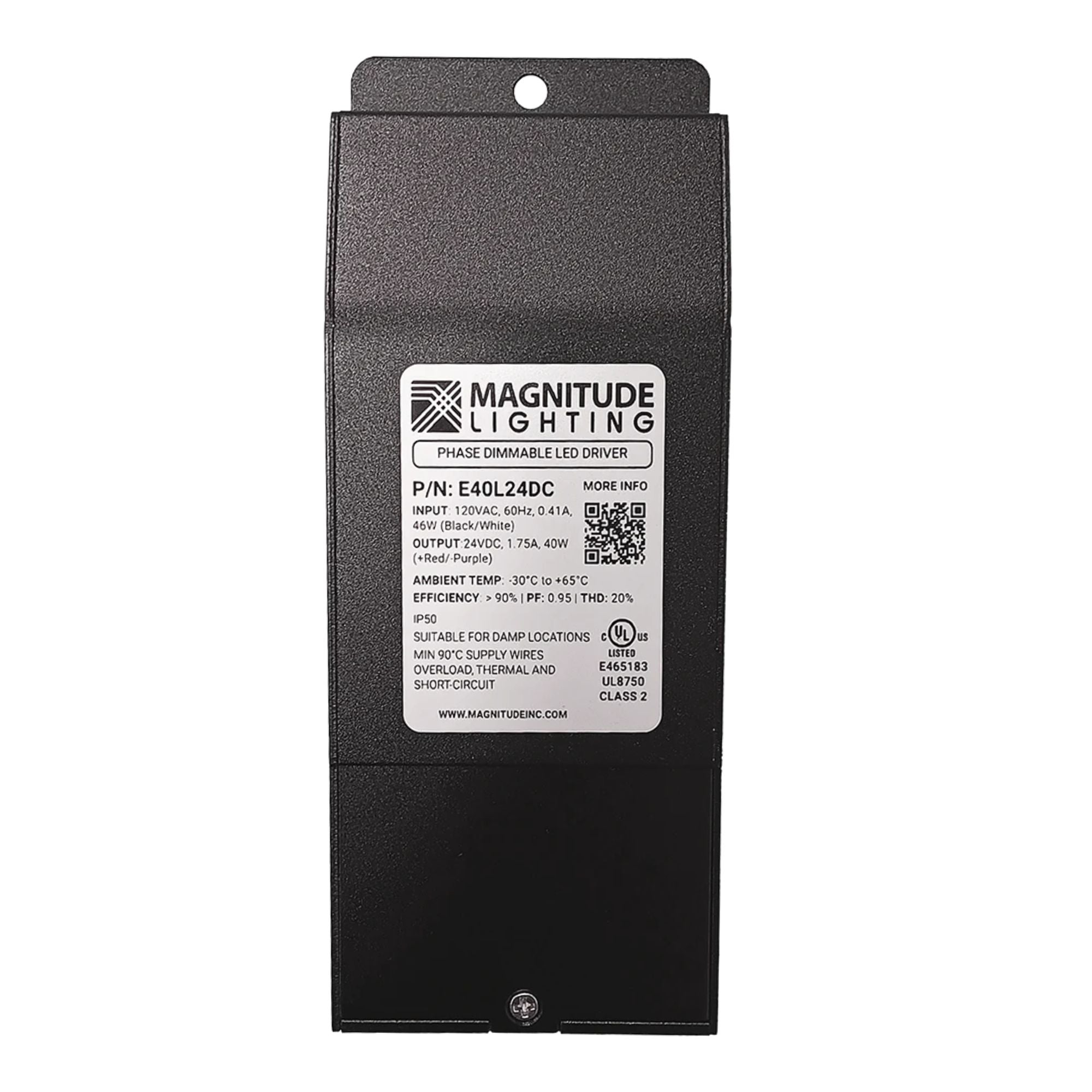

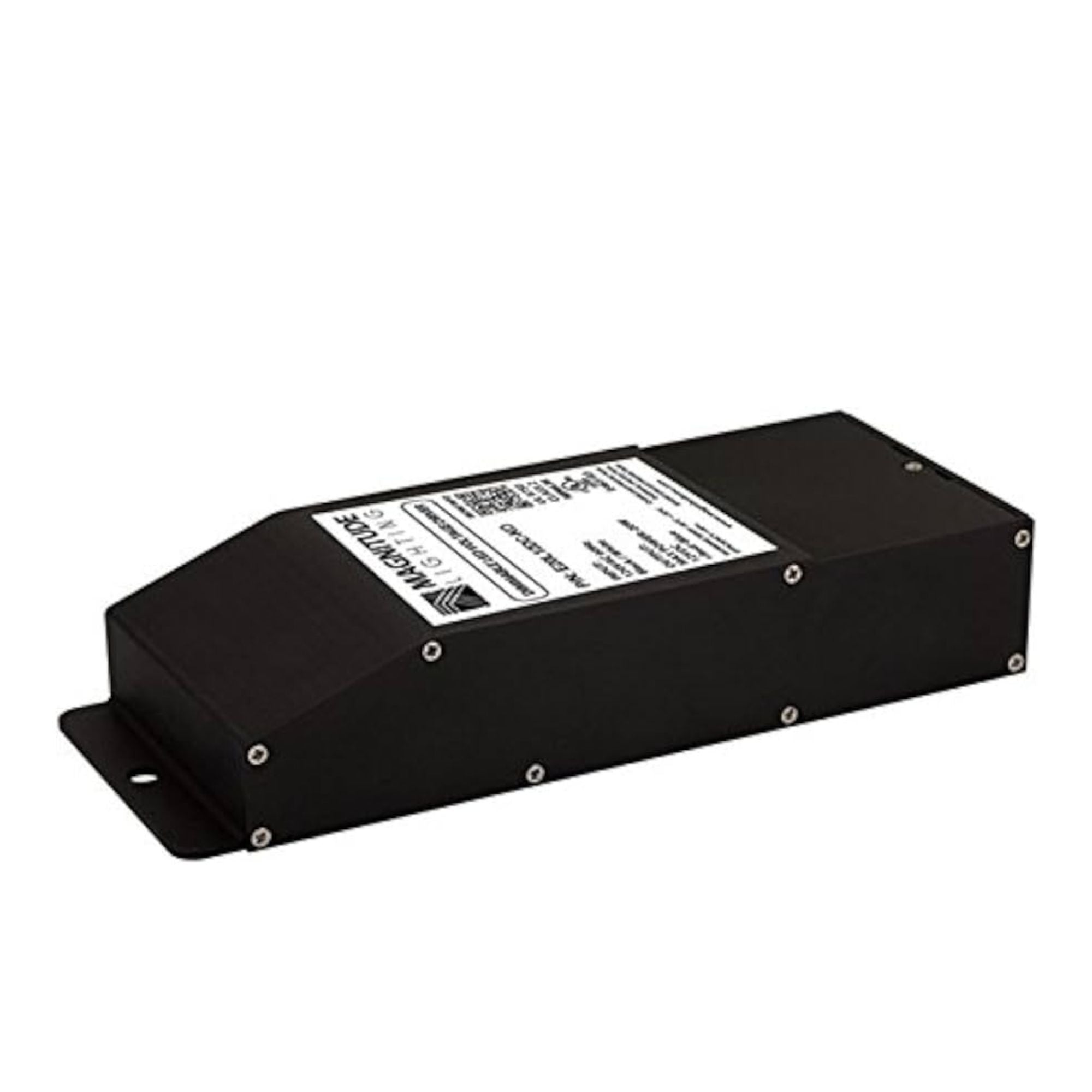

E40L24DC is a Magnitude Lighting LED Driver rated 40W with 120V AC input and 24V DC Constant Voltage output. It is forward-phase TRIAC dimmable down to 1% and is UL8750 Class 2. The compact aluminum housing includes an Integrated Junction Box with knockouts for streamlined installation.

Key Features

• Power: 40W maximum load
• Input Voltage: 120VAC ± 10%, 50/60 Hz
• Output Voltage: 24.0 VDC at max load
• Output Current: 1.75A at max load (24VDC)
• Dimming: Forward-phase (TRIAC) dimmable to 1%
• Minimum Load: 8W

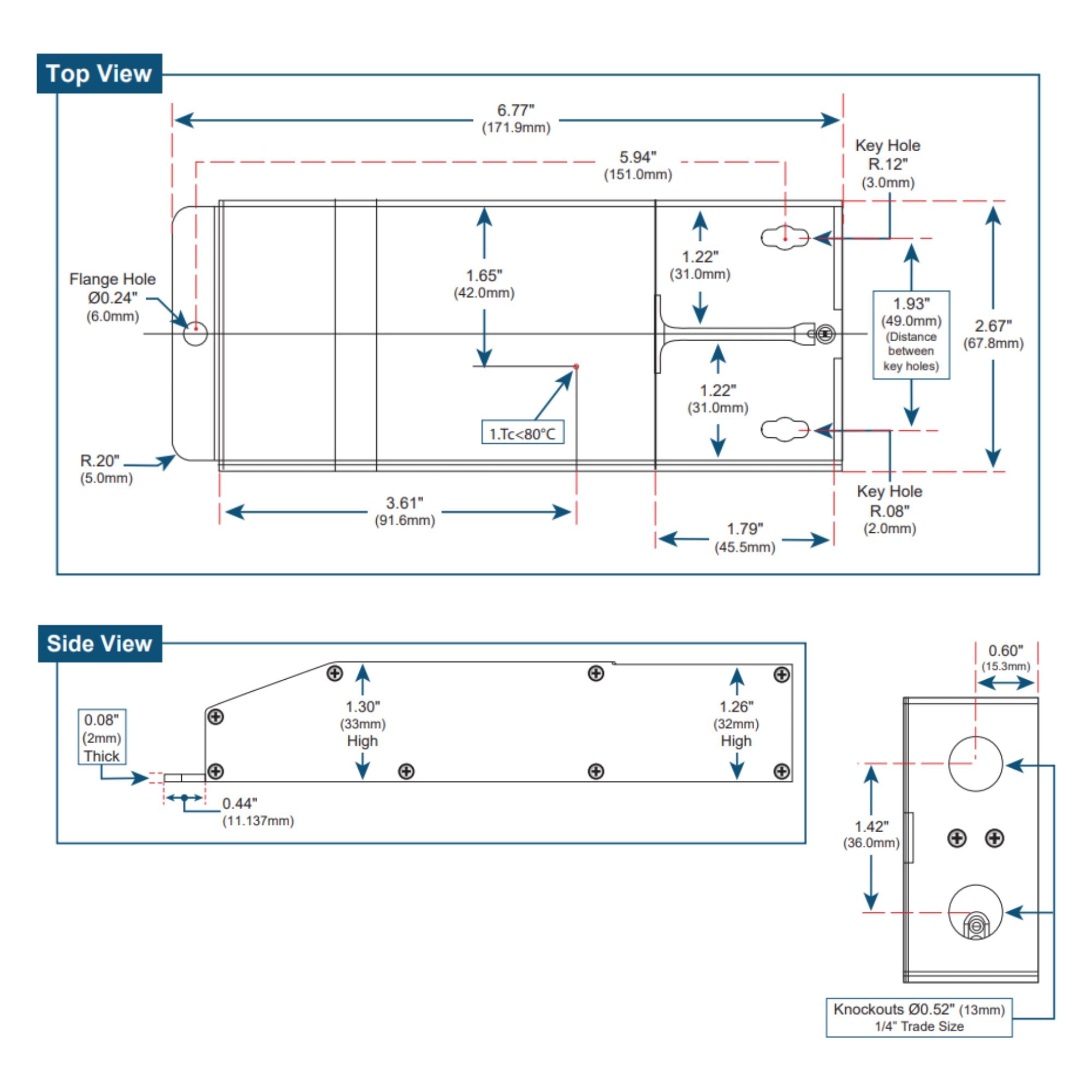

• Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
• Enclosure Type: Aluminum case with Integrated Junction Box; two 1/4 in. trade size (3/8 in.) knockouts
• IP/NEMA Rating: NEMA 3R
• Certifications: UL8750, Class 2

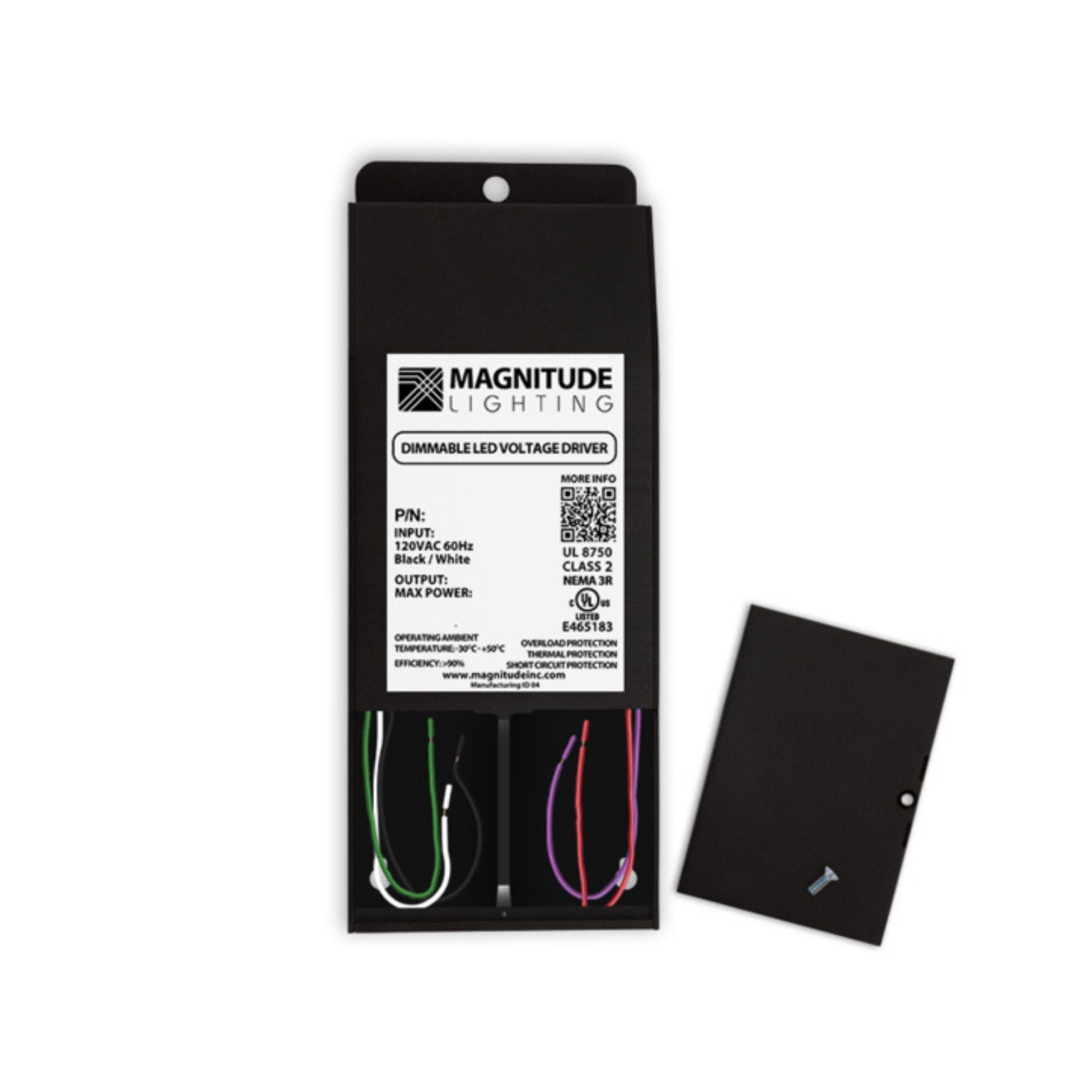

Physical Design & Installation

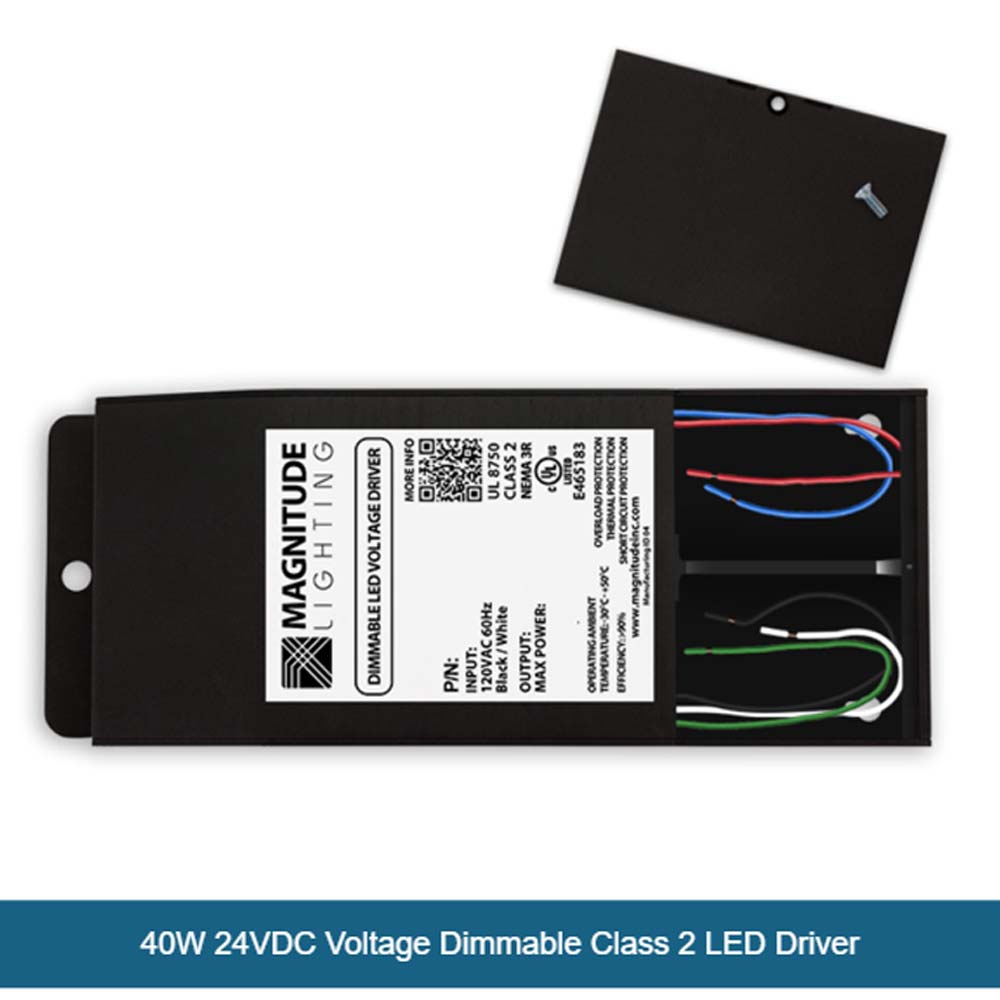

Powder-coated aluminum housing in black with an integrated wiring compartment for line-voltage connections. Includes two 1/4 in. trade size (3/8 in.) knockouts and supports one-hole flange mounting with key holes in the wire housing.

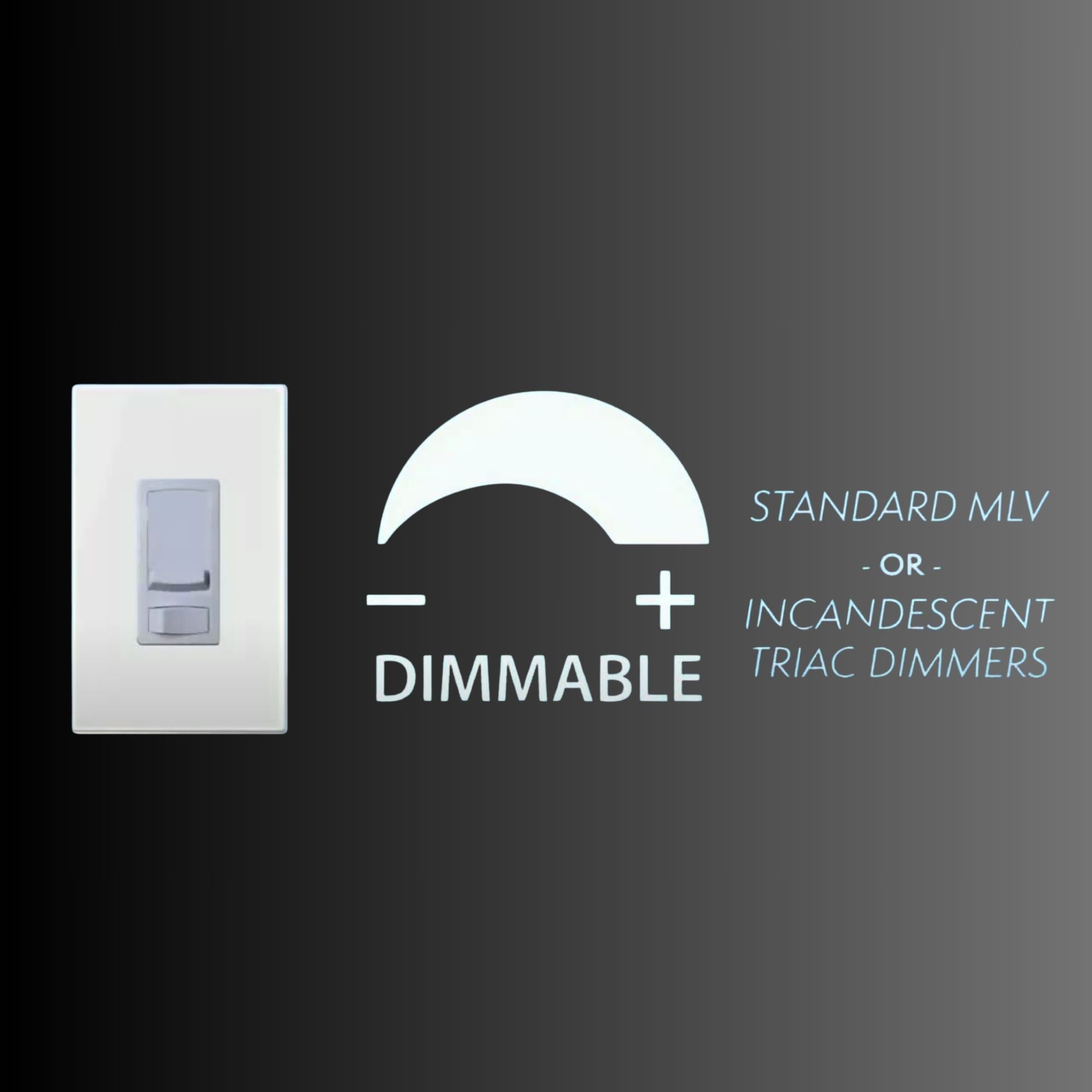

Dimming & Controls

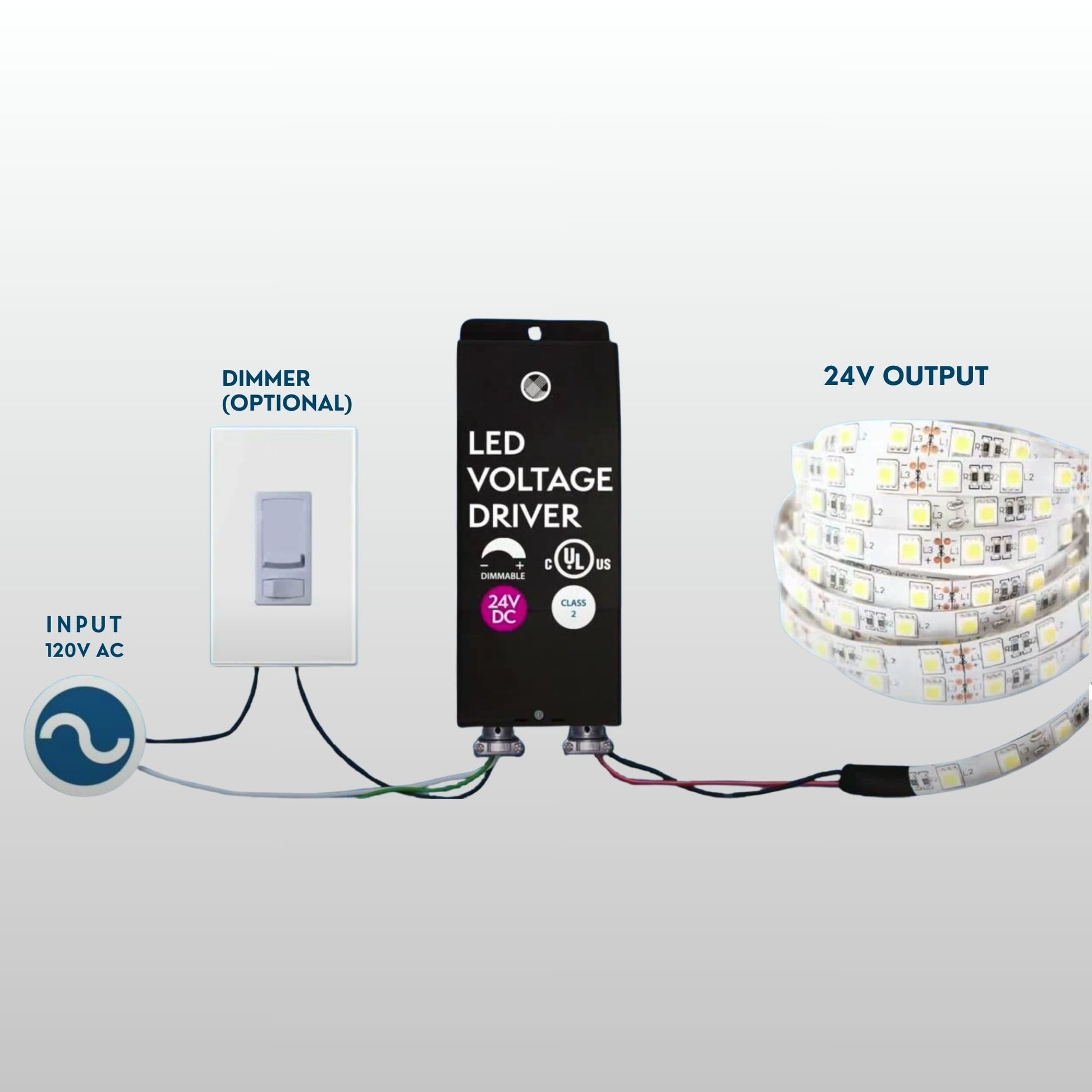

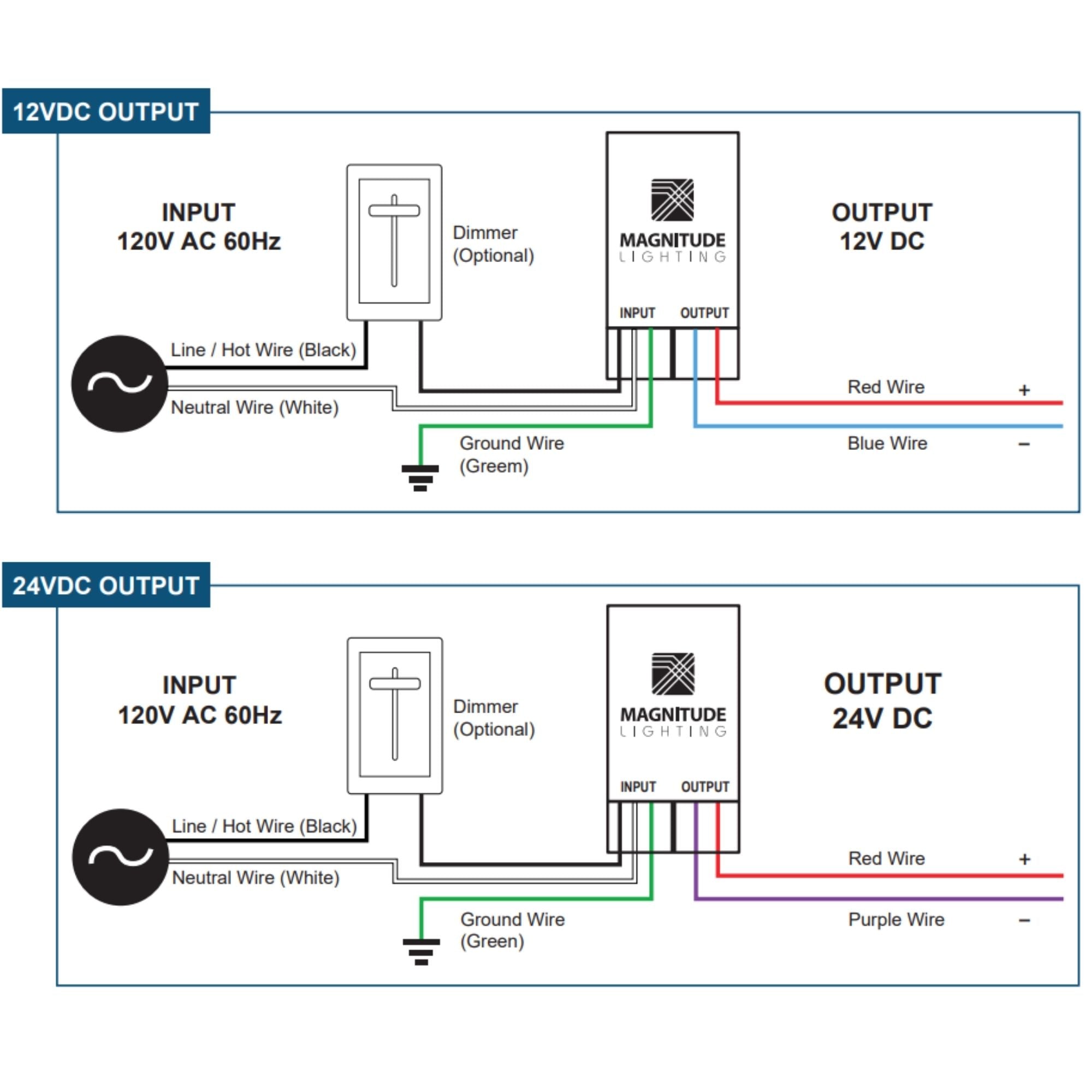

Designed for forward-phase (TRIAC) dimming on the 120V AC input and can dim down to 1% when paired with compatible TRIAC dimmers. For stable dimming performance, maintain a minimum connected LED load of 8W and do not exceed the 40W maximum load.

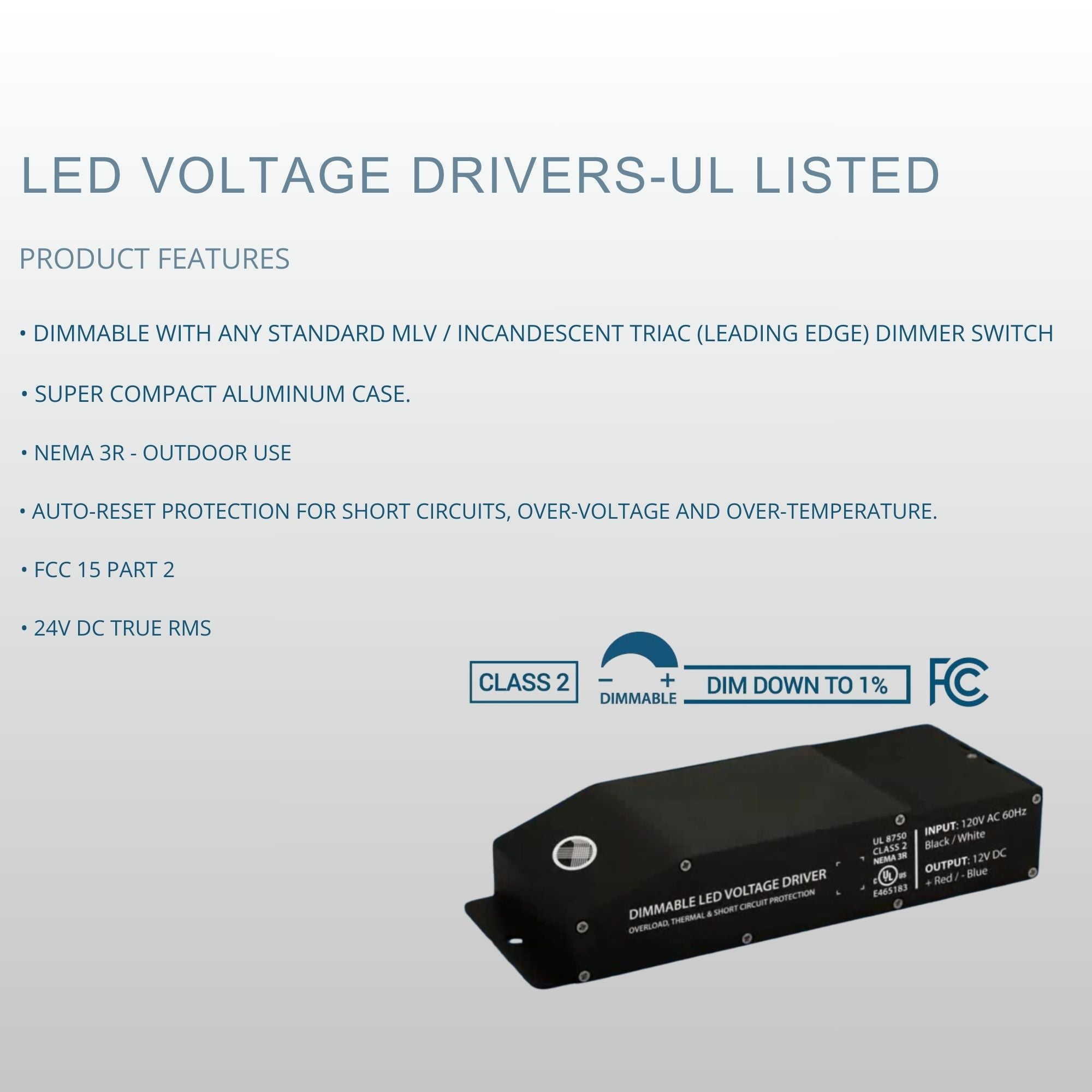

Performance & Build

High-efficiency design (>90% at 24VDC) with short circuit and over-voltage auto-reset protection. UL8750 Class 2 construction and NEMA 3R enclosure support dependable operation across a -30°C to +65°C ambient range.

Typical Applications

• 24V LED tape light runs (within 40W maximum)
• Under-cabinet and millwork lighting
• Cove and accent lighting
• Signage and architectural detail lighting
