E-Series 40W 12VDC Dimmable LED Driver, Class 2, 120V, NEMA 3R, UL Enclosure
Available in stock (49)
About this item
About this item
- 40W Constant Voltage Output: Regulated 12V DC output for compatible 12V LED tape and fixtures
- TRIAC Dimming to 1%: Forward-phase (TRIAC) dimmable for smooth low-end control; 8W minimum load
- 120VAC Input: 120VAC ±10%, 50/60Hz input for standard line-voltage installations
- Integrated Junction Box: Built-in wiring compartment with two 1/4 in. trade size (3/8 in.) knockouts
- Protection & Efficiency: Short circuit and over-voltage auto-reset protection with >90% efficiency
We process payments securely and do not store credit card information.
Description
Description

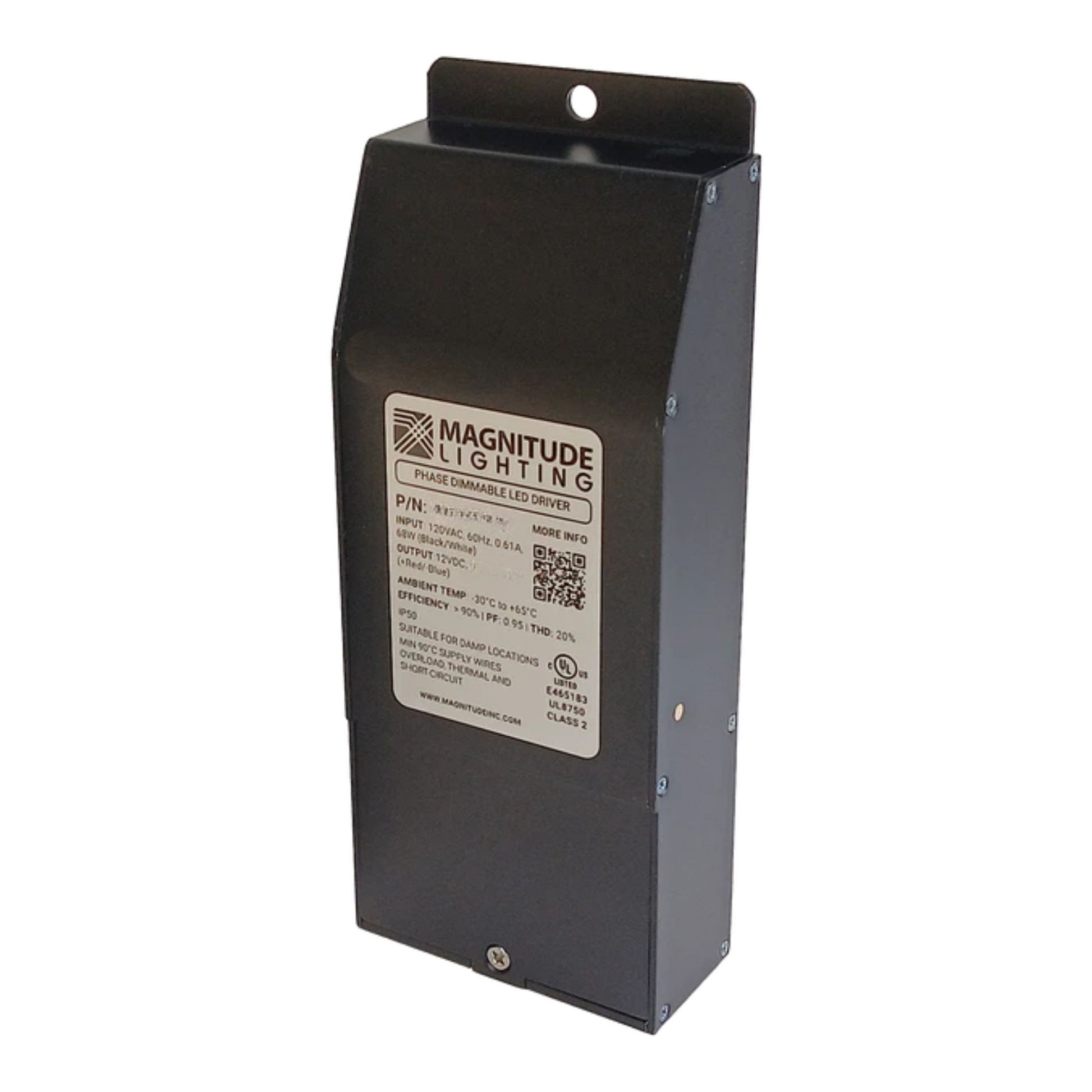

Magnitude Lighting E-Series 40W LED Driver — 12V DC

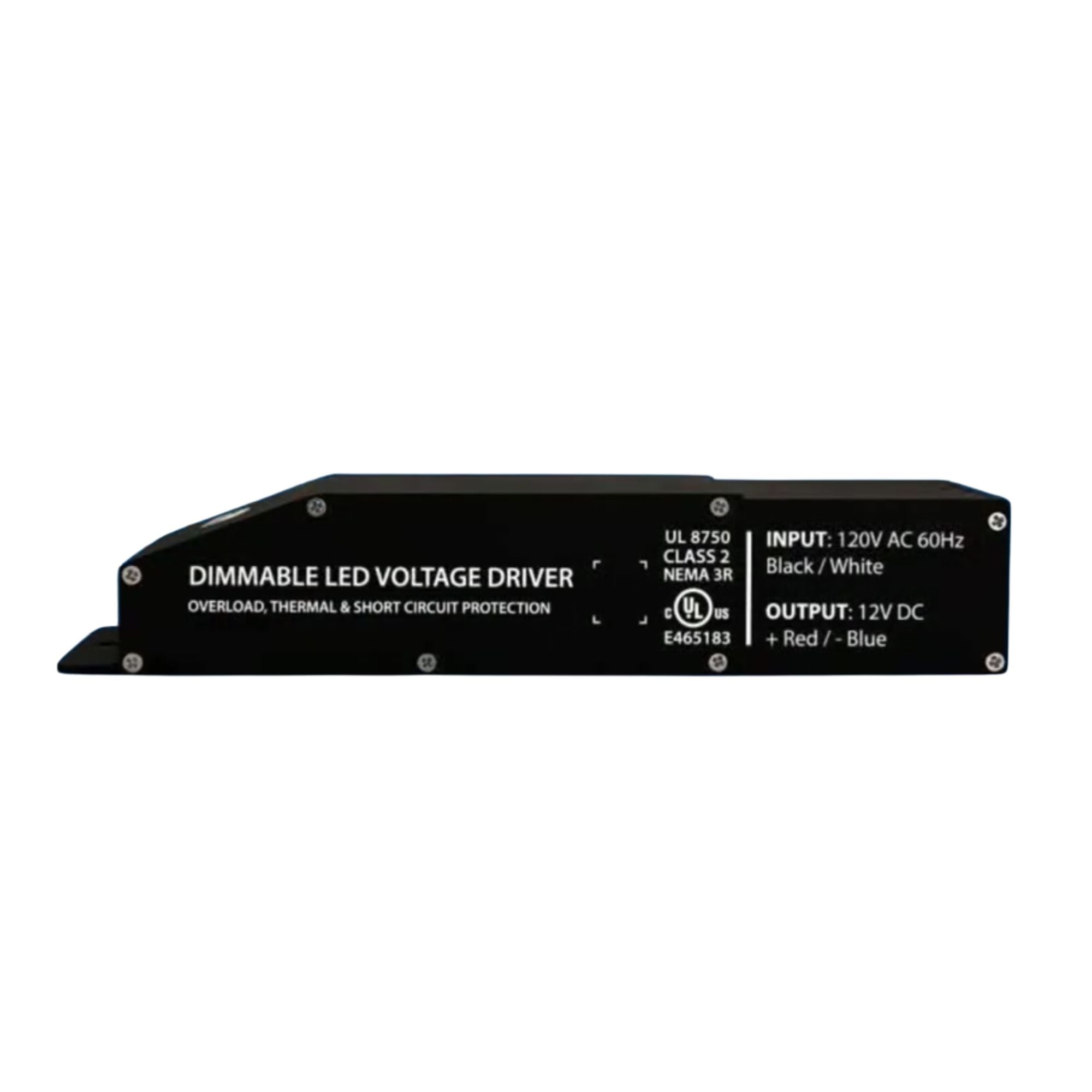

Magnitude Lighting E-Series LED Driver E40L12DC delivers 40W of Constant Voltage power with a regulated 12V DC output from a 120VAC input. It is forward-phase (TRIAC) dimmable down to 1% and is UL8750 Class 2 for compatible low-voltage LED loads. The compact aluminum housing includes an Integrated Junction Box with knockouts for clean, code-friendly wiring transitions.
Key Features
- Power: 40W maximum load
- Input Voltage: 120VAC ±10%, 50/60Hz
- Output Voltage: 12.0VDC at max load
- Output Current: 3.50A at max load (12VDC)
- Dimming: Forward-phase (TRIAC) dimmable to 1%
- Minimum Load: 8W

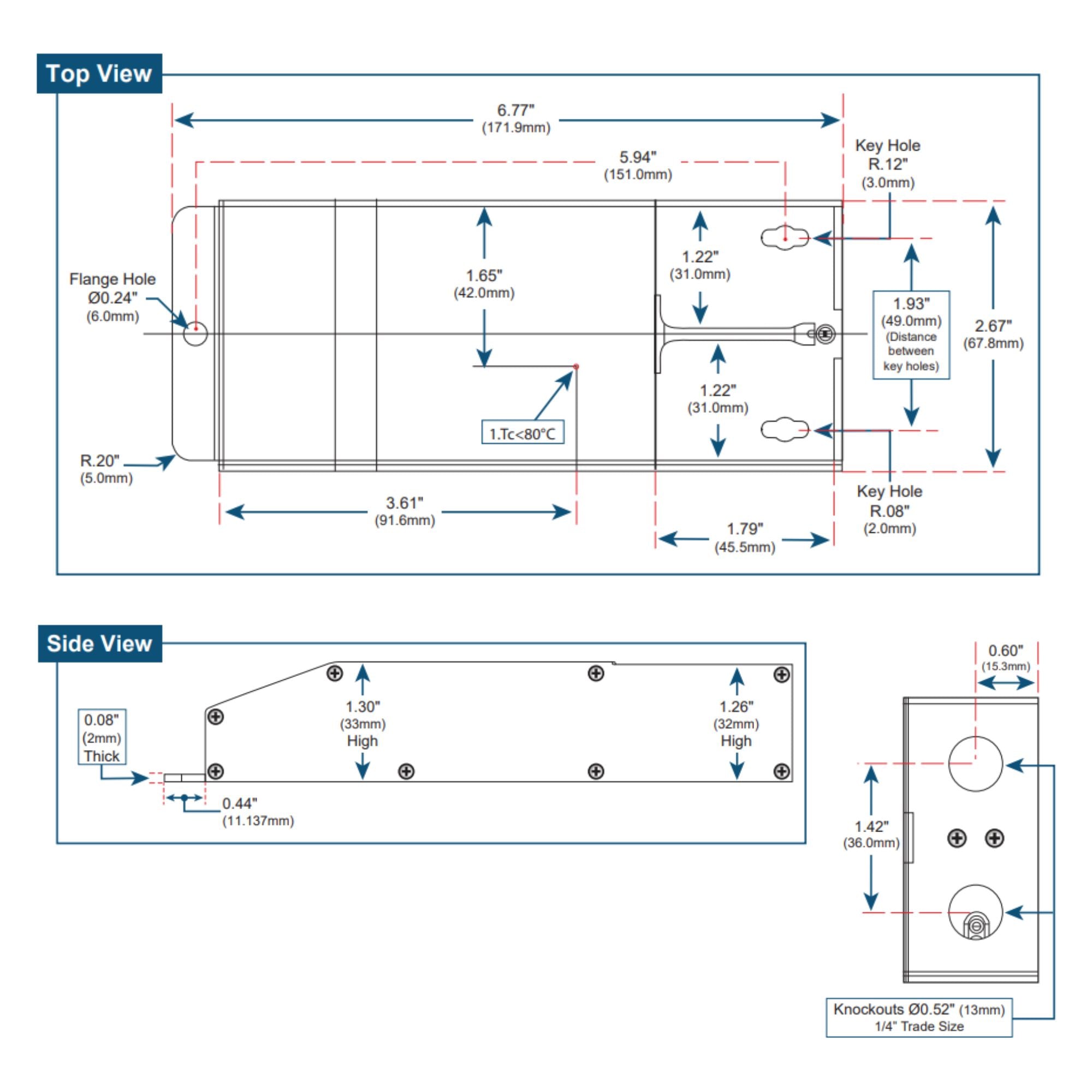

- Dimensions: 6.77 in. L x 2.67 in. W x 1.30 in. H
- Enclosure Type: Integrated Junction Box; two 1/4 in. trade size (3/8 in.) knockouts
- IP/NEMA Rating: NEMA 3R
- Class 2 / Certifications: UL8750, Class 2

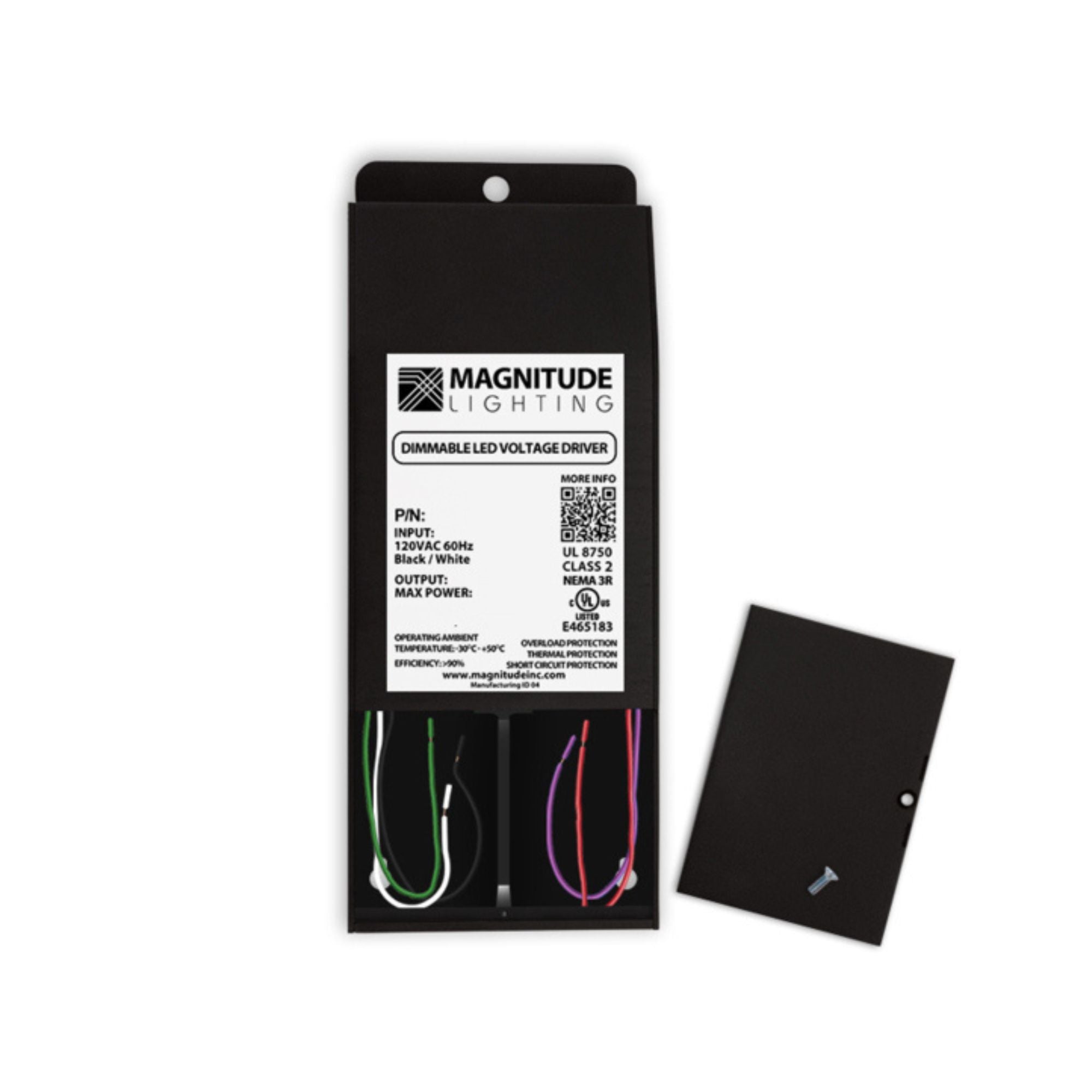

Physical Design & Installation

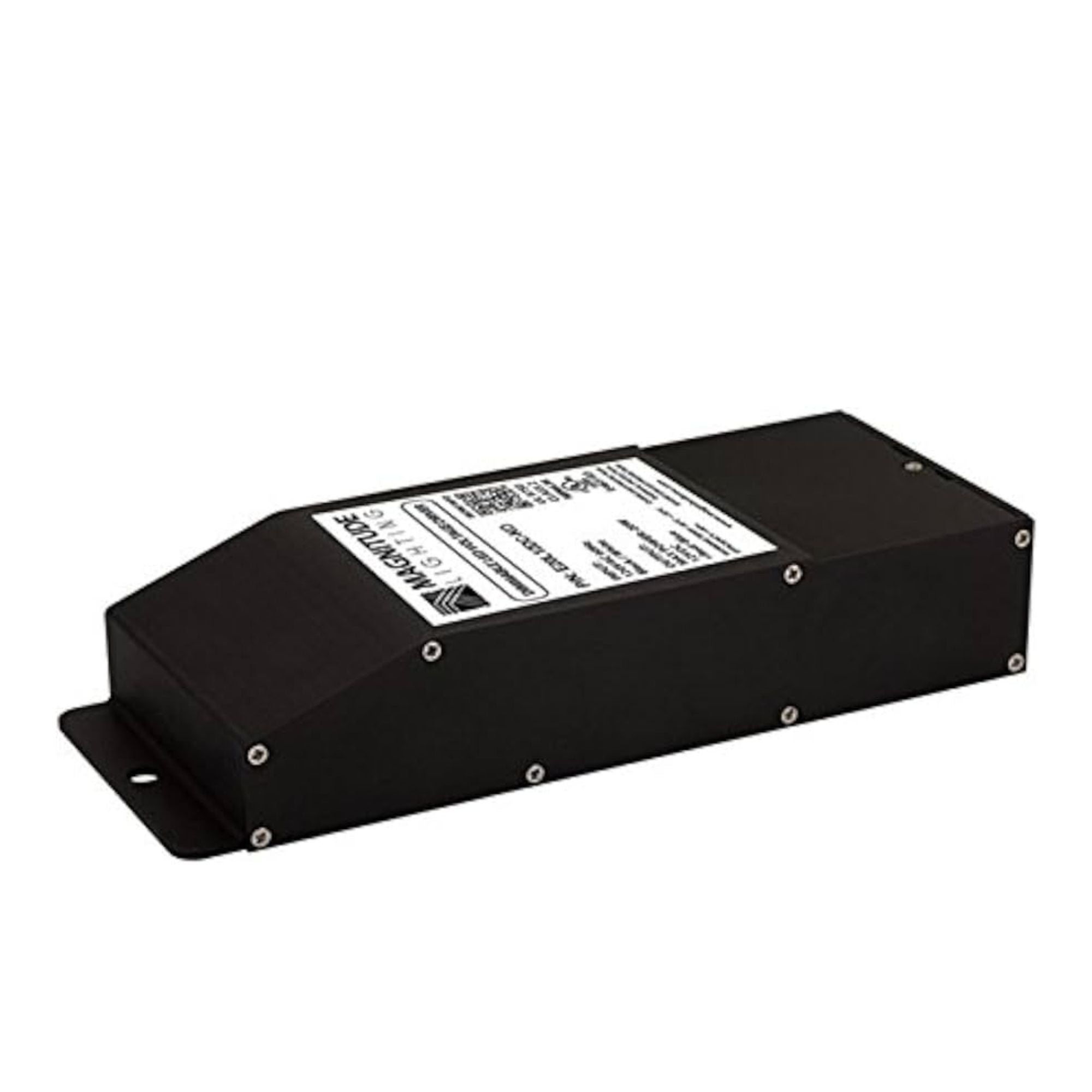

Compact aluminum case with powder coat finish and an integrated wiring compartment for line-voltage and low-voltage terminations. Includes two 1/4 in. trade size (3/8 in.) knockouts and flange/key-hole mounting features to support secure installation.
Dimming & Controls

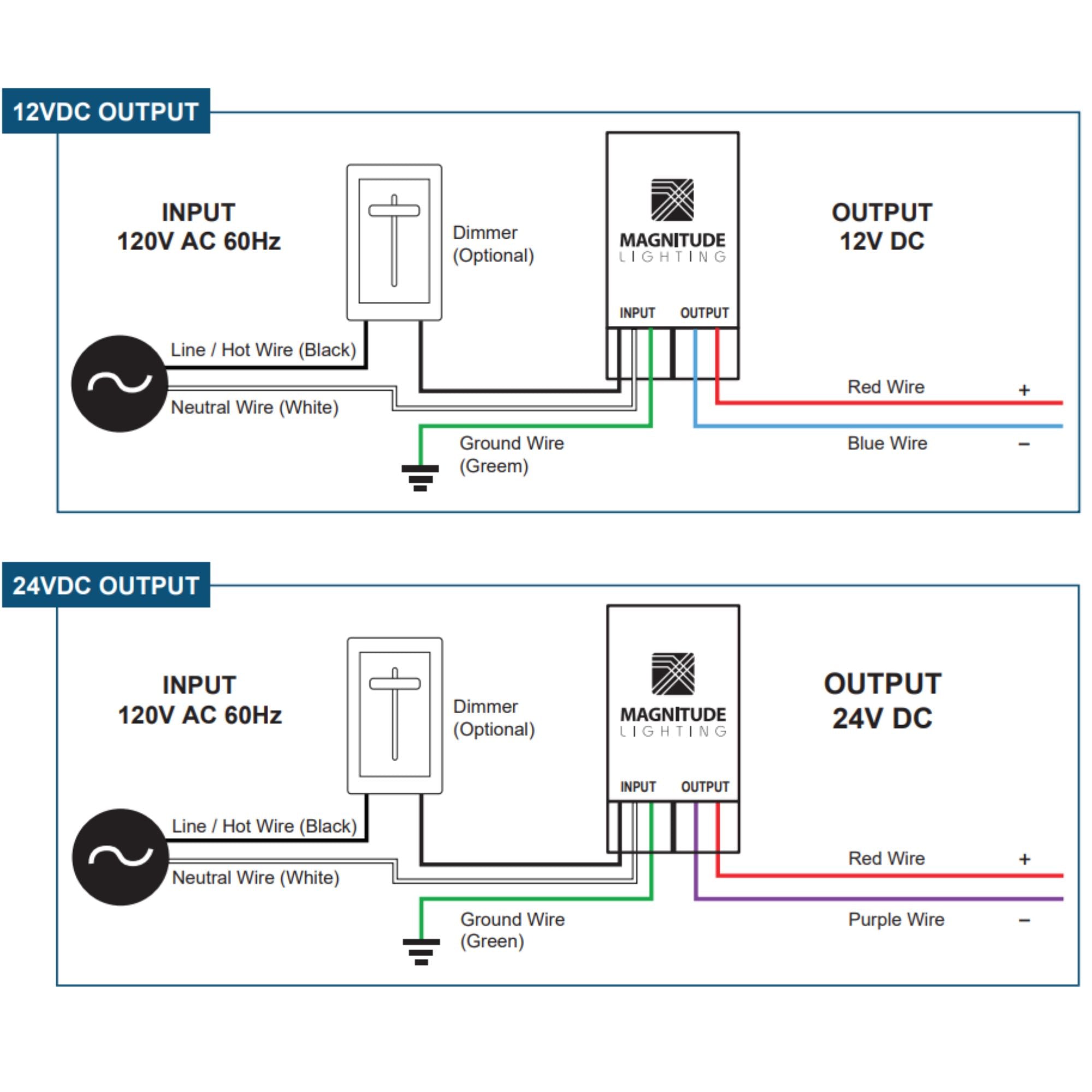

Designed for forward-phase (TRIAC) dimming and can dim down to 1% when paired with compatible TRIAC dimmers. For stable dimming performance, maintain an 8W minimum connected LED load. Input is 120VAC (50/60Hz) and output is constant voltage 12VDC for 12V LED systems.
Performance & Build
High-efficiency design (>90% efficiency at 12VDC) supports lower operating temperature. Protection includes short circuit and over-voltage auto-reset. UL8750 Class 2 construction and NEMA 3R enclosure support demanding installations where a wiring compartment and weather-resistant housing are required.
Typical Applications

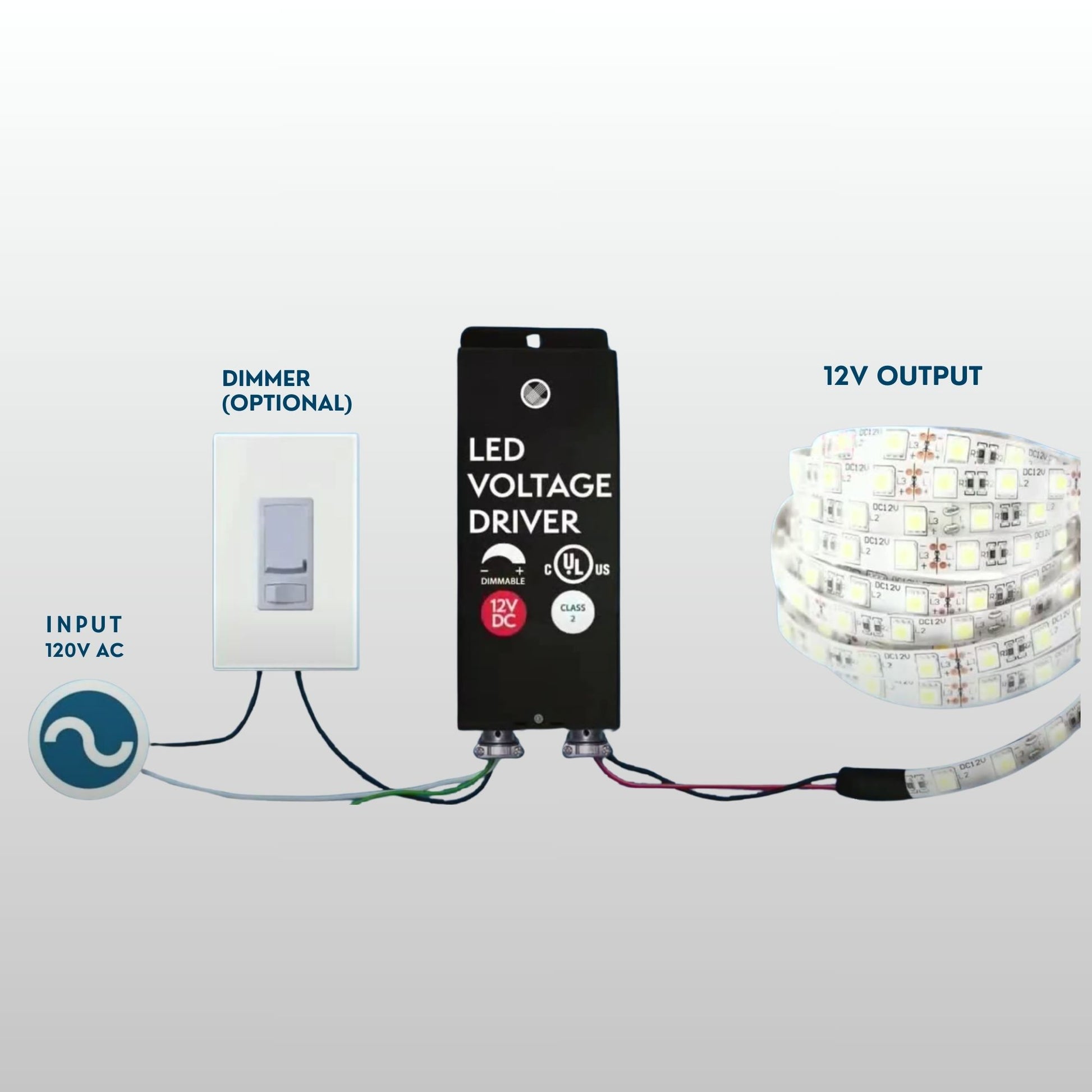

- 12V LED tape light runs (STD, HD, and COB types per compatibility chart)
- Architectural accents and coves requiring TRIAC dimming
- Signage and display lighting using 12V constant voltage loads
- Indoor or outdoor installations requiring a NEMA 3R driver enclosure
