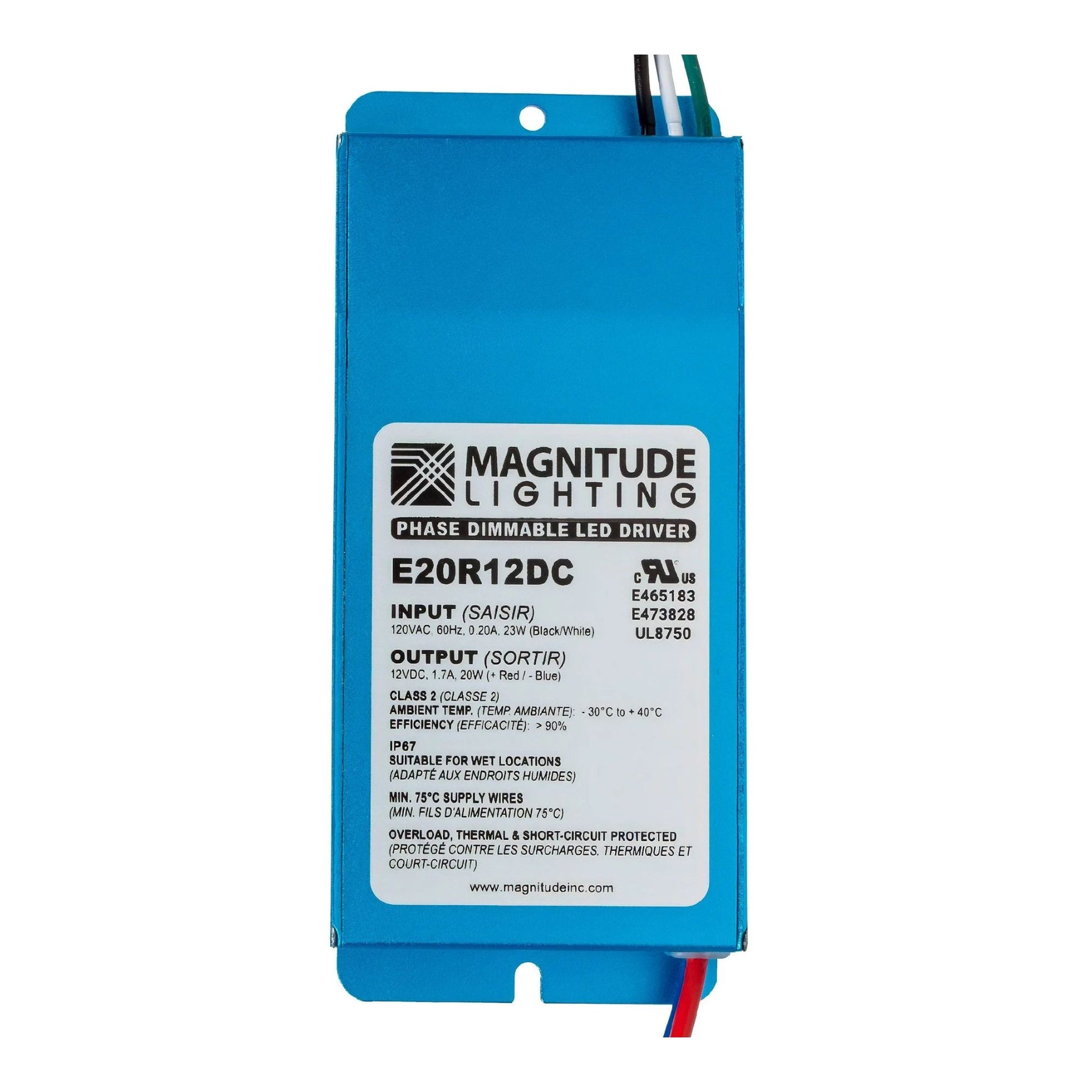

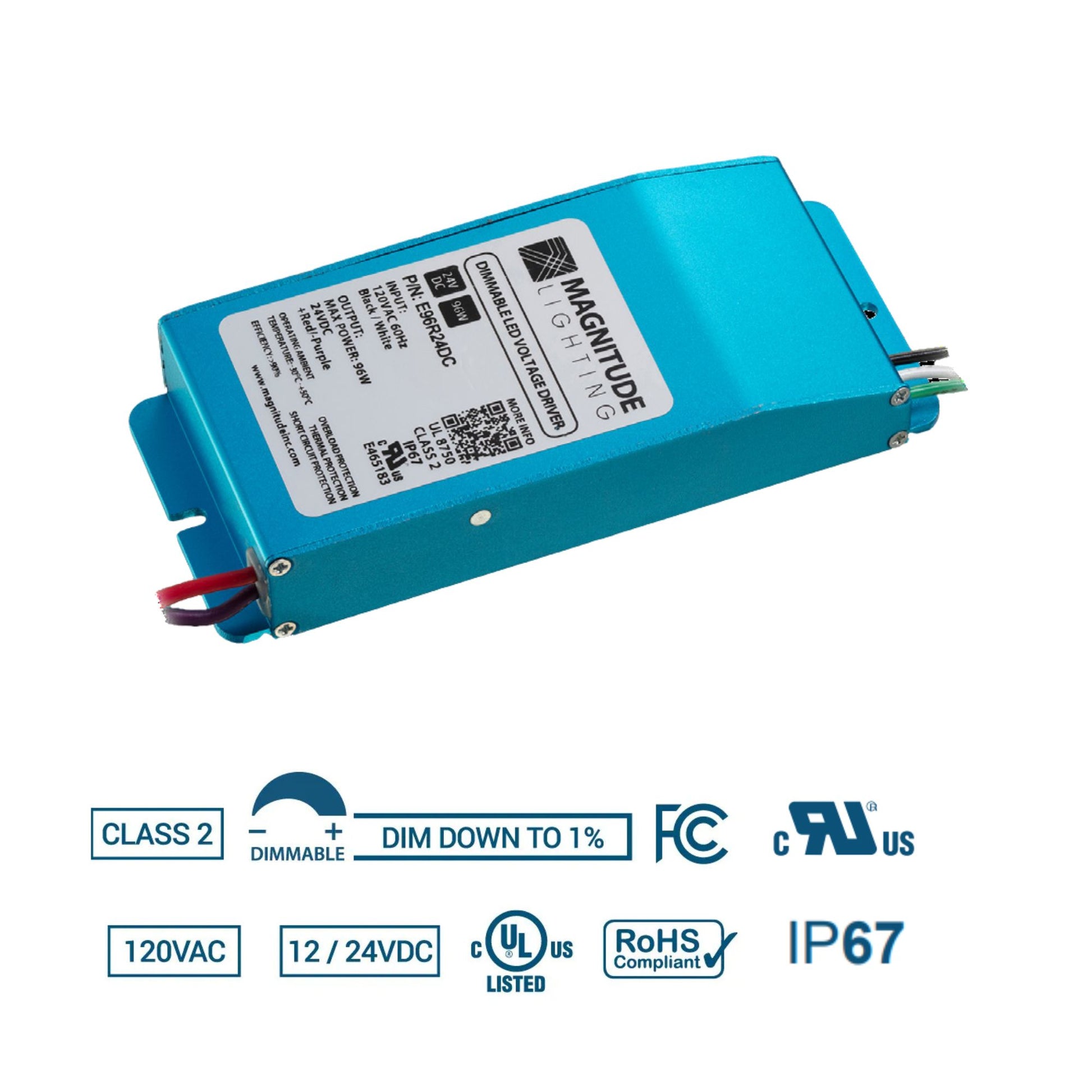

Magnitude Lighting E-Series 20W LED Driver — 12V DC

E20R12DC is a Magnitude Lighting LED Driver rated 20W with 120VAC input and 12V DC Constant Voltage output. It is forward-phase (TRIAC) dimmable down to 1% and requires an 8W minimum load for smooth dimming. This model is Class 2 and uses a compact anodized aluminum, IP67-rated enclosure with flying leads (no Integrated Junction Box).

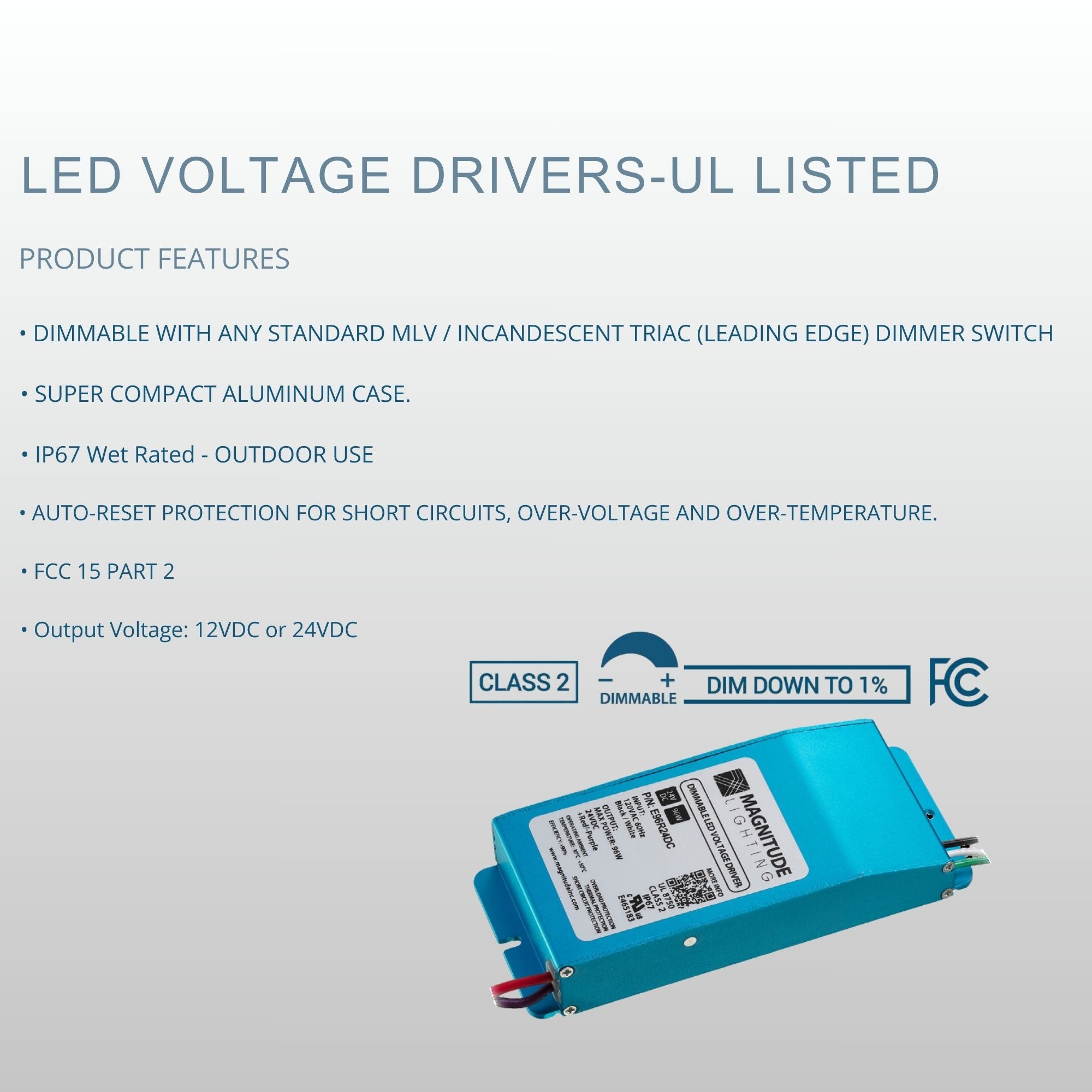

Key Features

• Power: 20W maximum load
• Input Voltage: 120VAC ±10%, 50/60Hz
• Output Voltage: 12.0VDC at max load
• Output Type: Constant Voltage, single channel
• Dimming: Forward-phase (TRIAC) dimmable to 1%
• Minimum Load: 8W required for smooth dimming

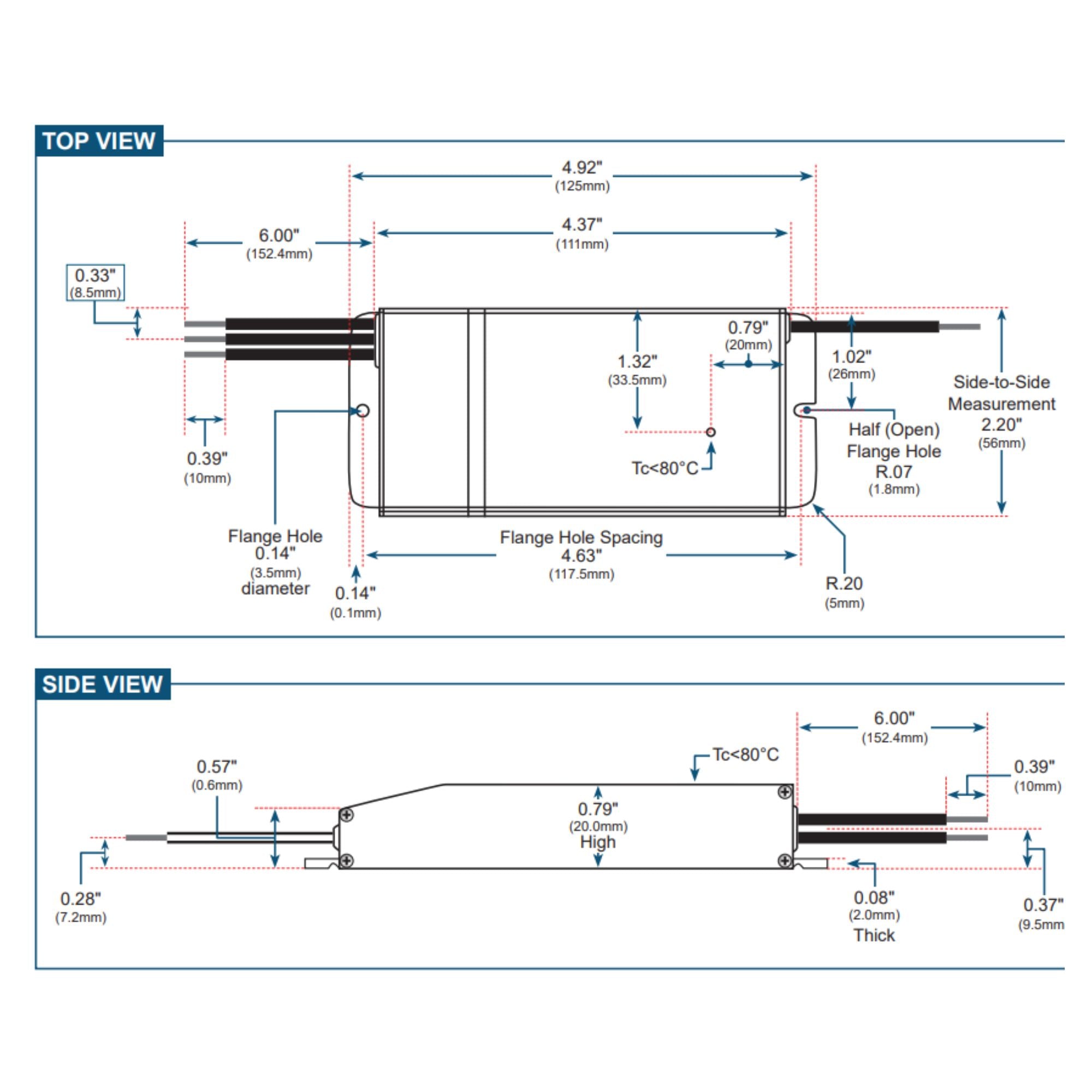

• Dimensions: 4.92 in. L x 2.20 in. W x 0.79 in. H
• Enclosure Type: IP67 anodized aluminum housing with flying leads; junction box: No
• Class 2: Yes
• Certifications: UL8750 Recognized; UL 879

Physical Design & Installation

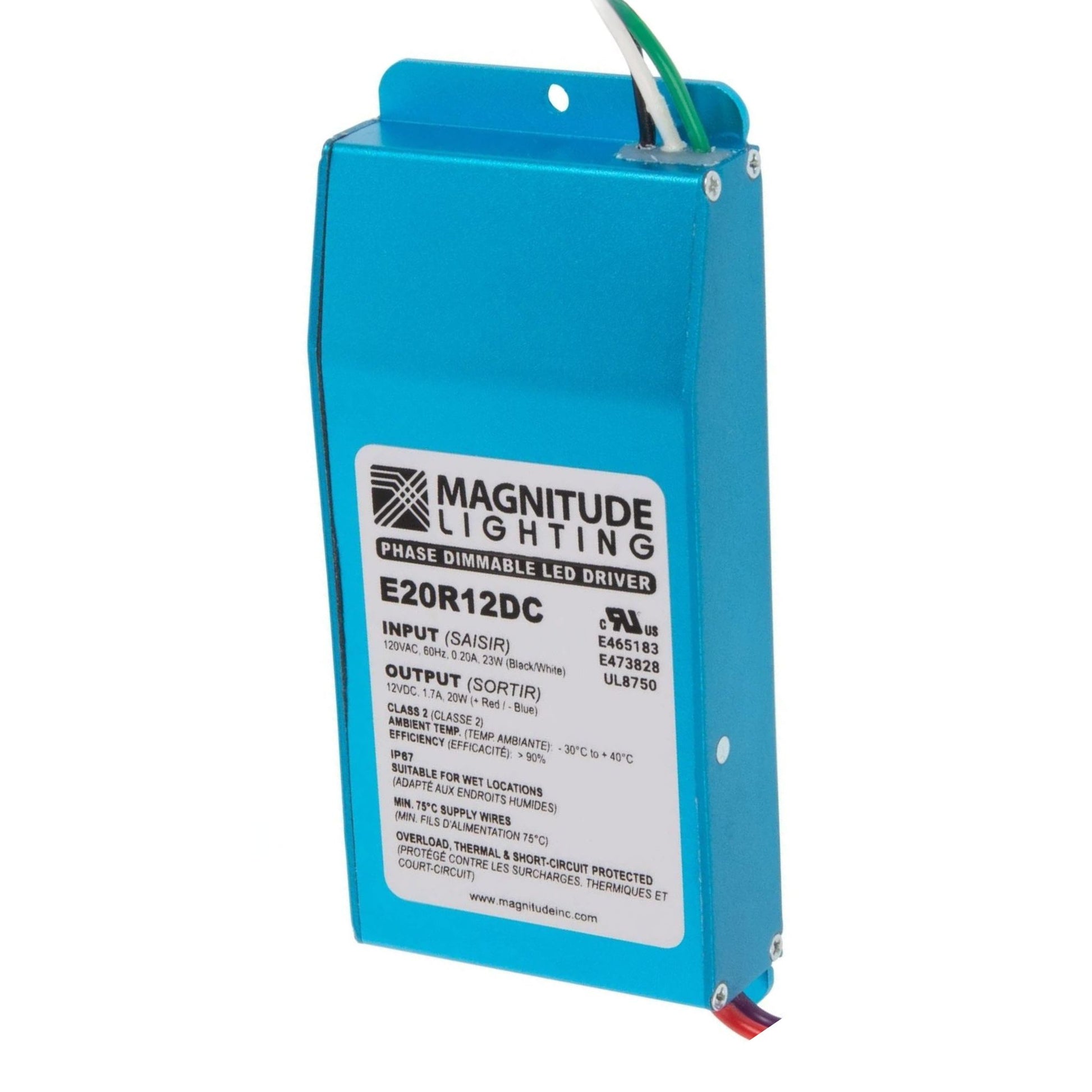

Compact anodized aluminum housing designed for easy concealment. The driver uses flying leads for input and output connections and does not include an Integrated Junction Box; plan for code-compliant splicing and an appropriate enclosure as required. Mounting is via flange holes per the mechanical design.

Dimming & Controls

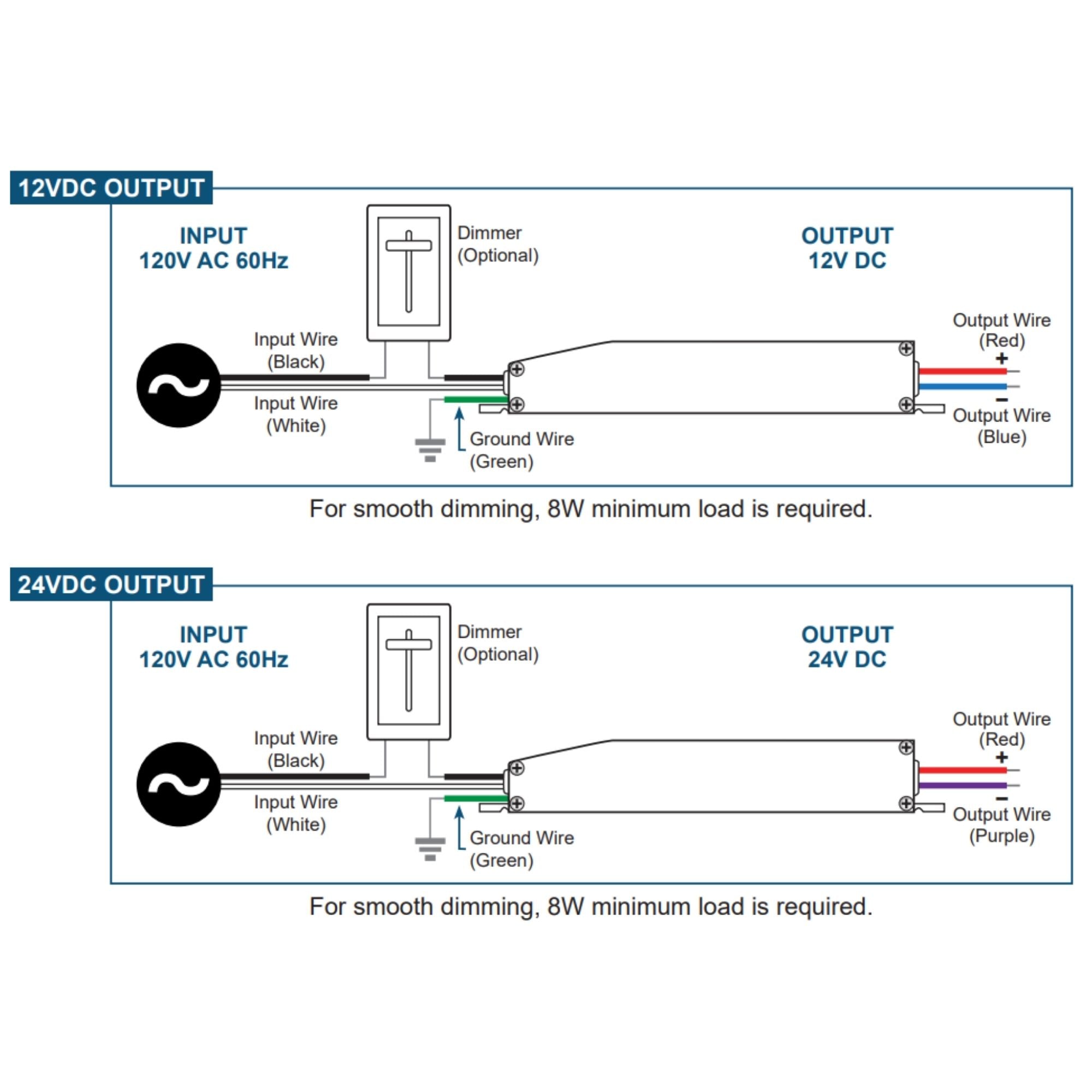

Supports forward-phase (TRIAC) dimming and is specified to dim down to 1%. For smooth dimming performance, maintain a minimum connected LED load of 8W. Use compatible forward-phase dimmers and size the LED load up to the 20W maximum.

Performance & Build

Designed for high efficiency operation (>90% specified for 12VDC models) and includes auto-reset short circuit and over-voltage protection. Rated Class 2 and built in an IP67 enclosure for demanding environments.

Typical Applications

• 12V LED tape light systems
• Wet-location architectural accent lighting
• Sign and display lighting (UL 879 applications)
• Indoor or outdoor low-voltage LED installations requiring TRIAC dimming
