CFlex 85W, Programmable Linear LED Driver, 700-2400mA, 0-10V Dimming, 120-277V
Available in stock (40)
About this item
About this item
- Output Power & Range: 85W max with 10-55V DC output and 700-2400mA (1mA step programmable) constant current.
- 0-10V Dimming: Dims down to 1% with dim-to-off capability (default setting; programmable to disable).
- Universal Input: 120-277VAC (50/60Hz) for broad commercial voltage compatibility.
- Wiring & Enclosure: Steel linear housing with terminal block connections; not an integrated junction box.
- Protection & Surge: Short circuit, over current limiting, over voltage, and over temperature protection plus 2.5kV surge protection.
We process payments securely and do not store credit card information.
Description
Description

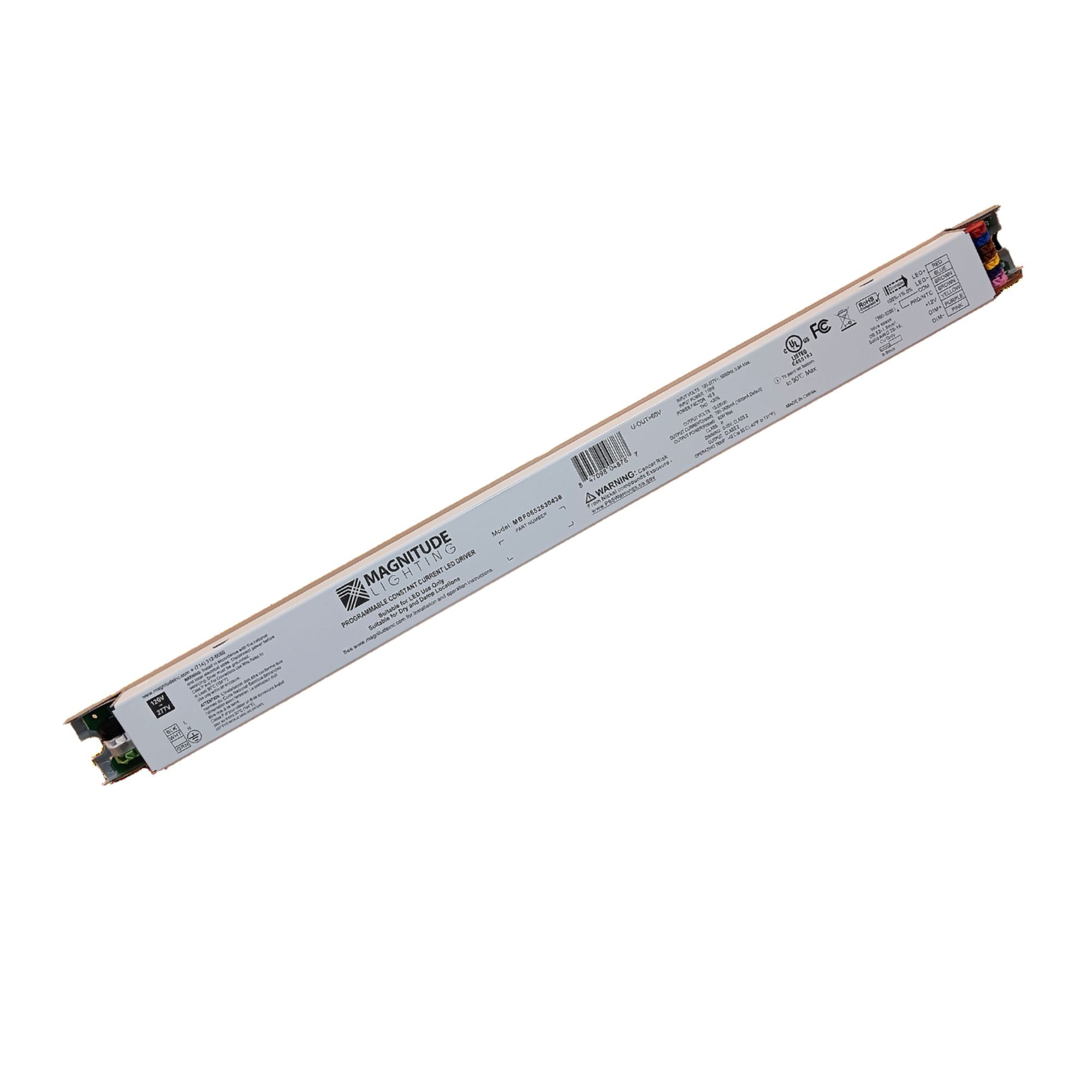

Magnitude Lighting CFlex 85W LED Driver — 10-55V DC
Magnitude Lighting CFlex programmable Constant Current LED Driver delivers 85W max with 120-277V input and 10-55V DC output for flexible LED load matching. CFLEX-85W-1800-L-TB supports 0-10V dimming down to 1% with dim-to-off capability and is listed as Class 2, Class P. Linear steel housing with terminal block wiring; not an Integrated Junction Box.
Key Features
- Max Output Power: 85W
- Input Voltage: 120-277VAC ±10%, 50/60Hz
- Output Type: Constant current, single channel
- Output Range: 10-55V DC; 700-2400mA (1mA step programmable), +/-5% current tolerance
- Dimming: 0-10V dimmable to 1% with dim-to-off (default)

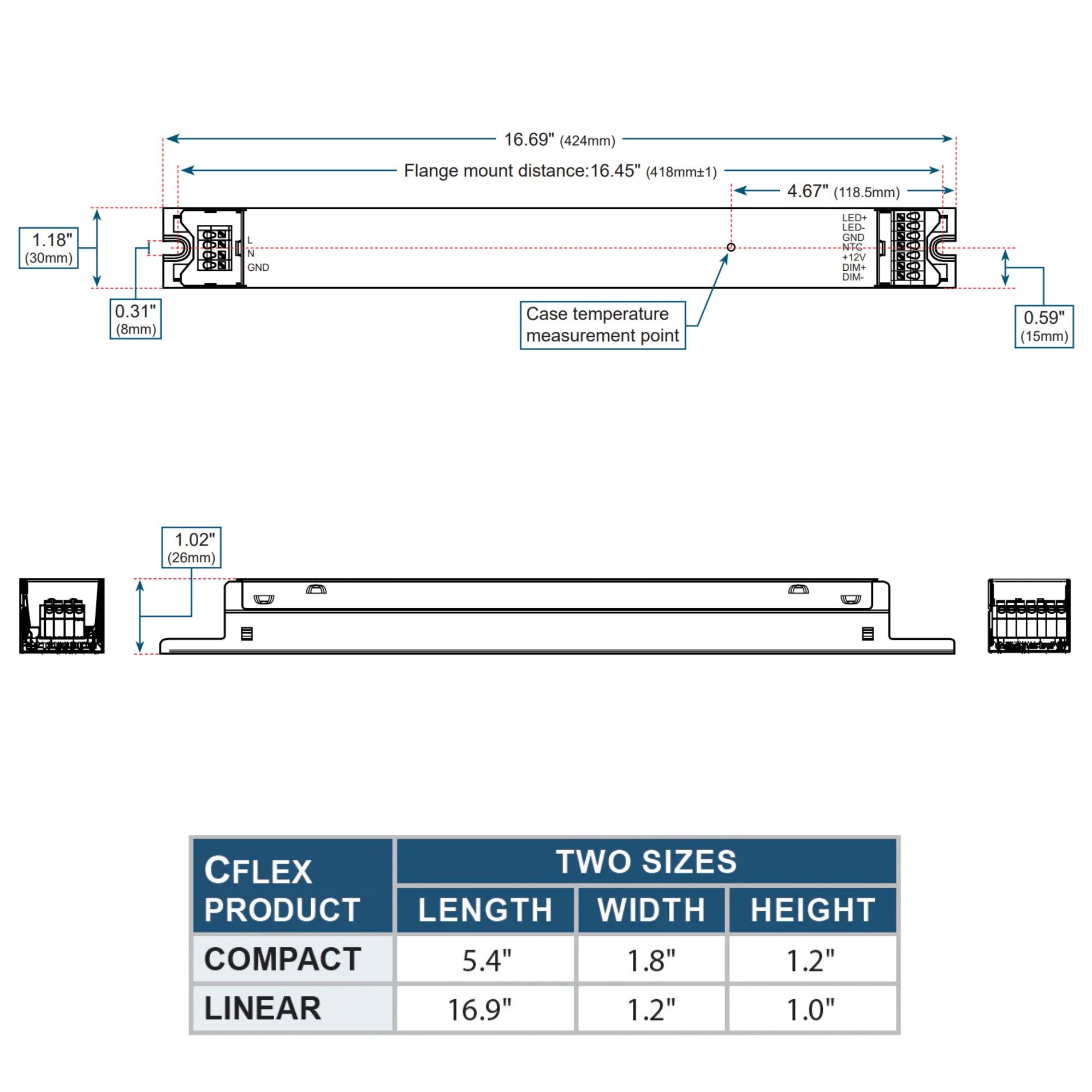

- Dimensions: 16.69 in. L x 1.18 in. W x 1.00 in. H
- Enclosure Type: Linear steel housing with terminal blocks (no integrated junction box)
- IP Rating: IP20
- Class Rating: UL Listed Class 2, Class P
- Certifications: UL8750
Physical Design & Installation

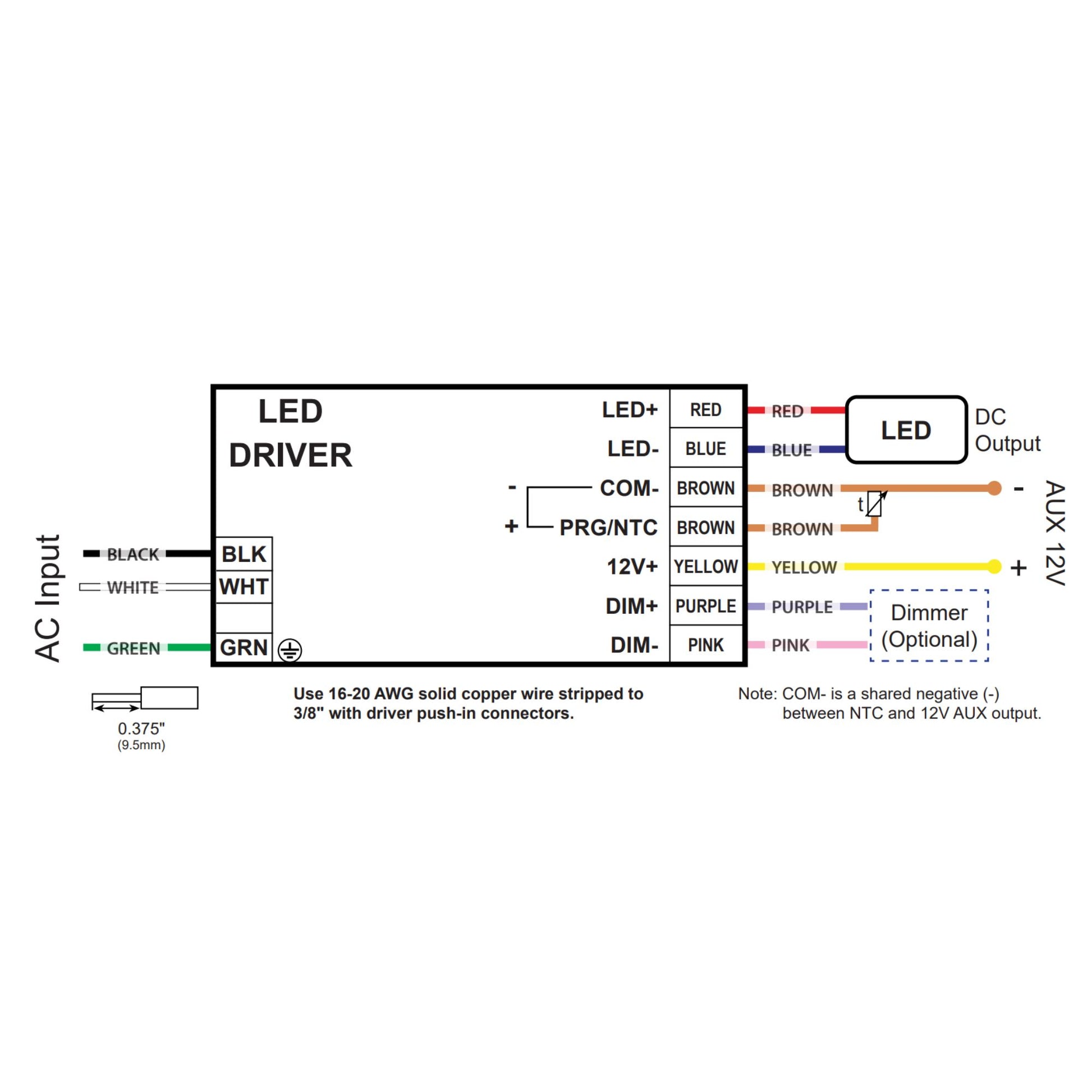

Steel, white linear housing designed for fixture or enclosure mounting using two half-hole flange mounts (16.45 in. mounting distance). Line and load connections are via terminal blocks; use 16-20 AWG solid copper wire stripped to 3/8 in. This driver is not an Integrated Junction Box style unit, so provide an appropriate wiring compartment per the installation.
Dimming & Controls

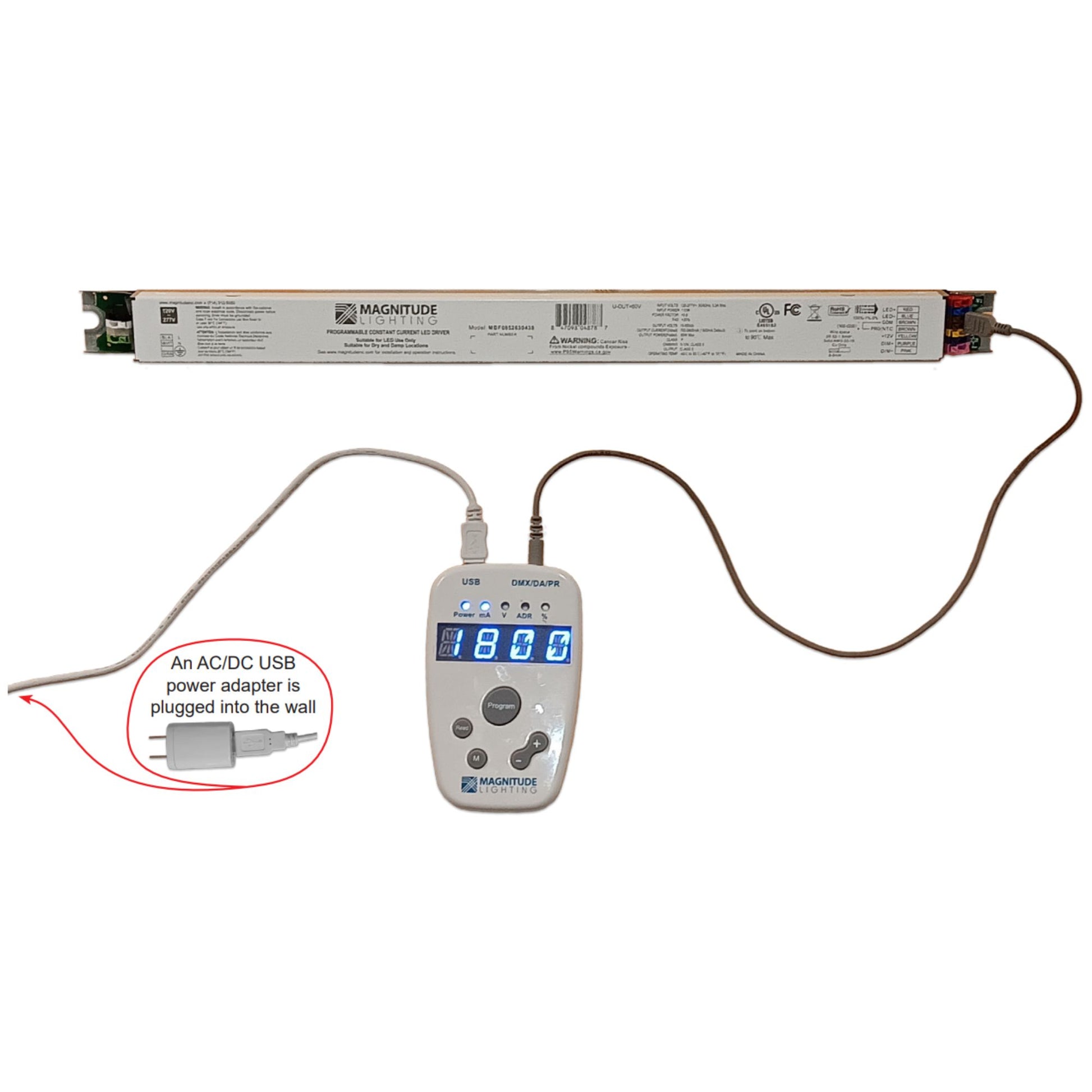

Provides 0-10V control with dimming down to 1% and dim-to-off capability (default setting; can be disabled via programming). Output current is programmable from 700-2400mA in 1mA steps for matching LED modules within the 10-55V DC range. An auxiliary 12V output (200mA max) is available for controls, and an optional NTC input supports remote thermal protection.
Performance & Build
High efficiency (>89% at maximum load) with power factor >0.9 at maximum load and fast turn-on (<0.5s). Protection includes over current limiting, short circuit (auto recover), over voltage (auto recover), and over temperature protection, plus 2.5kV surge protection. Rated IP20 and UL Listed Class 2, Class P.
Typical Applications
- Linear LED fixtures requiring programmable constant current output
- Commercial retrofit driver replacement where 120-277VAC input is needed
- Architectural LED systems using 0-10V dimming controls
- Indoor dry or damp location luminaires with IP20 driver compartments
