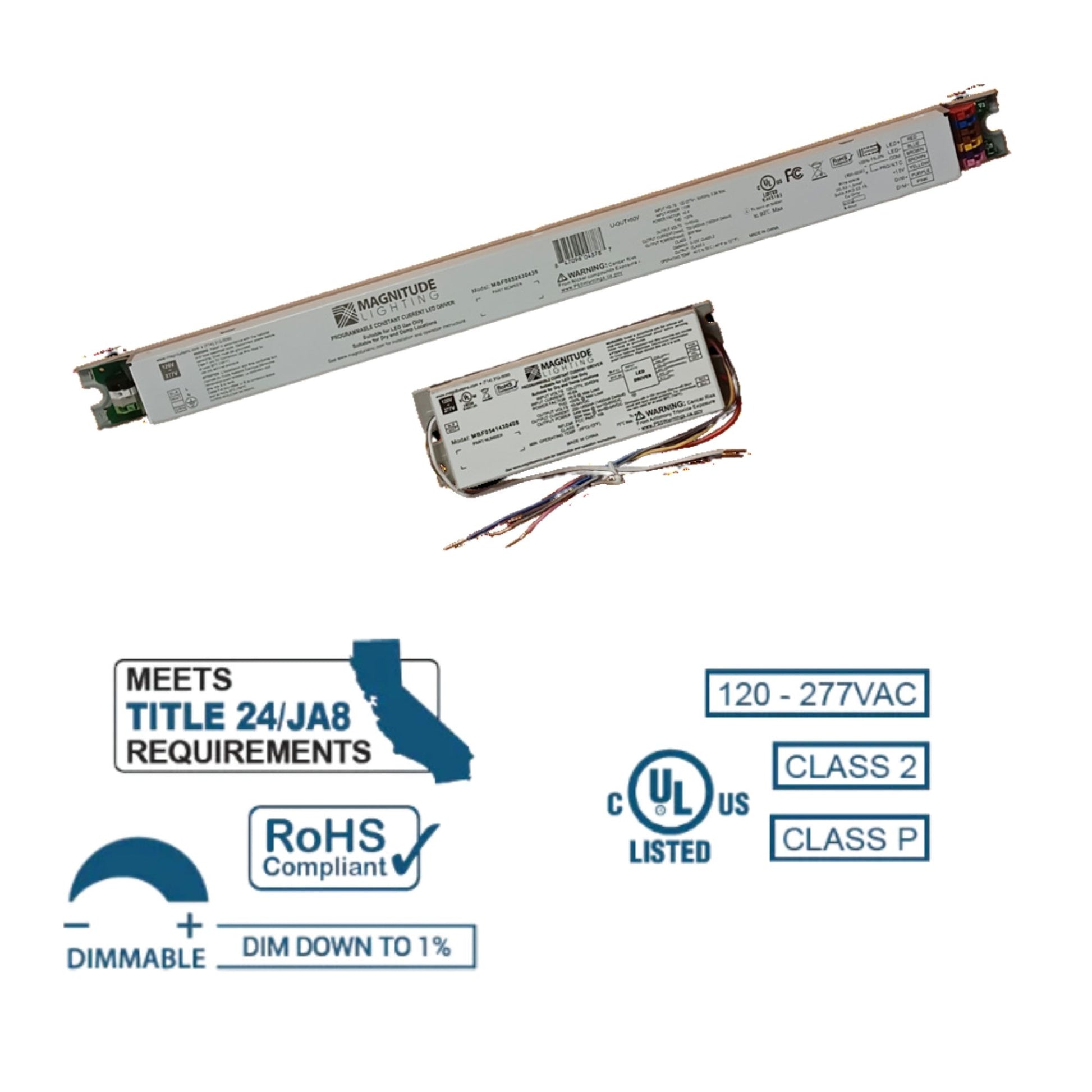

Magnitude Lighting CFLEX Compact 54W LED Driver — 10-54VDC

CFLEX-54W-1400-C-SL is a Magnitude Lighting LED Driver rated 54W with universal 120-277VAC input and 10-54VDC Constant Current output. It provides 0-10V dimming down to 1% with dim-to-off and is listed Class 2, Class P. Compact steel housing uses side-exit flying leads (no Integrated Junction Box).

Key Features

• Max Output Power: 54W @ <50VDC (50W @ >50VDC)
• Input Voltage: 120-277VAC ±10%, 50/60Hz
• Output Voltage: 10-54VDC
• Output Current: 250-1400mA (1mA step programmable)
• Dimming: 0-10V dimmable to 1% with dim-to-off

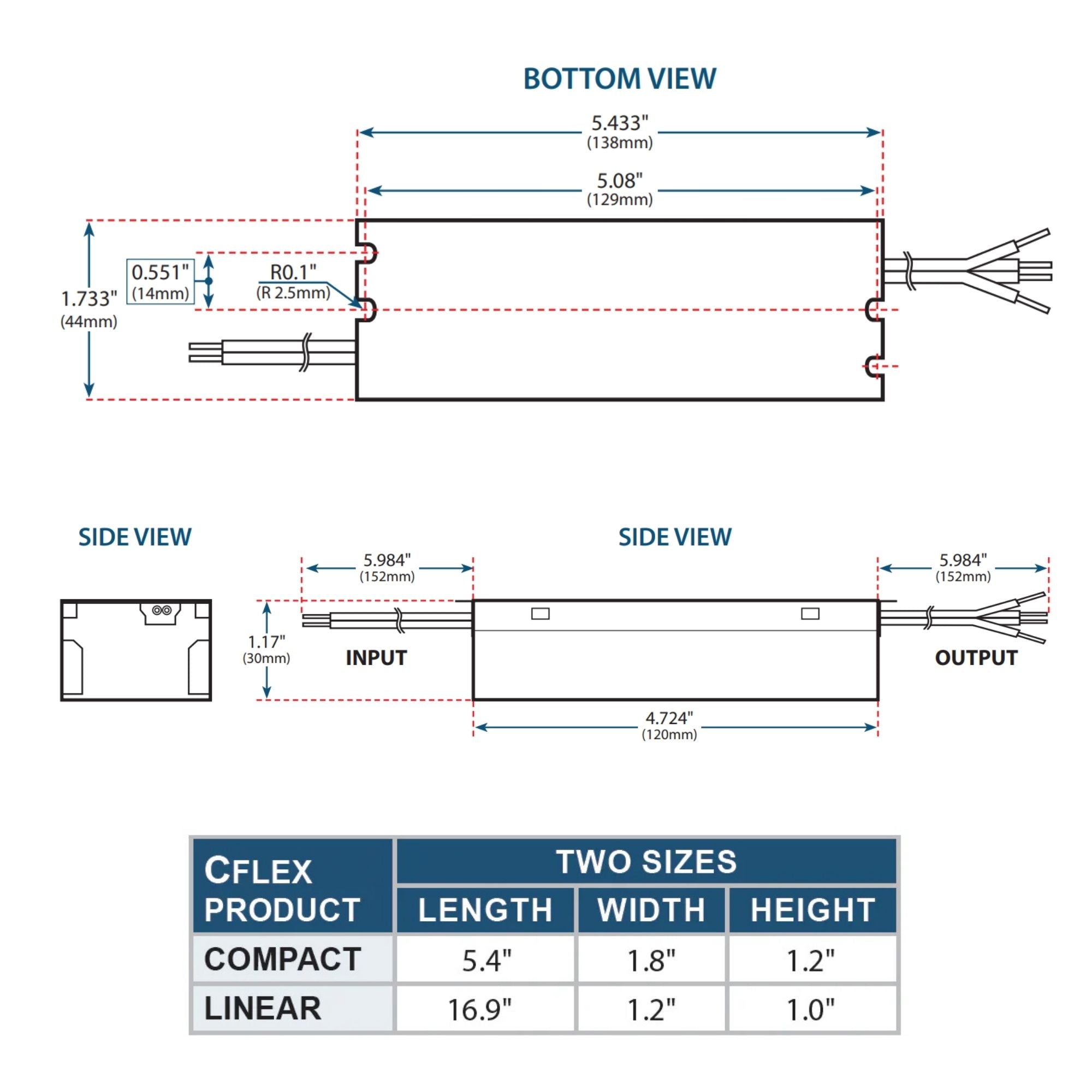

• Dimensions: 5.43 in. L x 1.81 in. W x 1.17 in. H
• Enclosure Type: Steel compact housing, side-exit 6 in. leads (flying leads)
• IP Rating: IP20
• Class Rating: Class 2, single channel; Class P listed
• Certifications: UL Listed; UL8750

Physical Design & Installation

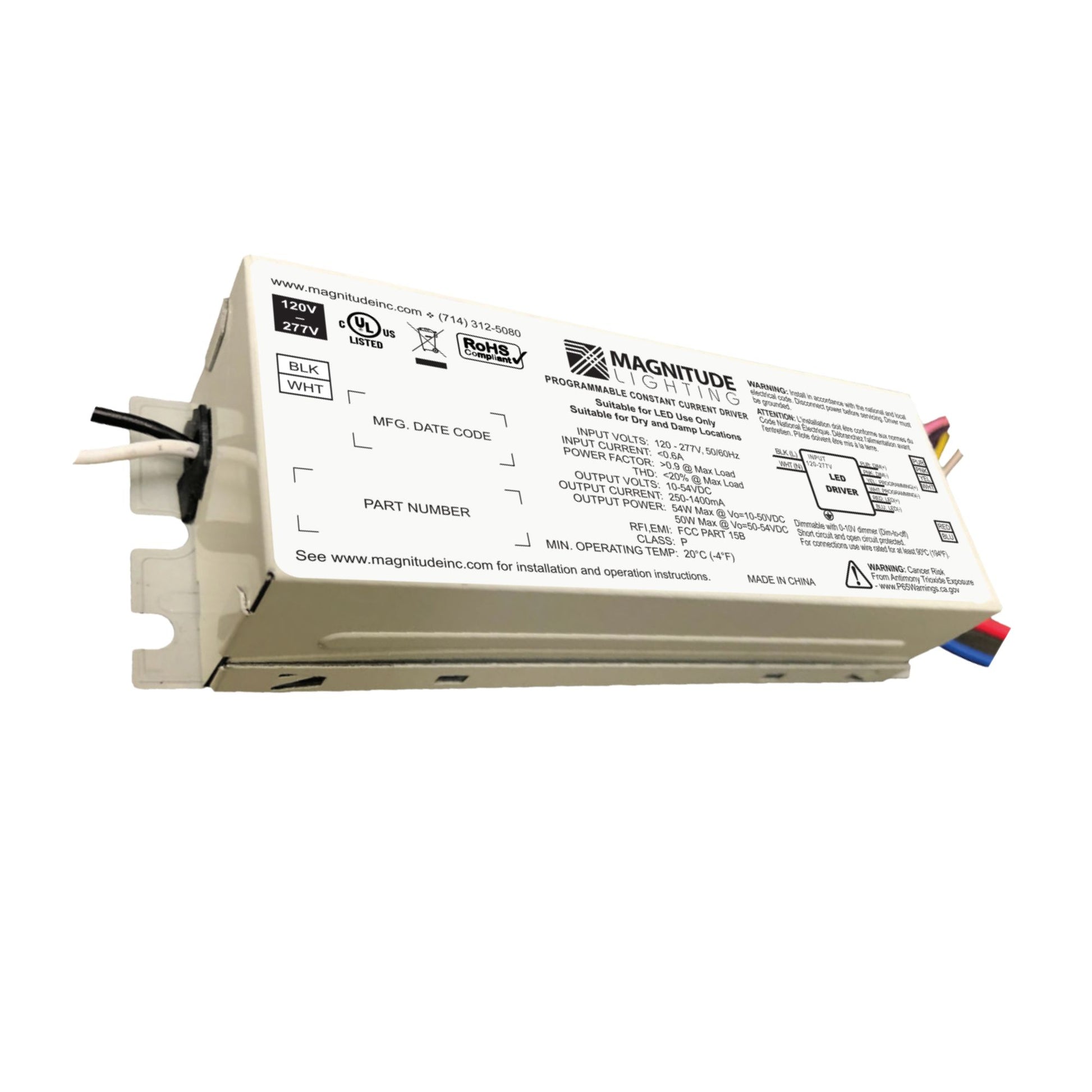

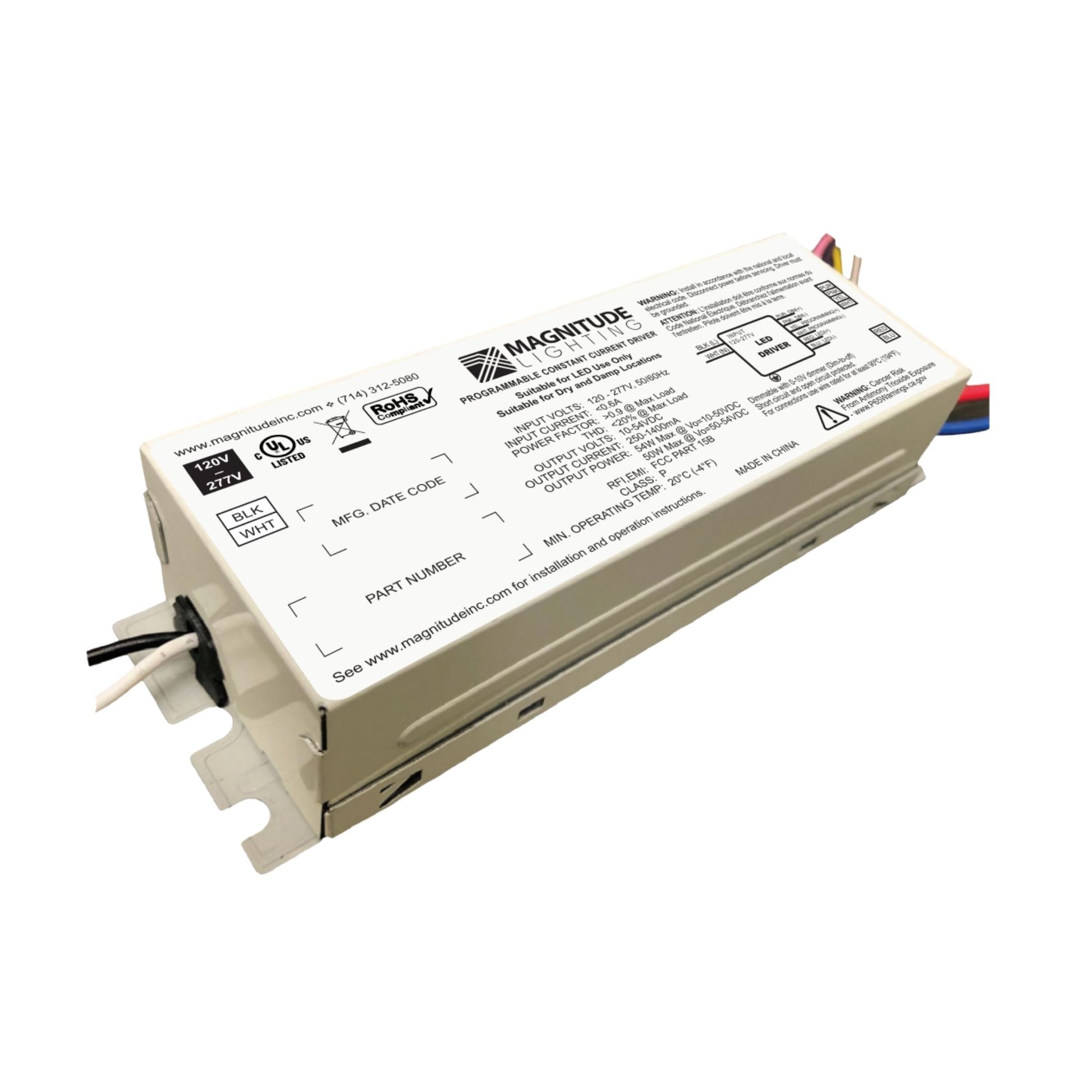

Compact white steel housing is designed for fixture integration and mounts using four half-hole flange mounts. Wiring is via side-exit flying leads (6 in. input and 6 in. output), so line and low-voltage connections are made in an external wiring compartment or junction box as required by the installation.

Dimming & Controls

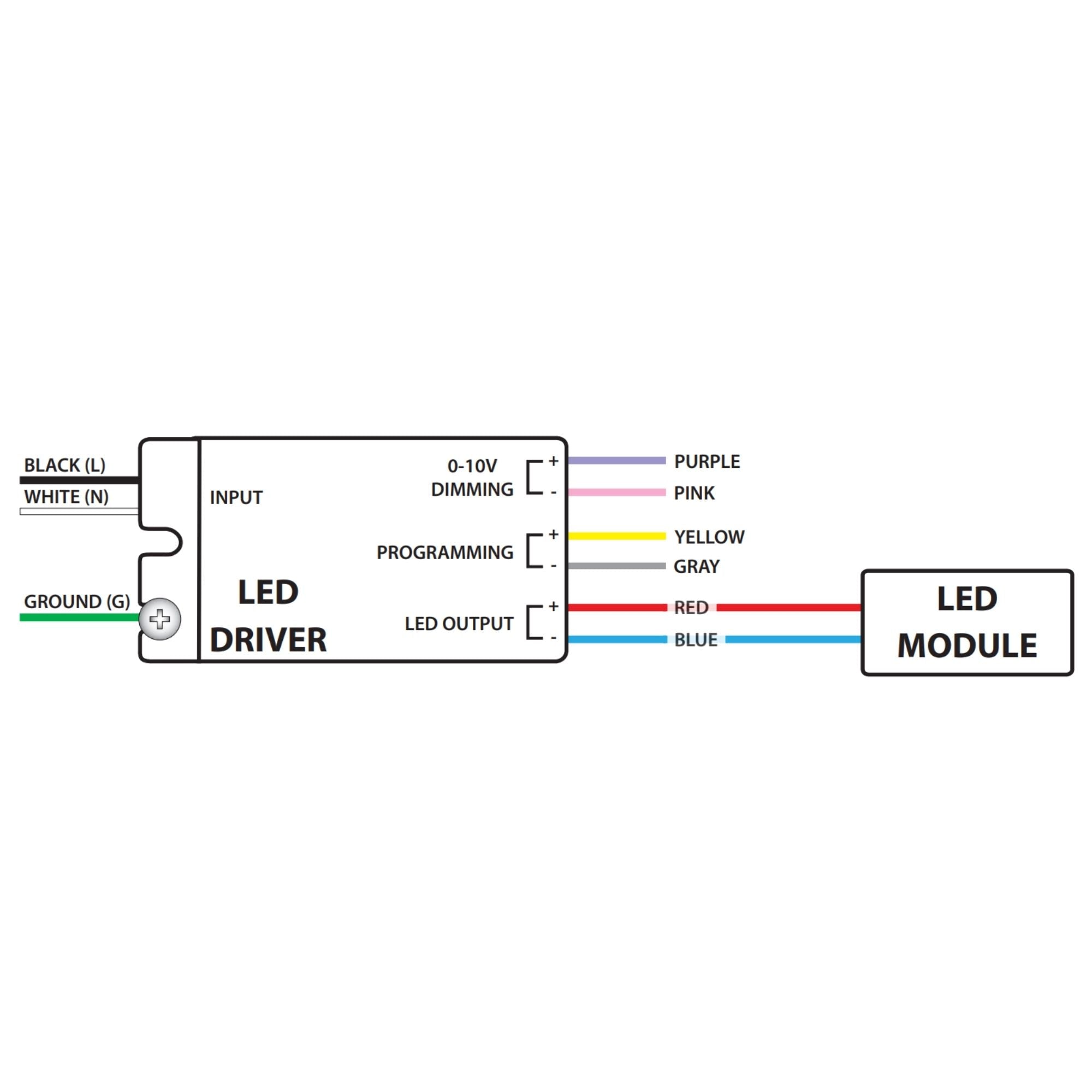

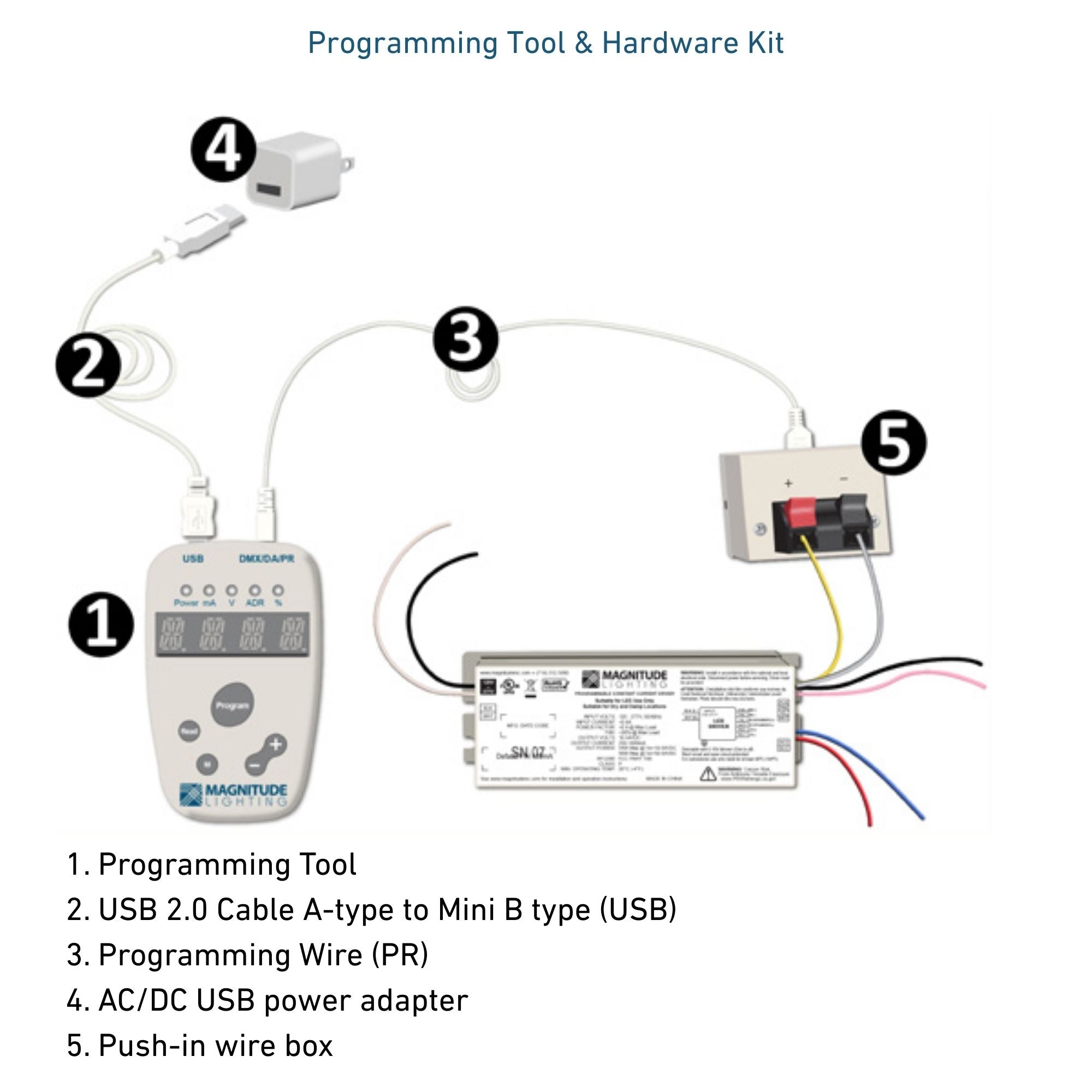

Provides 0-10V control with dimming down to 1% and dim-to-off capability. Output current is field-programmable from 250-1400mA in 1mA steps using the Magnitude CFLEX standalone programming tool (CFLEX-TOOL-C1). Turn-on delay is <0.5 seconds.

Performance & Build

Designed for dry and damp environments with IP20 protection. Protection features include 2.5kV surge protection, over-current limiting, short circuit protection with auto restart, over-voltage protection (hiccup mode), and over-temperature protection. UL8750 listed and rated Class 2, Class P.

Typical Applications

• Commercial LED luminaires requiring programmable constant current output
• Architectural linear lighting and retrofit driver replacements
• Indoor dry location fixture builds
• Indoor damp location fixture builds
