Lutron PD-10NXD-LA Caseta PRO Push-Button Smart Dimmer Switch, 250W LED, Single-Pole/3-Way/Multi-Location, Light Almond
Available in stock (11)
About this item
About this item
- Broad Load Compatibility: Engineered to control up to 250W of dimmable LEDs or 1000W of incandescent and halogen lighting.
- Flexible Wiring Configurations: Designed to replace a standard switch in single-pole, 3-way, or multi-location applications.
- Optional Neutral Wire: Simplifies installation by operating without a neutral wire for standard loads, requiring neutral only for MLV and LED drivers.
- Smart Home Integration: Built with Clear Connect RF Technology to seamlessly pair with Pico remotes, motion sensors, and the Lutron App via a Smart Hub.
- Front Accessible Service Switch: Includes a built-in pull-out FASS tab to safely disconnect power at the receptacle for safe bulb replacement.
We process payments securely and do not store credit card information.
Description
Description

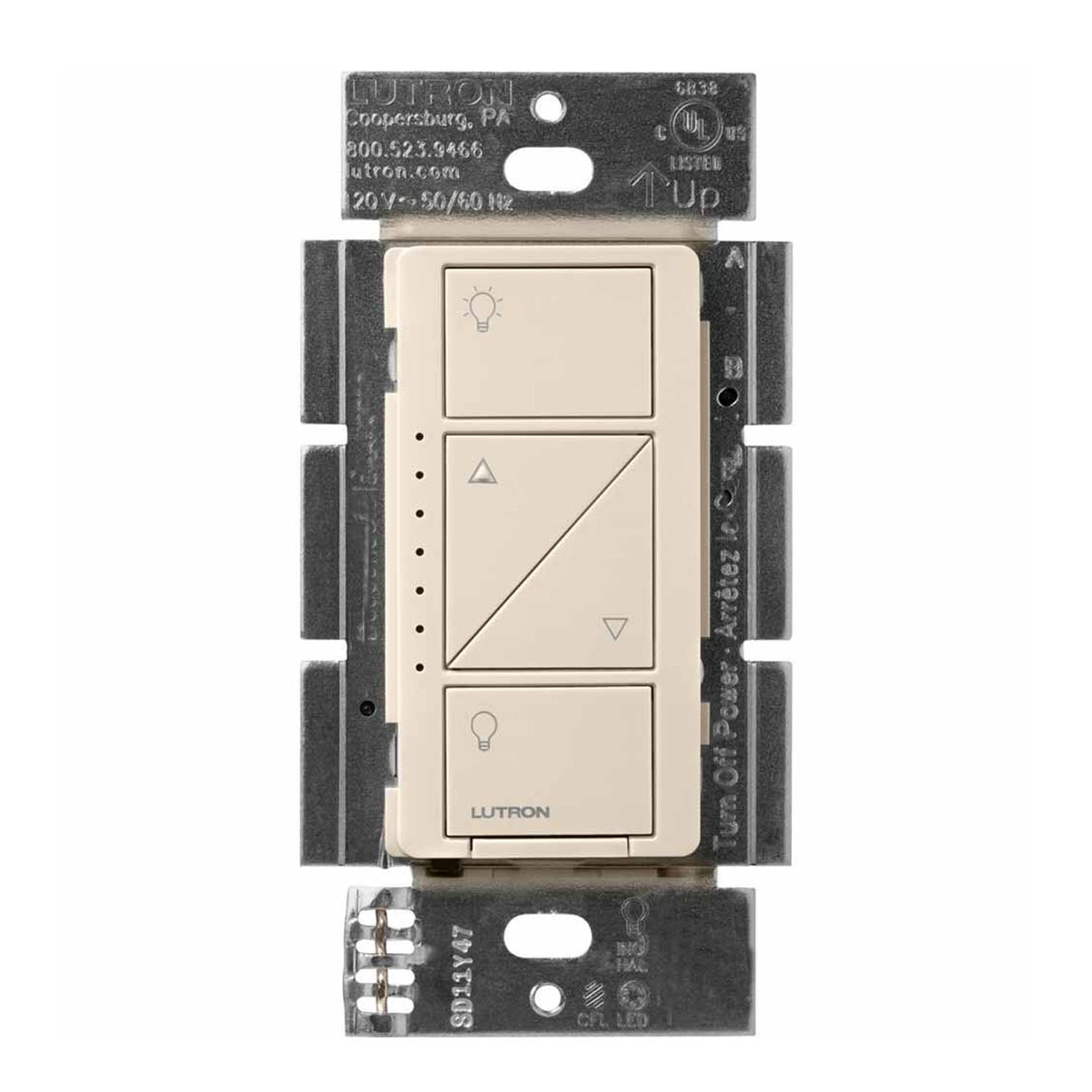

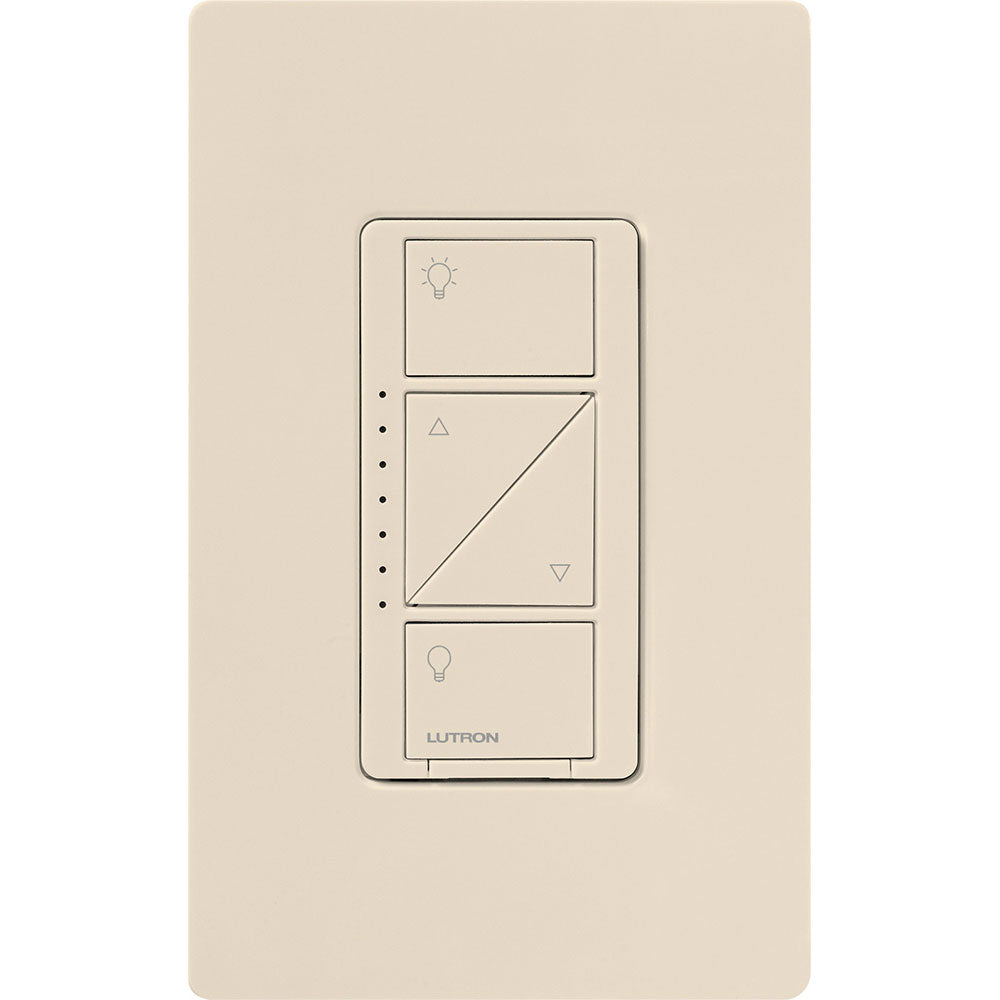

Lutron Caseta PRO Smart Dimmer Switch — Light Almond & Smart Connectivity
The Lutron PD-10NXD-LA is a high-performance smart dimmer switch from the advanced Caseta PRO collection. Featuring a modern push-button interface finished in light almond, this versatile control operates on 120V and supports a robust 250W LED or 1000W incandescent load for both single-pole and 3-way configurations.
Key Features
- Voltage: Operates on standard 120 VAC, 50/60 Hz systems.
- LED Load Rating: Supports up to 250W of dimmable LED lighting.
- Incandescent Load Rating: Supports up to 1000W of incandescent and halogen loads.
- Pole Configuration: Compatible with single-pole, 3-way, and multi-location installations.
- Requires Neutral Wire: Optional (neutral connection is required only for MLV loads and LED drivers).
- Dimming Type: Forward-phase control for smooth dimming performance.
- Switch Style: 4-button push-button interface with dedicated dimming controls.
- Multi-Gang Derating: Requires load derating when side fins are removed for multi-gang wallbox installations.
- Preset Function: Power failure memory automatically returns lights to their previous level when power is restored.
- Smart Capabilities: Pairs seamlessly with Pico remote controls and the Lutron Smart Hub for app-based control.
- Locator Light: Built-in green LED status indicators emit a soft glow to easily locate the switch in the dark.
- Certifications: cULus Listed and FCC Approved for indoor use.
Construction & Interface
The Caseta PRO collection combines modern aesthetics with advanced wireless technology. This dimmer features a 4-button interface with dedicated on, off, brighter, and darker controls. Green LED status lights provide instant visual feedback on the load level and act as a subtle locator light. It also includes a Front Accessible Service Switch (FASS) for safe lamp replacement. Please note that the designer-style Claro wallplate is sold separately.
Sensor & Smart Capabilities
This smart dimmer utilizes Lutron patented Clear Connect RF Technology, providing ultra-reliable wireless communication that passes through walls and floors. When paired with a Lutron Smart Hub, users gain full control via the Lutron App, voice assistants, and scheduling features. It can also be paired directly with up to 10 Pico remote controls or Caseta motion sensors for localized smart control without a hub.
Wiring & Installation
Designed for unparalleled flexibility, this dimmer can be installed in older homes without a neutral wire for standard incandescent or LED bulbs, though a neutral connection is explicitly required for MLV loads and drivers. It supports single-pole wiring, as well as 3-way applications using an existing mechanical switch or wireless Pico remotes. The device installs via standard wire leads and fits into a standard U.S. wallbox.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I use any dimmer switch with LED bulbs?
Can I use any dimmer switch with LED bulbs?
No. You must use a dedicated LED dimmer switch. Older dimmers designed for incandescent bulbs have high minimum load requirements that LEDs cannot meet, often resulting in flickering or "ghosting."
What is a TRIAC dimmer?
What is a TRIAC dimmer?
A Triac dimmer (or forward-phase dimmer) is the standard residential control. It works by "chopping" the front part of the AC sine wave to reduce power. Most dimmer switches for LED lights are advanced versions of TRIAC technology.
Why do I need an MLV dimmer?
Why do I need an MLV dimmer?
You need an MLV dimmer if your lighting fixture uses a magnetic transformer. Using a standard LED dimmer on a magnetic load can cause the transformer to overheat and eventually fail.
What is the difference between a slide and touch dimmer?
What is the difference between a slide and touch dimmer?
A slide dimmer uses a physical moving part to set the light level. A touch dimmer, like the Lutron Sunnata, uses a digital interface with no moving parts, offering a sleeker look and often a "soft" fade-on/fade-off effect.
Do I need a neutral wire for a dimmer switch?
Do I need a neutral wire for a dimmer switch?
Many modern smart dimmer models require a neutral wire (white) to power their internal electronics. However, many standard mechanical dimmers do not. Always check the wiring in your wall box before purchasing.
