Caseta Wireless In-Wall Smart Dimmer PRO, 250W LED, 3-Way/Multi-Location, Black
Hurry up, only 10 items left in stock.
About this item
About this item
- Load Ratings: Controls up to 250W compatible dimmable LED/CFL, 1000W incandescent/halogen, or 1000VA MLV halogen before applicable derating.
- Neutral Requirement: Neutral is optional for compatible line-voltage lamps but required for MLV loads, supported LED drivers, dimmable ballasts, and power interfaces.
- Control Locations: Supports single-pole wiring, an existing toggle switch in a 3-way application, or Pico remotes for wireless multi-location control.
- Smart Control: Clear Connect RF pairs with Pico remotes; a Caséta smart hub enables app control, schedules, and scenes.
- Ganging Limits: Incandescent/halogen capacity is 1000/800/600W and MLV halogen capacity is 1000/800/600VA for standalone/end/middle positions.
Description
Description

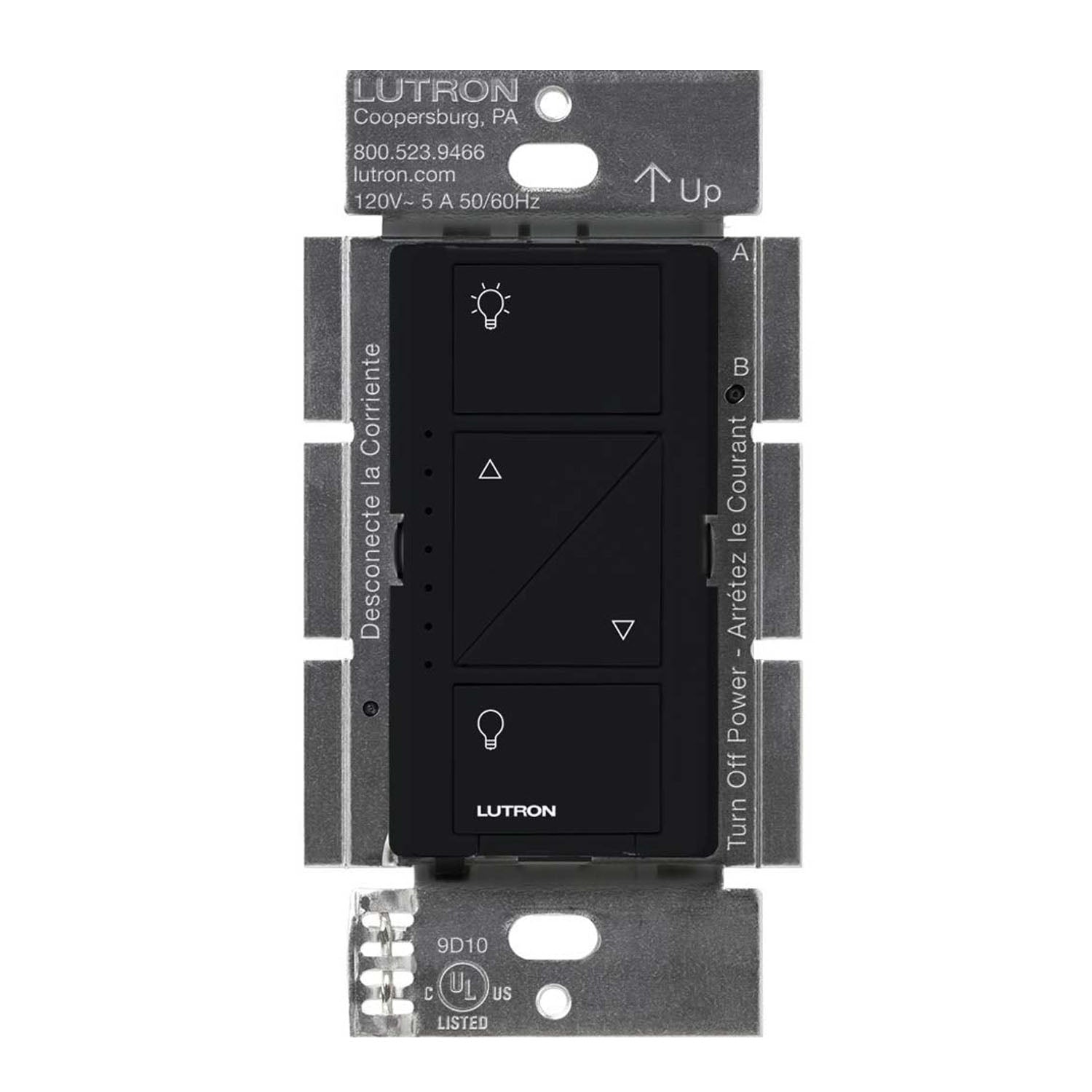

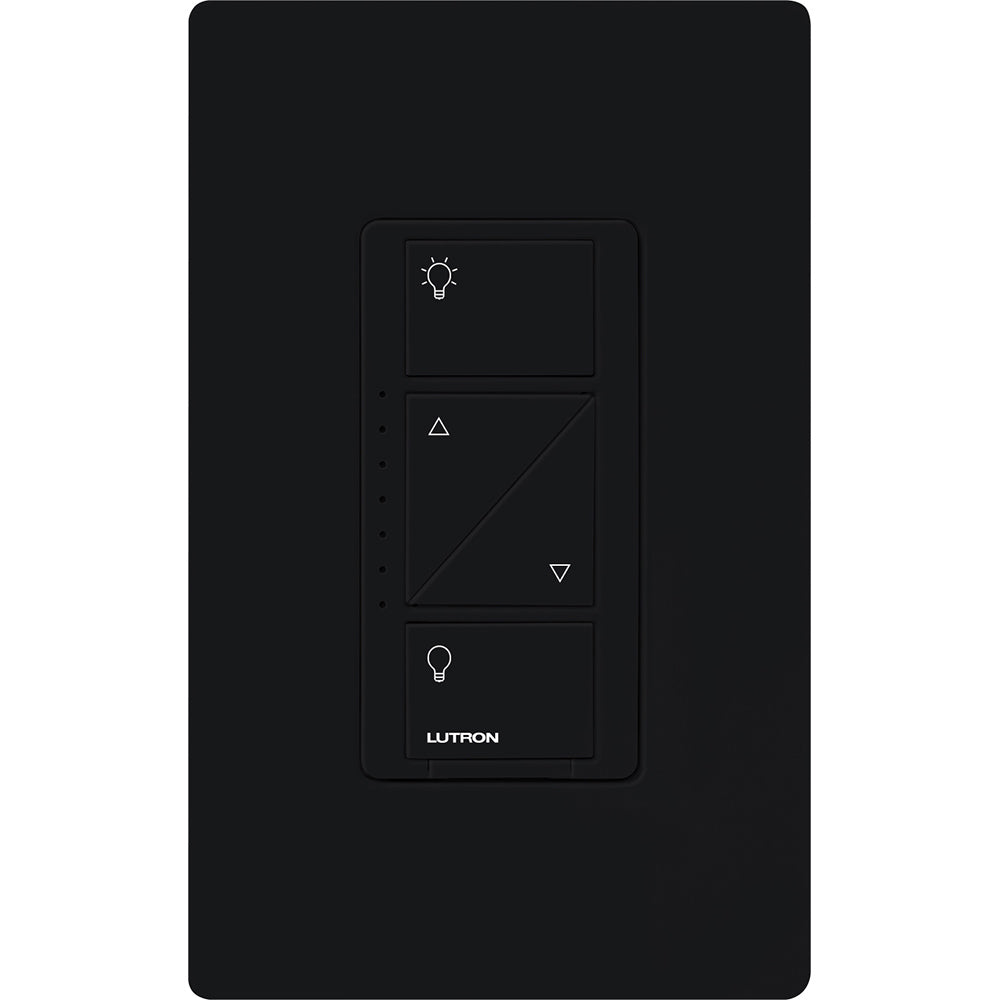

Lutron Caséta Smart Dimmer PRO - Black
The PD-10NXD-BL in-wall smart dimmer operates at 120V AC, 50/60Hz and controls 250W compatible dimmable LED/CFL, 1000W incandescent/halogen, or 1000VA MLV halogen before derating. Finish: Black.
Key Features
- Neutral: Optional for compatible line-voltage lamps; required for MLV, drivers, ballasts, and power interfaces.
- Configuration: Single-pole, toggle-switch 3-way, or Pico multi-location.
- Wireless: Clear Connect RF supports direct Pico pairing.
- Smart Hub: Enables app control, schedules, and scenes.
- Derating: Incandescent/halogen: 1000/800/600W; MLV halogen: 1000/800/600VA for standalone/end/middle positions.
- Approvals: cULus Listed and NOM certified.
Construction & Interface
In-wall control includes a front-accessible service switch for lamp replacement. Indoor use at 32–104°F. Wallplate sold separately.
Dimming & Load Performance
Check the compatible bulb list. LED-only capacity remains 250W when ganged; mixed LED and incandescent loads follow the manufacturer’s table. ELV loads require a compatible interface, not direct connection.
Wiring & Installation
Wire leads support the specified single-pole or toggle-switch 3-way diagram. Neutral is mandatory for the load types above and some low-wattage applications. Use Pico remotes for wireless additional locations. Follow fin-removal instructions when ganging.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is a neutral wire required?
Is a neutral wire required?
It depends on the load. Neutral is optional for compatible line-voltage lamps, but required for MLV loads, supported LED drivers, dimmable ballasts, and power interfaces. Some low-wattage applications also require neutral.
What are the maximum lighting ratings?
What are the maximum lighting ratings?
The unganged maxima are 250W compatible dimmable LED/CFL, 1000W incandescent/halogen, or 1000VA MLV halogen. These ratings are alternatives, not additive. Check the compatible bulb list and the mixed-load table.
Can it be controlled from more than one location?
Can it be controlled from more than one location?
Yes, use an existing toggle switch for a supported wired 3-way installation, or pair Pico remotes for wireless multi-location control. Follow the model-specific wiring diagram.
Is a smart hub required for local or Pico control?
Is a smart hub required for local or Pico control?
No, local control and direct Pico pairing do not require a smart hub. A Caséta smart hub is required for app control, schedules, and scenes.
How does multi-gang installation affect capacity?
How does multi-gang installation affect capacity?
Incandescent/halogen ratings are 1000W unganged, 800W at the end, and 600W in the middle of a gang. MLV halogen ratings are 1000/800/600VA respectively. The LED-only rating remains 250W; mixed loads follow the manufacturer’s table.
