Lutron P-DIM-3WAY-WH Caséta Original Smart Dimmer 3-Way Kit with Pico Remote, White
In stock
About this item
About this item
- Complete 3-Way Kit: Includes Caséta Smart Dimmer (PD-6WCL-WH), 3-Button Pico Remote (PJ2-3BRL-WH), Pico Wallplate Bracket, and Claro 1-Gang Wallplate — everything needed for wireless 3-way dimming control.
- No Neutral Wire Required: Compatible with older homes — the dimmer installs without a neutral wire, regardless of when the home was built.
- Wide Load Compatibility: Supports up to 150W of dimmable LED/CFL bulbs or 600W of incandescent/halogen bulbs with no derating required.
- No Wire Pulling, No Hole Cutting: The Pico remote mounts at the second switch location using the included bracket — no traveler wire or wall modifications needed.
- Clear Connect RF Technology: Lutron's patented RF technology works through walls and floors for ultra-reliable wireless communication between the dimmer and Pico remote.
We process payments securely and do not store credit card information.
Description
Description
Lutron Caséta Original Smart Dimmer 3-Way Kit — White, with 3-Button Pico Remote
The Lutron P-DIM-3WAY-WH is a Caséta Smart Dimmer Switch 3-Way Kit designed to add smart lighting control to a room with two-point control — such as the top and bottom of a staircase. The white-colored kit allows for dimming from one location while using a wireless remote to control the same lights from a second location, without needing to pull new wire or cut holes.

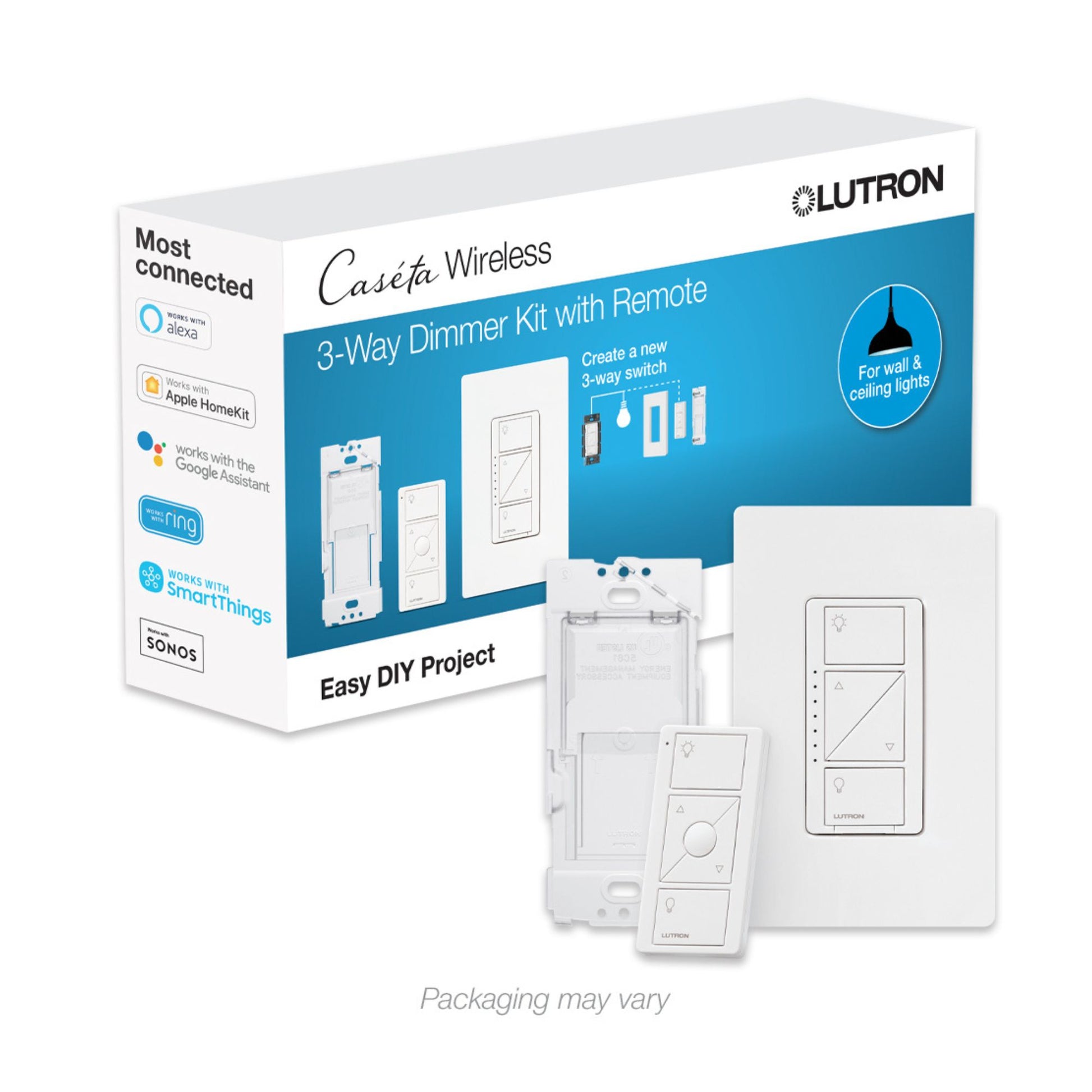

What's in the Kit

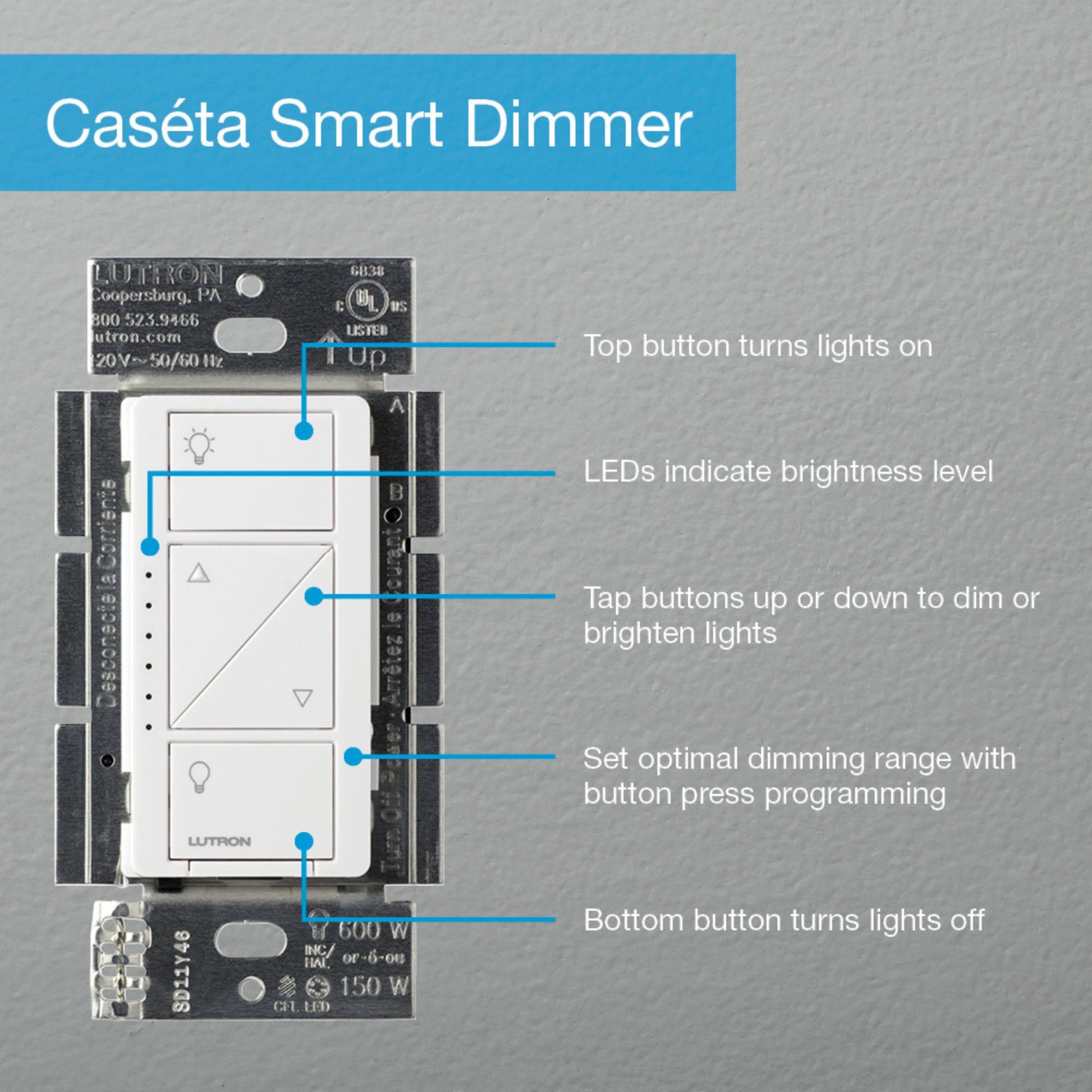

- Caséta Smart Dimmer Switch (PD-6WCL-WH): Hardwired in-wall dimmer that replaces one of the existing 3-way switches. Supports up to 150W of dimmable LED/CFL bulbs or 600W of incandescent/halogen bulbs.
- 3-Button Pico Remote (PJ2-3BRL-WH): Wireless remote that mounts directly to the wall at the second location, replacing the mechanical switch without needing to connect any wires.

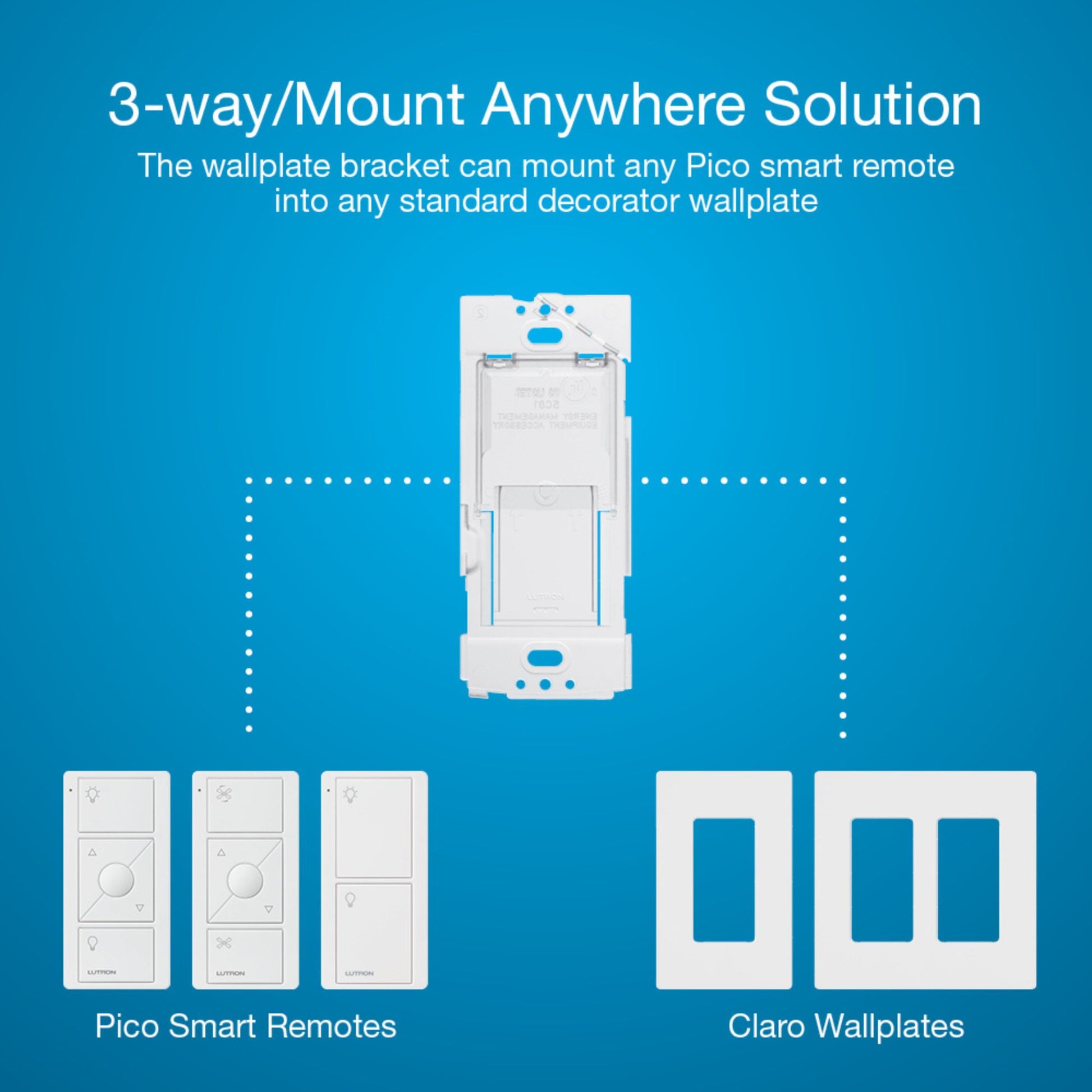

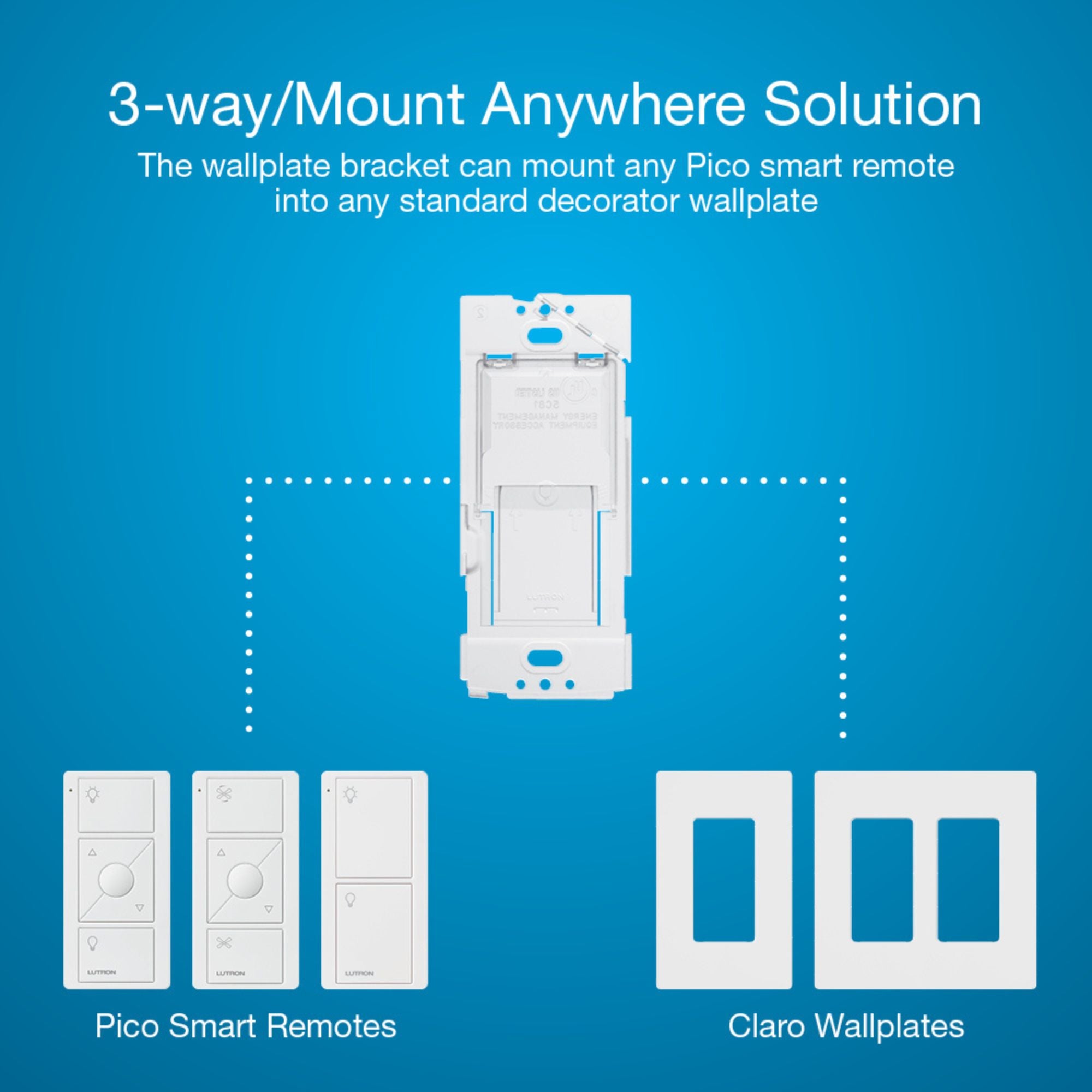

- Pico Wallplate Bracket: Mounts the Pico remote on any wall surface — no cutting holes or running wires required.
- Claro 1-Gang Wallplate: Gives the dimmer a clean, finished look.
Key Features
- 3-Way Solution: Uses a Pico remote mounted on the wall to replace one of the existing 3-way switches — no traveler wire needed between locations.
- No Neutral Wire Required: Compatible with older homes as the dimmer does not require a neutral wire.
- Wide Load Compatibility: Works with up to 150W of dimmable LED/CFL bulbs or 600W of incandescent/halogen bulbs.
- Works with Pico Remote Control: Control the dimmer from a second location wirelessly using the included 3-Button Pico remote.
- Works with Caséta Motion Sensor: Compatible with Caséta motion sensors for automated lighting control.
- Clear Connect RF Technology: Lutron's patented Clear Connect RF Technology works through walls and floors for reliable wireless communication.
- Front Accessible Service Switch (FASS): Includes FASS for safe lamp replacement without turning off the circuit breaker.
- Works with Radio Powr Savr Sensors: Compatible with Lutron Radio Powr Savr occupancy and vacancy sensors in standalone applications (sensors do not work with Smart Bridge or Smart Bridge PRO).
- Smart Control: Enables voice control and smartphone app control when connected to the Lutron Smart Hub (L-BDG2-WH, sold separately).
- Operating Temperature: Rated for 32°F to 104°F (0°C to 40°C).
Construction & Interface
The P-DIM-3WAY-WH features a white glossy finish designed for indoor lighting control applications. The Caséta dimmer replaces one existing 3-way switch in the wall box, while the Pico remote mounts at the second location using the included bracket — no wiring required at the remote location.
Wiring & Installation
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does the P-DIM-3WAY-WH require a neutral wire for installation?
Does the P-DIM-3WAY-WH require a neutral wire for installation?
No neutral wire is required. The Caséta Smart Dimmer is compatible with older homes and installs without a neutral wire, regardless of when the home was built.
What loads is the Caséta Smart Dimmer in this kit compatible with?
What loads is the Caséta Smart Dimmer in this kit compatible with?
The dimmer supports up to 150W of dimmable LED/CFL bulbs or 600W of incandescent/halogen bulbs.
How does the Pico Remote replace the second 3-way switch without wiring?
How does the Pico Remote replace the second 3-way switch without wiring?
The included Pico Wallplate Bracket mounts the 3-Button Pico Remote directly to the wall at the second switch location — no wiring, no hole cutting, and no traveler wire required.
Does this kit work with the Lutron Smart Hub for app control?
Does this kit work with the Lutron Smart Hub for app control?
Yes. The switch can be paired directly with the Pico remote for basic 3-way control, or connected to the Lutron Smart Hub (L-BDG2-WH, sold separately) to enable voice control and smartphone app control.
Is the P-DIM-3WAY-WH compatible with Caséta motion sensors?
Is the P-DIM-3WAY-WH compatible with Caséta motion sensors?
Yes. The Caséta Smart Dimmer works with Caséta motion sensors. It also works with Lutron Radio Powr Savr occupancy and vacancy sensors in standalone applications — note that Radio Powr Savr sensors do not work with the Smart Bridge or Smart Bridge PRO.
