Lutron Maestro Fan/Light Control — Black & Quiet Fan Control

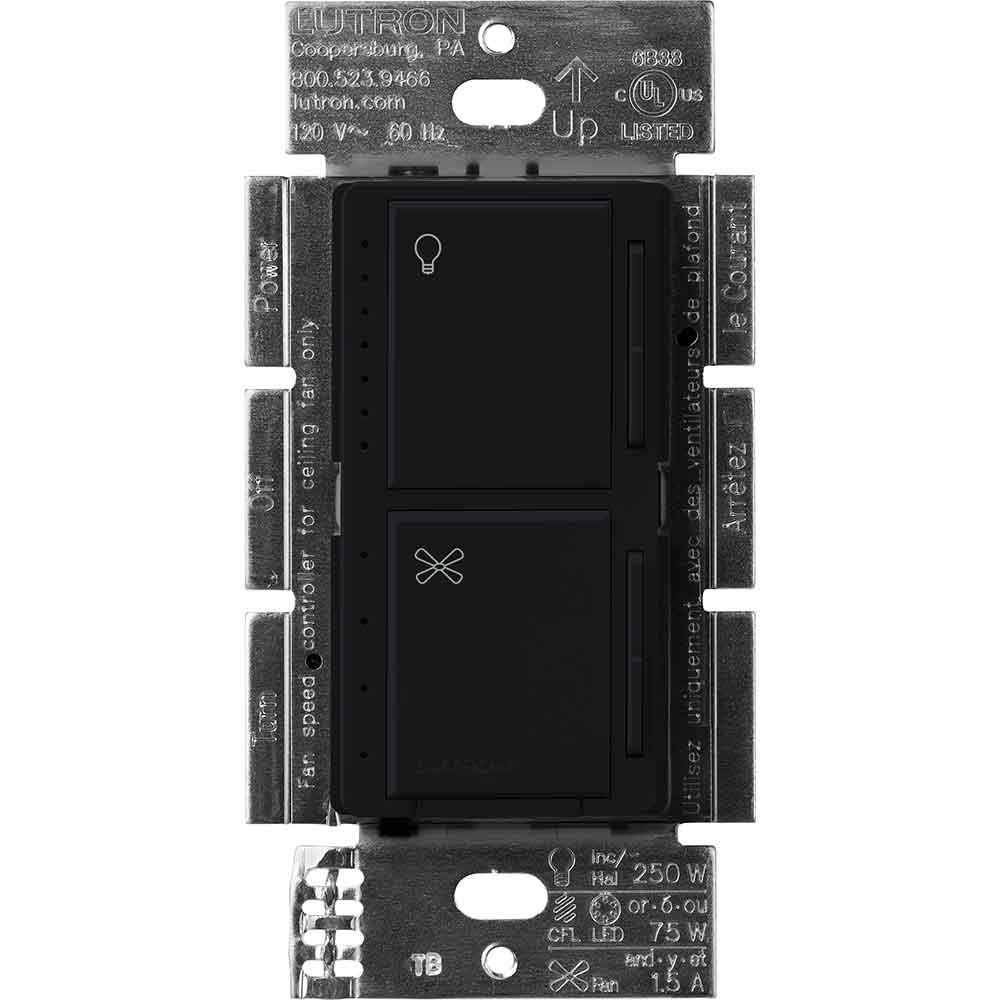

The Lutron MACL-LFQ-BL is a single-pole fan and light control in a sleek black finish. This control is designed for use with dimmable LED, CFL, halogen, and incandescent bulbs, supporting up to 75W for LED/CFL and 250W for incandescent/halogen loads. It also controls up to 1.5A fan loads, offering four quiet fan speeds plus off.

Key Features

• Voltage: Operates at 120V~ 60Hz for consistent performance.
• Load Compatibility: Supports dimmable LED, CFL, halogen, and incandescent bulbs.
• Fan Control: Capable of controlling up to 1.5A paddle-type ceiling fan loads.
• Neutral Wire: No neutral wire required, simplifying installation.
• Indicator Lights: Displays current light level and fan speed for easy monitoring.
• FASS Switch: Front Accessible Service Switch for safe bulb replacement.
• UL Listed: Meets UL 1472/CSA C22.2 184.1 standards for dimmers and UL 1917 for fans.
• Dimensions: Measures 2.94 in. width, 4.70 in. height, and 1.14 in. length.

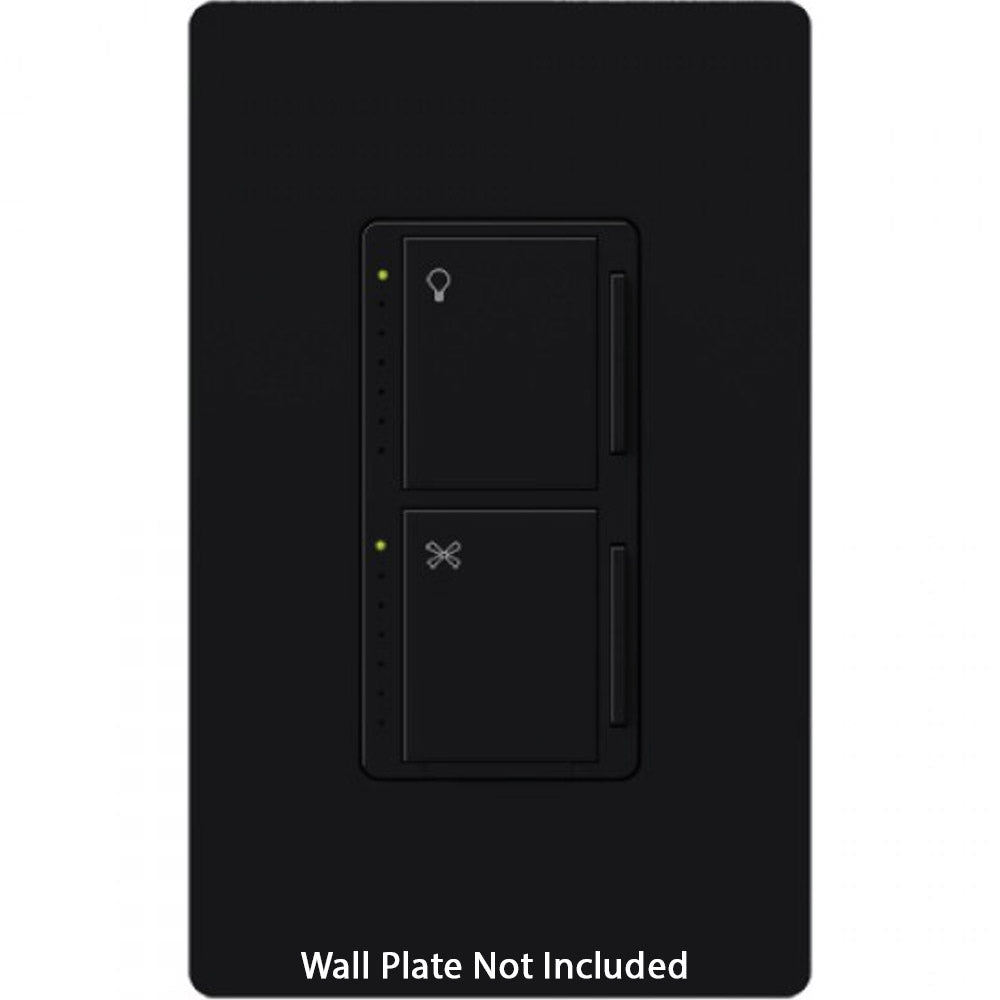

• Finish: Available in black; wallplate sold separately.

Construction & Interface

The control features a rocker and tap switch style for intuitive operation. Indicator lights show the current settings for both light and fan. Designed for indoor use, it operates within temperatures of 32°F to 104°F. The wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This control offers precise fan speed and light level adjustments with a tap-on to preset levels and a rocker for fine-tuning. It includes a FASS switch for safe bulb replacement and power-failure memory to retain settings.

Wiring & Installation

The Lutron MACL-LFQ-BL does not require a neutral wire, simplifying installation. It is designed for single-pole applications and requires separate wires for fan and light loads. The device uses terminal screws for secure connections.
