Lutron Maestro Dimmer/Timer — Light Almond & 75W LED Control

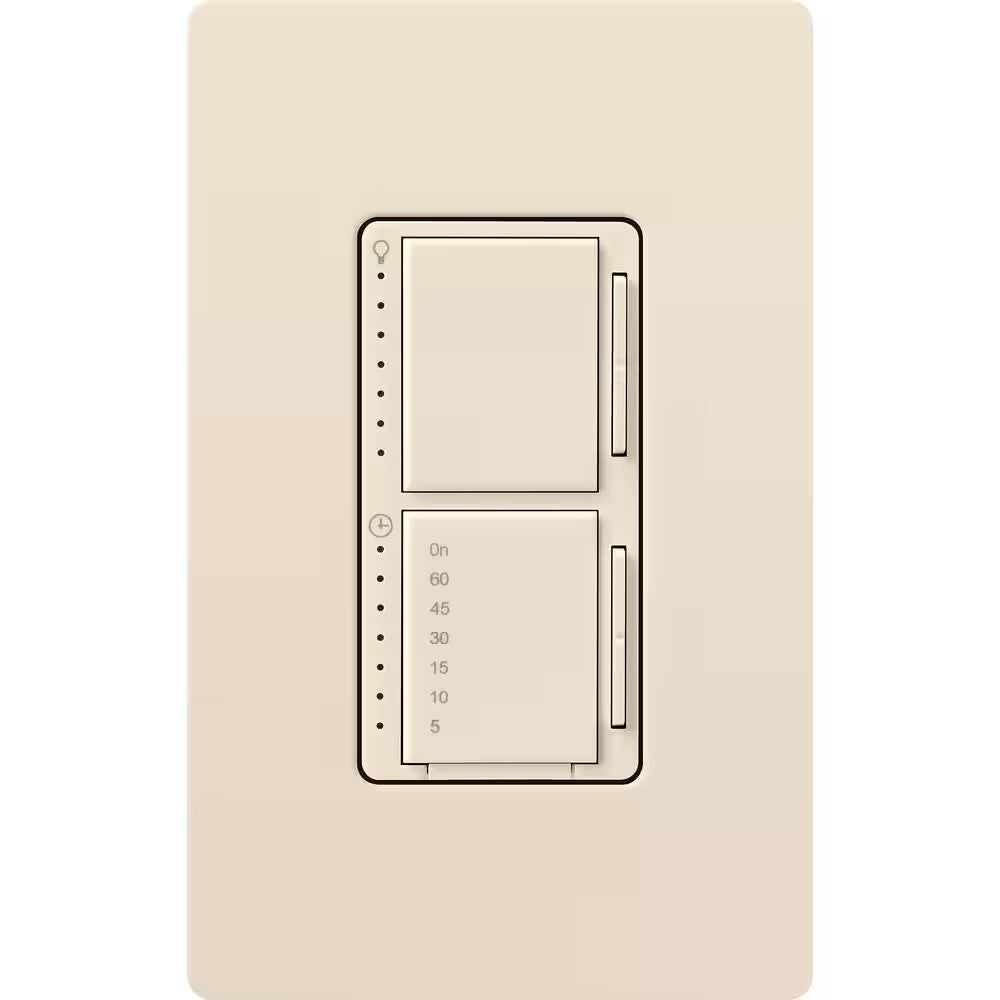

The Lutron MACL-L3T251-LA is a versatile dimmer/timer in a light almond finish, designed for single pole applications. It supports up to 75W dimmable LED/CFL or 300W incandescent/halogen loads, and can control fan loads up to 2.5A. This device does not require a neutral wire, making it suitable for a wide range of installations.

Key Features

• Voltage: Operates at 120V~ 60 Hz for standard residential applications.
• Load Ratings: Controls up to 75W LED/CFL or 300W incandescent/halogen.
• Pole Configuration: Designed for single pole installations.
• Timer Functionality: Built-in timer for fan or lighting loads up to 2.5A.
• Neutral Wire: No neutral wire required for installation.
• Advanced Programming: Features customizable settings for fade times and presets.

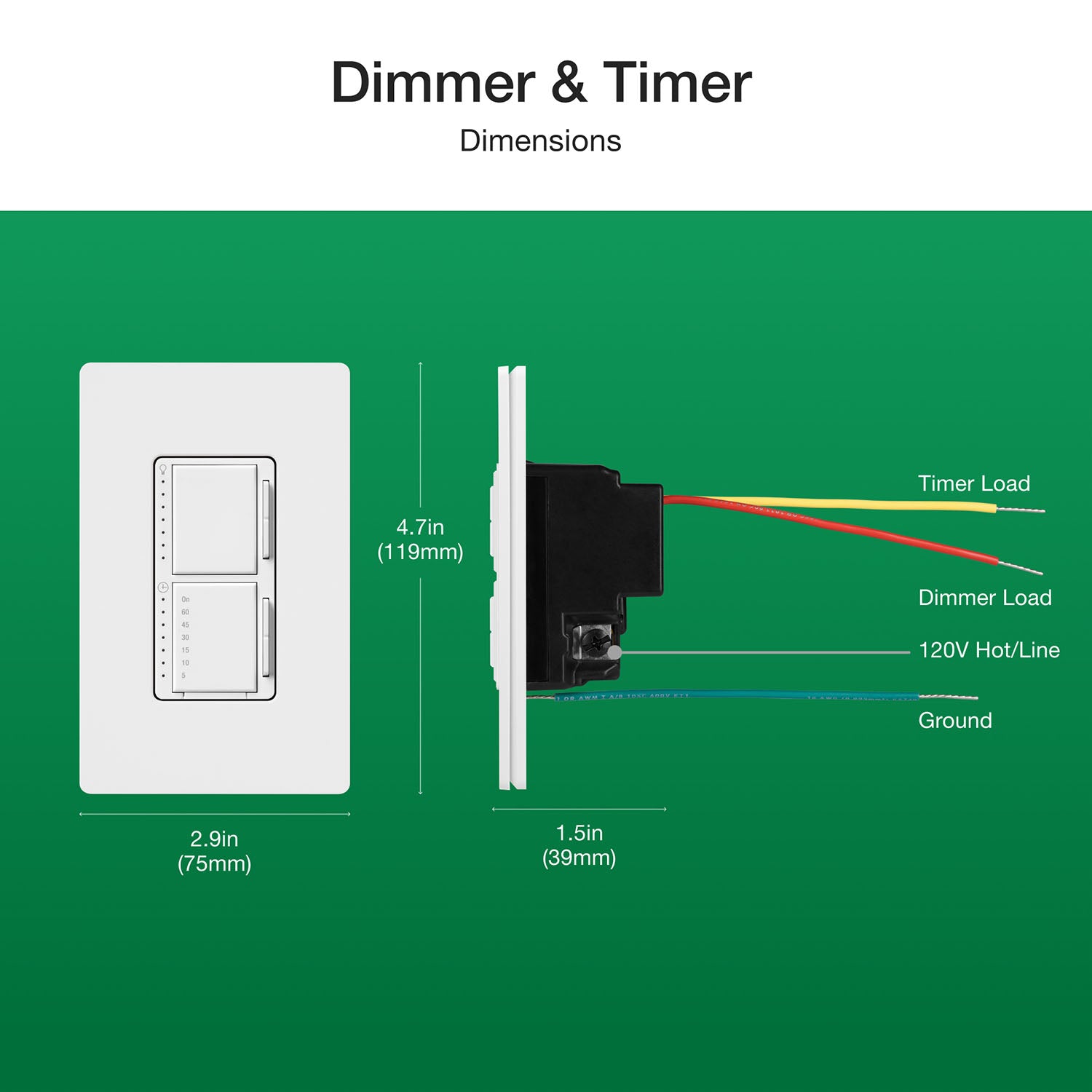

• Dimensions: Measures 2.94 in. wide, 4.69 in. high, and 1.40 in. deep.
• Certifications: UL Listed for safety and performance.
• Indoor Use: Suitable for indoor environments with temperatures from 32°F to 104°F.
• Wallplate: Coordinating wallplate sold separately.

Construction & Interface

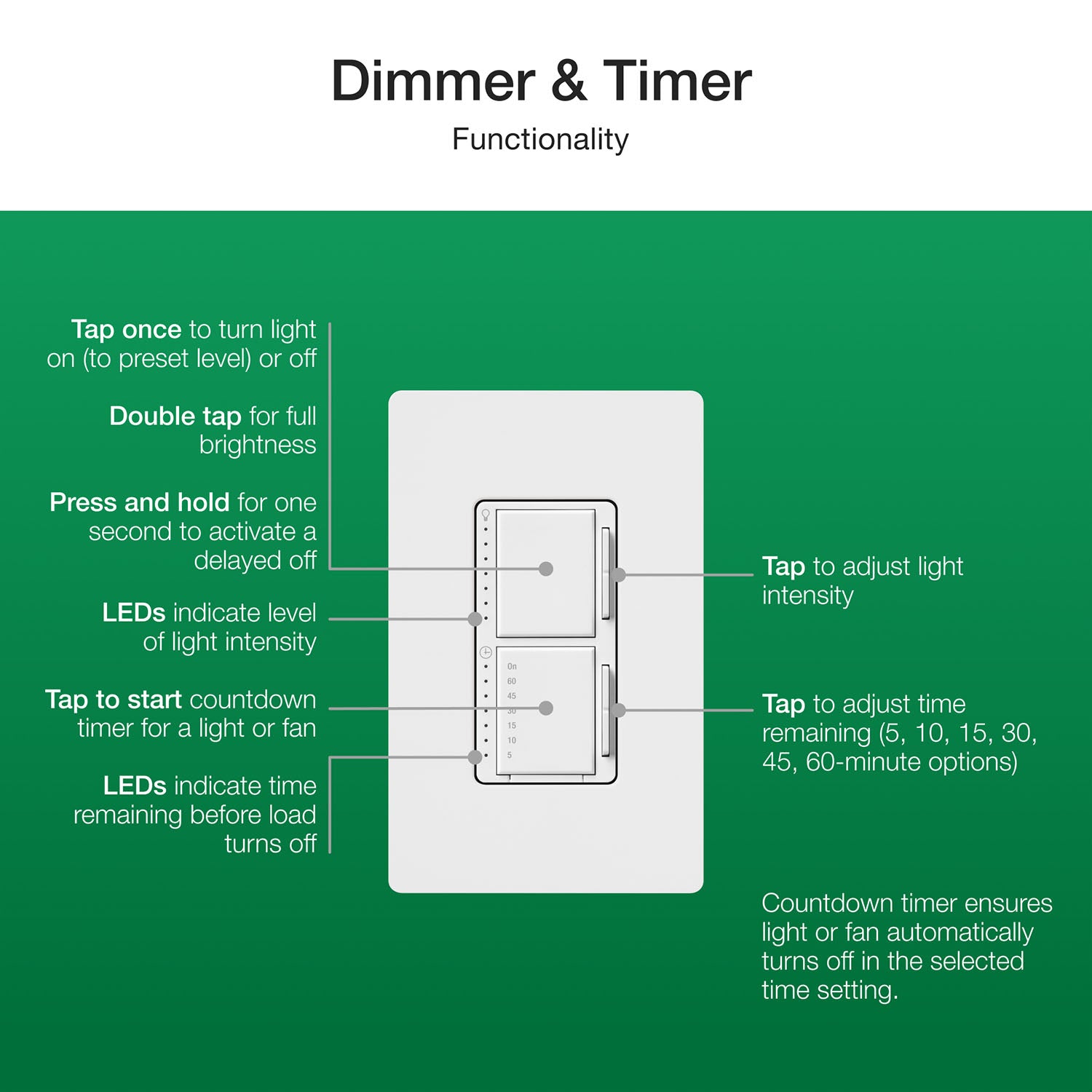

The MACL-L3T251-LA features a large tap switch with a rocker-style dimmer for easy operation. It includes a front accessible service switch (FASS) for safe bulb replacement. The light almond finish complements modern decor, and the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This dimmer/timer offers advanced programming options, including adjustable fade-on and fade-off times, and preset options for timer settings. It is designed to withstand power interruptions, returning to the previous state when power is restored.

Wiring & Installation

Installation is straightforward with no neutral wire required, suitable for single pole configurations. The device uses standard wire leads for connection. Ensure a minimum wallbox depth of 2.25 in. for proper installation.
