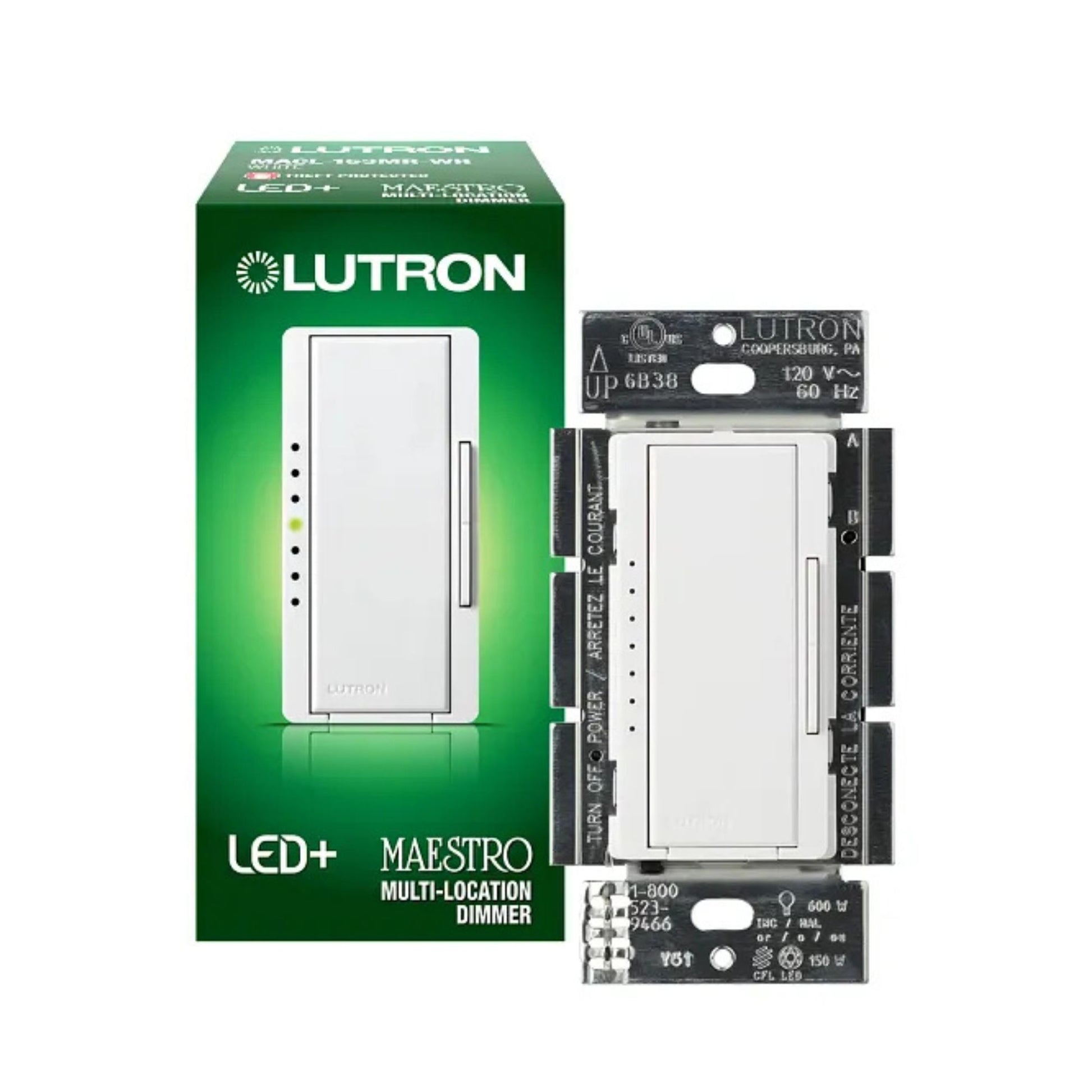

Lutron MACL-153M-WH - Maestro LED+ Dimmer Switch, 150W LED/CFL, Tap with Rocker, Single-Pole/Multi-Location, White
Available in stock (60)
About this item
About this item
- Neutral Requirement: No neutral wire is required for the 120V AC, 60Hz dimmer.
- Load Ratings: Controls 150W dimmable LED/CFL or 600W incandescent/halogen before applicable derating.
- Location Options: Supports single-pole, configured mechanical 3-way, or multi-location operation with compatible Maestro companion dimmers.

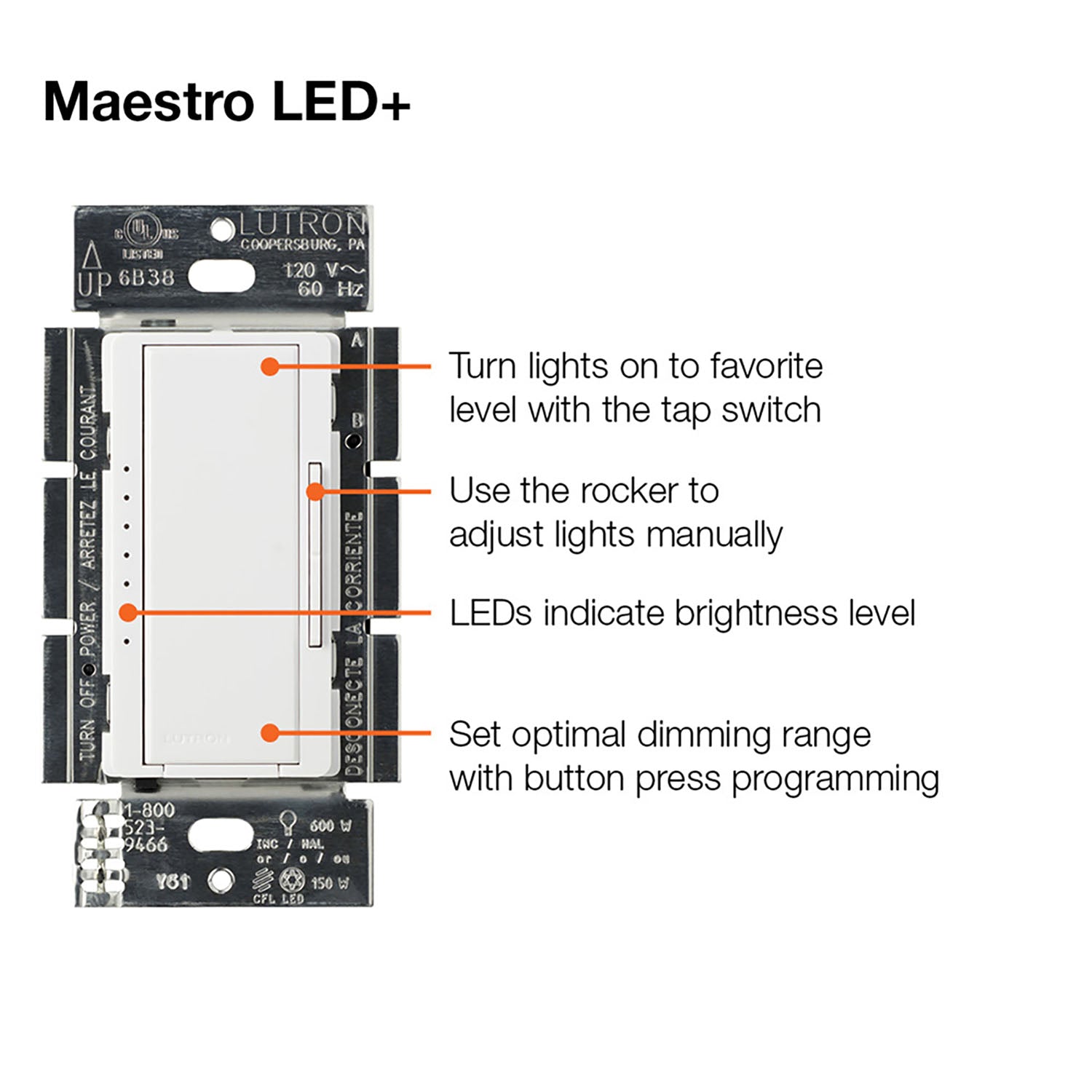

- Interface: A large tapswitch recalls the previous light level, while a rocker adjusts brightness.
- Low-End Adjustment: Adjustable minimum brightness accommodates compatible dimmable bulbs.
Description
Description

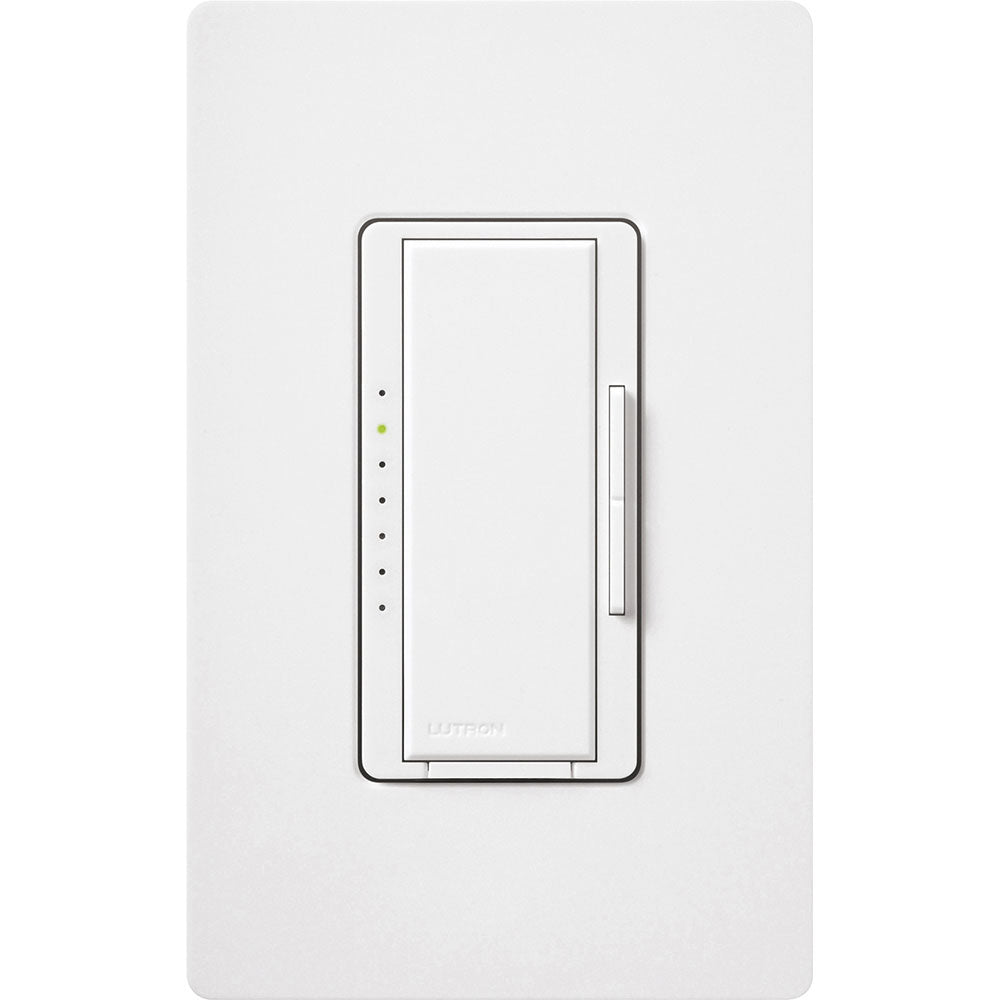

Lutron Maestro White LED+ Dimmer - No Neutral Required
The MACL-153M-WH is a tap-and-rocker dimmer for 120V AC, 60Hz, rated for 150W dimmable LED/CFL or 600W incandescent/halogen before derating. Supports single-pole, configured 3-way, or companion-based multi-location operation. Finish: White.
Key Features
- Neutral: No neutral wire required.
- LED/CFL: 150W maximum; verify bulb compatibility.
- Incandescent/Halogen: 600/500/400W with zero/one/two side sections removed.
- Multi-Location: Use one main dimmer with compatible Maestro companions.
- Preset: Tapswitch returns lighting to its previous level.
- Low-End Trim: Adjusts minimum brightness for compatible bulbs.
- Listing: UL Listed; NEMA SSL-7A compliant.
Construction & Interface
A large tapswitch provides on/off control; the rocker adjusts brightness. Indoor use at 32–104°F. Wallplate sold separately.
Dimming & Load Performance
Use compatible dimmable lamps. LED/CFL-only loads require no derating; mixed lamp loads must follow the manufacturer’s rating table. Do not apply the 600W incandescent rating to LEDs.
Wiring & Installation
No neutral is required. MA-R companions support multi-location dimming. A mechanical 3-way switch requires additional wiring and programming; mechanical 4-way applications are not supported. Follow the manufacturer’s diagram and ganging procedure.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does this dimmer require a neutral wire?
Does this dimmer require a neutral wire?
No, a neutral wire is not required. The dimmer operates at 120V AC, 60Hz.
What lighting loads can it control?
What lighting loads can it control?
It controls 150W dimmable LED/CFL or 600W incandescent/halogen before applicable derating. The specification also lists 250W of Lutron LTEA Hi-lume 1% forward-phase LED drivers, maximum six drivers; this is not a general 250W LED rating.
Can I use two main dimmers on one lighting circuit?
Can I use two main dimmers on one lighting circuit?
No, use one MACL-153M with compatible Maestro companion dimmers at the other control locations. For multi-location dimming, MA-R companions are supported.
Can it work with an existing mechanical 3-way switch?
Can it work with an existing mechanical 3-way switch?
Yes, but additional wiring and programming are required. Mechanical 4-way switch applications are not supported; use the specified Maestro companion configuration instead.
Does ganging change its load capacity?
Does ganging change its load capacity?
Yes, incandescent/halogen capacity is 600W with no side sections removed, 500W with one removed, and 400W with two removed. LED/CFL-only loads do not require derating; mixed loads must follow the manufacturer’s table.
