Lutron Caséta Diva Smart Dimmer for ELV+ Lighting DVRF-5NE-LA - 250W LED - Neutral Required - Light Almond
Made to Order
About this item
About this item
- Neutral Required: Requires a neutral connection and a 120V AC, 50/60Hz supply.
- Load Ratings: Supports up to 250W dimmable LED, 500W incandescent/halogen or ELV halogen, and 400VA MLV halogen before applicable derating.
- Phase Control: Phase-selectable dimming supports compatible LED and low-voltage lighting loads.
- Location Options: Supports single-pole, compatible wired 3-way, and wired or wireless multi-location configurations.
- Smart Control: Requires a Lutron smart hub for app and compatible voice control.
Description
Description

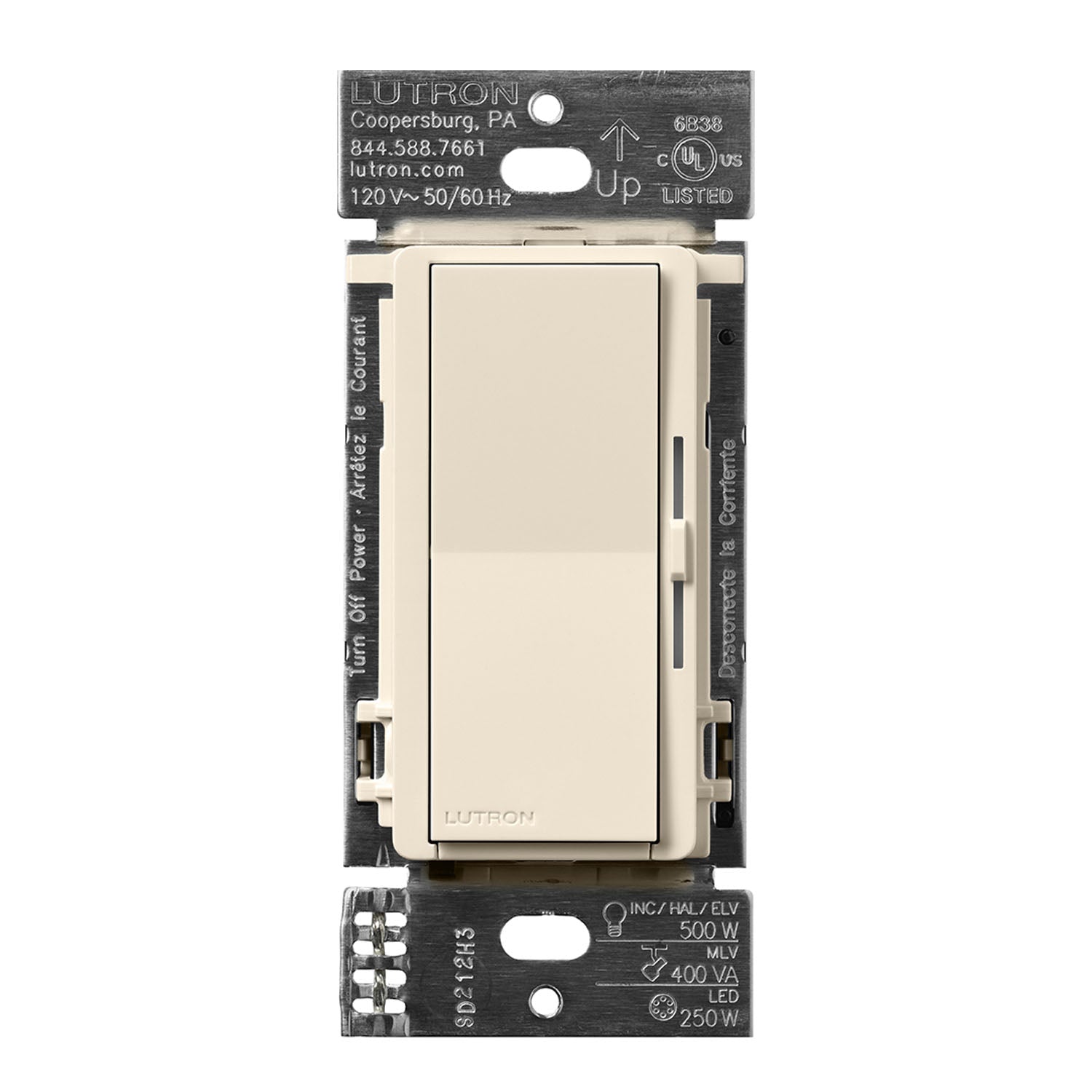

Lutron Caséta Diva Light Almond Smart ELV+ Dimmer - Neutral Required
The DVRF-5NE-LA is a phase-selectable smart dimmer for 120V AC, 50/60Hz with a required neutral. Single-gang ratings: 250W dimmable LED, 500W incandescent/halogen or ELV halogen, and 400VA MLV halogen. Finish: Light Almond.
Key Features
- Neutral: Neutral wire must be connected.
- Phase: Selectable dimming for compatible loads.
- Configuration: Single-pole, compatible 3-way, or multi-location.
- LED Derating: Single/double/triple gang: 250/200/150W.
- Incandescent/ELV Halogen: Single/double/triple gang: 500/400/300W.
- MLV Halogen: 400VA across single/double/triple gang.
- Interface: Paddle, slider, and soft-glow light bar.

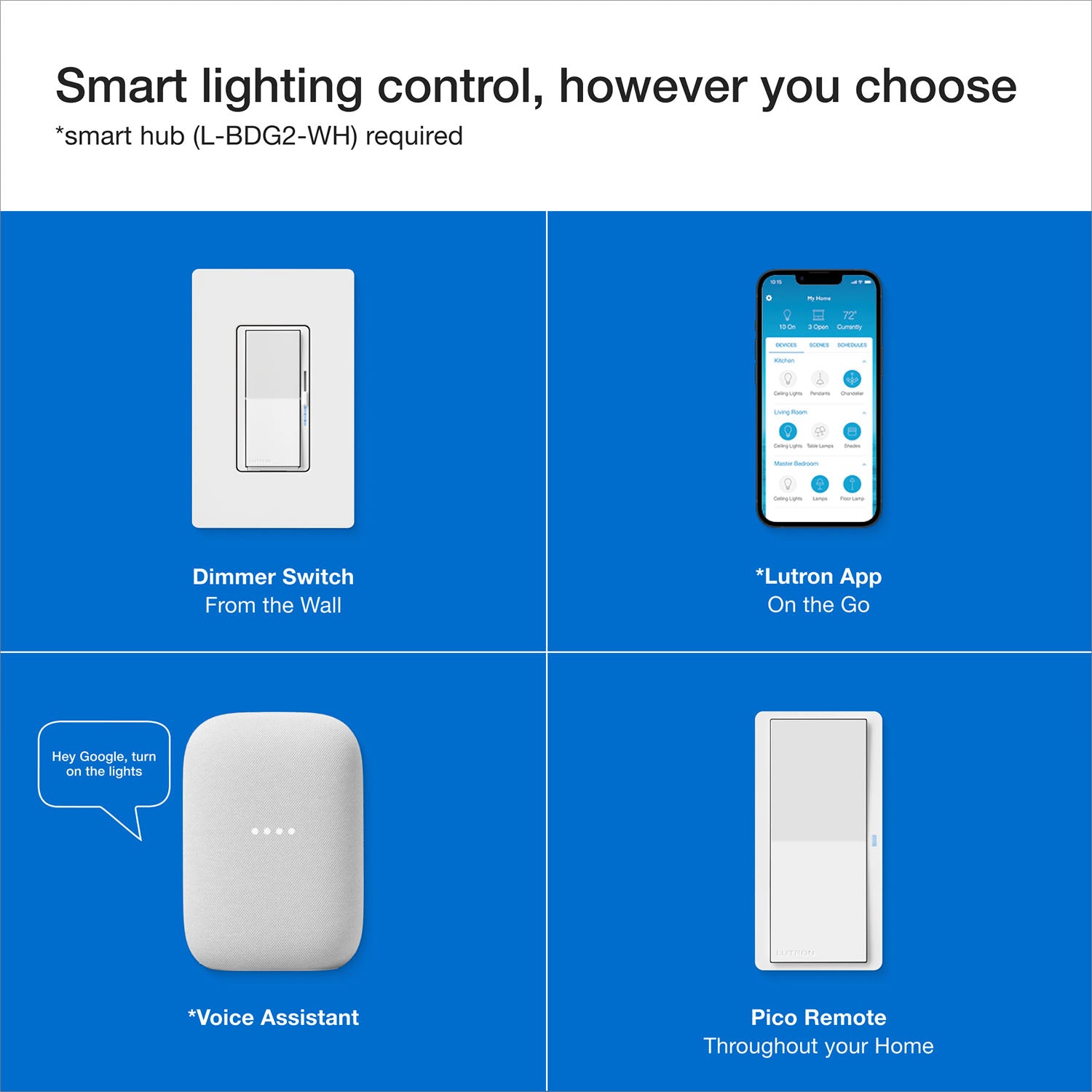

- Connected Control: Smart hub required for app and compatible voice control.
Construction & Interface

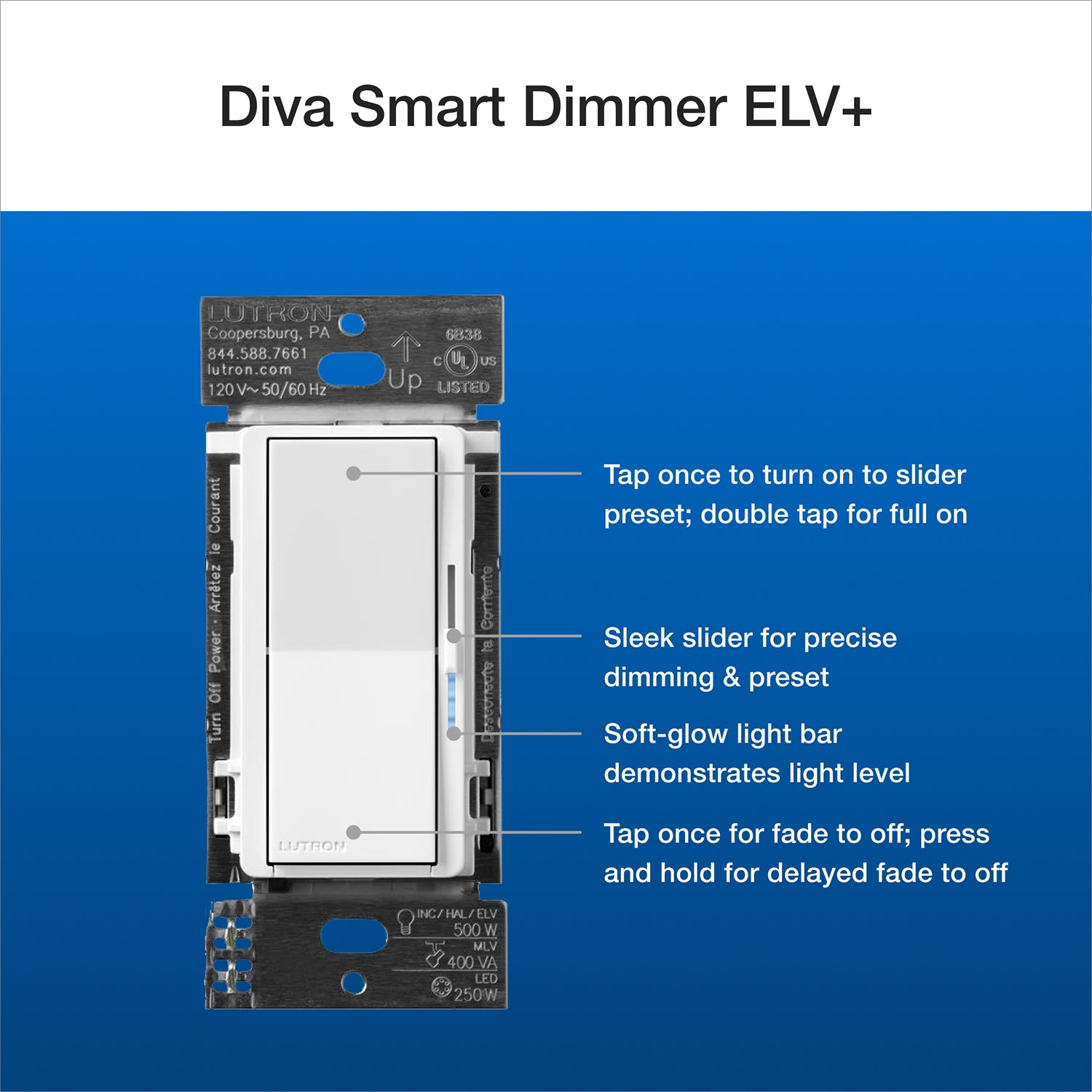

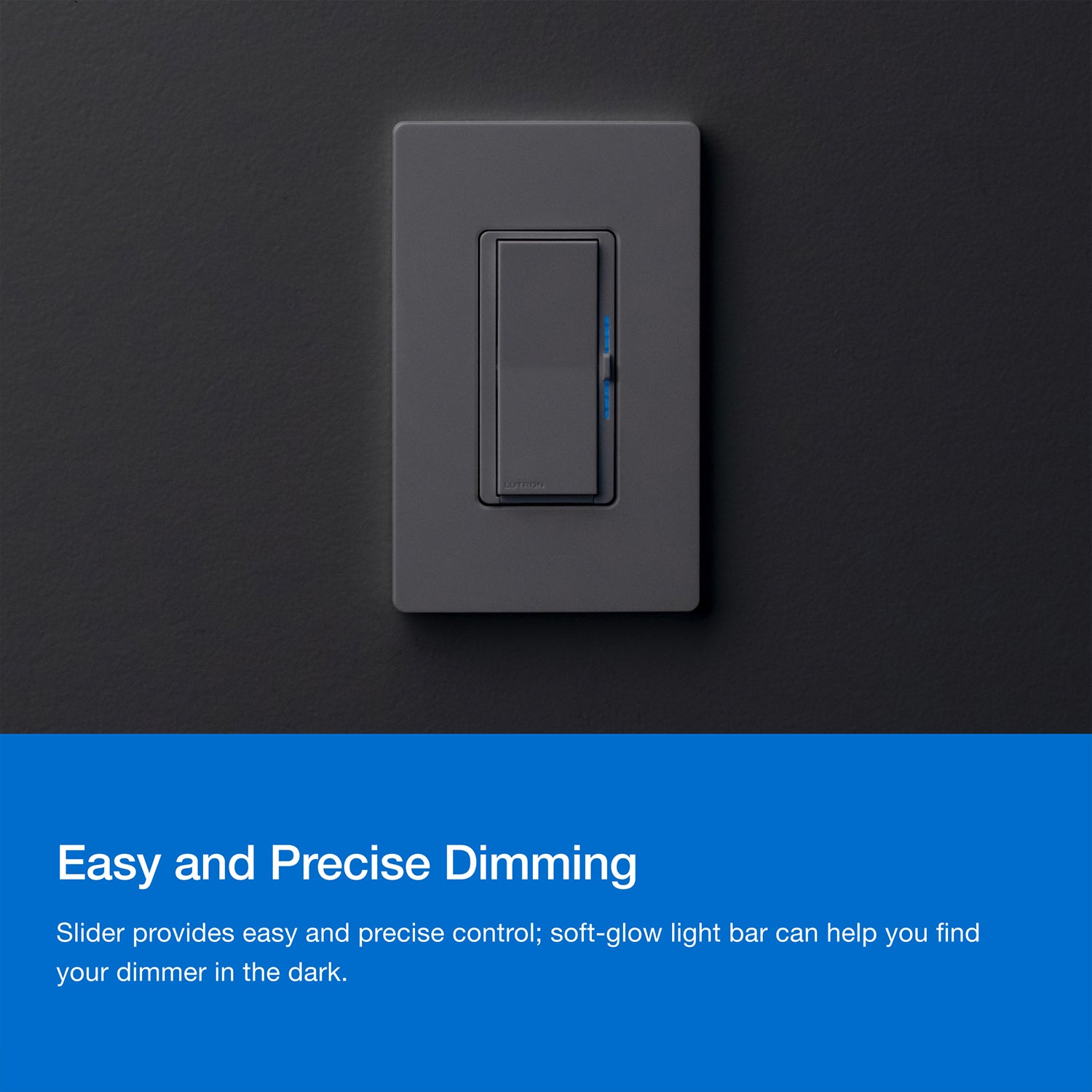

The paddle provides on/off control and the slider adjusts brightness. The soft-glow light bar aids level selection. Wallplate sold separately.
Dimming & Load Performance
Select the appropriate phase mode for the connected load. Verify lamp and transformer compatibility; follow the model-specific ratings and mixed-load instructions.
Wiring & Installation
Wire leads provide hot, load, and neutral connections. Hot and load must not be reversed. Use a compatible toggle for 3-way operation, or Claro smart accessory switches or Pico remotes for supported multi-location setups. Follow the applicable wiring diagram.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Does this dimmer require a neutral wire?
Does this dimmer require a neutral wire?
Yes, its neutral wire must be connected. The installation guide states that the dimmer will not operate without that connection.
What is its LED load capacity?
What is its LED load capacity?
The installation guide rates dimmable LEDs at 250W in single-gang, 200W in double-gang, and 150W in triple-gang installations. Check lamp compatibility and applicable mixed-load requirements.
What are the incandescent and low-voltage ratings?
What are the incandescent and low-voltage ratings?
The guide rates incandescent, halogen, and ELV halogen at 500W/400W/300W for single/double/triple gang. MLV halogen is rated 400VA in each configuration; do not treat that VA rating as a general LED wattage rating.
Can it control lighting from more than one location?
Can it control lighting from more than one location?

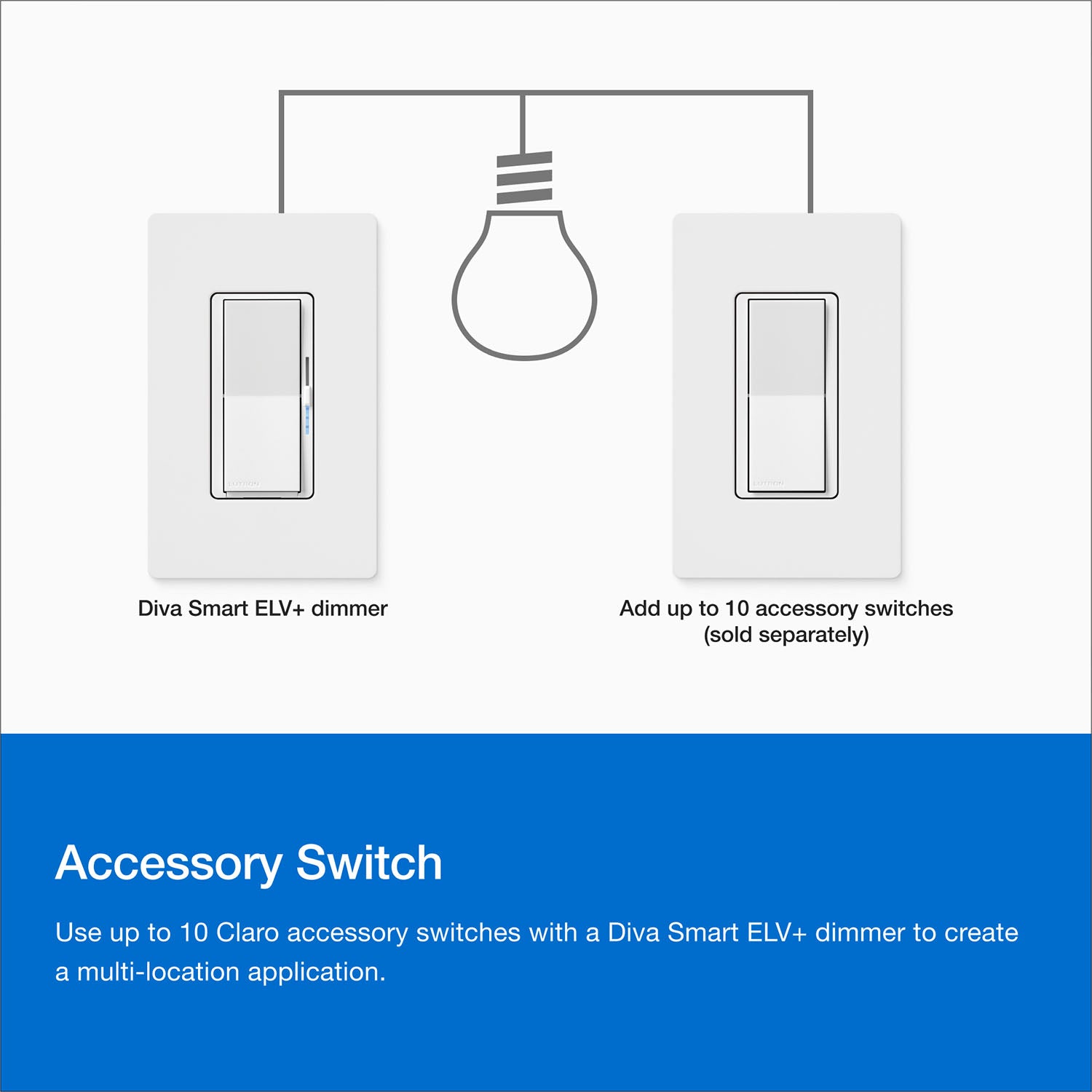

Yes, it supports compatible 3-way and multi-location configurations. Options include an existing toggle switch for 3-way control, wired Claro smart accessory switches, or wireless Pico remotes.
Is a smart hub required for phone control?
Is a smart hub required for phone control?
Yes, phone control through the Lutron app requires a Lutron smart hub. Compatible voice-assistant control also requires the hub.
