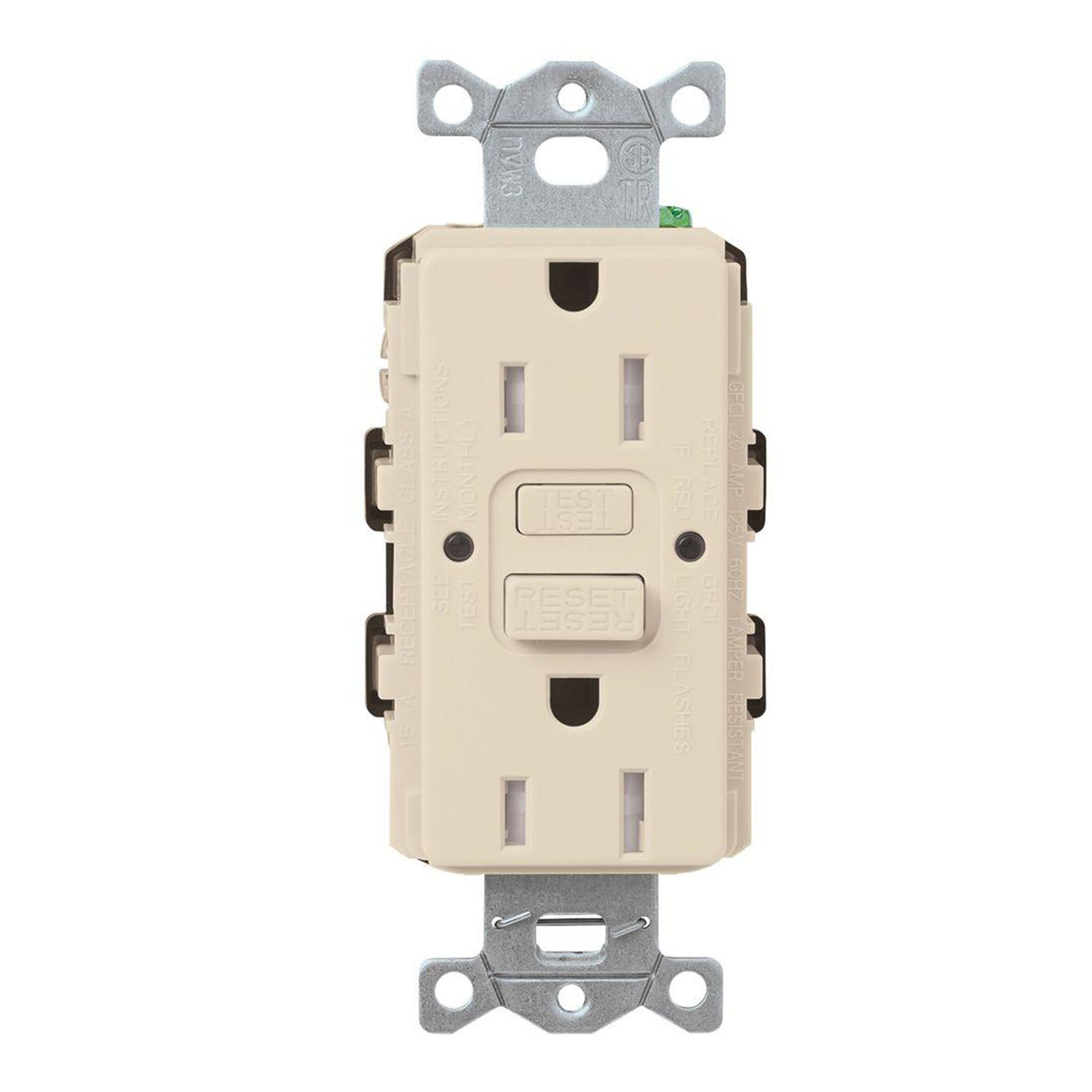

Lutron Claro GFCI Duplex Outlet — Light Almond & Self-Testing

The Lutron CAR-15-GFST-LA is a 15A GFCI duplex outlet in a Light Almond finish. This outlet features tamper-resistant shutters and self-testing capabilities, ensuring safety and reliability. It operates at 125V and is compatible with NEMA 5-15R configurations.

Key Features

• Voltage: Operates at 125V with a frequency of 60 Hz.
• Amperage: Supports up to 15A for various electrical needs.
• NEMA Configuration: Compatible with NEMA 5-15R receptacles.
• Tamper-Resistant: Yes, with internal shutters for enhanced safety.
• Weather-Resistant: No, designed for indoor use only.
• Grade: Suitable for residential and commercial applications.

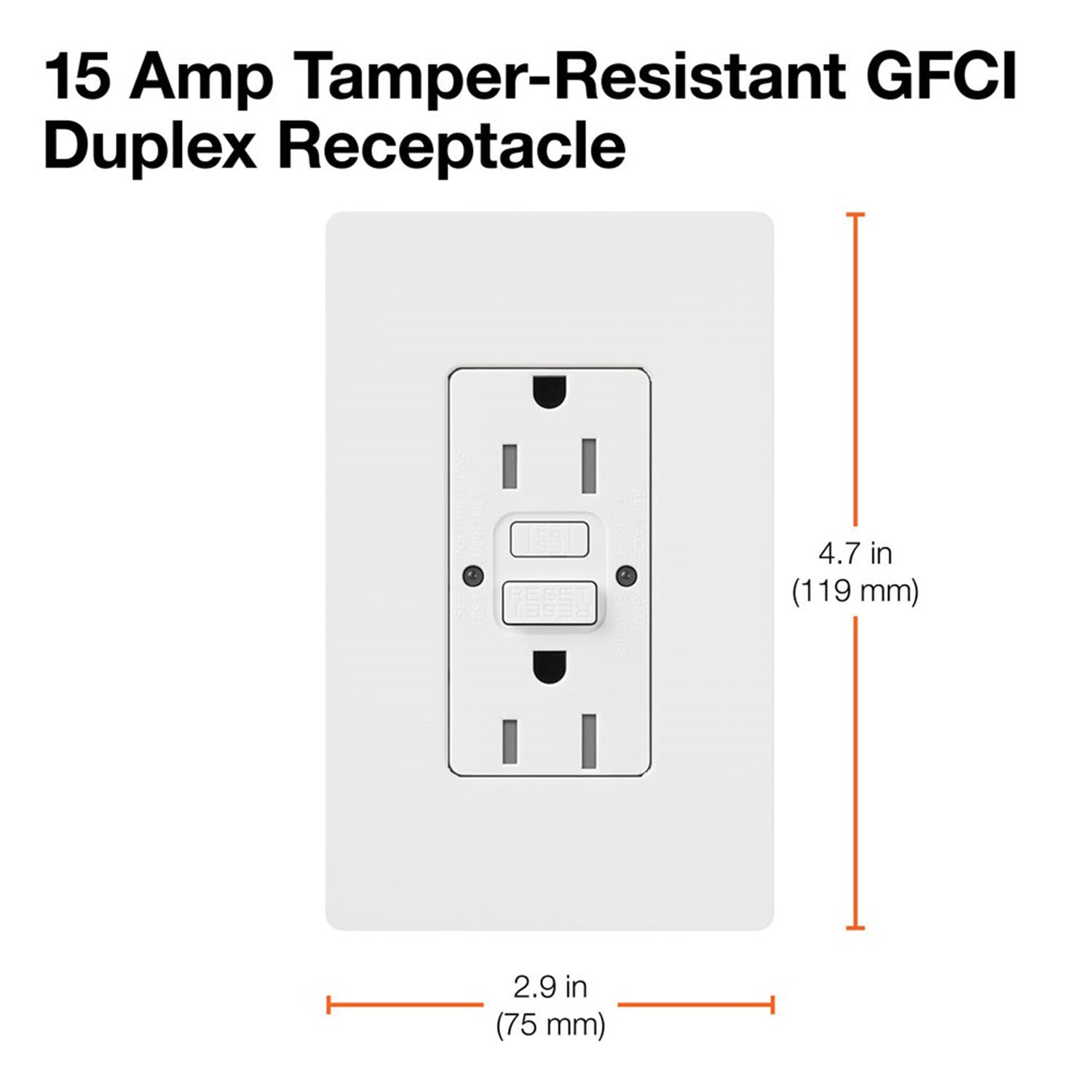

• Dimensions: Measures 1.47 in. width, 3.28 in. height, and 1.75 in. length.
• Certifications: Complies with UL 943, UL 498, and is cULus Listed.
• GFCI Protection: Provides Class A protection with a trip level of 4-6 mA.
• Self-Testing: Continuous self-testing every 30 seconds for reliable operation.
• LED Indicator: Bicolor LED indicates power, trip, and end-of-life status.
• Reverse Wire Safety: Prevents reset if wired incorrectly, ensuring no power to the face or downstream.

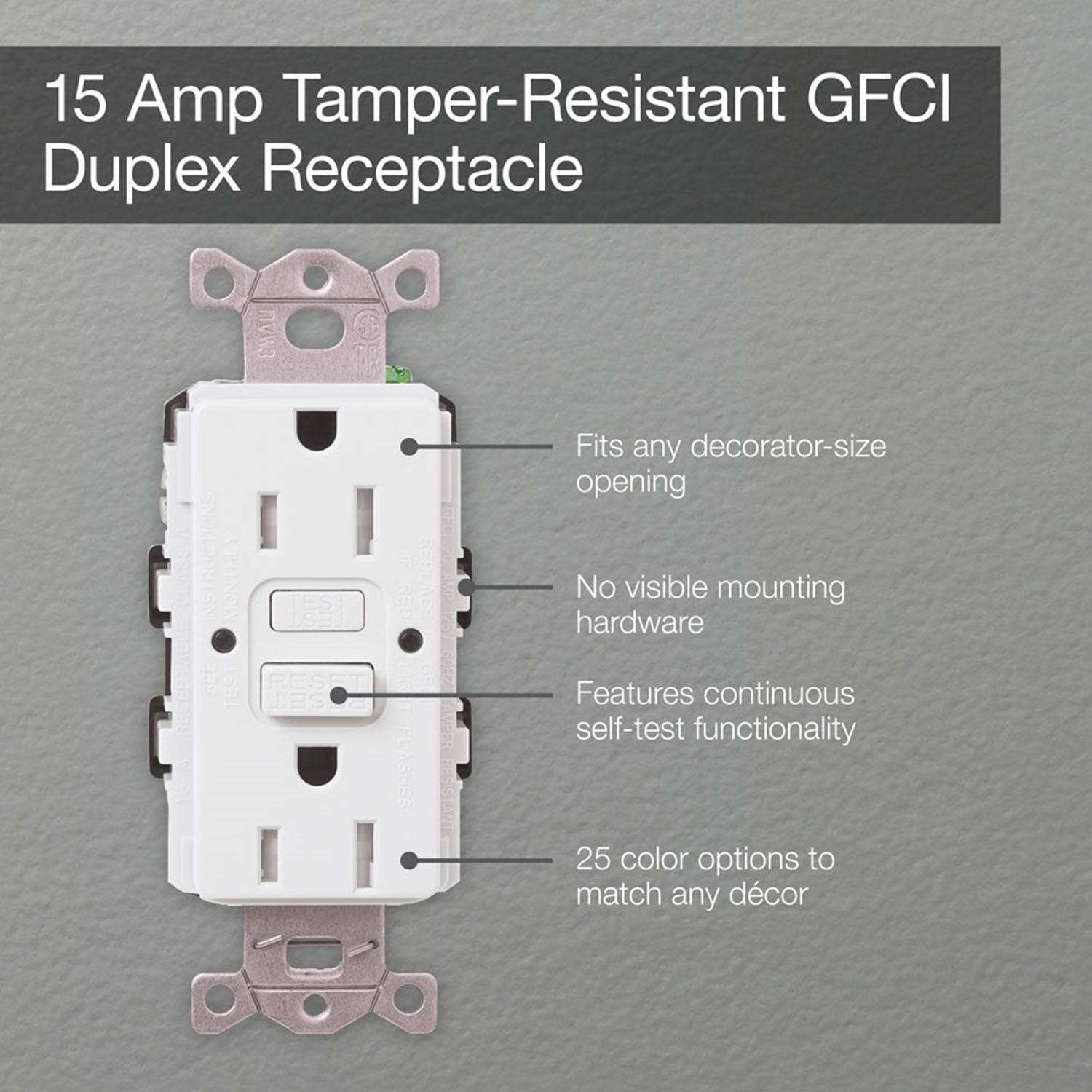

Construction & Interface

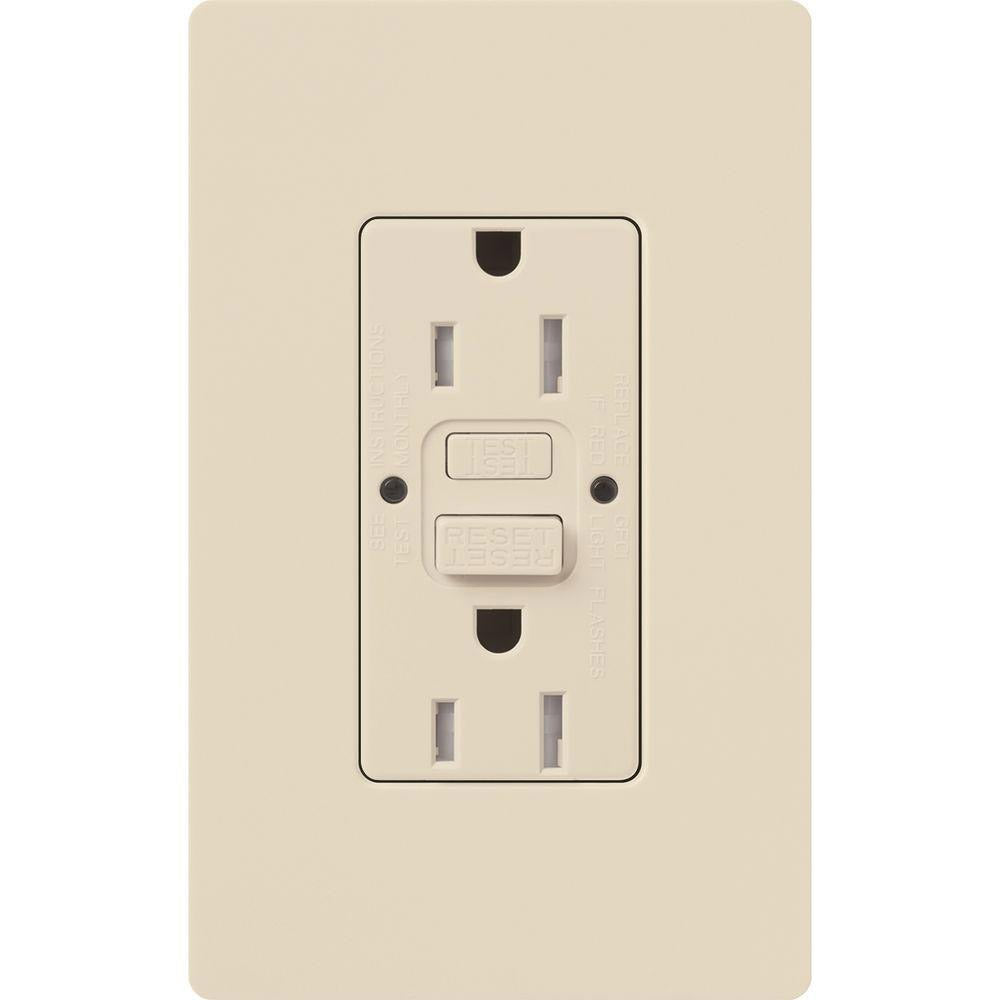

This outlet features a decorator-style interface compatible with NEMA designer wallplates. Constructed with impact-resistant materials, it offers durability and a sleek Light Almond finish. Note that the wallplate is sold separately.

Safety & Ground Fault Protection

The outlet's tamper-resistant design includes internal shutters to prevent foreign object insertion. It features continuous self-testing to ensure GFCI protection is maintained, with a bicolor LED providing clear status indications.

Wiring & Installation

Designed for both back and side wiring, this outlet supports #14 to #10 AWG wire sizes. It includes an internal back wiring clamp and guide pocket for quick and dependable termination, with a robust mounting strap for secure installation.
