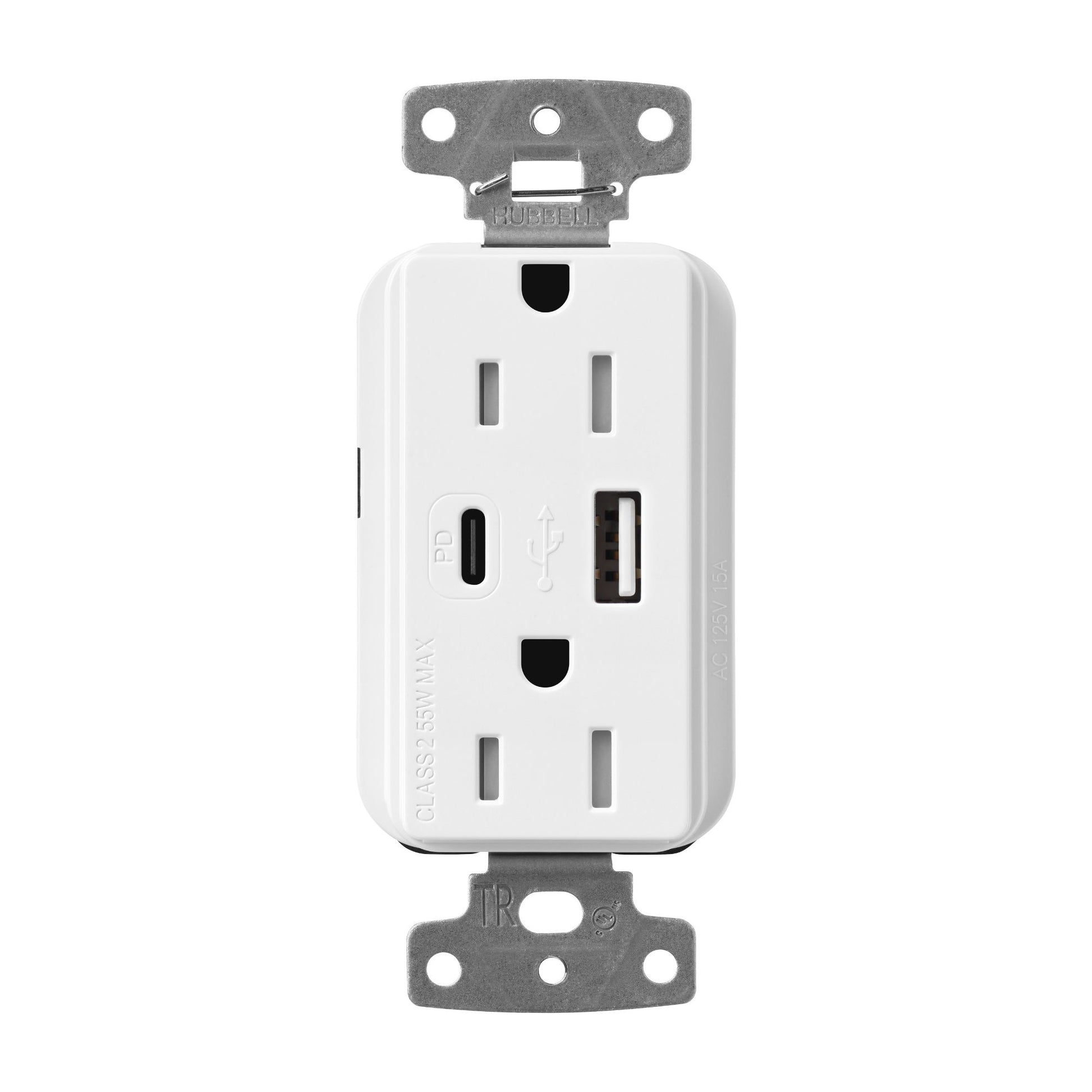

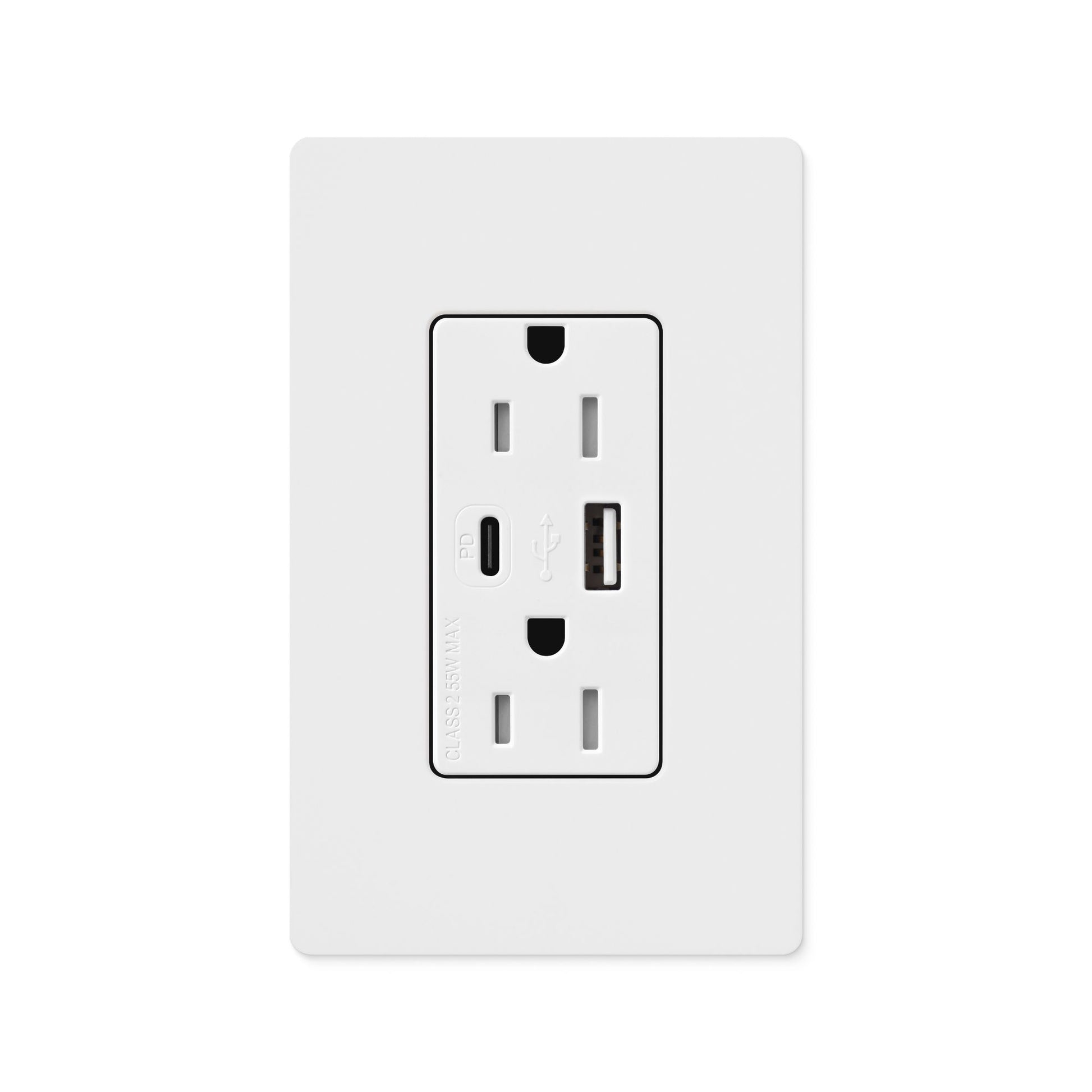

Lutron Claro USB Type A/C Duplex Receptacle — White & Tamper-Resistant

The Lutron CAR-15-ACTR-WH is a white USB Type A/C duplex receptacle designed for safe and efficient charging. This receptacle is rated at 15A and operates at 125V~, featuring a NEMA 5-15R configuration. It includes tamper-resistant shutters for enhanced safety.

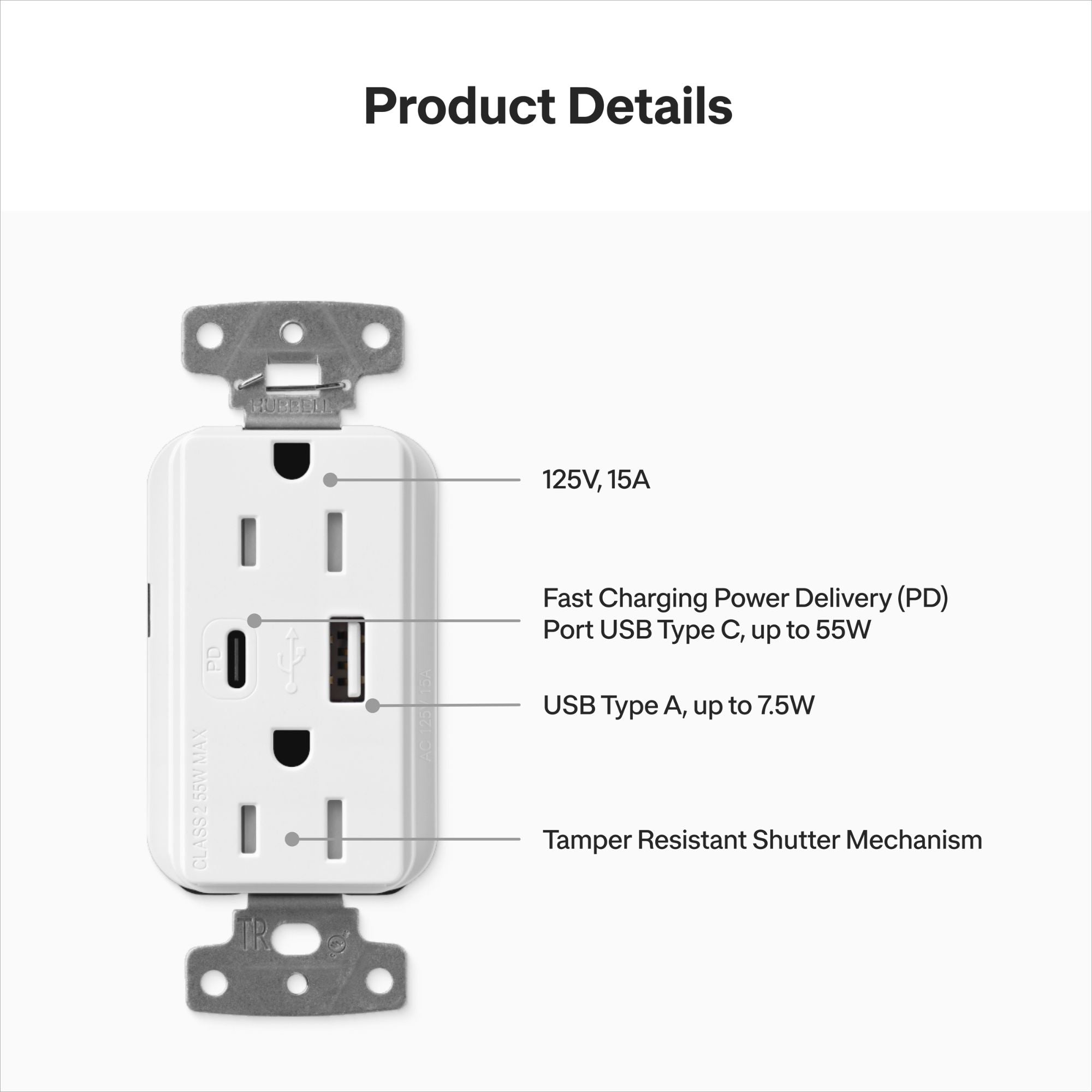

Key Features

• Amperage: 15A rating suitable for residential and commercial use.
• Voltage: 125V~ operation for standard U.S. installations.
• NEMA Configuration: NEMA 5-15R for compatibility with standard plugs.
• Tamper-Resistant: Yes, includes internal shutters for safety.
• USB Ports: One Type A and one Type C port for diverse device compatibility.
• Power Delivery: Type C port supports up to 55W for fast charging.
• Certifications: Complies with UL498 and UL1310 standards.
• Dimensions: 4.7 in. H x 2.1 in. W x 2.9 in. L.
• Installation: Side or back wire capable, accepts 14 AWG to 10 AWG copper wires.
• Finish: Gloss white finish matches Lutron dimmers.

Construction & Interface

This designer-style receptacle features a gloss white finish that complements Lutron dimmers. It is constructed for durability and ease of use. Please note that the wallplate is sold separately.

Power & USB Charging

The receptacle offers dual USB ports, including a Type C port with Power Delivery up to 55W, ensuring fast and efficient charging for compatible devices. The tamper-resistant feature adds an extra layer of safety.

Wiring & Installation

Designed for easy installation, this receptacle supports both side and back wiring methods. It accommodates solid or stranded copper wires ranging from #14 to #10 AWG, ensuring a secure and reliable connection.
