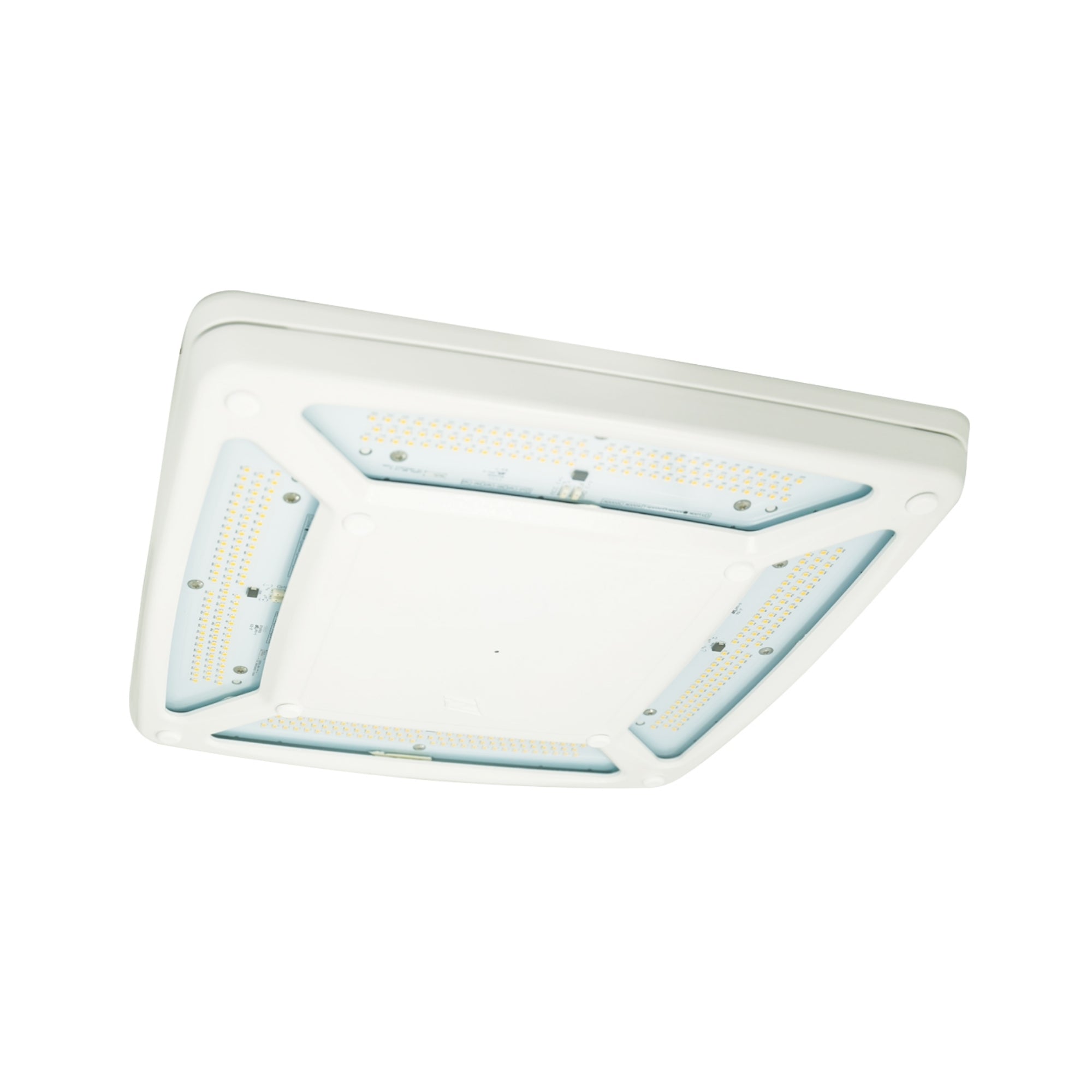

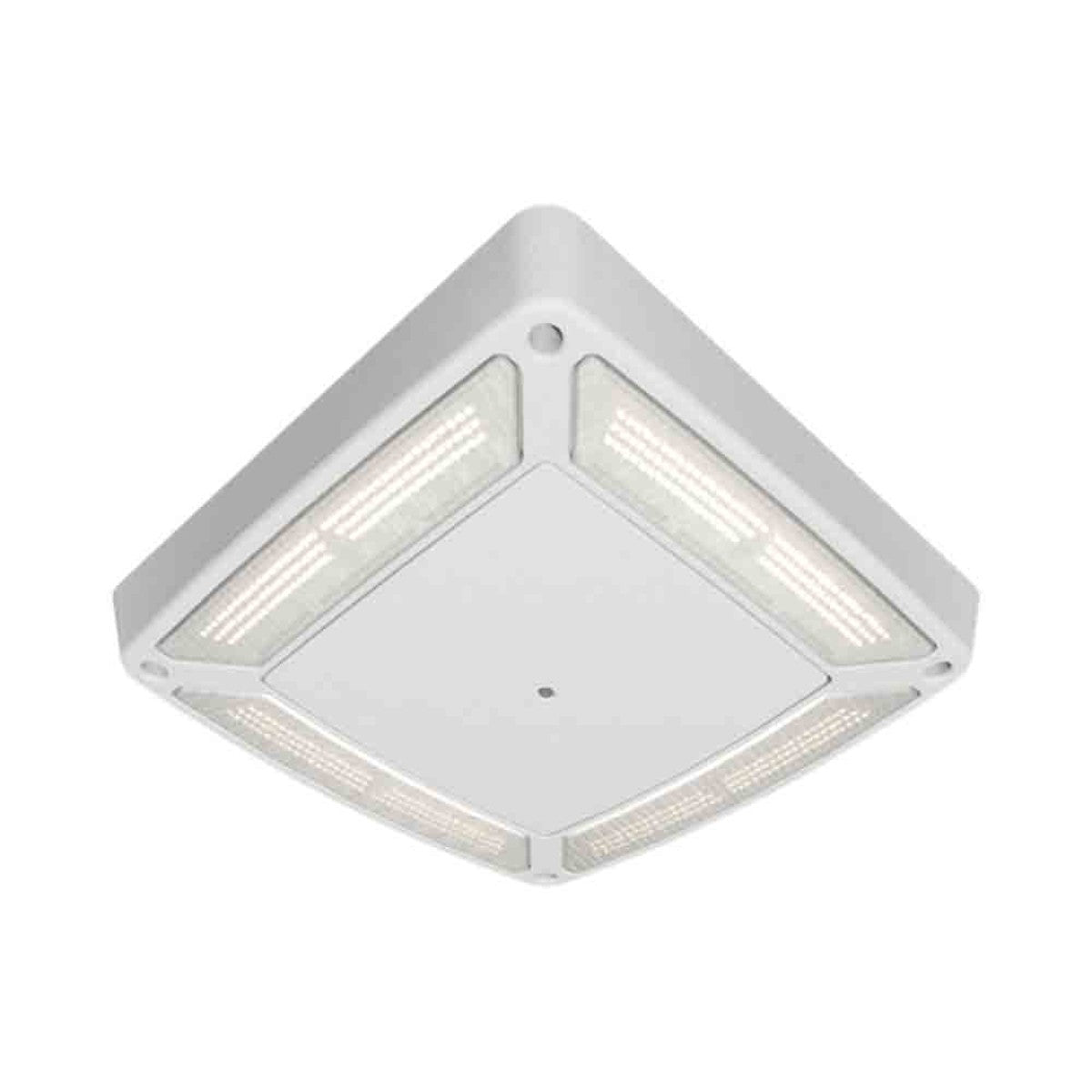

LSI Scottsdale Series Canopy Light - 188W Configuration

The LSI SCV-LED-23L-SCFT-UNV-DIM-50-WHT is a canopy light delivering 23000 lumens at 188 watts with a 5000K color temperature. Designed for universal voltage 120-277V, it is ideal for petroleum canopy applications and is DLC Premium certified.

Key Features

• Construction: Rugged die-cast aluminum housing with IP66 rating for dust and water protection.
• Optics: Symmetrical distribution with clear tempered glass for uniform illumination.
• Driver: High-performance programmable driver with over-voltage and short circuit protection.
• Surge Protection: Integral 6kV surge protection with additional 10kV field replaceable option.
• Dimming: Standard 0-10V dimming from 10% to 100%.
• Mounting: Installs in 12' or 16' deck pans with retrofit options available.
• Finish: DuraGrip polyester powder coat for durability in extreme weather.
• Compliance: UL 1598 and UL 8750 listed, meets Buy American Act requirements.
• Warranty: Backed by a 5-year limited warranty.
• Temperature Range: Operates from -40°C to +35°C for the 23L package.

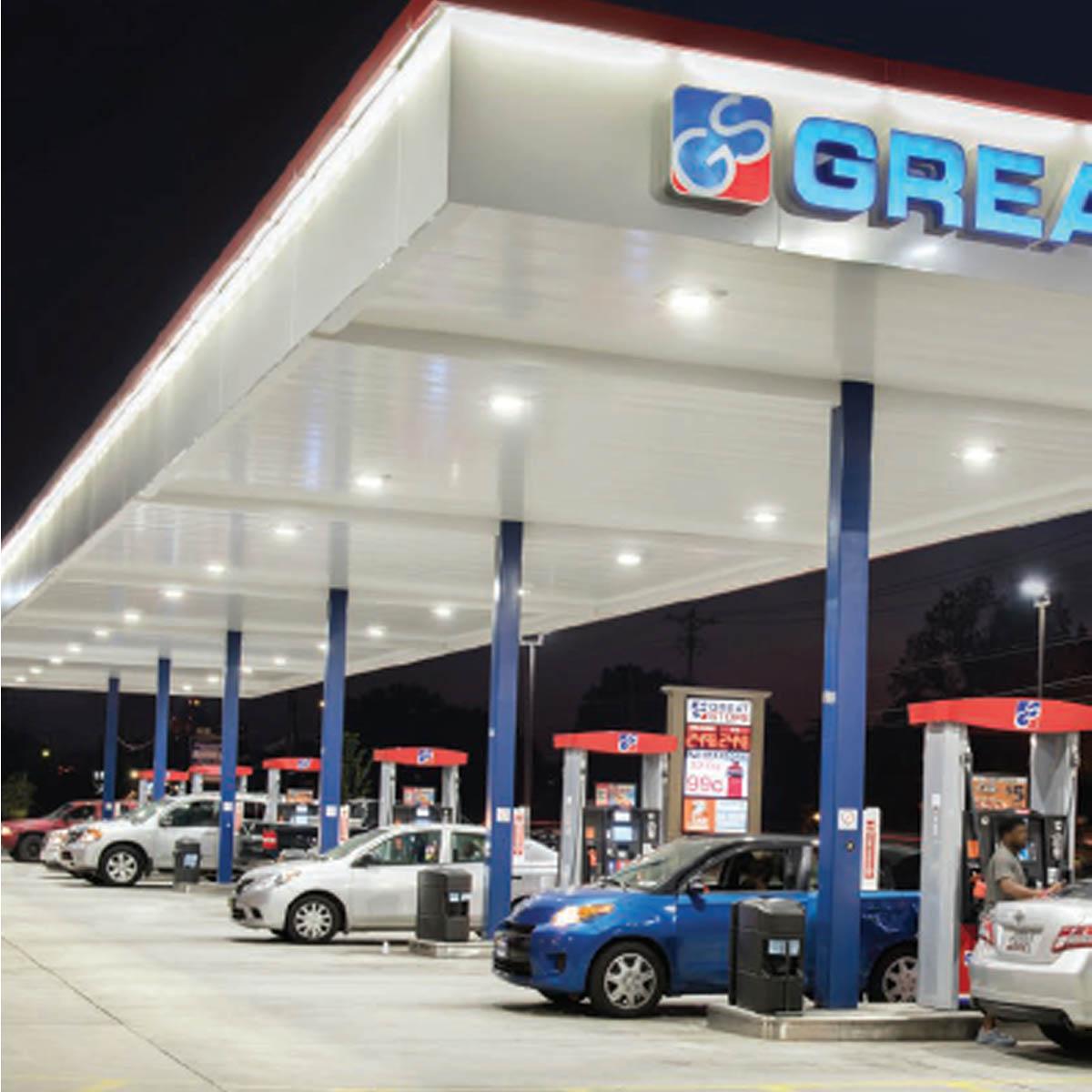

Typical Applications

• Petroleum Canopies
• Gas Stations
• Convenience Stores
• Service Stations
• Outdoor Retail Areas

Performance & Light Output

This fixture provides a high efficacy of 123 lumens per watt, with a minimum CRI of 80, ensuring excellent color rendering and visibility.

Electrical & Controls

Compatible with universal voltage (120-277V), the fixture includes a high-performance driver with 0-10V dimming and integral surge protection.

Construction & Durability

Constructed with a die-cast aluminum housing and finished with DuraGrip polyester powder coat, it is IP66 rated for protection against dust and water.

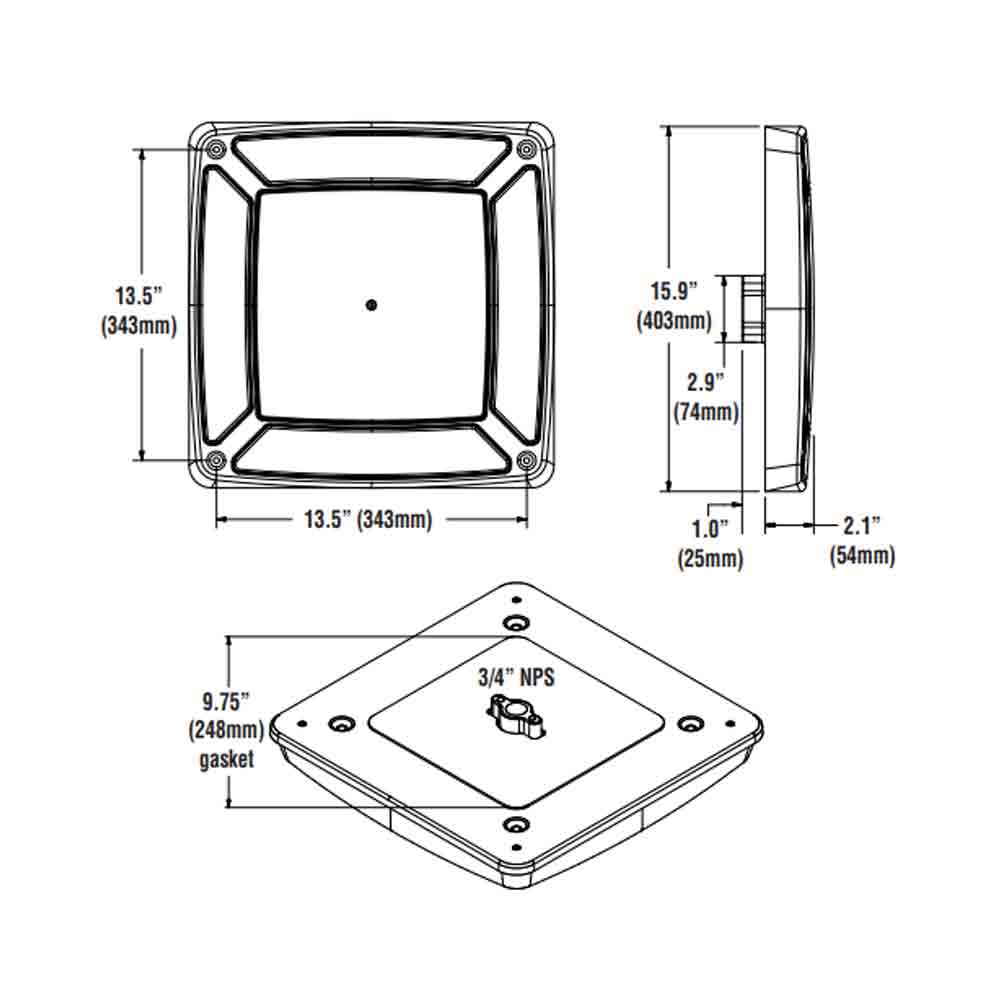

Installation & Mounting

Designed for easy installation in 12' or 16' deck pans, it includes an aluminum locking collar and gasket for a complete seal.

What's Included

• Canopy Light Fixture
• Aluminum Locking Collar
• Gasket
