LED Gas Station Canopy Light, 23280 Lumens, 155 Watts, 5000K, 120-277V
Made to Order
About this item
About this item
- Lumens: Delivers 23,000 lumens for optimal canopy illumination.
- Wattage: Operates at 155 watts, ensuring energy efficiency.
- Voltage: Compatible with universal voltage input of 120-277V.
- Color Temperature: Provides a bright 5000K light output.
- Durability: Features an IP66 rating for protection against dust and water.
We process payments securely and do not store credit card information.
Description
Description

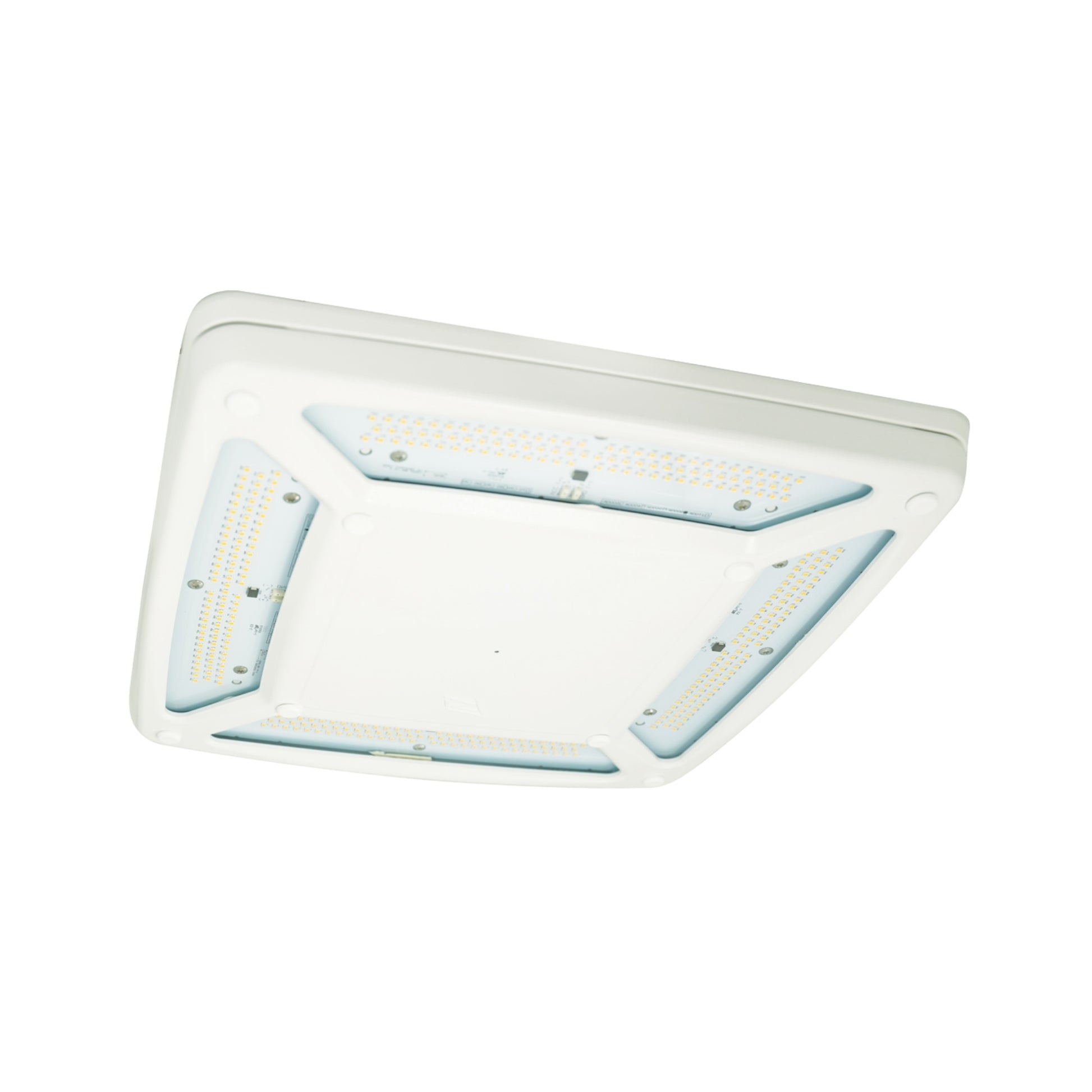

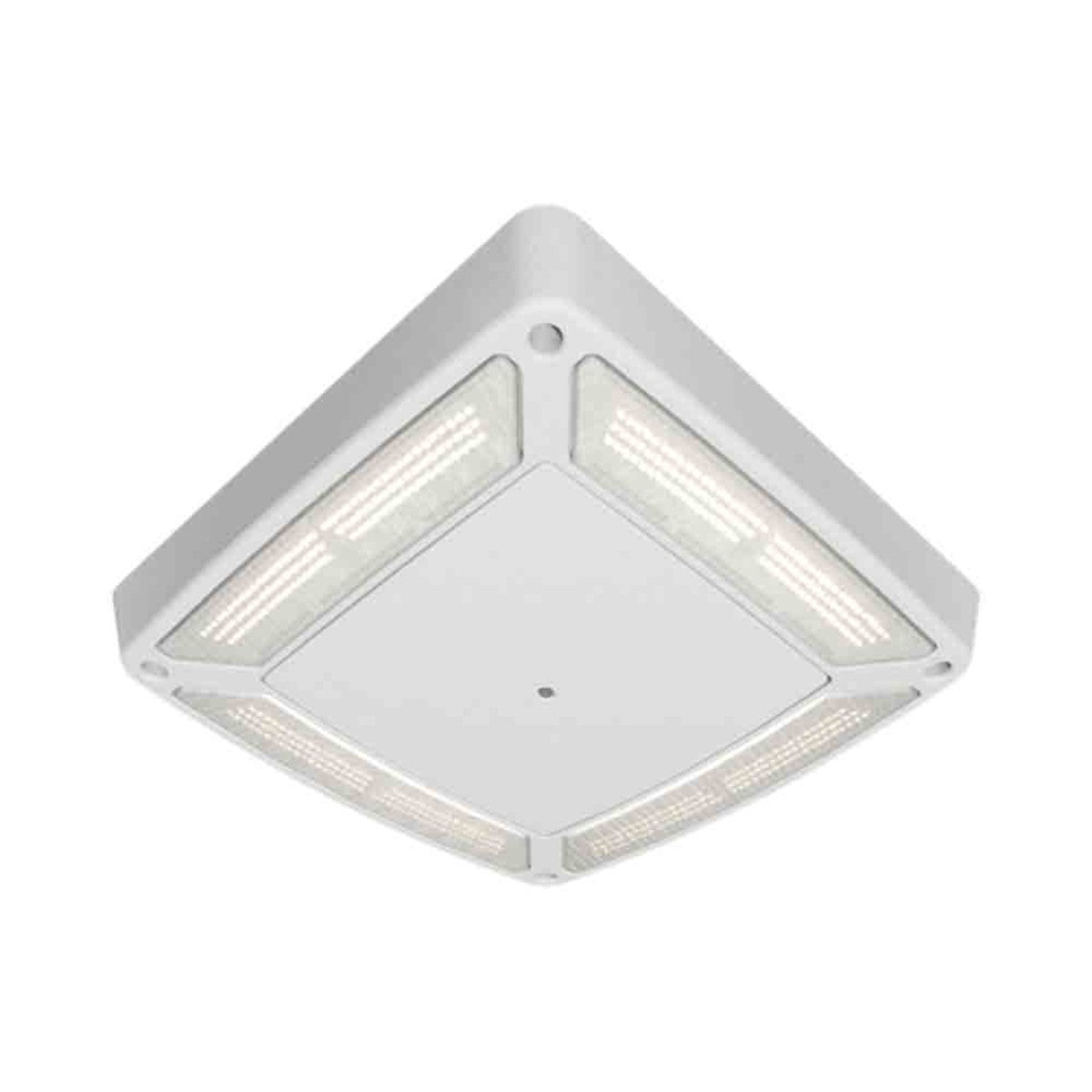

LSI Scottsdale Series Canopy Light - 155W Configuration
The LSI SCV-LED-23L-SC-UNV-DIM-50-WHT is a canopy light designed to deliver 23,000 lumens at 155 watts with a 5000K color temperature. It operates on a 120-277V input, making it suitable for various commercial applications. This fixture is IP66 rated, ensuring protection against dust and water ingress, making it ideal for outdoor canopy installations.
Key Features
- Construction: Rugged die-cast aluminum housing with a durable DuraGrip polyester powder coat finish.
- Optical System: Symmetrical distribution with a clear tempered flat glass lens for uniform illumination.
- Electrical: High-performance driver with over-voltage and short circuit protection, and integral 6kV surge protection.
- Dimming: Standard 0-10V dimming capability from 10% to 100%.
- Temperature Range: Operates in temperatures from -40°C to +35°C for the 23L package.
- Certifications: UL 1598 and UL 8750 listed, DLC Premium qualified, and meets Buy American Act requirements.
- Warranty: Backed by a 5-year limited warranty.
- Installation: Designed for quick retrofit into existing Scottsdale installations with a 4-inch hole.
- Surge Protection: Additional field-replaceable 10kV surge protection device available.
- CRI: Minimum CRI of 80 for accurate color rendering.
Typical Applications
- Gas Station Canopies
- Petroleum Stations
- Convenience Store Canopies
- Commercial Outdoor Areas
- Parking Structures
Performance & Light Output
This fixture provides a luminous efficacy of 150 lumens per watt, ensuring high efficiency. It features a minimum CRI of 80 and an L80 calculated life of over 100,000 hours.
Electrical & Controls
The SCV-LED-23L operates on a universal voltage of 120-277V and includes a high-performance driver with standard 0-10V dimming. It features integral 6kV surge protection and a power factor greater than 0.90.
Construction & Durability
Constructed with a die-cast aluminum housing and finished with LSI's DuraGrip polyester powder coat, this fixture is IP66 rated for protection against dust and water.
Installation & Mounting
Designed for installation in 12-inch or 16-inch deck pans, this unit includes an aluminum locking collar and gasket for a complete seal. It can retrofit into existing Scottsdale installations.
What's Included
- Canopy Light Fixture
- Aluminum Locking Collar
- Gasket
