LED Gas Station Canopy Light, 20230 Lumens, 133 Watts, 5000K, 120-277V
Made to Order
About this item
About this item
- Lumens: Delivers 20000 lumens for bright and efficient illumination.
- Wattage: Operates at 133 watts, ensuring energy efficiency.
- Voltage: Compatible with 120-277V for versatile installation.
- Color Temperature: Provides a crisp 5000K light output.
- Finish: Features a durable white finish for aesthetic appeal.
We process payments securely and do not store credit card information.
Description
Description

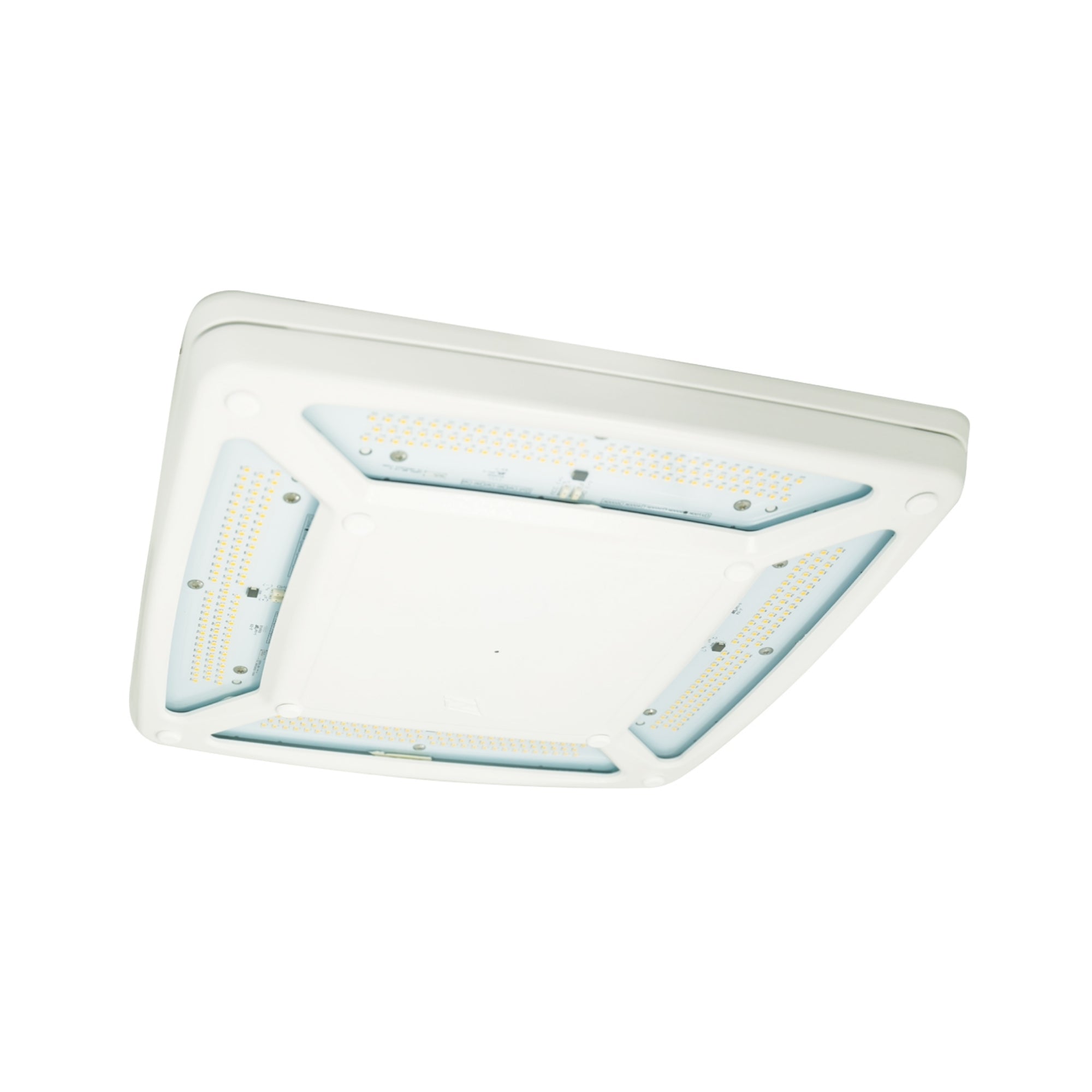

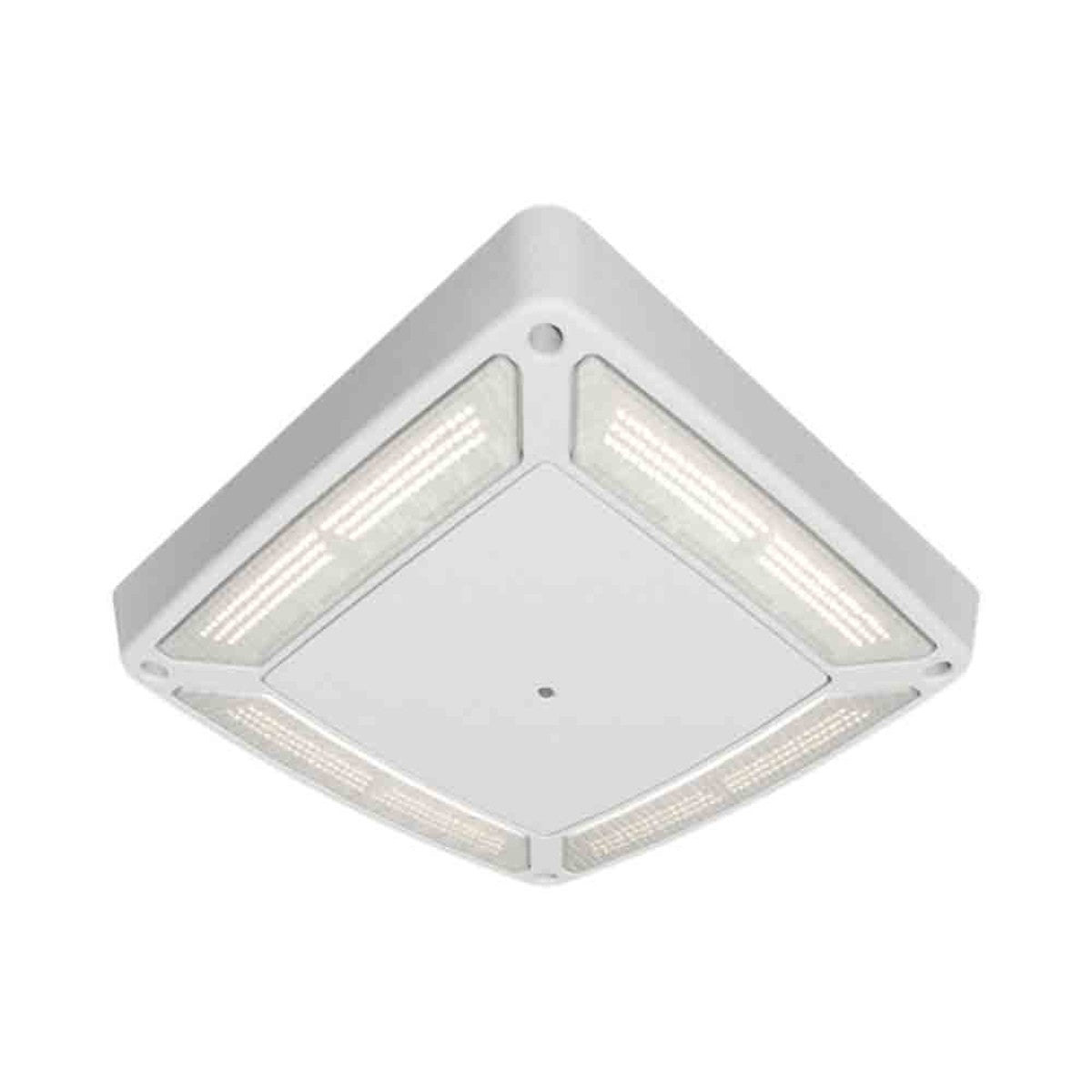

LSI Scottsdale Series Canopy Light - 133W Configuration
The LSI SCV-LED-20L-SC-UNV-DIM-50-WHT is a robust canopy light delivering 20000 lumens at 133 watts. It operates on 120-277V and is ideal for petroleum canopy applications. This fixture is DLC Premium qualified, ensuring high performance and energy efficiency.
Key Features
- Construction: Rugged die-cast aluminum housing with IP66 rating for dust and water protection.
- Optical System: Symmetrical distribution with clear tempered glass lens for uniform illumination.
- Electrical: Features a high-performance driver with over-voltage and short circuit protection.
- Dimming: Standard 0-10V dimming capability from 10% to 100%.
- Surge Protection: Integral 6kV surge protection with optional 10kV device.
- Temperature Range: Operates in temperatures from -40°C to +45°C.
- Durability: Finished with LSI's DuraGrip polyester powder coat for weather resistance.
- Installation: Designed for easy retrofit into existing Scottsdale canopy holes.
- Compliance: UL 1598 and UL 8750 listed, meets Buy American Act requirements.
- Warranty: Backed by a 5-year limited warranty.
Typical Applications
- Petroleum Canopies
- Gas Stations
- Convenience Stores
- Service Stations
- Outdoor Retail Areas
Performance & Light Output
This fixture provides 20000 lumens with an efficacy of 152 lumens per watt. It has a minimum CRI of 80 and a calculated L80 life of over 100,000 hours.
Electrical & Controls
The canopy light operates on a universal voltage range of 120-277V. It includes a factory programmable driver with standard 0-10V dimming and integral surge protection.
Construction & Durability
Constructed with a die-cast aluminum housing, the fixture is IP66 rated and finished with a durable polyester powder coat. It withstands extreme weather conditions without cracking or peeling.
Installation & Mounting
Designed for installation in 12in or 16in deck pans, it includes an aluminum locking collar and gasket for secure mounting. Retrofit panels are available for various existing setups.
What's Included
- Canopy Light Fixture
- Aluminum Locking Collar
- Gasket
Specifications
Specifications

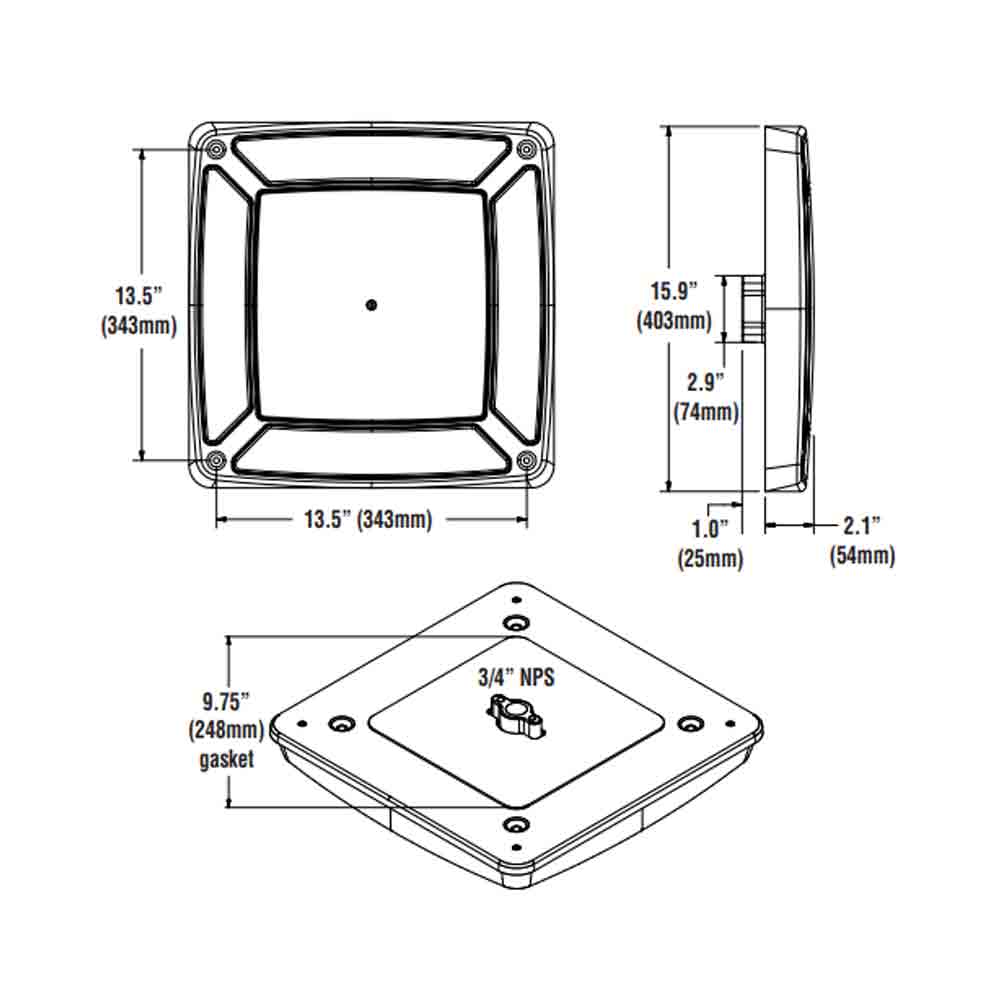

Dimensions
