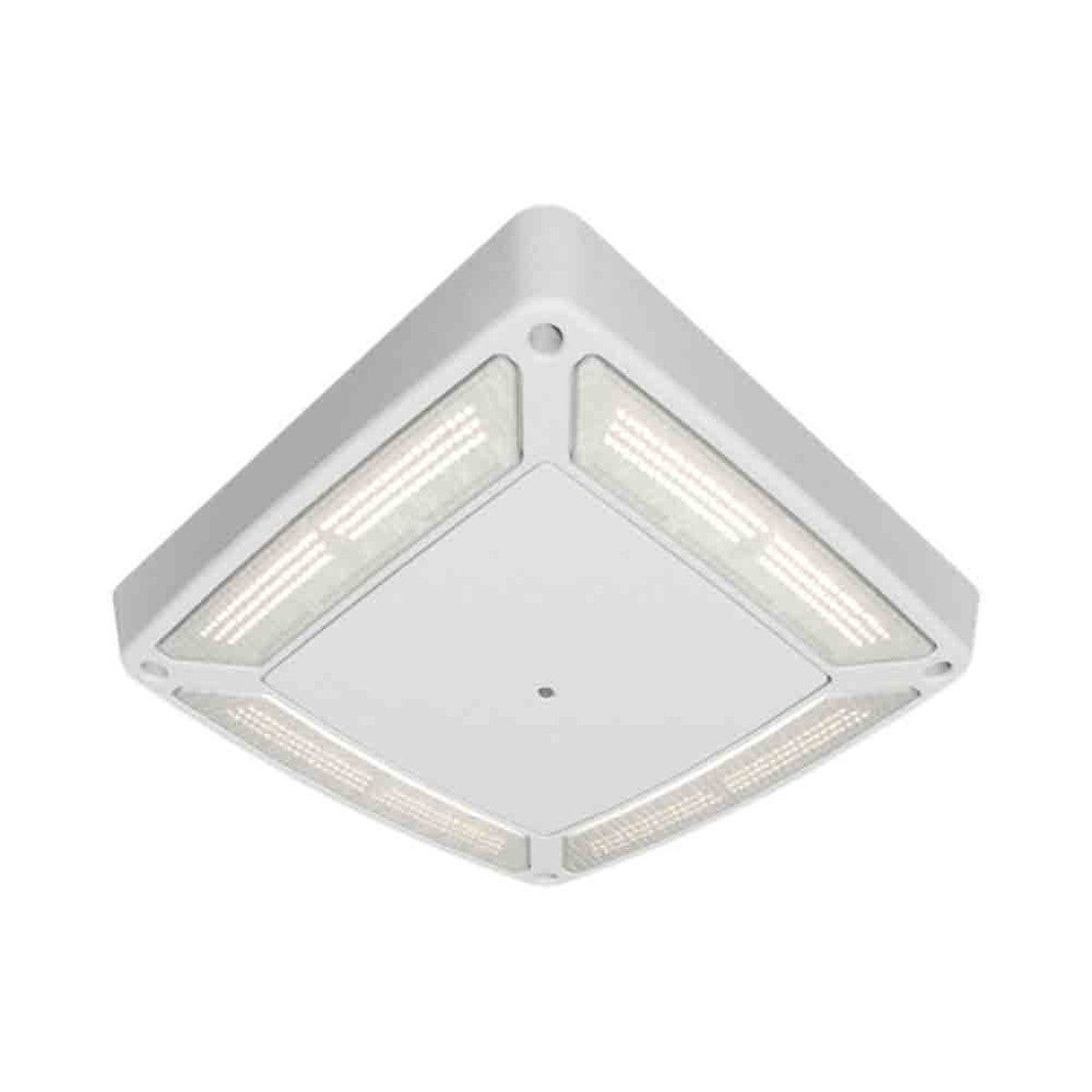

LSI Scottsdale Series Canopy Light - 90W Configuration

The LSI SCV-LED-13L-SC-UNV-DIM-50-WHT is a canopy light designed for high-performance illumination. This fixture provides 13000 lumens at 90 watts, with a color temperature of 5000K. It operates on a 120-277V input, making it suitable for various canopy lighting applications. The fixture is IP66 rated, ensuring protection against dust and water, and is compliant with DLC Premium standards.

Key Features

• Optical System: Symmetrical distribution with a clear tempered flat glass lens for uniform illumination.
• Driver: Factory programmable driver with over-voltage, under-voltage, short circuit, and over-temperature protection.
• Dimming: Standard 0-10V dimming capability from 10% to 100%.
• Surge Protection: Integral 6kV surge protection with optional field-replaceable 10kV device.
• Durability: Die-cast aluminum housing with a DuraGrip polyester powder coat finish.
• Installation: Designed for quick retrofit into existing Scottsdale holes with included aluminum locking collar and gasket.
• Temperature Range: Operates in temperatures from -40°C to +50°C.
• Certifications: UL 1598 and UL 8750 listed, DLC Premium qualified, and meets Buy American Act requirements.
• Warranty: Backed by a 5-year limited warranty.

Typical Applications

• Gas station canopies
• Petroleum service areas
• Convenience store exteriors
• Parking structures
• Commercial canopy lighting

Performance & Light Output

This fixture provides a luminous efficacy of 149 lumens per watt with a minimum CRI of 80, ensuring high-quality light output. The L80 calculated life exceeds 100,000 hours, offering long-lasting performance.

Electrical & Controls

The canopy light operates on a universal voltage of 120-277V and includes a high-performance driver with built-in surge protection. It supports 0-10V dimming for adjustable light levels.

Construction & Durability

Constructed with a low-profile die-cast aluminum housing, the fixture is finished with a DuraGrip polyester powder coat for weather resistance. It is IP66 rated for protection against dust and water ingress.

Installation & Mounting

The unit installs in a 12' or 16' deck pan and is designed for quick retrofit into existing Scottsdale holes. An aluminum locking collar and gasket are included for a complete seal and support.

What's Included

• Canopy light fixture
• Aluminum locking collar
• Gasket
• Installation hardware
