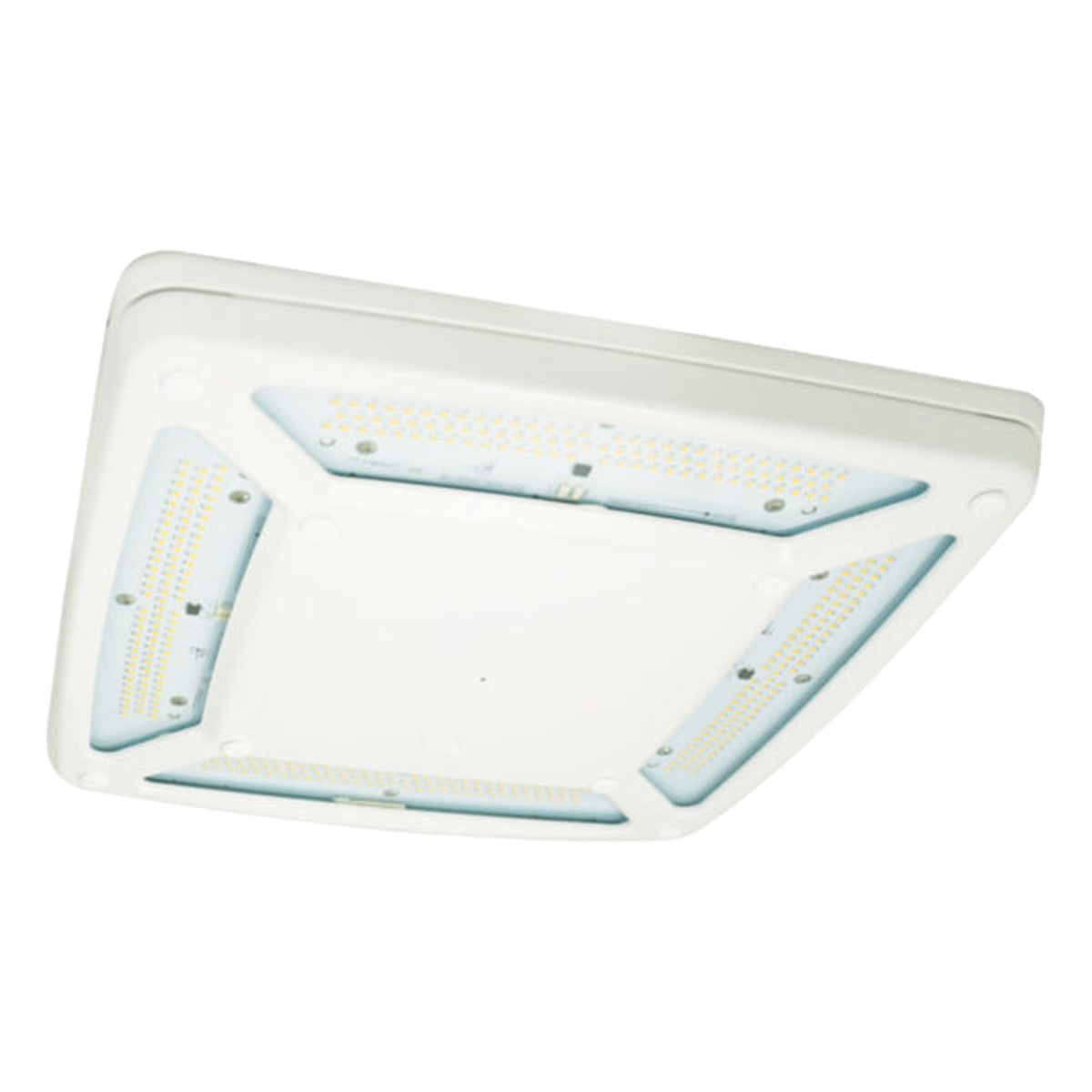

LSI SCVX-LED Scottsdale Series LED Canopy Light — 63W/82W/98W/132W/152W/161W, 5000K, 120-277V Series
The LSI SCVX-LED Scottsdale series is a commercial-grade LED canopy light engineered for petroleum stations, convenience stores, and commercial drive-thrus. Available in six wattage configurations — 63W (9,887 lm), 82W (13,150 lm), 98W (14,921 lm), 132W (20,599 lm), 152W (23,251 lm), and 161W Forward Throw (23,234 lm) — all models deliver crisp 5000K illumination on a universal 120-277V driver. Finished in White aluminum with a protective glass lens, IP66 rated, DLC Premium qualified, BAA compliant, and made to order with a 5-year warranty.
Key Features
- Wattage Options: Six configurations from 63W to 161W to match exact site lumen requirements without over-lighting.
- Distribution Options: Symmetric (SC) for uniform 360° canopy coverage; Forward Throw (SCFT) for directional illumination at canopy edges and drive-thru lanes.
- Color Temperature: 5000K crisp daylight for maximum visibility and safety at fueling stations.
- Input Voltage: Universal 120-277V for standard commercial electrical infrastructure.
- Lens Type: Protective glass lens for long-term optical clarity and debris resistance.
- Housing Material: Die-cast aluminum with White powder coat finish.
- Environmental Rating: IP66 rated — fully sealed against dust ingress and high-pressure water jets.
- Lifespan: 100,000-hour L70 rated LED lifespan for minimal maintenance.
- CRI: 80+ for accurate color rendering in commercial environments.
- Certifications: DLC Premium qualified, BAA (Buy American Act) compliant, UL Listed.
- Warranty: 5-year limited manufacturer warranty.
- Availability: Made to order — ships in 1–2 business days lead time.
Typical Applications
- Petroleum and gas station canopies.
- Convenience store (C-Store) exteriors.
- Bank and fast-food drive-thru lanes.
- Commercial walkways and covered entryways.
- Loading docks and covered parking structures.
Performance & Light Output
All SCVX-LED models deliver 5000K daylight illumination with CRI 80+ through a flat glass lens for smooth, uniform light distribution. The Symmetric (SC) distribution provides even 360° coverage ideal for center-canopy positions; the Forward Throw (SCFT) option directs light toward canopy edges and drive-thru lanes. Per-model performance breakdown:
- SCVX-LED-10L-SC — 63W / 120-277V (Symmetric): 9,887 lumens | 157 lm/W | 16.0" × 16.0" × 7.5" H
- SCVX-LED-13L-SC — 82W / 120-277V (Symmetric): 13,150 lumens | 161 lm/W | 16.0" × 16.0" × 7.5" H
- SCVX-LED-15L-SC — 98W / 120-277V (Symmetric): 14,921 lumens | 152 lm/W | 16.0" × 16.0" × 7.5" H
- SCVX-LED-20L-SC — 132W / 120-277V (Symmetric): 20,599 lumens | 156 lm/W | 16.0" × 16.0" × 7.5" H
- SCVX-LED-23L-SC — 152W / 120-277V (Symmetric): 23,251 lumens | 153 lm/W | 16.0" × 16.0" × 7.5" H
- SCVX-LED-23L-SCFT — 161W / 120-277V (Forward Throw): 23,234 lumens | 145 lm/W | 16.0" × 16.0" × 7.5" H
Electrical & Controls
All SCVX-LED models operate on a universal 120-277V input, ensuring stable power delivery and seamless integration into existing commercial electrical infrastructure. The driver configuration is engineered for long-term reliability in demanding overhead outdoor environments. Dimmable — compatible with standard 0-10V dimming controls for energy management integration.
Construction & Durability
The SCVX-LED housing is constructed from die-cast aluminum with a White powder coat finish for corrosion resistance in outdoor canopy environments. The protective glass lens shields the internal LED array from environmental elements and debris while maintaining clear, unimpeded optical performance over the fixture’s 100,000-hour lifespan. The IP66 rating ensures complete protection against dust ingress and high-pressure water jets from canopy washdowns. Dimensions: 16.0" L × 16.0" W × 7.5" H | Weight: 12 lbs (all models).
Compliance & Certifications
All SCVX-LED models are DLC Premium qualified for maximum utility rebate eligibility, BAA (Buy American Act) compliant for government and municipal projects, IP66 rated, and UL Listed. The 5-year limited manufacturer warranty covers defects in materials and workmanship. These fixtures are made to order by LSI Industries.
Installation & Mounting
The SCVX-LED installs directly into standard canopy overhead structures, supporting both new construction and retrofit applications. The streamlined form factor minimizes installation time and downtime during site upgrades. Select Symmetric (SC) distribution for center-canopy positions requiring uniform 360° coverage, or Forward Throw (SCFT) for edge positions and drive-thru lanes requiring directional illumination.
What's Included
- (1) LSI SCVX-LED Scottsdale Series LED Canopy Fixture (wattage and distribution per selection)
- Installation Instructions
