LSI SCM Series Low-Profile Canopy Light — 7,983 Lumens, 56W, 5000K, 120-277V

The LSI Scottsdale SCM series canopy luminaire provides a highly efficient lighting solution for modern petroleum stations and commercial drive-thrus. This fixture delivers 7,983 lumens while consuming only 56W on a 120-277V universal input, ensuring crisp 5000K illumination. Designed for durability and performance, the low-profile housing is built for demanding outdoor use and features a symmetric distribution pattern to maximize site safety.

Key Features

• Distribution Type: Symmetric (SC)
• Wattage: 56W
• Lumens: 7,983 Lumens
• Color Temperature: 5000K
• CRI: 70 Minimum
• Input Voltage: 120-277V (Universal)
• Dimming: 0-10V Dimming (10% - 100%)
• Lens Type: Clear Tempered Glass
• Housing: Low-profile die-cast aluminum
• Finish: White Polyester Powder Coat

Typical Applications

• Petroleum and Gas Station Canopies
• Convenience Store (C-Store) Exteriors
• Bank and Fast-Food Drive-Thrus
• Commercial Walkways and Soffits
• Industrial and Retail Loading Docks

Performance & Light Output

Equipped with a high-efficacy LED array and an integrated circuit board designed to maximize heat dissipation, this canopy light delivers 7,983 lumens with an efficacy of 145 lumens per watt. The symmetric distribution optical system pushes light smoothly and uniformly across wide areas through a clear tempered glass lens, which features a diamond pattern on one side and a smooth finish on the other for a soft focus effect. Designed for long-term reliability, the advanced LED engine ensures stable operation and a minimum 70 CRI over an extensive calculated lifespan exceeding 100,000 hours (L70).

Electrical & Controls

This luminaire operates on a standard universal 120-277V input at 50/60 Hz and features a fully potted, high-performance factory programmable driver for robust moisture resistance. Built to handle electrical anomalies, the unit includes integral surge protection that meets ANSI C82.77 Location Category C Low standards, alongside over-voltage, under-voltage, short-circuit, and over-temperature safeguards. To maximize energy efficiency and site adaptability, the driver includes standard 0-10V dimming capabilities, allowing light output adjustments from 10% to 100%. For advanced zone control and scheduling, this fixture is compatible with optional integral Bluetooth motion and photocell sensors (sold separately).

Construction & Durability

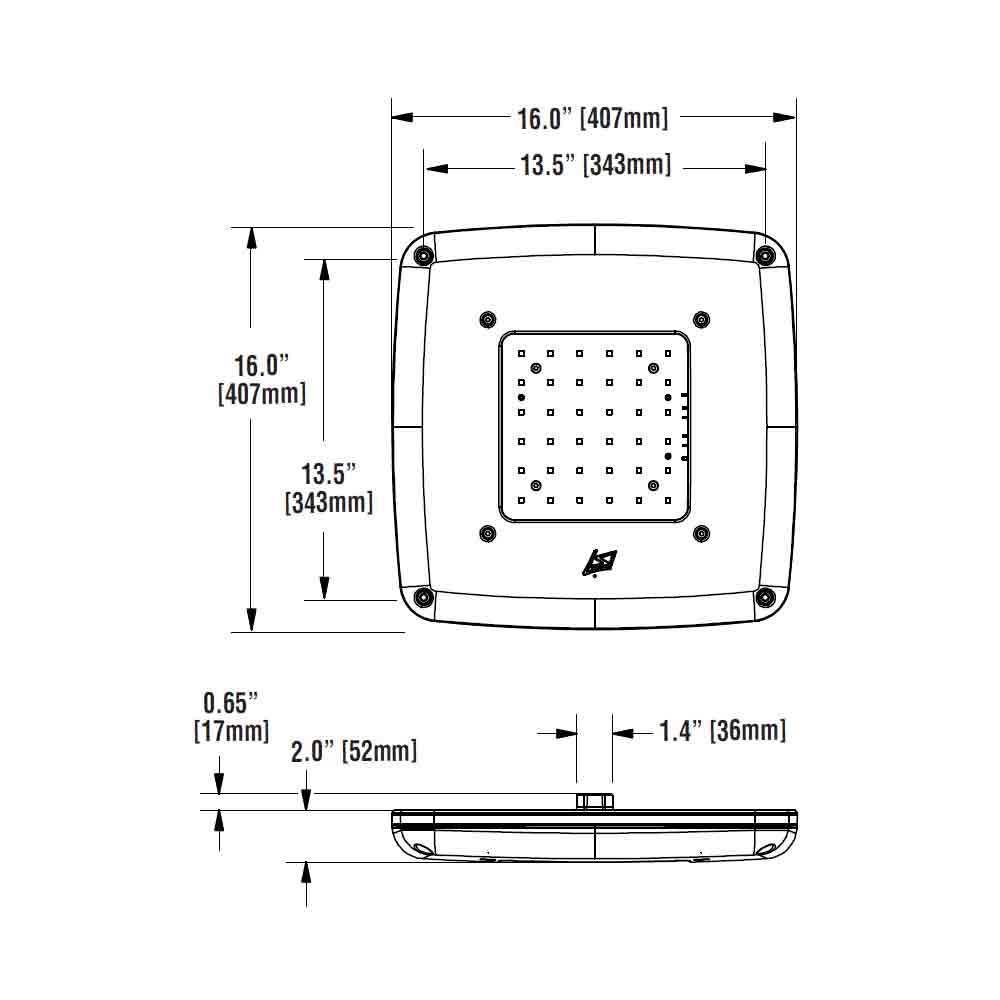

The rugged 2-inch low-profile housing is constructed from lightweight die-cast aluminum, treated with a durable white polyester powder coat finish to withstand extreme commercial outdoor conditions. Designed for maximum environmental resilience, the fixture maintains reliable operation in ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F) when mounted to metallic surfaces. The sealed optical chamber and fully encased driver components prevent ingress and ensure the long-term integrity of the fixture in demanding outdoor locations.

Installation & Mounting

Engineered for streamlined integration into existing structures, the lightweight design allows for efficient overhead surface mounting. The luminaire features an intelligent design that provides below-canopy access to both the optical chamber and driver housing, significantly reducing maintenance downtime and serviceability efforts. While standard hardware supports direct deck mounting, optional accessories like a shoebox retrofit plate or large mounting plate (sold separately) are available to expedite upgrades over existing legacy footprints.

What's Included

• (1) SCM LED Canopy Fixture
• Installation Instructions
