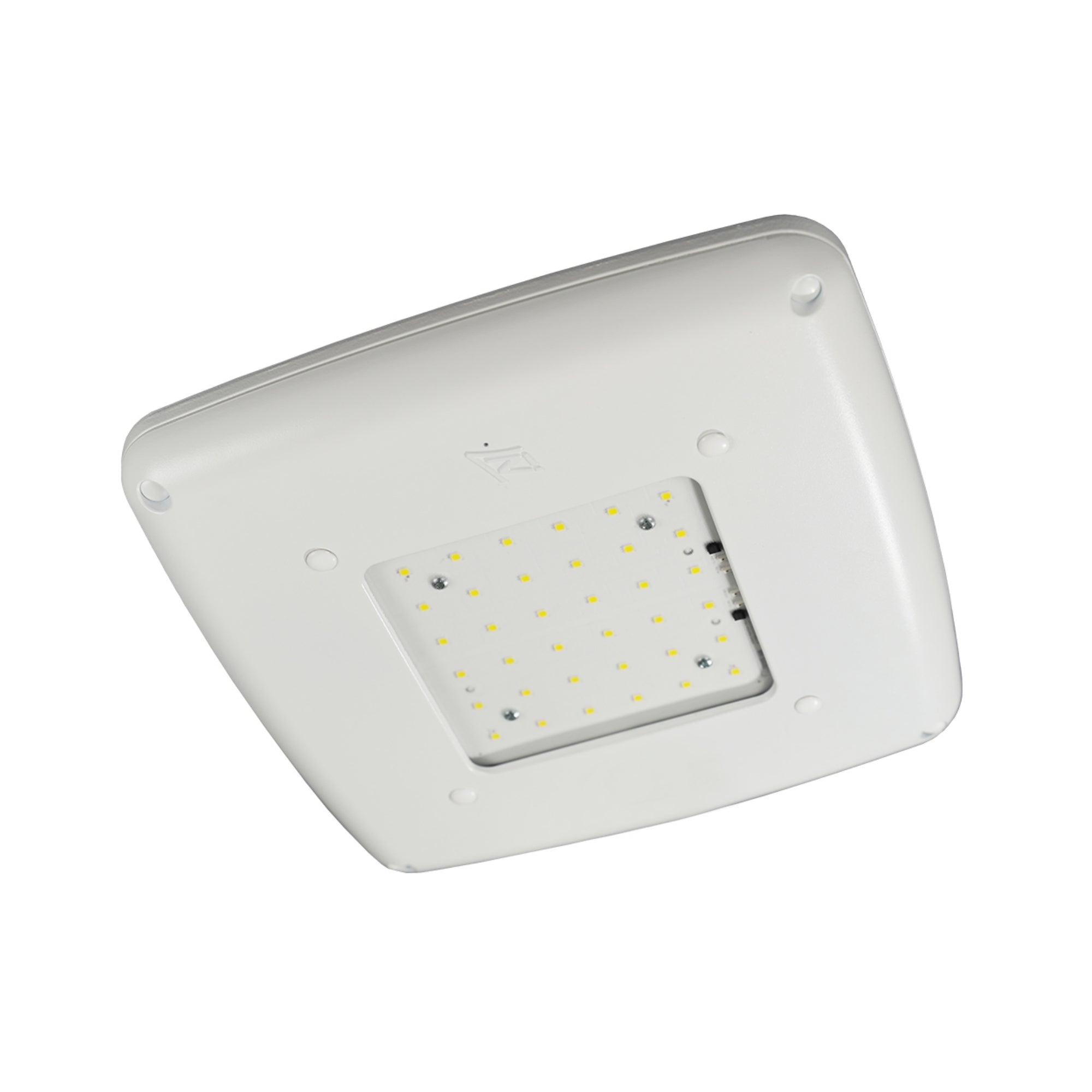

LSI SCM Series Low-Profile Canopy Light 19,989 Lumens 147W 5000K 120-277V Surface Mount White
Made to Order
About this item
About this item
- Distribution Type: Symmetric distribution directs uniform light through a clear tempered glass lens, ensuring precise illumination across gas station perimeters.
- Wattage & Lumens: 147W delivering 19,989 lumens provides specific light output to meet required site visibility and operational conditions.
- Voltage: 120-277V universal voltage input ensures standard compatibility with commercial canopy and drive-thru electrical systems.
- Mounting: Lightweight, low-profile design supports overhead surface installation with below-canopy access to the optical chamber for serviceability.
- Controls: Standard 0-10V dimming capability allows facility managers to scale light levels and control site energy usage.
We process payments securely and do not store credit card information.
Description
Description

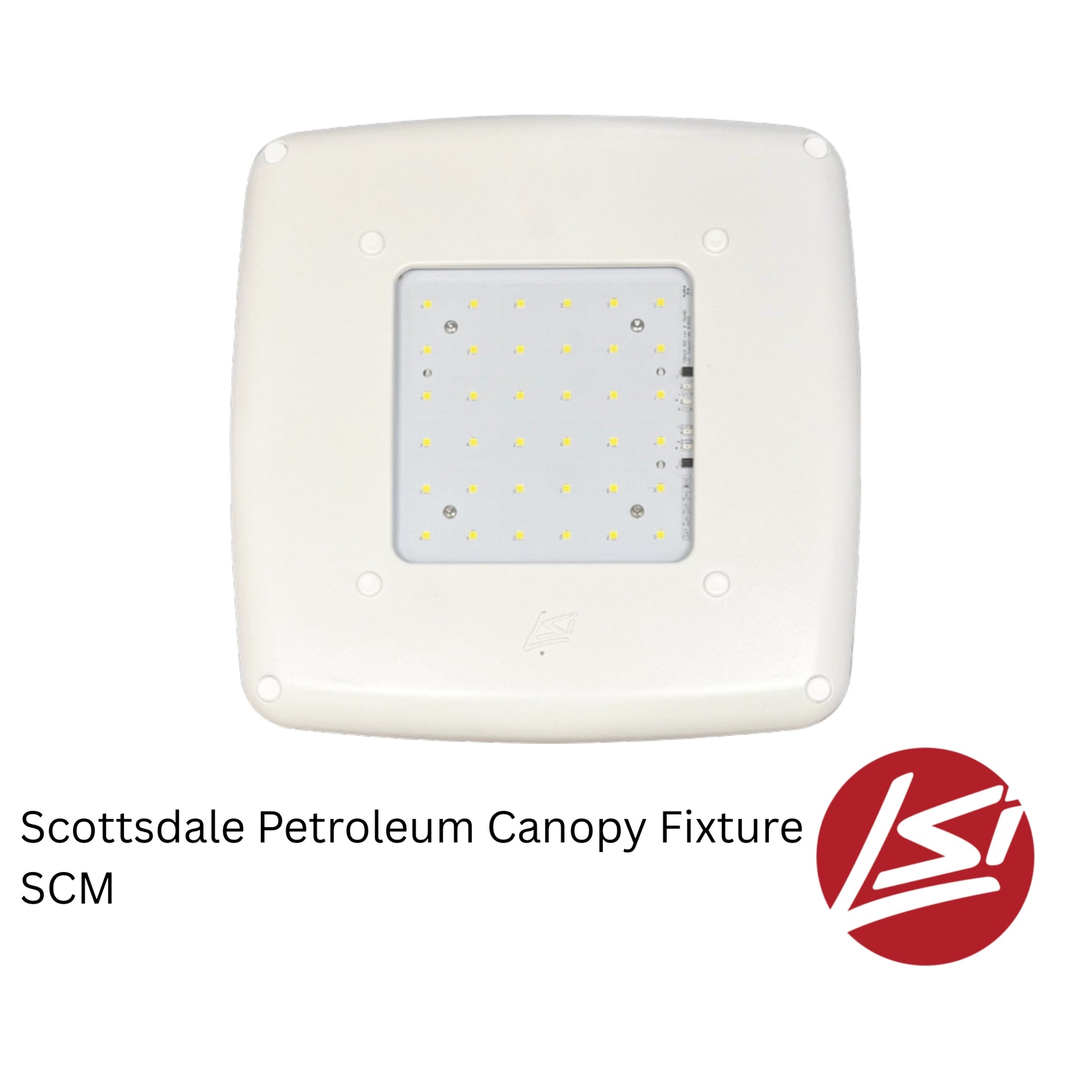

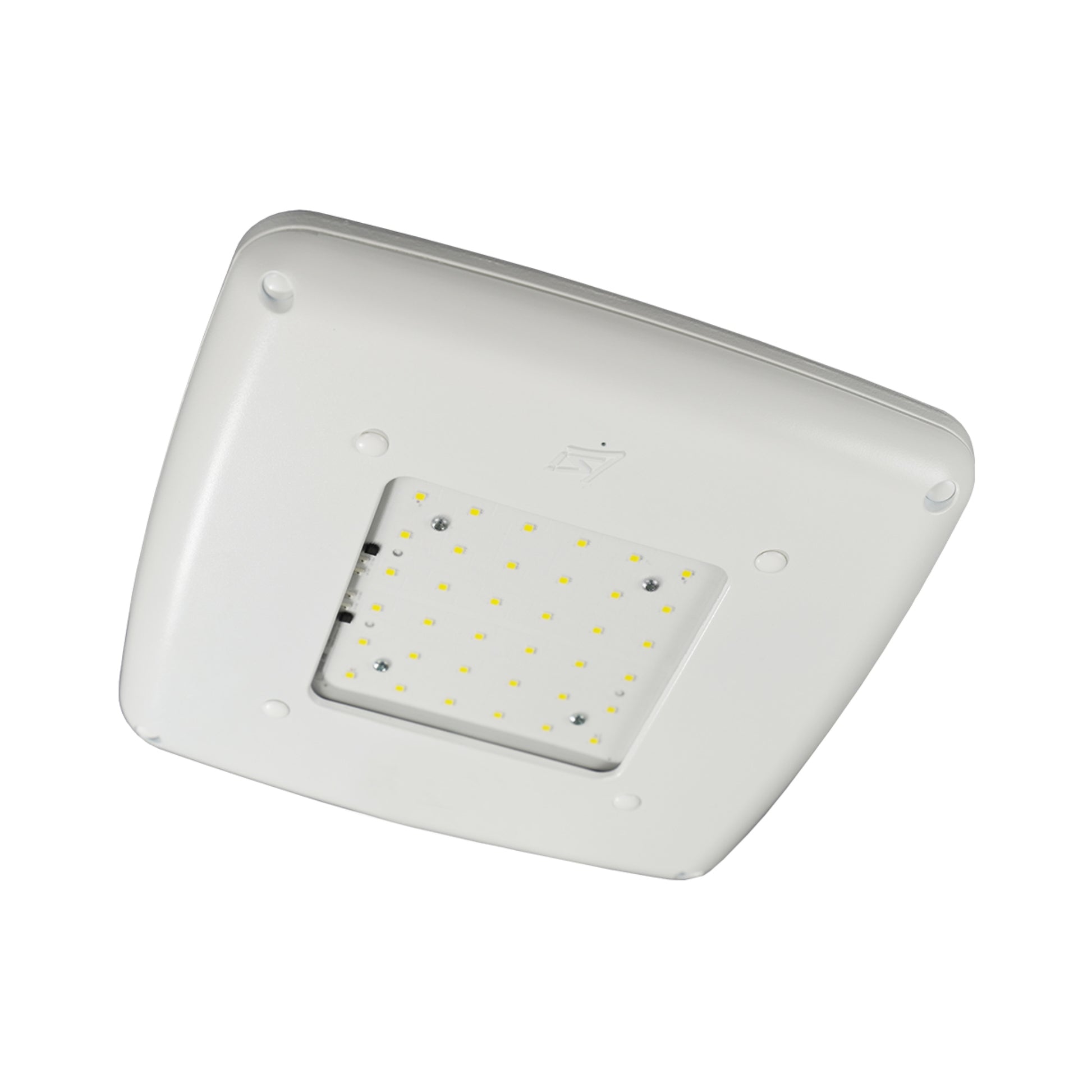

LSI SCM Series Low-Profile Canopy Light — 19,989 Lumens, 147W, 5000K, 120-277V
The LSI Scottsdale SCM series canopy luminaire provides a targeted lighting solution for petroleum stations and commercial drive-thrus. This fixture delivers 19,989 lumens and consumes 147W on a 120-277V universal input, providing 5000K illumination. The low-profile housing is built for continuous outdoor operation and features a symmetric distribution pattern to meet established site lighting requirements.
Key Features
- Distribution Type: Symmetric (SC)
- Wattage: 147W
- Lumens: 19,989 Lumens
- Color Temperature: 5000K
- CRI: 70 Minimum
- Input Voltage: 120-277V (Universal)
- Dimming: 0-10V Dimming (10% - 100%)
- Lens Type: Clear Tempered Glass
- Housing: Low-profile die-cast aluminum
- Finish: White Polyester Powder Coat
Typical Applications

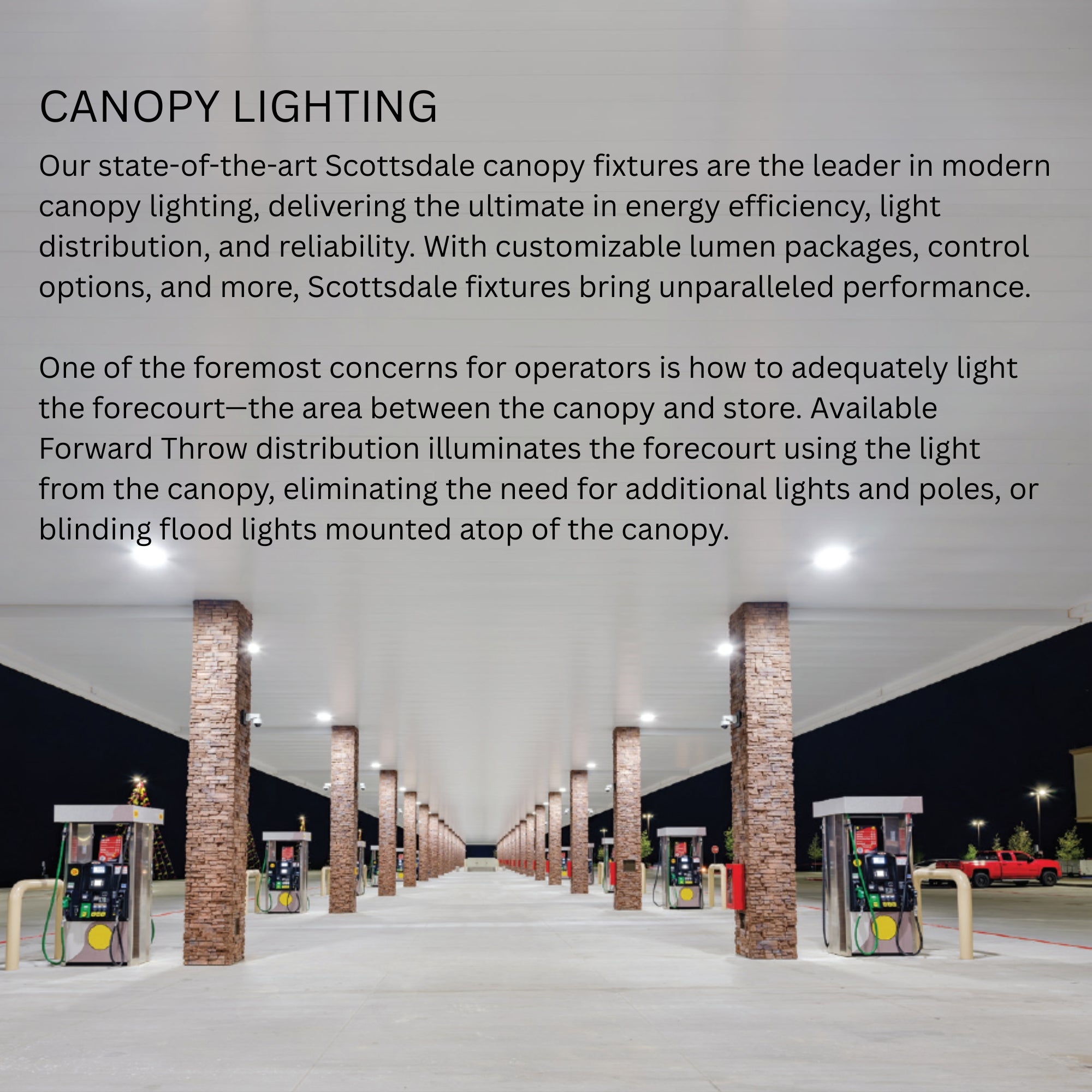

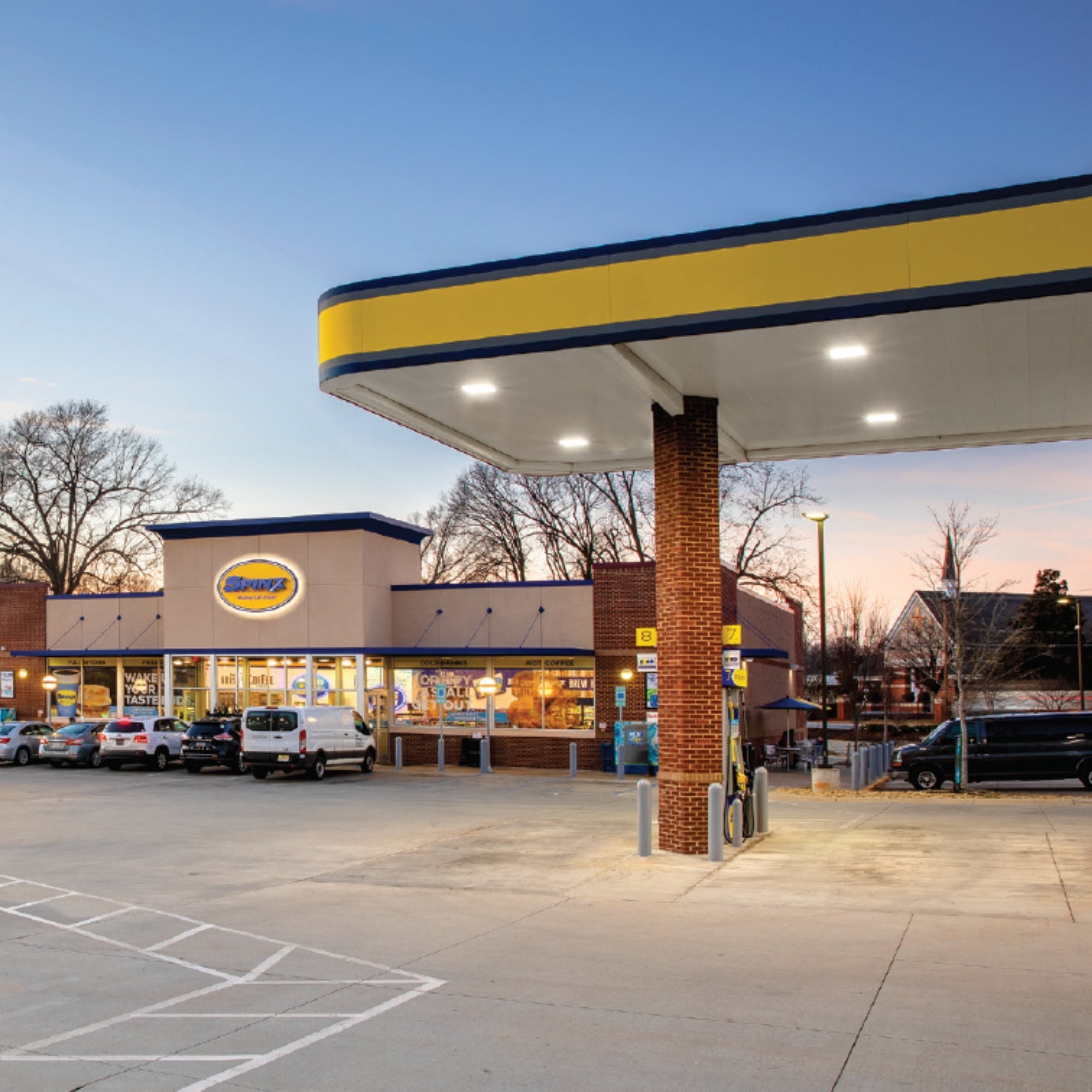

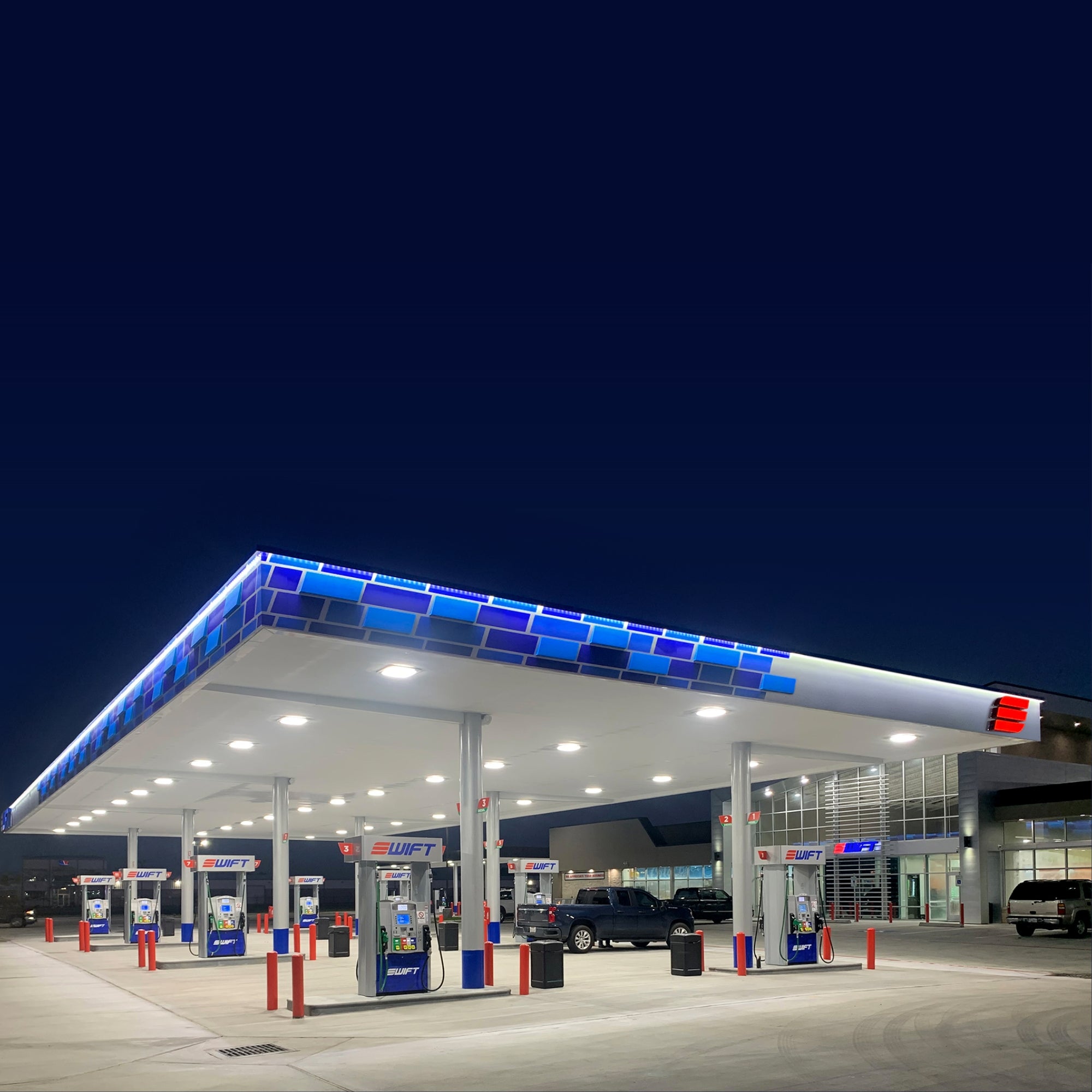

- Petroleum and Gas Station Canopies
- Convenience Store (C-Store) Exteriors
- Bank and Fast-Food Drive-Thrus
- Commercial Walkways and Soffits
- Industrial and Retail Loading Docks
Performance & Light Output
Equipped with a high-efficacy LED array and an integrated circuit board designed to maximize heat dissipation, this canopy light delivers 19,989 lumens with a calculated efficacy of 137 lumens per watt. The symmetric distribution optical system pushes light uniformly across wide areas through a clear tempered glass lens, which features a diamond pattern on one side and a smooth finish on the other for a soft focus effect. The advanced LED engine ensures stable operation and a minimum 70 CRI over an extensive calculated lifespan exceeding 100,000 hours (L70).
Electrical & Controls
This luminaire operates on a standard universal 120-277V input at 50/60 Hz and features a fully potted, high-performance factory programmable driver for moisture resistance. Built to handle electrical anomalies, the unit includes integral surge protection that meets ANSI C82.77 Location Category C Low standards, alongside over-voltage, under-voltage, short-circuit, and over-temperature safeguards. To maximize energy efficiency, the driver includes standard 0-10V dimming capabilities, allowing light output adjustments from 10% to 100%. For advanced zone control and scheduling, this fixture is compatible with optional integral Bluetooth motion and photocell sensors (sold separately).
Construction & Durability

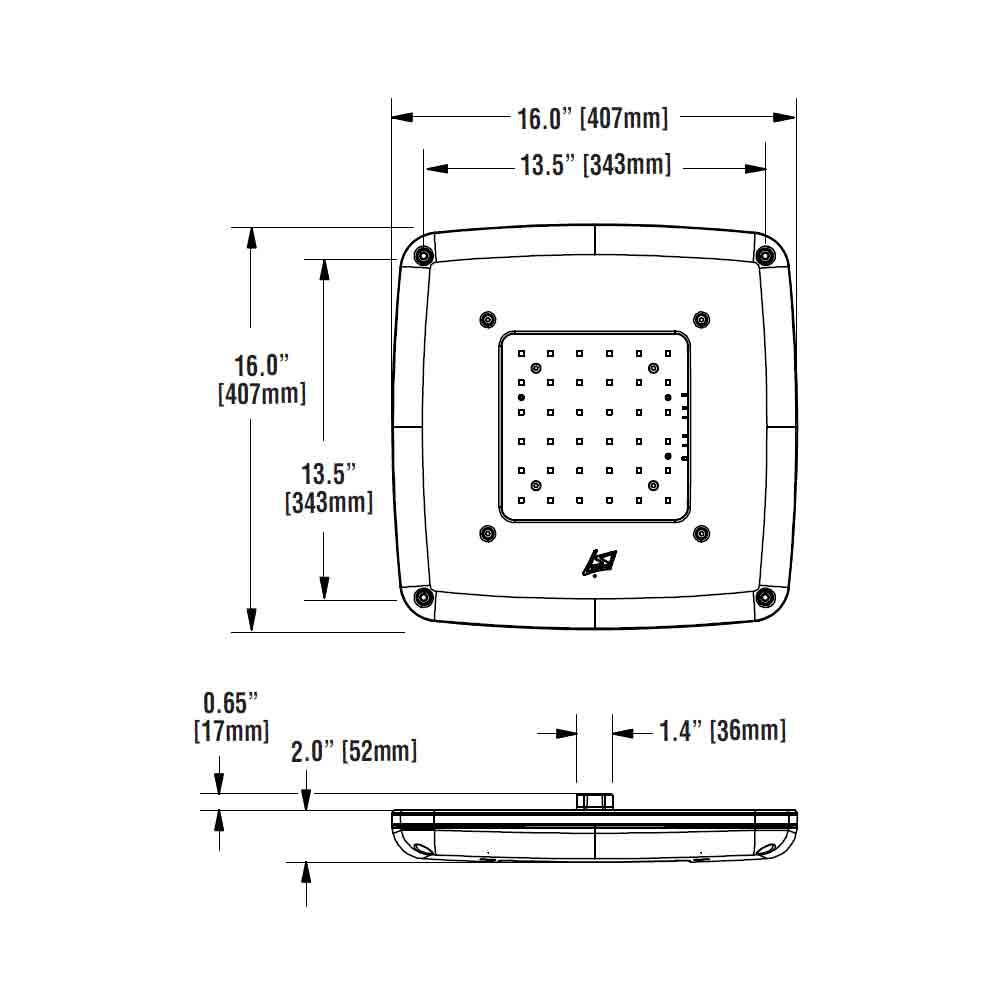

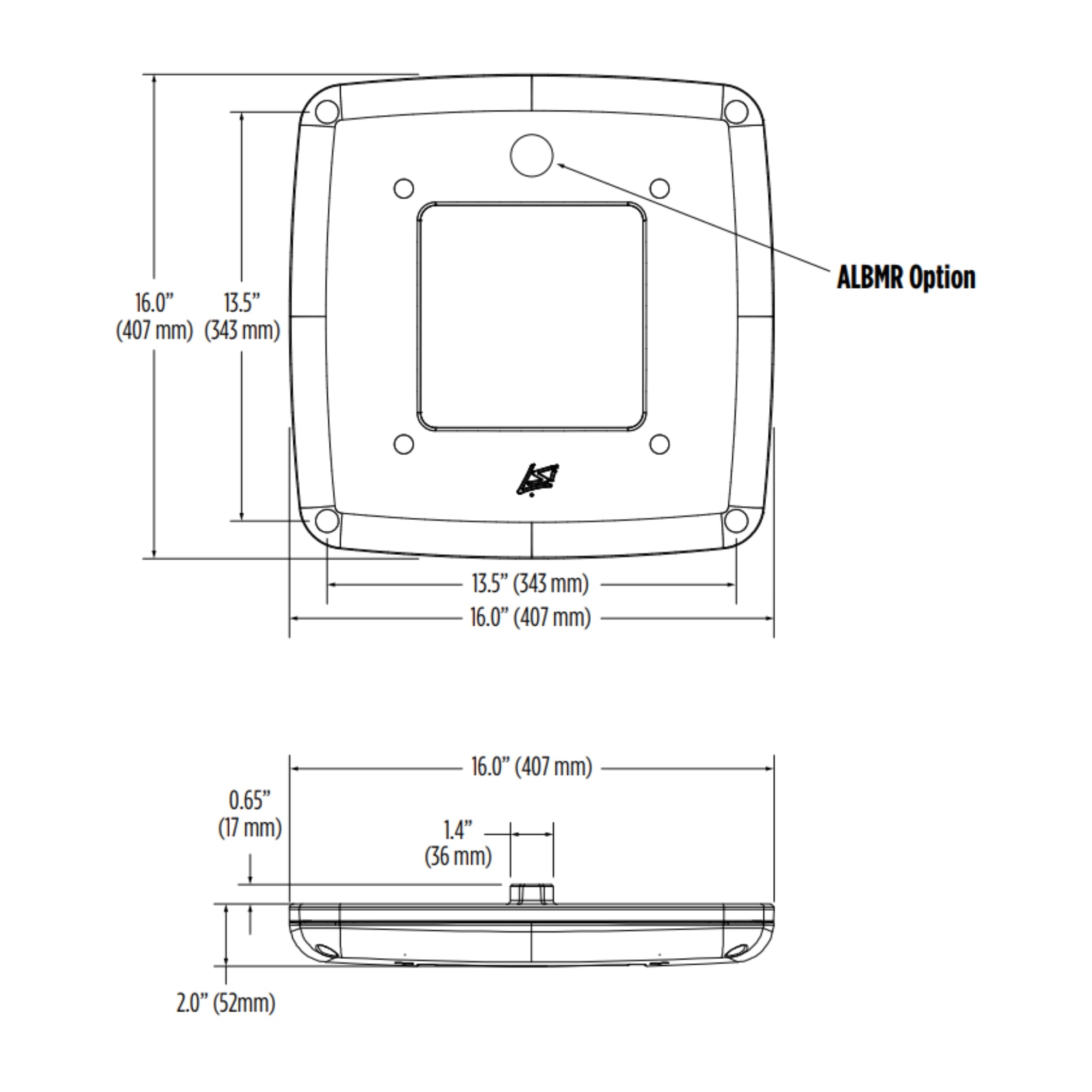

The rugged 2-inch low-profile housing is constructed from lightweight die-cast aluminum, treated with a white polyester powder coat finish to withstand commercial outdoor conditions. Designed for environmental resilience, the fixture maintains reliable operation in ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F) when mounted to metallic surfaces. The sealed optical chamber and fully encased driver components prevent ingress and ensure the long-term integrity of the fixture in demanding outdoor locations.
Installation & Mounting

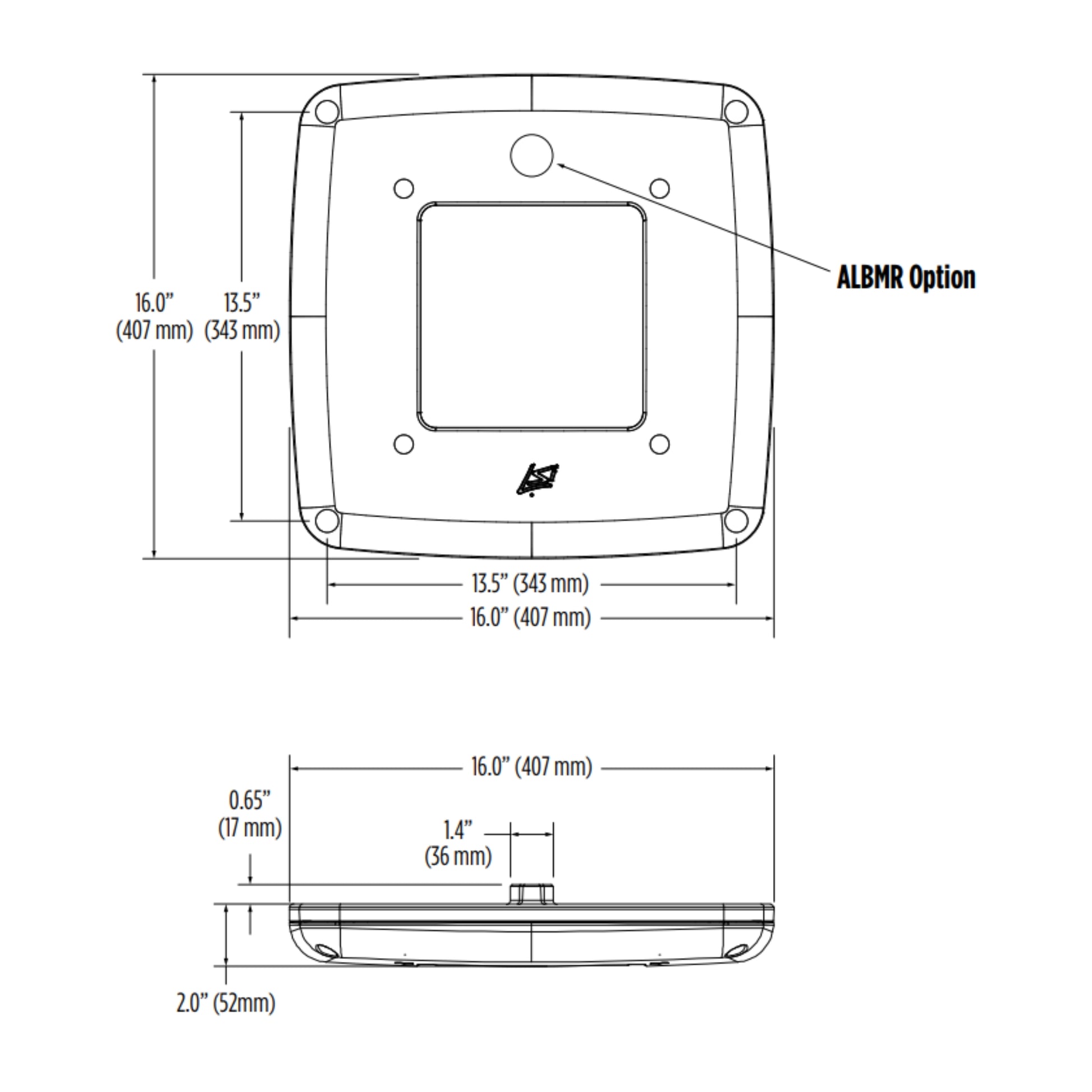

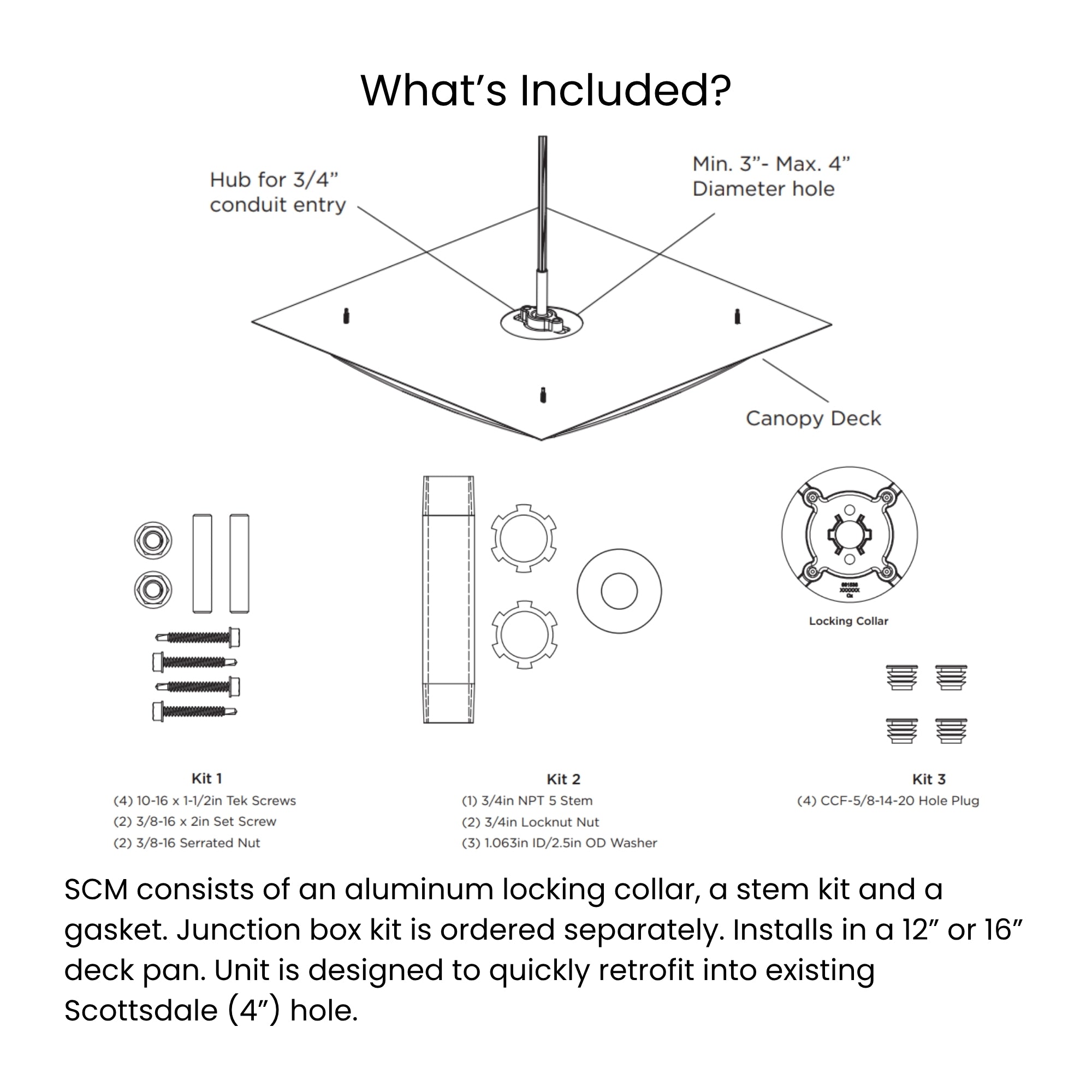

Engineered for streamlined integration into existing structures, the lightweight design allows for efficient overhead surface mounting. The luminaire features a design that provides below-canopy access to both the optical chamber and driver housing, reducing maintenance downtime and serviceability efforts. While standard hardware supports direct deck mounting, optional accessories like a shoebox retrofit plate or large mounting plate (sold separately) are available to expedite upgrades over existing legacy footprints.
What's Included
- (1) SCM LED Canopy Fixture
- Installation Instructions
