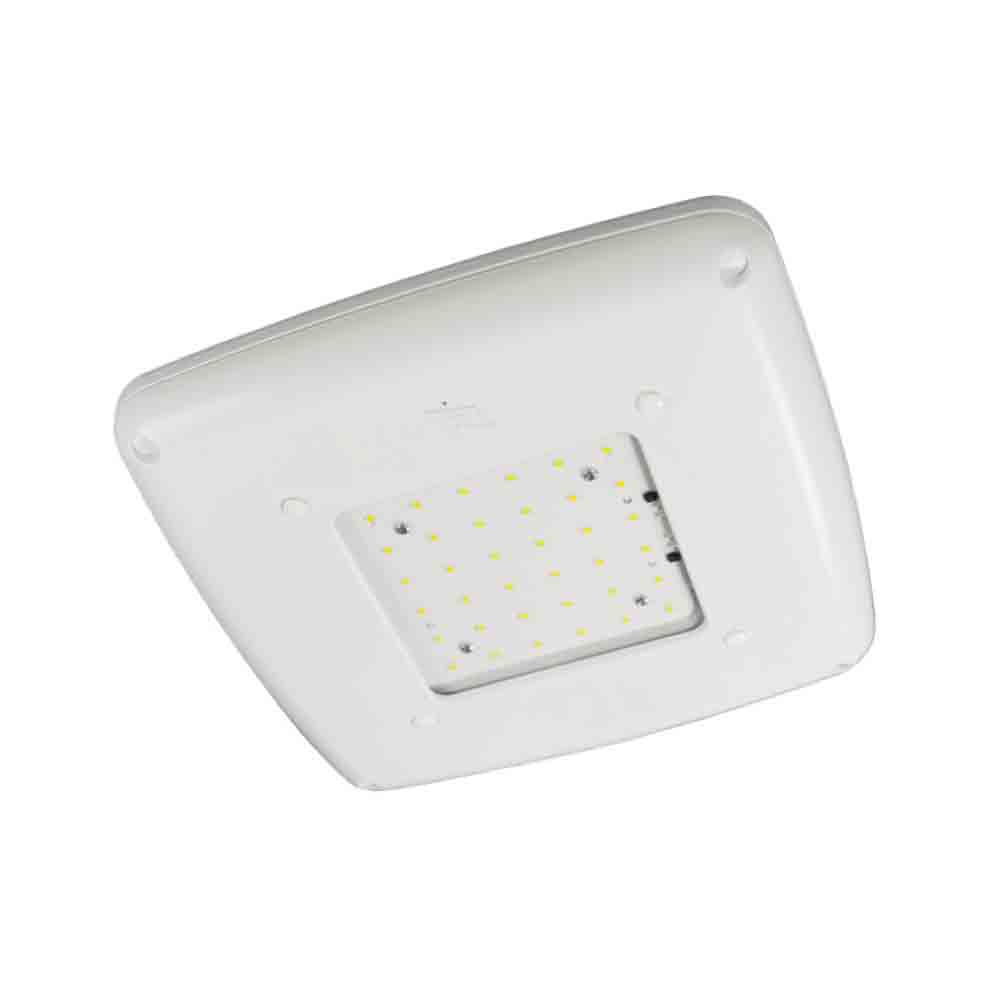

LSI SCM Series Low-Profile Canopy Light — 13,039 Lumens, 86W, 5000K, 120-277V

The LSI Scottsdale SCM series canopy luminaire provides a targeted lighting solution for petroleum stations and commercial drive-thrus. This fixture delivers 13,039 lumens and consumes 86W on a 120-277V universal input, providing 5000K illumination. The low-profile housing is built for continuous outdoor operation and features a symmetric distribution pattern to meet established site lighting requirements.

Key Features

• Distribution Type: Symmetric (SC)
• Wattage: 86W
• Lumens: 13,039 Lumens
• Color Temperature: 5000K
• CRI: 70 Minimum
• Input Voltage: 120-277V (Universal)
• Dimming: 0-10V Dimming (10% - 100%)
• Lens Type: Clear Tempered Glass
• Housing: Low-profile die-cast aluminum
• Finish: White Polyester Powder Coat

Typical Applications

• Petroleum and Gas Station Canopies
• Convenience Store (C-Store) Exteriors
• Bank and Fast-Food Drive-Thrus
• Commercial Walkways and Soffits
• Industrial and Retail Loading Docks

Performance & Light Output

Equipped with a high-efficacy LED array and an integrated circuit board designed to maximize heat dissipation, this canopy light delivers 13,039 lumens with a calculated efficacy of 153 lumens per watt. The symmetric distribution optical system pushes light uniformly across wide areas through a clear tempered glass lens, which features a diamond pattern on one side and a smooth finish on the other for a soft focus effect. The advanced LED engine ensures stable operation and a minimum 70 CRI over an extensive calculated lifespan exceeding 100,000 hours (L70).

Electrical & Controls

This luminaire operates on a standard universal 120-277V input at 50/60 Hz and features a fully potted, high-performance factory programmable driver for moisture resistance. Built to handle electrical anomalies, the unit includes integral surge protection that meets ANSI C82.77 Location Category C Low standards, alongside over-voltage, under-voltage, short-circuit, and over-temperature safeguards. To maximize energy efficiency, the driver includes standard 0-10V dimming capabilities, allowing light output adjustments from 10% to 100%. For advanced zone control and scheduling, this fixture is compatible with optional integral Bluetooth motion and photocell sensors (sold separately).

Construction & Durability

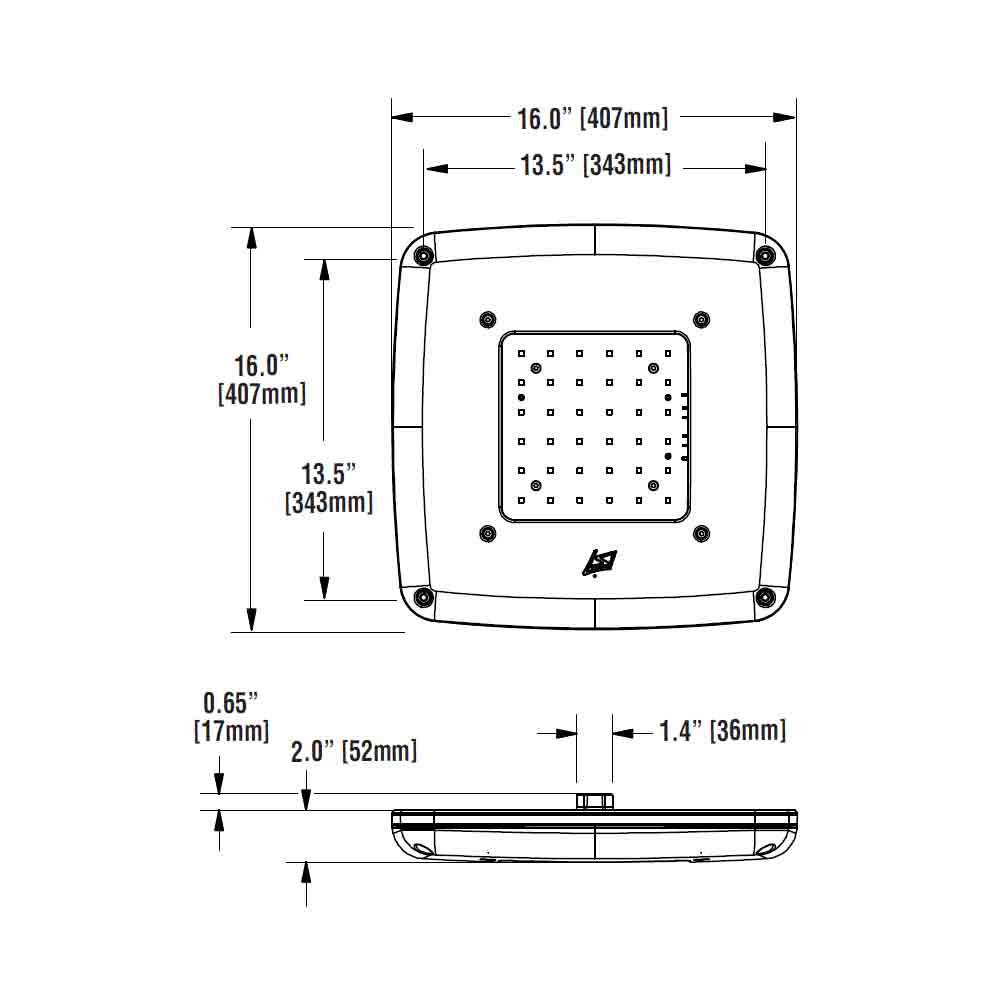

The rugged 2-inch low-profile housing is constructed from lightweight die-cast aluminum, treated with a white polyester powder coat finish to withstand commercial outdoor conditions. Designed for environmental resilience, the fixture maintains reliable operation in ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F) when mounted to metallic surfaces. The sealed optical chamber and fully encased driver components prevent ingress and ensure the long-term integrity of the fixture in demanding outdoor locations.

Installation & Mounting

Engineered for streamlined integration into existing structures, the lightweight design allows for efficient overhead surface mounting. The luminaire features a design that provides below-canopy access to both the optical chamber and driver housing, reducing maintenance downtime and serviceability efforts. While standard hardware supports direct deck mounting, optional accessories like a shoebox retrofit plate or large mounting plate (sold separately) are available to expedite upgrades over existing legacy footprints.

What's Included

• (1) SCM LED Canopy Fixture
• Installation Instructions
